Rock Slider Clearance with Pinch Seams

Discussion in 'Armor' started by PagodaTron, Sep 19, 2020.

  1. Sep 19, 2020 at 9:06 AM
    #1
    PagodaTron

    PagodaTron [OP] New Member

    Joined:
    Sep 19, 2020
    Member:
    #341245
    Messages:
    4
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2020 DCSB TRD OR
    Just got some CBI bolt on sliders for my third gen and ran into some clearance issues on the passenger side. The slider contacts the pinch seam up front. Currently working the issue with CBI, but was curious what gaps others have between the pinch seams and the cross members that extend from the frame. I'm pretty new to this, so wasn't sure what kind of deflection could be expected. On the driver side, I'm sitting around 5/8 in. and even more on the forward most cross member. When I had the passenger side up, it was more like 1/2 in. and slightly less on the forward most cross member.


  2. Oct 3, 2020 at 11:29 AM
    #2
    telemonta

    telemonta Active Member

    Joined:
    Aug 9, 2020
    Member:
    #337086
    Messages:
    33
    Vehicle:
    Tacoma Double Cab OffRoad
    Audio, Lights, Armor, TBD
    I don’t have a specific reply but did you get these parts and what are they for?


    indoomitable likes this.
  3. Oct 3, 2020 at 11:33 AM
    #3
    jruiz555

    jruiz555 Well-Known Member

    Joined:
    Jan 12, 2019
    Member:
    #279080
    Messages:
    1,133
    Gender:
    Male
    I had the issues with another brand bolt on. I used thick washer to lower it a bit. I was hitting when over bumps.

  4. Oct 7, 2020 at 6:31 PM
    #4
    PagodaTron

    PagodaTron [OP] New Member

    Joined:
    Sep 19, 2020
    Member:
    #341245
    Messages:
    4
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2020 DCSB TRD OR
    I did not get those parts with the CBI sliders that I installed.

  5. Oct 7, 2020 at 6:41 PM
    #5
    PagodaTron

    PagodaTron [OP] New Member

    Joined:
    Sep 19, 2020
    Member:
    #341245
    Messages:
    4
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2020 DCSB TRD OR
    I was able to loosely mount the slider, and apply some load to pull the front of the slider down. I locked in the position by first tightening the forward most bolt and then tightened the remaining bolts. This created a gap underneath the crossmember mount and CBI provide some plate spacers that I used. I have good clearance now between the slider and pinch seam.

    jruiz555[QUOTED] likes this.
  6. Oct 8, 2020 at 9:55 AM
    #6
    indoomitable

    indoomitable Baby-steppin' down the stairs

    Joined:
    Dec 7, 2019
    Member:
    #312775
    Messages:
    941
    Gender:
    Male
    Texas
    Vehicle:
    2018 OR 4x4 DCSB
    Sorry, these arent the best references but best I can do. Also, I have Mobtown Offroad sliders and not CBI, but I think those parts are bolts welded to long handled washers that get installed inside the frame at the transmission crossmember.

    Basically you feed that bolt with long handled washer into the frame until you get the bolt to pop out of the hole in the pic circle below. The handle just lets you keep a grip on it while feeding it into the frame.

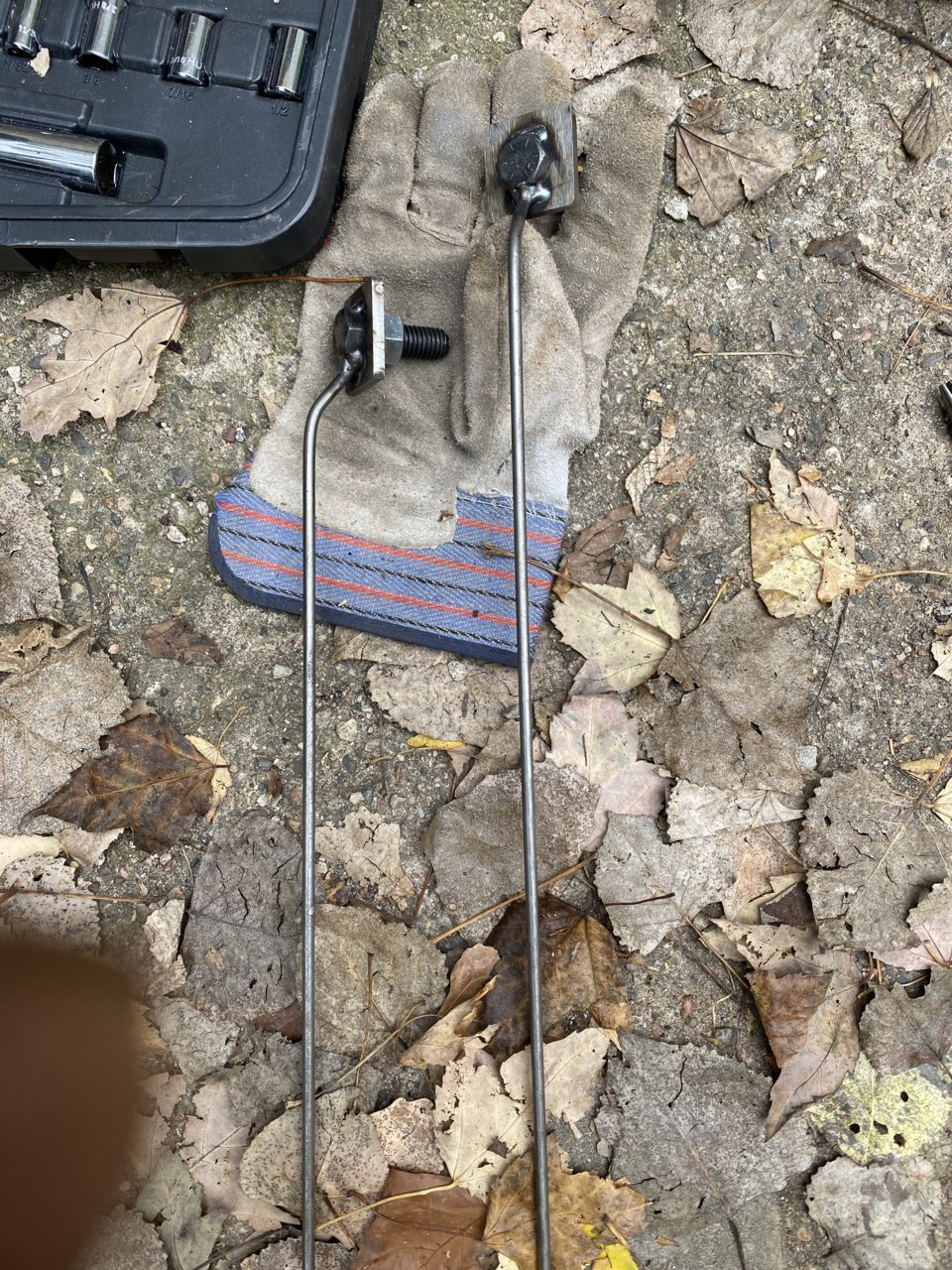

    Bolt with long handled washer from Mobtown:

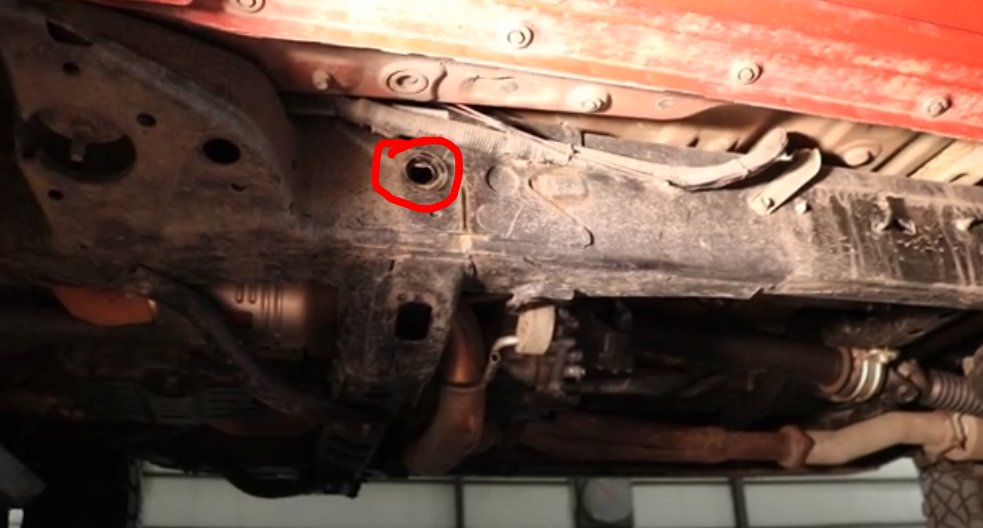

    Driver side view, looking at transmission crossmember hole location circled in red. There might be a sticker covering the hole up:

  7. Oct 8, 2020 at 10:30 AM
    #7
    jruiz555

    jruiz555 Well-Known Member

    Joined:
    Jan 12, 2019
    Member:
    #279080
    Messages:
    1,133
    Gender:
    Male
    yea you need a good amount of clearance so that the sliders dont hit the cab. the cab is moving around all the time, and the mounts are rubber so everytime you hit a bump or have the cab loaded down with weight you will hit the sliders on a bump. i would try to get at least half an inch from the cab to the sliders.

    uploadadventure likes this.
  8. Oct 24, 2020 at 9:23 PM
    #8
    telemonta

    telemonta Active Member

    Joined:
    Aug 9, 2020
    Member:
    #337086
    Messages:
    33
    Vehicle:
    Tacoma Double Cab OffRoad
    Audio, Lights, Armor, TBD
    Would love to see the spacers, I have a similar issue with clearance, probably 1/4 in.

  9. Oct 24, 2020 at 9:24 PM
    #9
    telemonta

    telemonta Active Member

    Joined:
    Aug 9, 2020
    Member:
    #337086
    Messages:
    33
    Vehicle:
    Tacoma Double Cab OffRoad
    Audio, Lights, Armor, TBD
    Do you have Picts with spacers of spacers and new clearance

  10. Oct 30, 2020 at 12:54 PM
    #10
    PagodaTron

    PagodaTron [OP] New Member

    Joined:
    Sep 19, 2020
    Member:
    #341245
    Messages:
    4
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2020 DCSB TRD OR

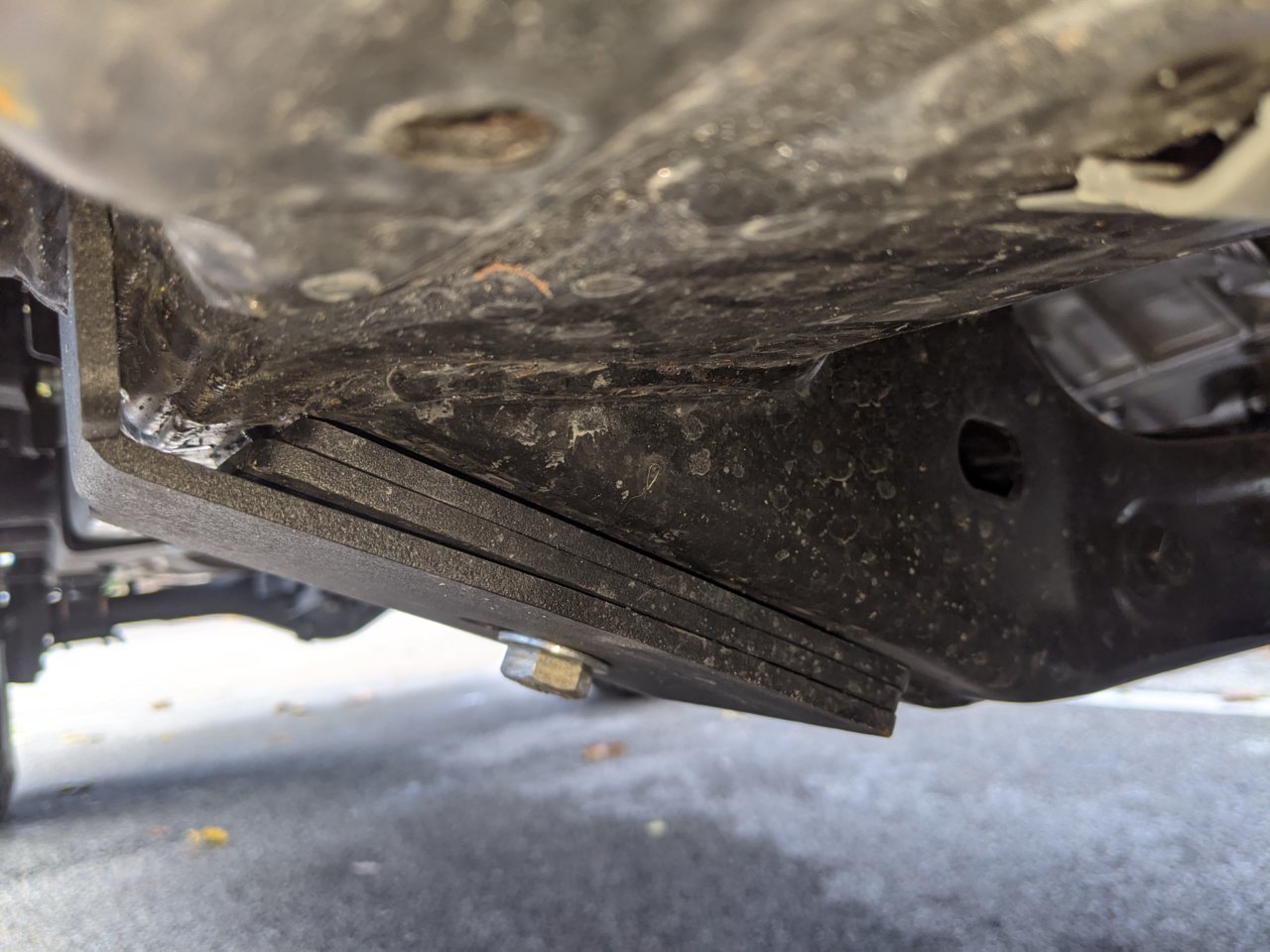

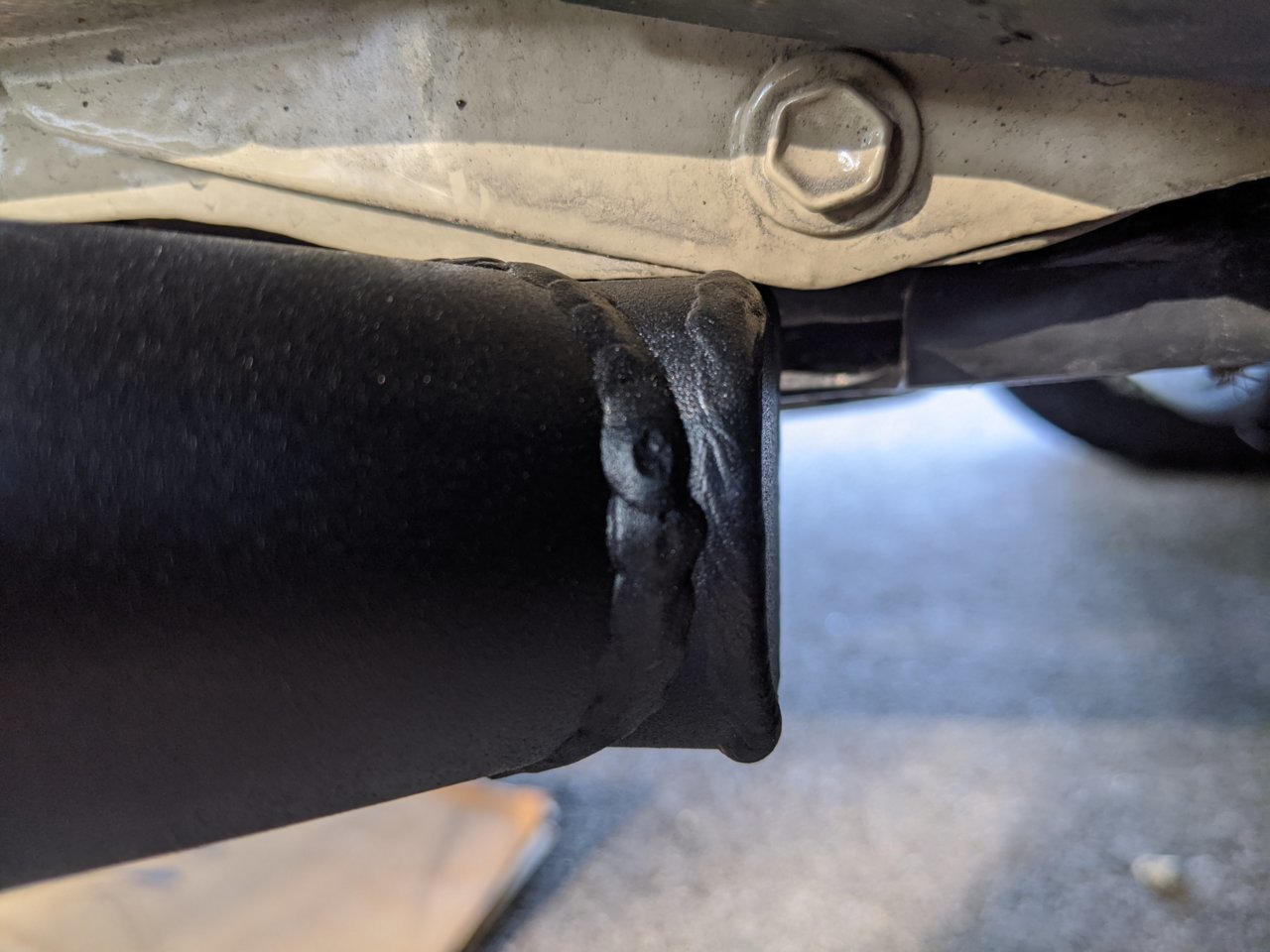

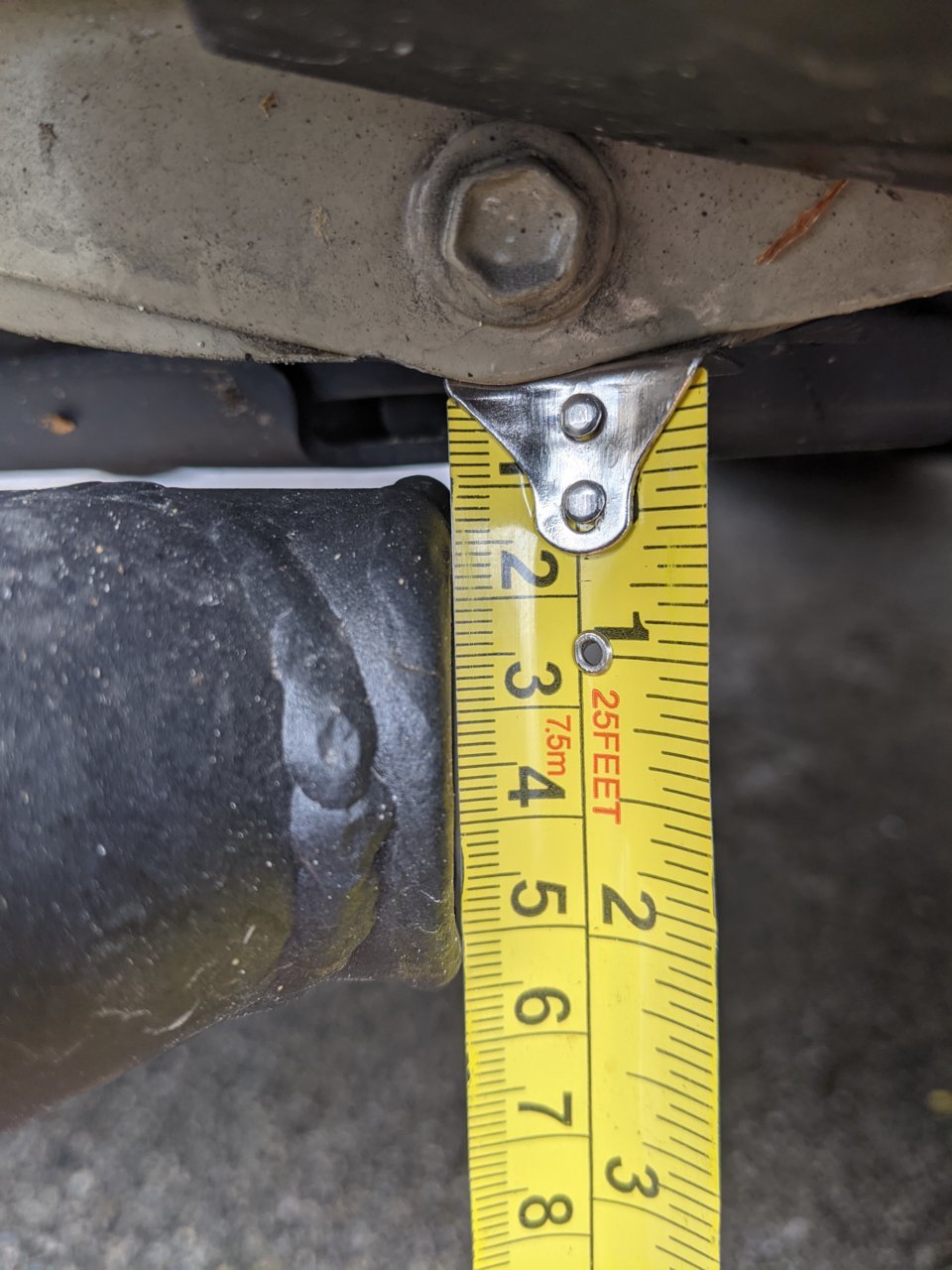

    I have about 10mm clearance. Also included some pics of the two spacer plates under the cross member.

    PXL_20201030_191756185.jpg PXL_20201030_191955746.jpg

  11. Oct 31, 2020 at 7:41 AM
    #11
    telemonta

    telemonta Active Member

    Joined:
    Aug 9, 2020
    Member:
    #337086
    Messages:
    33
    Vehicle:
    Tacoma Double Cab OffRoad
    Audio, Lights, Armor, TBD
    Thanks for the update, I’ll have to measure mine and give a check. I appreciate you taking time to send the update! Have a happy Halloween
