Discussion in '3rd Gen. Tacomas (2016-2023)' started by tonered, Apr 25, 2022.

Page 1 of 24
  1. Apr 25, 2022 at 11:42 AM
    #1
    tonered

    #1
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Hey, Folks.

    As many of us know, there is no aftermarket replacement for our crappy stock body mounts. Well, Rogue Offroad ( www.rogue-offroad.com ) has a kit. @Despized is offering a second round on the Group Buy if we can get 15 folks.

    Here's the kit:
    https://rogue-offroad.com/ROGUEENERGY-Body-Mount-Set_p_19366.html

    The GB cost is $175 plus shipping for the kit. Comes with the bushings for the whole cab, washers, and diamond plates. Everything you see in the link above, except the finish on the diamond plates with be powder coat instead of plated.


    A group of us met Shawn / @Despized on a road trip. He spent a couple hours just chatting with us. Killer shop and just amazing toys, including that S/C'ed and carbon bodied Taco.

    Please let me know if you want to be added.

    Thanks!


    Rogue Offroad Body Mount Kit Group Buy list:


    Round 2 Hopefuls. 15 Folks are the minimum.

    1. @jayrome
    2. @the.shelbysaurus
    3. @Lateralus01
    4. @calmlock
    5. @The
    6. @Sociopenguin
    7. @andagi808
    8. @Metric Rider
    9. @erok81
    10. @stay_tuned
    11. @Cpngo
    12. @Mindgame
    13. @2ski4life7
    14. @Empty_Lord
    15. @msgs350
    16. @Ehahn84
    17. @Breknraj
    18. @HelloFelix
    19. @CasualGearhead


    Round 1 Winners:

    Installation Details:

    The installation instructions are attached along with the torque specs for body parts.

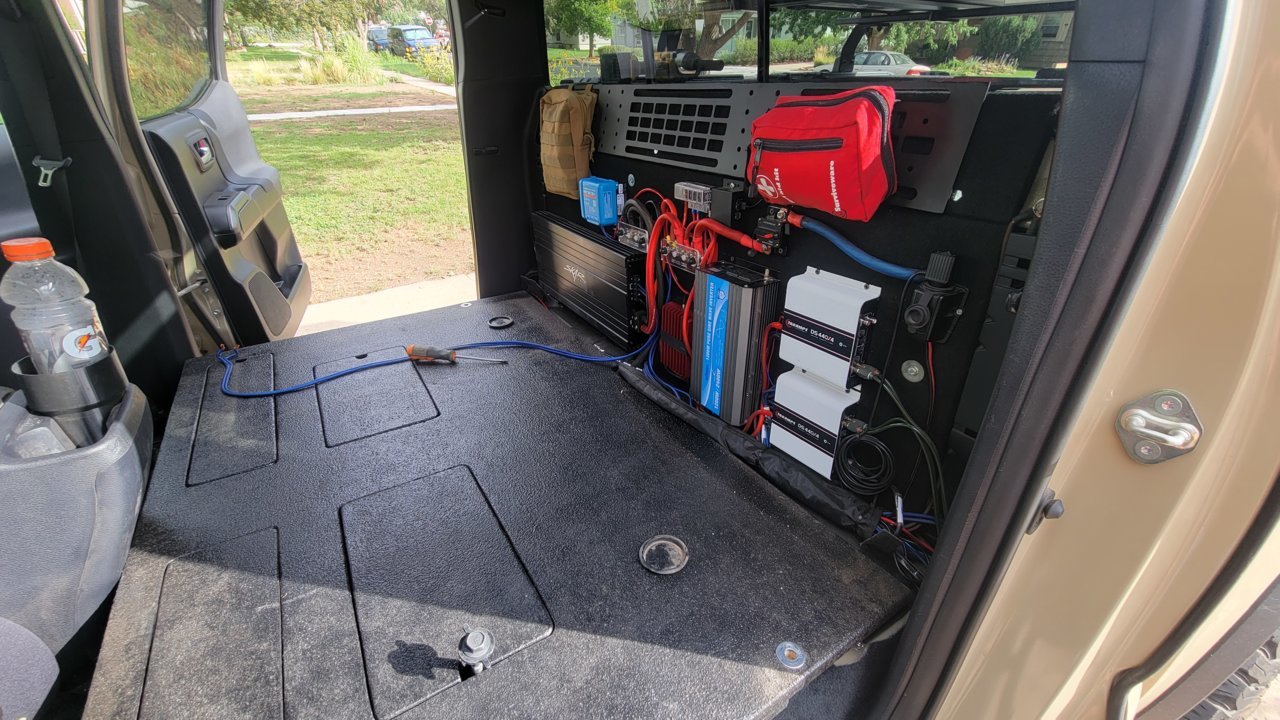

    For ACLB Tacos, only the rear seat bottoms need to be removed. No need to touch the rear panel.

    For DCSB and DCLB Tacos, see the attached Diff Whine TSB for rear body mount access. <---- Sorry. Strikethrough seems to have disappeared. This is not necessary. I am removing that TSB. There are two carpet flaps in the small pocket outboard of the rear seats. If you pick these flaps up, the Body Mount bolt cap is right there. Zero need to pull the interior back panel. This greatly simplifies the installation.

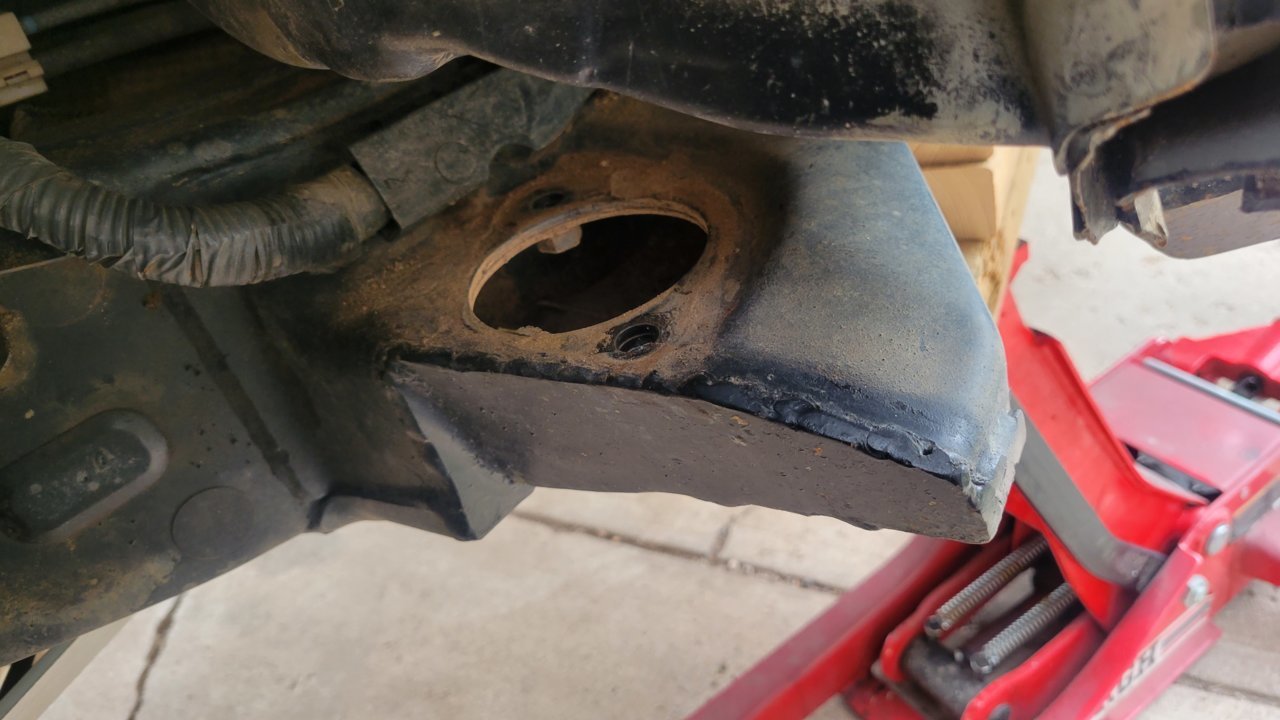

    Here's @MountainManGuy 's installation post:


    Here are my posts about the front ABS harnesses and some installation info:




    There is a video on the Energy site:
    https://teamenergysuspension.com/20...nsion-toyota-tacoma-body-mount-install-video/

    It is not hard at all once you see what is going on.

    These would be my notes:

    -- Pull the four front wheel well skirts. Either the top or bottom push fasteners. It doesn't matter.
    -- Remove the two ABS connectors from their mounts. See my pics in the 1st post.
    -- Remove the two outer screws that fasten the front wheels well to bumper. And the one push fastener just above those. It has a slotted head on it.

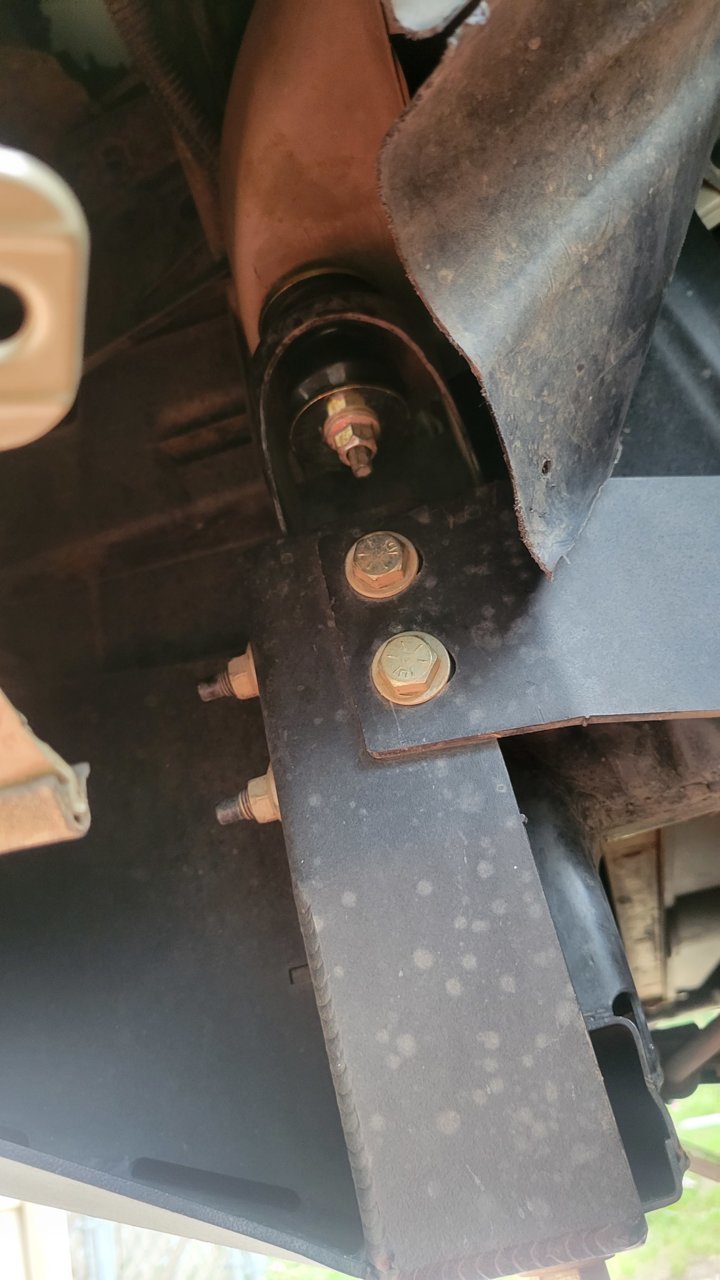

    Pull back the wheel well liner to give access to the front body mounts.​

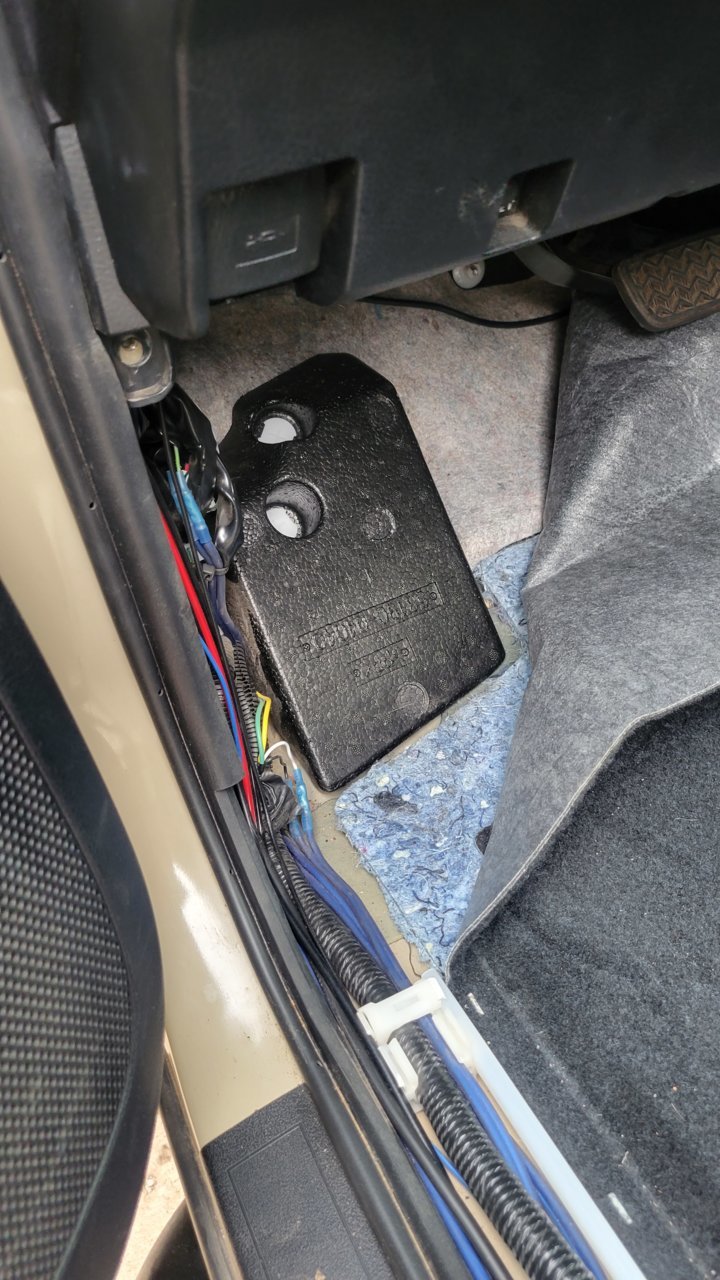

    -- Pull the plastic front door sill covers and kick panels. Under the kick panels / carpet are two foam blocks. The passenger side just pulls back. The drivers side needs to be unscrewed. Kinda of a pain.

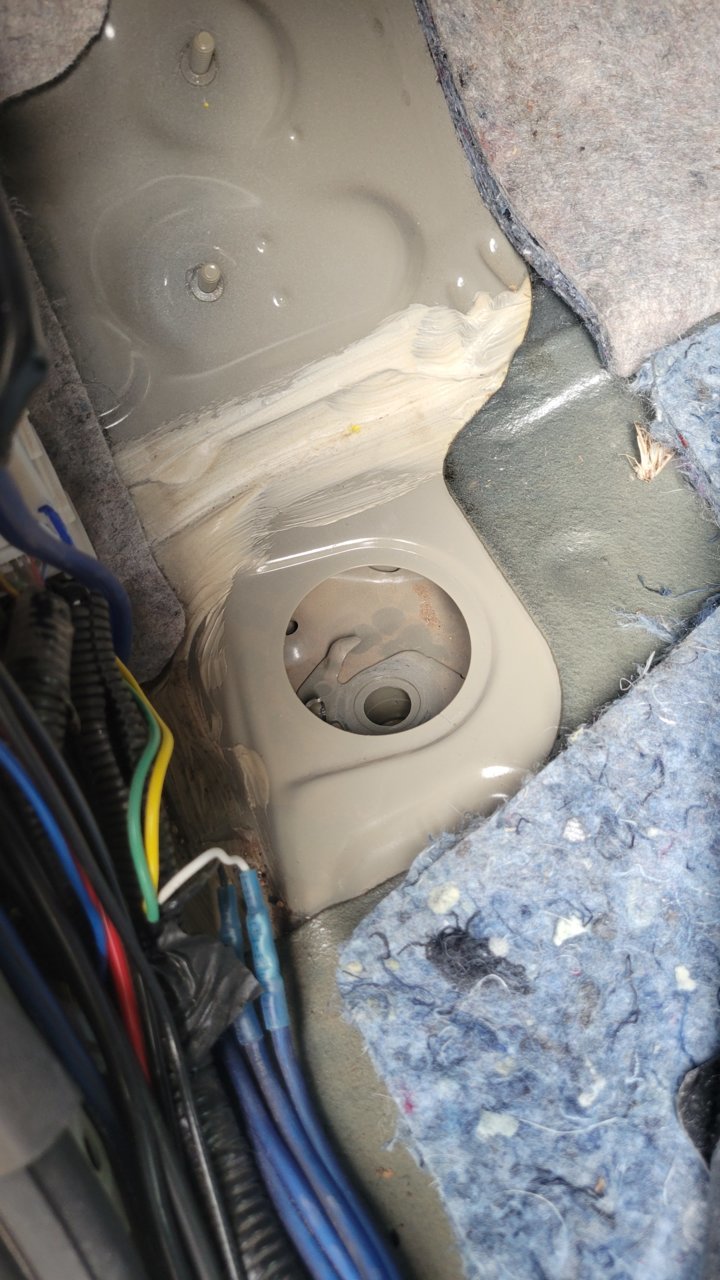

    Under there, there will be a big plastic cover (about 2in). Pull those out.​

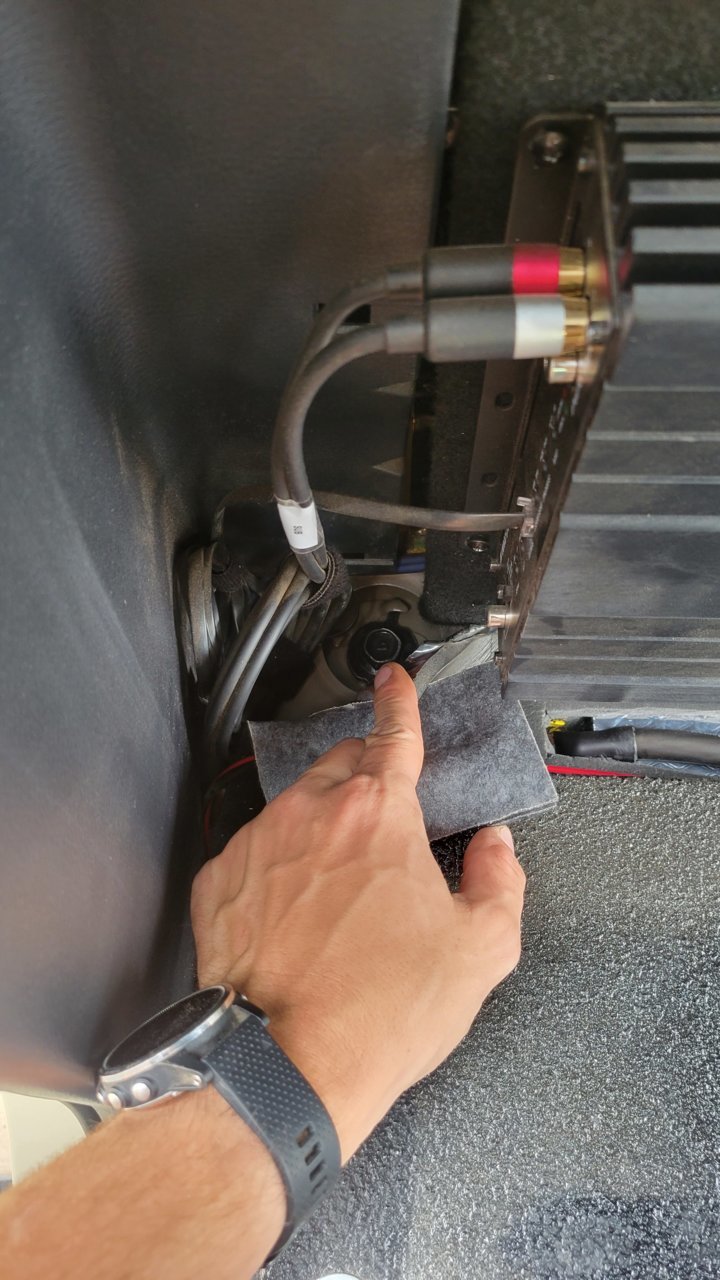

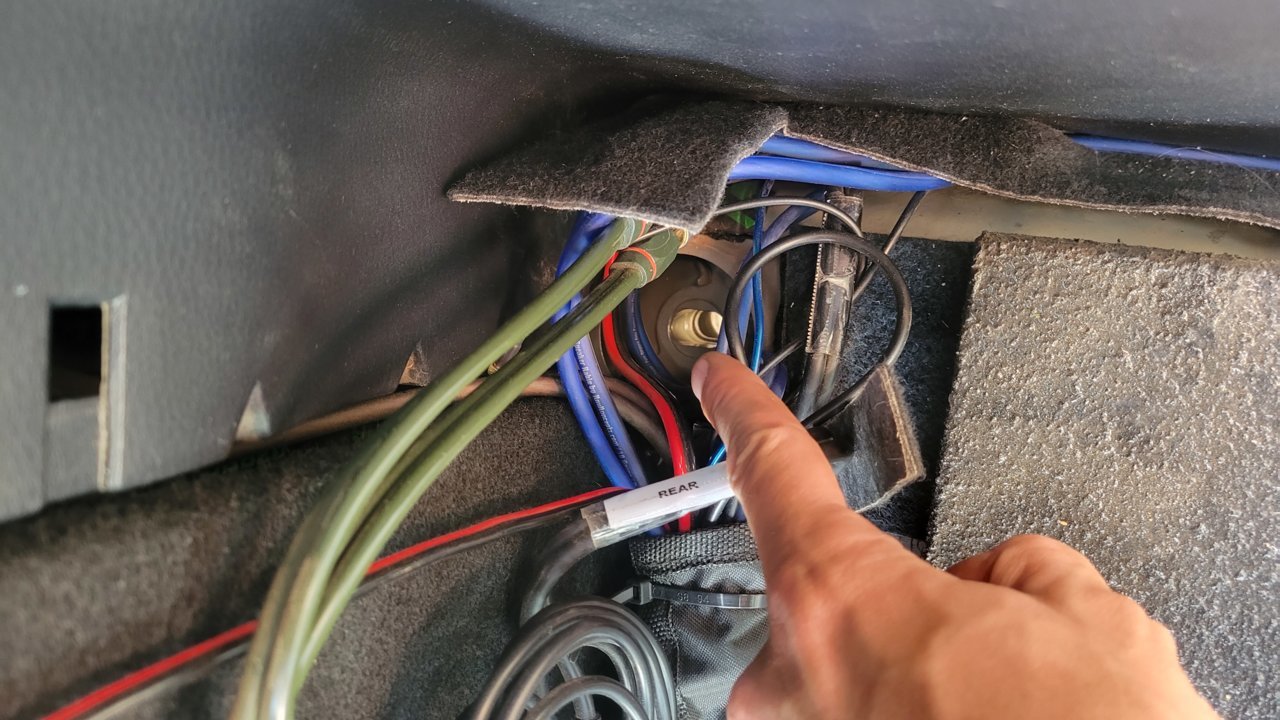

    -- I have no idea where the rear body mount covers are on the DCs. They are the same as the fronts when you find them. No pics from anyone else yet.
    -- Loosen the body mounts only a few turns on the side that you are not working on. 17mm and 19mm deep well sockets.
    -- Remove the lower parts of the three body mounts on the side that you are working on.
    -- Use a jack with a board on top to jack the pinch weld near the middle of the front cab. Only go up enough to get your hand in between the frame and cab.
    -- Use a 14mm ratcheting combo wrench to remove the rear two OE mounts. The fronts come out by hand.
    If you need to, jack just enough for the mounts to clear. I used a cheater wrench setup to loosen and tighten these. No easy way to get a torque wrench in there.​
    -- Reusing the 14mm screws, drop in the diamond plates from the kit. Even though there are slots, they only fit in one position.
    -- I lubed my mounts, sleeves, and washers with marine grease.

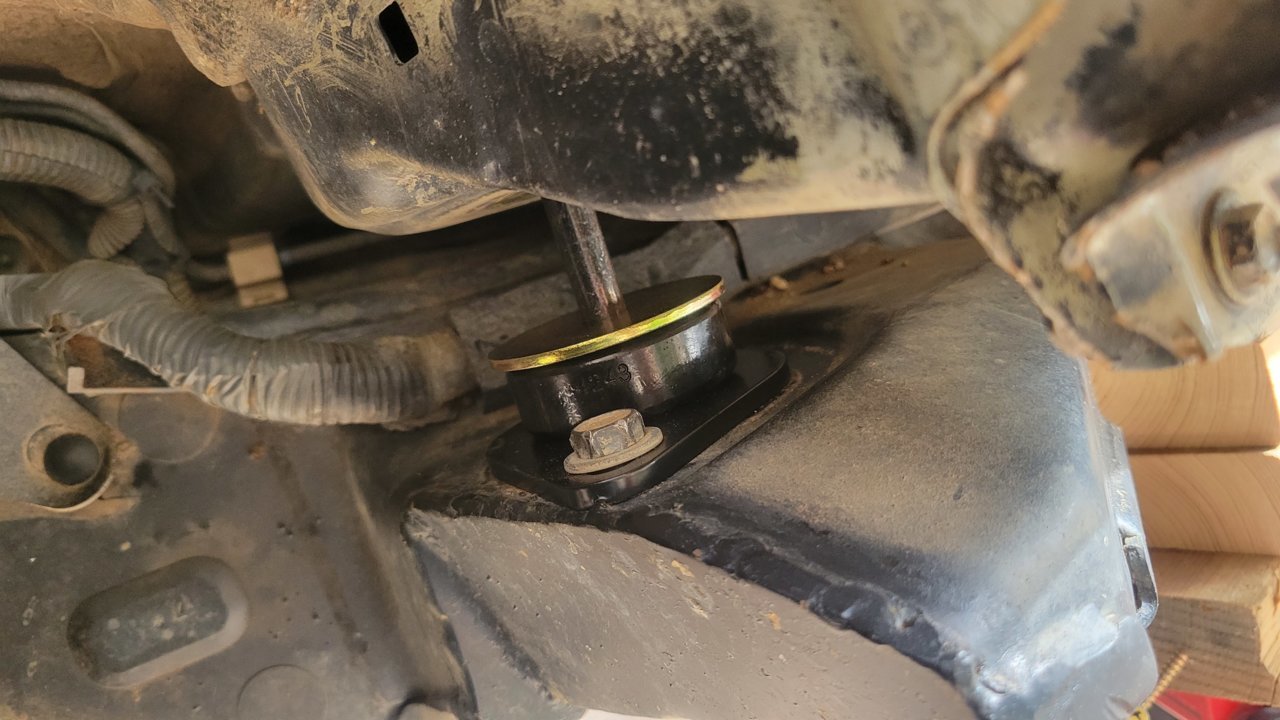

    -- Drop in the mounts per the instructions.
    -- Lower the cab slowly and fasten them loosely.
    -- Repeat on the other side.
    -- When you are done, torque per the other attachment in the 1st Post.
    -- Reassemble the other parts of the Taco. The orange clips for the fender to bumper might be the worst part of the job? It needs to go between the bumper and wheel well while engaging a metallic bracket above it. Stupid setup.​
    I do believe because of the lube, the cab just settled in once all six were installed. I didn't need to do anything and all six were aligned well and the cab looked great.


    Attached Files:

    Last edited: Jul 22, 2024 at 10:39 AM
    tonered, Apr 25, 2022
    #1
    BarRedAmateur, Malvolio, hyrule_trd and 2 others like this.
  2. Apr 25, 2022 at 11:45 AM
    #2
    Skydvrr

    #2
    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,648
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    Subbed for info :hattip:

    Skydvrr, Apr 25, 2022
    #2
    tonered[OP] likes this.
  3. May 1, 2022 at 3:09 PM
    #3
    tonered

    #3
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Bump for info / thoughts?

    tonered, May 1, 2022
    #3
  4. May 1, 2022 at 10:27 PM
    #4
    Buttskevin21

    #4
    Buttskevin21 Well-Known Member

    Joined:
    Dec 14, 2020
    Member:
    #349654
    Messages:
    2,471
    Gender:
    Male
    First Name:
    Kevin
    Washington
    Vehicle:
    2019 Brocoma, 37s, Lt, Dual Tcases, blah blah blah https://www.instagram.com/kevinjbutts/
    Stock-ish
    Bump because my cab seems like it has rubbers (if you catch my drift) for body mounts :rofl:

    Buttskevin21, May 1, 2022
    #4
    Bertw192 and tonered[OP] like this.
  5. May 2, 2022 at 5:15 AM
    #5
    tonered

    #5
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    :cheers:

    tonered, May 2, 2022
    #5
  6. Jul 7, 2022 at 11:30 AM
    #6
    tonered

    #6
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    tonered, Jul 7, 2022
    #6
    YotaFAB likes this.
  7. Jul 7, 2022 at 8:33 PM
    #7
    ROGUE OFFROAD

    #7
    ROGUE OFFROAD Well-Known Member Vendor

    Joined:
    May 2, 2016
    Member:
    #185963
    Messages:
    177
    Gender:
    Male
    First Name:
    Shawn
    ROGUE OFFROAD, Jul 7, 2022
    #7
    tonered[OP] and eurowner like this.
  8. Jul 7, 2022 at 9:56 PM
    #8
    tonered

    #8
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Hey, Shawn!

    It was great chatting with you back in April.

    Let's do it. I think we have three or four folks ready to go. I believe one of my rear mounts is shot.

    I can change the title on this thread and get it rolling if you are interested?

    Last edited: Jul 12, 2022
    tonered, Jul 7, 2022
    #8
    Buttskevin21 likes this.
  9. Jul 12, 2022 at 9:19 AM
    #9
    Skydvrr

    #9
    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,648
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    Yes please.

    Skydvrr, Jul 12, 2022
    #9
    tonered[QUOTED][OP] likes this.
  10. Jul 12, 2022 at 9:37 AM
    #10
    MountainManGuy

    #10
    MountainManGuy Well-Known Member

    Joined:
    Jul 26, 2019
    Member:
    #300316
    Messages:
    808
    Gender:
    Male
    Colorado
    Vehicle:
    2019 Toyota Tacoma TRD Off-Road DCSB
    Add me to the list of the group buy. I'd like to order a set.

    MountainManGuy, Jul 12, 2022
    #10
    tonered[OP] likes this.
  11. Jul 12, 2022 at 9:46 AM
    #11
    tonered

    #11
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Thanks! I will start a list in the 1st Post.

    tonered, Jul 12, 2022
    #11
    MountainManGuy[QUOTED] and Skydvrr like this.
  12. Jul 12, 2022 at 9:47 AM
    #12
    Skydvrr

    #12
    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,648
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    #me2

    Skydvrr, Jul 12, 2022
    #12
    tonered[QUOTED][OP] likes this.
  13. Jul 12, 2022 at 9:52 AM
    #13
    tonered

    #13
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Already added. :D

    :cheers:

    tonered, Jul 12, 2022
    #13
    Skydvrr[QUOTED] likes this.
  14. Jul 12, 2022 at 3:01 PM
    #14
    Silverlogic

    #14
    Silverlogic Well-Known Member

    Joined:
    Dec 9, 2018
    Member:
    #275354
    Messages:
    1,148
    Gender:
    Male
    First Name:
    Tyler
    San Diego, California
    Vehicle:
    2018 Silver DCSB TRDOR
    Add
    Same

    Silverlogic, Jul 12, 2022
    #14
  15. Jul 12, 2022 at 10:29 PM
    #15
    dnguy77

    #15
    dnguy77 Well-Known Member

    Joined:
    Jul 15, 2015
    Member:
    #159569
    Messages:
    322
    Gender:
    Male
    First Name:
    Duey
    Baton Rouge, LA
    Vehicle:
    '18 White Tacoma DC TRD Sport, '03 Grey Tundra AC SR5
    GB price on the kit?

    dnguy77, Jul 12, 2022
    #15
  16. Jul 12, 2022 at 11:48 PM
    #16
    Buttskevin21

    #16
    Buttskevin21 Well-Known Member

    Joined:
    Dec 14, 2020
    Member:
    #349654
    Messages:
    2,471
    Gender:
    Male
    First Name:
    Kevin
    Washington
    Vehicle:
    2019 Brocoma, 37s, Lt, Dual Tcases, blah blah blah https://www.instagram.com/kevinjbutts/
    Stock-ish
    Same

    Buttskevin21, Jul 12, 2022
    #16
  17. Jul 13, 2022 at 5:25 AM
    #17
    tonered

    #17
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    I'm waiting on details from Rogue Offroad / @Despized .

    The kit is listed as $230 with free shipping on their site with the choice of black or red compounds.

    tonered, Jul 13, 2022
    #17
    dnguy77[QUOTED] likes this.
  18. Jul 17, 2022 at 5:48 AM
    #18
    tonered

    #18
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    tonered, Jul 17, 2022
    #18
  19. Jul 17, 2022 at 5:59 AM
    #19
    splitbolt

    #19
    splitbolt Voodoo Witch Doctor

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    7,874
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    What is the exact nature of the failure?
    Is it the actual part; or are they in a state of bind or unevenly torqued at the factory?

    splitbolt, Jul 17, 2022
    #19
    gudujarlson and tonered[OP] like this.
  20. Jul 17, 2022 at 6:16 AM
    #20
    tonered

    #20
    tonered [OP] bartheloni

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    30,670
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    The front ones are just screwed up, mainly from misalignment or something that Toyota is missing on the design side. I believe my left rear one is gone and squeaking in wet conditions.

    In the end, it was a slightly noticeable change after doing the fronts with the Energy Suspension universal kit. So, I think it would be nice to get poly all around to fix the other failed one(s).

    Just waiting on the GB details from Rogue Offroad.

    tonered, Jul 17, 2022
    #20
    doublethebass and hyrule_trd like this.
