Roof Rack Solar Panel Installation Outline

Discussion in '2nd Gen. Tacomas (2005-2015)' started by OneFastGeek, Apr 22, 2018.

  1. Apr 22, 2019 at 7:39 PM
    #21
    GZeus24

    GZeus24 bystander

    Joined:
    Apr 5, 2014
    Member:
    #127076
    Messages:
    591
    Gender:
    Male
    First Name:
    Gary
    Texas
    Vehicle:
    2014 DCLB Sport
    lightly modified
    Following up on my plan to copy this install, I did it this weekend. It worked out real well and has been rocking away since Saturday. Thanks for the guidance!

    Manfred likes this.
  2. Apr 22, 2019 at 8:01 PM
    #22
    OneFastGeek

    OneFastGeek [OP] Grand Master Fu

    Joined:
    Dec 24, 2012
    Member:
    #93685
    Messages:
    570
    Gender:
    Male
    Treasure Valley, Idaho
    Vehicle:
    2010 TRD Sport 4x4
    @GZeus24 That's great! Please share any pics you have. Did you use the same components? I’d be curious if you did anything differently.

  3. Apr 23, 2019 at 3:48 AM
    #23
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    48,697
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
  4. Apr 23, 2019 at 7:44 AM
    #24
    Grand dude

    Grand dude Well-Known Member

    Joined:
    Jul 16, 2016
    Member:
    #192126
    Messages:
    6,247
    Gender:
    Male
    First Name:
    Dave
    lehigh valley, PA.
    Vehicle:
    2016 trd or dcsb & 2002 trdor exclb
    cool stickers and a baseball card With clothes pin, sounds awesome ! wicked
    Thank you for the heads up I appreciate it :fistbump:

    fatfurious2[QUOTED] and Manfred like this.
  5. Apr 23, 2019 at 7:30 PM
    #25
    GZeus24

    GZeus24 bystander

    Joined:
    Apr 5, 2014
    Member:
    #127076
    Messages:
    591
    Gender:
    Male
    First Name:
    Gary
    Texas
    Vehicle:
    2014 DCLB Sport
    lightly modified
    No pictures right now as I was hurrying to get it done for a trip this weekend. Your write up was dead on and I pretty much copied it. I think I used all of the same components you did including the solar panel kit and the penetration cover. It took most of an afternoon to situate the panel, the cover and the cables right, then a few hours the next evening to finish off the controller and battery connections. The supplied cables in the kit are good but the lengths are 'backwards' for this install - too long from the panel, too short for the battery - so you have to fab a little.

    I connected mine to the starting battery and I let the BlueSea ACR auto-switch it to the house battery once that is fully charged. I like that setup better as it always ensures the starting battery is good to go as the primary task. In general, this shouldn't make much difference in function since once the starting battery is charged which takes less than an hour, all the energy goes to the house battery that is powering the fridge and lights. The auto-switching works like a charm. (Big thumbs up for the ACR if anyone is thinking about a dual battery setup.)

    I also put a quick disconnect in the line right after the fuse comes off the battery. This will allow me to connect a different battery to the panel (like a trolling motor battery) or my 100w folding solar panel to the truck battery when my roof is in the shade. Just kind of adds utility options. I am a little concerned about mounting the kayak up there but think I may have that sorted out. The panel is about 1/3" below the rails and I have some rail guards that should help add some clearance too. If all goes well on this trip I will do some measurements and add another panel if I can make it fit.

    Thanks again for the excellent guide. This mod may not be for everyone but it fits my need and I think its fantastic.

  6. Apr 24, 2019 at 4:26 PM
    #26
    OneFastGeek

    OneFastGeek [OP] Grand Master Fu

    Joined:
    Dec 24, 2012
    Member:
    #93685
    Messages:
    570
    Gender:
    Male
    Treasure Valley, Idaho
    Vehicle:
    2010 TRD Sport 4x4
    @GZeus24

    Thanks for the great feedback. I'm glad I could be of help for your solar project.

  7. May 8, 2019 at 1:42 PM
    #27
    Naveronski

    Naveronski Well-Known Member

    Joined:
    Sep 14, 2013
    Member:
    #112501
    Messages:
    9,072
    Gender:
    Male
    Fort Worth
    Vehicle:
    2014 MGM DCSB TRD:OR
    This looks like a great project.

    I’m adding a fridge, but my battery (optima yellow 27f) is pretty new, so I’d rather not change to a dual or 31 setup if I don’t have to.

    How well would this keep a single battery charged? Can it power a fridge?

  8. May 8, 2019 at 1:51 PM
    #28
    OneFastGeek

    OneFastGeek [OP] Grand Master Fu

    Joined:
    Dec 24, 2012
    Member:
    #93685
    Messages:
    570
    Gender:
    Male
    Treasure Valley, Idaho
    Vehicle:
    2010 TRD Sport 4x4
    @Naveronski I can't say for sure in your application. However, the main reason I did this, was to power our 65 quart Whynter fridge. When the panel is getting full sunlight, my battery is still getting a charge when the fridge is running. My fridge also cuts out at a certain user programmable voltage, as a back up.

    Naveronski likes this.
  9. May 8, 2019 at 2:11 PM
    #29
    Naveronski

    Naveronski Well-Known Member

    Joined:
    Sep 14, 2013
    Member:
    #112501
    Messages:
    9,072
    Gender:
    Male
    Fort Worth
    Vehicle:
    2014 MGM DCSB TRD:OR
    So parking the truck and expecting this to run the fridge for several days probably isn’t ideal, but as long as I drive it every so often, I should be fine

  10. May 8, 2019 at 2:19 PM
    #30
    OneFastGeek

    OneFastGeek [OP] Grand Master Fu

    Joined:
    Dec 24, 2012
    Member:
    #93685
    Messages:
    570
    Gender:
    Male
    Treasure Valley, Idaho
    Vehicle:
    2010 TRD Sport 4x4
    It all depends I guess. How much sun are you getting all day. How much draw does your fridge have? Factor that against how many amp hours your battery is, etc. My panel is capable of 500Wh per day; can fully charge a 50Ah Battery from 50% in 3 hours (depending on the availability of sunlight). Good luck getting it all to work tho.

    Last edited: Aug 29, 2019
  11. Aug 29, 2019 at 12:52 PM
    #31
    kgarrett11

    kgarrett11 Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    3,600
    First Name:
    Garrett
    CA desert
    Vehicle:
    2015 DCLB
  12. Dec 26, 2019 at 10:00 AM
    #32
    ready6delta

    ready6delta REGULAR GUY

    Joined:
    Mar 16, 2014
    Member:
    #125448
    Messages:
    5,717
    Gender:
    Male
    First Name:
    JACOB
    Finally back in the PNW! Lake Stevens/ Olympia
    Vehicle:
    Black pinstriped 2014 DCSB 4x4 TRD SPORT
    IT NEVER ENDS..........
    subd for ref

  13. Dec 26, 2019 at 3:01 PM
    #33
    OneFastGeek

    OneFastGeek [OP] Grand Master Fu

    Joined:
    Dec 24, 2012
    Member:
    #93685
    Messages:
    570
    Gender:
    Male
    Treasure Valley, Idaho
    Vehicle:
    2010 TRD Sport 4x4
    I realized I lost all my photos. I'll try to get them reposted after the holidays...

  14. Feb 6, 2020 at 4:40 PM
    #34
    TheNatural

    TheNatural Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,166
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff

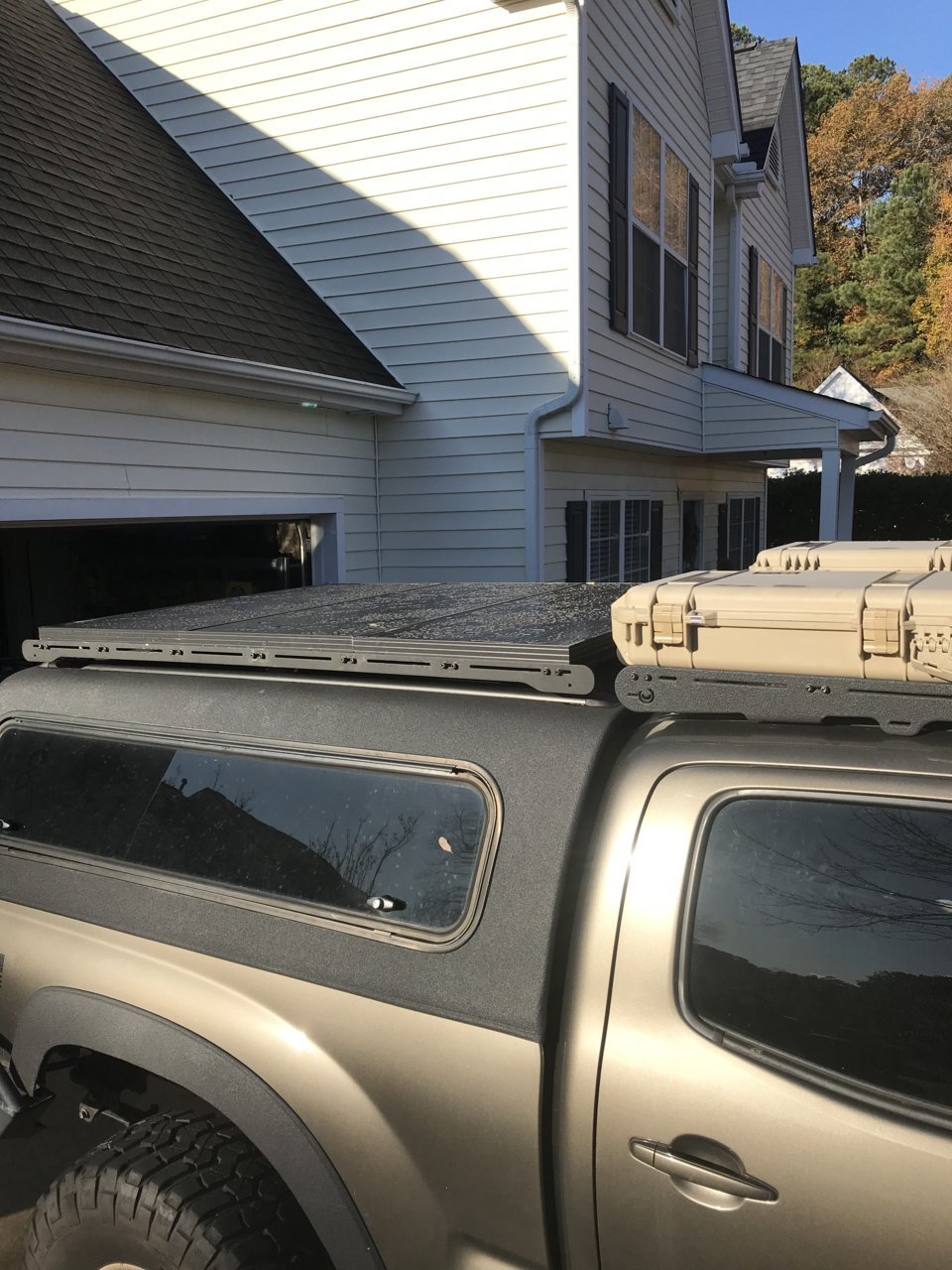

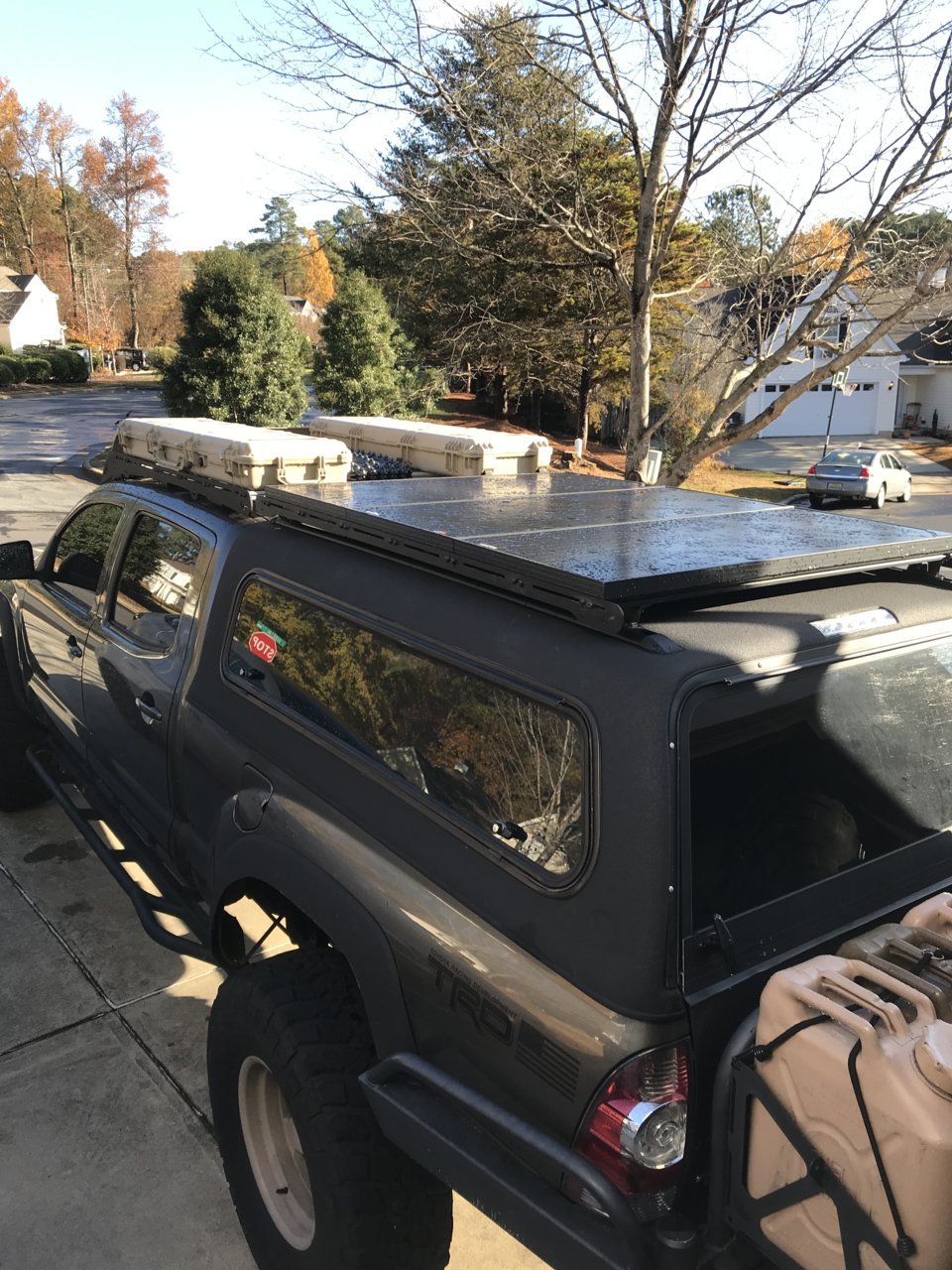

    Really looking forward to seeing those photos. If anyone that copied the write up happens to have pics I'd love to see those too. I'm particularly interested in how the solar panels mount below the prinsu cross bars - that sounds really slick.

  15. Feb 6, 2020 at 4:48 PM
    #35
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    4,316
    Gender:
    Male
    Halfmoon, NY
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.

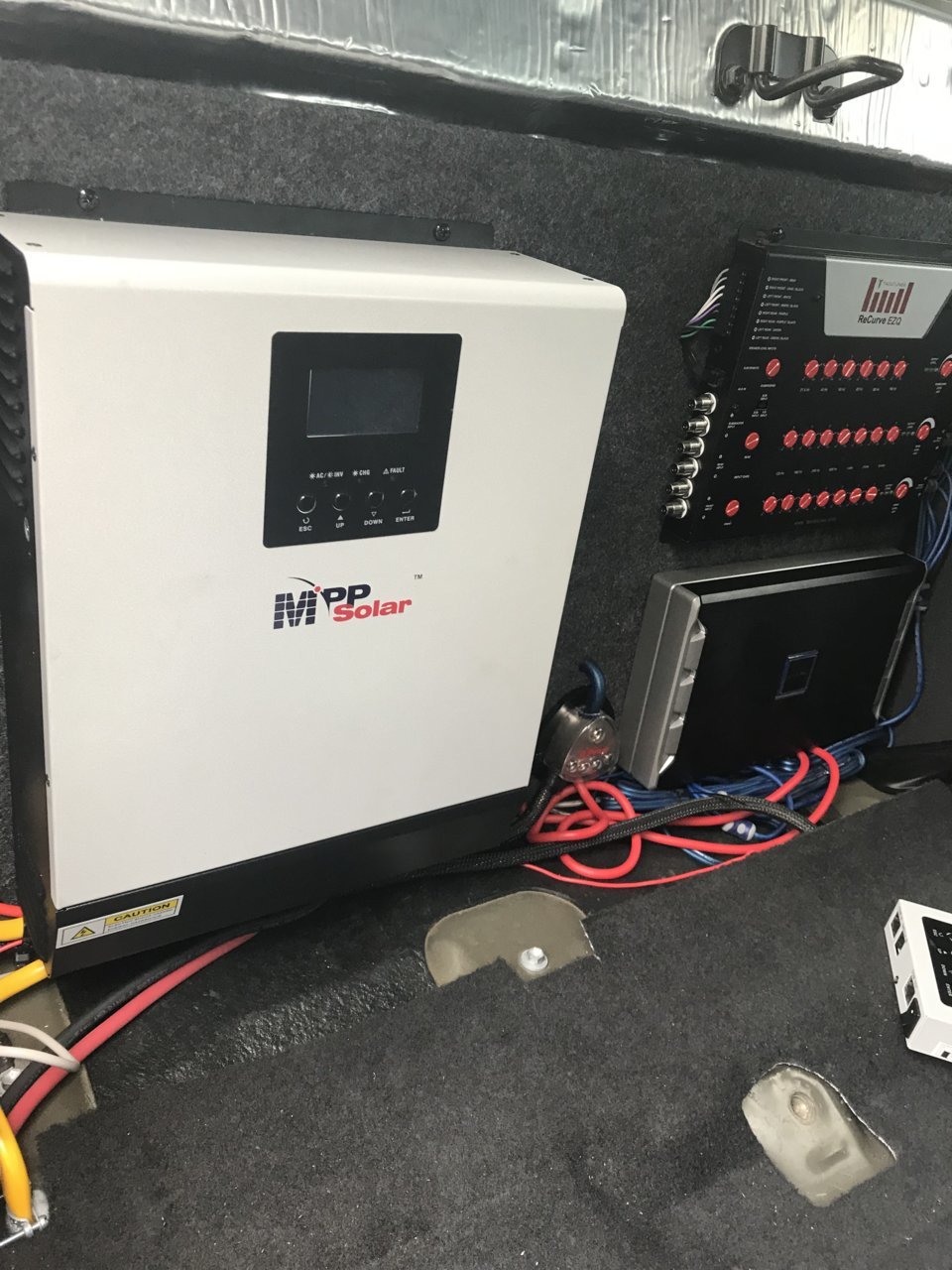

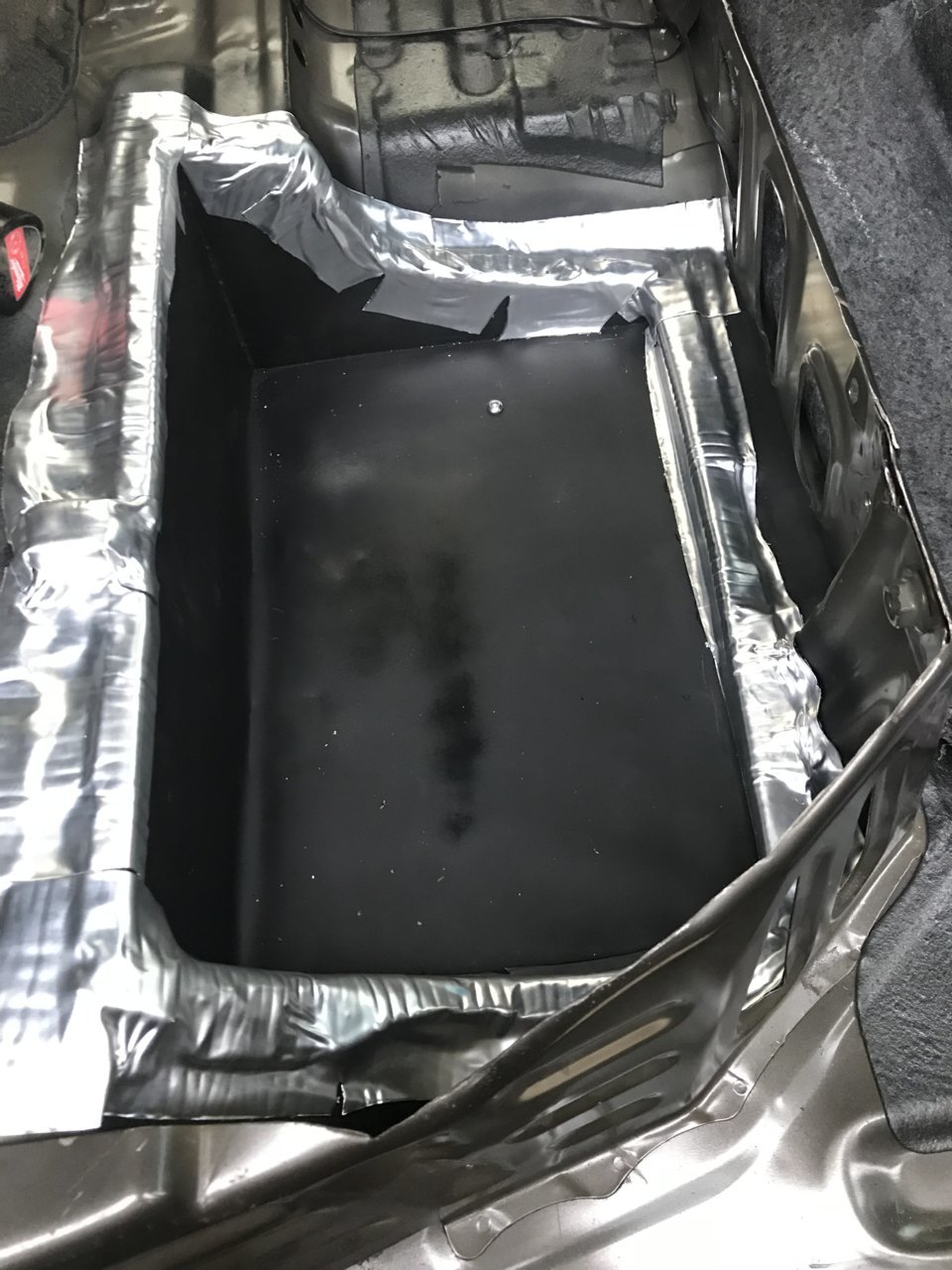

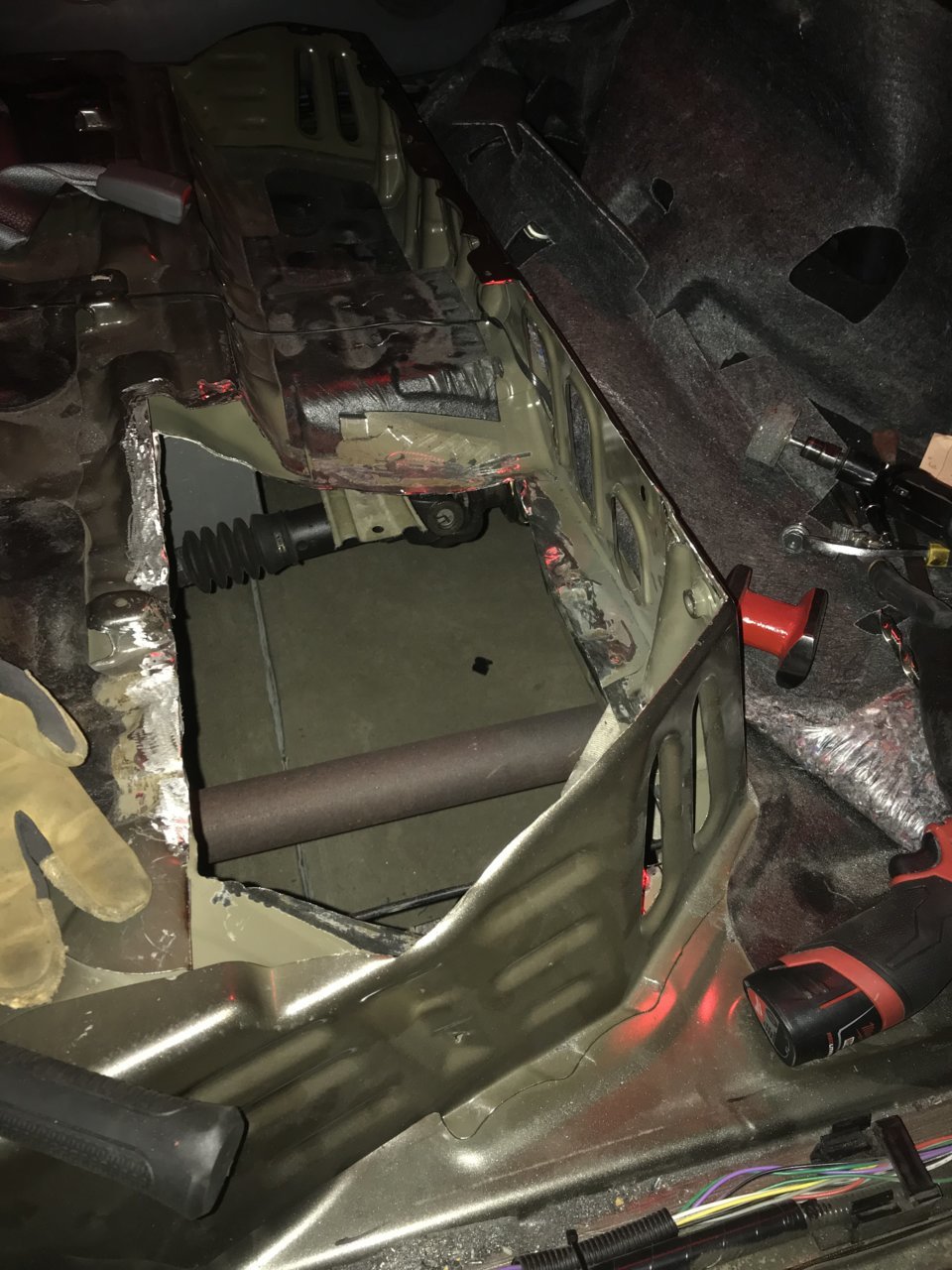

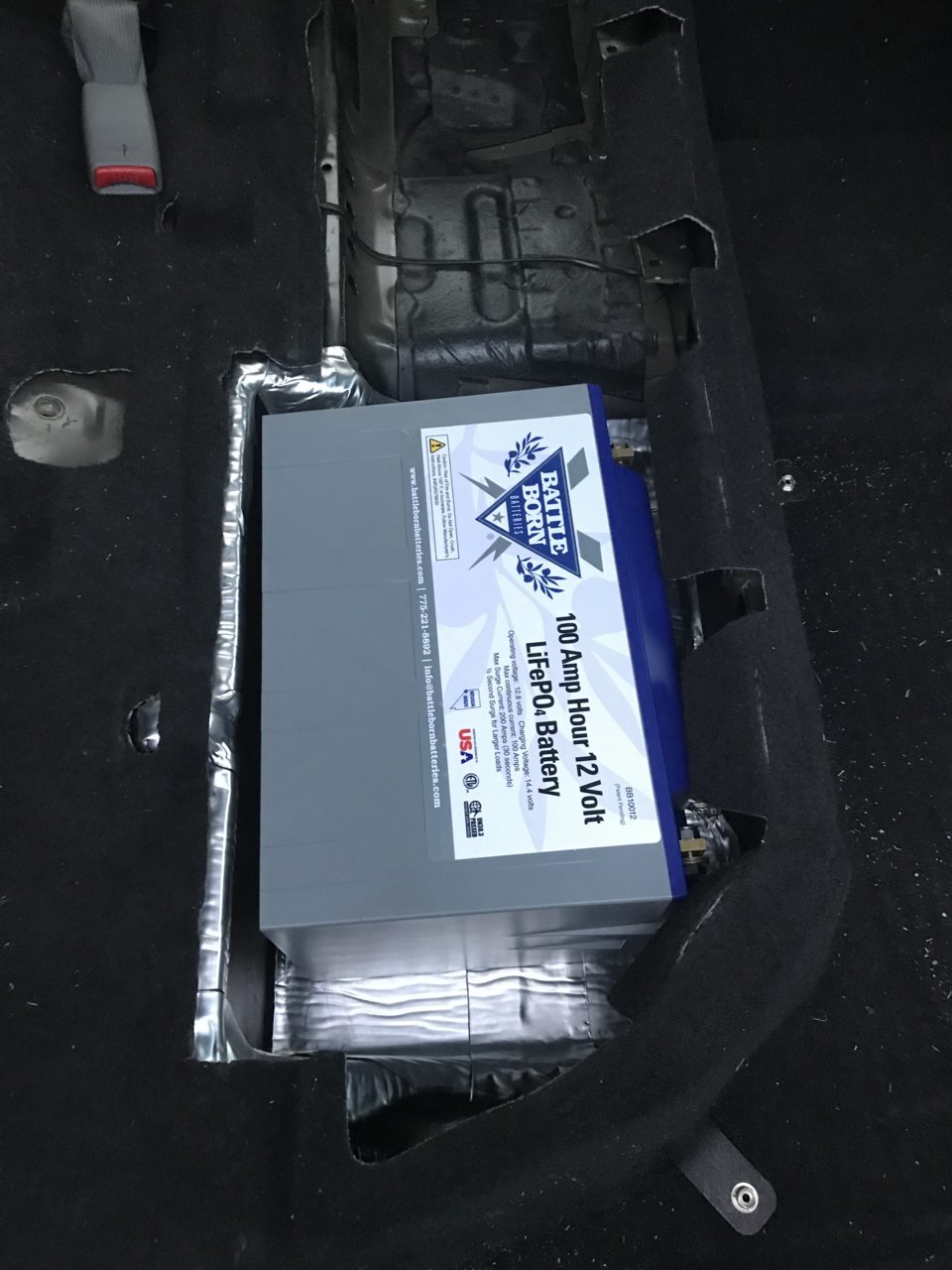

    I did 3x100 watt panels in series to a solar controller/inverter with encompassed fuses and relays and remote screen to a 100 AH LiFePO4 Battleborn battery. My plug to the grid comes out the floor under the truck and my inverter plugs hang in the bed with a DC box and AC plugs from the inverter as well as a break for the panels when I need to remove the top.

    82A0D3A0-95C4-4969-9E9B-75C592479D63.jpg 32E12B2E-A5EB-44C4-A958-C7A6F494A8B8.jpg 67FB114F-C3BB-46EB-BAD9-63FD2B7581F9.jpg 9F6D0F2F-B00C-41BF-9C5C-649D26DBD252.jpg 39058049-9F47-4561-A789-FC79FB4C937B.jpg B5A8F1C0-4F53-4416-AC30-BD564B050758.jpg

    Waited many moons and mightym like this.
  16. Feb 6, 2020 at 4:49 PM
    #36
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    4,316
    Gender:
    Male
    Halfmoon, NY
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.
    I can take more pics when it stops raining some day.

  17. Feb 7, 2020 at 8:05 AM
    #37
    Hyland33

    Hyland33 Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226316
    Messages:
    581
    Gender:
    Male
    First Name:
    Andrew
    Leicester, MA
    Vehicle:
    2015 Tacoma TRD Offroad

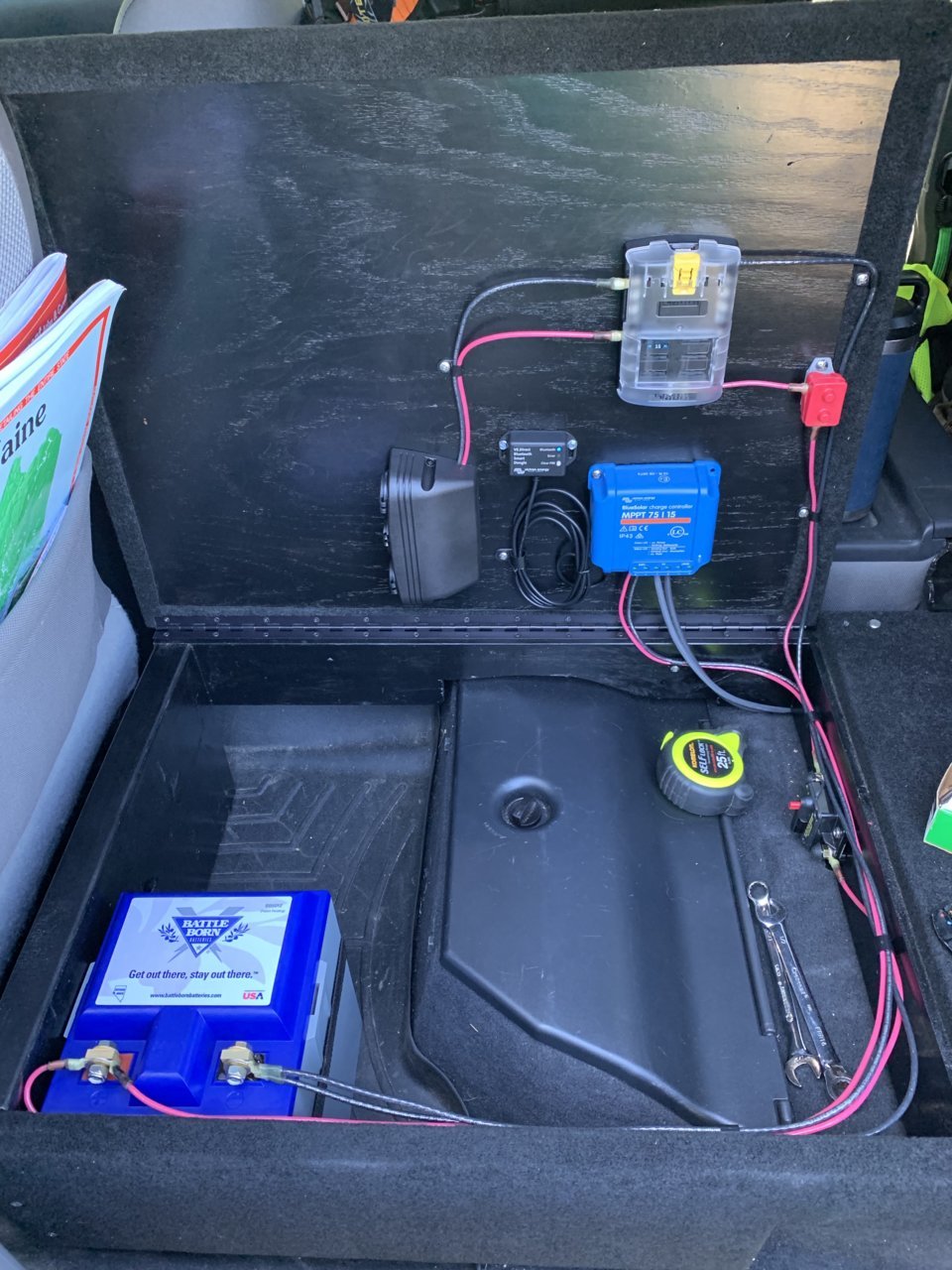

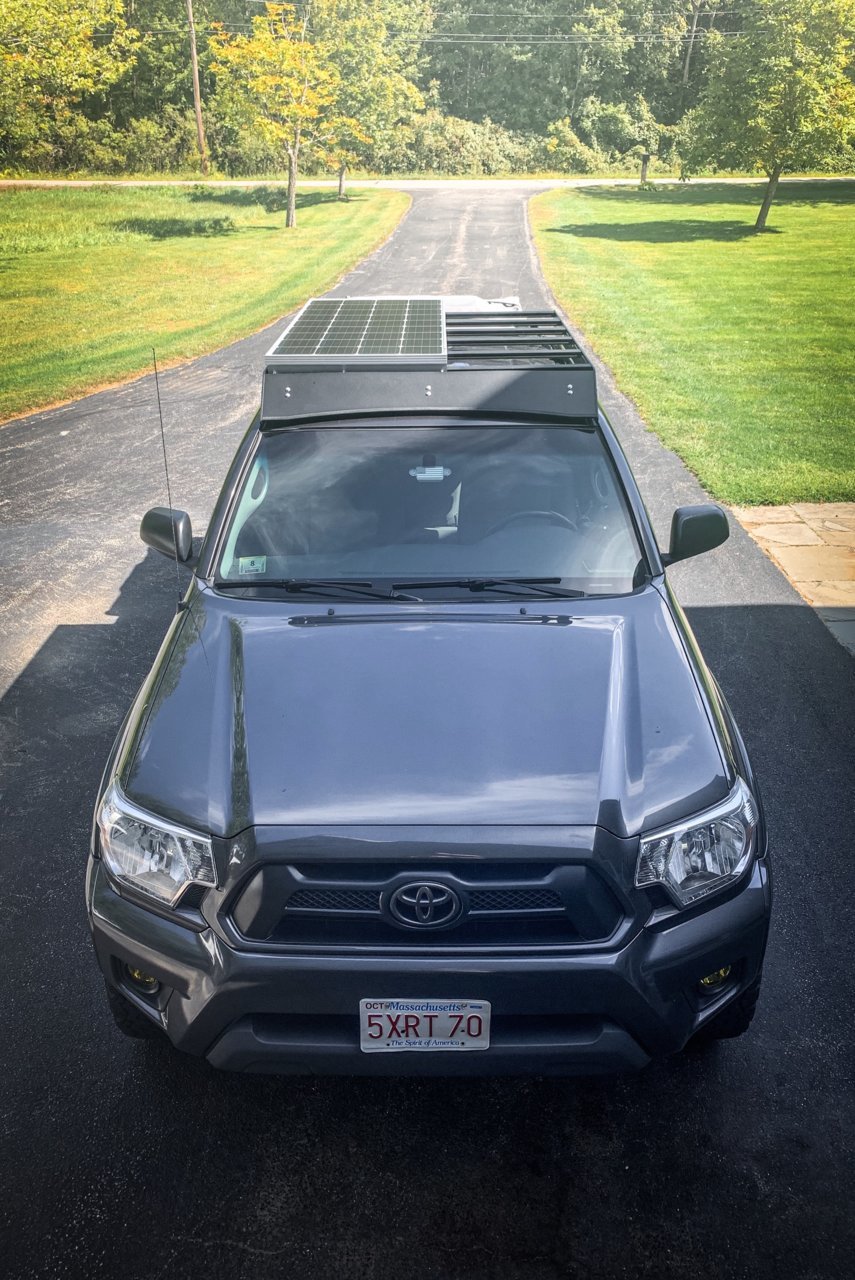

    Nice setup! I run a 50ah Battleborn in my truck with a 190W panel up top. I'm just powering some 12v ports right now but i'll probably pick up a small inverter at some point. Runs my dometic and charges all my electronics.
    9tLBbInySOW5+LamUmgCxg.jpg fullsizeoutput_21f.jpg

    Greg.Brakes.Tacos and kgarrett11 like this.
  18. Feb 7, 2020 at 8:47 AM
    #38
    TheNatural

    TheNatural Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,166
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    Very nice set up. Is that what people meant earlier in this thread when they mentioned the solar panels fitting between the bars? It looks like a very nice fit width wise, but I was picturing the solar panels being mounted between the cross bars and recessed a little bit. I was hoping I'd be able to throw a kayak or something up there without it actually making contact with the panels. Did you use the renogy 100W solar panels?

  19. Feb 7, 2020 at 8:56 AM
    #39
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    4,316
    Gender:
    Male
    Halfmoon, NY
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.
    IIRC they are Renogy. I spent a long time researching panels. Everything from recycled home panels to semi flex. These accommodated the most power to still fit cleanly on my topper. You could recess them a bit more if you went with higher risers on the bars. There are still many options to mount stuff over top the panels. A simple bracket on the side rail with a crossbar over top can support kayaks or canoes. I am fairly OCD but also wanted to finish it so I could get back to camping.

    EDIT: it was richsolar not renogy, sorry I pulled up my Amazon order history.

    Last edited: Feb 10, 2020
    Greg.Brakes.Tacos likes this.
  20. Mar 4, 2020 at 6:06 AM
    #40
    OneFastGeek

    OneFastGeek [OP] Grand Master Fu

    Joined:
    Dec 24, 2012
    Member:
    #93685
    Messages:
    570
    Gender:
    Male
    Treasure Valley, Idaho
    Vehicle:
    2010 TRD Sport 4x4
    I found a few pics, but I am still digging around to see if I have backups of the pics that were hosted elsewhere. Hope to see more folks posting their solar setups.

    stickyTaco and MY50cal like this.
