Roofrack Basket (design pic)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tooblutacoma06, Aug 14, 2009.

  1. Aug 14, 2009 at 12:59 PM
    #1
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Whatup er'body! For the past couple of weeks I've been designing a gear basket to mount to my roof. A big thanks goes out to TW member Kasey for the inspiration and help. I think I've got everything pretty much nailed down on it and I'll be starting on the fabrication next week sometime. I do however, have a few issues I need to clear up before I start the build.

    My design is one that will easily mount to the OEM roofrack's crossbars. Thus I could take the basket off quickly if need be. One thing about this is that the OEM racks aren't cheap, and have a silly low load capacity. My other thought was to just make some legs and feet welded to the basket to directly bolt into the channel and nuts that are in the roof already. That way, I would not have to worry about the load on the flimsy crossbars. I'm working on drawing up this last minute thought now.

    Until I can get the measurements of the holes and channel in the roof, I'm still going to design for mounting on the OEM rack. So here's where I could use a little help from you guys that already have the rack.
    -I need to know the horizontal distance between the top of the windsheild and the center of the forward crossbar.
    -Also, I need the horizontal distance between the center of the two crossbars
    -And lastly, I need the horizontal distance between the center of the rearward crossbar and the back of the cab (double cab).

    These are the last dimensions I need to finish up the design process.

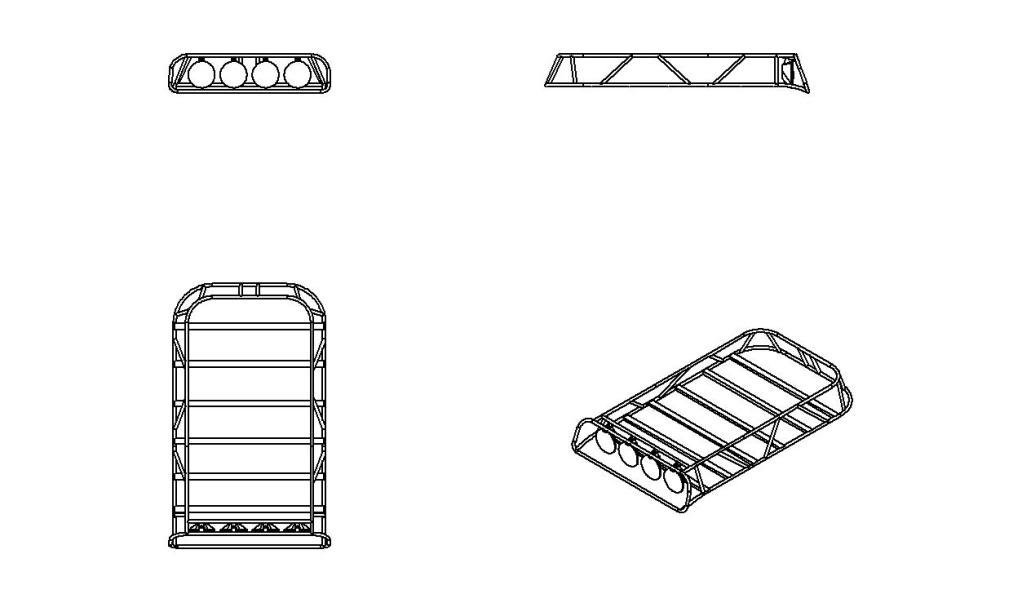

    Here's a few views of the basket in it's current design stage:
    [​IMG]

    Let me know what you guys think!
