RRW Off-Road Hidden Winch Plates & DIY/Weld Your Own Bolt On Rock Slider Kits

Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by RayRRW, Apr 28, 2020.

  1. Apr 28, 2020 at 3:01 PM
    #1
    RayRRW

    RayRRW [OP] Work hard, Off-Road harder

    Joined:
    Sep 27, 2016
    Member:
    #198372
    Messages:
    632
    Gender:
    Male
    First Name:
    Ray
    SoCal
    Vehicle:
    2016 Toyota Tacoma
    17" RRW Wheels w/ 33" Tires
    Hey Tacoma World!

    We just stocked up on some Hidden Winch Plates & just released our weld your own Rock Slider Kits.

    Hidden Winch Plate: $365/Set
    Link: https://www.***********************/collections/tacoma-armor/products/hidden-winch-mount-tacoma

    DIY Rock Sliders: HREW: $535/Set | DOM: 635/Set
    Shortbed: https://www.***********************...-on-v2-rock-slider-kit?variant=32128698482770
    Longbed: https://www.***********************...t-on-v2-rock-sliders-diy-weld-it-yourself-kit

    Discount Code: "RHS"

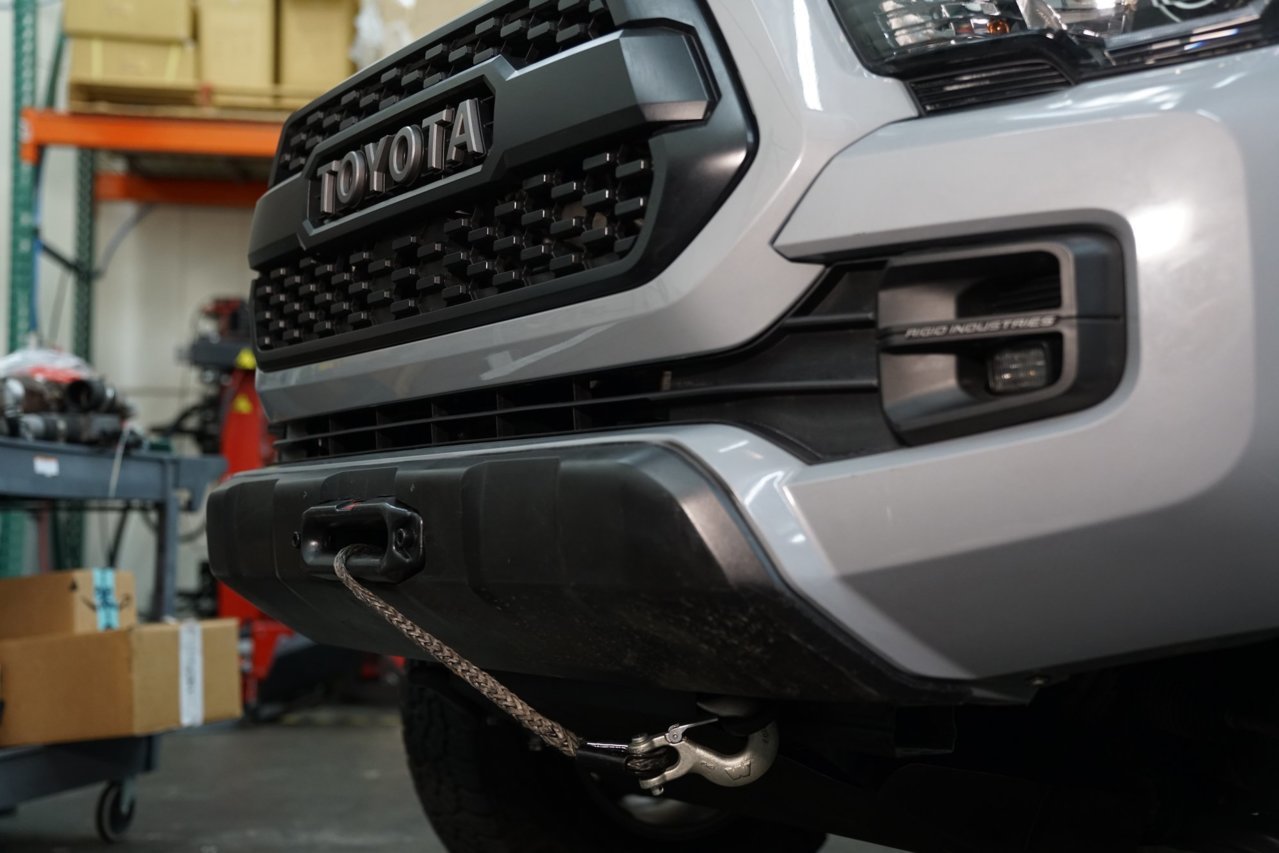

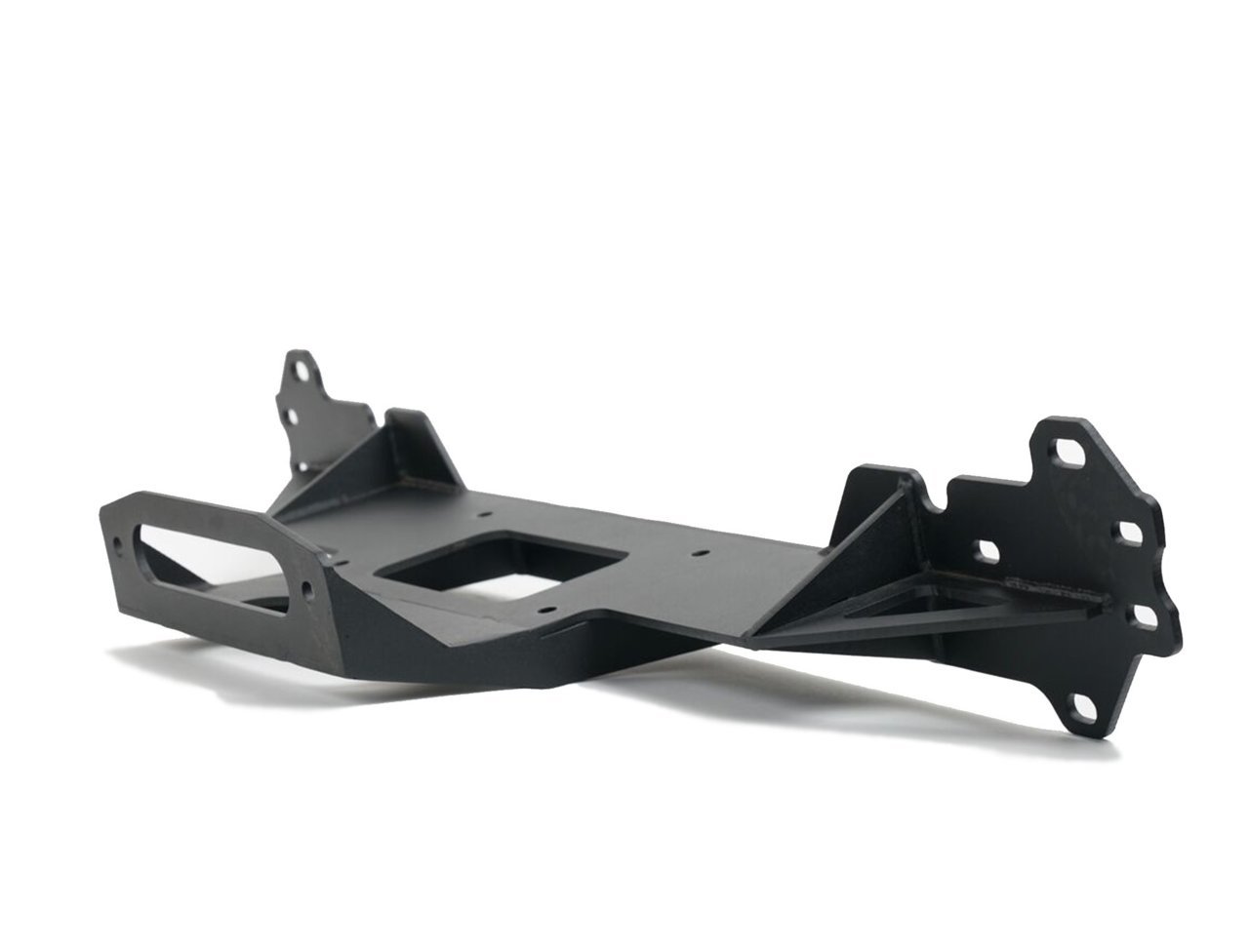

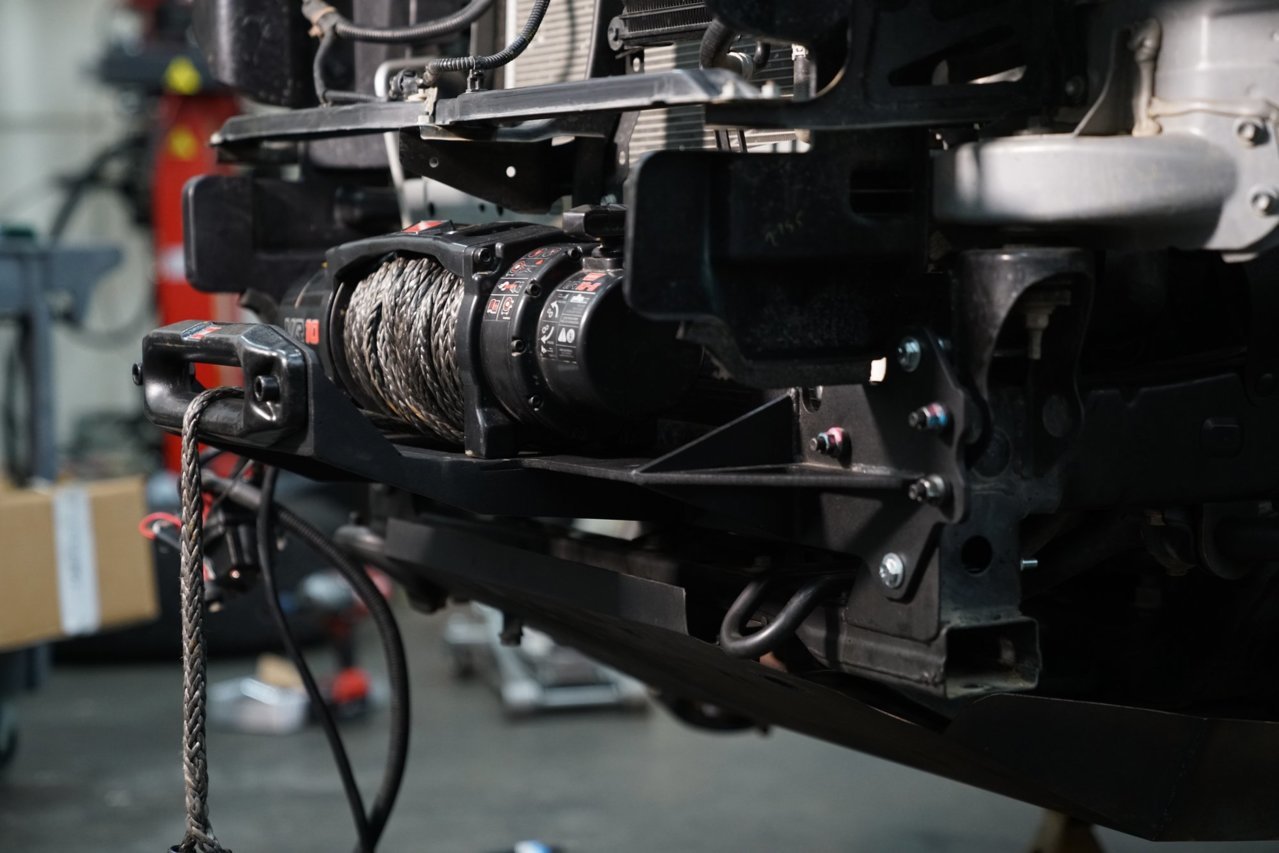

    Hidden Winch Plate allows you to put a winch with your stock bumper. Requires minor cutting on the lower valance for the fairlead. This can hold winches up to 10,000lb capacity. We use 1/4" thick steel plate & its sandblasted & powder coated for a durable finish.

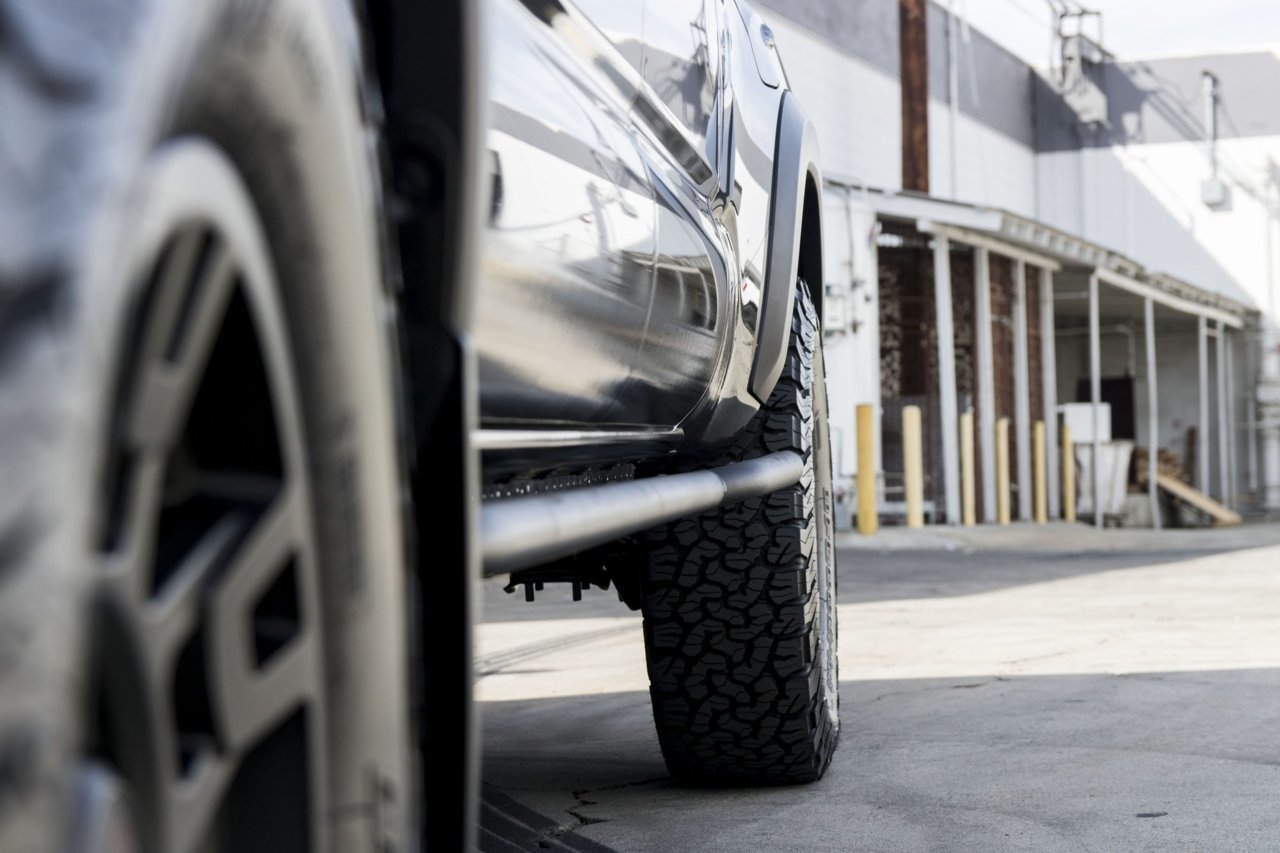

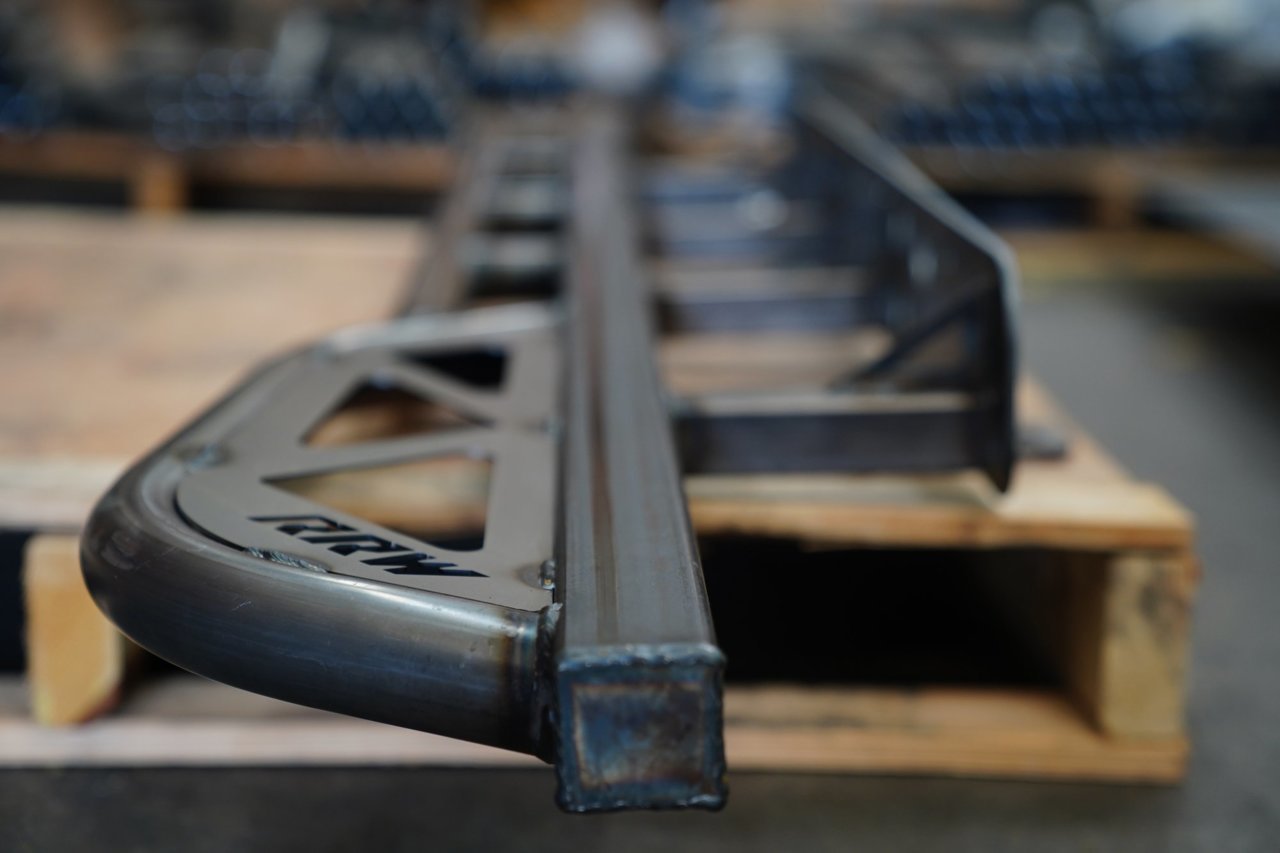

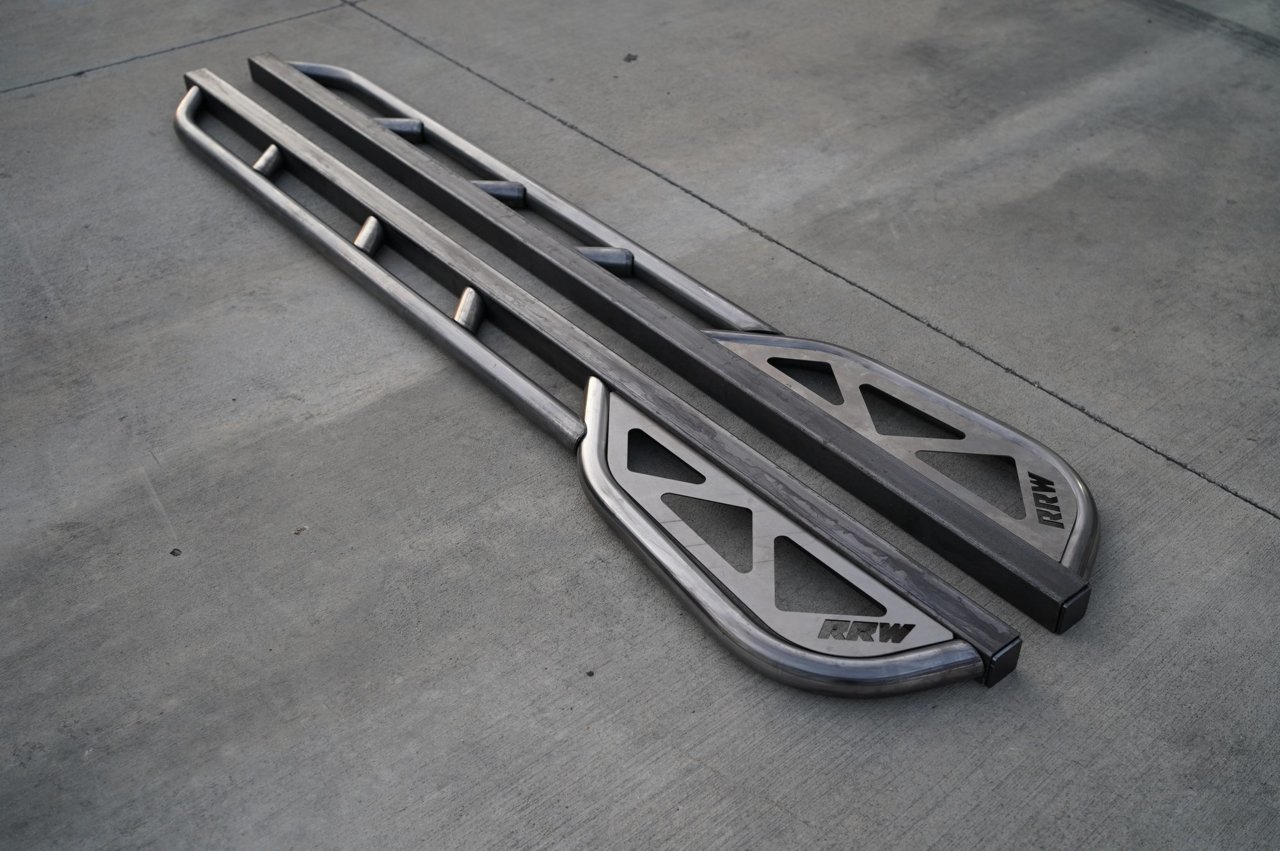

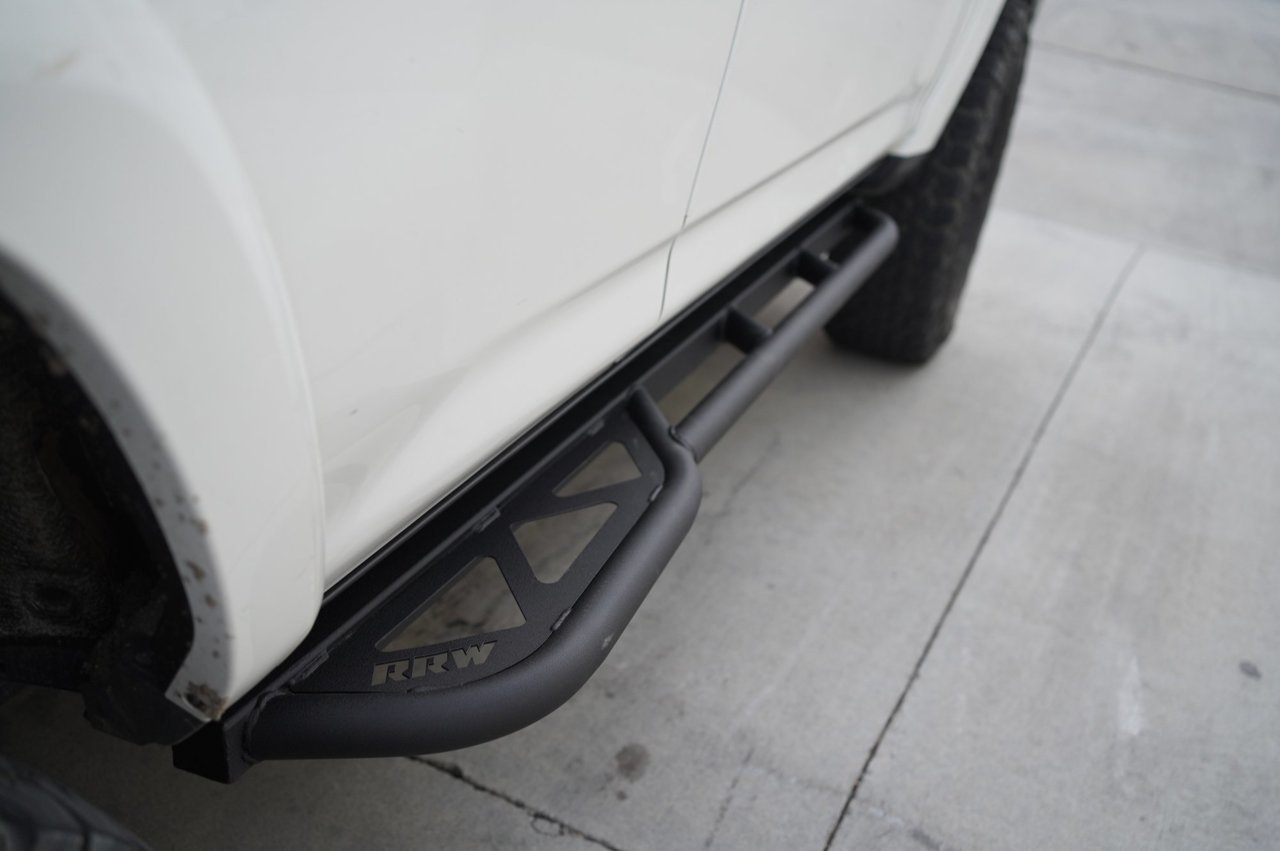

    DIY Rock Slider comes with a complete kit with all the components to assemble the rock sliders. Our plates come with slots / tabs to make it easier for assembly.

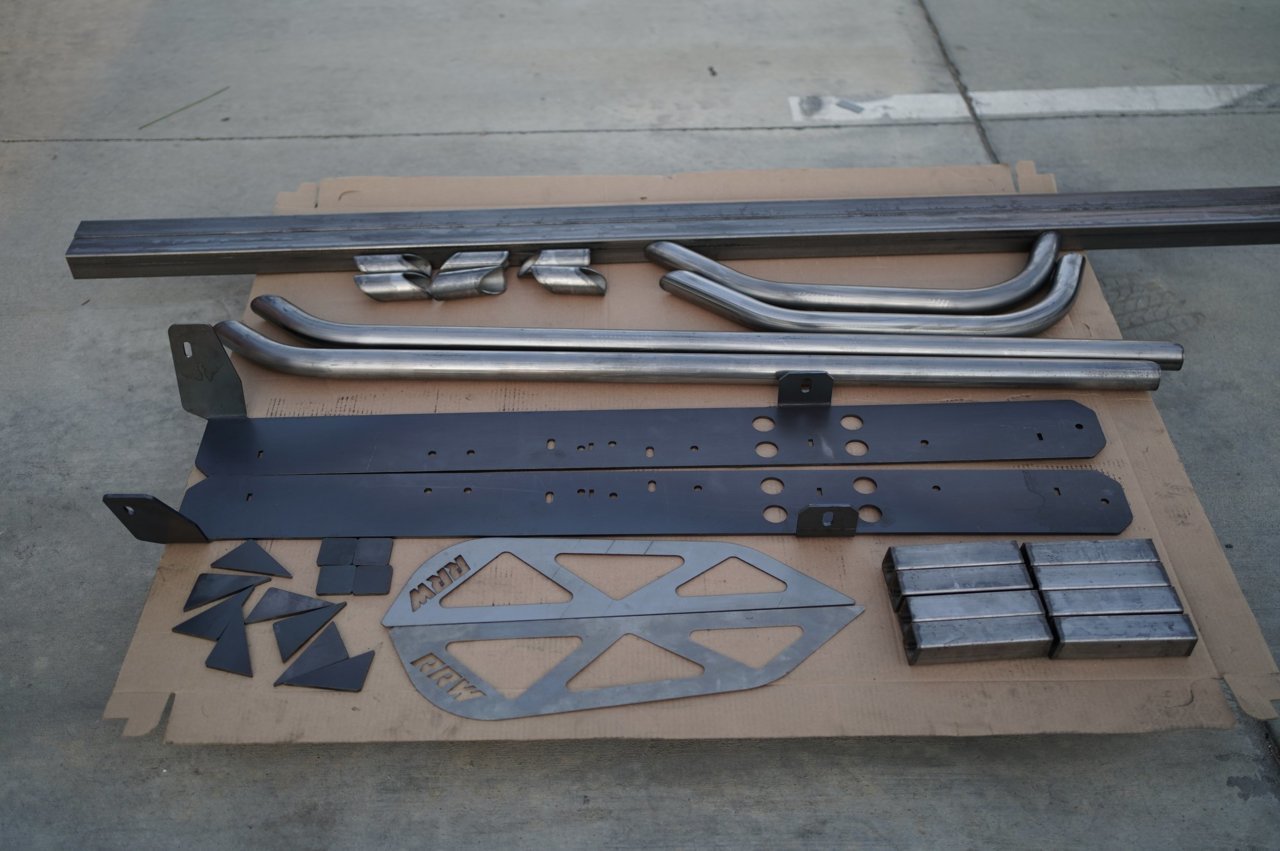

    ALL components included:

    1) CNC laser cut frame mounting plate made from 3/16 PNO Steel (direct bolt-on to the frame of your vehicle, does NOT require any drilling)

    2) CNC cut and bent tubing (1.75” diameter .120 wall)

    • (2) Main Square Tubes
    • (2) Mounting Plates
    • (2) Kickouts
    • (2) Rub Rails
    • (8) Leg Extension Square Tubes
    • (6) Rub Rail Spacers
    • (2) Kickout Step Plates
    • (4) Tube End Caps (3/16 steel)
    • (8) Reinforcement Gussets for Leg Extensions (3/16 steel)
    3) Grade 8 SAE or 10.9 Metric Mounting Hardware is included


    16+ Toyota Tacoma Hidden Winch 2.jpg DSC07553_2000x.jpg DSC07580_2000x.jpg DSC08640_a9a40e0c-f659-4481-b0fa-24d28212afb0_2000x.jpg DSC08664_7df07a83-4756-4edd-81c4-0b63533f241b_2000x.jpg DSC01612_c8f4bf4a-19b5-4ee1-b9f5-3a1b75e0e35f_2000x.jpg RRWToyotaTacomaLongBedRockSlidersDetail3_6048cfc5-c935-4286-abb2-1bc0e58a75f8_2000x.jpg DSC02993_2000x.jpg

    Stompson likes this.
  2. Apr 28, 2020 at 3:38 PM
    #2
    toycoma 2016

    toycoma 2016 Well-Known Member

    Joined:
    Feb 28, 2016
    Member:
    #179694
    Messages:
    540
    Gender:
    Male
    First Name:
    jason
    Williamsport, TN
    Vehicle:
    2021 cement OR 4x4 dcsb
    Lots
    Thanks for the post. Ordered mine just now.

    RayRRW[OP] likes this.
  3. Apr 28, 2020 at 3:45 PM
    #3
    RayRRW

    RayRRW [OP] Work hard, Off-Road harder

    Joined:
    Sep 27, 2016
    Member:
    #198372
    Messages:
    632
    Gender:
    Male
    First Name:
    Ray
    SoCal
    Vehicle:
    2016 Toyota Tacoma
    17" RRW Wheels w/ 33" Tires
    No problem! Thanks for the business.

  4. May 1, 2020 at 5:24 PM
    #4
    RayRRW

    RayRRW [OP] Work hard, Off-Road harder

    Joined:
    Sep 27, 2016
    Member:
    #198372
    Messages:
    632
    Gender:
    Male
    First Name:
    Ray
    SoCal
    Vehicle:
    2016 Toyota Tacoma
    17" RRW Wheels w/ 33" Tires
    bump

  5. May 7, 2020 at 6:39 PM
    #5
    toycoma 2016

    toycoma 2016 Well-Known Member

    Joined:
    Feb 28, 2016
    Member:
    #179694
    Messages:
    540
    Gender:
    Male
    First Name:
    jason
    Williamsport, TN
    Vehicle:
    2021 cement OR 4x4 dcsb
    Lots
    @RayRRW , hey man, I ordered my RRW winch mount on 4/28. I still haven’t received a shipping confirmation yet. Now I do understand about the lead times, but I ordered it when I did cause your post about it said y’all stocked up on them, so I figured I’d get it pretty quick. Anyway if you could, would you check on this for me tomorrow please and just let me know what you find out. Thanks

    Last edited: May 8, 2020
    Skydvrr likes this.
  6. May 7, 2020 at 6:51 PM
    #6
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,652
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    I Just ordered a set of the sliders. Hopefully doesnt take too long :fingerscrossed:

  7. May 7, 2020 at 7:50 PM
    #7
    RushT

    RushT Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    5,675
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    I’m kind of liking the winch plate. But let’s be honest.... it’s not $365, it’s really $1,365 after I add the winch. :spending:

    <edit>. $1,555 after the arb recovery point.

  8. May 8, 2020 at 9:35 AM
    #8
    narcisco.cruz

    narcisco.cruz Member

    Joined:
    Apr 8, 2019
    Member:
    #289518
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2019 TRD offroad
    So these are only diy?

  9. May 12, 2020 at 4:49 PM
    #9
    RayRRW

    RayRRW [OP] Work hard, Off-Road harder

    Joined:
    Sep 27, 2016
    Member:
    #198372
    Messages:
    632
    Gender:
    Male
    First Name:
    Ray
    SoCal
    Vehicle:
    2016 Toyota Tacoma
    17" RRW Wheels w/ 33" Tires
    Winch plates no but the sliders yes!

  10. May 12, 2020 at 4:49 PM
    #10
    RayRRW

    RayRRW [OP] Work hard, Off-Road harder

    Joined:
    Sep 27, 2016
    Member:
    #198372
    Messages:
    632
    Gender:
    Male
    First Name:
    Ray
    SoCal
    Vehicle:
    2016 Toyota Tacoma
    17" RRW Wheels w/ 33" Tires

    Shoot i'm sorry i saw this message late. DM me your order number & I'll look into it for you if it hasn't shipped out

  11. May 12, 2020 at 5:41 PM
    #11
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,652
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    Hopefully the sliders aren’t too far out.

  12. May 12, 2020 at 5:46 PM
    #12
    toycoma 2016

    toycoma 2016 Well-Known Member

    Joined:
    Feb 28, 2016
    Member:
    #179694
    Messages:
    540
    Gender:
    Male
    First Name:
    jason
    Williamsport, TN
    Vehicle:
    2021 cement OR 4x4 dcsb
    Lots
    Ray, I actually got the confirmation today. Thanks for checking back.

  13. May 16, 2020 at 10:58 AM
    #13
    txtaco17

    txtaco17 Well-Known Member

    Joined:
    Oct 2, 2016
    Member:
    #198812
    Messages:
    46
    Gender:
    Male
    First Name:
    Saul
    TX
    Vehicle:
    17 DCSB OR
    How’d you mount without hitting the power steering cooler @RayRRW ? The back plate on the mount that fits over the aluminum crash bar bolts is flat and the power steering cooler sticks out in that area

  14. May 17, 2020 at 12:33 PM
    #14
    toycoma 2016

    toycoma 2016 Well-Known Member

    Joined:
    Feb 28, 2016
    Member:
    #179694
    Messages:
    540
    Gender:
    Male
    First Name:
    jason
    Williamsport, TN
    Vehicle:
    2021 cement OR 4x4 dcsb
    Lots
    You should have gotten some relocation brackets to move the cooler back

  15. May 17, 2020 at 12:38 PM
    #15
    txtaco17

    txtaco17 Well-Known Member

    Joined:
    Oct 2, 2016
    Member:
    #198812
    Messages:
    46
    Gender:
    Male
    First Name:
    Saul
    TX
    Vehicle:
    17 DCSB OR
    Only hardware I got were the 4 bolts. After looking at a couple other fabricators I figured that was the case. Wasn’t sure if they don’t supply them or if they forgot to include them on mine

  16. May 17, 2020 at 12:41 PM
    #16
    toycoma 2016

    toycoma 2016 Well-Known Member

    Joined:
    Feb 28, 2016
    Member:
    #179694
    Messages:
    540
    Gender:
    Male
    First Name:
    jason
    Williamsport, TN
    Vehicle:
    2021 cement OR 4x4 dcsb
    Lots
    I helped a buddy of mine put his on, and he said that it was supposed to come with the order, however we never found them. That’s where I got my info, btw. Keep checking with @RayRRW just to be sure.

  17. May 21, 2020 at 8:32 AM
    #17
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,652
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    Just curious if there were any updates on my sliders? Michael said around 1-2 weeks. Order #R4575 thanks for any info!

  18. May 26, 2020 at 5:24 PM
    #18
    RayRRW

    RayRRW [OP] Work hard, Off-Road harder

    Joined:
    Sep 27, 2016
    Member:
    #198372
    Messages:
    632
    Gender:
    Male
    First Name:
    Ray
    SoCal
    Vehicle:
    2016 Toyota Tacoma
    17" RRW Wheels w/ 33" Tires
    We just put it on without removing the cooler.

    Can you pm me some pictures?

  19. Jun 3, 2020 at 8:55 AM
    #19
    GlockLesnar

    GlockLesnar Well-Known Member

    Joined:
    Apr 22, 2020
    Member:
    #325474
    Messages:
    110
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2020 TRD Off-road
    Any idea when center caps for wheels ordered from you guys will ship out?

  20. Jun 3, 2020 at 9:02 AM
    #20
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,652
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    Anything? You guys stopped answer emails. I asked your boy Michael what current lead times were and he said 1-2 weeks on may 6th, I ordered on may 7th. Then 2 weeks later he said there was a delay. Then no more responses as we're coming up on a month. Any updates?
