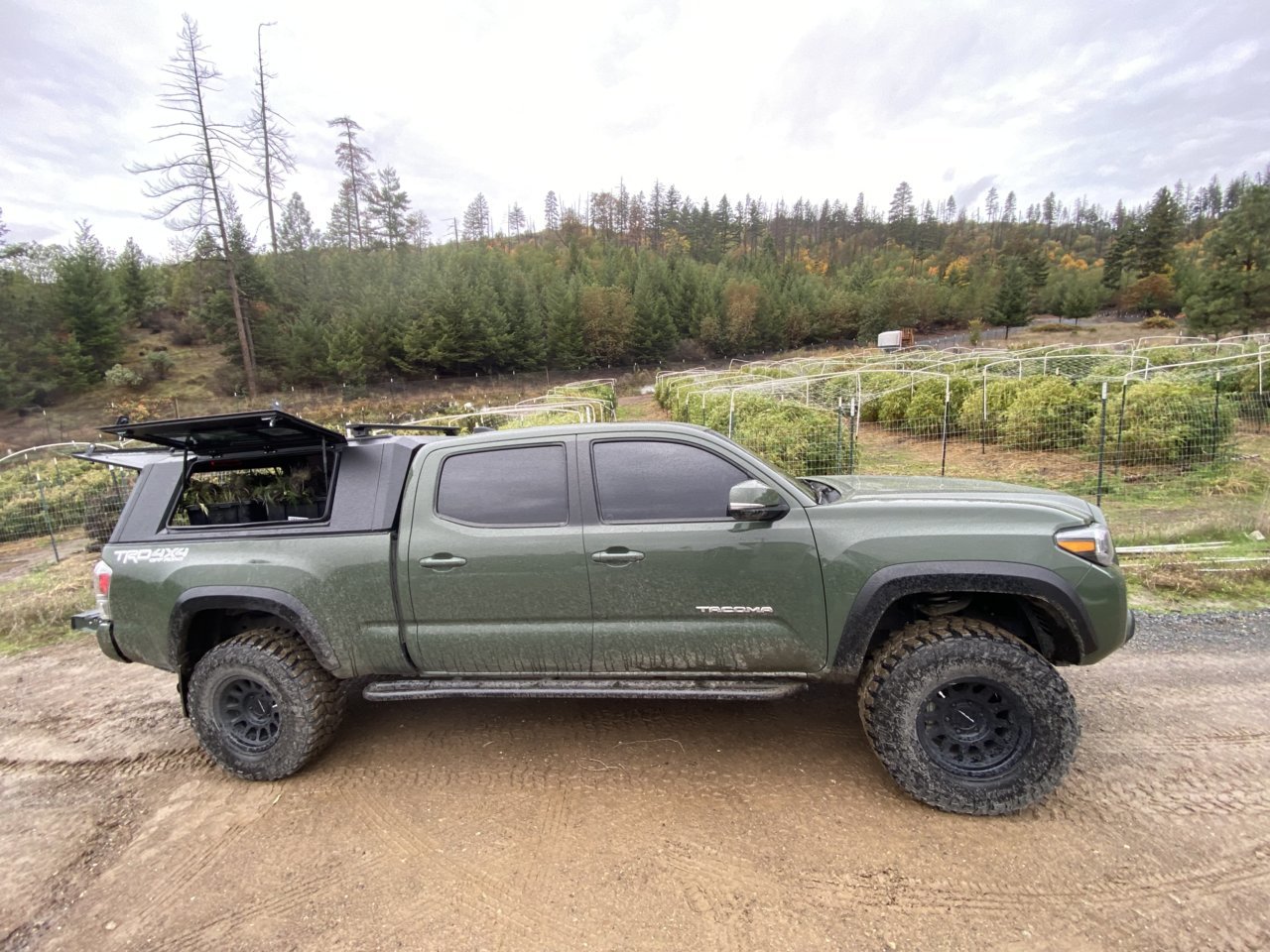

RSi SmartCap (Photo Heavy)

Discussion in '3rd Gen. Tacomas (2016+)' started by Aaronparker001, Sep 3, 2020.

  1. Oct 13, 2021 at 10:51 PM
    #641
    TwinTaco31719

    TwinTaco31719 Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310895
    Messages:
    3,523
    Gender:
    Male
    First Name:
    Eric
    Reno, NV
    Vehicle:
    2019 Super-White Tacoma TRD OR

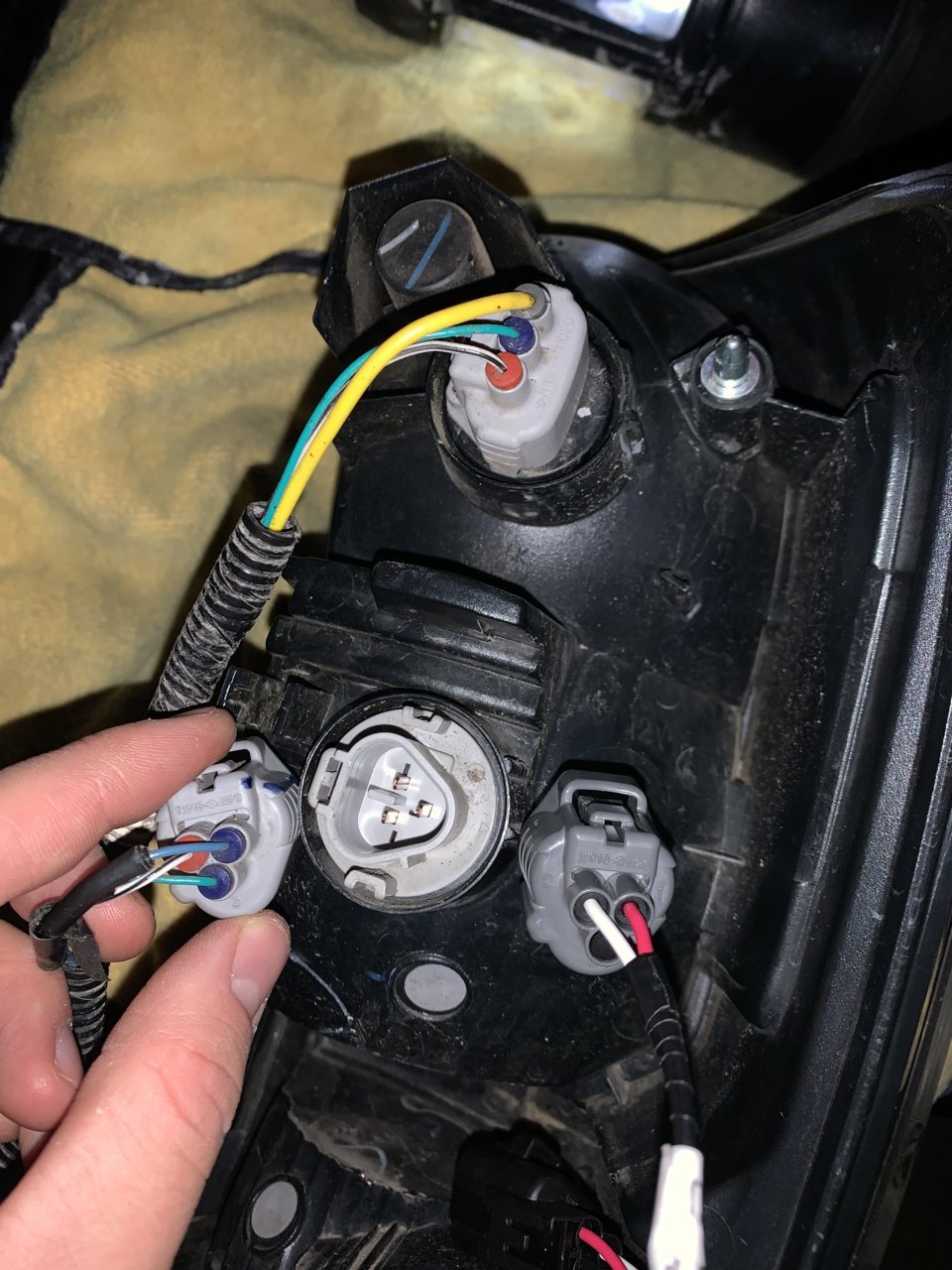

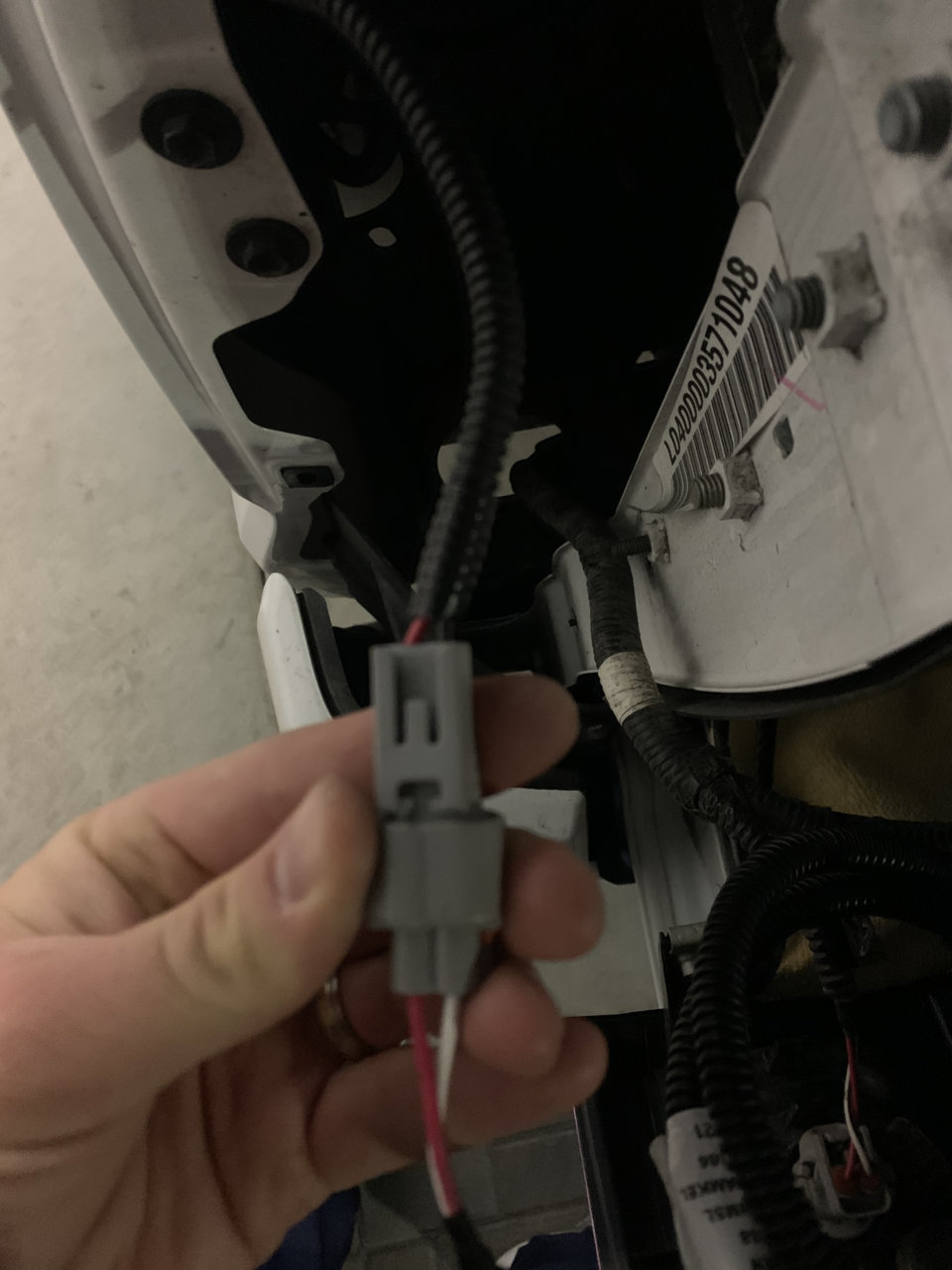

    Okay so I still don’t understand what’s going on.. I had the “RSI brake light wire that had the red and white “crossed” so I switched those and now am getting power from the factory brake light harness into the rsi rear brake light. However, the last connector that branches and runs to the bulb won’t power the bulb. Am i missing something? So frustrated by this haha


  2. Oct 13, 2021 at 10:52 PM
    #642
    TwinTaco31719

    TwinTaco31719 Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310895
    Messages:
    3,523
    Gender:
    Male
    First Name:
    Eric
    Reno, NV
    Vehicle:
    2019 Super-White Tacoma TRD OR

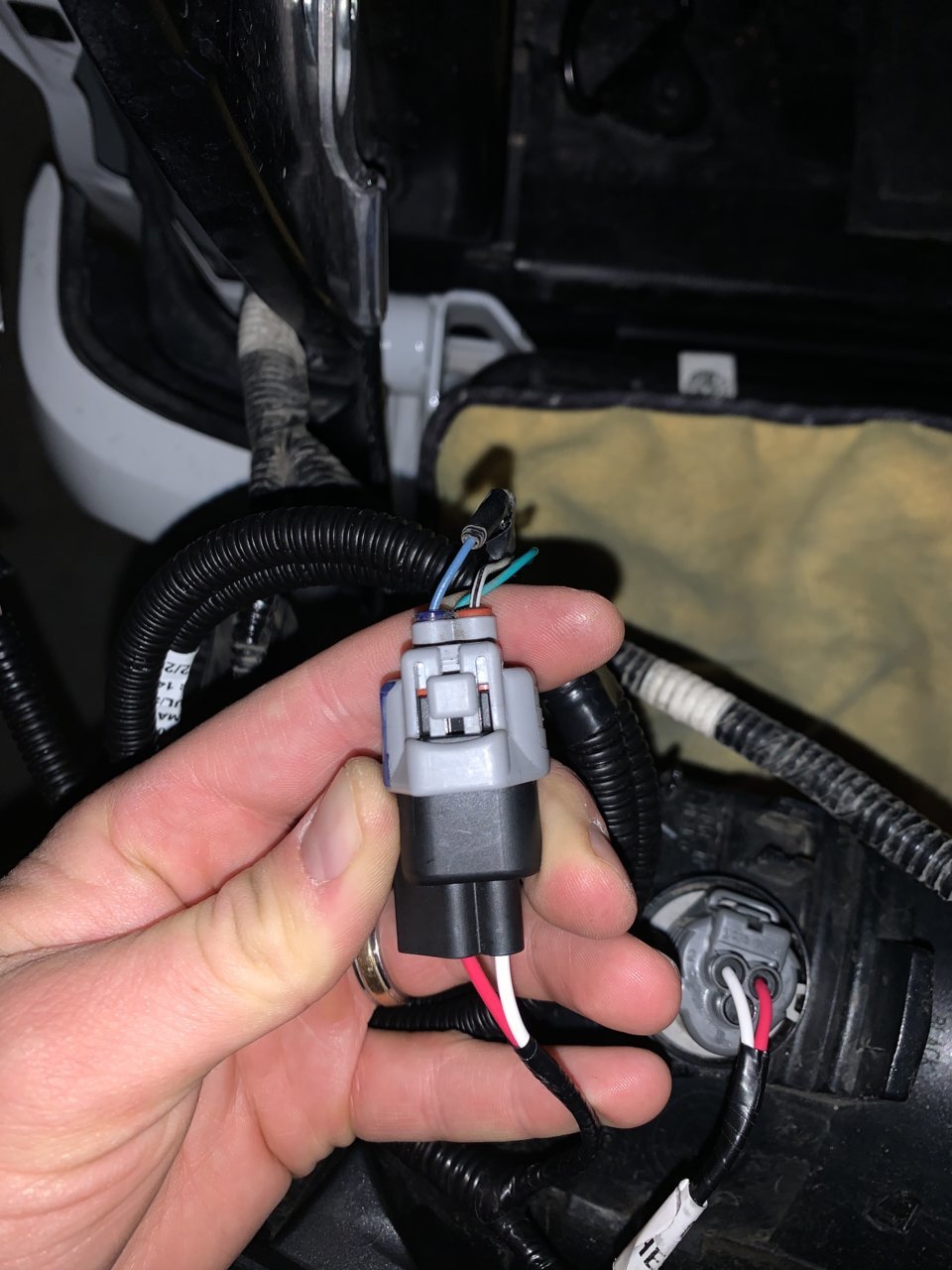

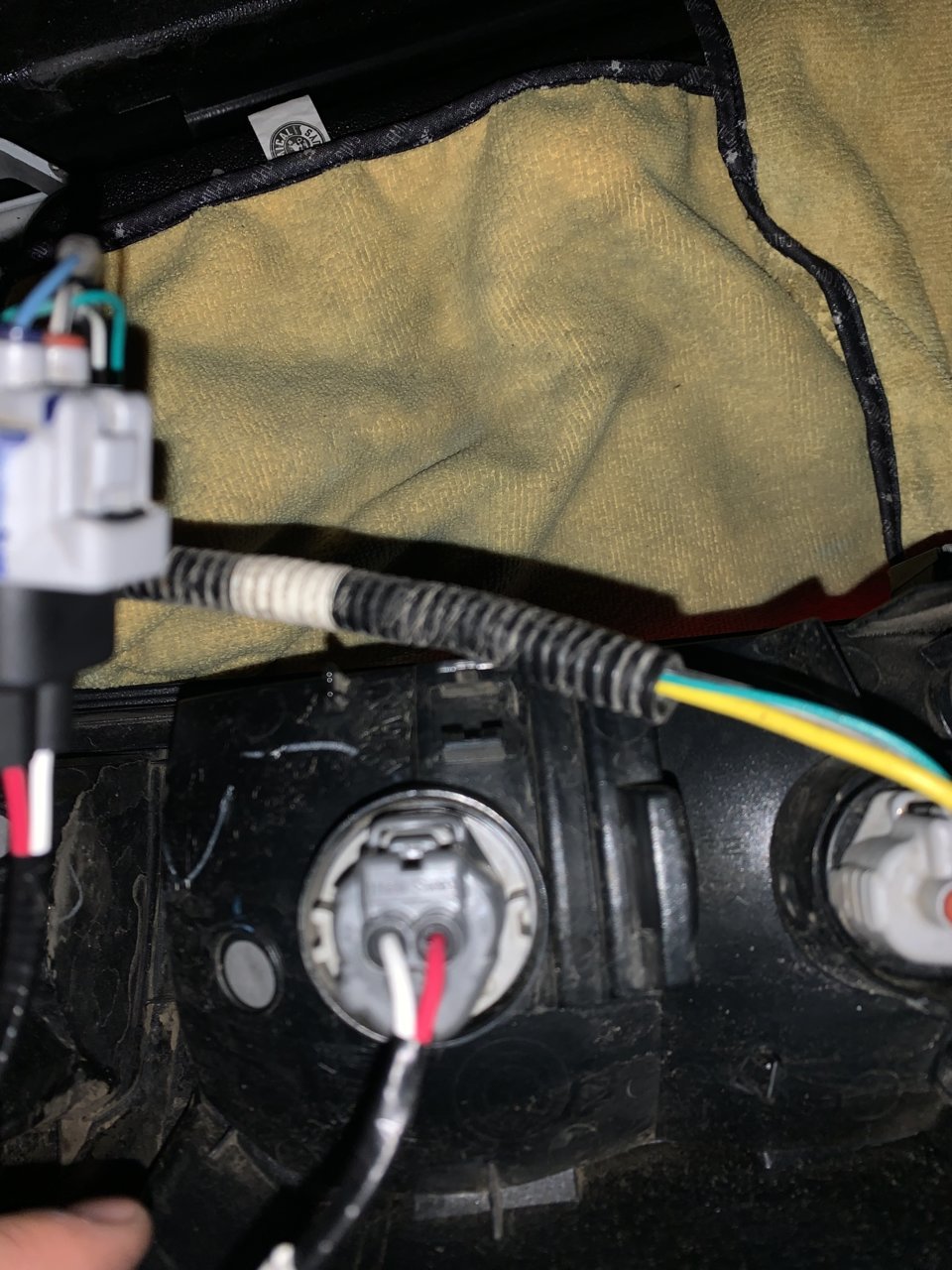

    The 3rd picture shown is the only connector that’s not drawing any power.. the 4th picture just compares the factory bulb connector and the one provided by rsi

  3. Oct 14, 2021 at 12:48 AM
    #643
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,787
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Is there only 2 wires in the rsi harness? Sure looks like it and if so I’d suspect that’s why.

    Just checked- The short length connectors that go to the taillight have 3 wires on my harness and the longer single connector to the canopy will have just 2

    TwinTaco31719 likes this.
  4. Oct 14, 2021 at 5:39 AM
    #644
    TwinTaco31719

    TwinTaco31719 Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310895
    Messages:
    3,523
    Gender:
    Male
    First Name:
    Eric
    Reno, NV
    Vehicle:
    2019 Super-White Tacoma TRD OR
    Man this thing was all jacked up! So can it be fixed? Or is this harness trash?

  5. Oct 14, 2021 at 5:45 AM
    #645
    TwinTaco31719

    TwinTaco31719 Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310895
    Messages:
    3,523
    Gender:
    Male
    First Name:
    Eric
    Reno, NV
    Vehicle:
    2019 Super-White Tacoma TRD OR
    Yeah my rsi harness has just two wires on all the connectors. This may sound dumb but could I take the green ground wire coming from the truck and just reroute it going to the bulb? Then just have two wires on the other two rsi?

  6. Oct 14, 2021 at 6:10 AM
    #646
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,787
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Im not sure I’m following- it’s early but I’m sure it can be fixed. I think just removing the sealing plugs (for the 3rd wire) from the 2 taillight (rsi) connectors and adding a wire.

    I was given extra parts terminals/seals, I can make you the wire with terminals attached and all you’d have to do is insert if you like. Just pm me your address

  7. Oct 14, 2021 at 6:22 AM
    #647
    DAS Taco

    DAS Taco Well-Known Member

    Joined:
    Mar 13, 2020
    Member:
    #322072
    Messages:
    1,865
    Gender:
    Male
    First Name:
    DAS
    Vehicle:
    2017 TRD Offroad
    RLD is nice, good quality but to me it's too upright, kinda square'ish...

  8. Oct 14, 2021 at 7:04 AM
    #648
    TwinTaco31719

    TwinTaco31719 Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310895
    Messages:
    3,523
    Gender:
    Male
    First Name:
    Eric
    Reno, NV
    Vehicle:
    2019 Super-White Tacoma TRD OR
    Thank you for all of your help!!

  9. Oct 20, 2021 at 4:50 PM
    #649
    MarinerSax

    MarinerSax Member

    Joined:
    Jun 14, 2021
    Member:
    #368565
    Messages:
    6
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2017 Tacoma TRD Off Road

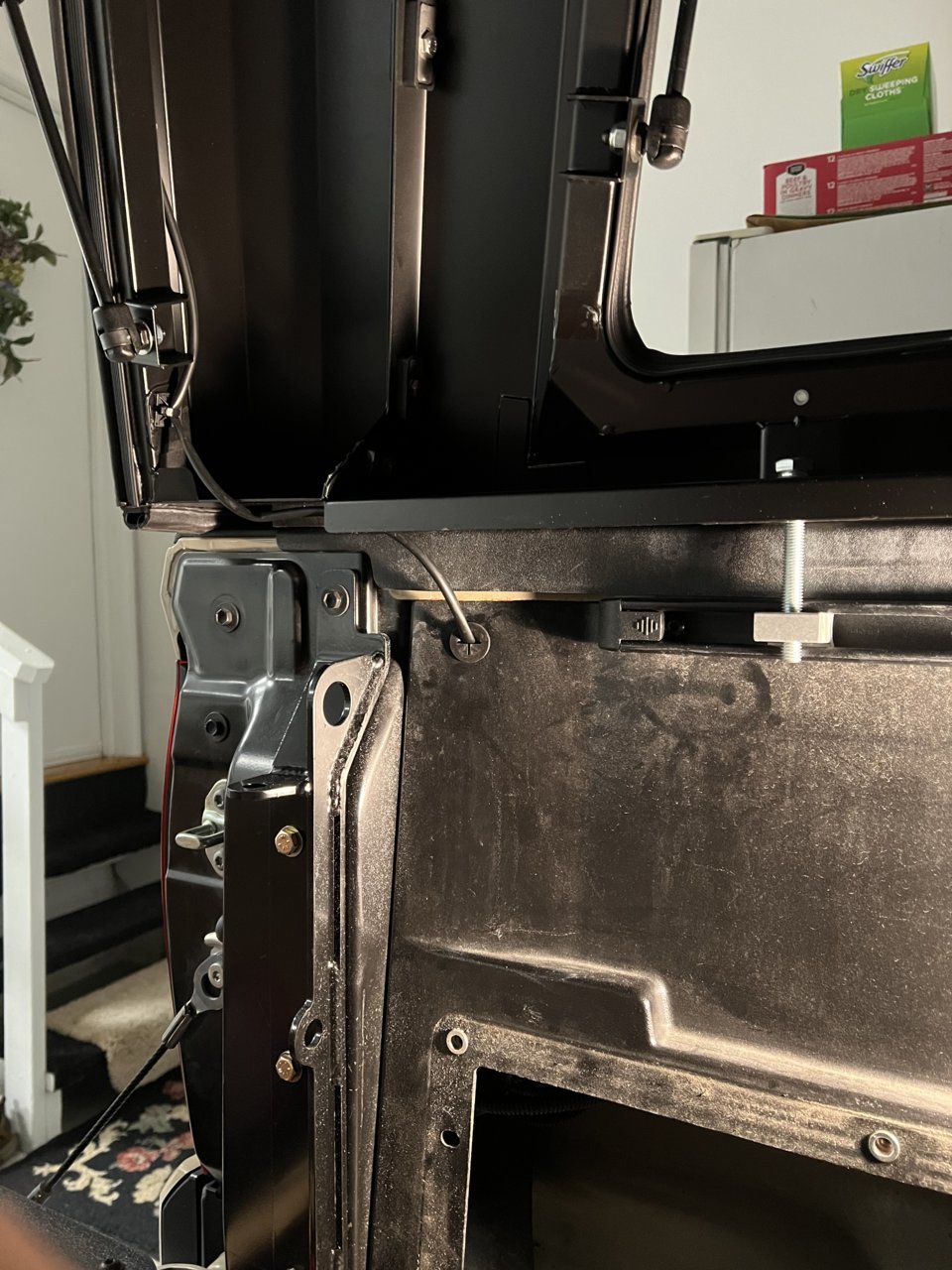

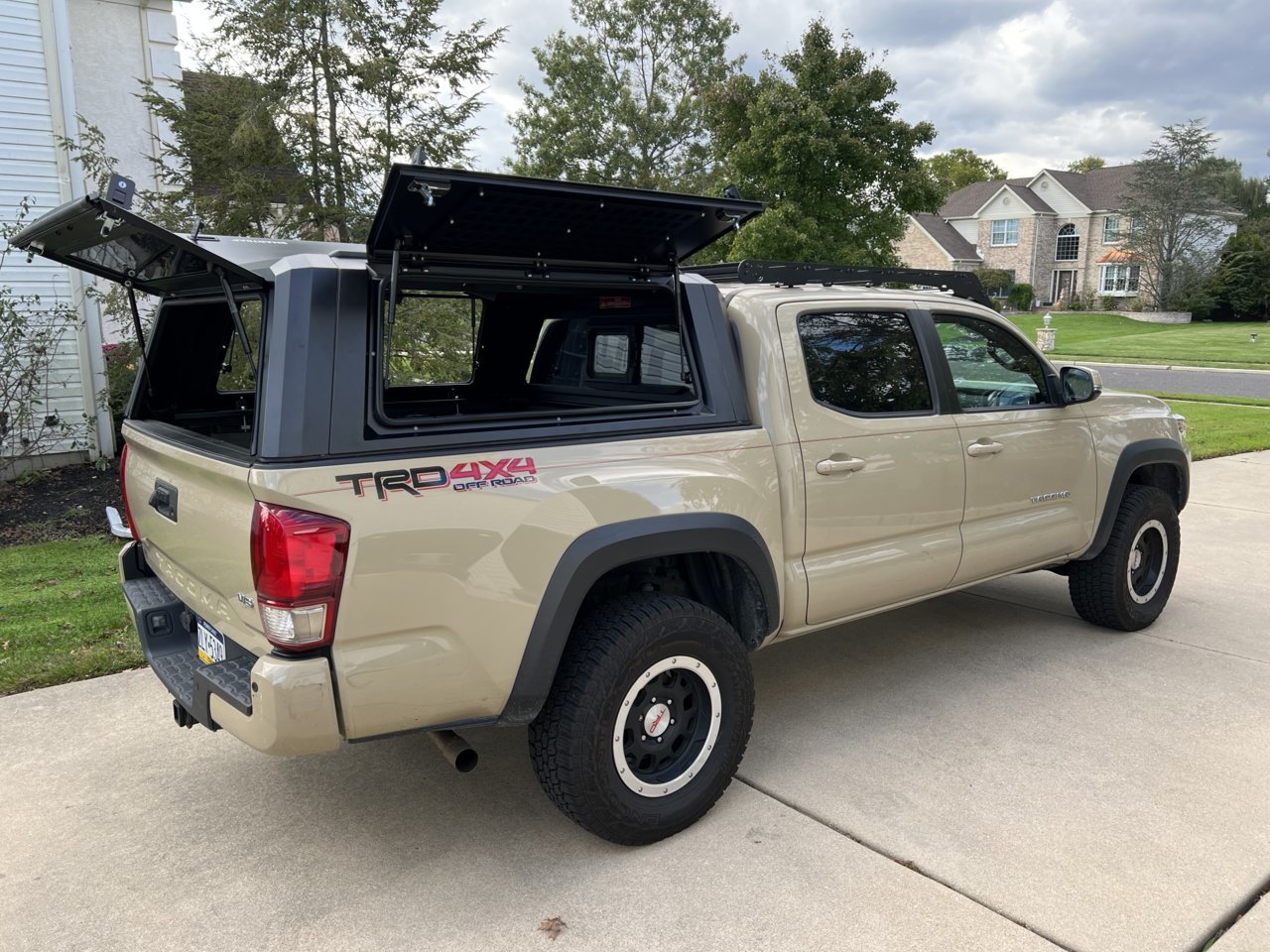

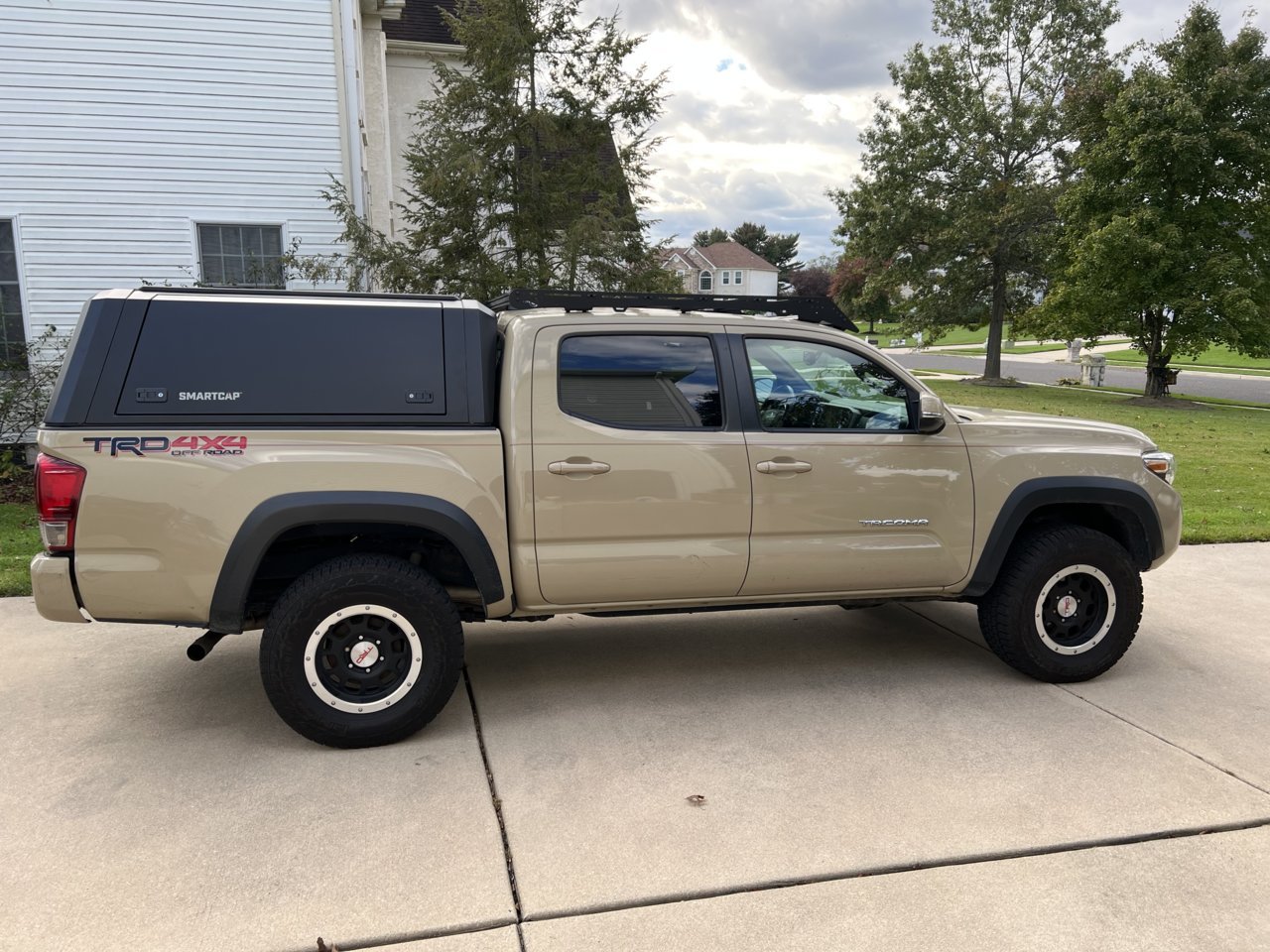

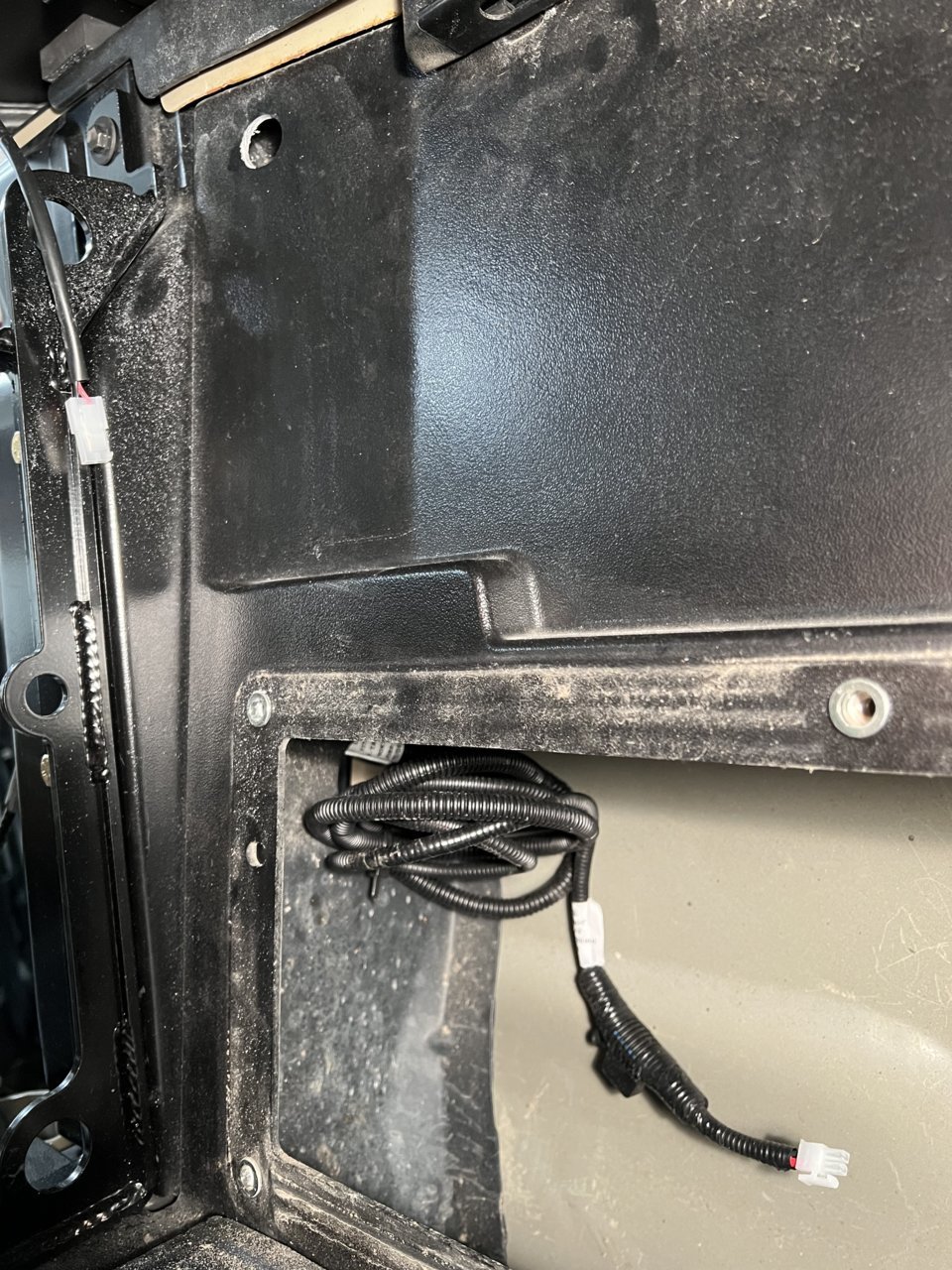

    I joined the RSI Smart Cap crowd this weekend and just wanted to share a few pics of the install, especially how I routed the 3rd brake light harness. It was only after I had the cap on the bed did I see that you could route the harness up through the side of the bed under the plastic. I wasn't about to remove the cap again to do that, so I took a different approach and just drilled a 3/4" hole in the side of the bed (gasp.) and ran the wire through there. Zip tied the extra harness slack up in the wheel well. Found some 3/4" wire grommets on Amazon to plug the hole up and make it look nice. Good access from the driver's side bed storage box to get in there and do all this. Just wanted to share. Previous posts were super helpful to me, so thank you all!
    IMG_0257.jpgIMG_0261.jpg IMG_0280.jpg IMG_0281.jpg IMG_0283.jpg

  10. Oct 20, 2021 at 5:09 PM
    #650
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,787
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    So you put the plug behind the bed? I have a grommet that would likely work in that spot. I spec’Ed it out for the thickness of the cubby box and the inner diameter spec’Ed out for a tight fit/seal with I believe 3/8 corrugated sleeve. It would be a tighter seal than what looks like slits and you could pull the plug out for access… I guess unless you did that on purpose

  11. Oct 20, 2021 at 6:05 PM
    #651
    chuam

    chuam Well-Known Member

    Joined:
    Feb 2, 2021
    Member:
    #354841
    Messages:
    587
    Gender:
    Male
    First Name:
    Marcus
    San Diego
    Vehicle:
    2017 Tacoma SR5 DCSB 4x4
    Icon 2.5 & UCAs front, Icon 2.0 rear, Icon RTX Stage 2 leafs RSI Smartcap Evo Sport KDMax 6.0 tune ARB Recovery Point RCI Full Skids R4T LCA Skids Exhaust reroute ARB Dual Compressor w/ Slee Mount OR Black Fenders Caliraised Hidden Grill light bar A/C drain mod Differential Breather Mod Supralee Traction Board mount Liftd Gas cap holder Taco Garage DMM 2.0 Total Chaos bed stiffeners TRD SEMA Pro 17" wheels Falken Wildpeaks 275/70r17 TRD Pro Grill Ecological Bumper shells DesertDoesit Seat Jackers
    You don't need to drill at all. See how I routed mine without needing to drill a hole:

    https://www.tacomaworld.com/threads/rsi-smart-cap.679267/page-47#post-25419804

  12. Oct 20, 2021 at 10:27 PM
    #652
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,787
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM

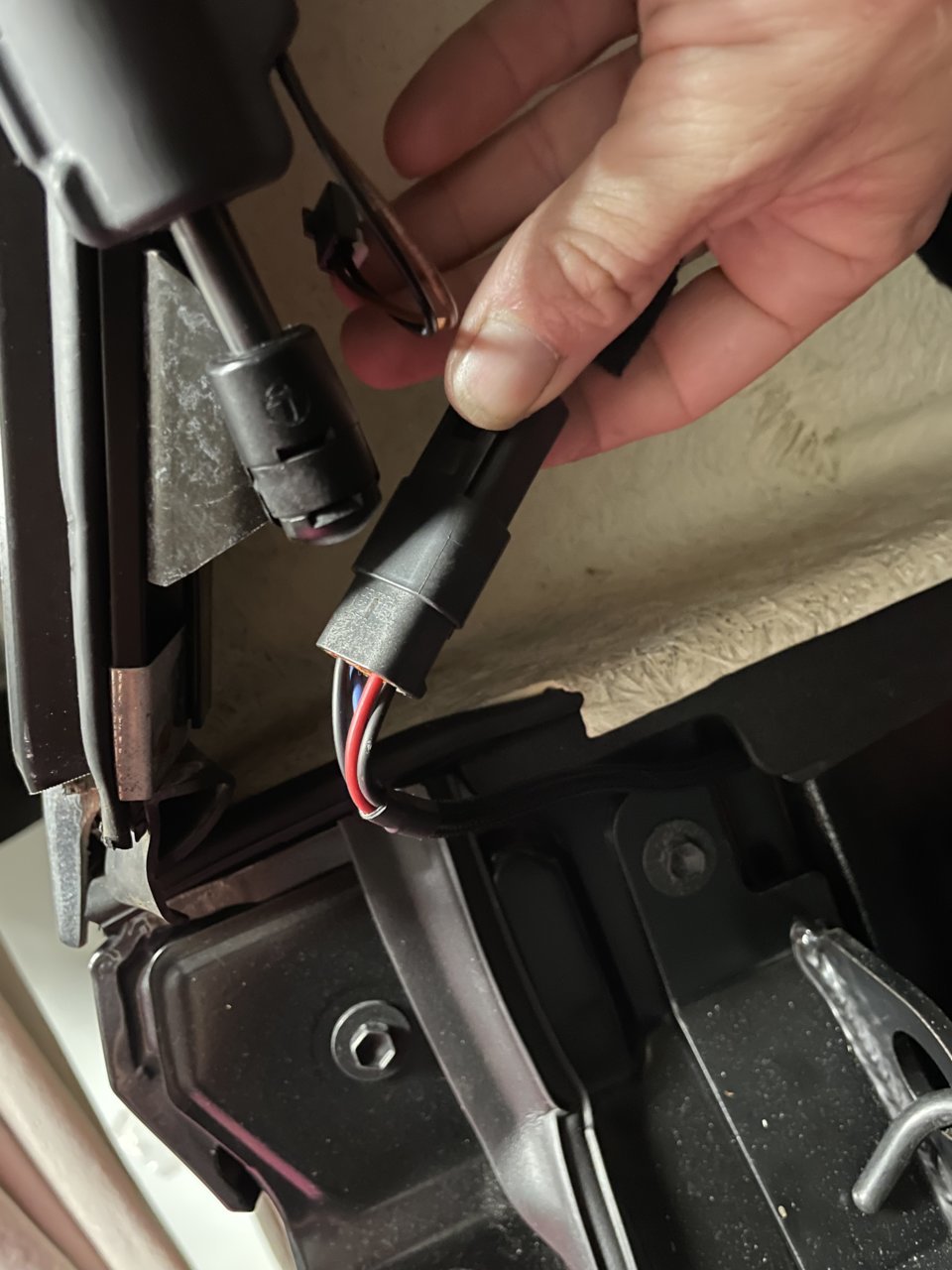

    I didn’t drill, I was offering up a grommet. When I had the fiberglass I wired it near the spot you posted except it’s between the bed and sheet metal (didn’t know just 2” forward was a knockout) I did end up bending the metal at that corner for a little more play and out of frustration. I may try to bend it back into place

    you can kinda see it here.

    OmahTako and chuam like this.
  13. Oct 21, 2021 at 7:02 AM
    #653
    OmahTako

    OmahTako Well-Known Member

    Joined:
    Jul 3, 2021
    Member:
    #370309
    Messages:
    424
    Gender:
    Male
    Vehicle:
    TRD OR
    You sir are what this site should be about!:thumbsup:

  14. Oct 21, 2021 at 7:51 AM
    #654
    thebaker

    thebaker Well-Known Member

    Joined:
    Feb 14, 2009
    Member:
    #13597
    Messages:
    2,300
    Gender:
    Male
    First Name:
    Byron
    NorCal
    Vehicle:
    Upgraded to a 3rd gen
    Never ending......$$$
  15. Oct 21, 2021 at 7:44 PM
    #655
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,787
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Nah, I def don’t deserve a prop up. I’ll help when I can/if I can dependent on mood tbh. I’ve contributed to the unwelcoming posts/snark replies etc. so I’m no solid role model. I just try to do better going forward if I slip.

    I am learning- with age, comes wisdom… and the next level of sarcasm and idgaf :rofl:

    OmahTako and 10ECTACO like this.
