Running board LED wiring help

Discussion in 'Lighting' started by Prime1017, Feb 7, 2021.

  1. Feb 7, 2021 at 1:46 PM
    #1
    Prime1017

    Prime1017 [OP] Member

    Joined:
    Feb 7, 2021
    Member:
    #355370
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2020 Toyota Tacoma SR5
    Hello, first time posting on a forum.

    I’m trying to install running off lights onto my taco. I’m running into problems with the wiring. Instead of tapping into the factory wires I chose to go the add a circuit route.

    I connected the white wire( courtesy light) to the Dome fuse, the light turned on but stayed on. Even when I lock my truck.
    Same as the parking lights, the red wire, I connected that into the d/l 20amp fuse, and nothing changed. The courtesy white light stays on.
    I connected the yellow wire ( turn signals) into the ig1 no.1 slot and still just the courtesy light stays on.

    I’ve removed all the connections and everything in the truck is back to normal.
    Am I doing this wrong?

    Has anyone tried doing this or has some advice for me? I’m trying not to have to splice any wires.

    thank you.


    This is the light I bought

    OPT7 2pc 60" Side Kick Running Board LED Strips w/SEQUENTIAL Amber Turn Signal, DRL, and white Courtesy Light https://www.amazon.com/dp/B07BYFFNSY/ref=cm_sw_r_cp_api_glt_fabc_A4FQMKHPBJ6PZ6SB4GV

    hyrule_trd likes this.
  2. Feb 7, 2021 at 4:13 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

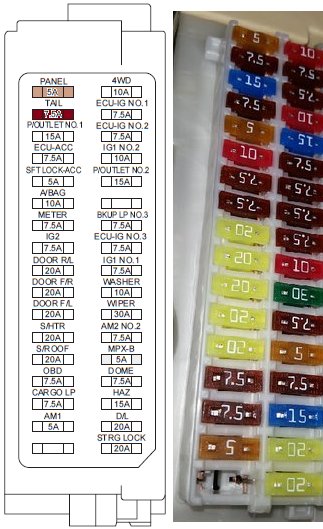

    Add-a-fuse to either PANEL or TAIL fuse.

    Last edited: Feb 7, 2021
  3. Feb 7, 2021 at 4:21 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

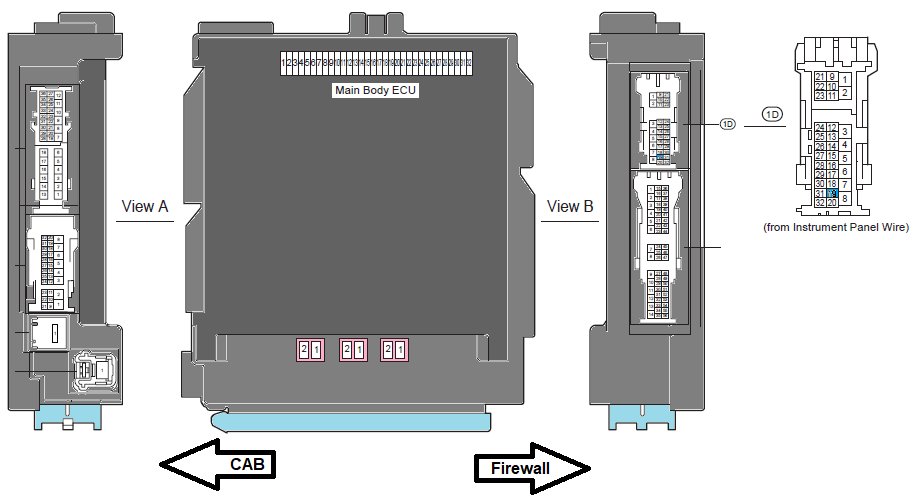

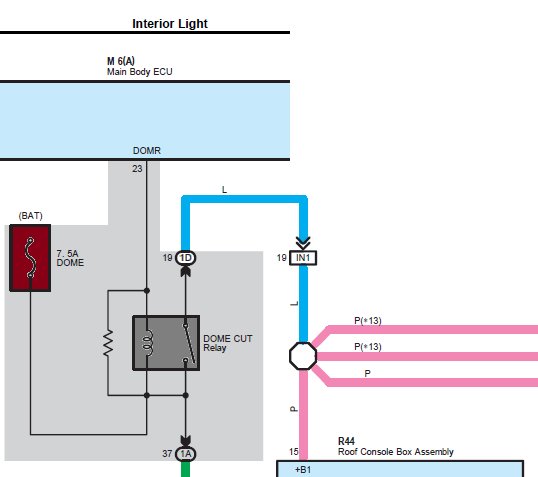

    Tap the blue wire on connector 1D#19.

    Last edited: Feb 7, 2021
  4. Feb 7, 2021 at 4:27 PM
    #4
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,726
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Many of the lights in the Tacoma are ground-switched, meaning the on/off function is on the negative side, not the positive side.

    because of this, fuse taps don’t work because they are always hot. That’s why your light is staying on.

  5. Feb 7, 2021 at 4:31 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

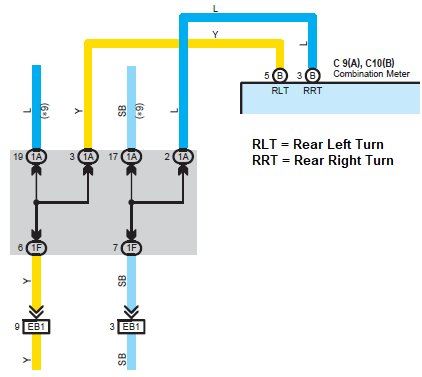

    Turn Signal (+) for LEFT & RIGHT.

    Last edited: Feb 7, 2021
  6. Feb 7, 2021 at 4:35 PM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    It's the relay that provides the juice that most get incorrect. That is what gets ground "switched"...:burp:

  7. Feb 7, 2021 at 5:58 PM
    #7
    Prime1017

    Prime1017 [OP] Member

    Joined:
    Feb 7, 2021
    Member:
    #355370
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2020 Toyota Tacoma SR5
    Thank you for your advice, I am looking into that now, will probably try again tomorrow during the day. Will update with results.

  8. Feb 12, 2021 at 1:20 PM
    #8
    Prime1017

    Prime1017 [OP] Member

    Joined:
    Feb 7, 2021
    Member:
    #355370
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2020 Toyota Tacoma SR5
    Not gonna lie. I don’t really understand how to locate the wires by looking at that picture. Pretty embarrassing to say, but I haven’t tapped into any wires because I’m not confident that I have the correct one.

    Quicksand1717 likes this.
  9. Feb 12, 2021 at 3:01 PM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

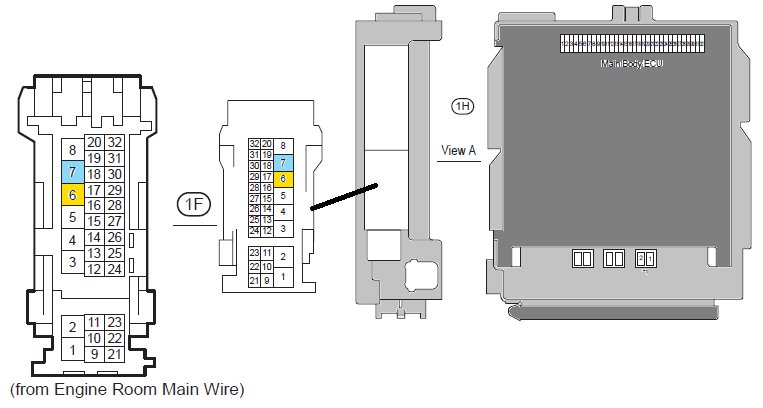

    These are the left n right turn signal wires to the rear of the Tacoma.
    If you remove the cubby on the driver's side, you'll see what the picture shows.

  10. Feb 12, 2021 at 3:07 PM
    #10
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

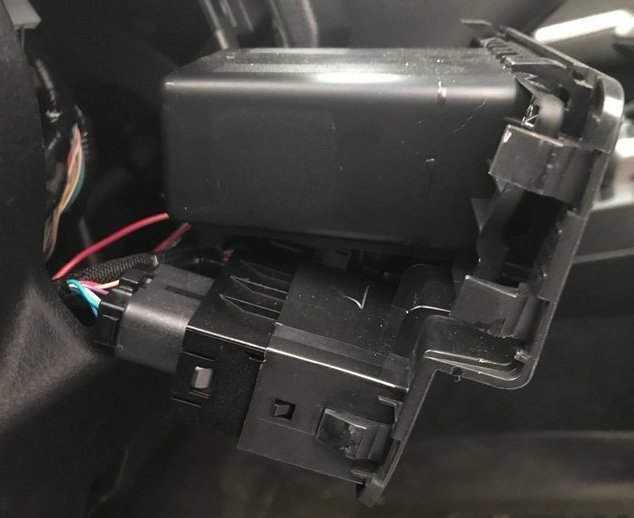

    This is the cubby removed from the dash.

  11. Feb 12, 2021 at 3:14 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

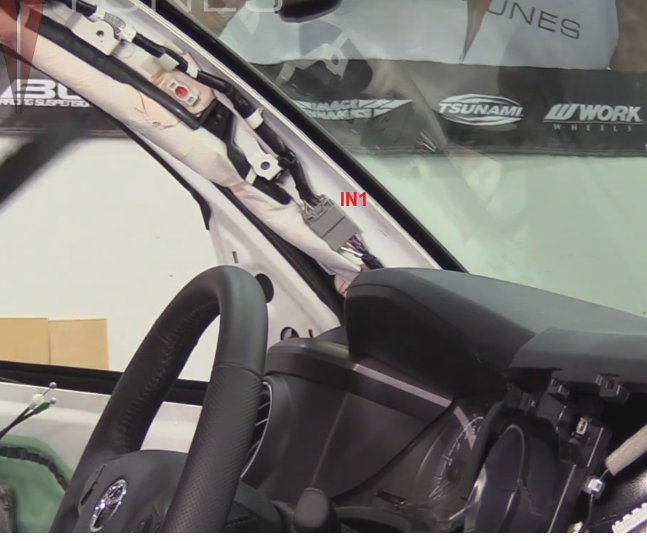

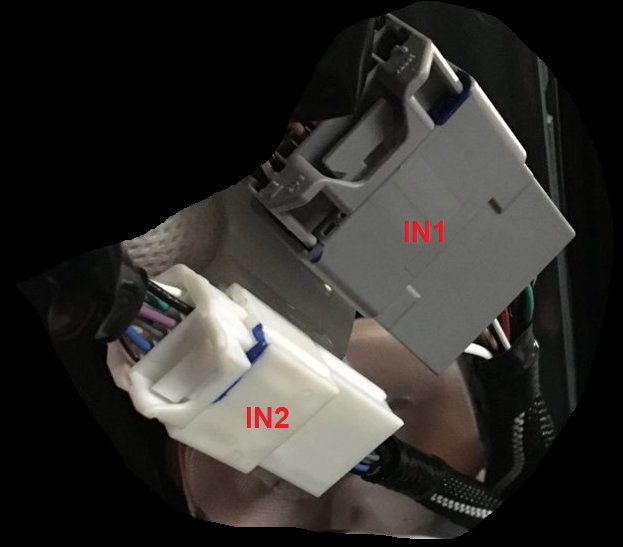

    For the tap on the interior illumination:
    upload_2021-2-12_19-13-24.jpgupload_2021-2-12_19-14-3.jpgupload_2021-2-12_19-14-37.jpg

  12. Feb 12, 2021 at 5:57 PM
    #12
    Prime1017

    Prime1017 [OP] Member

    Joined:
    Feb 7, 2021
    Member:
    #355370
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2020 Toyota Tacoma SR5
    Thank you for your patience with me. I have tapped in to the correct turn signal wires.

    I have not done the interior lighting yet as it has gotten dark.

    Also, for the red wire, I used the add a circuit and tried both the tail and the panel and neither of them worked. Is there a wire that I can tap into?

    I was very nervous to do my first two taps into factory wire lol was really edgy abt tapping the wrong wire, the guy at the auto shop quoted me $500 to redo some wiring harness.

    thanks again for your help.

  13. Feb 12, 2021 at 6:11 PM
    #13
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    The steering wheel light stalk (switch) must be set to parking lights for TAIL & Panel to be energized. Did you have the parking lights ON to test this?

  14. Feb 12, 2021 at 6:50 PM
    #14
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  15. Feb 12, 2021 at 9:14 PM
    #15
    Prime1017

    Prime1017 [OP] Member

    Joined:
    Feb 7, 2021
    Member:
    #355370
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2020 Toyota Tacoma SR5
    The lights are working! Somewhat. My signals are working, and the drl / parking light is working, you are correct, I didn’t have the switch turned on, I thought they would come on automatically with the truck.

    All in all, it is installed, and I will install the courtesy light into the a pillar in the morning.

    thank you! I will take photos of the install and my wiring, once everything is complete

  16. Feb 12, 2021 at 10:19 PM
    #16
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :thumbsup:

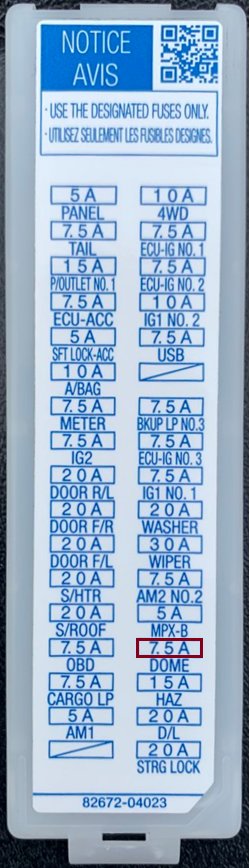

    P.S. Pull the fuse for the cab illumination (courtesy) before you tap into the pillar wire.

    Last edited: Feb 12, 2021
  17. Feb 12, 2021 at 11:36 PM
    #17
    Prime1017

    Prime1017 [OP] Member

    Joined:
    Feb 7, 2021
    Member:
    #355370
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2020 Toyota Tacoma SR5
    Will do!

    can’t thank you enough!

  18. Feb 13, 2021 at 10:20 AM
    #18
    Prime1017

    Prime1017 [OP] Member

    Joined:
    Feb 7, 2021
    Member:
    #355370
    Messages:
    16
    Gender:
    Male
    Vehicle:
    2020 Toyota Tacoma SR5

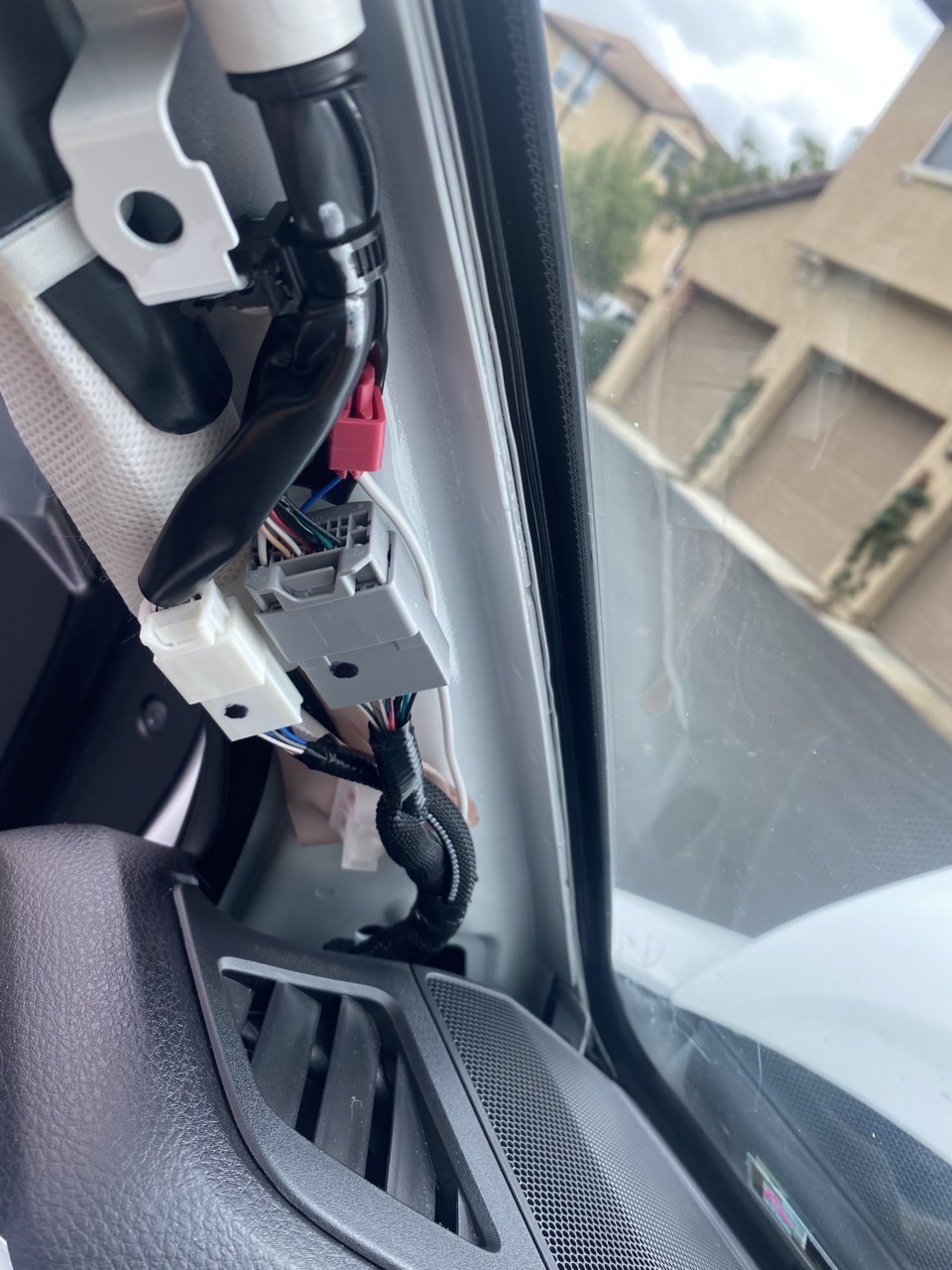

    I might’ve tapped in the wrong spot, but correct wire.

    my running board leds stay on white, even when the truck is off.

    was I supposed to tap in under the plug? Not above it..?

    thank you

  19. Feb 13, 2021 at 10:29 AM
    #19
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,523
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I had a brain fart.:facepalm:
    Your light bar would need to have a separate ground (which it doesn't), so remove that tap.
    You'll need to add a small relay to activate with cab illumination via a different wire.

  20. Feb 13, 2021 at 10:30 AM
    #20
    hyrule_trd

    hyrule_trd It’s a Secret to Everybody

    Joined:
    Jan 26, 2020
    Member:
    #317260
    Messages:
    7,408
    Gender:
    Male
    First Name:
    Eric
    Harford County, MD
    Vehicle:
    2020 Black TRD OR
    Ironman Stage 1 Foam Cell Pro lift kit, 255/85/16 Cooper ST Maxx, SCS BR6 Wheels, SPC UCA, Heated seats, MESO TRD start button, Meso Total Tail v1, Meso V5 mirror white DRL turns, bed decal, ditch and hidden bumper lights, screen protech, RAV4 radio knobs, steering wheel anytime camera kit, dash cam, ECGS bushing, Timbren Active Off Road bump stops with Wheelers flip kit. 35% Xpel CS Ceramic Tint, KD Max Tune, SumoSprings front bump stops, RRW Sliders ‌ ‌ ▲ ▲‌ ▲
    No advice to offer but that’s a pretty cool idea. Good luck and post pics of it once you’ve got it working right.

    Prime1017[QUOTED][OP] likes this.
