Discussion in 'Audio & Video' started by SixtyDashOne, Aug 5, 2016.

  1. Aug 5, 2016 at 11:51 AM
    #1
    SixtyDashOne

    #1
    SixtyDashOne [OP] Well-Known Member

    Joined:
    Oct 12, 2009
    Member:
    #24215
    Messages:
    1,509
    Gender:
    Male
    Collegeville, PA
    Vehicle:
    2021 ArmyGreen TRD Sport, 2007 Regular Cab 4x4

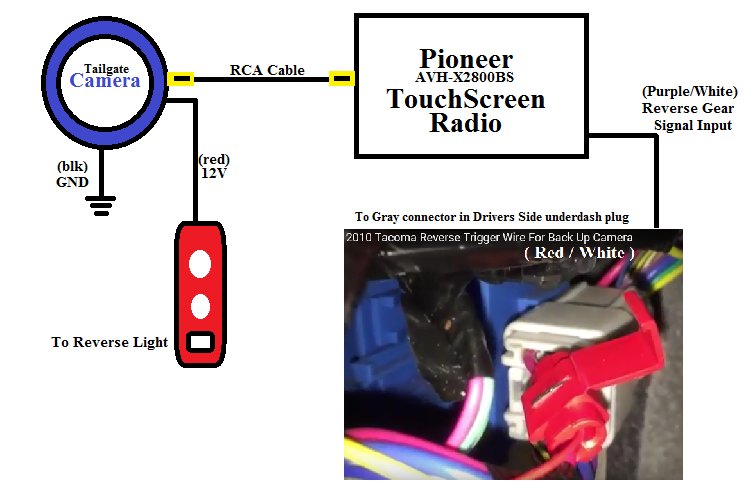

    hey guys.. I want to install a backup camera in my tailgate handle of my Regular Cab. which has no pre-wired anything for a backup camera, I made up a little drawing as to how I think its wired, and just want somebody to check my wiring and see if it makes any sense, thanks!
