Satoshi GrillCraft *How To* w/ pics

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Klipp11, Feb 18, 2010.

  1. Feb 18, 2010 at 3:17 PM
    #1
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    decided to install a grillcraft on my tacoma so i can mount some hellas behind the grill down the road

    after considering the fiberglass / bondo method, i decided on another route. i fabricated a piece of oem plastic from the crossmember to fit perfectly in the gap left from the cut, then used an epoxy resin to set it in. very strong...

    check it out:

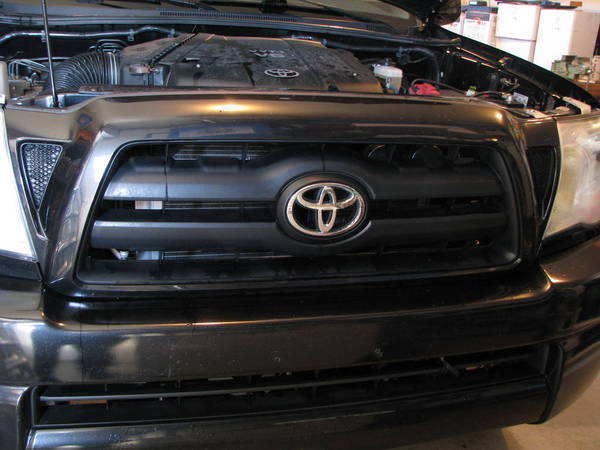

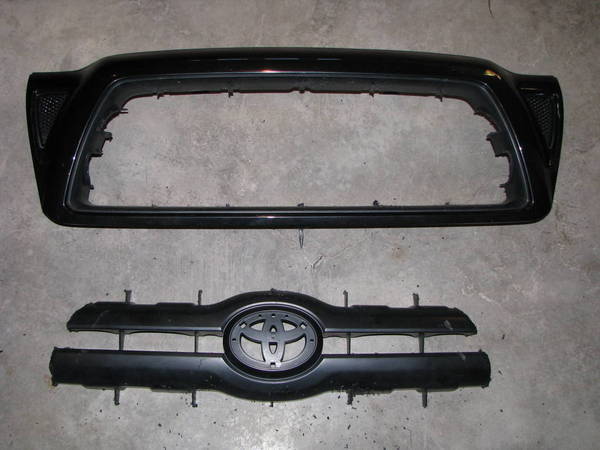

    oem grill
    [​IMG]

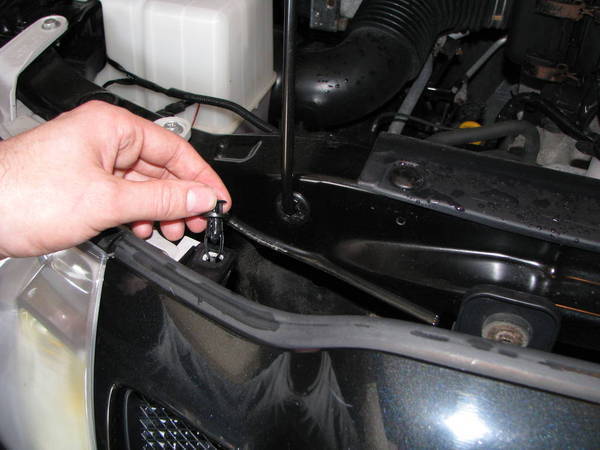

    remove the grill by removing the two plastic flare clips using a flathead screwdriver
    [​IMG]

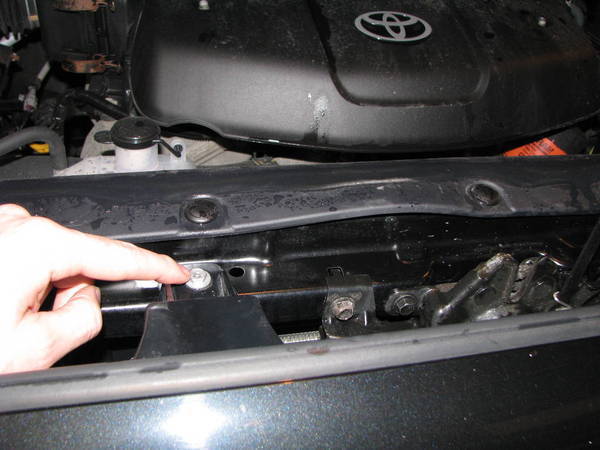

    and 2 bolts with a socket
    [​IMG]

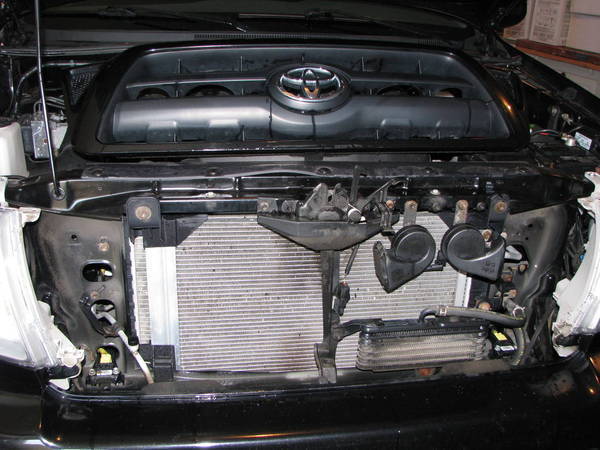

    then lift the grill straight up to release the two clips holding the bottom of the grill
    [​IMG]

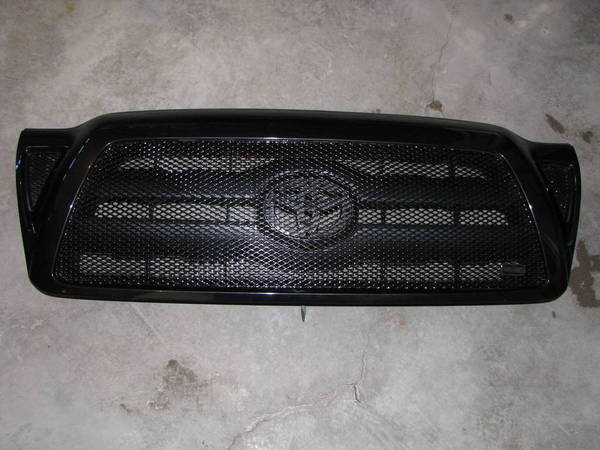

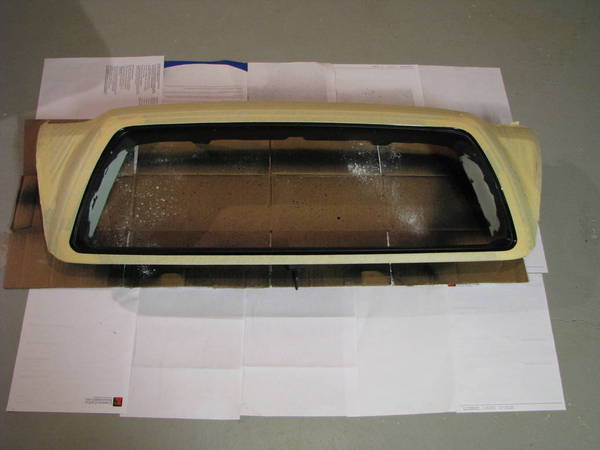

    tested the grillcraft by placing it on top; fits good
    [​IMG]
    next cut the 2 crossmembers out of the center of the grill (use a reciprocating saw or dremel with a cutting wheel)
    [​IMG]
    if you want to mount the gc flush, you're already done at this point. (just drill a couple holes and fasten the gc to the grill using the hardware that comes with the kit)
    [​IMG]
    personally, i wasn't thrilled by how it looked on my truck and wanted to see how it looked satoshi'd...

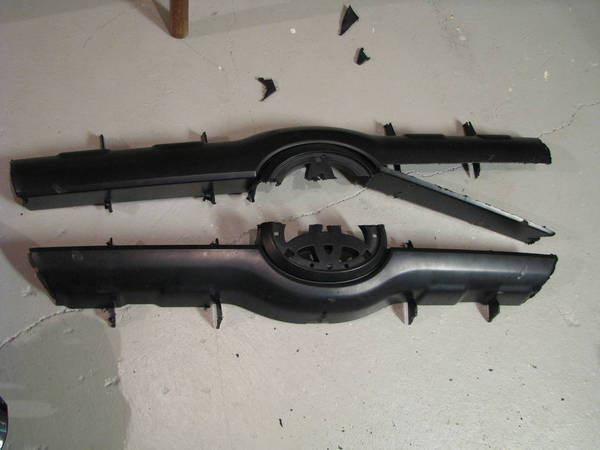

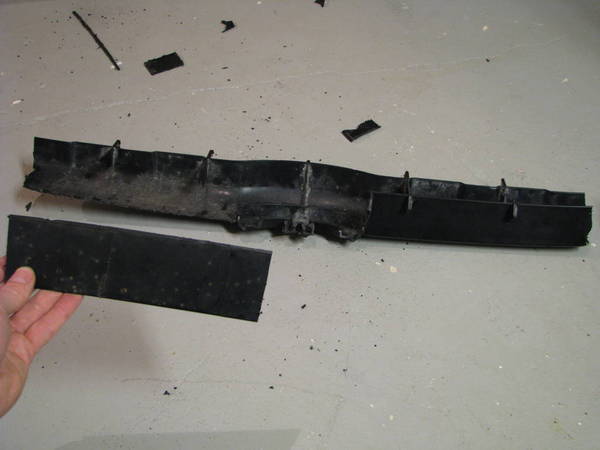

    cut the crossmembers in half and dissect the only two pieces of flat plastic from them like this
    [​IMG]
    to yield this
    [​IMG]

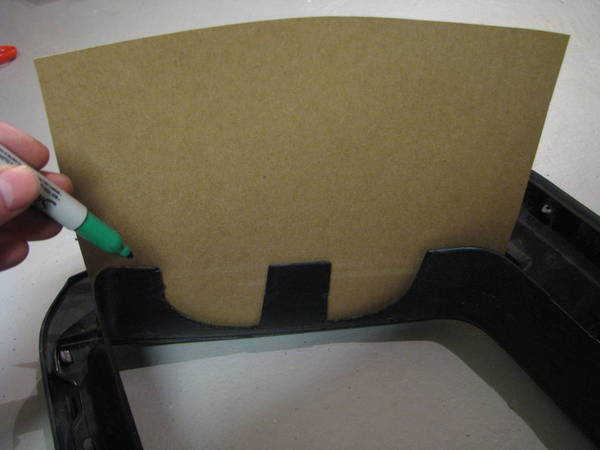

    trace a template of the piece you want to make using a sharpie and some cardboard
    [​IMG]

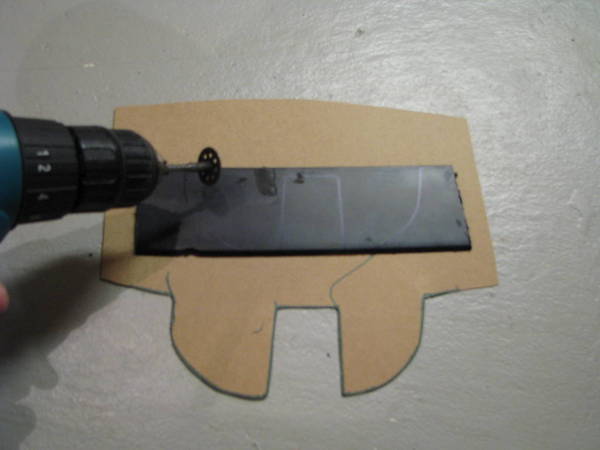

    then cut your template from the cardboard with scissors and trace it on the plastic. then use a cutting wheel to carve it out
    [​IMG]

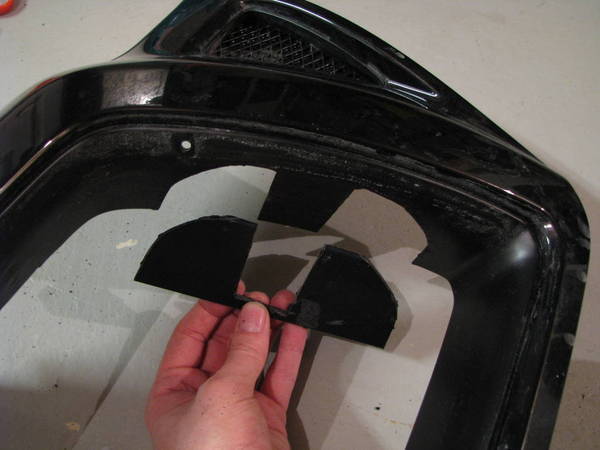

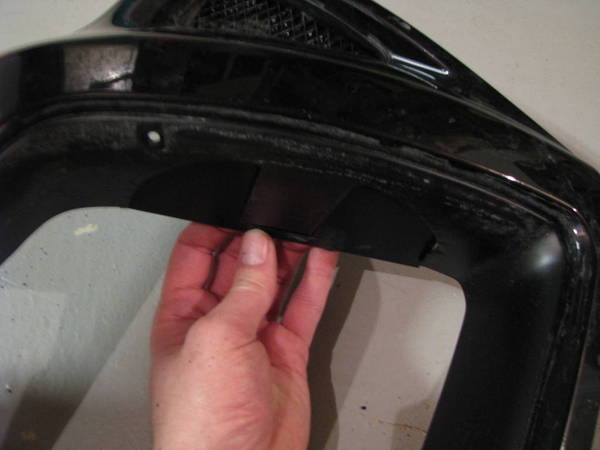

    fine tune your insert until it fits nice
    [​IMG]
    [​IMG]

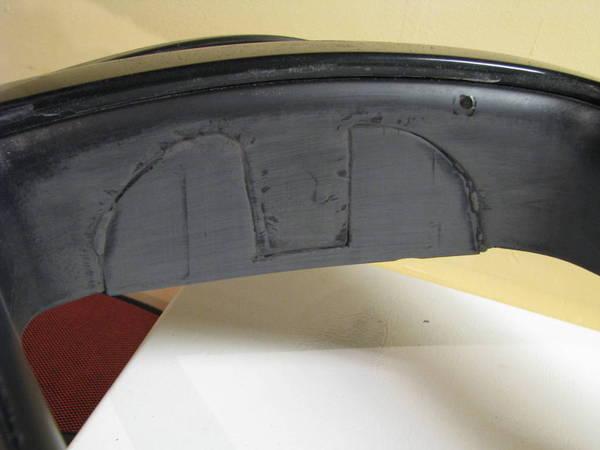

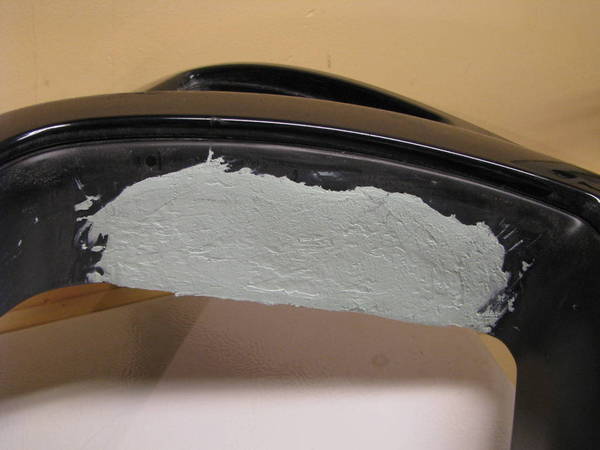

    when you're satisfied with the fit, epoxy it from the back (make sure you sand down the edges of the bonded surfaces so the epoxy has somewhere to go and cement the two together), let dry for 15 minutes, then sand it down so it looks like this
    [​IMG]

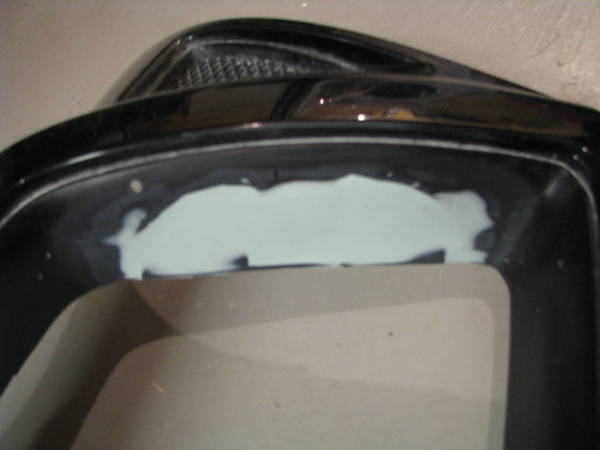

    then apply a coat of finishing putty
    [​IMG]
    and sand with 320 grit until smooth and the edges of the putty blend in smoothly to the plastic, then use 400 grit to finish it off
    [​IMG]
    tape it up
    [​IMG]

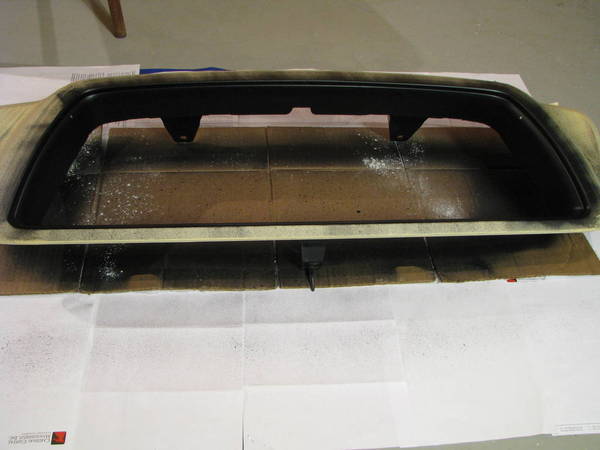

    and paint it (i used flat black trim spray paint). use 2-3 thin coats, letting it dry thoroughly between coats
    [​IMG]

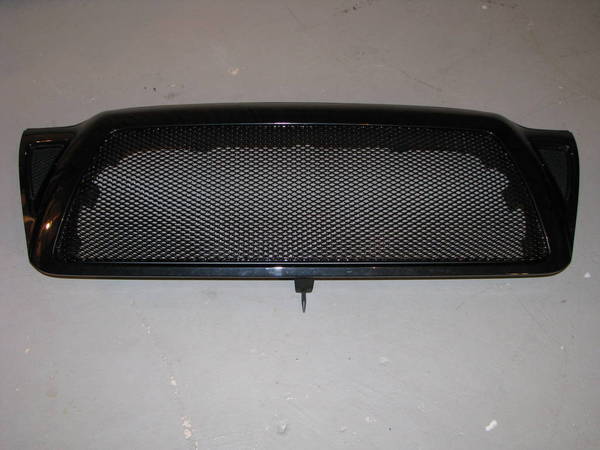

    remove the tape, drill a couple holes to fasten the gc to the back of the grill, and you got yourself a damn nice grill!! :D:thumbsup:
    [​IMG]
