    And then, after 4 days of invading @05tacomabro house, I came back... only cause @02YotaGuy was already there though! :p

    We put a small (1/4"? idk) spacer on the front driver side to fix a bad 3/4" driver lean I had. the rear could probably still use the last SSO 1/4 spacer to really level it out but I don't want to have to deal with that giant ass Dobinson spring on the driver side for a while. it's just 10 lb of shit in a 5lb bag back there with spring compressors and gas tank and what not. The passenger side can droop enough that you don't need compressors but the upper link bottoms out on the gas tank on driver side limiting that droop. Sigh. whatever.

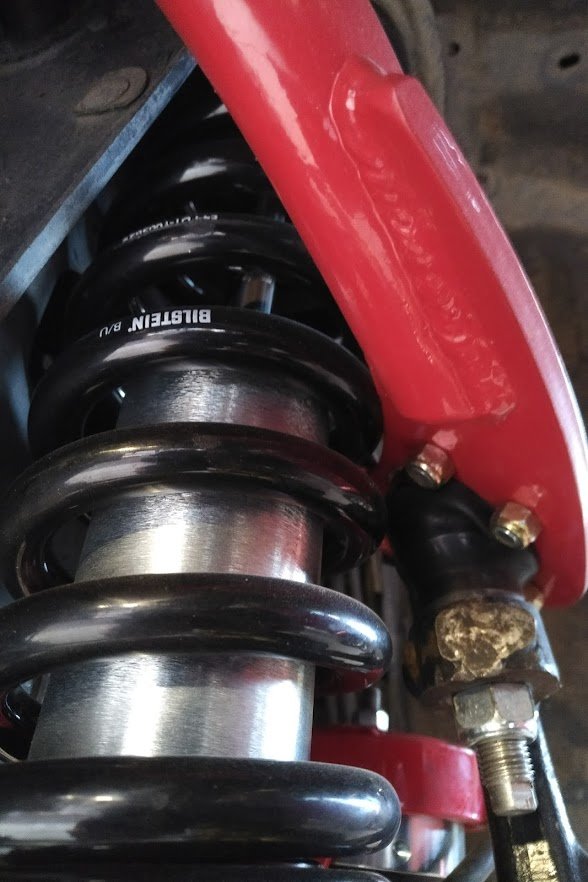

    We also had to rotate the whole coilover assembly 120* at the top hat bolts because the JBA arms and bilsteins both have so much droop that the UCA was hitting the coil.

    veosL8ItbIzG-JFDNrcaJGvshNK7R0oFJRLCOt8B_ef1c3c1d92a41f2b6e077e5149eac791fa6b6175.jpg

    rADH8BUH_ZFoL-ivRUFs5pON2HxbFTfMTMR4QNpM_48e553e886405ad87e93bfeb629551d2cd536b4d.jpg

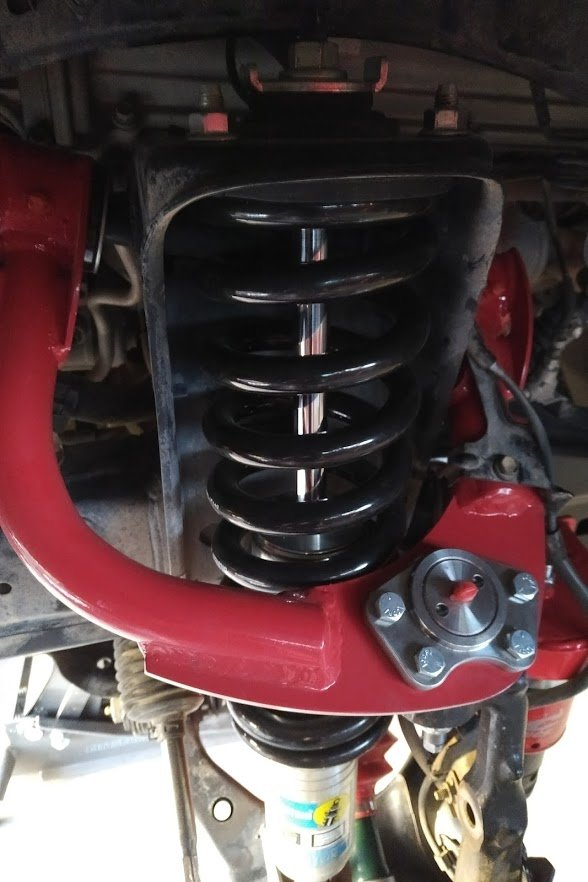

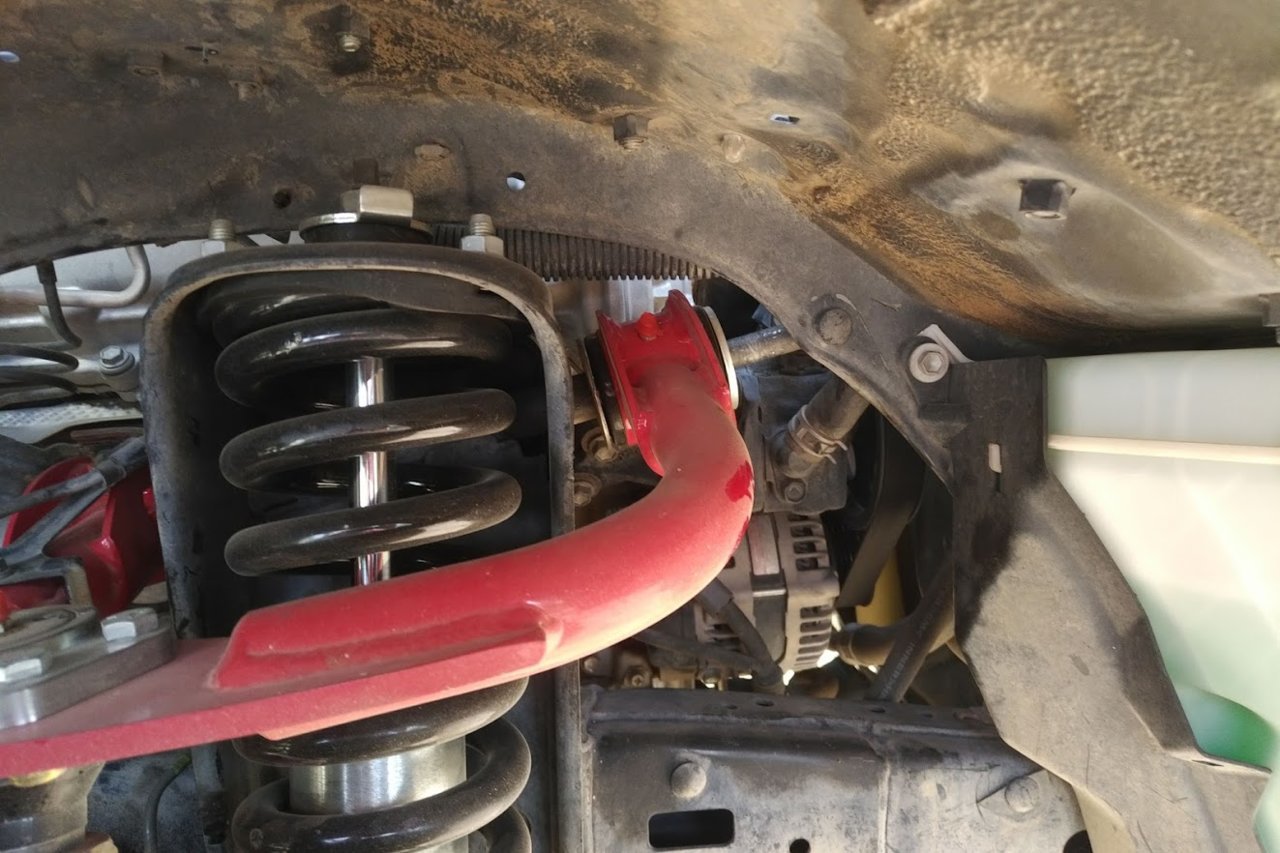

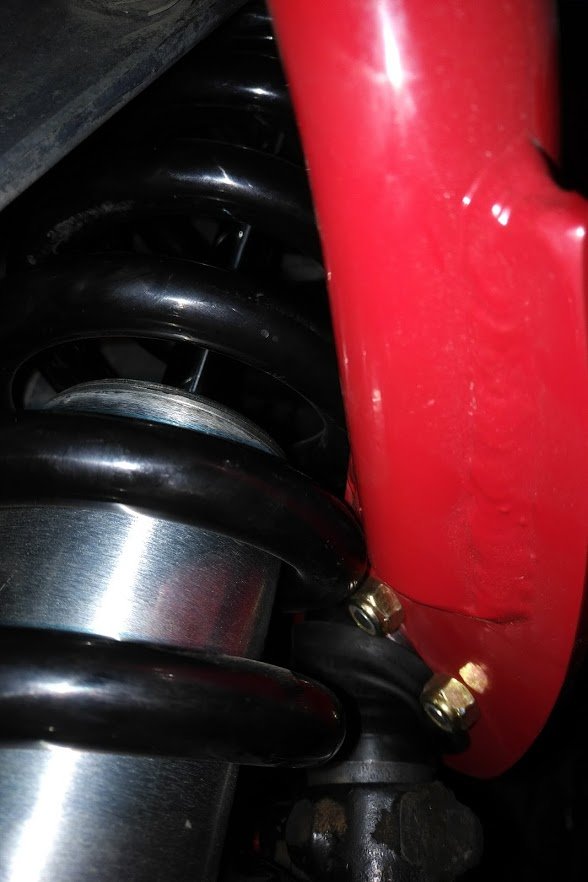

    For better or for worse, now the UCA lays down ontop of one of the coils. I think thats better than rubbing the OD of a coil.

    gtCdAapijBhbgAEdyns8ZpoGscAPVWtmUd4kNIXV_e844ea839db81db46f0f8a43cd71e35781bd87df.jpg


    Yeah. Droop for dayz.

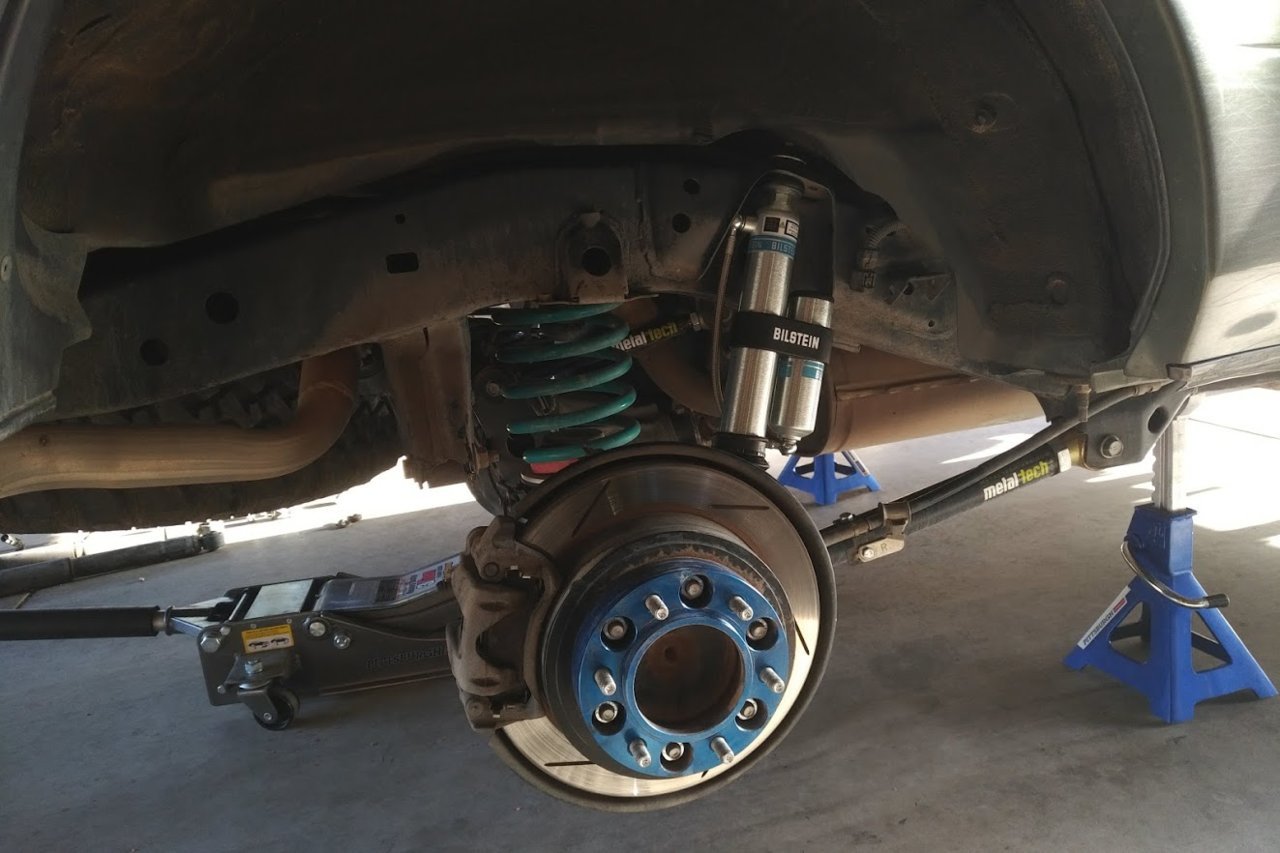

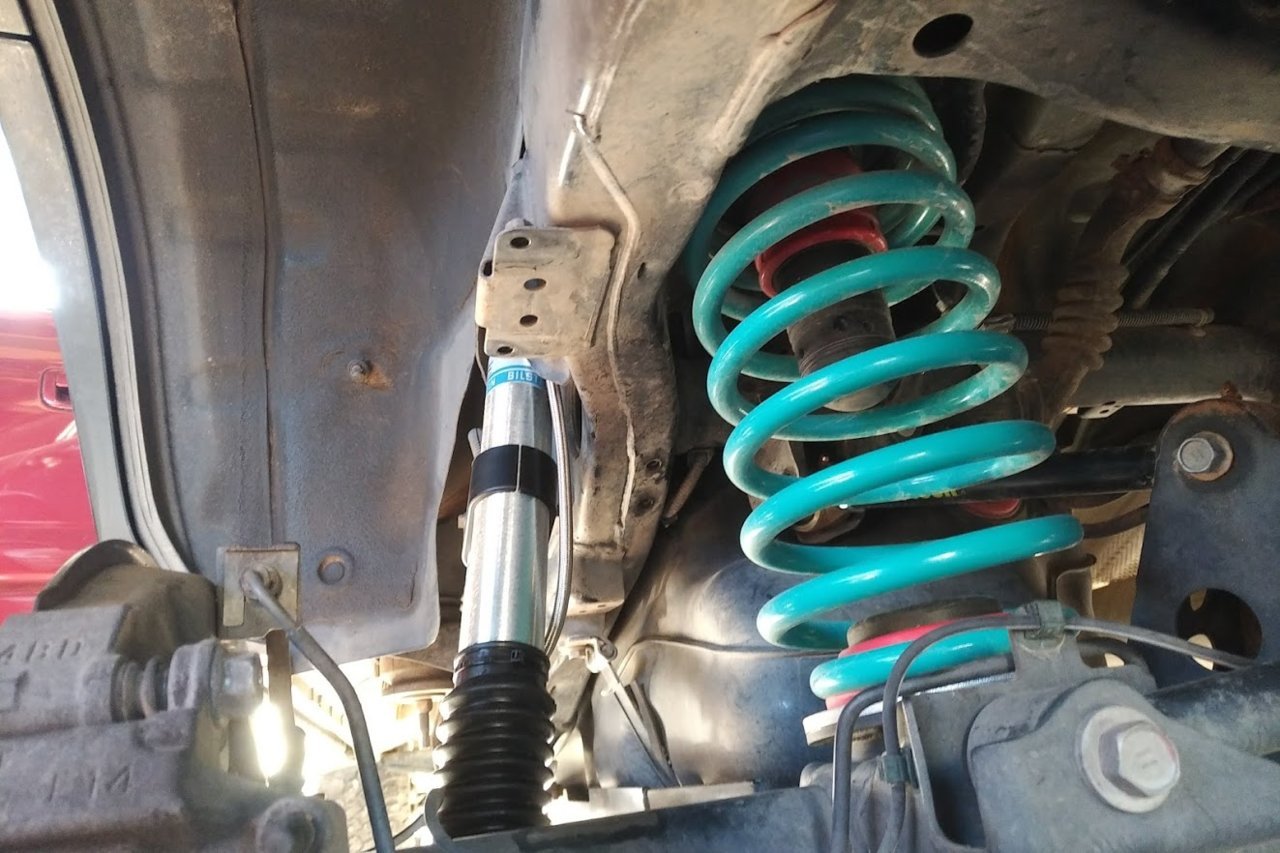

    I also tossed on my 5160's in the rear that finally showed up. the Dobinson progressive springs and 5160s are sooooooo much better than the factory airsprings and shocks.

    bgDsJ5MnuuNk7iepi53d5hdLyYKdmR2anrevGYE5_26217bb2883d12dd0ec4b75d59e8cb508816f065.jpg

    peekaboo, I see youuuuu Mr. air bump :)

    Sw_qLCak2XTTUeDcqCGcAwr9jxezIbPjMsfNw_o-_c19e880b66982cbefd5821b6e35367a6d1adf195.jpg

    Arailt and 02YotaGuy like this.
  2. Jul 6, 2018 at 11:05 AM
    #42
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470

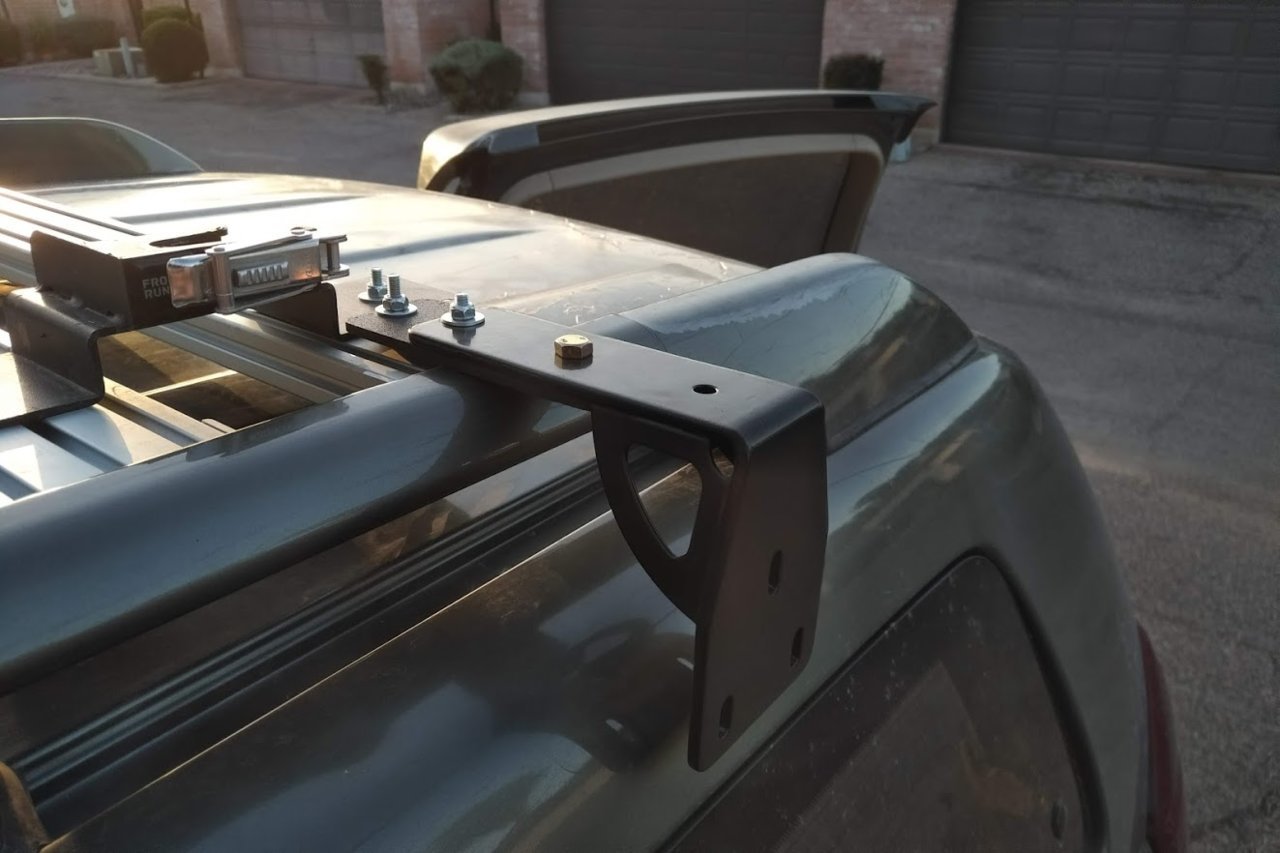

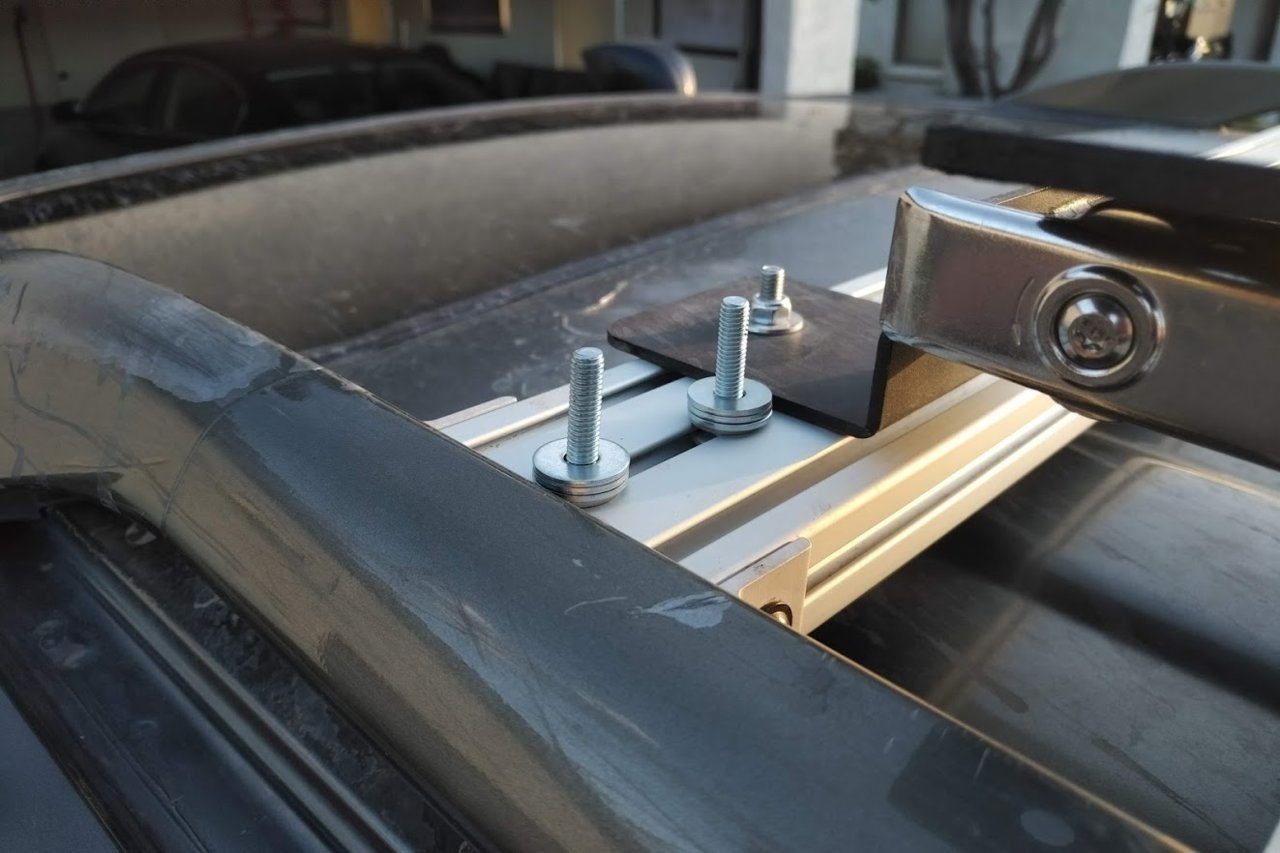

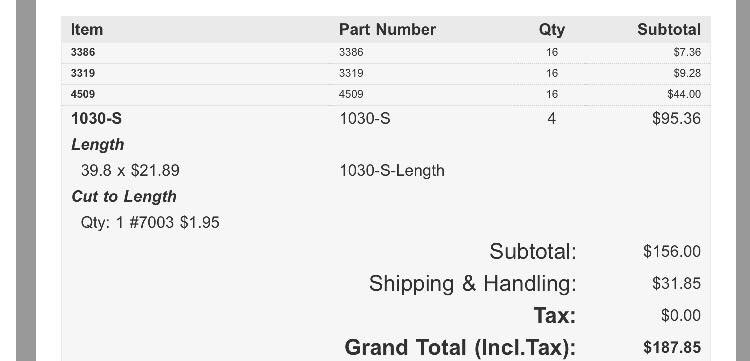

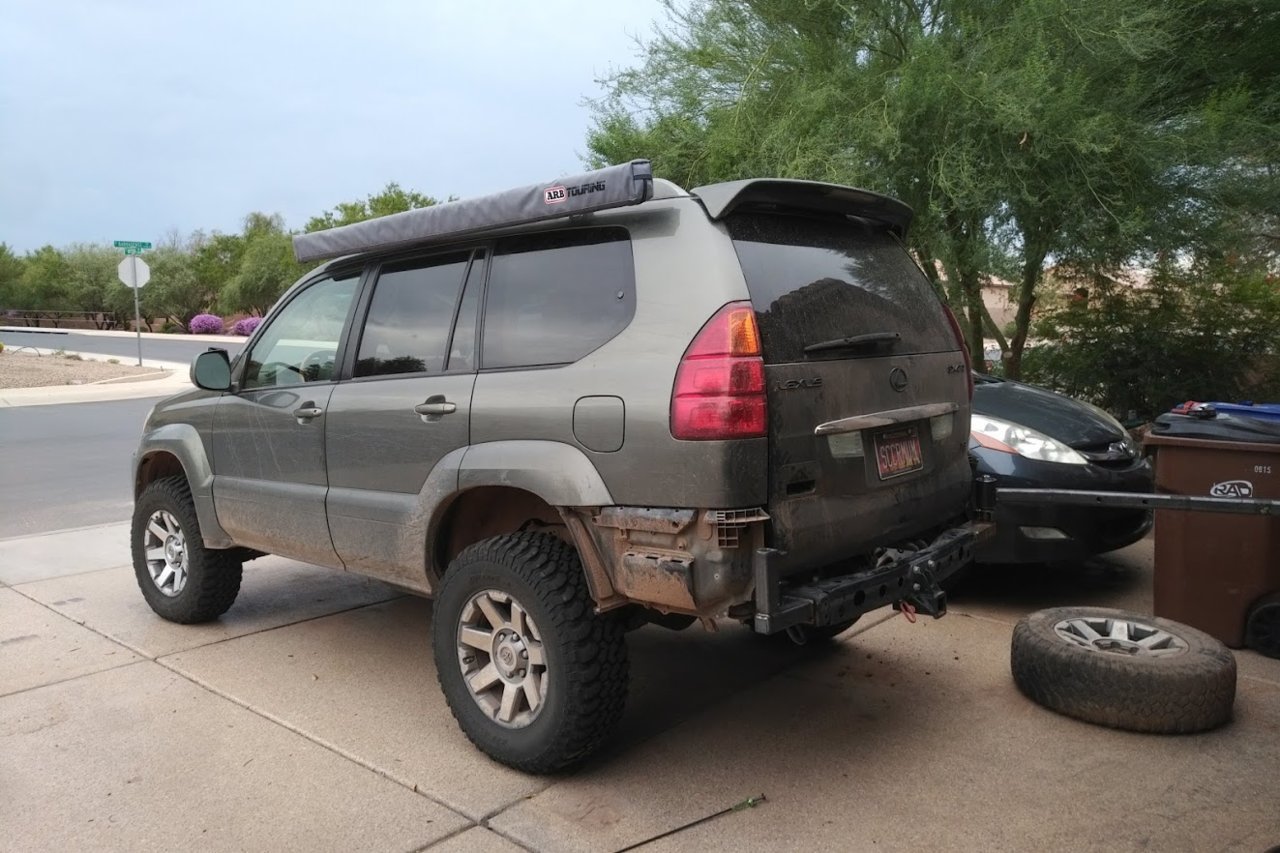

    So no pics really up close but I installed 1030 t-slot cross bars on my stock roof rails and then mounted Front runner Quick release mount mounts. I have to take the tent off after every use to fit in the garage. HOA will tow me if I park outside regularly.

    I will never, ever wish upon my worst enemy the task of mounting an RTT to a stock roof rack on an SUV. HOLY BALLS. my hands couldn't physically fit under the side rails to get to those damn nuts on the clamps for the tent. my girlfriend had to do them for me. It was literally about 90 mins to put the tent on and probably 60 mins to take it off. I did it ONCE for Overland Expo. I immediatly walked inside when finished and bought the front runner QR mounts.

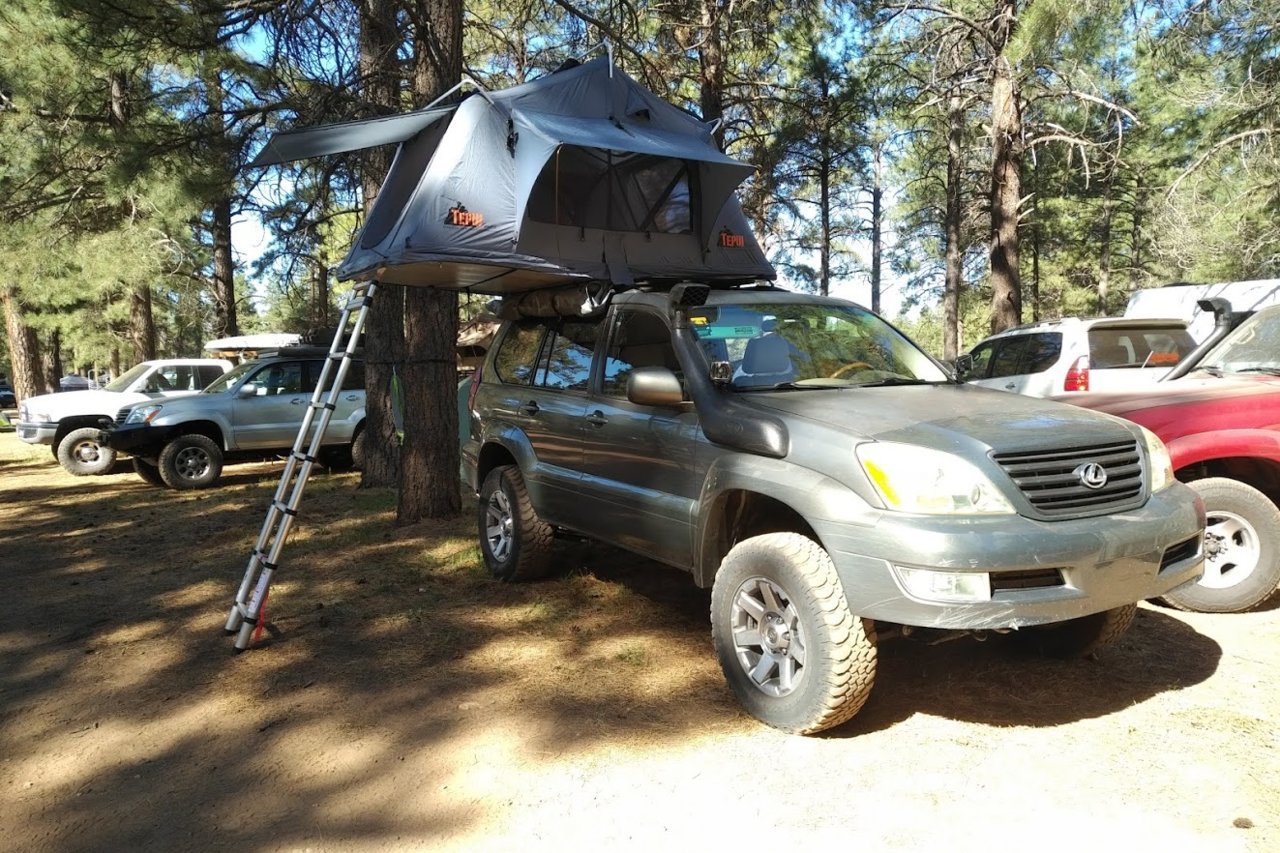

    here's the tent on the stock cross bars and tent mounted directly to rack:
    rboE6FMw-5FWblKhIh6s-nGVQYjZibuiiOSNLz0T_228fad415b6f4cb4cd090c8973a341de6224c3fd.jpg

    About the QR mounts: They are equally or even more painful to mount the first time. It's a kick in the dick to get the spacing correct foreward to aft such that they have enough tension on the latches that they function properly and the tent is mounted tightly. Once that is finally set, though, taking the tent on and off is a breeze. the tent sits kind of high for my liking but oh well. pics later.

    On the way back from expo my friend had a flight to catch in phoenix. We were making great time, stopped for lunch, got rolling with time to spare...and then hit 3 hours of standstill on I17 near black canyon city outside of phoenix. They had it down to one lane due to brush fires and then idiots where smashing into each other. I crossed the median (whoop whoop making use of the truck!) and booked back to the last exit we saw. Sarah mapped out a powerline road/trail that would take us south a ways, cross i17, and continue basically past all the traffic.

    We hauled ass on the trail. Thank god for the hydro bumps. We made it to the i17 crossing where the crossing was a small, narrow, short tunnel under with a locked gate. Probably a locked gate on the other side too. There was another gate at the end of the trail leading straight to the i17N shoulder. luckly, someone was lazy and left the chain and lock juuuuuust loose enough that we got it off so we didnt have to back track an hour+. We rolled up i17N to the next exit, crossed, and caught some fire roads/trails back on the west of I17 heading south to black canyon city from where front side of Crown king lets out onto the highway.

    My friend's flight got delayed so we were still in the running. hauling some ass, we were soooooo close to making it. Then Sarah and I looked at each other as we heard a clunking from the front. Got out and did a full inspection to find the front right UCA nut backed off. THANK GOD we out the bolt back in factory style a-la facing down instead of the easy way of putting the bolt up from the back. I probably would have lost the bolt and whole front corner had we not done that.

    Okfk84iuL29jtLl-newXotZt1_Ac74yn458ETo6h_fb0312a7dd3f4c057b76f3e795d7fdace1da8a9c.jpg

    OBnH6N29G2x4fb-hL3s7Azq5jZQGwVWCP67wHY9L_7f8e9a4c3df667445d74318934e61cf4eead0d1a.jpg

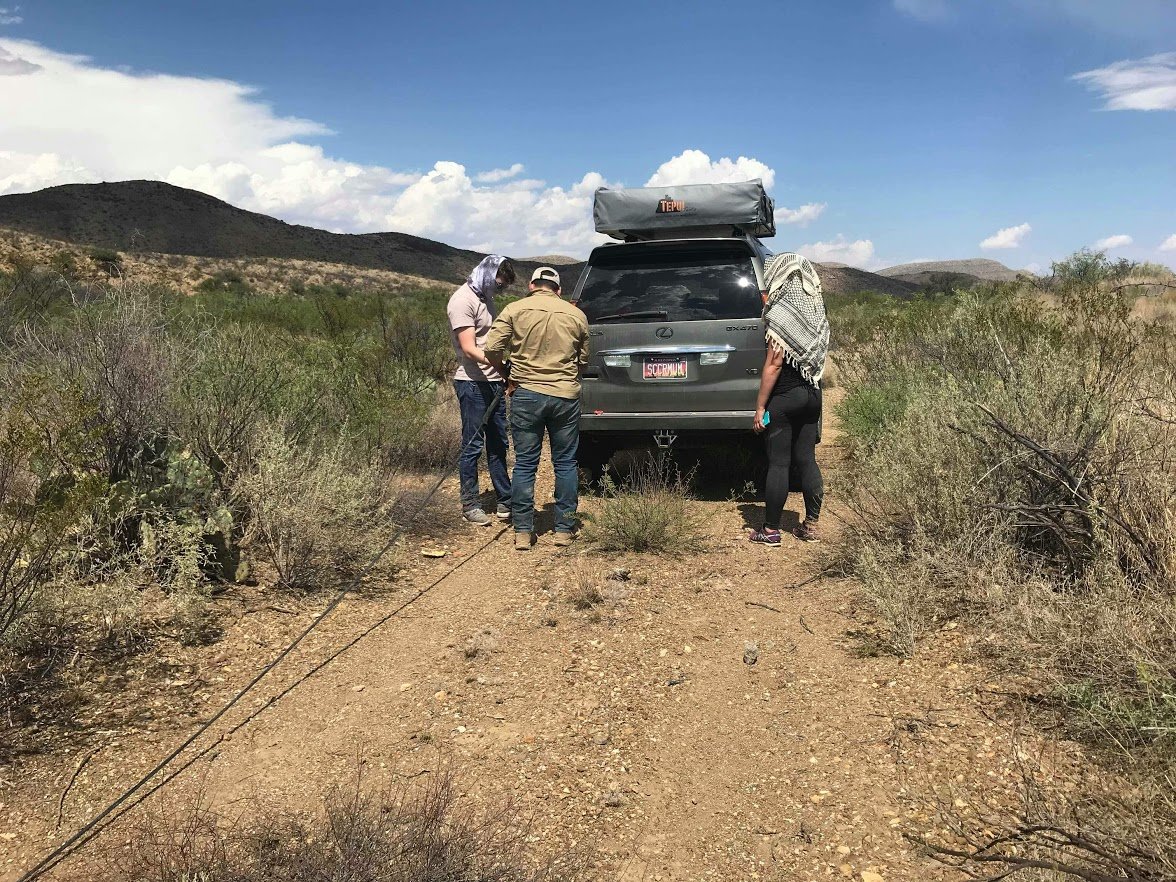

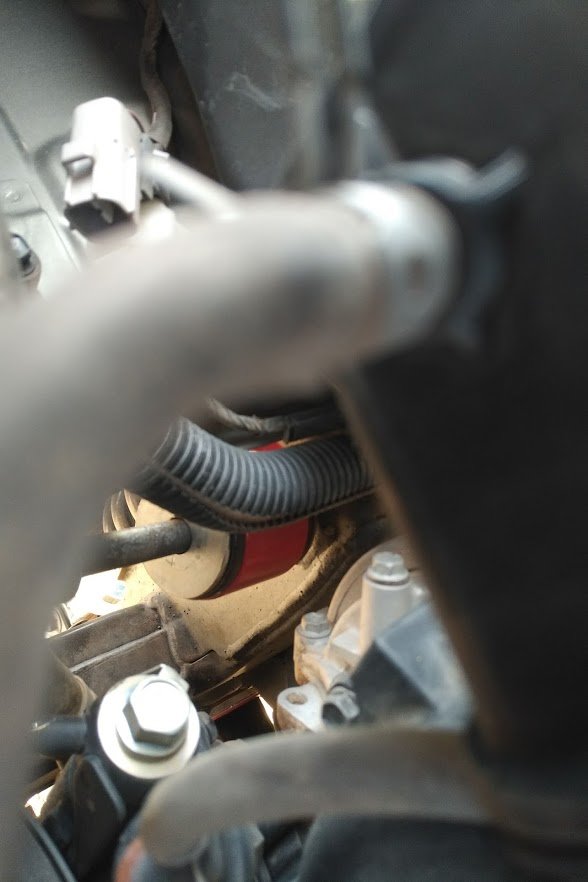

    So we lifted the weight off the front and got the bolt back in all the way. it was like 1-2mm away from completely backing out from the rear half of the UCA and would have dropped the UCA. close call. We limped back stopping every half mile or so to hammer the bolt back in all the way. Finally made it to pavement, limped down I17 to the carefree/i17 exit to the home depot. Got the hardware and we were in the parking lot, front spot, putting the nut on as Sarah was airing up. Then...

    She calls out "they're getting robbed!"

    Chase and I stood up and were like wtf are you talking about, and then heard a full throttle peel out. we turned around and sure enough, a Volvo S40 packed full of 3 mexicans with their arms FULL of tools went racing past us. I stepped out at them but didnt get too close. We got the plate number and gave it to the employee that chased them out. not sure if it was a good or bad thing that I didn't have my gun on me... (thanks to the expo rules of no firearms and me being all law-abiding and shit).

    then as we are finishing up, I shit you not, a second group of Mexicans, surely affiliated to the first, came running out of the home depot arms full of tools and hopped into a civic that peeled out and ran off. They literally ran and drove right past the employee as the employee was on the phone with the police.

    Holy. Shit.

    So finally got to Phoenix, my friend missed his flight, so he stayed in a hotel and flew out the next day. They have him first class for free. I guess it was aight.

  3. Jul 6, 2018 at 12:18 PM
    #43
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470
    Here's a way better pic of the Expo camp site. I love driving hours to go sleep in a tent and still hear other people breathing that I don't know.

    sNOjylVoKVLT6zS0oyXPkfG0XK_5_Nh23go2DqW__0bf00cd0c81a417bdc547995c70790adb302acbf.jpg





    Fast forward to the next weekend (memorial day) and we went out to Big Bend Ranch State Park in Texas with my same friend Chase (from San antonio).


    [​IMG]

    We left thursday at 830pm cause sarah had a meeting until 8pm. we drove through the night mostly and got to BBRSP just before my buddy at like 10:00 Friday morning. We went and ran McGuirks Tank loop on the east side in the Solitario district. It took about 30 mins for Chase to get stuck. The ARB Summit bar for Colorados really gives em an underbite. He did a wonderful job at digging himself in. I don't understand him nor others who take the risk just to see if they can make it unclock/2WD ect. Once you get stuck, that stuff isn't going to help nearly as much lol. He was unlocked 2WD initially, then dug himself in with 4WD and both lockers :rolleyes:

    Doors were dug in so we did a Nascar switch to see if I could drive it out first
    n19aiG2aTDMrOGs4OST6pFePLfYjiEbRBnrsl3X7_b76a344fe52bdd5a2ea1e3183c3d8e56765696a1.jpg

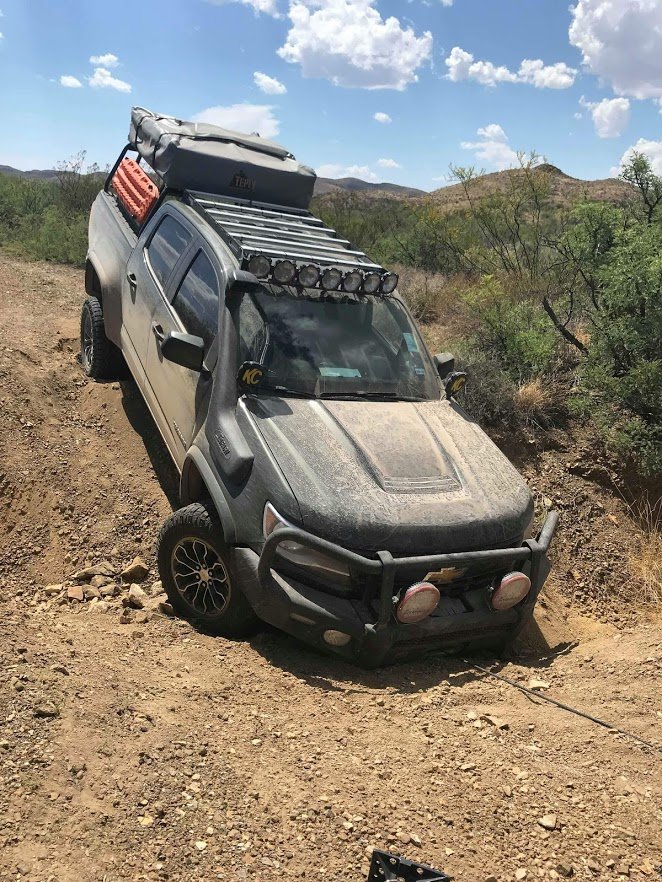

    Then came the winch. No good recovery points on his truck that weren't burried for static strap recovery with my truck.

    j_GSUunP9Ew8BnCSrV8tQs39DLClcbGOPk5Yly-T_55486785d5e572540dfb45d591741f447afd3150.jpg

    g5MnN-ECxj1S0d6qNi7Qyu86XK7LL0P3oDh9-J-x_19ea67e4e36cd62f654548e16d15e39521e21915.jpg

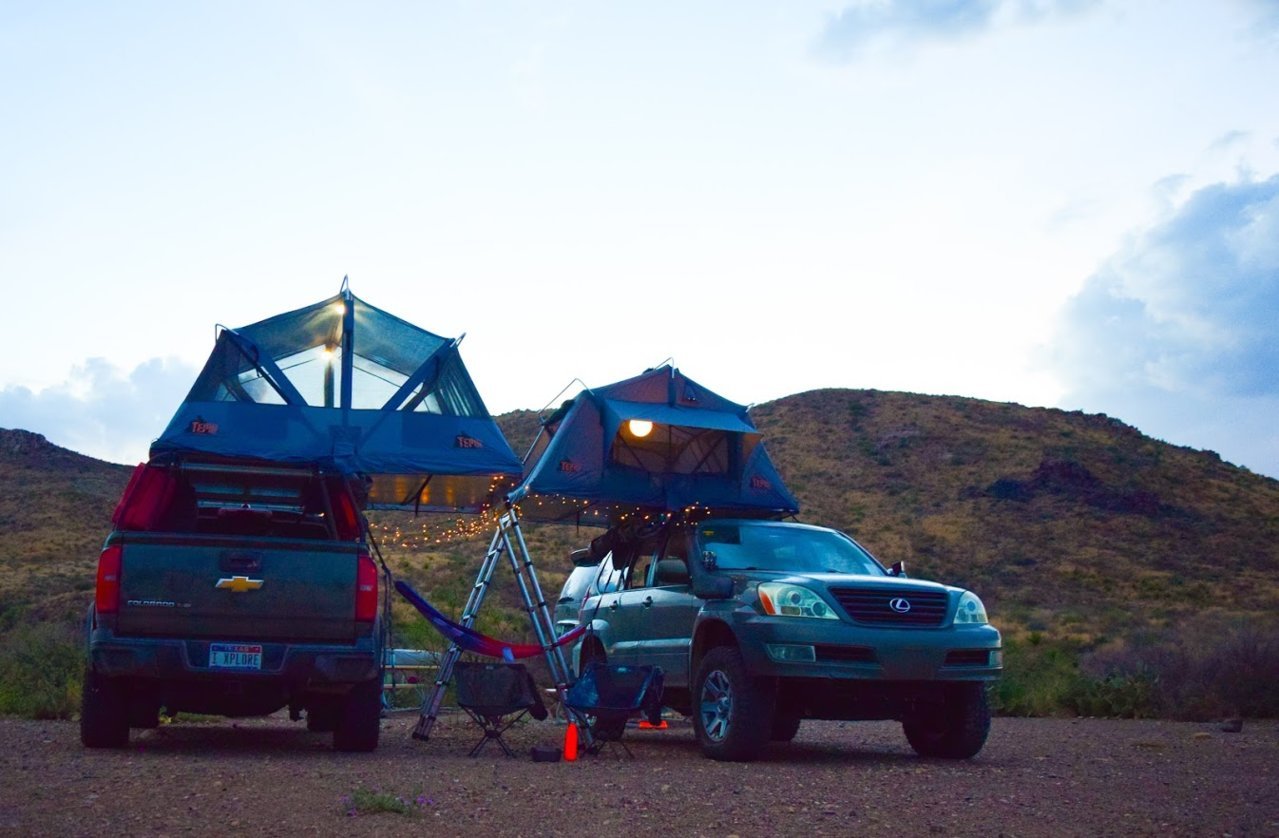

    We camped at Tres Papalotes camp ground after:

    X1b_6VSOLwgCZNH0T8cc10W8CNP2T9MRLBlbcHN__485477012da14318bdf30e952941091e290517c3.jpg

    Lueymgtuxug163xx0i5lyK6eoMSYVSLvTMWu8lts_0c8b0f66289d706ef19037298c8b236e5c6455e5.jpg



    woke up Saturday and Ran the Road to Nowhere:
    Wrqh0CrKaUU0mMGm8ncUa6j98PZEaMQl_Ds706pP_1a2df4f519c1e0a64ac958f97402f253d4218e5c.jpg

    VXzUmKVHjwHWlnPQCf3tBNl-0kZllr_1J3ui_wEP_ca8276aecea81ba48f3815febfbebadd8476969a.jpg

    iG7QGcFs5HG0DHB8rIOyZNxDmiyEG46KEIqx83YW_9013890133033e702cb03ffe049bf24b9eb6f08a.jpg


    then went and ran the Los Almos loop:

    _SJTLwT_z6A3718im-Ug5pi_kv7pc2PN07usb4Y8_0a6e63b55da772d82383f58fe0a2eaa58b29894f.jpg

    FNdyecPld5N9TLudN5Chppv06nM7oAOQWC4eEWuJ_31bb1bffd802740d867b8944854804b3740c8650.jpg

    peAumn_Ekwsi_FJKkewOAnj8R647l3d6mL6uWkLm_671dbf15935ace9c8aae692432b7c498e8e57217.jpg

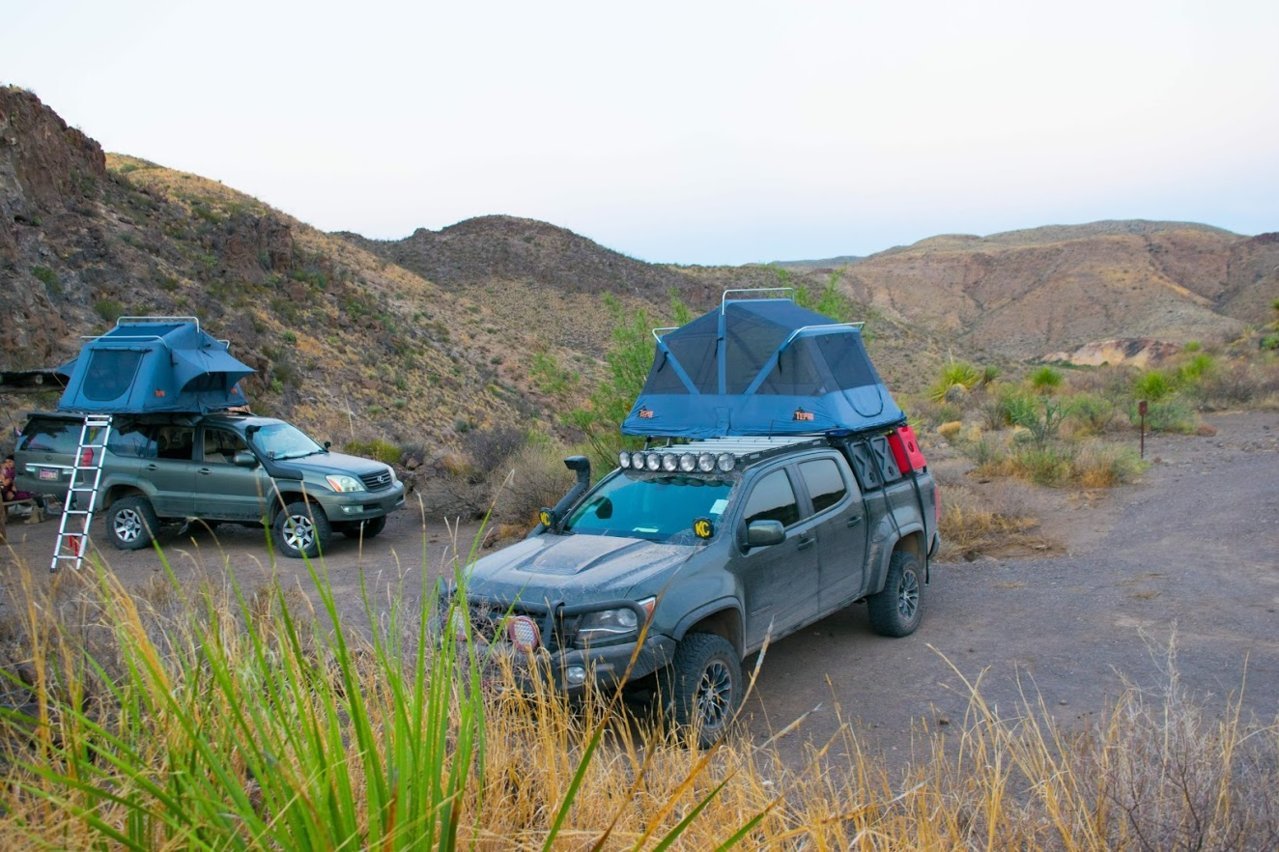

    we pulled in fairly early Saturday night and camped at Pila Montaya 3, which was a beautiful camp site.

    8m1yBGtexweuE7JOC3bKth63BZkX38jeP0Yqn0w__14ad1e2c8c85b3eeae588707cbeeda285ced4e29.jpg

    Mawlie ( Lil' Bish) wasn't too thrilled with my Lion King impression:
    Yl0QCIUt3RCB1Mm0i_pKrvS1gQwWZrfLEBW4fAML_dd2608b8ef13a0f8a7b0cb0b0a6b107ade698b66.jpg

    Here's some rain that was rolling through the east side of the park that we saw from camp:

    mfcZstKnI0wUpTH7ksOER38hNhOyxNssc4SNRTXi_dc60573d492474a80718e6127184812d8a9e37a4.jpg


    Then Sunday we ran the big loop in the Black Hills between the main road and rd 160 in the NW portion of the park. No pics processed from that. On the map above, it's listed as a foot/bike/horse trail. last year they opened it up to vehicles. After that we ran from the agua Pens across Javelin trail to camp all the way down at Chorro Vista. No pics yet from there either. Other than this one that Sarah took (@Sashields1027_habitus) when we were running across the park from the west side to get to the Black Hills. Go follow our business acount @SpiritedApex on instagram and look for it there eventually. Could damn near be an ARB or Chevy advert. We were romping about 50 on dirt here.

    5G3rMryRQBJMAKBYJKeF1qlEuh_fTR-GvF9nTjf__d12245612a1c4946a480d41edc91f2b27e9d07bf.jpg

    a_EwZgpTjHbFLp6KR-eq3gKONVcyaAZ_gUKnSBYZ_e6aeef33bef604f1bb6e44b8afb789430d6b0575.jpg


    It was damn near dark when we rolled in and frankly it kinda sucked cause the Prime parking/camping spot for my truck ended up right near a gnarly colony/hill of africanized ants that were complete dickheads. They bit both of our dogs and another dog that was with us and was trying to invade. I tried to draw them away by throwing some ground beef out the opposite side of the hill but they straight devoured that in like an hour. It was disgusting how many ants there were. you literally couldn't see any meat. Just thick blanket of ants. We moved my truck to a safer spot but it put Chases' truck and tent right between us and the view :(

    Monday on our way out we went out and back West to Presidio to fill up fuel. Both of us were on empty after 2 Jerry cans each. Cuttin it close! We then ran along the Rio Grande eastbound for the scenery. It added a couple hours to our trip but it was worth it. We even took a quick dip... We stayed in the US. I think.

    wBgui5vRwZ--KpyFdovcf0gndsCmWmA9hhOTW66W_a2f458b0ba6494989faa05d43a3bc28b9831bc63.jpg



    Here's a sweet pic I actually took myself (Suck it, Sarah!) on the way home. This was just after we crossed into AZ on I10.

    Ya1a9o37pN0IJK2b6T-JOEvnhOfWOKdhL2yiu4wD_18d9d75de8d3436b4073121a433d830fd59c99f3.jpg

    Last edited: Jul 6, 2018
    Arailt, el topu and 05tacomabro like this.
  4. Jul 6, 2018 at 12:22 PM
    #44
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470
    Here are a couple really good pics Sarah took on Reddington Road here in Tucson back in May. We were blown away at how green it was down in the low East side of the Rincons. The dogs enjoyed it.

    0E5LkkmsPcM40bmXffID1vJCpcZrhejTWEx04Lmb_7cd3f1cee1e25c34bfdd605a5f3f2f40b0fe564d.jpg

    R4rDceGcQerUqZLFH9rPrkoYwSfkazQvrTWHGjM0_406826e102ac35f7804cbe3074078413a78fda01.jpg

    FVCE5nhTy92LxHHjqvyWUR2y8WzHf6HSp-wAvjn1_52b747d85357b5451e3935fabdfa79f6bf34dc8d.jpg

    Arailt likes this.
  5. Jul 6, 2018 at 12:34 PM
    #45
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470

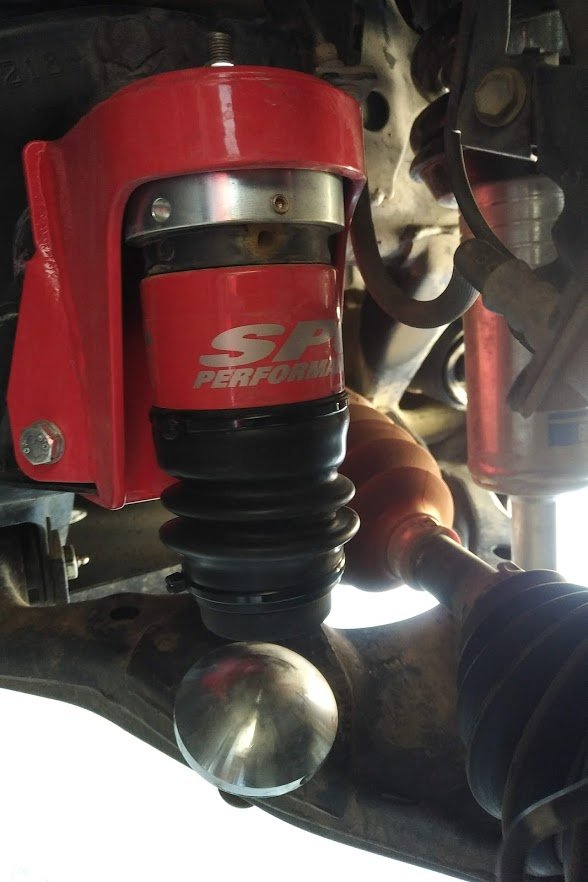

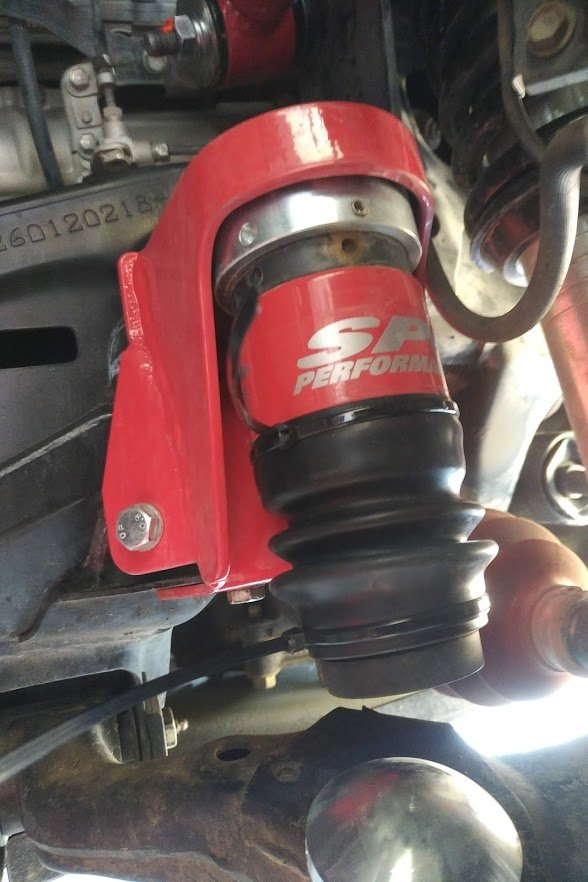

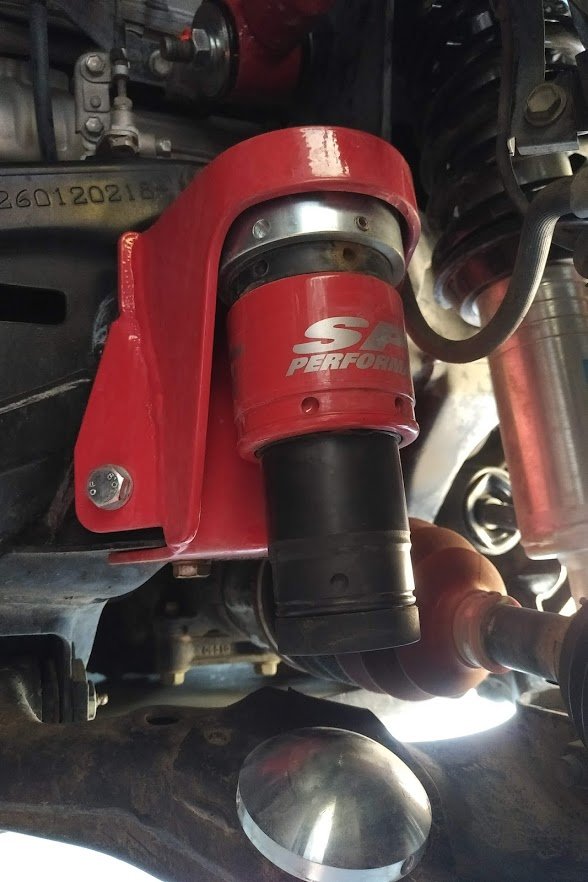

    Just Yesterday I did some quick work and finally put on some Dust boots on my front SPC Jounces. Bryan, former owner of Light Racing, told me these jounce packages met GM durability testing for 80k miles no upkeep when they were spec'd for Border Patrol 2500 trucks like 10 years ago. I see why. What other Hydro bump has optional dust boots? (even if their cost is borderline extortion at $37 each).

    RyDYgqm9-Z7YUW_RXpoDXHruumQW-wd4DJ3Tr5js_be41ddd4b4449c53aacfe41555e6a1dd90fd6bdf.jpg

    CUUZilPCBiHkpWjzPfiNeIiL6DPpLtXQYJvhIh3D_c69c04fa0b6bb298580e0190b46b518d6bae9550.jpg

    10VtHwMEy4l5G7E_wMGvObmKhjvO05xkkXEkOPDS_c765c6765a92c08d5b92735b3a92c41050a88c5e.jpg

    bravelilshitposter likes this.
  6. Jul 6, 2018 at 12:39 PM
    #46
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470

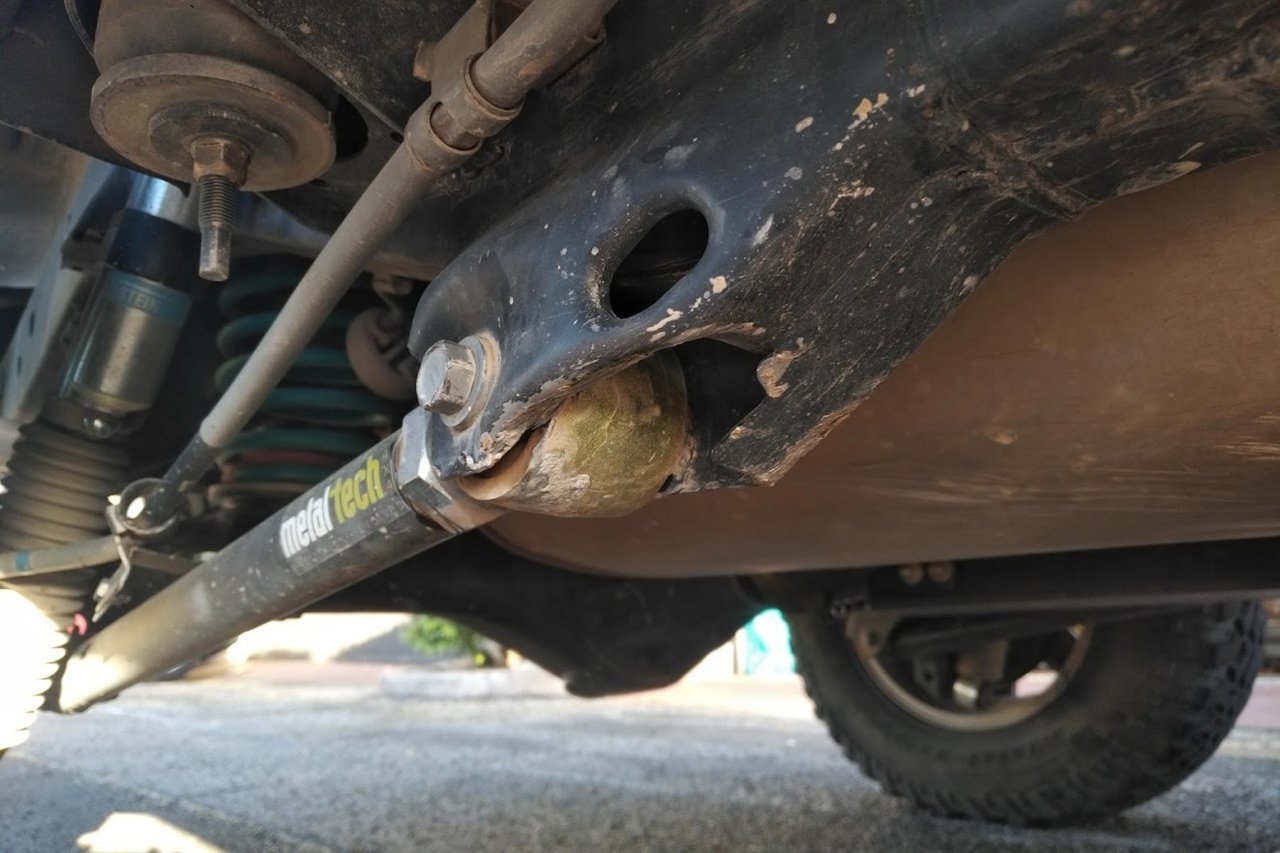

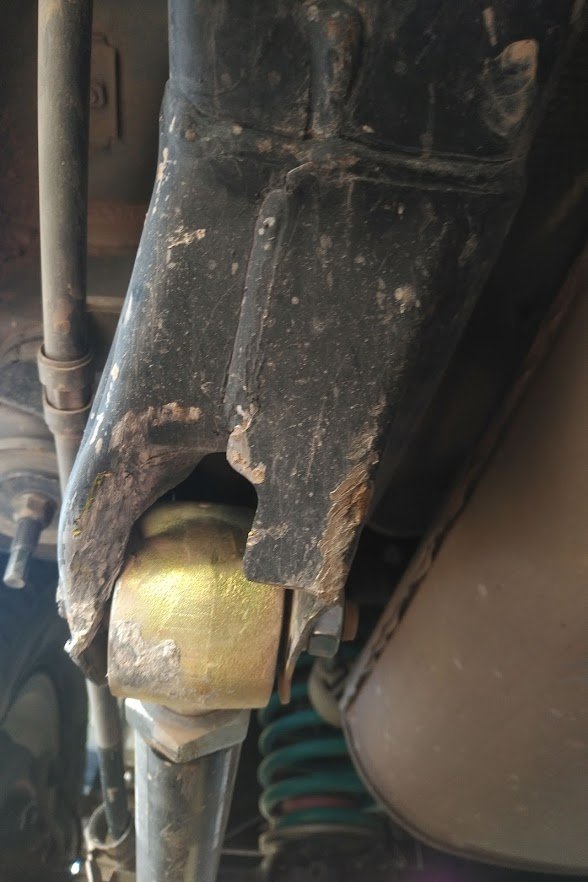

    Oh and on that Powerline trail coming back from Expo, I laid my truck down onto a massive boulder backing down from a failed wash climb the first time. I made it, but my passenger side link mount got crunched. Planning on probably having Ballistic Fab here in tucson weld on some of their HD link mounts onto the frame. Eventually.

    px-GkU5DhWzS0t0cpmM6sFM3qtedGdJ4fx_3yj5C_18200df56e5a1788e792bf6d6a508baa5248b5a3.jpg

    I8HQO5Vzr39JV9lh3W0xCG8dMusNQE8gDeSd6RwA_3d198a61504ae4c03c6d59385a802d45d457d364.jpg

    Notice the fold above the link bolt. Sigh.

  7. Jul 6, 2018 at 12:47 PM
    #47
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470

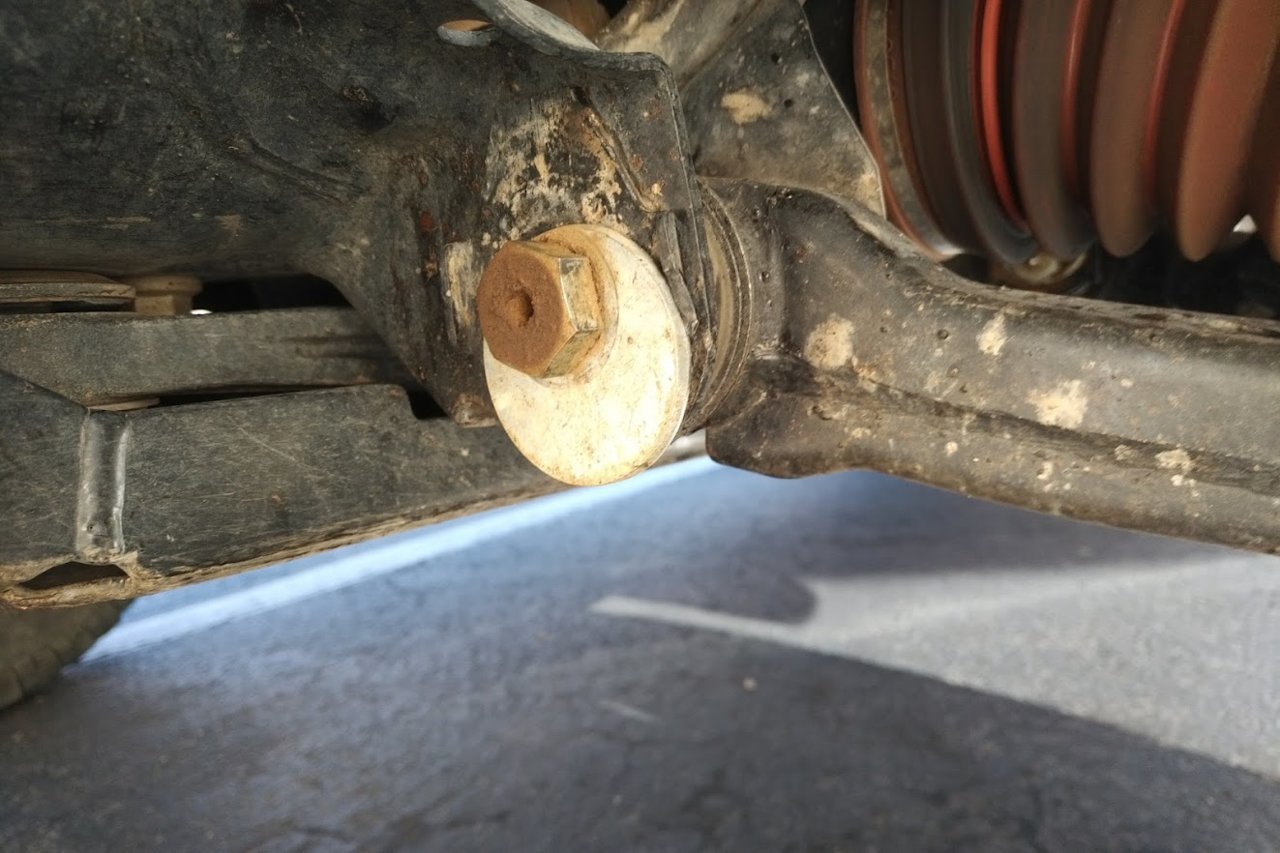

    Oh Oh Oh, also, one of the firestones here did an alignment for my lifetime alignment and the tech must have been green. They aligned it with the cam bolts upside down and left them too lose so they bent my cam tabs. Ballistic Fab here in Tucson laid a quick bead on them to reinforce them for the cheaps. Really need to get myself a welder considering I can Mig and Tig...

    o-BMDHIrx2baSX2kJZkD7yA9tmR1fMteUp-4lCPV_dd2b96c7ca75763b5982b96e97a30425455306b8.jpg

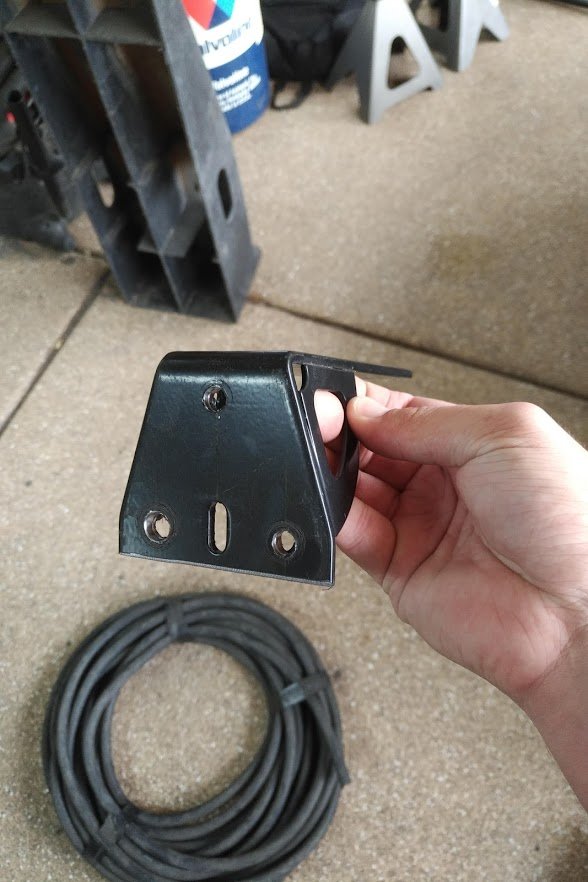

    Then after that got buttoned up, I kept trying to track down a rattle in the rear. Finally found it. Jonny Joints aren't suppose to look like this after 2 months!

    jHM9Ejt3MDWWPKsvV9l2krD6Li0l0fzInFxUzY4C_b4a132008865e832fe7493f0c045d0bd5193fdb6.jpg

    UdoKMZ1_6vRCDq8rodHn8Rrums5kiTUOxErdIAQm_02dec660f6f911495bf752a7f419c02dc0fe69bd.jpg

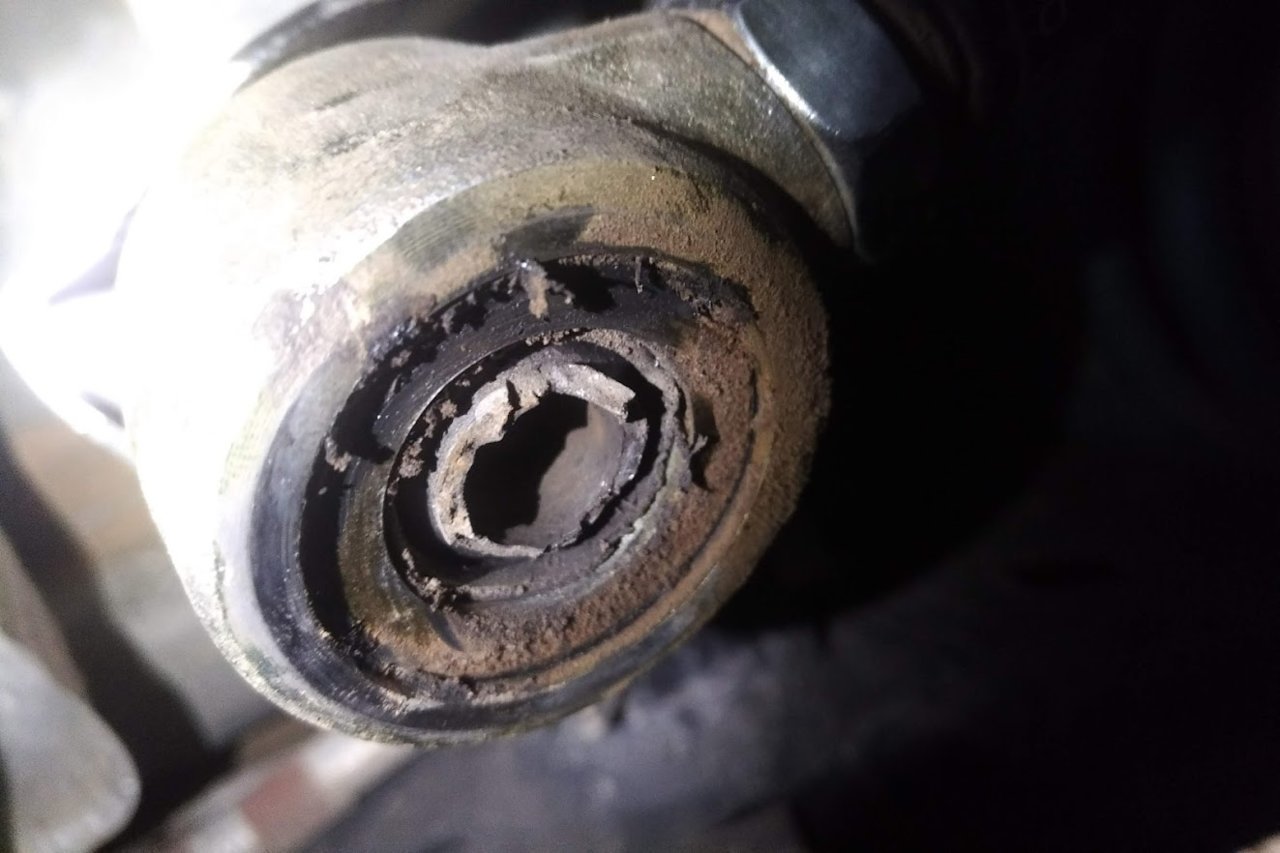

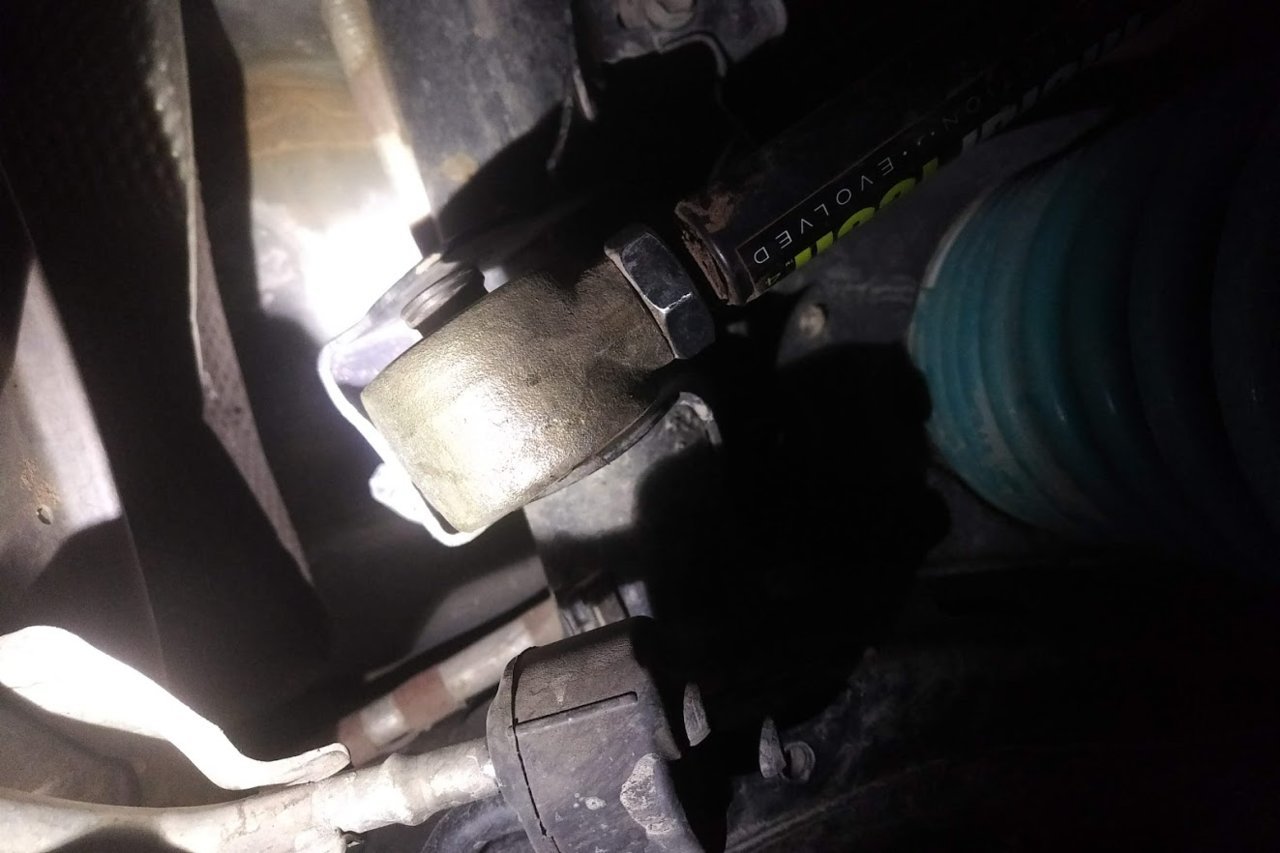

    MetalTech4x4 sent me a new Jonny joint for free as a warranty coverage, along with a MT4x4 glass and a "Check your nuts" patch! they said they've seen this happen before when the bolts loosen and cause the joint to load wierdly since its loose in the mount. I had already replaced every single link bolt with nylock nuts after loosing lower link bolts twice. If you have a 120 chassis and upgrade/change/replace the links, USE NYLOCK NUTS. I told MT4x4 they should include nylock hardware with their links so people don't reuse the stock stuff. They said they've thought about it but are worried about the extra $5-10 bucks added cost making them uncompetitive in the market. My suggestion, worst case, is to eat that cost. Buying the hardware in bulk from Mcmaster won't be that much cost to eat in your margin.

    (Thanks @05tacomabro and @Brindybot for bringing me a nut the second time when it was on trail!)

    Arailt, 05tacomabro and Brindybot like this.
  8. Jul 6, 2018 at 1:04 PM
    #48
    Brindybot

    Brindybot I don't see the problem.

    Joined:
    Dec 23, 2016
    Member:
    #205541
    Messages:
    863
    Gender:
    Male
    First Name:
    Jonathan
    Tucson az
    Vehicle:
    03 4runner
    A Snorkel
    Your fingers hurt yet from typing? lol.

    Arailt and 05tacomabro like this.
  9. Jul 6, 2018 at 1:05 PM
    #49
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470
    hahaha kinda... I want to get out of the house but dat heat... swing by after work for a brew homie!

    Brindybot likes this.
  10. Jul 6, 2018 at 1:07 PM
    #50
    Brindybot

    Brindybot I don't see the problem.

    Joined:
    Dec 23, 2016
    Member:
    #205541
    Messages:
    863
    Gender:
    Male
    First Name:
    Jonathan
    Tucson az
    Vehicle:
    03 4runner
    A Snorkel
    Ill hit you up after I'm done with something at home!!

    NudeLobster [OP] likes this.
  11. Jul 6, 2018 at 1:20 PM
    #51
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470
    I have Chorizo and tortillas that will go bad soon if I don't have help eating them. Jussayin

    Arailt likes this.
  12. Jul 6, 2018 at 2:16 PM
    #52
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470
    That goes for you too @05tacomabro and @trojanman18 and @Captain Magma and @ whoever else from Tucson. If we get more than 3 people including me, someone may need to stop and grab some more meat for me to cook up for the tacos but I'm bored and sarah works hella late tonight so bro beer truck shit

    05tacomabro likes this.
  13. Jul 6, 2018 at 2:37 PM
    #53
    llibrm

    llibrm OH NOOOOOO!

    Joined:
    Aug 1, 2012
    Member:
    #83890
    Messages:
    4,244
    Gender:
    Male
    First Name:
    Bill
    Convection Oven, Az
    Vehicle:
    06 DCSB, 06 LC120 (sold)
    Pelfreybilt Aluminum Bumper, KING 2.5 on all four corners, 4x4 illuminated switch, Cobra 75 w/ 3' Firestick, 2M/ 70cm Radio w/ Diamond NR770HB, Pelfreybilt bed bar, Lightforce Stiker 170s
    Looks like you've been busy. I like the look that your GX has taken. Still don't think Ill be able to convince the wife to go this route though.

    NudeLobster [OP] likes this.
  14. Jul 22, 2018 at 10:10 AM
    #54
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470
    so made a trip to the Chiricahuas with some homies.

    __dS7L-QOGz7Xbb6dru1c-4qxKRP_zHkR0ImyxPw_76bb5daddf2c98488c569c20bb89a67e40404c45.jpg

    Camp saturday night:
    GWRaRgtnBzKqv8opDJkiTCaI_DjFthDrXCLtUeZU_3a017f14d4fc85b92eecffb63440022a35f44864.jpg

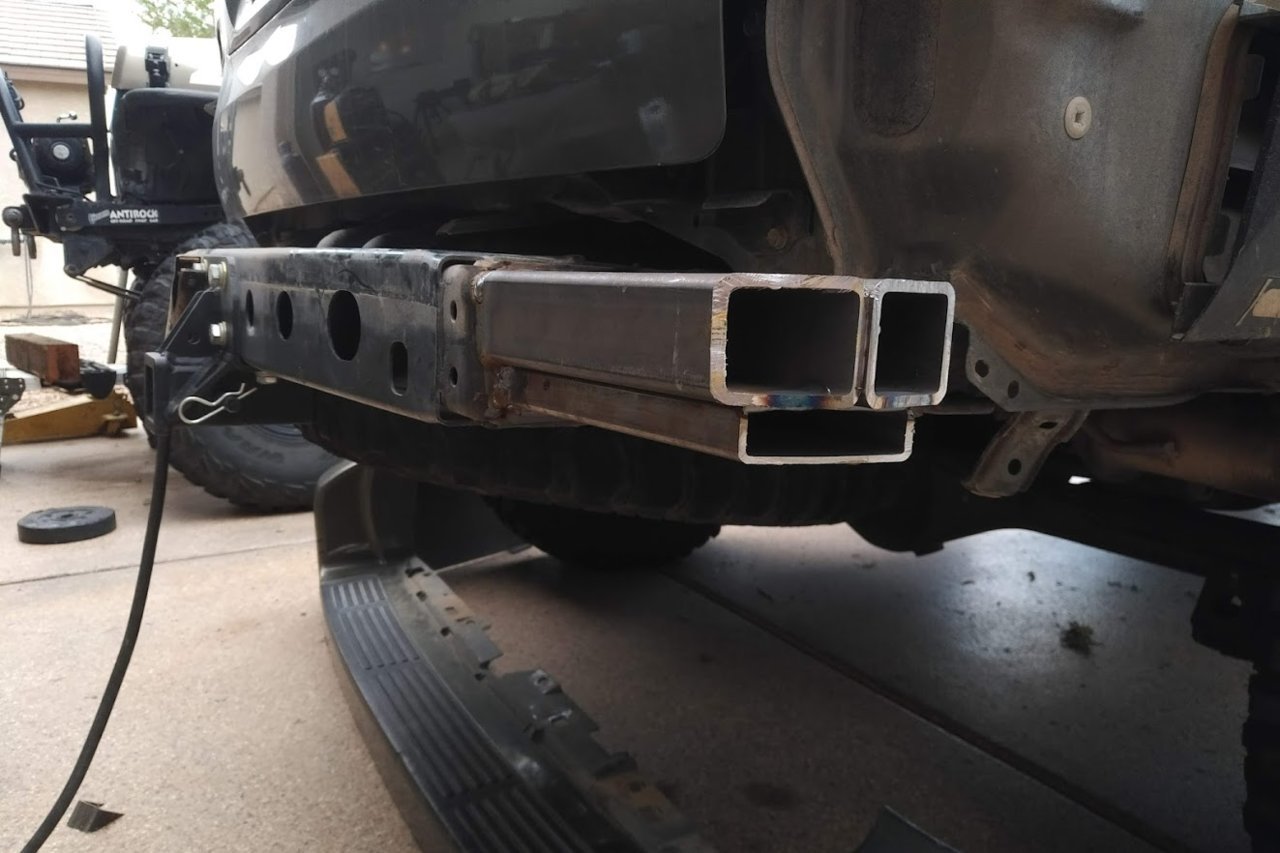

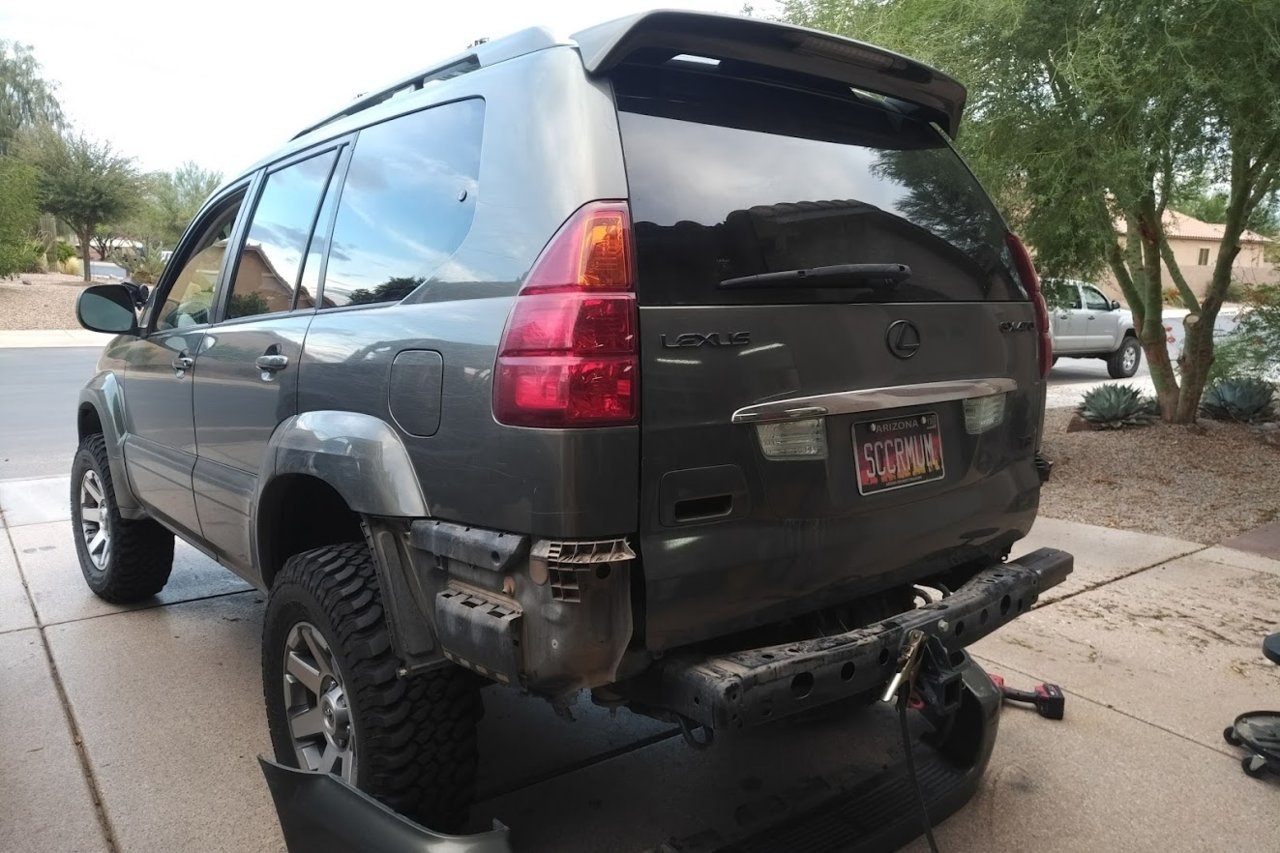

    Also started the swingout with @JeepAndrew (mostly him, I contribute every so often and otherwise drink his iced tea and get in the way sometimes)

    1BgGfnfSqgygNUoXy1-rz2BbeDvouHLr3c6HCmTc_b110efcb2d847c822d0c0da727987038d573f1f8.jpg

    pZfMBGuRz7Ds80rBN3anUtYGtHzFKFfVEpv1Y5PP_7daa9d3d0d5e07b6e4c52ce8dd229598a449c3f9.jpg

    Sh8K555YR-0Dpf7aHCusAnNwvzAwXeoQ3RJ6j4Qi_70bc8924c51f8208c17880eb65b6b0ecdb9ce8b3.jpg

    2INInzE2RLG_QoNIyNzTi-KOUUZLAy7G2cQ_sYMW_b72685fd328bfe6a498037ef9ffc3d85b29b2354.jpg

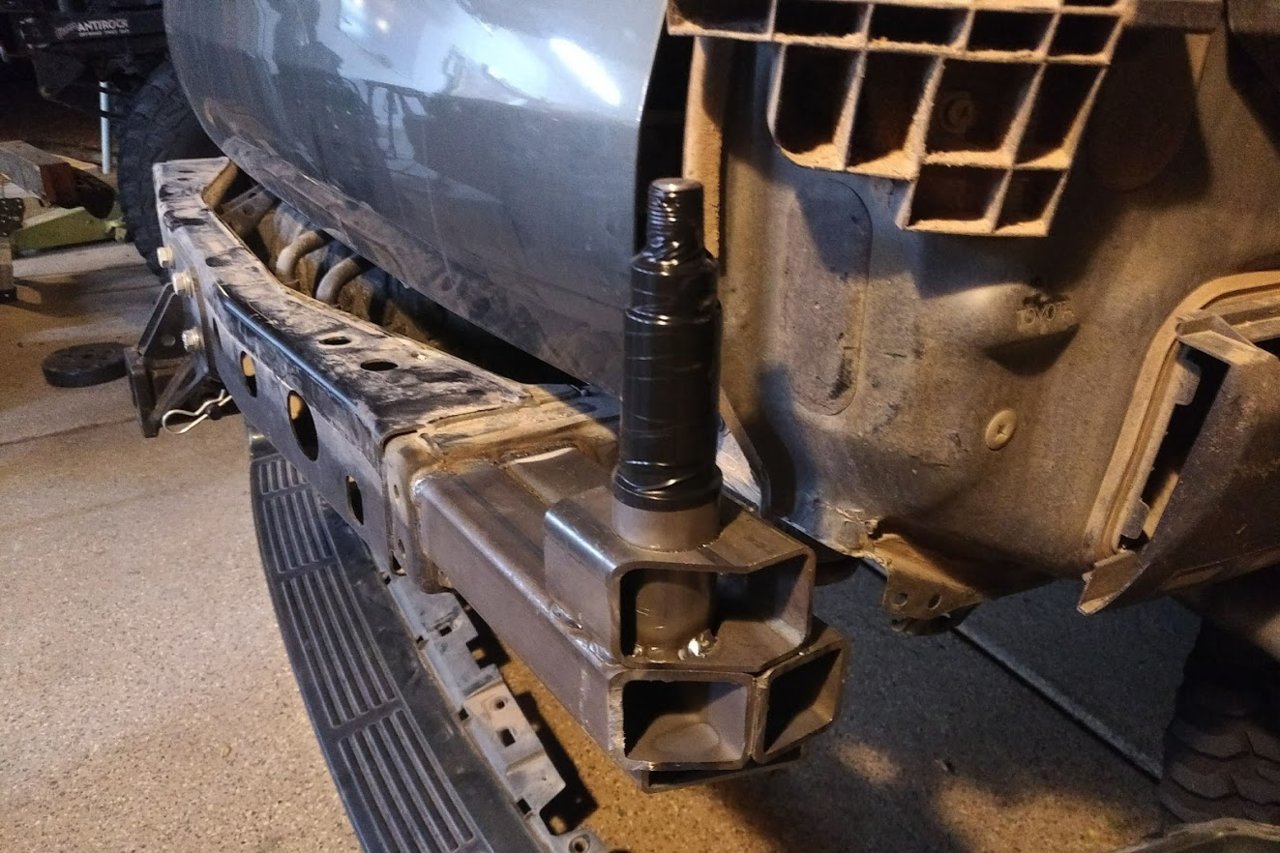

    where we left it after worknight #1:
    t9UZIBgAQtoYDMe-nohSfwNKWK4MGVfMfEIuWqKL_8dc28e1e81c1bb5e97b9a46a9384dce2ae4f46cf.jpg

    Arailt, 05tacomabro and llibrm like this.
  15. Jul 22, 2018 at 10:19 AM
    #55
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470

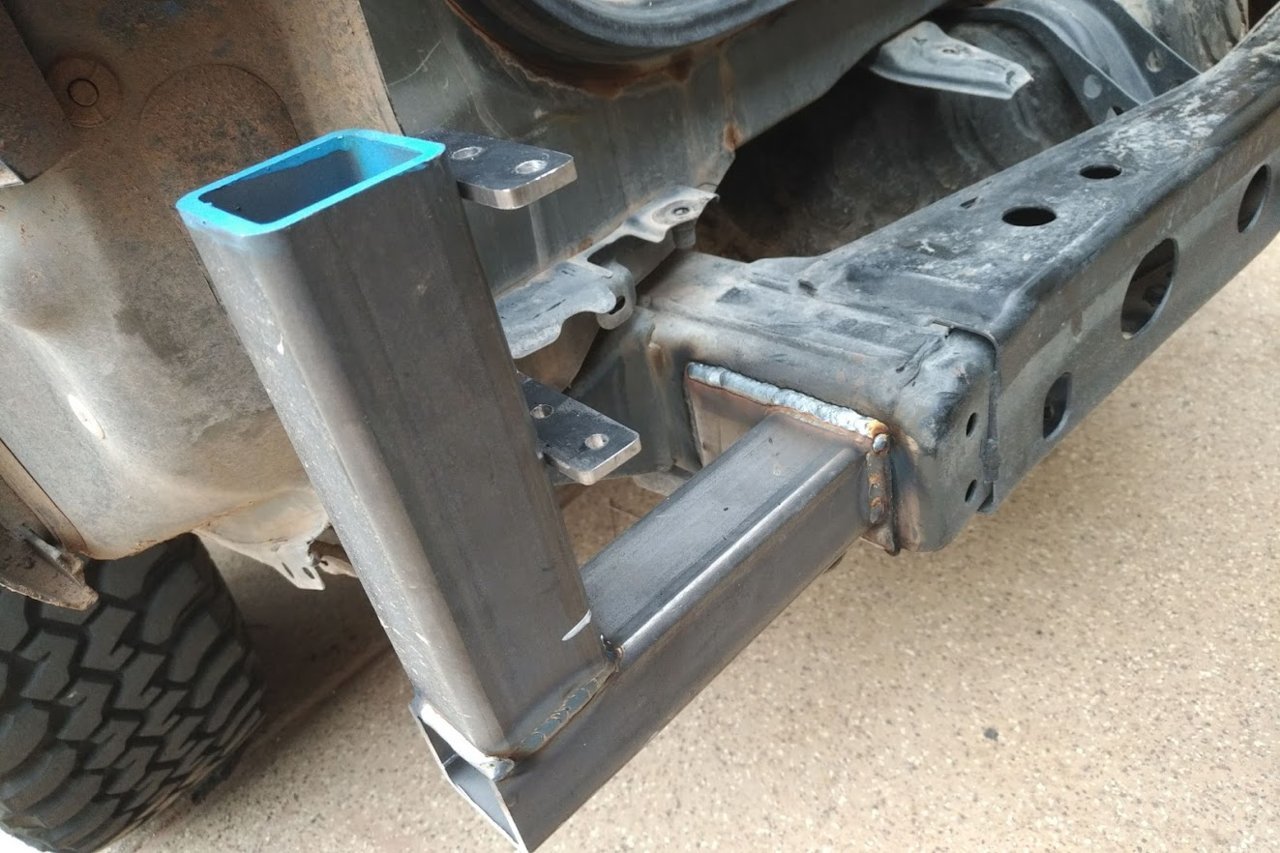

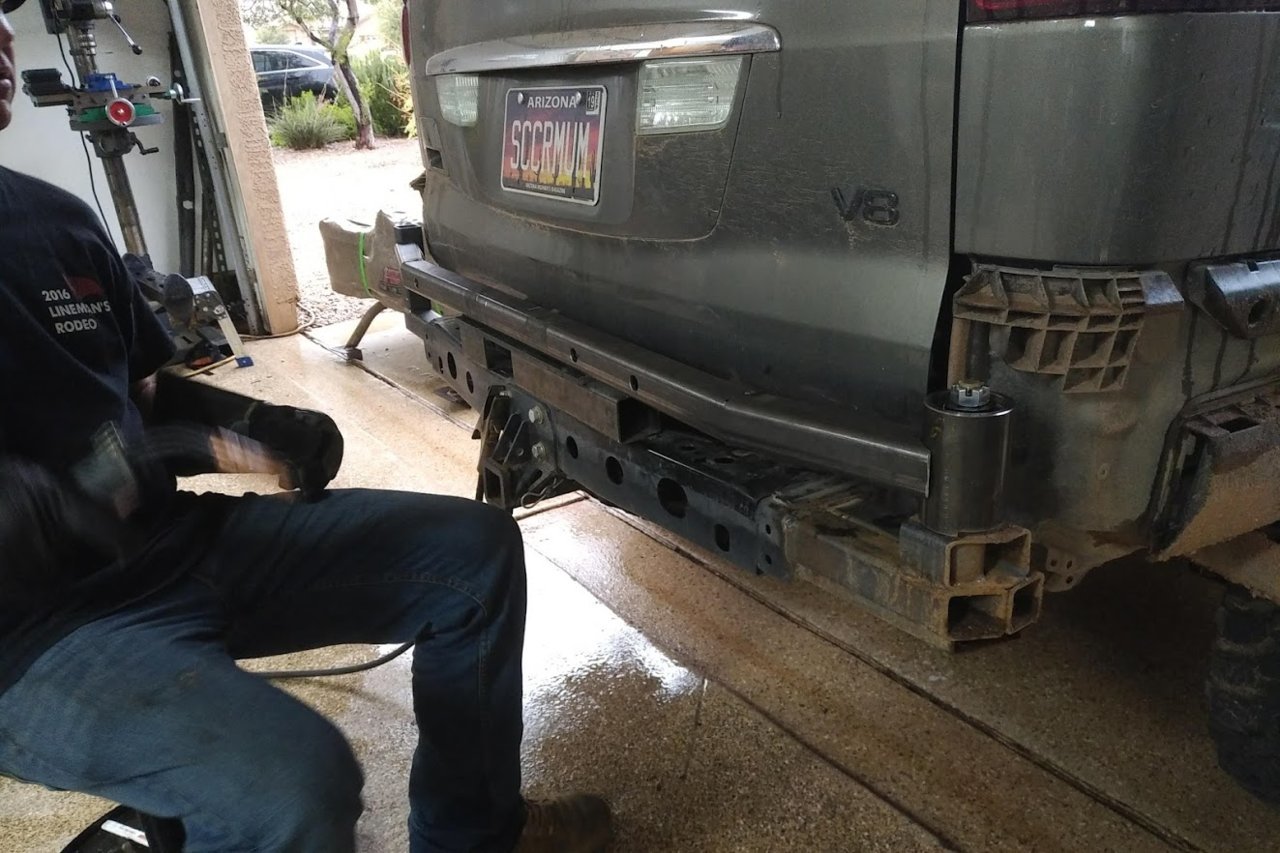

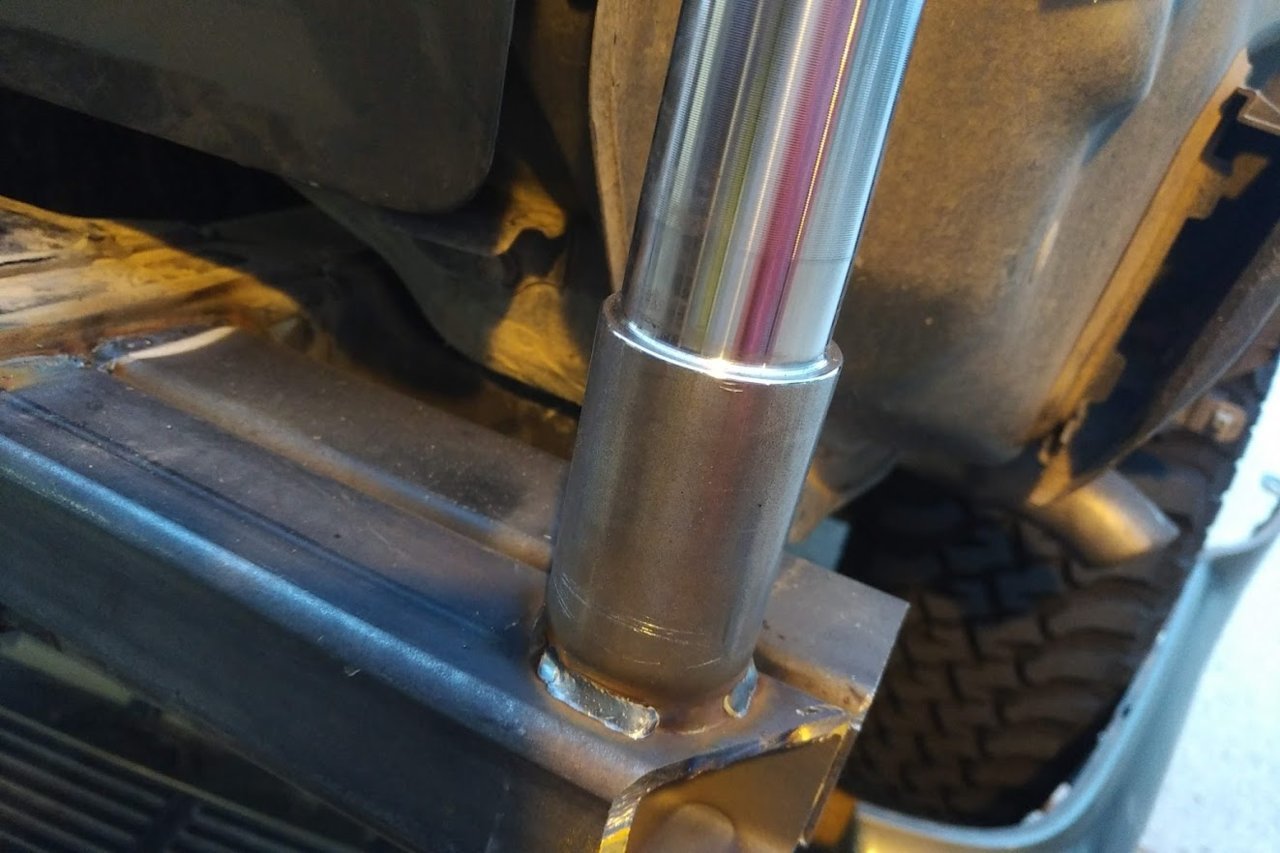

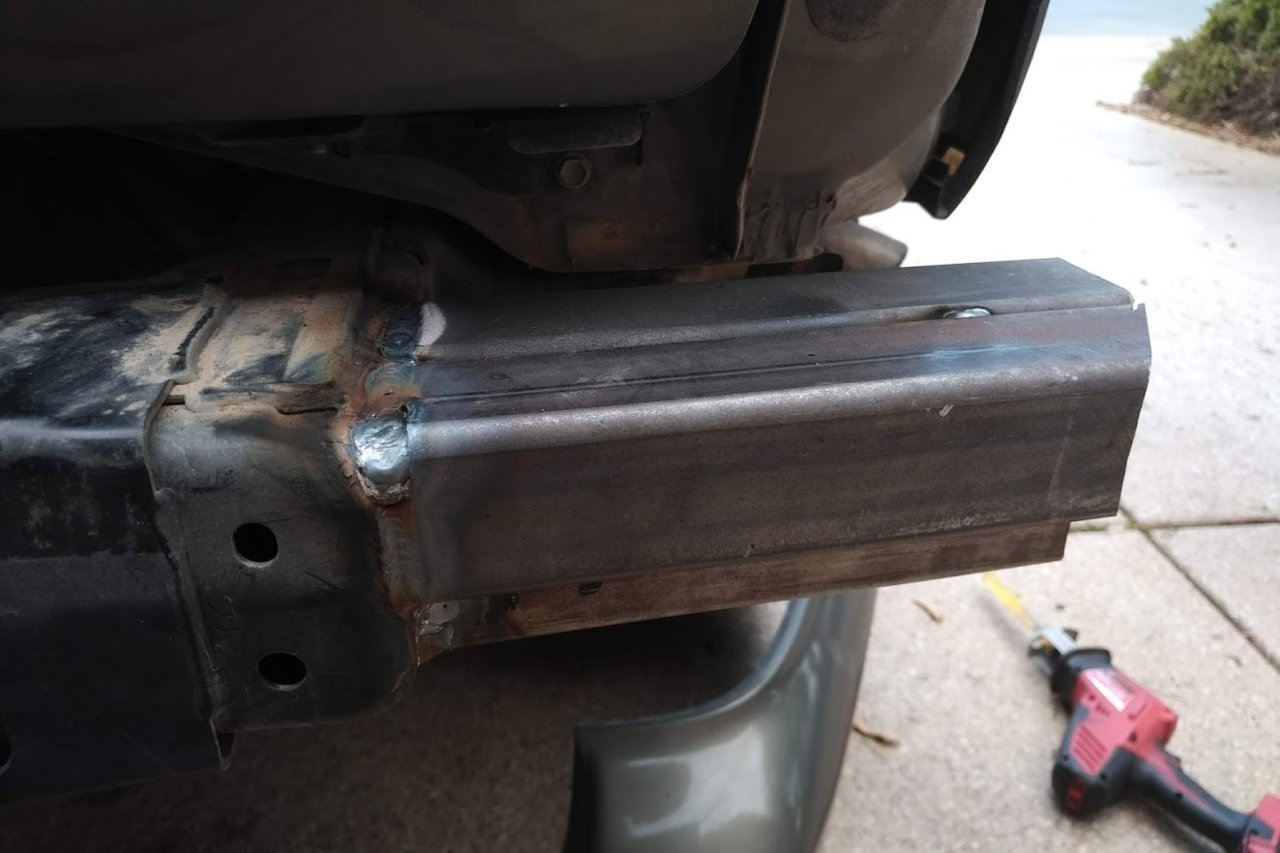

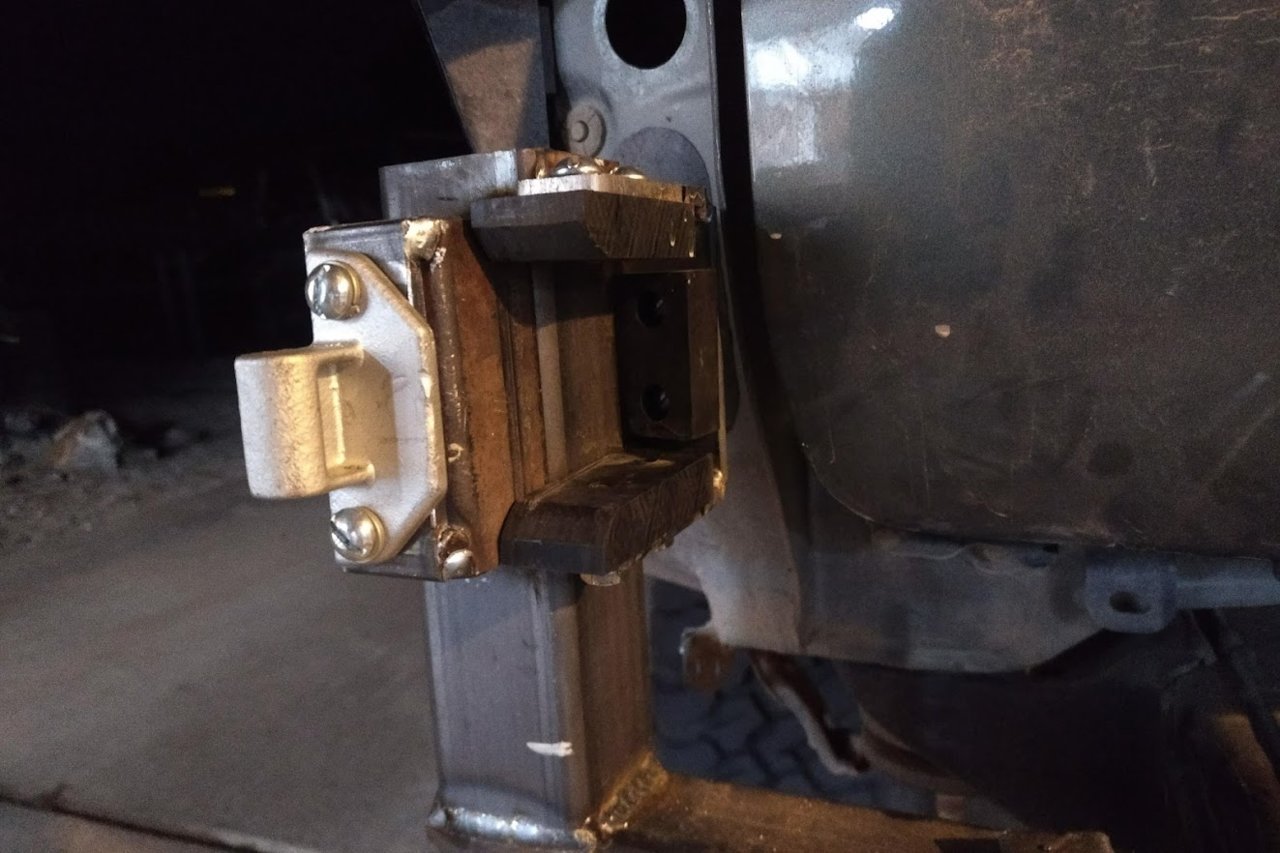

    Night two we (he) cut and bent the swing arm to follow the curve of the hatch and tacked it onto the spindle sleeve for mocking up, as well as started the receiving side.

    SruIDd1ospxHEM4YZ3ZXGt0i3l9J7YH_QSKxp_b__52c32ef754c90cf6ce552465c722e9f6f5482145.jpg

    Day 3, started getting the recieving end finished with rubber bumper, latch, and delrin feeder slides top and bottom to fully seat and cradle the arm:

    aoSaQsISvrghcv93dUBXG9zecmF1u_XO6YP76x_m_1cdc2d33259be35cdf0fbf3fba95173c325c7135.jpg

    NGloqsmj2_bbDHF5K645KlrxFIdqllZt3_OsL0wm_a067ea84ad0e29e8665327168918ac3f193872c5.jpg

    sKpwsXChRtYjoE119giWOpUieZ9OKHqJLwUuHzE6_3349a0862f027ebdfa90b1a70f96dda8e4fecade.jpg

    Also started the mounting frame for my dual Jerry can holder. The Driver side bar for the jerry can will also have a plate on it to mount my 5lb propane tank for the stove.

    0PHJH-hgMehlrbQOCSmHq_cAzupgnn9Ylge1LxCg_3e6f37d4ab8c70f97e58da71f6021d84b00b9dc7.jpg

    Arailt, 05tacomabro and llibrm like this.
  16. Jul 22, 2018 at 10:28 AM
    #56
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470
    Also Got the awning mounted, finally. I lost my CAD license so I had my buddy whip up the CAD for extention plates to have Ballistic Fab cut on their laser CNC cutter. the ARB brackets were not long enough to clear the roof rack side rails. I need the ARB corner brackets to face down because I won't fit in the garage otherwise and HOA will tow if parked outside. so wow. Much communist.

    so ballistic cut them, I painted them, assembled everything, and found the awning hung about 1 inch too low and impeded door function.

    Washer stack on the carriage bolts to level the surface with the side rails:
    9-u7r0RmABDiim4csrSPpa1YaTG74Aqksh14vbDr_02d4b278b477f601f2a5ed0e88e7b1587c85a2ba.jpg

    The middle M6 bolt overlaps the ARB bracket and the custom extention bracket:
    yHnHNi2tznnz58Zm7BpqOjgM3ZmdXwHx1CArjVmN_0b48aa741ae564fa571d2c3b3476d252755158a4.jpg

    Because of the bit of sag, The doors wouldnt open and close without holding up the awning slack. I'm holding up the slack here:
    wN0LK-YjLRkOA2HU_a2BpZ5rIugkf6MMKjGDBVvz_eccacfa3a07c11b1bc6a8cfaf47cdde3de631680.jpg

    so I marked the ARB brackets for new awning holes 1" higher than the original slots allowed. Then chopped the bottom half of them off since it was uneeded.

    RekcpulSHtqFGxGv9TEbWxw-2qkTxnwcFEn8Oc-__268891da220ae04accc987106b10a133bca5366f.jpg

    Got it all mounted up at Andrews while he did productive work on the swing out:
    yJTfvW6iMQBBLqtZDynO0oKnTuQ8OktZ_Qk39SNN_ad751a5a3b7e6c6b44392e09a7820adeed082094.jpg

    I kinda regret not going 8ft awning but I was worried since 1/3-1/2 of the awning would have cantilevered forward with no support since my stock rack stops behind the sunroof. now with the 6.5 my driver door isn't fully covered so it's not as ideal for rain coverage. Sun coverage is still very much there ,though

    Arailt and 05tacomabro like this.
  17. Jul 22, 2018 at 10:36 AM
    #57
    llibrm

    llibrm OH NOOOOOO!

    Joined:
    Aug 1, 2012
    Member:
    #83890
    Messages:
    4,244
    Gender:
    Male
    First Name:
    Bill
    Convection Oven, Az
    Vehicle:
    06 DCSB, 06 LC120 (sold)
    Pelfreybilt Aluminum Bumper, KING 2.5 on all four corners, 4x4 illuminated switch, Cobra 75 w/ 3' Firestick, 2M/ 70cm Radio w/ Diamond NR770HB, Pelfreybilt bed bar, Lightforce Stiker 170s
    What did you do for your rack crossbars? I have not been able to locate any factory style ones anywhere and I see you have made your own.

  18. Jul 22, 2018 at 10:41 AM
    #58
    NudeLobster

    NudeLobster [OP] Well-Known Member

    Joined:
    Jan 18, 2017
    Member:
    #207914
    Messages:
    336
    Gender:
    Male
    First Name:
    Justin
    Tucson, AZ
    Vehicle:
    2006 Lexus GX470
    31290699_10156092338730751_1170916992375_928776b3e7a295da4b4bb814f5f7e97d8ebe0b50.jpg

    Cut to 39.75" or remeasure your own, 39.8" was a bit tight! I recommend 5 cross bars if you're going to mount anything but an RTT to it. For RTT you only need 2. Or, if you want cheaaaap, you can have my stock cross bars!

    llibrm likes this.
  19. Jul 22, 2018 at 11:01 AM
    #59
    llibrm

    llibrm OH NOOOOOO!

    Joined:
    Aug 1, 2012
    Member:
    #83890
    Messages:
    4,244
    Gender:
    Male
    First Name:
    Bill
    Convection Oven, Az
    Vehicle:
    06 DCSB, 06 LC120 (sold)
    Pelfreybilt Aluminum Bumper, KING 2.5 on all four corners, 4x4 illuminated switch, Cobra 75 w/ 3' Firestick, 2M/ 70cm Radio w/ Diamond NR770HB, Pelfreybilt bed bar, Lightforce Stiker 170s

    That would be fantastic. Its the wife rig and we don't often need the top for gear, but when we travel, its difficult to take some of the larger items. Ill hit you up when I get back to AZ.

    NudeLobster [OP] likes this.
  20. Jul 22, 2018 at 8:12 PM
    #60
    TACOVRD

    TACOVRD I Identify As A Prius

    Joined:
    Jul 11, 2015
    Member:
    #159264
    Messages:
    6,433
    Gender:
    Male
    First Name:
    TW Addict
    AZ/WA
    Vehicle:
    2019 T4R ORP - Formerly 2013 DCSB OR Spruce Mica
    Workin' on it....
    Sub'd for build and bumper progress!

    NudeLobster [OP] likes this.

Products Discussed in

To Top
