Sealing your Smittybilt XRC8 solenoid before it fails

Discussion in 'Off-Roading & Trails' started by maxamillion2345, Nov 17, 2011.

  1. Nov 17, 2011 at 4:22 AM
    #1
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.

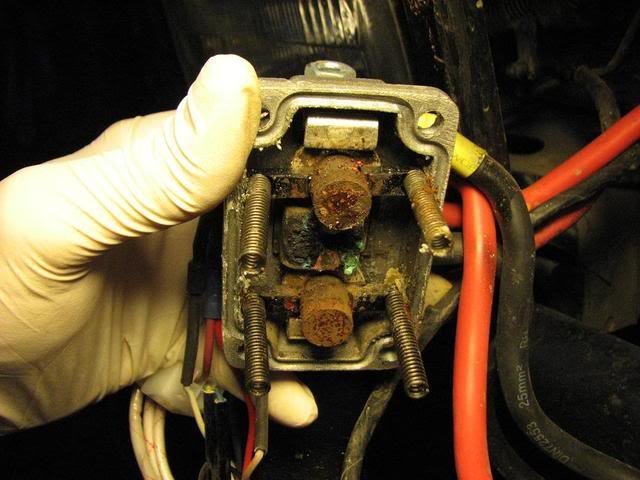

    If you haven't heard, the solenoids on the XRC8s are prone to corrosion and failure. There is a clear rubber gasket present from the factory but it's cheap and often not effective at keeping moisture away from your sensitive solenoid. So what we do is seal them up using RTV silicone before they fail you.

    Get yourself a tube of RTV silicone, black, grey, red, blue, whatever...

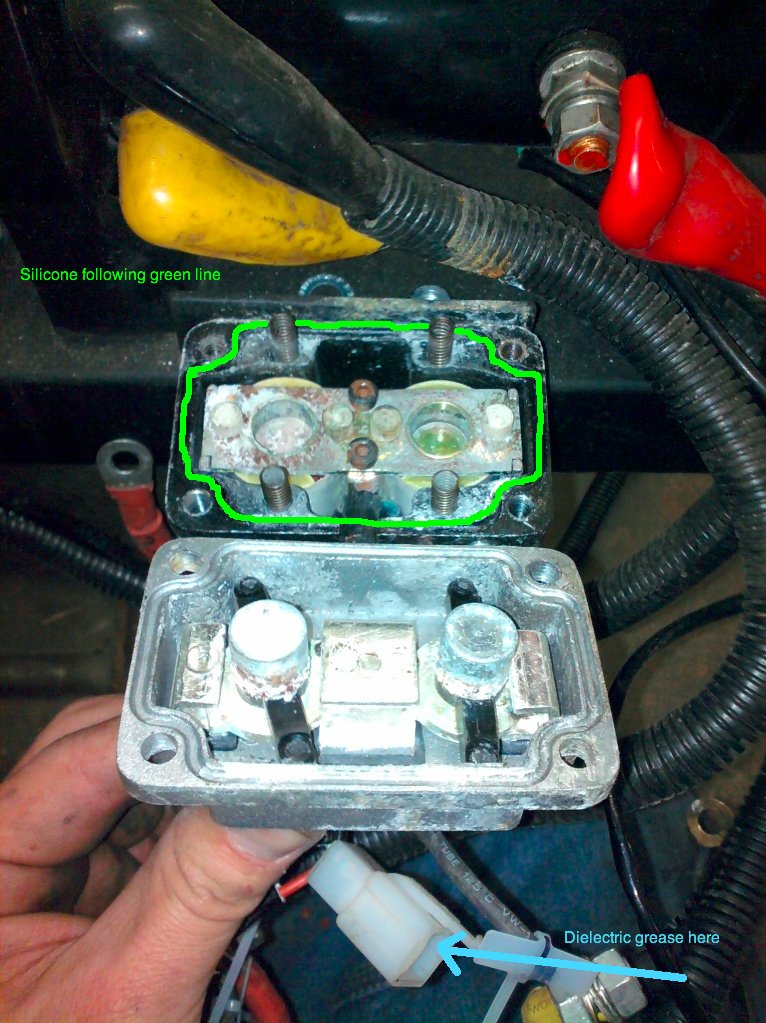

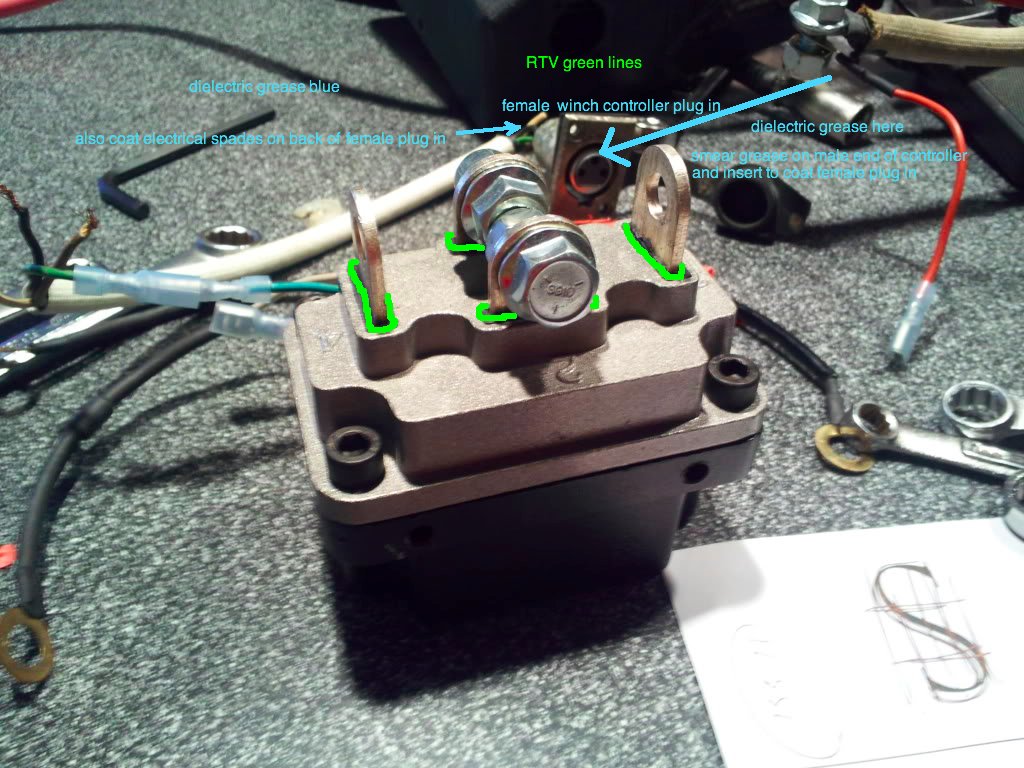

    Apply following the green lines.

    Remove solenoid from plastic housing. Open solenoid. Lift clear gasket from it's groove. Apply light amount of RTV. Replace gasket, making sure it seats in groove. Apply more RTV. Re-assemble solenoid housing.

    Apply RTV at the base of all connections. Take a picture to refer to which wire color goes where. Remove cables. RTV making sure not to get any on the contact areas. Re-attach cables and consider using dielectric grease. Small packets can be had at your local auto store for ~1.00.

    Apply liberal amount of RTV where the black bundle of wires exit the solenoid. Both at the base and where the wires leave their rubber sheath.

    Apply dielectric grease to all connections for winch controller. Apply dielectric grease to plug in port for winch controller. This is easily done by smearing some on the male end and inserting into female end.

    [​IMG]
    [​IMG]
    [​IMG]

    A couple other things I noticed on mine is that with it mounted feet forward the rubber boots on the connections on the housing collect water since they're effectively upside down. I cut large enough holes so that the water would drain. This also wouldn't be a bad place for some dielectric grease.

    I also pulled apart my winch, cleaned it of factory grease and repacked it with quality marine grease, then I reassembled and applied RTV on the paper gaskets on both ends.

    I periodically spray the winch, cable, and spool out handle with a lubricant/penetrating oil. WD40, PB blaster etc.... I also wash it with the HP wand at the car wash whenever I'm there.

    I've abused it, submerged it, washed it etc.. for nearly 2 years without any issues. The XRC8 is a great winch for it's price with a little forethought and TLC. I don't put all my eggs in one basket however and wouldn't even with a more quality winch.


    I'd have better pictures but I did this when it was new and at that time Krookz' write up was on here. Admittedly his was probably better but... whatever, it's not complicated. Seal up all entrances/exits with RTV.


    You're good to go!
    [​IMG]

    One last thing... If you're unaware, there is a second generation of the XRC8 that is better and more reliable than the first. The first being a magnet motor, the second is a series wound. The second gen is the one you mostly see and it's been out for a long while.

    edit: all pictures stolen, if they're yours and you want them pulled, let me know

  2. Nov 17, 2011 at 1:39 PM
    #2
    Box Rocket

    Box Rocket just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,038
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    Thanks for sharing your suggestions.

  3. Nov 17, 2011 at 1:50 PM
    #3
    JasoTaco

    JasoTaco Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30057
    Messages:
    2,008
    Gender:
    Male
    First Name:
    Jason
    Salt Lake City, Utah
    Vehicle:
    09 Tacoma TRD Off Road
    ToyTec Ultimate 3" Lift -TSB Rear springs - TRD Cold Air Intake - TRD Skid Plate - Total Chaos Upper Control Arms - 2 Hella Rallye 4000 lights (130W Bulbs) - Clear Bra - Under Coat - Bed extener - Toyota Bed Mat - Weathertech floor mats - Tailgate hose clamp & washer mod - PIAA Fog Lights - ScanGauge II - Beefed Sliders - Differential Breather Mod - Heated Seats - All-Pro Bumper - Warn M8000 Winch with wireless controls - Boztec Diff Skid - ATO skids
    Nice write up! I know that is a popular winch with a lot of people on here.


    We need get out an go wheeling again. Maybe next time I won't have to use my winch to keep up with you:turtleride:

  4. Nov 17, 2011 at 2:07 PM
    #4
    udy2554

    udy2554 NORTHERN RED-NECK

    Joined:
    Nov 19, 2010
    Member:
    #46394
    Messages:
    1,875
    Gender:
    Male
    First Name:
    John
    Naples, NY
    Vehicle:
    '06 Tacoma TRD Sport
    Toytec ULK, Light Racing UCA's, OME Dakar rear leaves, ARB Bumper with XRC8 winch, Good Year Duratracs 285/70/17's on 17x9" Level 8 Strike 6's. Leer cap in the winter. Pioneer Double Din with BT, iPod, etc. Boston Acoustic components in all 4 doors with a Sony amp, powered 8" sub. Ultra gauge, Tom Tom...
    Great pics Max. Did the "mod" a while back. I don't wheel as hard as you do, but this will be the second year of salt and sand and rain and snow, and mine still works every time I need it. I should probably pull it apart again now that I see the snow flying outside my window.

    To do the motor is a royal pita as I need to pull the bumper to do it, but maybe next spring. It's a great idea!

    Rep to you!:thumbsup:

  5. Nov 17, 2011 at 4:57 PM
    #5
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    Thanks guys. I probably ought to pull mine and inspect the whole thing, maybe re-pack it with fresh grease. Maybe if I get bored one of these days.

    Let me know if you're ever as far as Elko Jason, and I'll see about driving up. Better to winch a couple feet than beat the hell out of your truck. :p

  6. Nov 17, 2011 at 4:57 PM
    #6
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.

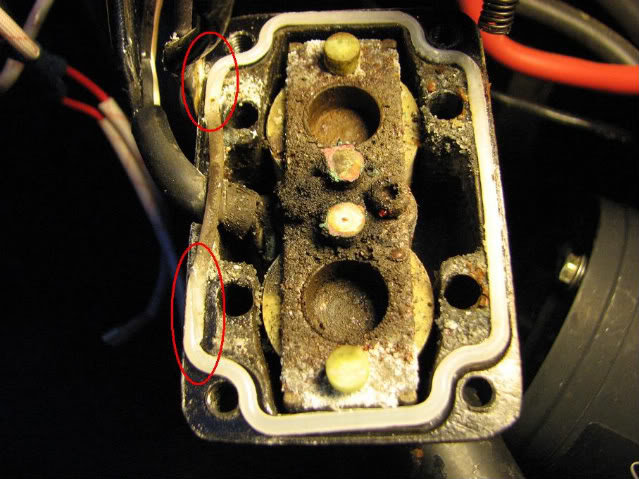

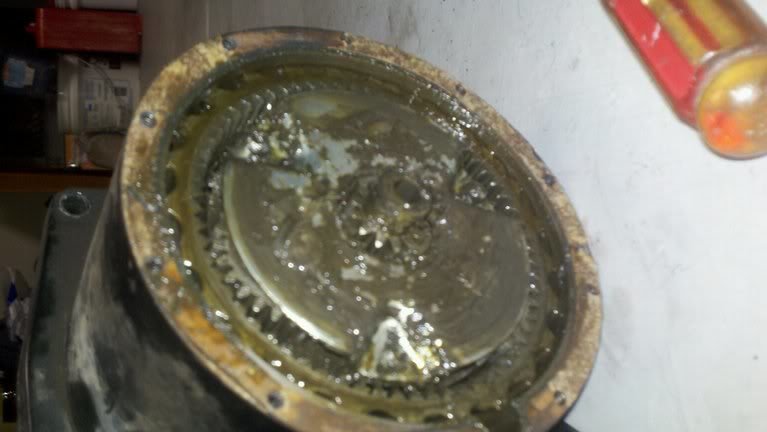

    Here is a little more of the corrosion that can happen.

    I stole some pics, if they're yours let me know if you want me to and I'll pull them.

    [​IMG]
    [​IMG]

  7. Jun 15, 2012 at 5:26 AM
    #7
    ChrisInVT

    ChrisInVT I rather be wheelin'

    Joined:
    Dec 16, 2010
    Member:
    #47774
    Messages:
    17
    Gender:
    Male
    First Name:
    Capt'n Awesome
    The Woods, VT
    Vehicle:
    1989 Toyota 1-Ton Box Truck
    Onboard air, Train horns
    I see you stole my pic...I'll remember that! :rolleyes:

    I sealed up my new solenoid in the exact same way, so far no issues but only time will tell. I wonder which solenoid the X2O winches use...

  8. Jun 15, 2012 at 5:45 AM
    #8
    rleeharris

    rleeharris "Old Timer," compliments of 11Taco2.7

    Joined:
    Jan 16, 2011
    Member:
    #49326
    Messages:
    1,253
    Gender:
    Male
    First Name:
    Bob
    San Antonio, Texas
    Vehicle:
    '11 Tundra Crew Max TRD Off Road
    Great advice ~ thanks for sharing. +1

  9. Jun 15, 2012 at 6:46 PM
    #9
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    lol check my post! I did host them all on my own account fwiw.

    Thanks man

  10. Jun 15, 2012 at 8:12 PM
    #10
    IronCladTRD

    IronCladTRD Consistently Irregular

    Joined:
    Mar 17, 2011
    Member:
    #53191
    Messages:
    395
    Gender:
    Male
    First Name:
    Corbin
    Hotel California
    Vehicle:
    2003 4x4 Manual V6 3.4L
    5100s/Eibach 3" lift, All-Pro Expo rear leafs, Elite front bumper & sliders, Smittybilt XRC8 winch, 33x10.5r15 BFG All terrains, Ultra Rogue 15x8 rims, homemade bed rack, Midland 1001z CB radio Deckplate mod, Century shell, train horn, debadged
    This makes me feel really stupid, but would you mind diagramming where the dielectric grease should go? I figure if there's green lines for the sealant... heck, blue for the grease and I'd be ready to roll!

  11. Jun 15, 2012 at 8:21 PM
    #11
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    I put the dilelectric grease on the male end of the controller where it plugs into the box, then it smears into the female end, then you can close that rubber cover and feel better about nothing corroding.

    I also put it on the white electrical connector in the bottom of this picture. And on the spades behind the female controller port.

    [​IMG]
    [​IMG]

    you can pretty much smear dielectric grease everywhere electrical though, if you want. If you put any inside the solenoid use sparing amounts.

  12. Jun 15, 2012 at 8:40 PM
    #12
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
  13. Jun 15, 2012 at 8:45 PM
    #13
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    You can always check to make sure your solenoid won't stick and cave in your bumper before breaking the winch by running it in and out in free spool mode.

  14. Jun 16, 2012 at 12:58 AM
    #14
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    Heres a nice exploded diagram of the xrc8 gen 2

    and instruction manual


    Attached Files:

  15. Jun 16, 2012 at 1:45 PM
    #15
    sytfu510

    sytfu510 INSTAGRAM: sytfu510

    Joined:
    Aug 27, 2011
    Member:
    #62453
    Messages:
    3,924
    Gender:
    Male
    First Name:
    Alex
    Bay Area
    Vehicle:
    06 DBL Cab Long Bed TRD Sport
    RHD Fender Flares, BAMF everything, OKLEDLIGHTBARS.com lighting
    good info, I'm going to have to do this to mine, last trail on MJ's smittybilt wouldn't shut off and caved the bumper a bit. :eek:

  16. Jun 16, 2012 at 10:35 PM
    #16
    92shawman

    92shawman LensCap

    Joined:
    Mar 14, 2012
    Member:
    #74900
    Messages:
    2,252
    Gender:
    Male
    First Name:
    K
    The Americas
    Vehicle:
    1992 Toyota Pickup
    Lots...see build
    Sub'd. Gotta do this soon. Thanks for the write up!

  17. Jun 17, 2012 at 12:42 AM
    #17
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    So I wanted to check out the condition of the motor and the gears after 2 years of use and abuse so I pulled the winch out of my bumper last night.

    For reference I did pull the gears somewhat apart when I got it and packed it full of decent grease. I know I didn't get everything out though.

    Pulled the gears out and pulled the motor apart.

    I started with the gears. I pulled the whole gear set and housing off the drum and away from the rest of the winch. Then I popped off the cover with the clutch engagement lever.

    [​IMG]
    [​IMG]

    Then I pulled the 3 planetary sets out and the rest of the gears. I cleaned them all off and looked at the majority of the teeth for damage or wear. They all looked good, but I did notice on the planetary set closest to the drum that the bottom fiber thrust washers on two planets were falling apart. With the slow speeds and the thickness of the washers thin and flimsy and don't cover much) and the grease in there, it'll be fine.

    I repacked everything with a tube of CRC sta-lube moly grease, cheap but should do the job just fine.

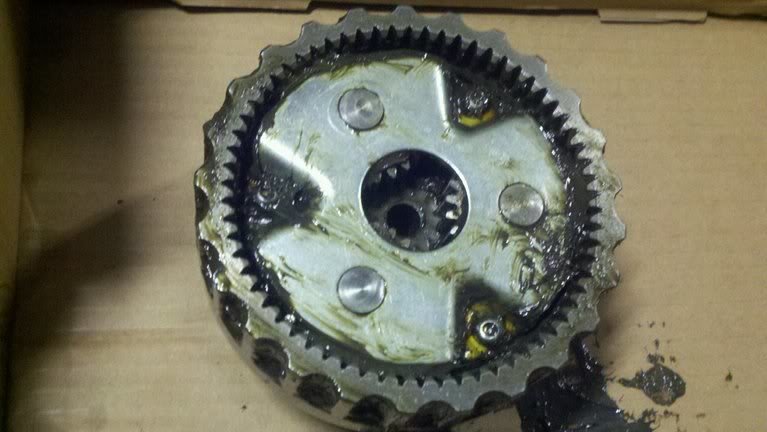

    This is the bottom most planetary or the set closest to the drum, it sits in a ring gear cast into the housing. It's important to note that there are two thrust washers that sit on top here. The shiny side is up, the dark side down (towards the drum). It only goes one way, as the dark side is is cut for a gear to fit into the center of it.

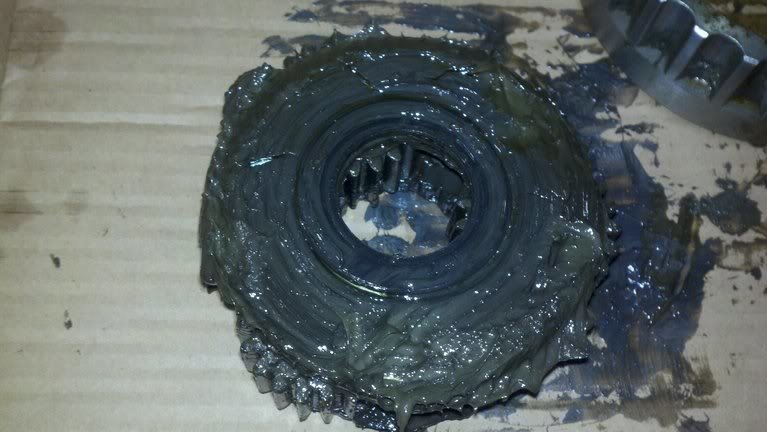

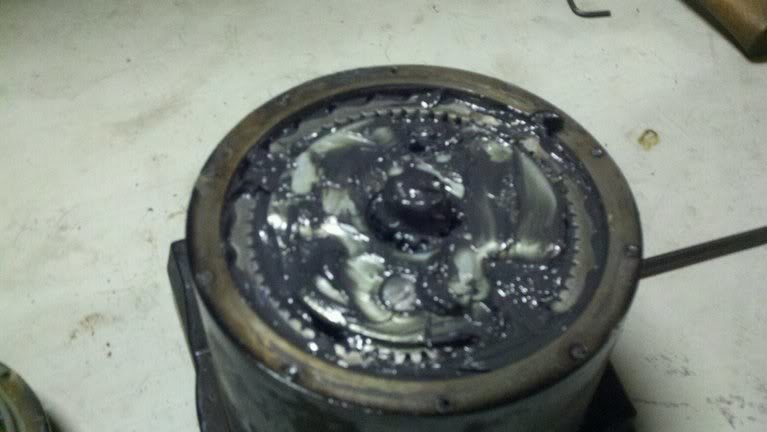

    [​IMG]

    here it is covered in grease
    [​IMG]

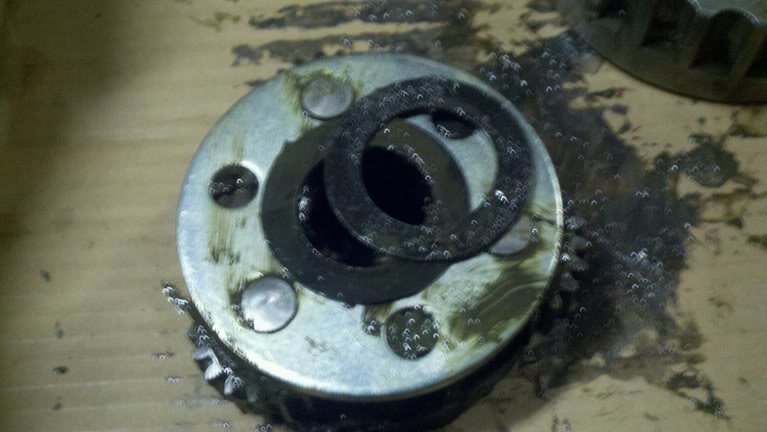

    The 2nd planetary stacks on the 3rd planetary with the protruding gear mating with the planets on planetary 3.

    Then the 1st planetary does the same with the 2nd.

    They taper down in size so it's easy to figure out.

    Then removable ring gear/clutch then slips over planetary 1 and 2. It should fit almost flush, but a little under the lip on the housing. It also is inserted so the fattest part, is towards the drum.

    Just like this.

    [​IMG]

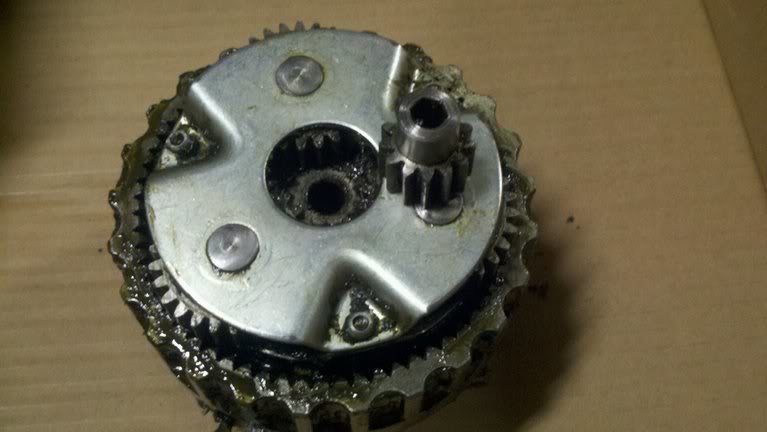

    Then you'll add the little gear into planetary 1.

    [​IMG]

    you should end up with this

    [​IMG]

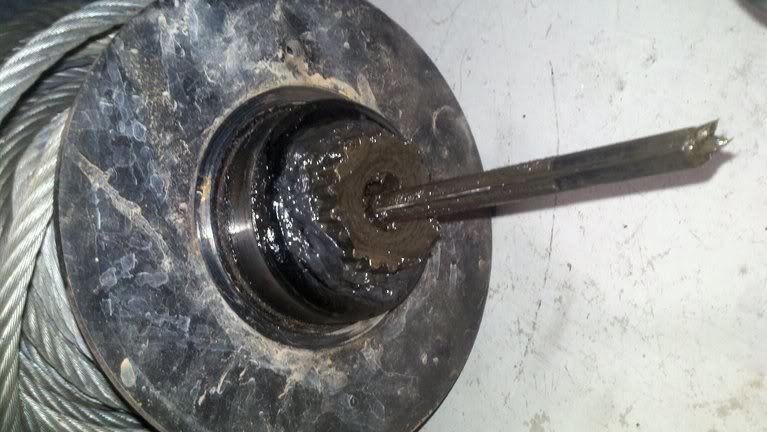

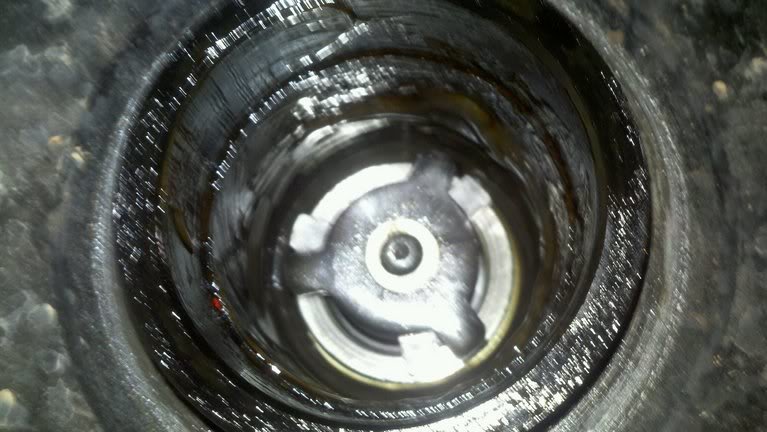

    Then this is the gear side of the drum. That gear on there falls out easy and it fits back either way. You'll need to fit it with the deeper part in the drum and the shallow part in planetary 3.

    [​IMG]

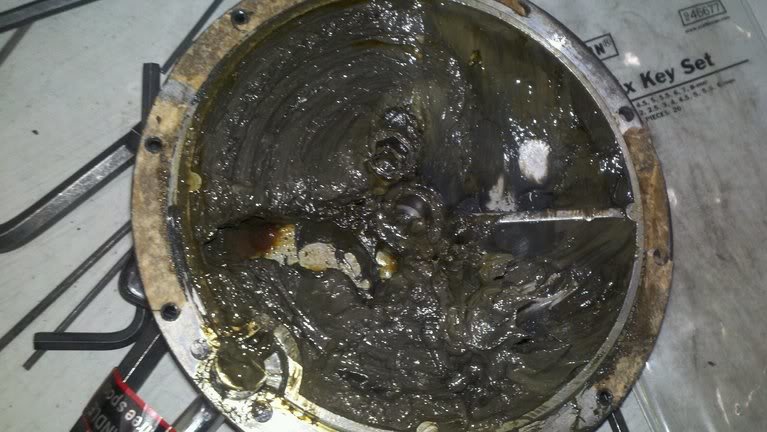

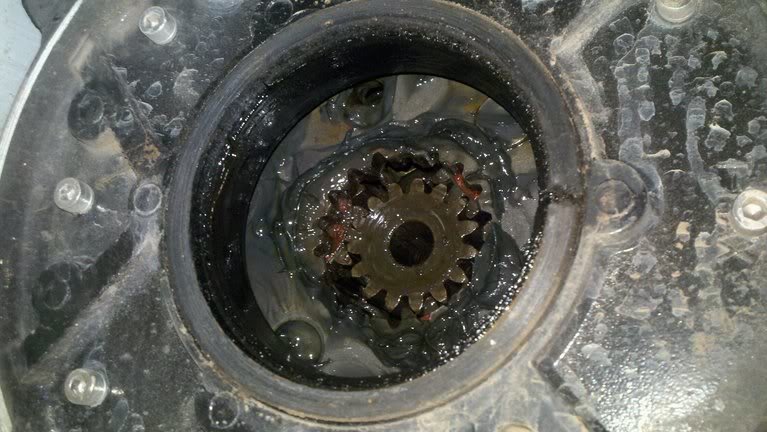

    This is the back of the gear assembly/housing. You can see the red fiber thrust washers and where the gear on the drum goes.

    [​IMG]


    other side of the drum
    [​IMG]

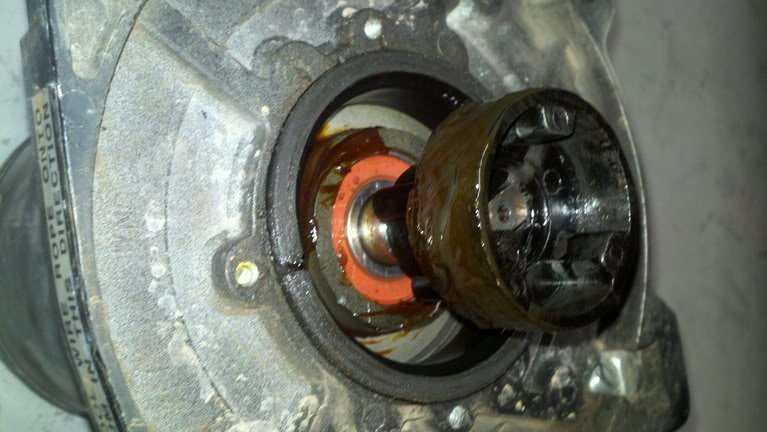

    here is the back side of the motor housing, if you choose to pull yours apart, for your convenience I would mark the orientation of the cap, and the housing, and the housing to the other piece. That way it's easier for you to get back together.


    [​IMG]

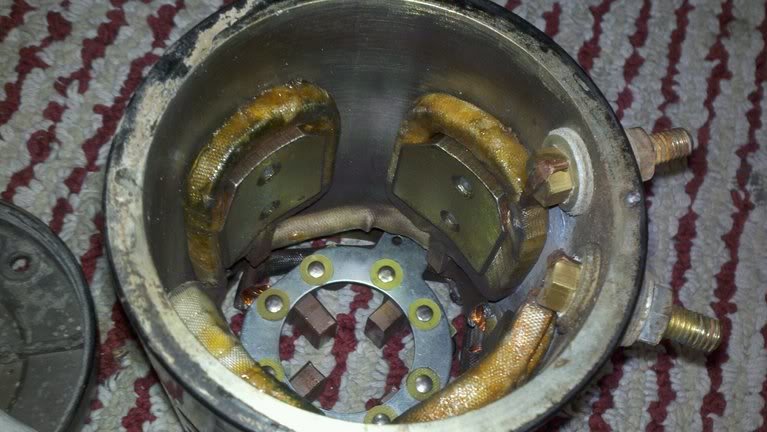

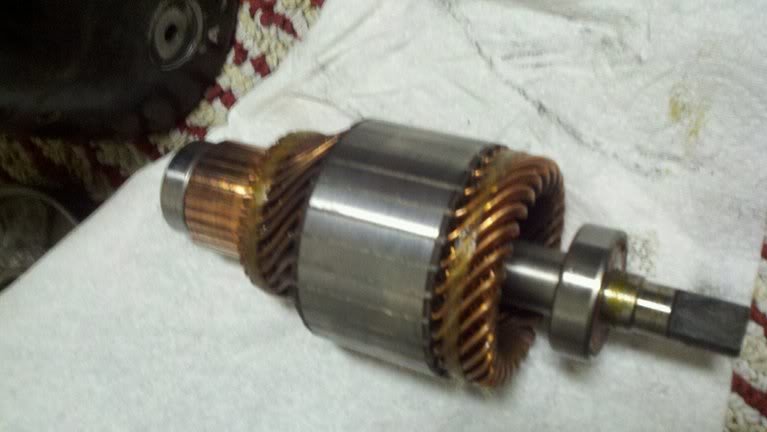

    Here is the inside of the motor housing minus the stator or whatever it's called, I wouldn't recommend removing it though, total PITA to get back in by yourself
    [​IMG]

    everything looked good to me, bearings seemed good as well
    [​IMG]


    As you can see, after 2 years, plenty of mud and water etc... looks pretty clean on the inside.

    refer to the hi-res parts diagram if you run into trouble.

  18. Jun 17, 2012 at 1:31 AM
    #18
    maxamillion2345

    maxamillion2345 [OP] Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
  19. Jun 17, 2012 at 6:53 AM
    #19
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    16,123
    Gender:
    Male
    If you could go back and had the money would you choose a warn m8000 over the xrc8? I am an electrician and have access to all kinds of anti corrosion, dielectric grease, instant galvanize, de-oxidizing contact cleaning solvents, etc. So what I'm asking is would one of these winches be more susceptible to corrosion / failure than the other? I only ask because if all it takes is some good elbow grease to keep the solenoid / contacts from corroding I couldn't justify the extra $180 for the warn.. Thanks.

  20. Jun 17, 2012 at 7:00 AM
    #20
    jgwheeler17

    jgwheeler17 I'm a zit. Get it?

    Joined:
    Dec 3, 2010
    Member:
    #47112
    Messages:
    10,016
    Gender:
    Male
    NC
    Vehicle:
    07 Double Cab TRD Off-Road 4x4
    tint, dents, scratches, two blown speakers and trying to pay her off...
    great thread and info. thanks for taking the time to explain and post. :thumbsup:
