Second gen rear shock install...

Discussion in 'Technical Chat' started by chris4x4, Aug 29, 2010.

  1. Aug 29, 2010 at 6:21 PM
    #1
    chris4x4

    chris4x4 [OP] With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,969
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    When installing the rear shocks on a second gen, its a pretty easy procedure. No jacking of the truck, removal of the tires, etc. You need a 17mm box wrench, 5mm hex wrench (or 5mm open wrench...Depending on the shock), and 17mm socket.

    Remove the lower shock mounting bolt and nut.
    Remove the top 17mm nut.

    Remove the old shock., then re install the new one.

    Now...How to hold the shaft from spinning:

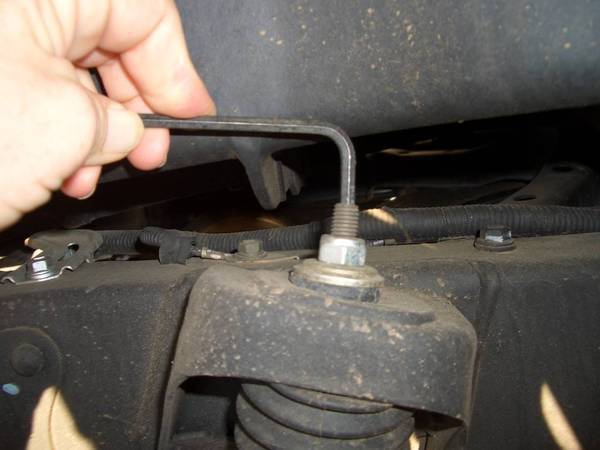

    Some shocks have a 5mm hex hole in the top of the shock shaft:

    [​IMG]

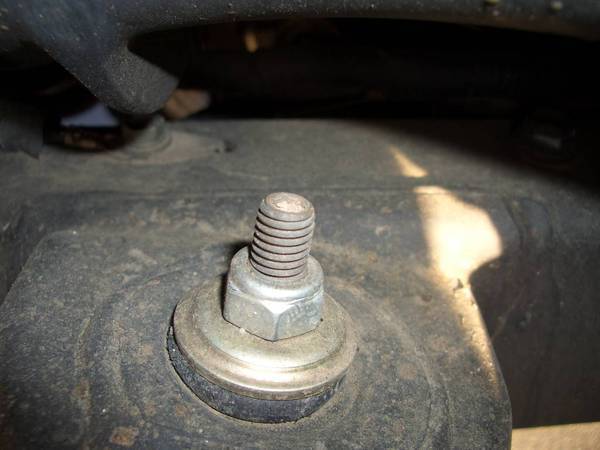

    While others are made for a 5 mm open wrench to fit:

    [​IMG]

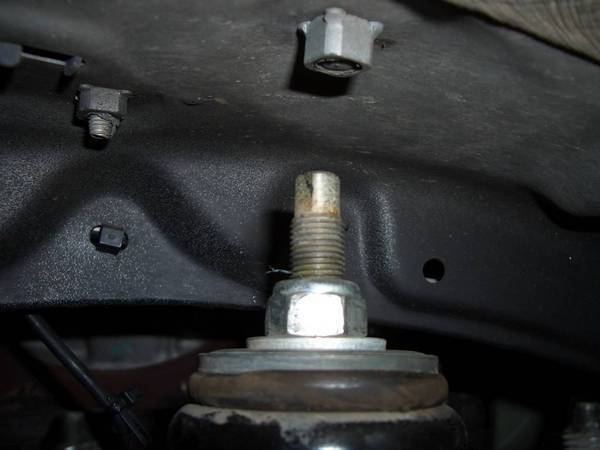

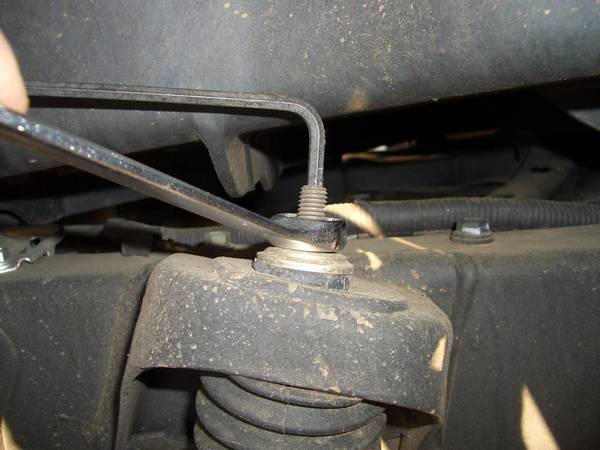

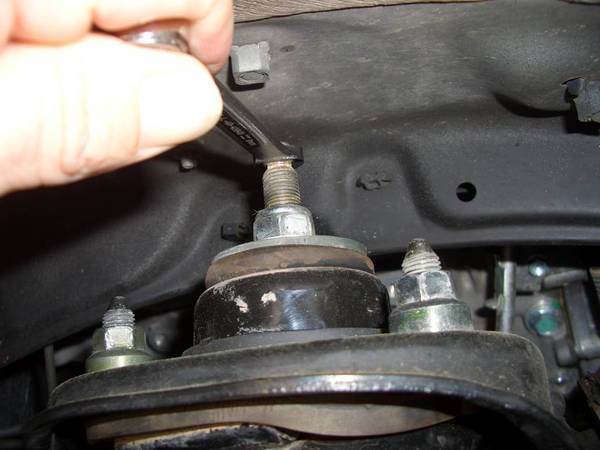

    In either case, use the appropriate wrench, along with an open wrench and tighten to 15 lbs-ft torque:

    [​IMG]

    [​IMG]

    [​IMG]

    The lower shock mounting bolt is torqued to 74 lb-ft.

  2. Aug 29, 2010 at 6:26 PM
    #2
    w8n4mud

    w8n4mud There's a mod for that!

    Joined:
    May 23, 2008
    Member:
    #6831
    Messages:
    6,212
    Gender:
    Male
    First Name:
    Albert
    San Diego, CA
    Vehicle:
    2015 Subaru WRX
    Bilsteins 5100's (Front & Rear), GrillCraft, Line-X'ed Skid Plate & Bumper Valence, Blacked out hood scoop, Avid Light Bar and much more.
    :thumbsup:
    I'll know that for next time.
    If you could only have seen me the day of. :facepalm:

  3. Aug 29, 2010 at 6:27 PM
    #3
    chris4x4

    chris4x4 [OP] With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,969
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    LOL! I imagine! Ive been there too :eek:

  4. Sep 3, 2010 at 4:01 PM
    #4
    crf69

    crf69 scraping my emblems off my plasti-dip

    Joined:
    May 18, 2010
    Member:
    #37348
    Messages:
    3,575
    Gender:
    Male
    First Name:
    Ryan
    Ohio
    Vehicle:
    06 TRD OR BSP cab'n 1/2
    ummm yeah
    doing this now.....fronts will be on tuesday

  5. Sep 29, 2010 at 4:21 AM
    #5
    Kelson

    Kelson My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,592
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    fyi for 5-Lug trucks your will most likely need to take off the wheel and put the truck up on stands, unless you're less than 4' tall and hella skinny.

  6. Sep 29, 2010 at 10:31 PM
    #6
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,829
    Gender:
    Male
    or slammed

  7. Oct 27, 2010 at 10:15 AM
    #7
    05tacoSPORT

    05tacoSPORT Well-Known Member

    Joined:
    Jan 16, 2010
    Member:
    #29449
    Messages:
    2,197
    Gender:
    Male
    First Name:
    Chris
    Tennessee
    Vehicle:
    TRD SPORT
    Geared and Locked
    5100s are on the back porch. :D looks like a hour job

  8. Jan 3, 2011 at 10:18 AM
    #8
    bnavin

    bnavin Negative Ghostrider

    Joined:
    Jan 8, 2010
    Member:
    #28976
    Messages:
    223
    Gender:
    Male
    First Name:
    Ben
    Littleton, Colorado
    OME lift, driveline spacer, iPod interface, rattle canned center console and radio face flat black, LEER topper, Yakima rack, 20% tint all around
    only tighten to 15 lbs-ft torque on top?

  9. Jan 3, 2011 at 12:15 PM
    #9
    chris4x4

    chris4x4 [OP] With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,969
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Yup.

  10. Jan 10, 2011 at 4:52 PM
    #10
    kram

    kram Well-Known Member

    Joined:
    Mar 1, 2010
    Member:
    #32365
    Messages:
    126
    Gender:
    Male
    Squamish, British Columbia
    Vehicle:
    09 TRD Offroad Access Cab 6spd MGM
    URD Short Shifter TSB Leaf Pack, Bilstein 5100s front (1.75") and rear. 285/70/17 Duratrac on Rhino Sidewinders. Weathertech Digifit Floormats
    Thanks for the write up. I just did this and it took about 30 minutes. I'd seen other instructions on the net that showed the wheels off and all kinds of uneccessary crap. Glad I found this.

    I can't believe how much smoother the 5100s are over the stock TRD OR shocks. Went for a high speed rip on a rough dirt road behind my place and it greatly reduces chatter and increases traction. You can see when you pull the old shocks out how much skinnier they are and subsequently how much less oil would be in them, so it's no wonder the 5100s perform better. Got a guy installing my fronts on Wednesday, so I'm really stoked to feel it then, especially since I'm ditching a spacer lift in the process.

  11. Jan 26, 2011 at 12:00 AM
    #11
    FTB530

    FTB530 Well-Known Member

    Joined:
    Sep 13, 2010
    Member:
    #43186
    Messages:
    180
    Gender:
    Male
    Yuba City Ca.
    Vehicle:
    2005 toyota tacoma
    level kit,air raid intake,
    I have never changed my shocks on my 2005 Taco,any suggestions on types and/or brands i should look at,i do very little off roading,thanks for any advice,since i found this website i have been doing some of my own work,plugs today,tommarrow the differentials and if i get realy brave i might trey to change the tranny oil.

  12. Jan 26, 2011 at 12:09 AM
    #12
    jdkeller

    jdkeller How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,997
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    Bilstein 5100's front and rears are your best bang for your buck.

  13. Jan 26, 2011 at 10:55 AM
    #13
    FTB530

    FTB530 Well-Known Member

    Joined:
    Sep 13, 2010
    Member:
    #43186
    Messages:
    180
    Gender:
    Male
    Yuba City Ca.
    Vehicle:
    2005 toyota tacoma
    level kit,air raid intake,
    Thanks JD i will check into these.

  14. Jan 26, 2011 at 11:07 AM
    #14
    FTB530

    FTB530 Well-Known Member

    Joined:
    Sep 13, 2010
    Member:
    #43186
    Messages:
    180
    Gender:
    Male
    Yuba City Ca.
    Vehicle:
    2005 toyota tacoma
    level kit,air raid intake,
    JD i looked at your build ,nice job,ill be happy to get more of my maintainance done and get a shell on mine,thanks for the info on the shocks,,im really glad i found this forum.

  15. Jan 26, 2011 at 11:46 AM
    #15
    jdkeller

    jdkeller How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,997
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    No problem. Thanks for the compliments. Let us know how it goes.

  16. Feb 15, 2011 at 12:33 AM
    #16
    FTB530

    FTB530 Well-Known Member

    Joined:
    Sep 13, 2010
    Member:
    #43186
    Messages:
    180
    Gender:
    Male
    Yuba City Ca.
    Vehicle:
    2005 toyota tacoma
    level kit,air raid intake,
    Those Blistens are a little pricey for me,might have to go see my freind Les Schwabb lol

  17. Feb 15, 2011 at 12:38 AM
    #17
    jdkeller

    jdkeller How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,997
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    You can pick up a set of lightly used stock trd shocks on here for dirt cheap. That's another option.

  18. Mar 2, 2011 at 5:53 PM
    #18
    jdkeller

    jdkeller How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,997
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    Try some liquid wrench. Then take a breaker bar and go as much as you can without messing anything up.

  19. Mar 2, 2011 at 6:17 PM
    #19
    jdkeller

    jdkeller How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,997
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    Has that nut and bolt ever been off before?

  20. Mar 26, 2011 at 9:44 AM
    #20
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,999
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Just replaced my stock Bilsteins with 5100's :yay:
    My stock Bilsteins had the 5 mm wrench at the top so I've got a quick question about removing them, or how they were supposed to be removed... I got to the top of the stud, could no longer keep the 5 mm wrench on top of the stud but still had threads to undo on the nut. I ended up just using a hack saw and cutting the stud but there's got to be a better way to get the shocks off... I did try using channel locks on the shock itself but couldn't get enough grip. Just curious how you're supposed to get them off without destroying the shock.
