Selecting a mild lift (TRD Baja TX Pro + Icon AAL)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Aug 3, 2015.

  1. Sep 17, 2019 at 2:59 PM
    #361
    Gerard6778

    Gerard6778 Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277494
    Messages:
    454
    Gender:
    Male
    First Name:
    Gerard
    Vehicle:
    2015 TRD Sport

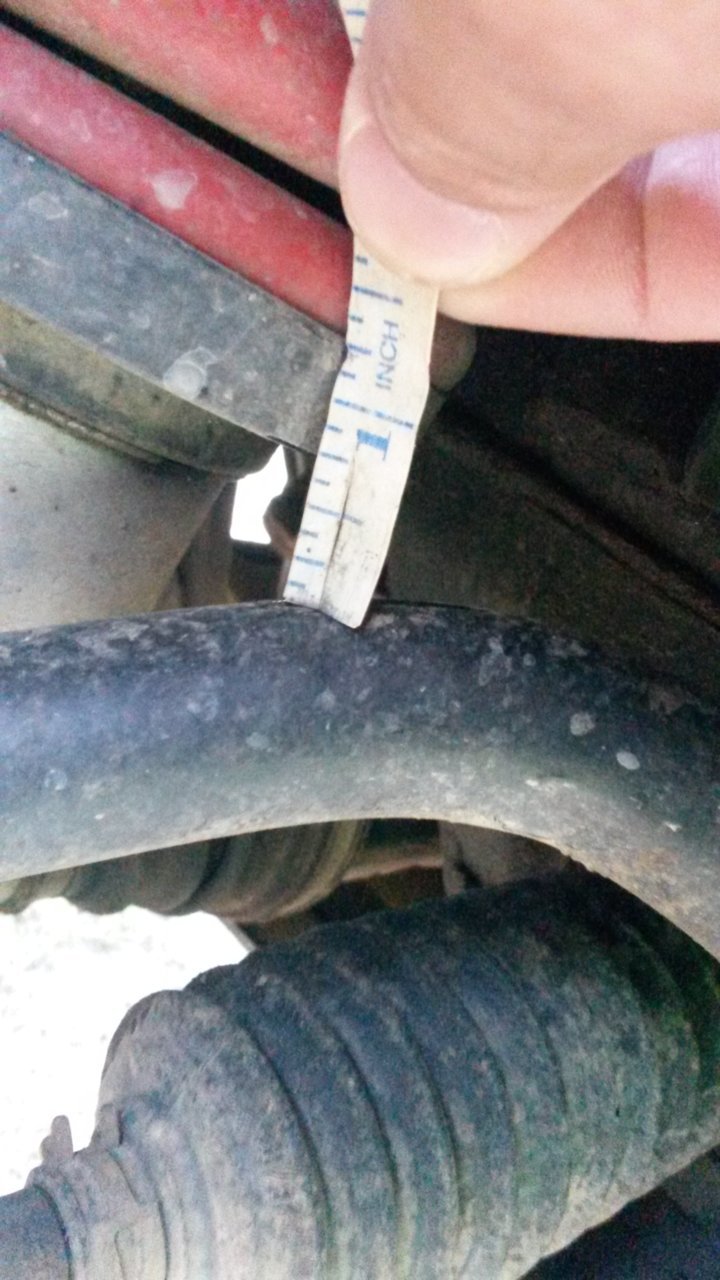

    It's as close as it looks in the picture. The driver side has enough clearance to put a finger between.

  2. Sep 17, 2019 at 2:59 PM
    #362
    APACHETECH

    APACHETECH Well-Known Member

    Joined:
    Feb 15, 2014
    Member:
    #123170
    Messages:
    89
    Gender:
    Male
    central pennsylvania
    Vehicle:
    2013 MGM DCSB OR
    Trd Baja lift Wheelers Aal SCS Ray 10 16x8s Cooper AT3 4S 265/75/16 Trd shift knob Weather tech front and back Heated seats Auto start Immryo mirror mod Mods to install : 4x4 lighted switch Speakers/components/sub and box from Mr. Marv Redline hood struts One piece engine splash gaurds Wish list/looking for : Matching cap Light bar/pods Seat covers Roof rack Step bar Skid plates
  3. Sep 17, 2019 at 3:03 PM
    #363
    APACHETECH

    APACHETECH Well-Known Member

    Joined:
    Feb 15, 2014
    Member:
    #123170
    Messages:
    89
    Gender:
    Male
    central pennsylvania
    Vehicle:
    2013 MGM DCSB OR
    Trd Baja lift Wheelers Aal SCS Ray 10 16x8s Cooper AT3 4S 265/75/16 Trd shift knob Weather tech front and back Heated seats Auto start Immryo mirror mod Mods to install : 4x4 lighted switch Speakers/components/sub and box from Mr. Marv Redline hood struts One piece engine splash gaurds Wish list/looking for : Matching cap Light bar/pods Seat covers Roof rack Step bar Skid plates
    I can only think of one thing that mite affect that is the rubber grommet that is attached to frame with the brackett. If that gromet is missing.

  4. Sep 17, 2019 at 3:53 PM
    #364
    Gerard6778

    Gerard6778 Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277494
    Messages:
    454
    Gender:
    Male
    First Name:
    Gerard
    Vehicle:
    2015 TRD Sport

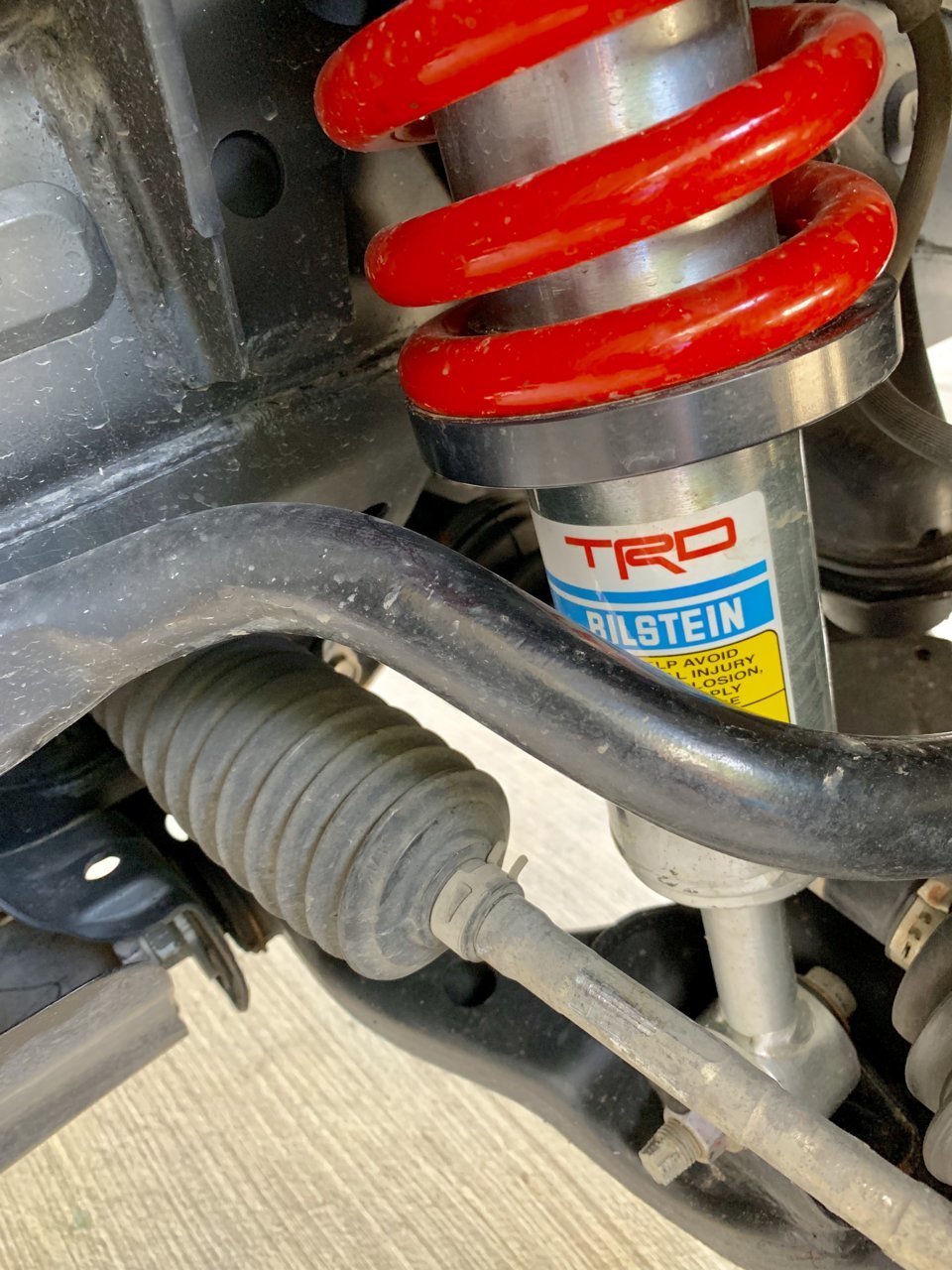

    Here's a picture from the day I done the install.IMG_0435.jpg

  5. Sep 17, 2019 at 8:46 PM
    #365
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,004
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Remember this is an OEM setup, so everything is designed to clear and work together. It is close, but not rubbing, so you’re ok. If you had rub marks it would be a different story.

    Gerard6778 likes this.
  6. Sep 20, 2019 at 11:28 AM
    #366
    Gerard6778

    Gerard6778 Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277494
    Messages:
    454
    Gender:
    Male
    First Name:
    Gerard
    Vehicle:
    2015 TRD Sport
    True, it isn't rubbing, but I also haven't taken it off-road yet. Do you think it will rub when the suspension is worked much harder? What do you think about sway bar relocation kits? They look like a good idea, is there anything negative about them?

  7. Sep 22, 2019 at 12:50 PM
    #367
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,004
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    I've worked mine well off road and have no contact marks. Toyota isn't going to include an OEM suspension option that will have clearance issues when cycling the suspension. I've since added 1/4" top plate on the passenger side, and 1/2" on the driver side and still don't see contact marks after off road use. However, I have thought about those sway bar drop brackets as well, I don't see any reason why they would be a bad idea.

    Gerard6778 likes this.
  8. Sep 22, 2019 at 12:58 PM
    #368
    Gerard6778

    Gerard6778 Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277494
    Messages:
    454
    Gender:
    Male
    First Name:
    Gerard
    Vehicle:
    2015 TRD Sport
    Thanks, I agree that there should be zero issues using an OEM suspension, it's just odd having so much more clearance on the drivers side. I ordered the drop brackets yesterday, I figure if Bilstein, Icon and Fox include them in their suspension kits they must be okay.

  9. Sep 22, 2019 at 1:16 PM
    #369
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,004
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    How does the clearance compare on each side near the frame? Its possible your swayer just isn't centered correctly.

  10. Sep 22, 2019 at 1:37 PM
    #370
    Gerard6778

    Gerard6778 Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277494
    Messages:
    454
    Gender:
    Male
    First Name:
    Gerard
    Vehicle:
    2015 TRD Sport
    I loosened the sway bar frame mounts and couldn't get it to move forward or side to side. There are collars on the sway bar, in between the frame rails, that keeps it centered by using the sway bar frame mounts to limit side to side movement.

    Here is a picture of the drivers side:

  11. Sep 26, 2019 at 6:23 PM
    #371
    Bajatacamo11

    Bajatacamo11 Member

    Joined:
    Aug 2, 2019
    Member:
    #301029
    Messages:
    11
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2017 DCLB OR QS
    I have only made it through the fist few pages bUKt just wanted to thank the OP for some solid content on this suspension!

  12. Oct 6, 2019 at 6:25 PM
    #372
    litolapid

    litolapid Well-Known Member

    Joined:
    Oct 21, 2015
    Member:
    #167269
    Messages:
    49
    Gender:
    Male
    Fayetteville, NC
    Vehicle:
    2011 MGM TRD OFF-ROAD DCSB

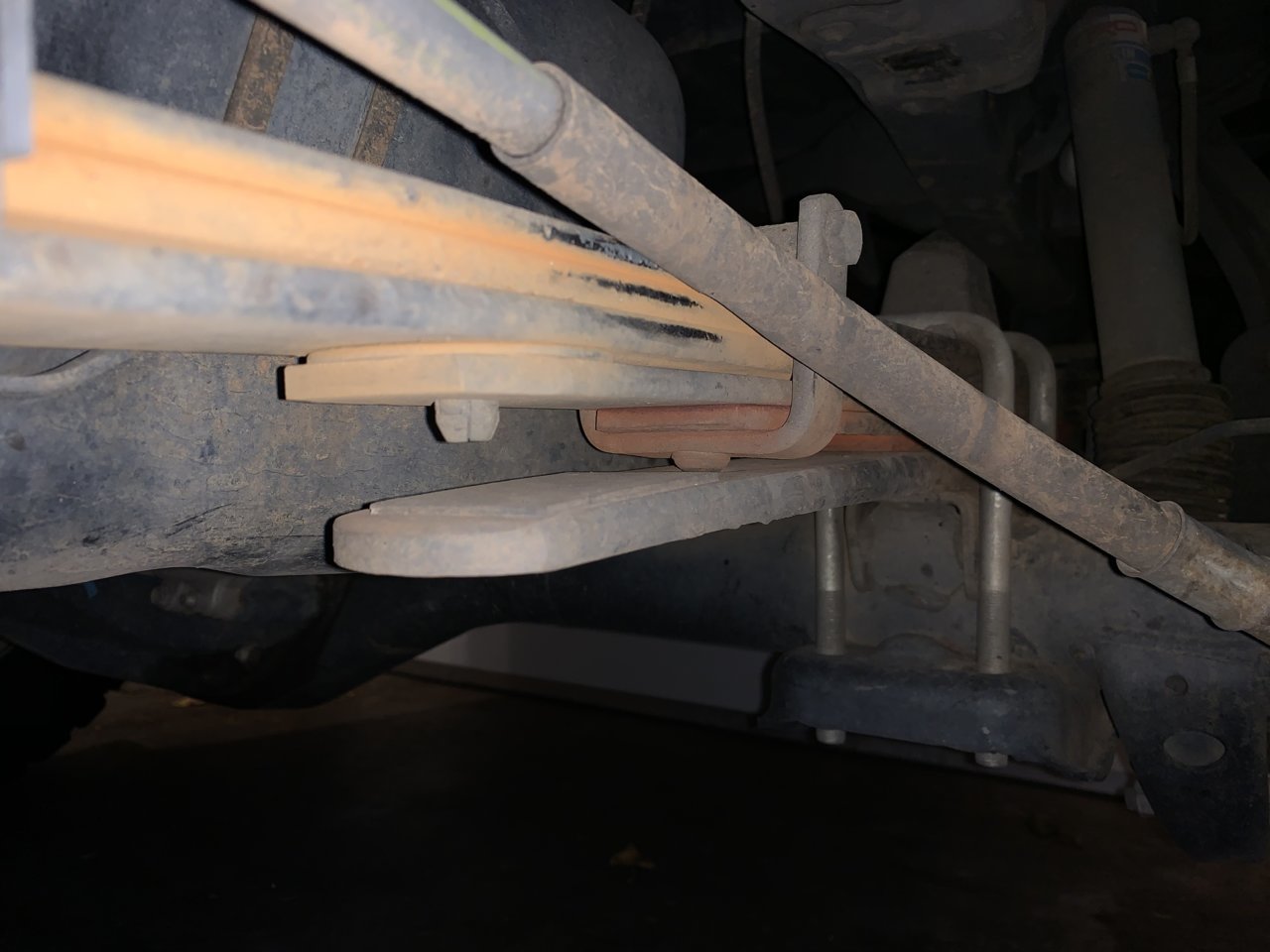

    @crashnburn80 does the head of the rivet on your front AAL retaining clip ride on the overload?

  13. Oct 6, 2019 at 6:56 PM
    #373
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,004
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    It does.


    Alternatively you could remove the retaining clip off the spring pack and leave the one on the overload to avoid the issue.

    litolapid likes this.
  14. Oct 7, 2019 at 2:24 PM
    #374
    Gerard6778

    Gerard6778 Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277494
    Messages:
    454
    Gender:
    Male
    First Name:
    Gerard
    Vehicle:
    2015 TRD Sport
    UPDATE:

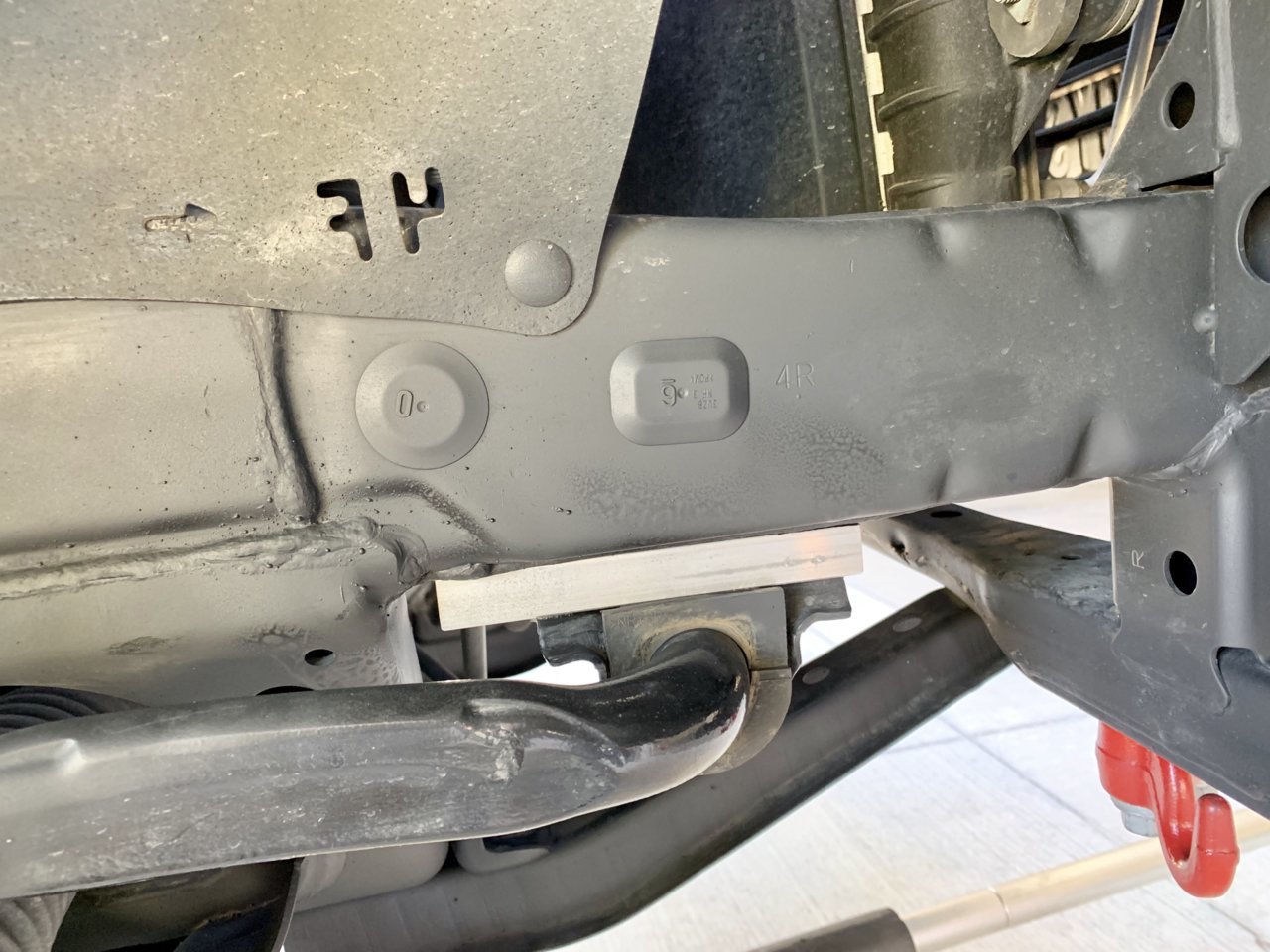

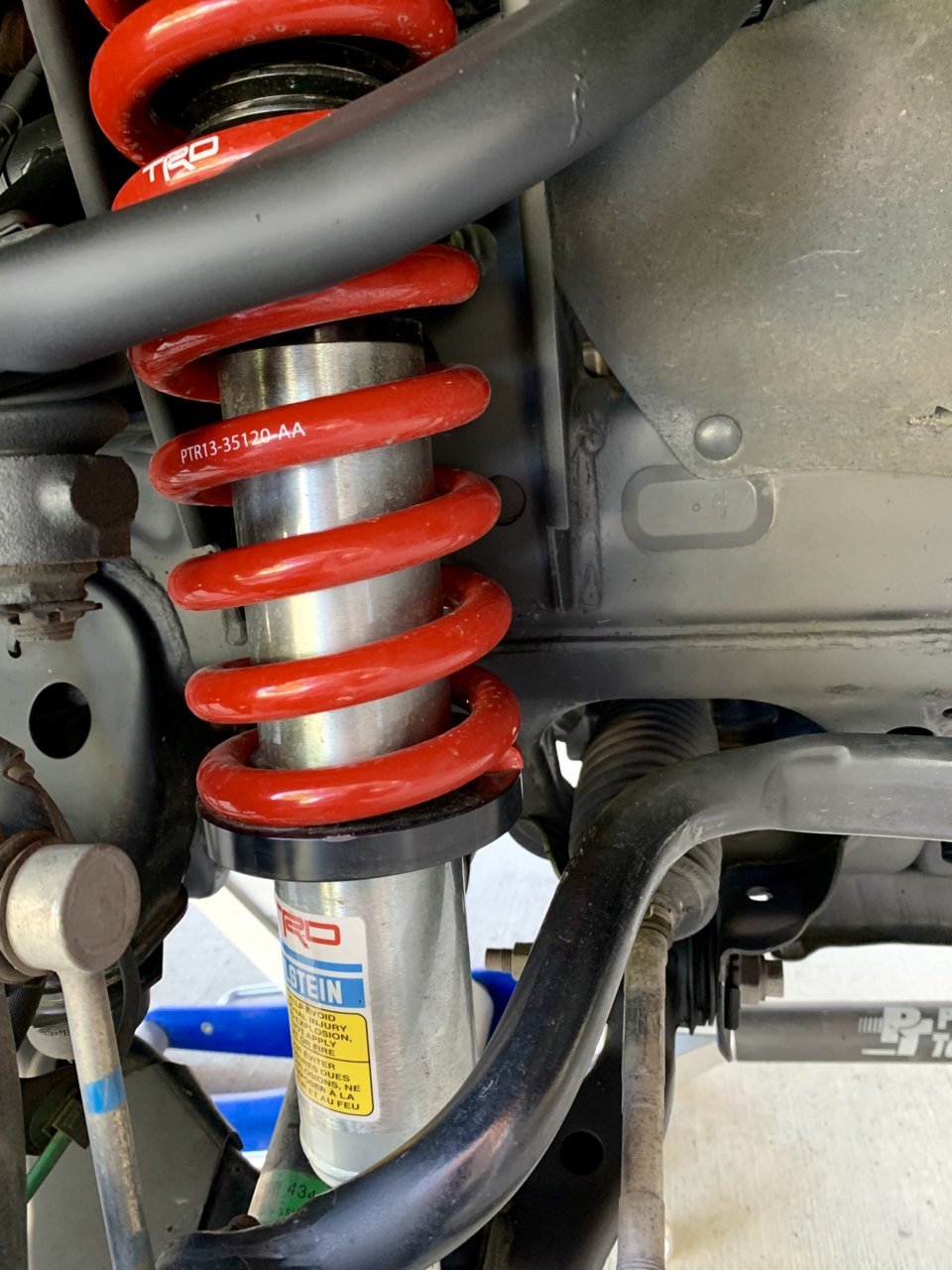

    I installed the Icon sway-bar relocation brackets, this gave me ample clearance.

    8D1AD4F9-AB40-4298-B85D-750D784AA7B6.jpg D22553FD-667E-4A82-B962-68325D1D664C.jpg

    APACHETECH and crashnburn80 [OP] like this.
  15. Oct 8, 2019 at 6:11 AM
    #375
    Gerard6778

    Gerard6778 Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277494
    Messages:
    454
    Gender:
    Male
    First Name:
    Gerard
    Vehicle:
    2015 TRD Sport
    Does Fluid Film damage the rubber boots on our shocks and struts?

  16. Oct 8, 2019 at 6:17 AM
    #376
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    5,130
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Nope. I dont usually coat those, because rubber. But they get plenty of over spray and Ive never had issues

    Gerard6778 likes this.
  17. Oct 16, 2019 at 11:45 AM
    #377
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,004
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Finally got my truck properly aligned with the SPC UCAs. Had some failed attempts at Toyota, but Mule Expedition Outfitters in Issaquah was able to get it dialed in to my liking. I would tag them, as they are on the site, but I do not recall their screen name.

    Gerard6778 likes this.
  18. Mar 18, 2020 at 10:09 AM
    #378
    MrFixit420

    MrFixit420 Well-Known Member

    Joined:
    Oct 29, 2019
    Member:
    #309337
    Messages:
    413
    Gender:
    Male
    Portland Oregon
    Vehicle:
    2014 TRD Off Road DCSB
    Eibach Pro Stage 1 on 2nd clip, 3 leaf Icon AAL's in back.
    Again thanks to my favorite Tacoma dude @crashnburn80 for another awesome write up. I have been looking at these AAL's and was on the fence but am now for sure going for this setup. It fits my budget and should be a HUGE improvement over the current lift block under the leaf pack.

    One question, did re-installing the overload spring negatively affect the ride quality much?
    Thanks
    J

  19. Mar 18, 2020 at 8:36 PM
    #379
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,004
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Block lifts are not kind to your springs and cause premature wear, the taller the block lift the worse the affect of axle wrap. Hopefully you are running a small one and not for too long.

    I’d easily run the overloads again, cruising ride is affected minimally, it is stuff like going over railroad tracks that the overloads removes performed better, but the overloads in with the progressive AAL is still better than stock. Note that removing the overload reduces overall bed weight capacity, but if you leave them in you maintain the weight capacity and still get improved ride.

    MrFixit420 likes this.
  20. Mar 18, 2020 at 8:54 PM
    #380
    MrFixit420

    MrFixit420 Well-Known Member

    Joined:
    Oct 29, 2019
    Member:
    #309337
    Messages:
    413
    Gender:
    Male
    Portland Oregon
    Vehicle:
    2014 TRD Off Road DCSB
    Eibach Pro Stage 1 on 2nd clip, 3 leaf Icon AAL's in back.
    It came with 2" blocks and we have not driven it hard. Great to hear about the overload. I don't want to lose any capacity but a smoother ride is a must.
    Thanks again for all the help.
    PS: These should come with a warning label about how addicting it is to modify your Tacoma after purchase. I may need to get a second job. :eek: :D
