Selecting a mild lift (TRD Baja TX Pro + Icon AAL)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Aug 3, 2015.

  1. Oct 13, 2015 at 6:23 PM
    #61
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,699
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Ok, here it is, I think it may have been misunderstood from the paper instructions in the other thread. Toytec says on their site the progressive AAL increases capacity, when used with the overloads, giving 2" lift. OR remove the overloads for superior ride, giving 1.5" lift.
    https://toyteclifts.3dcartstores.com/mobile/Toytec-Progressive-3-Leaf-Add-A-Leaf-Pack_p_976.html

    Of course one technically shouldn't load more weight than a vehicle is rated for as there are more dependencies to that weight rating than just the rear suspension.

    The Tacoma isn't a heavy lifting truck, especially the DCSB. It does well for light home owner duty such as hauling mulch, dump runs, and hauling stuff from Home Depot. Based on my uses the AAL does better than stock. If you heavily load your truck, or tow heavy items, you should leave the overloads in.

    EDDO likes this.
  2. Oct 13, 2015 at 6:27 PM
    #62
    Dr. Jekyll

    Dr. Jekyll Well-Known Member

    Joined:
    Aug 31, 2008
    Member:
    #8899
    Messages:
    1,866
    Gender:
    Male
    First Name:
    Jimmy
    Honolulu, HI
    Vehicle:
    2015 Black DCSB Limited PreRunner
    i heard AALs with the overload removed will eventually settle to 1" of lift. Anyone experience this?

  3. Oct 13, 2015 at 6:29 PM
    #63
    deeezy

    deeezy Well-Known Member

    Joined:
    Sep 1, 2013
    Member:
    #111645
    Messages:
    5,221
    Gender:
    Male
    First Name:
    Dana
    Hawaii
    Vehicle:
    2013 4x4 DC, 6 spd, TRD Sport
    King ext travel coilovers, Icon tubular UCA's Rear-King "Tundra" 2.5's, Allpro Expos, TRD cat-back, Hurst/Core short shift kit, etc...
    Maybe that's because without the overload you're able to take the spring into more of a negative arch. (just thinking out loud)

  4. Oct 13, 2015 at 6:30 PM
    #64
    T4RFTMFW

    T4RFTMFW Well-Known Member

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    69,574
    Everything sags, so who knows what is accurate.

    Overload left in - 2" +/-
    Overload removed - 1.5" +/-

  5. Oct 13, 2015 at 6:32 PM
    #65
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,937
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Yes. Still love the ride, though.

    Dr. Jekyll likes this.
  6. Oct 13, 2015 at 6:32 PM
    #66
    Dr. Jekyll

    Dr. Jekyll Well-Known Member

    Joined:
    Aug 31, 2008
    Member:
    #8899
    Messages:
    1,866
    Gender:
    Male
    First Name:
    Jimmy
    Honolulu, HI
    Vehicle:
    2015 Black DCSB Limited PreRunner
    I'm looking for 1" and a smoother ride so that's good news.

  7. Oct 13, 2015 at 6:41 PM
    #67
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,937
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Bear in mind that I'm running the Off Road factory springs (+ Icon AAL), the softest OEM leaf pack in automotive history. Can't carry much, but I like the ride.

  8. Oct 13, 2015 at 6:48 PM
    #68
    Dr. Jekyll

    Dr. Jekyll Well-Known Member

    Joined:
    Aug 31, 2008
    Member:
    #8899
    Messages:
    1,866
    Gender:
    Male
    First Name:
    Jimmy
    Honolulu, HI
    Vehicle:
    2015 Black DCSB Limited PreRunner
    thanks man. I think the only thing holding you back from tipping over is that set of brass balls that allowed you to even attempt this!

  9. Oct 13, 2015 at 7:11 PM
    #69
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,937
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB

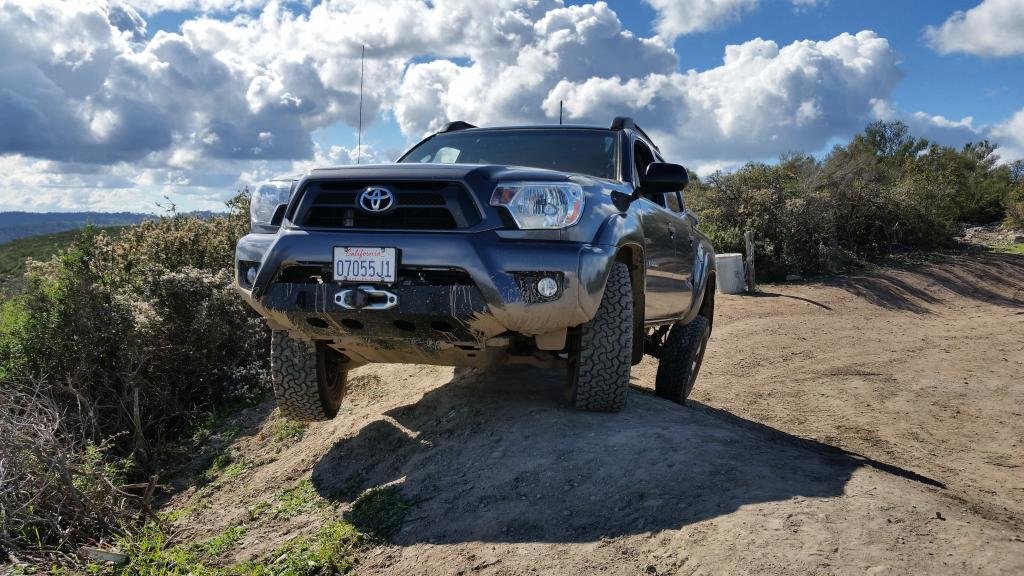

    Just poser parking for fun. This setup stuffs and droops to my satisfaction.

    Orco59, usoffroad and Dr. Jekyll like this.
  10. Oct 14, 2015 at 9:44 AM
    #70
    AZeyeTIE

    AZeyeTIE Uh huh

    Joined:
    Sep 3, 2014
    Member:
    #137504
    Messages:
    779
    Gender:
    Male
    First Name:
    Mike
    Dewey, AZ
    Vehicle:
    '14 Super White TRD Baja
    Nothing noteworthy
    I am having a member of TW who is local to me do the install - one of the reasons I love Tacoma World!! Unfortunately, I do not have tools, the space (live in a condo association without a driveway) nor the experience to do the install myself. I am very much looking forward to the appearance of the truck and the ability to haul/tow without pointing headlights to the sky.

  11. Oct 14, 2015 at 9:56 AM
    #71
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,417
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    get rid of that front sway bar and get some front flex!!!!

    Love that hidden winch mount i want one so bad!

  12. Oct 14, 2015 at 10:00 AM
    #72
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,937
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Thinking about the sway-bar delete. Want stiffer front springs before I do. #dailydriverproblems
    @usoffroad :thumbsup:

    usoffroad likes this.
  13. Oct 14, 2015 at 10:57 AM
    #73
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,417
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    I rock my truck with stock TRD OR springs on 5100's at 1.75 without a swaybar and LOVE the way it drives on and off road. Give it a try, its 20 min of your time and free of charge.

  14. Oct 18, 2015 at 5:10 PM
    #74
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,937
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    And upon further inspection, the forward clamp on the AAL itself (the one I attached the e-brake line clamp to) has broken loose of where it was riveted to the mini-pack. How big a problem is this? Is there a good way of reattaching it? I took it off for right now...

  15. Oct 18, 2015 at 5:15 PM
    #75
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,699
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Did you flex out? Based on my testing the ebrake cable is not long enough to attach to the AAL and flex to max droop, so I am not surprised it caused an issue. That is why I suggested to not attach it there. Do you have pics?

  16. Oct 18, 2015 at 5:49 PM
    #76
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,937
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Yes. Flexed out quite frequently. Fairly certain the Icon-supplied directions said to attach it there.

    Here's a shot of where it used to be:

    This is the piece:

    And the e-brake clamp. For the moment.

    Thinking about adding the factory overloads back in anyway: That will allow securing of the cables. But I have to imagine the failed clamp with its cross-pin had a role keeping the whole pack together when flexed. Thoughts?

  17. Oct 18, 2015 at 6:05 PM
    #77
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,699
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    You may have had an earlier generation pack, as others mentioned earlier in the thread there are some descrepancies. Mine had no mount point on the AAL.

    Adding the overloads back will give you 2" of lift. The cables don't have that to spare if you secure them to the overload and flex out, so you will likely just introduce other issues.

    I'd monitor how the packs do without the clamp and see if it is even an issue. I have my ebrake cable clamp zip tied to the next most forward clamp ahead of the spring. This allows for just enough play when flexed out to max.

  18. Oct 18, 2015 at 6:10 PM
    #78
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,937
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    On another note, does the separation between the stock leaves shown in my 3rd picture look okay to you? This has opened up more than on my passenger side.

  19. Oct 18, 2015 at 6:32 PM
    #79
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,699
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    It looks like you have the 2 leaf rears? I just checked mine and have no separation. I wouldn't be too concerned unless it presents an issue, though the 2 leafs are know to have several issues and I think can be replaced under Toyota TSB for the proper 3 leaf pack. I'd probably take the opprotunity to spray between the leafs with Fluid glum to prevent squeaks and corrosion.

  20. Oct 18, 2015 at 7:09 PM
    #80
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,937
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Yes, 2 leaf + overload, now 46,000 miles. Read somewhere that TSB spring replacement not applicable to my year and now my mileage. Going to dig into that a little more.
    Thanks again for all the responses. Think I'll just add the factory overloads back in and run that way for a while.
    Dakars with 3rd leaf removed might be next for me.
