Selecting a mild lift (TRD Baja TX Pro + Icon AAL)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Aug 3, 2015.

  1. Mar 13, 2016 at 11:42 AM
    #121
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    38,919
    Gender:
    Male
    First Name:
    Nick
    SoCal
    Vehicle:
    2018 T4R ORP W/ KDSS '13 Taco, & Spaceball One
    Same here but adding the Icon AAL :thumbsup: Or just get the stage 2 Icon and call it a day :laugh:

    ODNAREM likes this.
  2. May 26, 2016 at 8:05 AM
    #122
    el_turks

    el_turks Well-Known Member

    Joined:
    Nov 6, 2015
    Member:
    #168889
    Messages:
    692
    Gender:
    Male
    Southern California
    Vehicle:
    2009 PreRunner
    KOs 285,
    Nice Thread. Very informative.

  3. Jul 8, 2016 at 4:29 PM
    #123
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,035
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Updated with info to purchase the brake line spacers and extended travel bump stops separately, for use with the 6112s, often cumulatively referred to as the Baja hardware kit. Credit to @JD'STaco for work on tracking down the part numbers and the new bump stop comparison photo.

    steveh_2007 and Soul Surfer like this.
  4. Jul 26, 2016 at 8:41 AM
    #124
    Sub_Par

    Sub_Par Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169939
    Messages:
    3,867
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2019 TRD Pro
    I'm just trying to make sure I understand the difference of these parts. The top part number for the clamp is for the e brake cables, and the main brake line spacer is for where the rear brake lines mount to the rear axle? I just bought a wheelers 3 leaf AAL which is the same as the Icon and I want to make sure I don't over extend any lines.

  5. Jul 26, 2016 at 8:47 AM
    #125
    Soul Surfer

    Soul Surfer Jimi Was Last Seen: Chillin’

    Joined:
    Aug 10, 2015
    Member:
    #161457
    Messages:
    15,873
    Gender:
    Male
    First Name:
    Jimi
    West Central Florida Coast
    Vehicle:
    •2021 4X4 OR Prem/Tech+LED SSM DCSB•
    The clamp replaces the hard brake line clamp under the drivers side leaf spring. And yes the spacer goes where you mentioned. This is a picture with the new clamp.


    crashnburn80 [OP] likes this.
  6. Jul 26, 2016 at 8:50 AM
    #126
    Sub_Par

    Sub_Par Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169939
    Messages:
    3,867
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2019 TRD Pro
    Is the clamp needed or would the spacer be sufficient?

  7. Jul 26, 2016 at 8:54 AM
    #127
    Soul Surfer

    Soul Surfer Jimi Was Last Seen: Chillin’

    Joined:
    Aug 10, 2015
    Member:
    #161457
    Messages:
    15,873
    Gender:
    Male
    First Name:
    Jimi
    West Central Florida Coast
    Vehicle:
    •2021 4X4 OR Prem/Tech+LED SSM DCSB•
    I would install it. That's your call. Not only does the clamp come with the Baja kit, but it also comes with the Bilstien 5160's.

    Sub_Par likes this.
  8. Jul 26, 2016 at 8:57 AM
    #128
    Sub_Par

    Sub_Par Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169939
    Messages:
    3,867
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2019 TRD Pro
    Alright cool thanks for the info, now to spend some more money.

    Soul Surfer likes this.
  9. Jul 26, 2016 at 9:01 AM
    #129
    AJH387

    AJH387 Well-Known Member

    Joined:
    Jul 20, 2016
    Member:
    #192501
    Messages:
    2,062
    Gender:
    Male
    First Name:
    AJ
    Pittsburgh, PA
    Vehicle:
    '19 TRD OR DCLB
    Nice write up. This is also something I have been researching for my '14 SR5 2.7. I want to upgrade but nothing too crazy. This kit is something I will be considering. ...Your trucks looks great, btw. Nicely done.

  10. Jul 26, 2016 at 9:15 AM
    #130
    Soul Surfer

    Soul Surfer Jimi Was Last Seen: Chillin’

    Joined:
    Aug 10, 2015
    Member:
    #161457
    Messages:
    15,873
    Gender:
    Male
    First Name:
    Jimi
    West Central Florida Coast
    Vehicle:
    •2021 4X4 OR Prem/Tech+LED SSM DCSB•
    Here is the Bilstien part # for the spacer, clamp and mounting hardware installation Kit. B4-XB1-Z096A02. There phone# is 800-537-1085. Going this route you get just the parts you need for rear of the truck. www.bilstien.com

  11. Jul 26, 2016 at 1:07 PM
    #131
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,035
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    You might consider the Pro kit instead of the Baja. I say this because the Pro has a 600lb spring rate, and the Baja 650lb. With the lighter nose of the 2.7L I might be concerned the ride would be overly stiff.

    And thanks!

    Lord Helmet and Soul Surfer like this.
  12. Aug 21, 2016 at 1:34 PM
    #132
    Tobs1988

    Tobs1988 Well-Known Member

    Joined:
    Apr 30, 2015
    Member:
    #154282
    Messages:
    51
    Gender:
    Male
    Florida
    Vehicle:
    2015 Tacoma TRD Off Road DCSB
    Hey I was just wondering what's the life expectancy for these shocks if you don't beat on them too much? Are they serviceable? If so, what do you have do to maintain them?

    steveh_2007 likes this.
  13. Aug 21, 2016 at 5:32 PM
    #133
    Tobs1988

    Tobs1988 Well-Known Member

    Joined:
    Apr 30, 2015
    Member:
    #154282
    Messages:
    51
    Gender:
    Male
    Florida
    Vehicle:
    2015 Tacoma TRD Off Road DCSB
    Oh I also meant to ask you if you don't do the AAL is the truck gonna be leveled? And I didn't quite understand earlier on this threat you were saying that the OEM leaves would couple well with the heavier rated springs up front? Does the Tacoma Baja edition run the same leaf pack as the 2015 off road?

  14. Aug 21, 2016 at 5:33 PM
    #134
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    38,919
    Gender:
    Male
    First Name:
    Nick
    SoCal
    Vehicle:
    2018 T4R ORP W/ KDSS '13 Taco, & Spaceball One
    It going to be leveled without the AAL. With the AAL it'll give it the factory rake.

    Soul Surfer likes this.
  15. Aug 21, 2016 at 7:30 PM
    #135
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,035
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Yes the Baja runs the same rear leaf as the 2015 TRD OR. It will be leveled without the AAL.

    I'd expect the shocks to have an above average lifetime, where 60k is average. Supposedly the 6112s are serviceable if you send them in, but if they are labeled TRD they are not serviced by Bilstien. Regardless I would consider both versions not serviceable.

    The only maintinence item for cosmetic purposes would be to coat them in fluid film periodically to prevent cosmetic surface corrosion.

    Last edited: Aug 21, 2016
    Tobs1988, Lord Helmet and Soul Surfer like this.
  16. Aug 23, 2016 at 4:23 AM
    #136
    Tobs1988

    Tobs1988 Well-Known Member

    Joined:
    Apr 30, 2015
    Member:
    #154282
    Messages:
    51
    Gender:
    Male
    Florida
    Vehicle:
    2015 Tacoma TRD Off Road DCSB
    Have you found a solution for the e brake cable or is it still zip tied to the truck? I think I'm about to get this but not sure how much of a headache the progressive AAL is gonna be in terms of cutting/grinding and lines getting too tight. Do you think a 2'' leaf pack paired with the baja will result in a huge rake? I guess not that bad though if you consider the front baja gives 1.75'' and the truck is level, then with 2'' extra the back will only be .25'' higher. Does that sound right?

  17. Aug 23, 2016 at 6:57 AM
    #137
    oldtoyotaguy

    oldtoyotaguy Well-Known Member

    Joined:
    Oct 4, 2015
    Member:
    #165804
    Messages:
    770
    Gender:
    Male
    First Name:
    Peter
    Ontario, Canada
    Vehicle:
    2018 4 Runner ORP
    Stock but with a Warn 10s winch Used to be a lightly modded Tacoma
    That sounds right. My truck has a progressive ICON AAL and it has a very slight rake. Actually it looks level. I left out the helper spring.

  18. Aug 23, 2016 at 7:06 AM
    #138
    ThatguyJZ

    ThatguyJZ Instagram: thatguyjz

    Joined:
    Apr 30, 2013
    Member:
    #103173
    Messages:
    755
    Gender:
    Male
    First Name:
    Jim
    TRIAD, NC
    Vehicle:
    2014 MGM DCSB 4x4 TRD Off Road
    A TRD OR built into a Baja/PRO hybrid
    [​IMG]

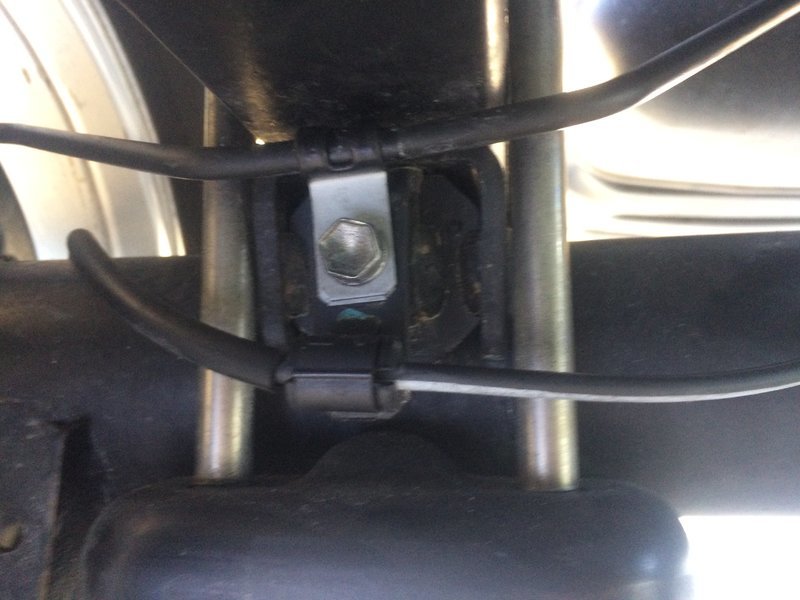

    Here's pic of the Spacer and Clamp installed on my truck for reference.

    I've been running mine for a little over 30k miles now with absolutely no issues. I've haven't abused them but I do drive very spirited, and like to go fast on dirt when I can. I called and spoke to Bilstein last year regarding the 'rebuild-ability' of these and they basically said yes, they are rebuild-able. However, due to their agreement with TRD/Toyota and because these are TRD branded shocks, they don't want to touch them at this time and would refer owners to go thru Toyota. Something to do branding. The vibe I got was if they were just Bilstein's and you wanted them rebuilt then sure, but since these are Bilstein made for and sold thru TRD/Toyota, we (Bilstein) are more hands off. That said, I feel like if you wanted to pay them to do it, they prolly would.

  19. Aug 23, 2016 at 9:30 AM
    #139
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,035
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    The cable clamps are zip-tied to the next most forward clamp near the rear of the cab but the cable itself is free floating to allow for more flexibility at max droop. I didn't have to do any cutting or grinding on my leaf pack for the 3 leaf progressive AAL, but some others have.

    I think you are going to have the tight line issue regardless of leaf pack brand if you mount the cable, as it is just a function of line length vs lift, and not anything special about this particular leaf pack. If you leave the overload in the 3 leaf progressive AAL will give you 2", or 1.5" if you remove the overload. With the 1.75" up front you are going to have 0.25" less rake by going with the 1.5" rear lift, or 0.25" more rake going with the 2" rear lift. It is a pretty small change to the rake either way you go.

  20. Aug 23, 2016 at 9:31 AM
    #140
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,035
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Your picture didn't show up.
