Serpentine Belt Configuration with Supercharger

Discussion in '1st Gen. Tacomas (1995-2004)' started by MattLTacoma, Apr 8, 2019.

  1. Apr 8, 2019 at 12:13 PM
    #1
    MattLTacoma

    #1
    MattLTacoma [OP] New Member

    Joined:
    Apr 8, 2019
    Member:
    #289491
    Messages:
    3
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    1999 Tacoma 3.4L V6
    Supercharger / Lifted
    Hello all,

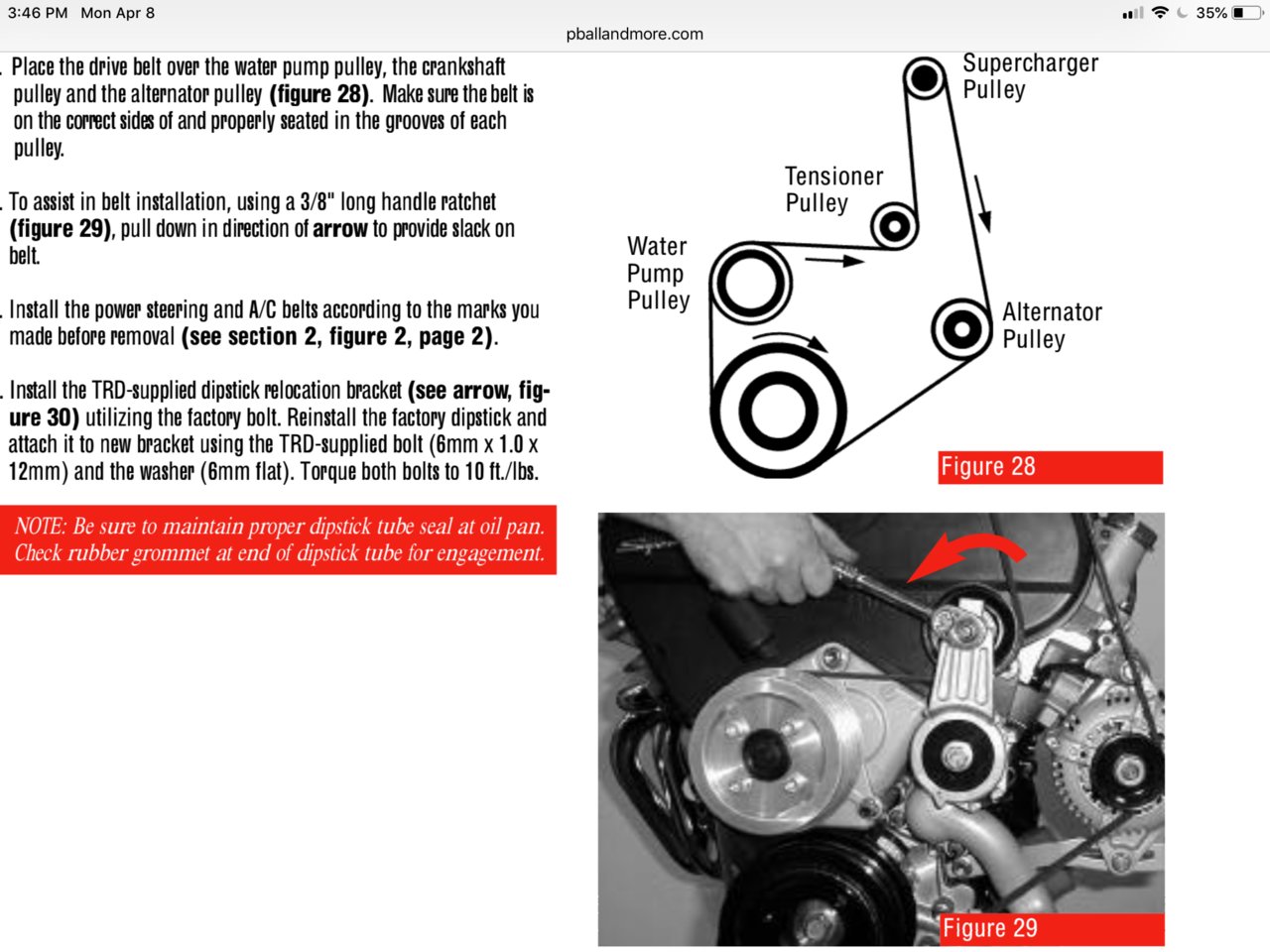

    I'm having a hard time finding the proper belt length and diagrams for my 1999 Tacoma serpentine belt configuration. It has a supercharger

    MattLTacoma, Apr 8, 2019
    #1
  2. Apr 8, 2019 at 2:33 PM
    #2
    1997tacomav6

    #2
    1997tacomav6 V6 5sp,RegCab,TVS1320 Supercharger,Haltech, 800k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    10,367
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 800,001 plus miles, Original Owner
    V6 5sp,RegCab,TVS1320 Supercharger, 56mm pulley, methanol injected Haltech ECU, AC Tvs1320 supercharger,(MUST DO) every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 56mm custom pulley, (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ATM Pathfinders Dynopro ATM ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back dual exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, bucket seats corbeau lg1 Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks, King shocks JBA UCA trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Marlin crawl shift kit. Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Snow Methonal kit stage 2 Custom 3 core aluminum radiator Linex bed liner Haltech stand alone ECU, Intake supercharger gauge. Stainless steel brake lines, Custom leather wrapped steering wheel, Haltech stand-alone ECU,
    I’m pretty sure the grey and black supercharger use the same belt.

    Call advanced auto, that’s were I get mine for like 15.00

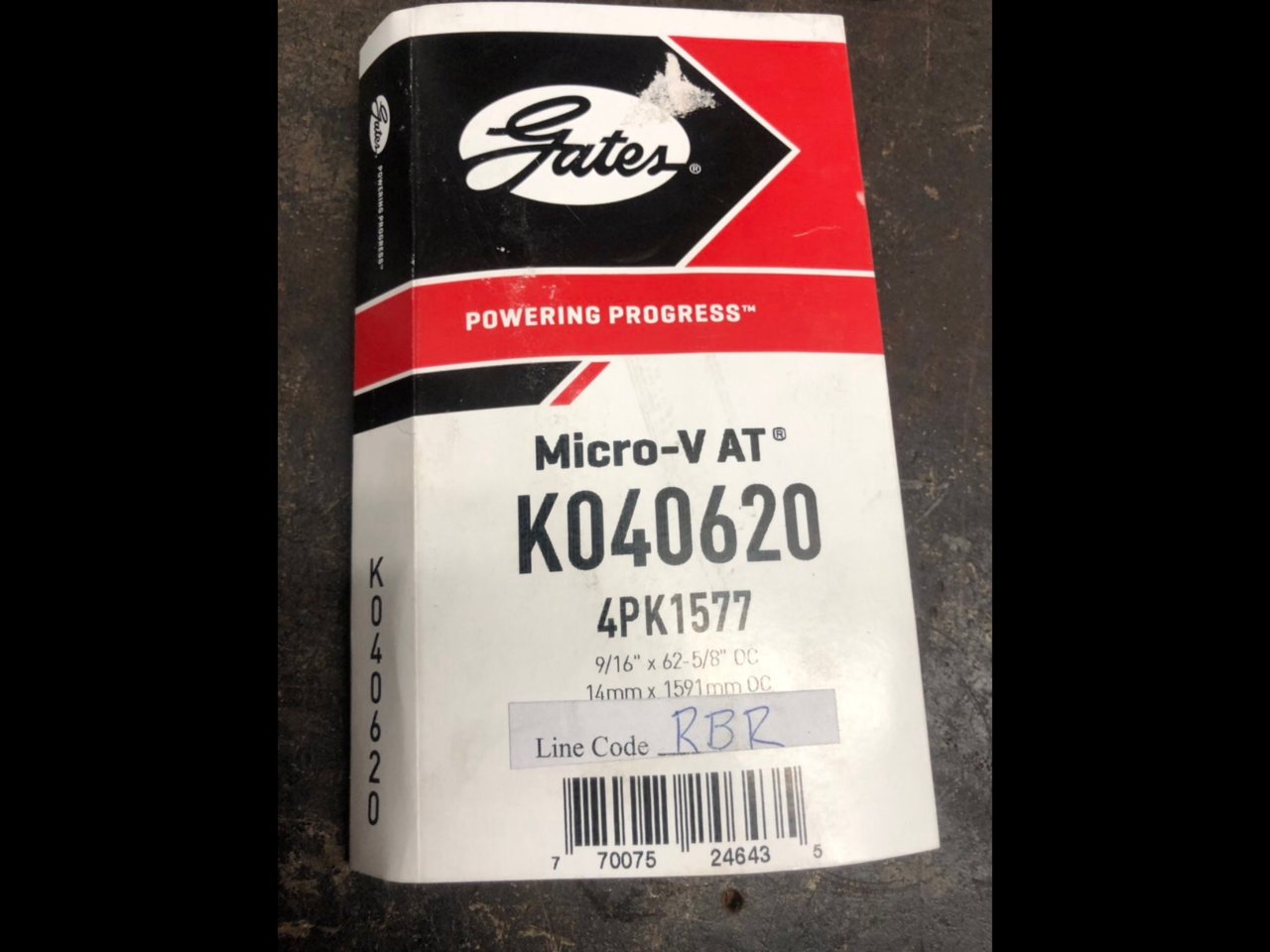

    Make sure it made by Gates,
    I think you have to remove the AC belt and fan belt too.

    So replace all 3 at the same time.

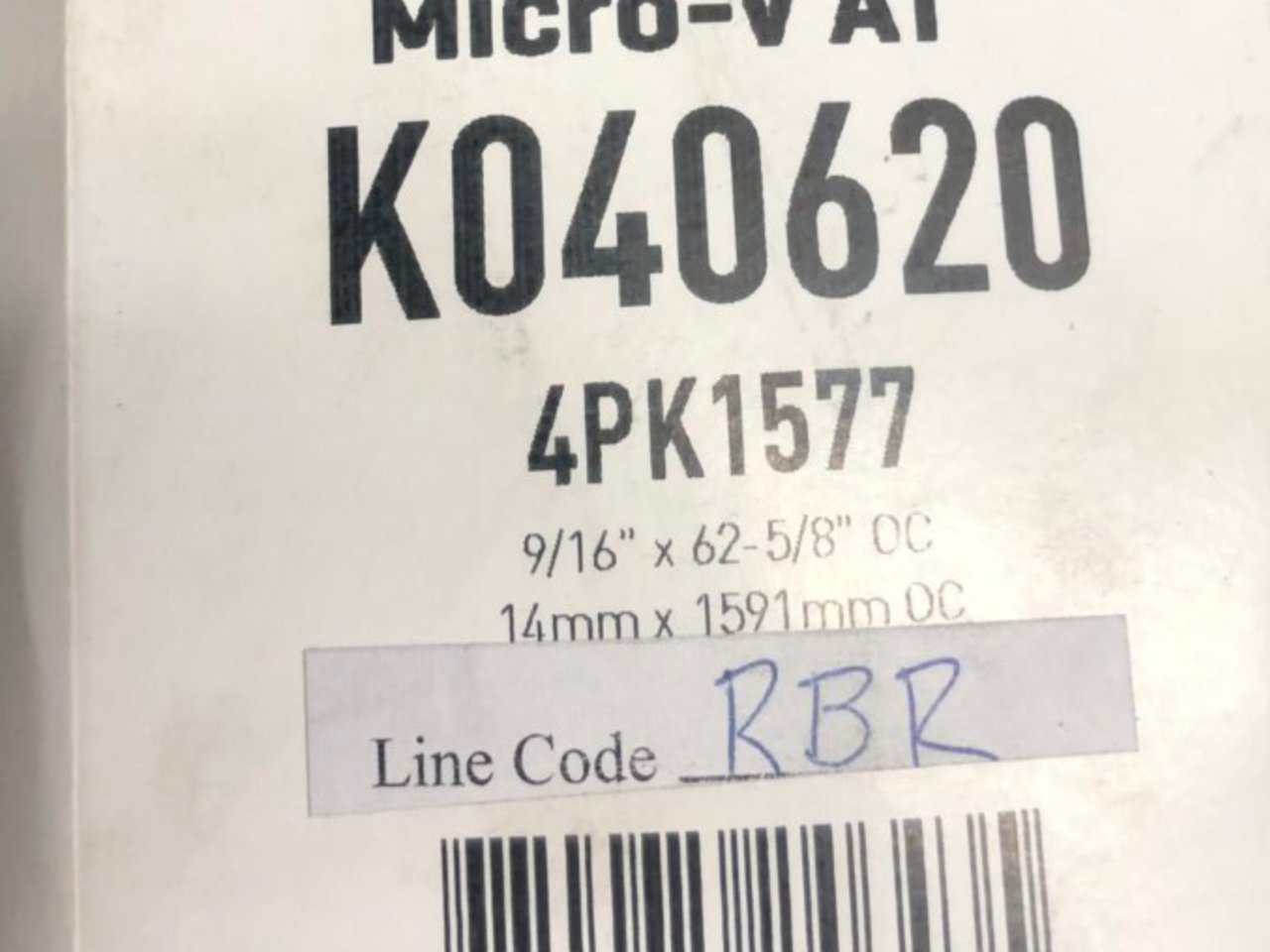

    Supercharger belt
    Fan belt
    AC BELT


    1997tacomav6, Apr 8, 2019
    #2
  3. Apr 8, 2019 at 2:43 PM
    #3
    1997tacomav6

    #3
    1997tacomav6 V6 5sp,RegCab,TVS1320 Supercharger,Haltech, 800k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    10,367
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 800,001 plus miles, Original Owner
    V6 5sp,RegCab,TVS1320 Supercharger, 56mm pulley, methanol injected Haltech ECU, AC Tvs1320 supercharger,(MUST DO) every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 56mm custom pulley, (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ATM Pathfinders Dynopro ATM ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back dual exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, bucket seats corbeau lg1 Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks, King shocks JBA UCA trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Marlin crawl shift kit. Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Snow Methonal kit stage 2 Custom 3 core aluminum radiator Linex bed liner Haltech stand alone ECU, Intake supercharger gauge. Stainless steel brake lines, Custom leather wrapped steering wheel, Haltech stand-alone ECU,
    So here is a PDF version of the 1st gen supercharger install manual with part numbers list and other notes.

    1st_Gen_TRD_Supercharger_Install_Guide.pdf

    Nose supercharger drive replacement for the 1st gen with torque numbers:
    3.4_Gen_I_Nose_Drive_Replacement.pdf

    And the 2nd gen Supercharger manual as well for the heck of it.
    TRD_Gen_2_Supercharger_Install_Guide.pdf


    1997tacomav6, Apr 8, 2019
    #3
