Severe alignment issues -with photos

Discussion in '2nd Gen. Tacomas' started by anamorphic, Apr 2, 2013.

  1. Apr 2, 2013 at 3:34 PM
    #1
    anamorphic

    anamorphic [OP] Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65786
    Messages:
    166
    Gender:
    Male
    Vehicle:
    08 TRD Sport 4x4

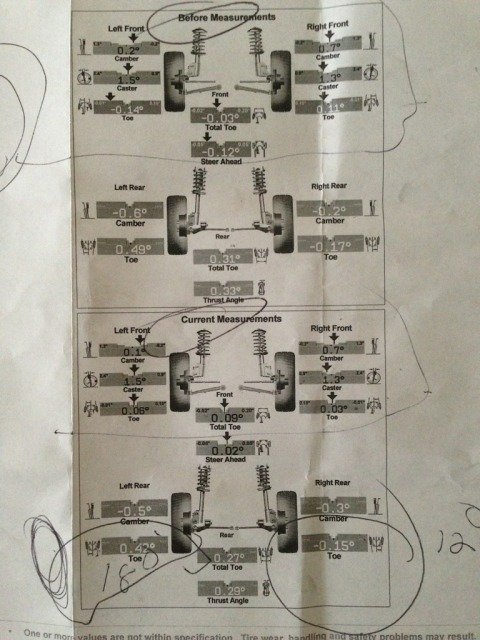

    My truck was pulling pretty bad to right, so I took it into Toyota for an alignment. They called me back to say that the rear was unalienable and they couldn't get the numbers into the green. (see spec sheet)

    [​IMG]

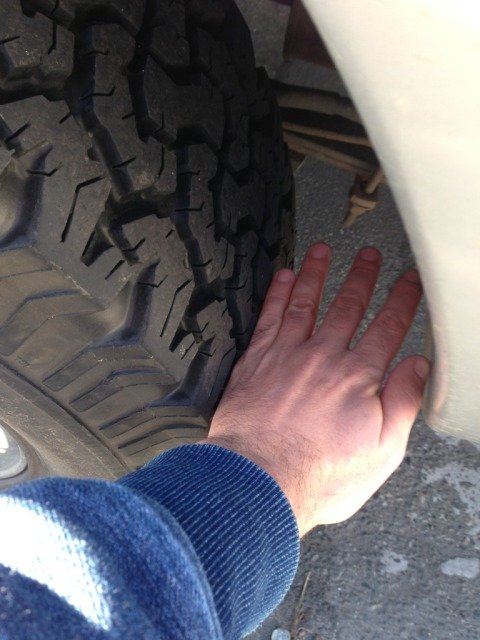

    My axel is off center causing the rear of the truck to drag along the road and pull to the right.

    Right side:
    [​IMG]

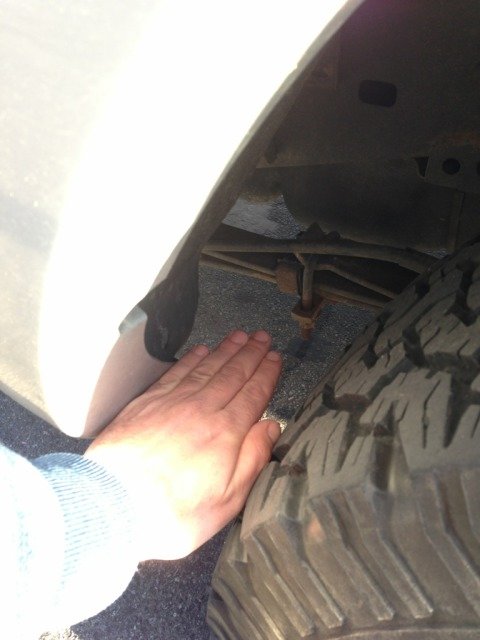

    Left side:
    [​IMG]

    They want to take apart the leaf springs and try and realign them and then put it back on the alignment machine in hopes of getting it back in spec.

    I spoke with the tech that worked on it and he's still unsure that will even fix the problem. He said it could be a number of things: Leaf could be broken, Center pin could be sheared off or The entire differential may need to be replaced.

    I'm not sure what could have caused this. I've never been in an accident and the truck has a clean car fax. I drive it on the beach quite a bit, but nothing harsh enough do to damage like this.

    I did a little digging and found this service record from 2010. Maybe this is where the damage came from? (before I owned it)

    [​IMG]

    I'm looking for some advise. Should I have toyota do the work? Should I take it to a body shop and see if the frames bent? Or should I try and make this a positive situation- get a set of OME leaf packs and 5100's and take to an independent shop and hope that there aren't any other underlying problems.

    Side note: I have an extended warranty through fidelity and nothing is covered through them.

    Thoughts? Thanks!

  2. Apr 2, 2013 at 3:40 PM
    #2
    moondeath

    moondeath Plenty of slaves for my robot colony?

    Joined:
    Jan 8, 2011
    Member:
    #48948
    Messages:
    3,531
    Gender:
    Male
    First Name:
    Chris
    Pa, Carlisle
    Vehicle:
    6th Gen 2013 TRD Sport DCLB 4x4
    Grill Thin Lip (Custom Car Grills Mod), Wheels & Tires, Bilstein 5100 1.75" in Front and 1" in Rear, Access Tonneau Cover, Pop & Lock Tailgate Electronic Lock PL8521
    To me the first thing I would check is the leaf spring alignment bolt. That is what keeps everything aligned when putting the leafs on and attaching them to the axle. Where the axle lies is in reference to leaf spring mounts and shock attachment.

  3. Apr 2, 2013 at 3:42 PM
    #3
    moondeath

    moondeath Plenty of slaves for my robot colony?

    Joined:
    Jan 8, 2011
    Member:
    #48948
    Messages:
    3,531
    Gender:
    Male
    First Name:
    Chris
    Pa, Carlisle
    Vehicle:
    6th Gen 2013 TRD Sport DCLB 4x4
    Grill Thin Lip (Custom Car Grills Mod), Wheels & Tires, Bilstein 5100 1.75" in Front and 1" in Rear, Access Tonneau Cover, Pop & Lock Tailgate Electronic Lock PL8521
    If the attachment points of the shocks or leaf springs to frame are bent, then this would cause your alignment issue also.

  4. Apr 2, 2013 at 3:45 PM
    #4
    GTOJim

    GTOJim Well-Known Member

    Joined:
    Feb 20, 2013
    Member:
    #98011
    Messages:
    91
    Gender:
    Male
    First Name:
    Jim
    SF Bay Area
    Vehicle:
    2013 PreRunner TRD OffRoad V6
    My guess is the center pin is broken. Had the same problem on a Ford PU that was hit while parked in my driveway, broke the center pin.

  5. Apr 2, 2013 at 3:48 PM
    #5
    EDJY

    EDJY Well-Known Member

    Joined:
    Mar 6, 2011
    Member:
    #52459
    Messages:
    382
    Gender:
    Male
    First Name:
    Elliott
    Bay Area, CA
    Vehicle:
    2005 Prerunner TRD
    5100's @.85, Eibach coils, toytech 1.5" AAL, Snugtop rebel, k&n drop in
    Yeah I would be checking the leafs. Also is it lifted at all? Your front alignment seems to be lacking in caster. I feel like it would have been a pretty major accident or something to bend the frame and cause that.

  6. Apr 2, 2013 at 3:50 PM
    #6
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    3,600
    Gender:
    Male
    SC
    Vehicle:
    Prerunner SR5
    I see you have a AAL installed. Who ever installed it very well may have mucked it up. If there are no signs of frame damage, I would venture to guess that is the most likely scenario.

    If you are competent with a wrench check the centering pin yourself.

  7. Apr 2, 2013 at 3:56 PM
    #7
    anamorphic

    anamorphic [OP] Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65786
    Messages:
    166
    Gender:
    Male
    Vehicle:
    08 TRD Sport 4x4
    Thanks for the input guys.

    Do I have an AAL or the TSB done? I haven't touched the rear leafs since I bought the truck. The front has 5100's set at 1.75.

    I don't have any tools, so I'm going to have to bring it somewhere.

  8. Apr 2, 2013 at 4:00 PM
    #8
    cjimenRR

    cjimenRR Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    814
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    Well you already know the rear can't be adjusted, if this was my truck I would want to know why the rear is so out before I start throwing parts at it. You could spend top dollar on all new suspension parts and that not fix your problem. If this was my truck I would spend the $100-$150 a frame shop charges to inspect my frame/rear end.

    PS- I would also complain about the lazy alignment tech who didn't adjust my camber/caster. It's not a whole lot off put he could have at least centered all the readings

  9. Apr 2, 2013 at 4:01 PM
    #9
    moondeath

    moondeath Plenty of slaves for my robot colony?

    Joined:
    Jan 8, 2011
    Member:
    #48948
    Messages:
    3,531
    Gender:
    Male
    First Name:
    Chris
    Pa, Carlisle
    Vehicle:
    6th Gen 2013 TRD Sport DCLB 4x4
    Grill Thin Lip (Custom Car Grills Mod), Wheels & Tires, Bilstein 5100 1.75" in Front and 1" in Rear, Access Tonneau Cover, Pop & Lock Tailgate Electronic Lock PL8521
    Did you just buy this truck? Has it been pulling since you bought it?

  10. Apr 2, 2013 at 4:07 PM
    #10
    anamorphic

    anamorphic [OP] Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65786
    Messages:
    166
    Gender:
    Male
    Vehicle:
    08 TRD Sport 4x4
    Alright, so I'm going to start with having the frame inspected. I'll bring it somewhere in the morning.

    What should the camber/caster readings be?

  11. Apr 2, 2013 at 4:09 PM
    #11
    anamorphic

    anamorphic [OP] Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65786
    Messages:
    166
    Gender:
    Male
    Vehicle:
    08 TRD Sport 4x4
    I've owned it for 2 years. Haven't had any problems with it pulling until recently. The tech told me that the alignment numbers could have been so off from the previous tech trying to compensate for not being able to align the rear.

  12. Apr 2, 2013 at 4:17 PM
    #12
    cjimenRR

    cjimenRR Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    814
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    I don't recall the specs but just look at your print out of before and after, caster/camber did not change meaning he didn't adjust them. I would have had them with the arrow pointing in the middle of the box

  13. Apr 2, 2013 at 4:18 PM
    #13
    cjimenRR

    cjimenRR Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    814
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    What numbers is he referring to? Even your initial front end readings aren't horrible. My main concern would be why that left rear is so off

  14. Apr 2, 2013 at 4:19 PM
    #14
    moondeath

    moondeath Plenty of slaves for my robot colony?

    Joined:
    Jan 8, 2011
    Member:
    #48948
    Messages:
    3,531
    Gender:
    Male
    First Name:
    Chris
    Pa, Carlisle
    Vehicle:
    6th Gen 2013 TRD Sport DCLB 4x4
    Grill Thin Lip (Custom Car Grills Mod), Wheels & Tires, Bilstein 5100 1.75" in Front and 1" in Rear, Access Tonneau Cover, Pop & Lock Tailgate Electronic Lock PL8521
    Well, if it just started and you haven't had any recent accidents it probably not the frame. Won't hurt to get it checked. Definitely sounds like the leaf springs shifted from the alignment bolt/pin being sheared off. Especially from your work order saying rear bent shock.

  15. Apr 2, 2013 at 4:28 PM
    #15
    wing103

    wing103 Well-Known Member

    Joined:
    Jul 8, 2008
    Member:
    #7807
    Messages:
    1,040
    Gender:
    Male
    Boston
    Vehicle:
    Tacoma TRD Sport / Dark Gray
    Grill Craft upper & Lower Grill WetOK Seat Cover, Devil Horn, Bug, Windows Deflector, Side step Bar, HID 55W 8000K Headlight, HID 35W 4000K Foglight, Fog Light Mod, Interior LED Map Light Mod, Electric Tail Gate Lock, Leer Cab, Key ring light, Bed LED lights Mod, Kenwood DNX5120, Signal Mirror with Heat
    I have the recall done for the rear lift spring, after it done, my passanger side wheels stick out more than driver side. they cannot fix anything.

  16. Apr 2, 2013 at 5:17 PM
    #16
    anamorphic

    anamorphic [OP] Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65786
    Messages:
    166
    Gender:
    Male
    Vehicle:
    08 TRD Sport 4x4
    That was a work order I found from 2010, before I owned the truck.

  17. Apr 2, 2013 at 5:43 PM
    #17
    92dlxman

    92dlxman drinking whats on sale

    Joined:
    Jun 24, 2012
    Member:
    #81250
    Messages:
    1,450
    Gender:
    Male
    First Name:
    Kevin
    Visalia, CA
    Vehicle:
    08 access 4x4 4.0 6-gear
    5100s, ome884s, wheelers aal kit, and some rustoleum
    the leaf packs have definitely been messed with. I bet whoever did that extra leaf was a lazy bones and didn't quite do it right

  18. Apr 2, 2013 at 5:51 PM
    #18
    anamorphic

    anamorphic [OP] Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65786
    Messages:
    166
    Gender:
    Male
    Vehicle:
    08 TRD Sport 4x4
    Interesting. Would it help if I took some more detailed photos of the leaf packs?

  19. Apr 2, 2013 at 6:12 PM
    #19
    92dlxman

    92dlxman drinking whats on sale

    Joined:
    Jun 24, 2012
    Member:
    #81250
    Messages:
    1,450
    Gender:
    Male
    First Name:
    Kevin
    Visalia, CA
    Vehicle:
    08 access 4x4 4.0 6-gear
    5100s, ome884s, wheelers aal kit, and some rustoleum
    mmmmm i doubt it. removing the u-bolts and bump-stops would tell us if the pin is even there, if it is, then the axle would have to be lowered away from the springs to make sure its riding in the center hole on the axle.

    it is also very possible if not more likely that when whatever happened to bend the rear shock happened, it sheered the pin where it rides in the axle.

  20. Apr 2, 2013 at 6:20 PM
    #20
    anamorphic

    anamorphic [OP] Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65786
    Messages:
    166
    Gender:
    Male
    Vehicle:
    08 TRD Sport 4x4
    Alright, so I might skip bringing it to have the frame checked.

    My main problem now is that I was planning on doing an AAL this summer. I thought I had the TSB done, so I was going to do an AAL on top on that.

    I just don't want to pay the labor rate of having the leafs off the truck without replacing parts while they are off, you know what I mean?

    Maybe I'll just have the AAL that's on there removed, and replace it with these and then have the pin replaced as well.
