Shock Question

Discussion in 'ICON Vehicle Dynamics' started by adriancast, Sep 22, 2013.

  1. Sep 22, 2013 at 2:23 PM
    #1
    adriancast

    adriancast [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104544
    Messages:
    1,639
    Gender:
    Male
    First Name:
    Adrian
    Upland, Ca
    Vehicle:
    2005 Tacoma 4x4 TRD Off-Road
    -2.5 Donahoe Coilovers -All Pro Standard Leaf Pack -All Pro U Bolt Flip Kit -Firestone Airbags w cradles -Extended rear Bilstein 5100s -Flowmaster 40 Series -All Pro IFS Skid -All Pro Transmission Skid -Bruteforce Hybrid Bumper -30" Double Row LED bar -400 Watt Anytime -TRD Seat Covers -ABS Kill Switch -Locking Center Console Mod -Rear Differential Breather -BHLM -Anytime Fog Light Mod
    Last edited: Sep 22, 2013
  2. Sep 22, 2013 at 5:19 PM
    #2
    drunktaco

    drunktaco Well-Known Member

    Joined:
    Aug 25, 2012
    Member:
    #85509
    Messages:
    1,641
    Gender:
    Male
    First Name:
    Sage
    Southwest Va
    Icon ext travel C/O's, Total Chaos UCA's, King R/R shocks, All-Pro leaf pack, lights, RCI skid, Brute Force sliders, ect.
    I'm pretty sure that's cool. That a pivot spot I believe

  3. Sep 22, 2013 at 5:29 PM
    #3
    rogerkamp8817

    rogerkamp8817 Well-Known Member

    Joined:
    Mar 10, 2010
    Member:
    #32975
    Messages:
    215
    Gender:
    Male
    Huntington Beach, CA
    Vehicle:
    2010 Toyota TRD Off-Road 4x4, AC, Superwhite
    There are two spacers that are used where the lower part of the shock mounts to the lower control arm. The two spacers are different thicknesses: 1 long and 1 short. The longer (thicker) spacer should be on the side closer to the front of the vehicle on both front shocks. This is what the instructions say that comes with the coilovers when you purchase them. This pushes the shock back and gives more clearance for the sway bar and the tie rod.

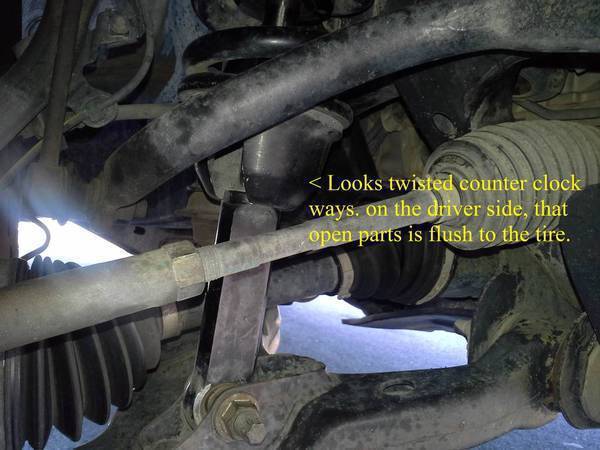

    As for the "cup" with the opening, I don't think it matters which side it faces. On mine, one side faces the front and the other side faces the rear. What is important is that the charge port near the top of the coilover is facing out.

    Hopefully that helps. This is my understanding of how it should be, but I would contact Icon to confirm.

  4. Sep 30, 2013 at 9:05 PM
    #4
    adriancast

    adriancast [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104544
    Messages:
    1,639
    Gender:
    Male
    First Name:
    Adrian
    Upland, Ca
    Vehicle:
    2005 Tacoma 4x4 TRD Off-Road
    -2.5 Donahoe Coilovers -All Pro Standard Leaf Pack -All Pro U Bolt Flip Kit -Firestone Airbags w cradles -Extended rear Bilstein 5100s -Flowmaster 40 Series -All Pro IFS Skid -All Pro Transmission Skid -Bruteforce Hybrid Bumper -30" Double Row LED bar -400 Watt Anytime -TRD Seat Covers -ABS Kill Switch -Locking Center Console Mod -Rear Differential Breather -BHLM -Anytime Fog Light Mod
    what about the driver side?

  5. Sep 30, 2013 at 10:15 PM
    #5
    rogerkamp8817

    rogerkamp8817 Well-Known Member

    Joined:
    Mar 10, 2010
    Member:
    #32975
    Messages:
    215
    Gender:
    Male
    Huntington Beach, CA
    Vehicle:
    2010 Toyota TRD Off-Road 4x4, AC, Superwhite
    the shocks should be pushed back on both the driver's and passenger's side. this is done by placing the longer spacer towards the front of the vehicle and the thinner spacer towards the rear.

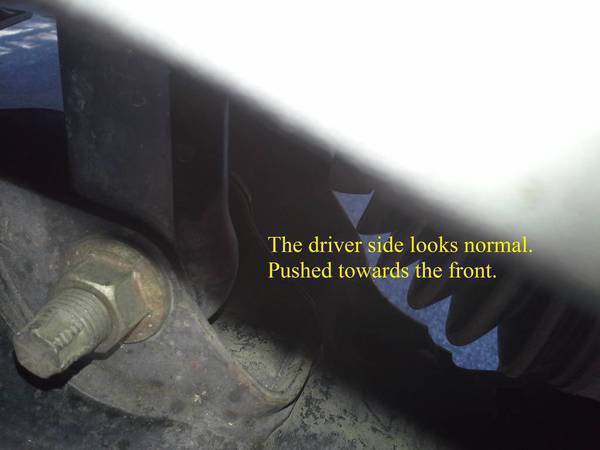

    based on your picture and your caption in that picture, the shock on the driver's side looks pushed forward, which is the opposite of what you want.

    this is the picture i'm referring to.

    [​IMG]

    which side is the noise coming from?

  6. Sep 30, 2013 at 10:36 PM
    #6
    adriancast

    adriancast [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104544
    Messages:
    1,639
    Gender:
    Male
    First Name:
    Adrian
    Upland, Ca
    Vehicle:
    2005 Tacoma 4x4 TRD Off-Road
    -2.5 Donahoe Coilovers -All Pro Standard Leaf Pack -All Pro U Bolt Flip Kit -Firestone Airbags w cradles -Extended rear Bilstein 5100s -Flowmaster 40 Series -All Pro IFS Skid -All Pro Transmission Skid -Bruteforce Hybrid Bumper -30" Double Row LED bar -400 Watt Anytime -TRD Seat Covers -ABS Kill Switch -Locking Center Console Mod -Rear Differential Breather -BHLM -Anytime Fog Light Mod
    How do I push it back?

  7. Sep 30, 2013 at 10:42 PM
    #7
    Hiatt1991

    Hiatt1991 Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41917
    Messages:
    8,227
    Gender:
    Male
    First Name:
    Hiatt
    Flagstaff, AZ
    Vehicle:
    2005 Tacoma Prerunner SR5 TRD offroad
    4" Bodylift 12" Offroad shock spacers Turbo Encabulator

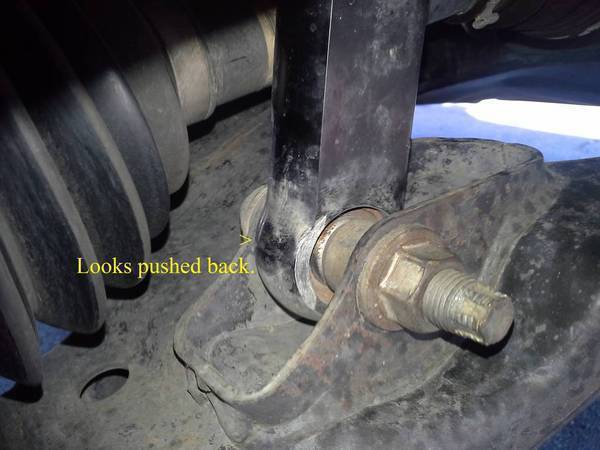

    Your passenger side is pushed back because the spherical bearing spacers are on wrong. If you separate the lower shock mount from the lower control arm and pop out both spacers and swap them from either side, you'll be good to go. I'm sure you know this but each side (passenger/driver) has two different length spacers. Make sense?

  8. Sep 30, 2013 at 11:13 PM
    #8
    adriancast

    adriancast [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104544
    Messages:
    1,639
    Gender:
    Male
    First Name:
    Adrian
    Upland, Ca
    Vehicle:
    2005 Tacoma 4x4 TRD Off-Road
    -2.5 Donahoe Coilovers -All Pro Standard Leaf Pack -All Pro U Bolt Flip Kit -Firestone Airbags w cradles -Extended rear Bilstein 5100s -Flowmaster 40 Series -All Pro IFS Skid -All Pro Transmission Skid -Bruteforce Hybrid Bumper -30" Double Row LED bar -400 Watt Anytime -TRD Seat Covers -ABS Kill Switch -Locking Center Console Mod -Rear Differential Breather -BHLM -Anytime Fog Light Mod
    Ok. Thanks.

  9. Jul 10, 2015 at 10:51 AM
    #9
    CALIPACO

    CALIPACO Learning the ways one trail at a time...

    Joined:
    Jul 8, 2015
    Member:
    #159026
    Messages:
    24
    Gender:
    Male
    First Name:
    Paul
    Bay Area / Alameda / SD
    Vehicle:
    2011 Taco L/B DBL Cab 4X4
    Icon Stage 5 w/ Billet UCA's, BFG A/T's, 285/70/17,Pro Comp Wheels, Aftermarket lights, K&N Filter, 2-8" Rockford Fosgate Subs with 1500W Amp, 1000W Amp for door speakers and tweeters.
    Just an add on to the reply above...if you are a beginner at most of this stuff, you don't have to pop out the spacers. What you can do is like stated above and remove the lower control arm bolt holding the coilover, you can stick a screw driver or equivilant into the whole and rotate 180 degrees and you'll be good, after that just reinstall. Just another option.
