Show us your truck bed sleeping platform/drawer/storage systems

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 1patriot4life, Mar 30, 2016.

  1. Mar 9, 2019 at 9:45 AM
    #1621
    idriveatruck

    idriveatruck Member

    Joined:
    Dec 8, 2018
    Member:
    #275226
    Messages:
    9
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD Sport 4x4
    dog proofing

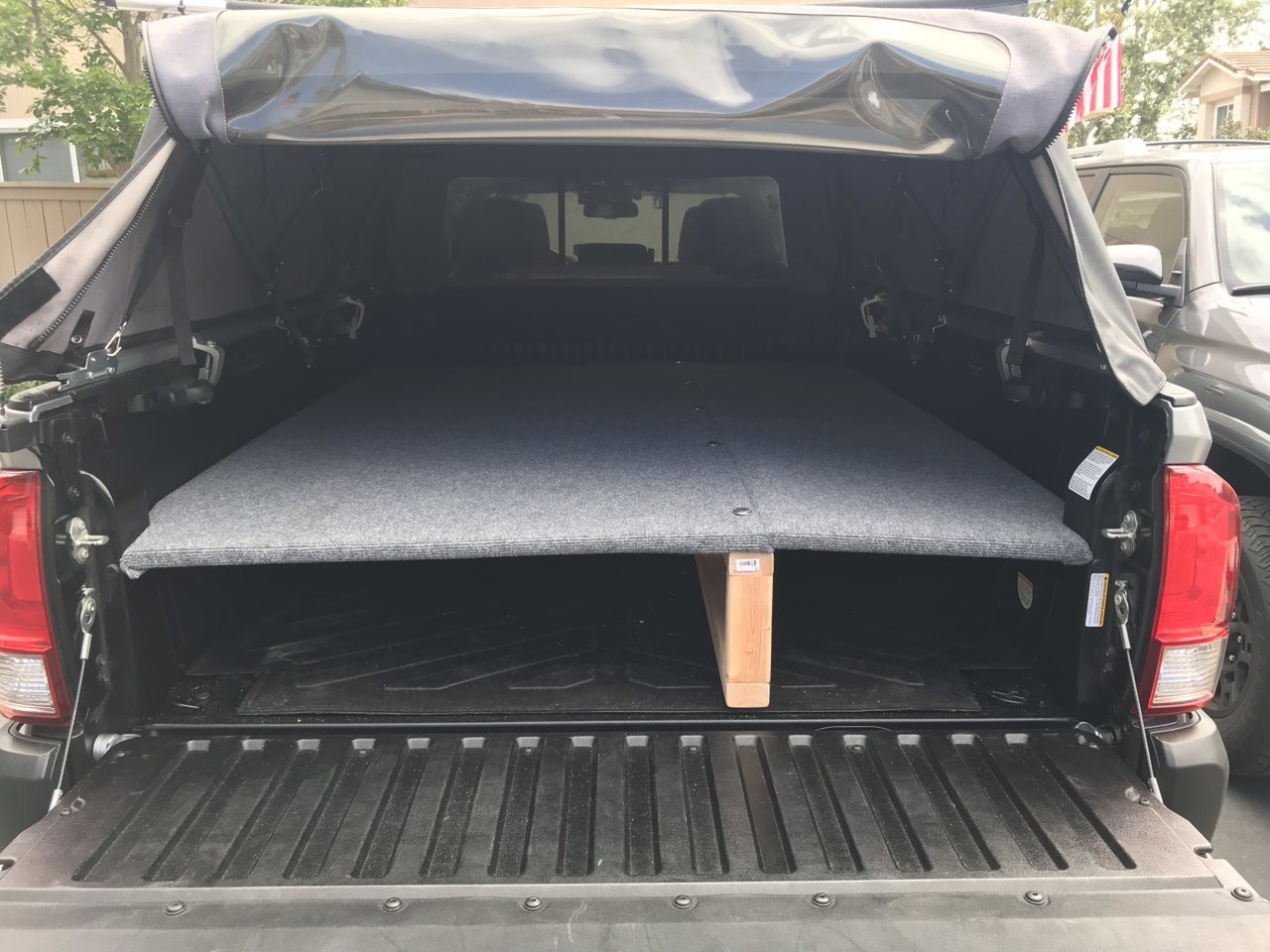

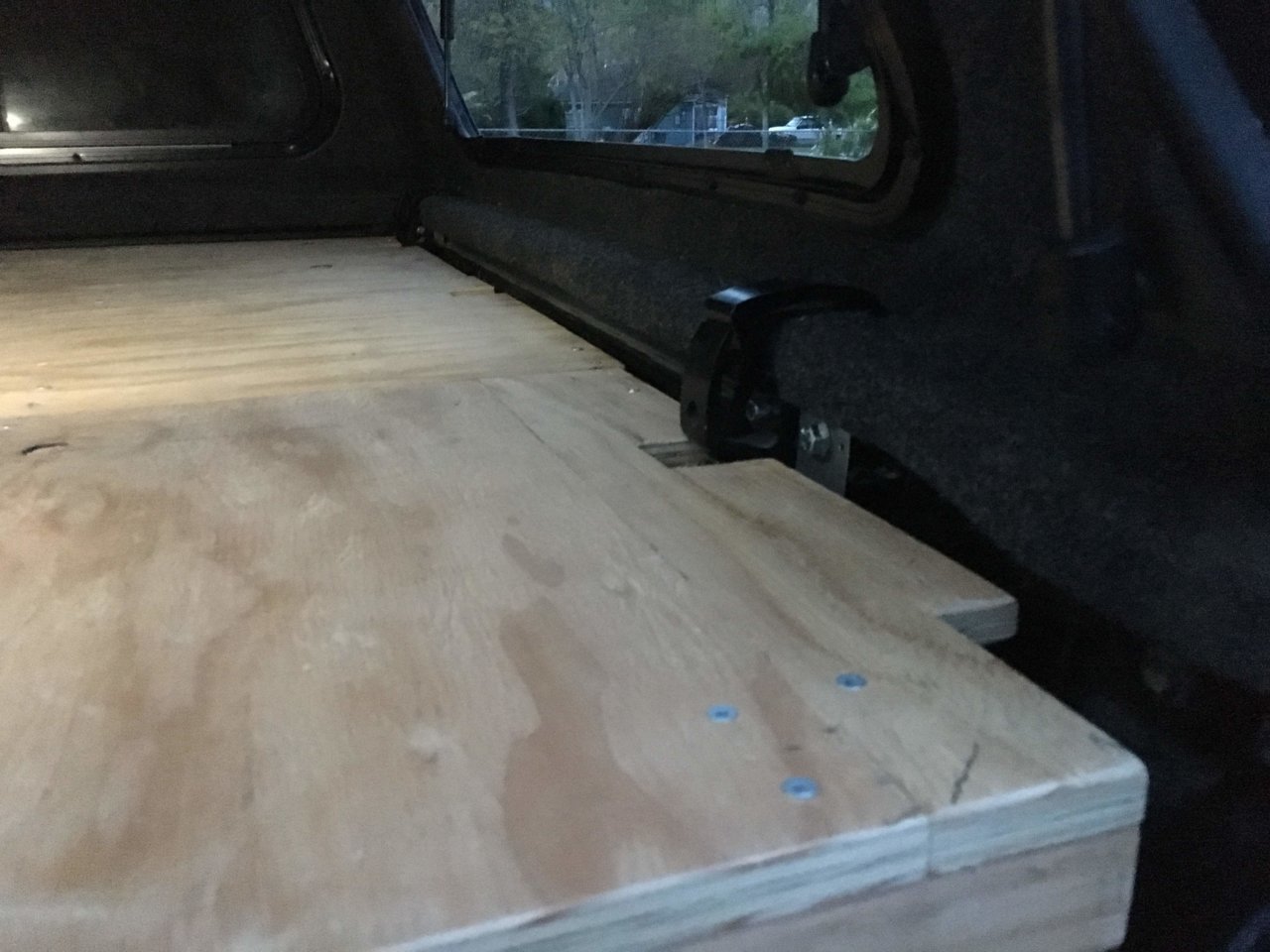

    I guess I'll Jump on here and show yall what I threw together.

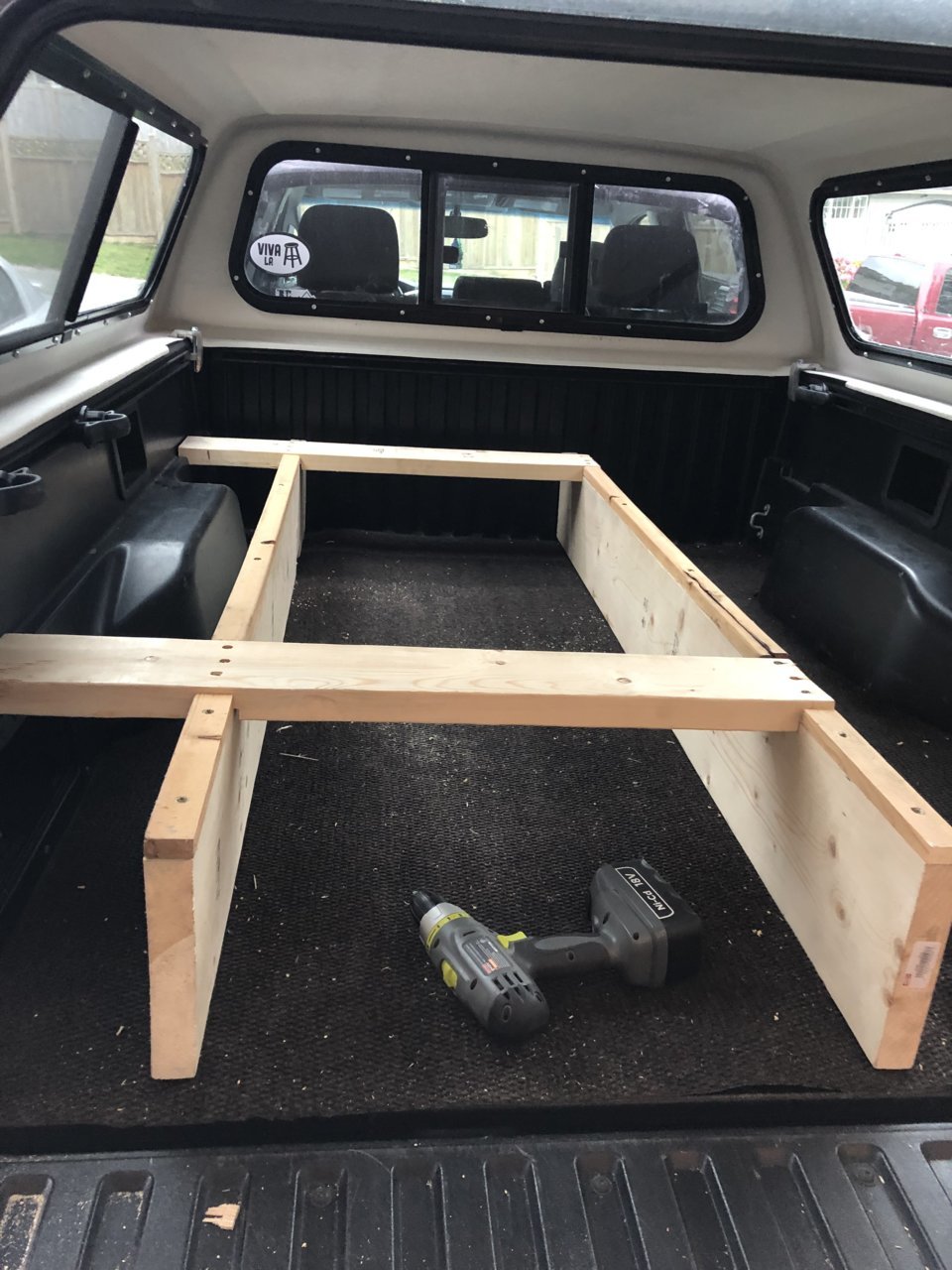

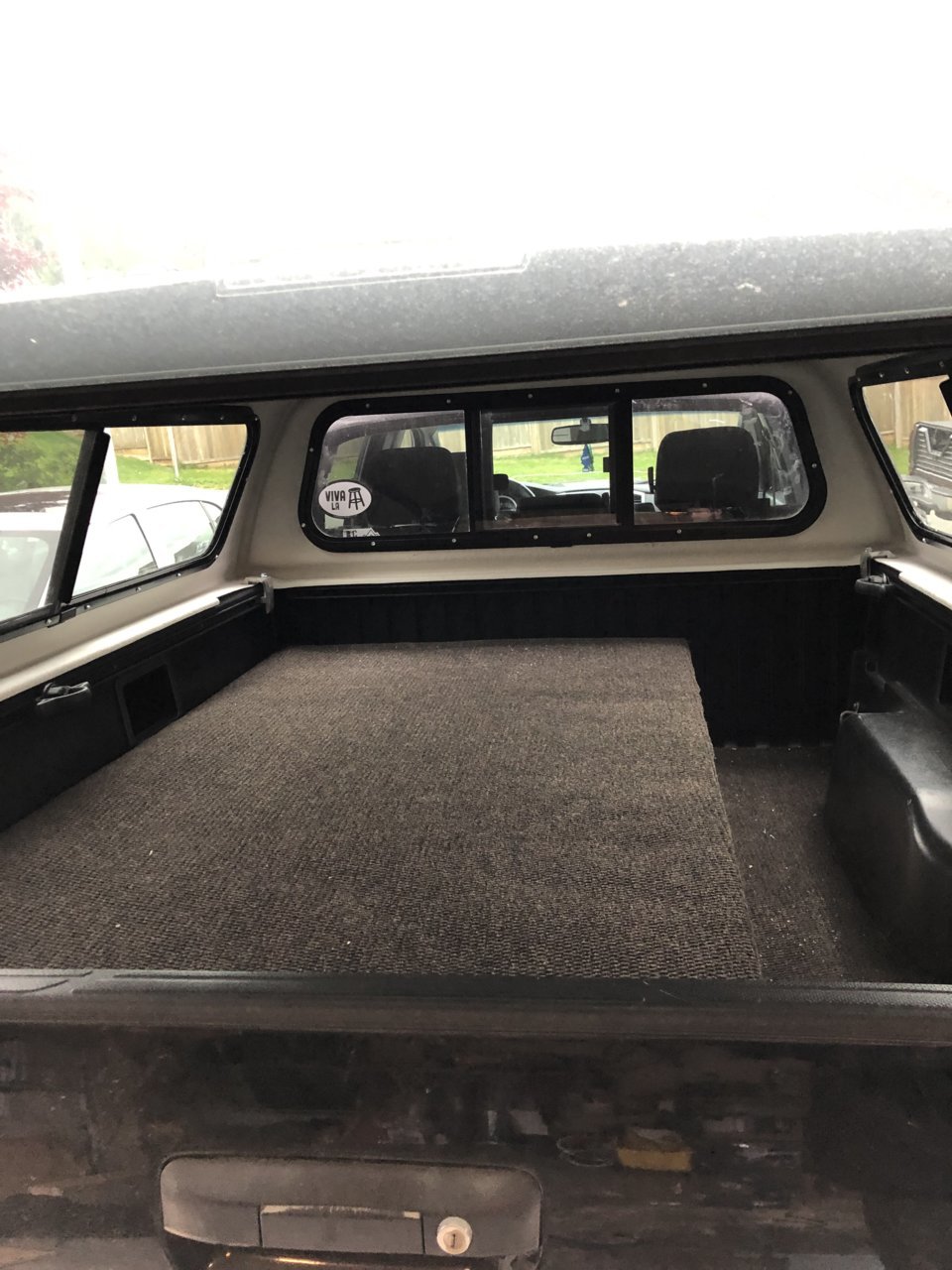

    I wanted to do something like the @1patriot4life made, but I am concerned about storage space, as I dont want my truck to be a full time camper, so until I decide on a system that allows for a full bed sleeping solution, that also converts to half bed, me and my friend threw together this $50 setup.

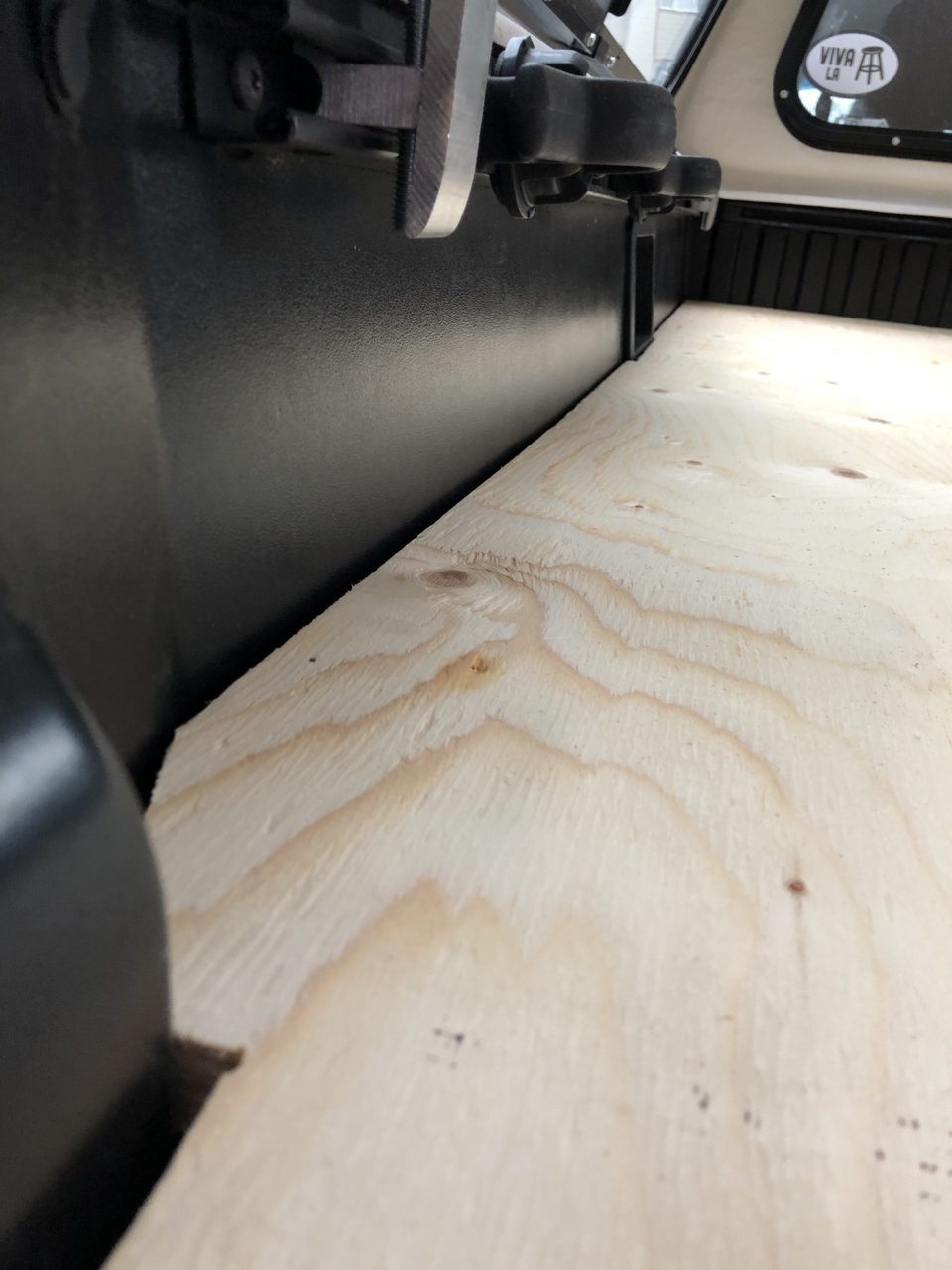

    Used two 4x8 pieces of 3/4" ply wood, had home depot cut the big dimensions, and then trimmed the drop with a sawzall to make this platform that breaks down easily, uses no hardware and takes up virtually no space in the garage when being stored.








  2. Mar 9, 2019 at 1:51 PM
    #1622
    jet123

    jet123 Well-Known Member

    Joined:
    Sep 26, 2016
    Member:
    #198314
    Messages:
    95
    Gender:
    Male
    First Name:
    John
    Ft Collins
    Vehicle:
    2013 DCLB
    There are (3) almost identical platform pieces - all full width (57"?) and each one about 25" deep. Each platform has (2) support tubes bolted to it at the tube ends.

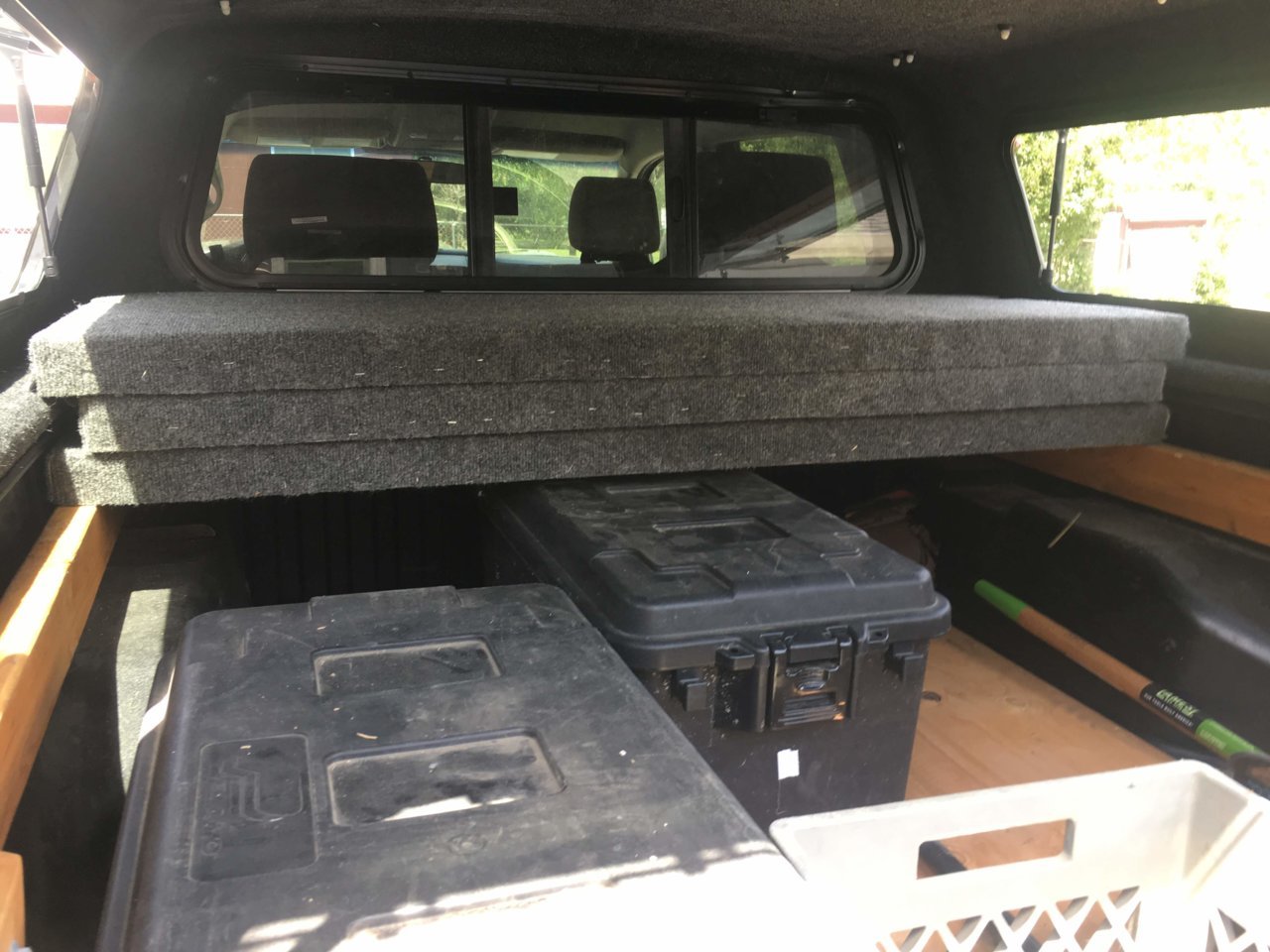

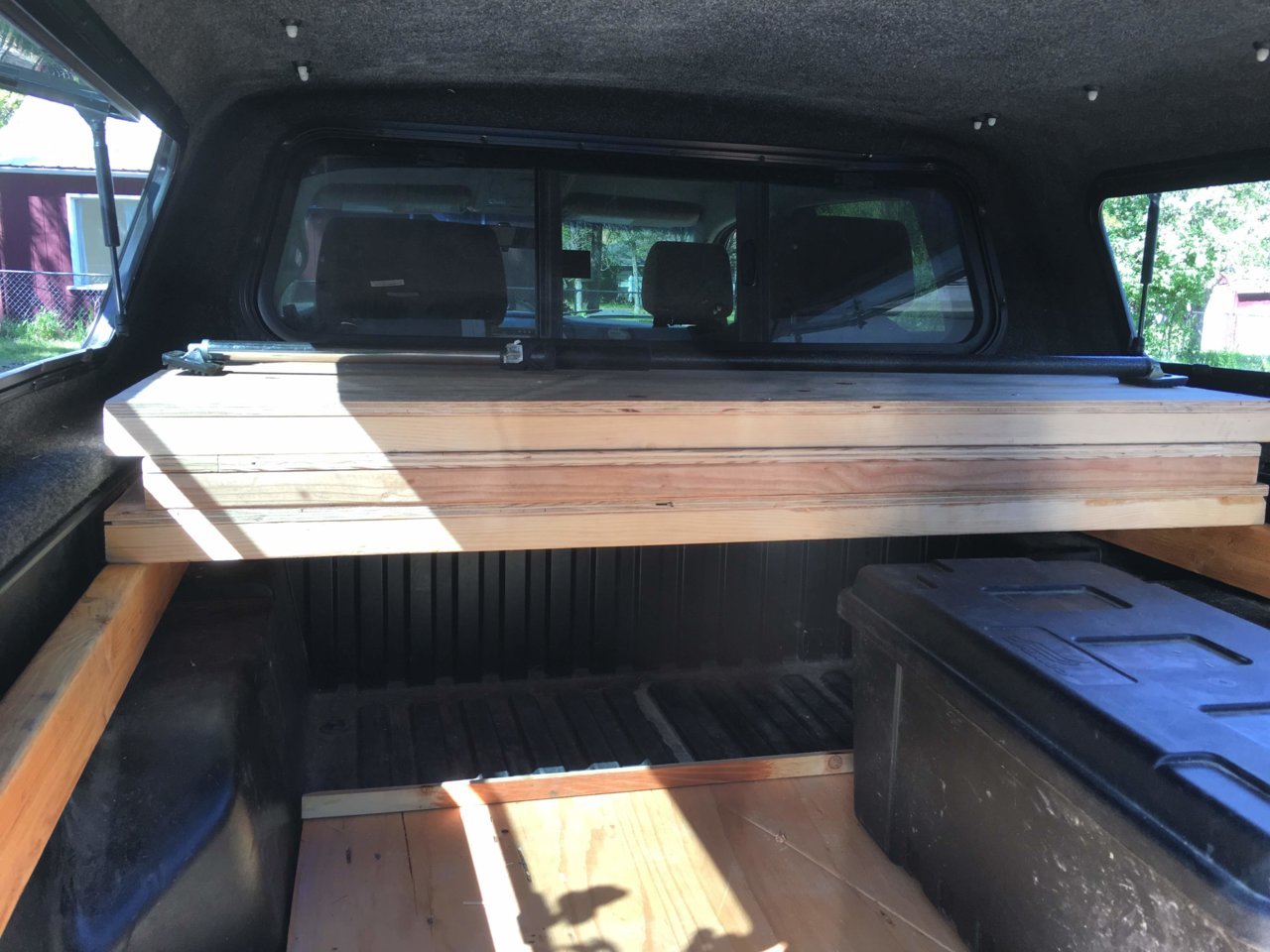

    I can stack the platforms on top of each other against the cab and still have about 2/3 bed length and full width for truck stuff.

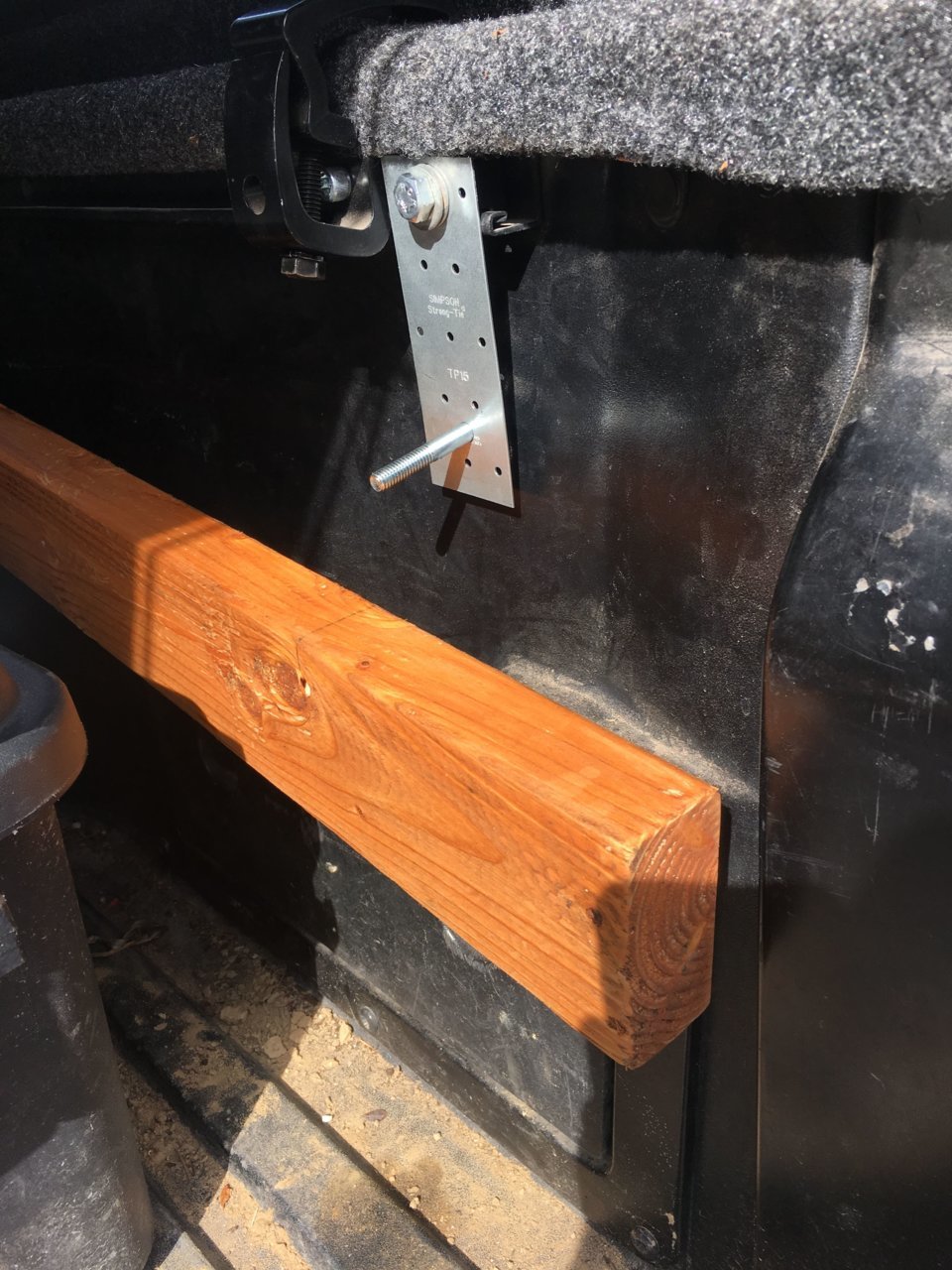

    The leg you see counteracts sitting on the edge of that ending platform piece when it wants to lift a bit (from sitting on the edge).

    I don't off-road much so the platform isn't locked into place at any time. But when deployed, the full platform doesn't move.

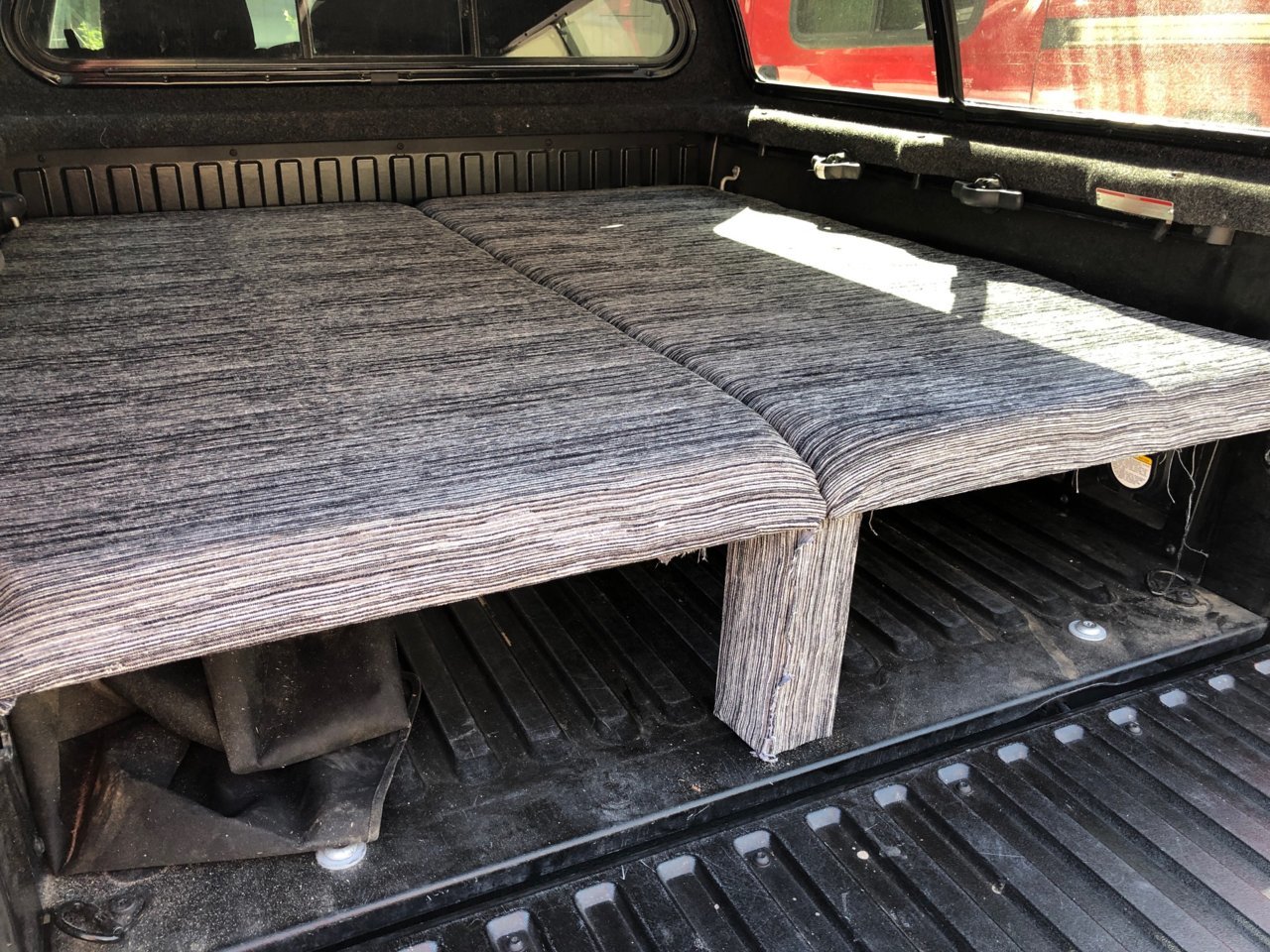

    Fo padding, I have a custom sized Solace pad (like a Paco pad) covered by a wool blanket.

    IMG_20190309_144035.jpg IMG_20190309_144053.jpg IMG_20190309_144105.jpg

    stbear, Dan8906, ETAV8R and 1 other person like this.
  3. Mar 9, 2019 at 3:57 PM
    #1623
    Dan8906

    Dan8906 Well-Known Member

    Joined:
    Jul 26, 2016
    Member:
    #192977
    Messages:
    2,696
    Gender:
    Male
    First Name:
    Daniel
    Concord, California
    Vehicle:
    2004 Tacoma ext cab TRD 4x4
    CBI sliders, Icon stage 1, Icon Tubular UCA, All-Pro Expo leafs, All Pro Apex bumper and skids. 275/70R17 BFG AT Ko2
    Ah ok. I thought you had a first gen. First gens don’t have that lip to do this style of plate form

  4. Mar 11, 2019 at 3:59 AM
    #1624
    brvermilli21

    brvermilli21 Well-Known Member

    Joined:
    May 2, 2018
    Member:
    #252325
    Messages:
    133
    Gender:
    Male
    Knoxville TN
    I believe so

  5. Mar 15, 2019 at 6:34 AM
    #1625
    franzgod

    franzgod Member

    Joined:
    Jan 25, 2018
    Member:
    #242421
    Messages:
    10
    Gender:
    Male
    First Name:
    Frans
    Los Angeles, Ca/Bay Area
    Vehicle:
    2017 DCLB TRD OR
  6. Mar 15, 2019 at 8:13 AM
    #1626
    scollins

    scollins Well-Known Member

    Joined:
    Dec 23, 2010
    Member:
    #48145
    Messages:
    749
    Gender:
    Male
    First Name:
    Scott
    Renton WA
    Vehicle:
    2011 Tacoma Double Cab 4x4 T|X PRO
    @jet123 that leg might be a perfect solution for me, but I can’t seem to find that particular item online. Do you have a manufacturer, name or link available for it?

  7. Mar 15, 2019 at 9:23 AM
    #1627
    jet123

    jet123 Well-Known Member

    Joined:
    Sep 26, 2016
    Member:
    #198314
    Messages:
    95
    Gender:
    Male
    First Name:
    John
    Ft Collins
    Vehicle:
    2013 DCLB
    @scollins

    It IS perfect for my specific height (total height = height of built-in 2nd gen bed shelf + 1.5" platform cross members).

    The company I ordered from no longer stocks what was advertised as having an 11" leg length. I did find it with Amazon, but they advertise it as having a 13" leg length. But you can always cut it down.

    https://www.amazon.com/Garelick-Stainless-Steel-Support-Swing/dp/B079TD185J

    Note - in the upright position, I recall the depth of the unit to be very close to 1.5" as it was very similar to the 1.5" OD AL square tubing I used as cross Members.

    Holler if you need me to measure my set-up later as I am not near my truck.

    John

    scollins and Blackout14 like this.
  8. Mar 15, 2019 at 6:53 PM
    #1628
    97duc748

    97duc748 Member

    Joined:
    Sep 1, 2014
    Member:
    #137386
    Messages:
    13
    Gender:
    Male
    Vehicle:
    07 Tacoma
    Pelfreytbilt Rack, lift

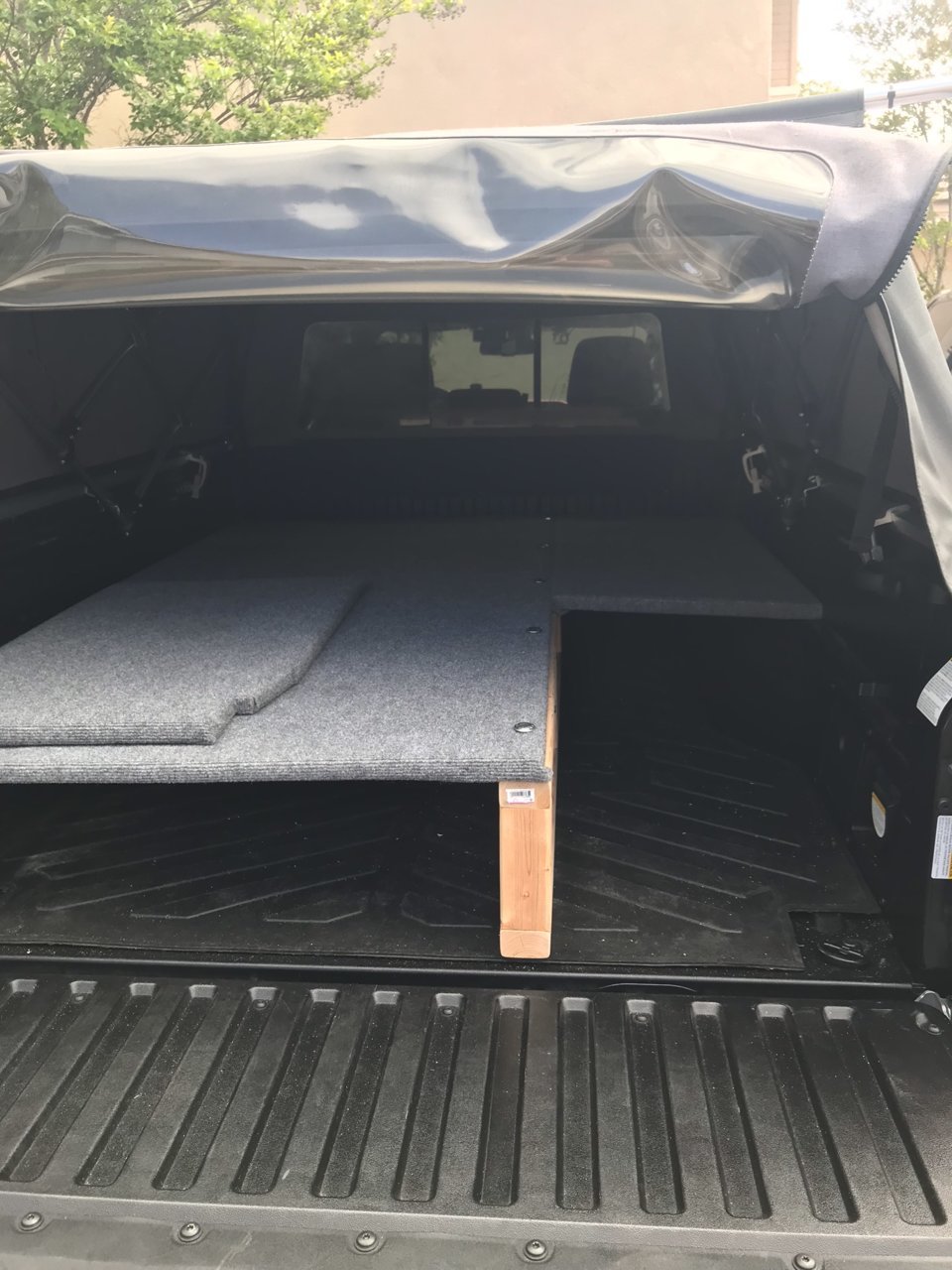

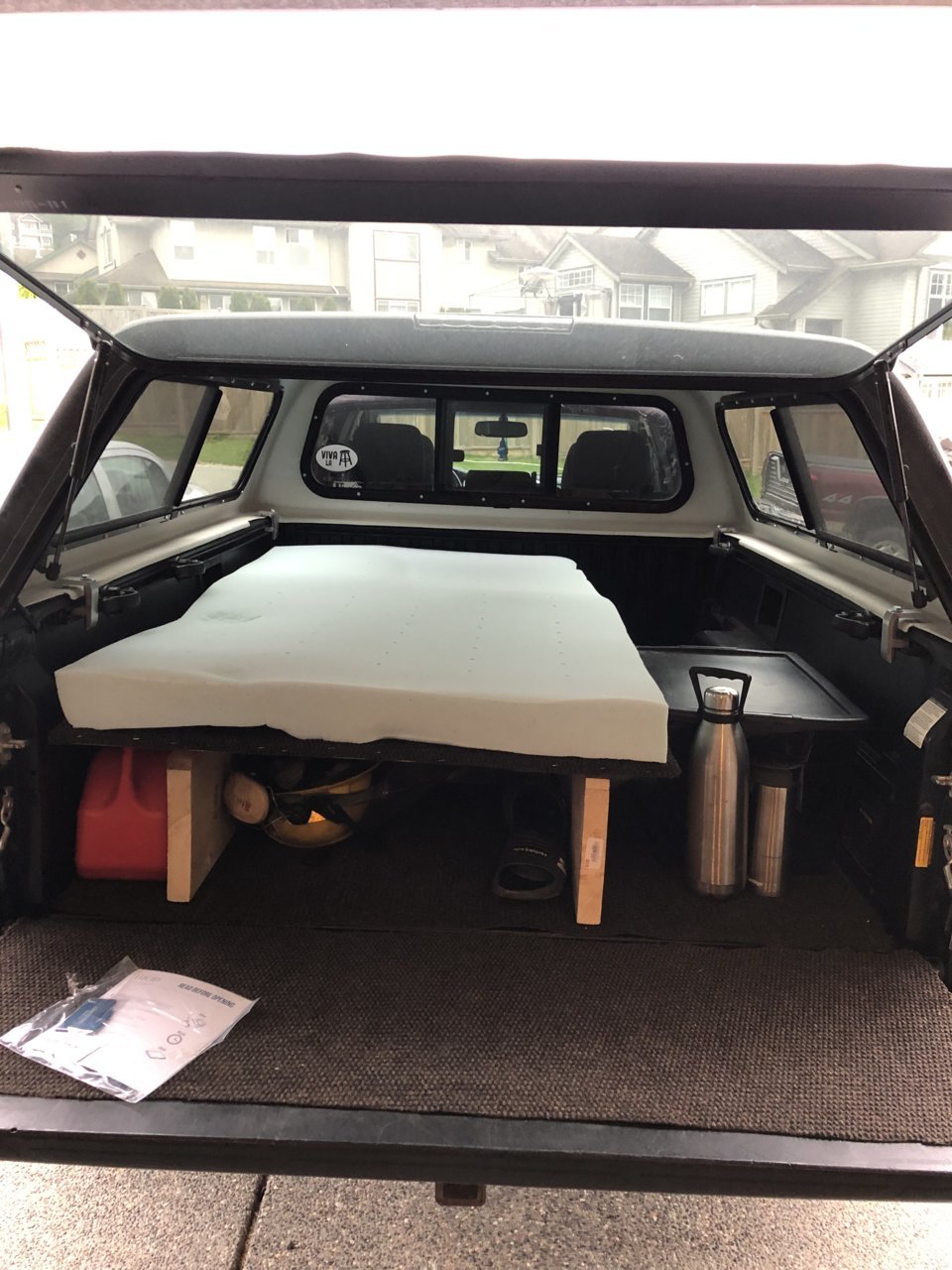

    I have a short bed and want to be able to sleep in the back on a blow up mattress. This is a great idea. Any recommendations on the bed platform? I am going to build the platform this weekend.

  9. Mar 15, 2019 at 8:02 PM
    #1629
    Manfred

    Manfred Well-Known Member

    Joined:
    Jun 25, 2014
    Member:
    #132699
    Messages:
    1,538
    Gender:
    Male
    First Name:
    Manfred
    Great White North
    Vehicle:
    2010 DCLB
    All of them
    The Bed Drawer Build



    Firstly let’s get my thank you’s out of the way @tacoma16 for all your advice and suggestions. @T@com@Steve for some of the inspirations off of your build, the links to Pask Makes, and links to some of the items you used. You saved me hours of research.


    This project is the accumulation of about 6 months of planning and 1.5-ish months of building in my spare time. I averaged about 4-6 hours per night on weekdays and about 16-20 hours over some weekends when I was not working.


    Overall my intent was to build a system with the split running down the middle so I could work both pieces into the back of my cap. My limitation was the doors with so by splitting down the middle and making it modular, I was able to maximize the space. I wanted security to be on the drawers should I ever switch back to a tonneau cover, my kit would be locked.


    Cost (all prices in moosebucks):

    ¾” Maple - 218.93
    ½" Maple - 60.98
    Hardware (Screws / Bolts) - 225.21
    Polyurethane - 126.91
    Steel Tubing 1 x 1 x 1/8 - 50.57
    Gloves - 13.5
    Gorilla Wood Glue - 5.97
    2x 3 Digit combo locks- 33.62
    2x Cam Locks 11.19
    2x Drawer Pulls 18.98
    Spray Pain - 8.47
    Blue Locktite - 9.99


    Grand Total: 784.32


    SO with this build you can see i spared no expense.


    What I could have done differently:


    1. Not used elevator bolts - Instead of using elevator bolts which drove my hardware cost up, I could have opted for a different style.


    2. I should have planned my cuts more efficiently - However with this build since I am truly the first one to ever build a split system running down the middle, I had to measure and cut as I went. If attempting this same set up, cut your larger pieces first.


    3. Had an actual shop to do this in - Thankfully there is a barn on my property so I had the chance to work on the cutting and screwing there, but I had to glue during the winter days which probably reduced its overall effectiveness, and had to Polyurethane inside of my house which you try to do with a roommate that wont stop her bitchin'


    Having said all of that here she is from start to finish! (I had taken about 182 photos so Ill be showing the best and thats it I swear)

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    Last edited: Mar 20, 2019 at 9:21 AM
  10. Mar 15, 2019 at 8:10 PM
    #1630
    T@com@Steve

    T@com@Steve Well-Known Member

    Joined:
    Apr 14, 2015
    Member:
    #153198
    Messages:
    986
    Gender:
    Male
    First Name:
    Steve
    Sarasota, Florida
    Vehicle:
    15 4x4 DCLB
    I ❤️ TW patch
    No matter how much reading and research you do, everyone will take a different approach. Yours came out great!! Let me tell you, you get what you pay for, and you will get years of use out of this. I am loving mine still and would only change a few small things. Nice job brother!!

    Manfred likes this.
  11. Mar 15, 2019 at 8:12 PM
    #1631
    Manfred

    Manfred Well-Known Member

    Joined:
    Jun 25, 2014
    Member:
    #132699
    Messages:
    1,538
    Gender:
    Male
    First Name:
    Manfred
    Great White North
    Vehicle:
    2010 DCLB
    All of them
    I definitely appreciate it! Thanks for answering some of my late night emails lol

    T@com@Steve likes this.
  12. Mar 16, 2019 at 5:49 AM
    #1632
    Rockin' D

    Rockin' D Not for the weak or faint hearted.

    Joined:
    Aug 29, 2017
    Member:
    #228461
    Messages:
    57
    Gender:
    Male
    College Station, TX
    Vehicle:
    13 TRD Sport DCSB
    Very nice.

    Manfred likes this.
  13. Mar 17, 2019 at 5:25 AM
    #1633
    Manfred

    Manfred Well-Known Member

    Joined:
    Jun 25, 2014
    Member:
    #132699
    Messages:
    1,538
    Gender:
    Male
    First Name:
    Manfred
    Great White North
    Vehicle:
    2010 DCLB
    All of them
    My temporary solution to fuel storage. I want to steer away from this though I'm the event of a leak it does not contaminate the any of my good or clothss, but my tire carrier is not equipped to handle any fuel right now

    20190316_173934.jpg 20190316_173945.jpg

  14. Mar 17, 2019 at 5:52 AM
    #1634
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    4,371
    Gender:
    Male
    First Name:
    Jeremy
    Colonial Beach, VA
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    I'd put something under the ratcheting mechanism, so it's not metal on metal.

    Manfred likes this.
  15. Mar 17, 2019 at 7:06 AM
    #1635
    BongoTheOneEyed

    BongoTheOneEyed Well-Known Member

    Joined:
    May 8, 2016
    Member:
    #186442
    Messages:
    54
    Gender:
    Male
    Manfred, this shows your superb attention to detail and its an inspiration for all of us.

    I would be interested to review your SketchUp design file if you'd feel comfortable uploading and attaching it to a post here for others that use the same software.

    Manfred likes this.
  16. Mar 17, 2019 at 7:14 AM
    #1636
    Manfred

    Manfred Well-Known Member

    Joined:
    Jun 25, 2014
    Member:
    #132699
    Messages:
    1,538
    Gender:
    Male
    First Name:
    Manfred
    Great White North
    Vehicle:
    2010 DCLB
    All of them
    I'd be more than happy to share the design. The design isnt 100% true to the end result but reasonably close. I wouldn't want to see anyone making money off my design but for personal use give 'er hell!

    How do I go about sharing it? Just a link?

  17. Mar 17, 2019 at 7:14 AM
    #1637
    Manfred

    Manfred Well-Known Member

    Joined:
    Jun 25, 2014
    Member:
    #132699
    Messages:
    1,538
    Gender:
    Male
    First Name:
    Manfred
    Great White North
    Vehicle:
    2010 DCLB
    All of them
    So those are plastic Jerry cans but a good point, a piece of rubber to prevent running is a good idea

    buyobuyo likes this.
  18. Mar 17, 2019 at 7:18 AM
    #1638
    BongoTheOneEyed

    BongoTheOneEyed Well-Known Member

    Joined:
    May 8, 2016
    Member:
    #186442
    Messages:
    54
    Gender:
    Male
    You could try attaching the file to a post, or, if you have the file hosted somewhere such as Google Drive and it has Read/Download permissions set on the file, then you can post a link to it stored in Google Drive.

    There's a few of us which use SketchUp and would appreciate a template such as yourse to work from. Just make sure to remove any private info you dont want to share with others.

    Manfred likes this.
  19. Mar 17, 2019 at 7:19 AM
    #1639
    Manfred

    Manfred Well-Known Member

    Joined:
    Jun 25, 2014
    Member:
    #132699
    Messages:
    1,538
    Gender:
    Male
    First Name:
    Manfred
    Great White North
    Vehicle:
    2010 DCLB
    All of them
    I'll get to it later and let you know lol

  20. Mar 17, 2019 at 10:37 AM
    #1640
    Happy on Mondays

    Happy on Mondays Active Member

    Joined:
    Oct 1, 2017
    Member:
    #231692
    Messages:
    42
    Gender:
    Male
    Vehicle:
    17 Tacoma

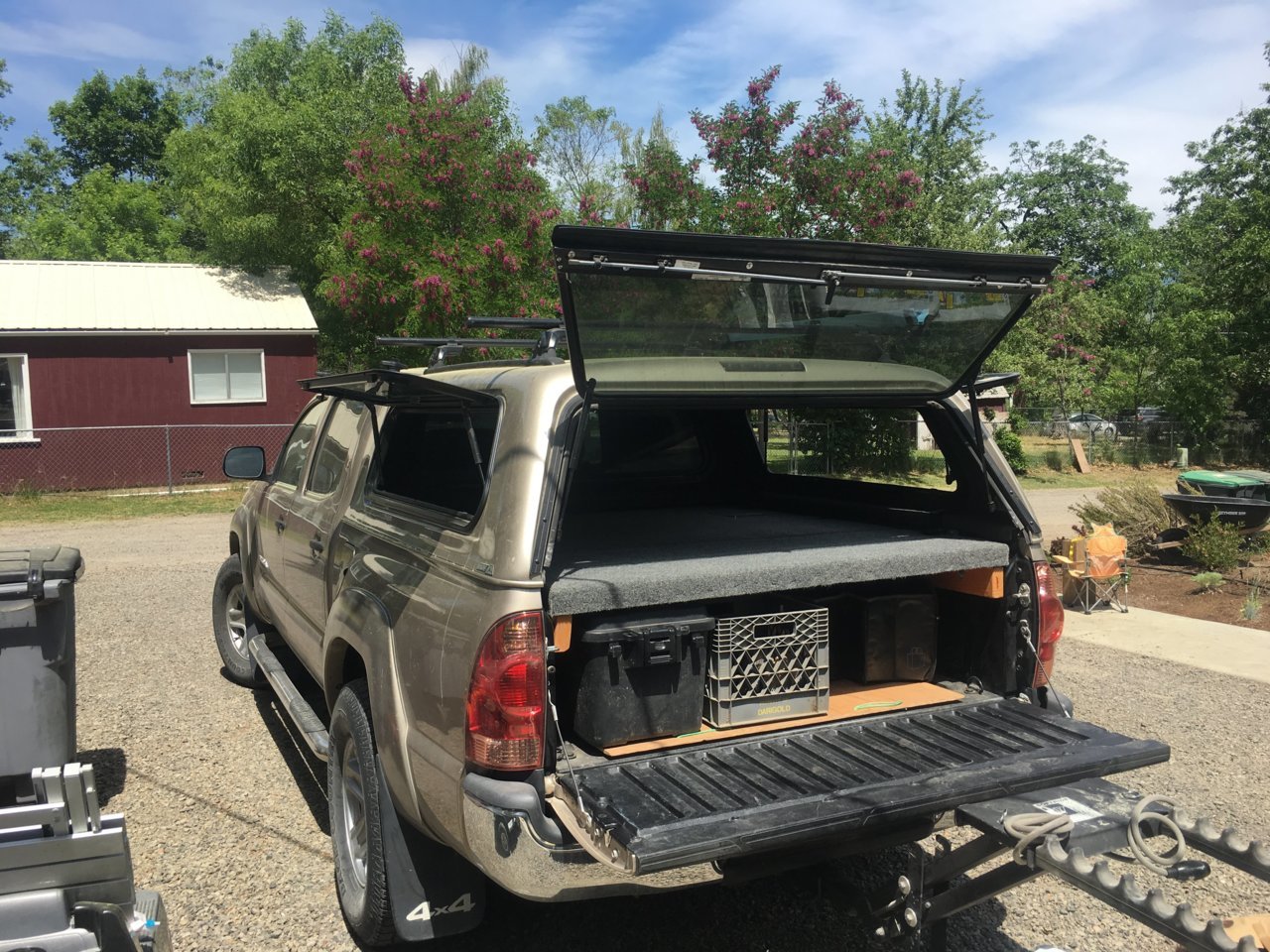

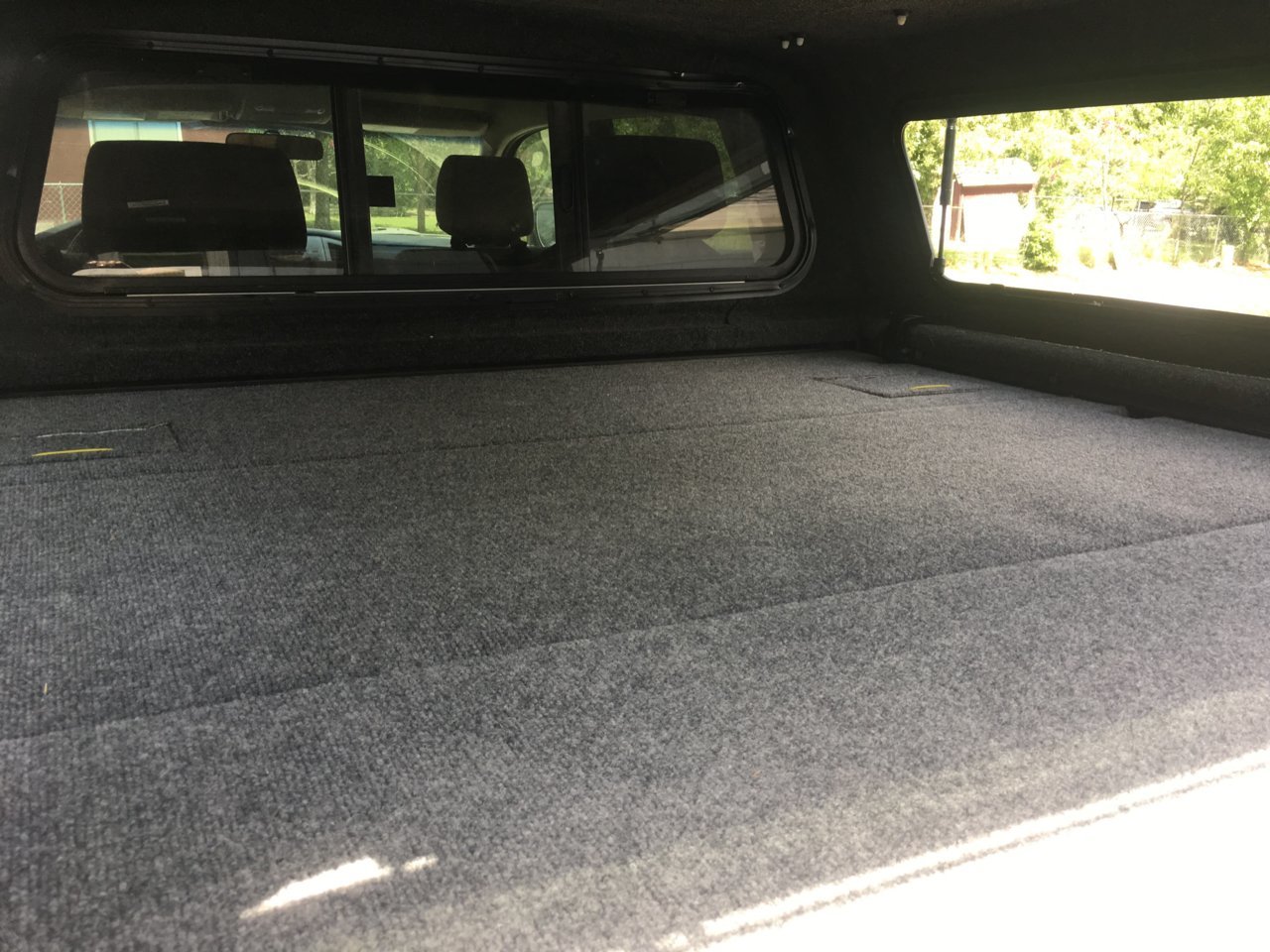

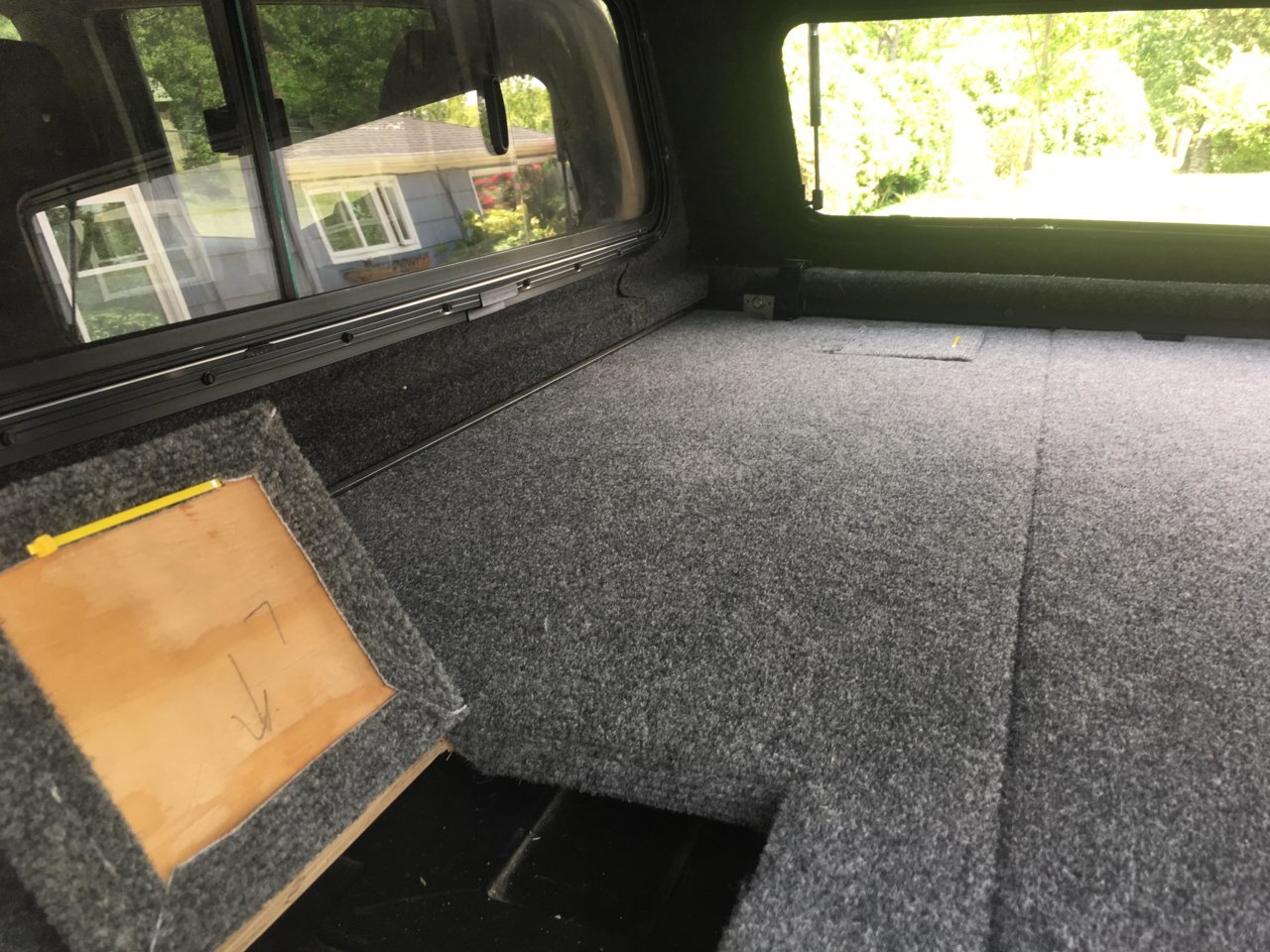

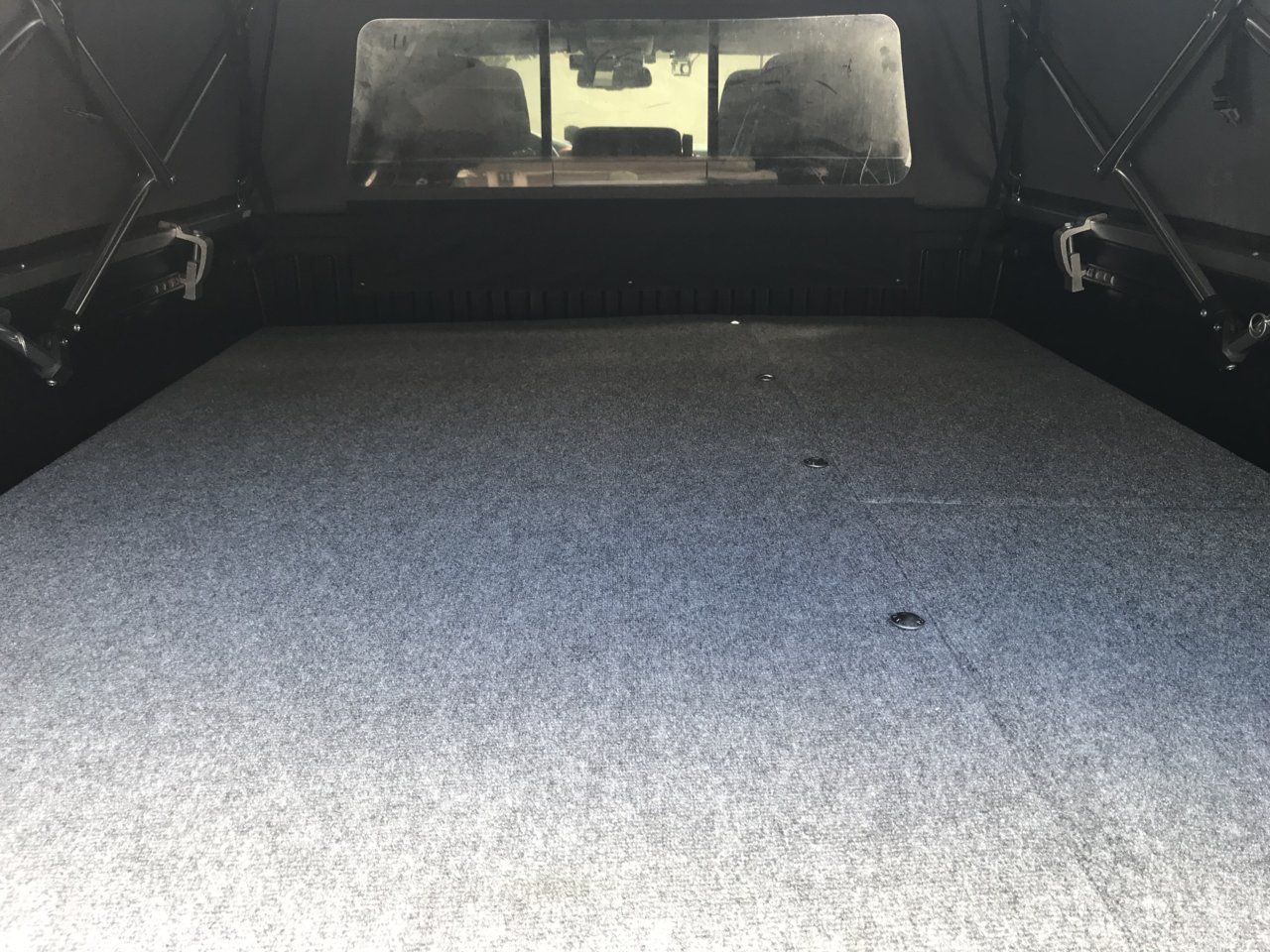

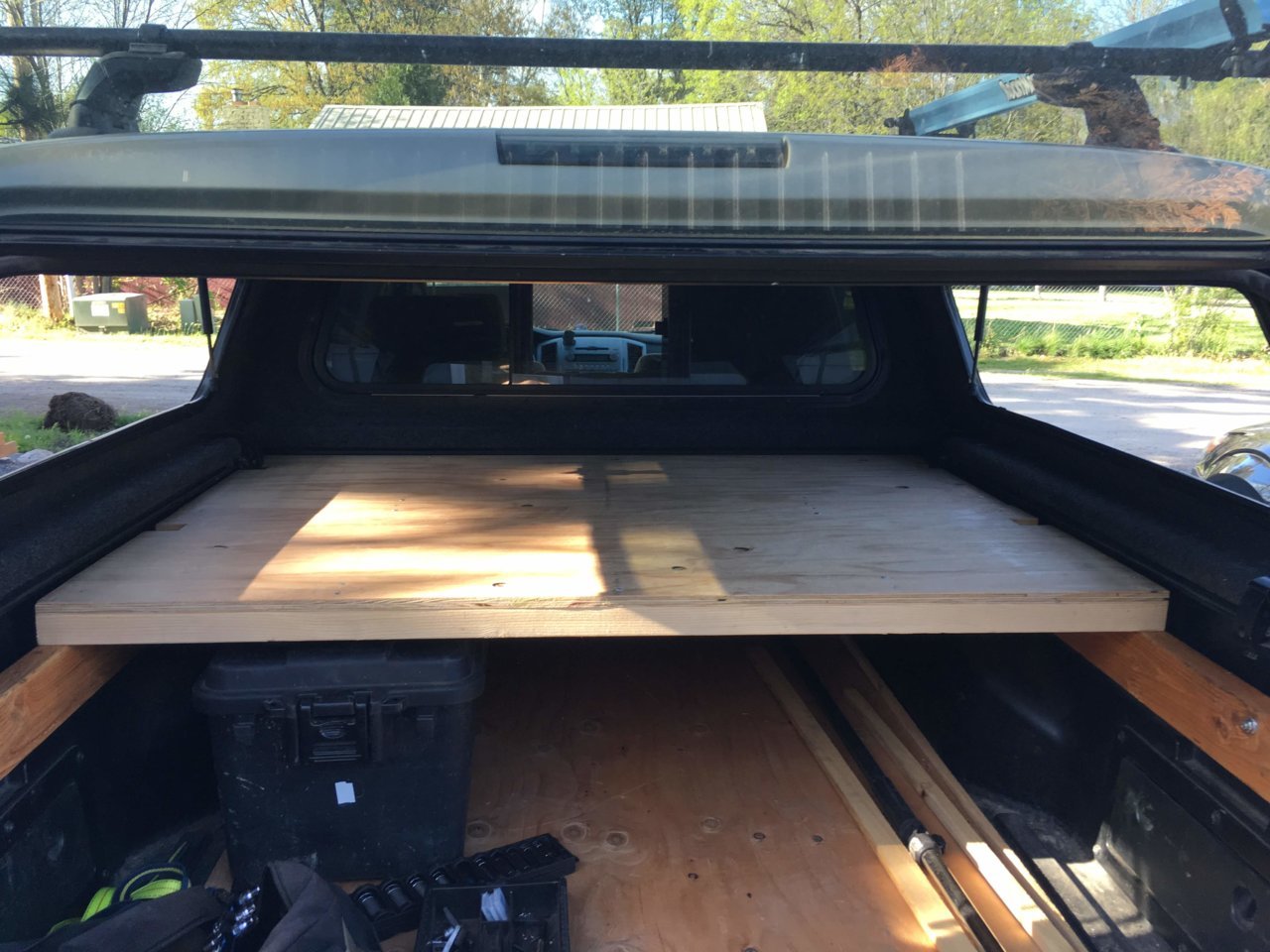

    1" ply in 3 larger and one smaller section, no additional support, carpeted and 3' foam pad. Sometimes I regret not getting a taller shell but this setup works great for me.
    taco.jpg taco1.jpg thumb_DSC_0271_1024.jpg

    2Toyotas, Manfred, Atomic and 2 others like this.
