Single (and Two) Piece Driveshaft = Vibes....BE GONE!!!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ItalynStylion, Feb 16, 2017.

  1. Nov 14, 2018 at 11:07 AM
    #441
    Spintly

    Spintly Well-Known Member

    Joined:
    Mar 2, 2014
    Member:
    #124416
    Messages:
    779
    Gender:
    Male
    First Name:
    Greg
    Home of the Groundhog
    Vehicle:
    85 Single Cab Pickup & 2000 911
    I've done 100+ with my tw 4 inch single piece with no issues on a an abandoned runway, of course.

    Biscuits likes this.
  2. Nov 14, 2018 at 12:35 PM
    #442
    ThomasMore66

    ThomasMore66 We can't stop here, this is bat country!

    Joined:
    Feb 9, 2013
    Member:
    #97155
    Messages:
    7,289
    Gender:
    Male
    Dallas/Fort Worth & Durango
    Vehicle:
    Supercharged 2013 TRD Offroad 4wd
    TRD Supercharger, TRD exhaust, Leather seats, running boards removed (why it came with them I cannot imagine), Salex organizers, BAMF behind-the-grill light bar, Rigid SR-20 and SR-Q - Spots mounted behind stock grill, color-matched grill, WeatherTech FloorLiner DigitalFit floor mats, Tech Deck, Avid bolt-on slider/step converted to weld on by TW member Achirdo, Diaz Fabrication Model T, Icon Stage 4 with OME Dakar rear leaf springs, OME Driveshaft spacer, Toytec 1" Front Diff Drop, FN BFD 18"x9" GMG Wheels, BFG KO2 285-65-18 tires, Ultragauge mounted above mirror, Tuffy Box lockable storage, MattGecko rear window security bar, Relentless Fab tailgate protector, CSJumper 700 lumen flood pattern back-up LED's, modified BeeRadd under-hood lighting with two KC Cyclones; KB Voodoo cargo management system and standard rails, AllPro hi-lift jack mount, 48" hi-lift, RCI Metalworks aluminum front skid, Flyzeye 3VP-RS in glovebox and console, AFE CAI, Coupe fuse box cover, battery hold-down bracket and CAI air-box cover, Wurton pod led's installed as bed lights on Lowbrow Customs motorcycle fork brake line aluminum brackets, Pop-n-Lock PL5400, Extang Solidfold 2.0, Rechelon Retro's, Moromoto LED fogs, URD Y-pipe, Walbro 255lph fuel pump, Speedhut AFR and Boost gauges, Cravenspeed gauge holder, CMC by Tandem Automotive, 70mm throttle body, CSF radiator, Doug Thorley shorties, Vibrant 7101 cats, SOS Offroad front and rear bumpers, Smoothflow 2.5” SC pulley, Steeda SC belt tensioner, roostfactor belt wrap kit, switch Pro 9100 in custom Tandem Automotive holder, WAT trans valvebody, FIC 650cc injectors, HP Tuner.
    Clearly a closed course. We understand. BTW, Toll Roads are a closed course.

    Key-Rei, Biscuits and cleats50 like this.
  3. Nov 14, 2018 at 7:09 PM
    #443
    vanillion

    vanillion Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104033
    Messages:
    94
    Gender:
    Male
    Canadia
    Vehicle:
    09 trd offroad
    long travel and some other parts
    Hey OP, where did you get your custom 2 piece drive shaft?

  4. Nov 15, 2018 at 4:44 AM
    #444
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    5,926
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    I took my stock drive shaft to a local drive shaft mechanic and told him exactly what i wanted. He fabbed it up and had it to me a day later. Out the door cost was just over $400 I think?

    Biscuits and vanillion[QUOTED] like this.
  5. Nov 15, 2018 at 2:40 PM
    #445
    ThomasMore66

    ThomasMore66 We can't stop here, this is bat country!

    Joined:
    Feb 9, 2013
    Member:
    #97155
    Messages:
    7,289
    Gender:
    Male
    Dallas/Fort Worth & Durango
    Vehicle:
    Supercharged 2013 TRD Offroad 4wd
    TRD Supercharger, TRD exhaust, Leather seats, running boards removed (why it came with them I cannot imagine), Salex organizers, BAMF behind-the-grill light bar, Rigid SR-20 and SR-Q - Spots mounted behind stock grill, color-matched grill, WeatherTech FloorLiner DigitalFit floor mats, Tech Deck, Avid bolt-on slider/step converted to weld on by TW member Achirdo, Diaz Fabrication Model T, Icon Stage 4 with OME Dakar rear leaf springs, OME Driveshaft spacer, Toytec 1" Front Diff Drop, FN BFD 18"x9" GMG Wheels, BFG KO2 285-65-18 tires, Ultragauge mounted above mirror, Tuffy Box lockable storage, MattGecko rear window security bar, Relentless Fab tailgate protector, CSJumper 700 lumen flood pattern back-up LED's, modified BeeRadd under-hood lighting with two KC Cyclones; KB Voodoo cargo management system and standard rails, AllPro hi-lift jack mount, 48" hi-lift, RCI Metalworks aluminum front skid, Flyzeye 3VP-RS in glovebox and console, AFE CAI, Coupe fuse box cover, battery hold-down bracket and CAI air-box cover, Wurton pod led's installed as bed lights on Lowbrow Customs motorcycle fork brake line aluminum brackets, Pop-n-Lock PL5400, Extang Solidfold 2.0, Rechelon Retro's, Moromoto LED fogs, URD Y-pipe, Walbro 255lph fuel pump, Speedhut AFR and Boost gauges, Cravenspeed gauge holder, CMC by Tandem Automotive, 70mm throttle body, CSF radiator, Doug Thorley shorties, Vibrant 7101 cats, SOS Offroad front and rear bumpers, Smoothflow 2.5” SC pulley, Steeda SC belt tensioner, roostfactor belt wrap kit, switch Pro 9100 in custom Tandem Automotive holder, WAT trans valvebody, FIC 650cc injectors, HP Tuner.
    Yes, what shop did you use? Apparently we're 2 of the 6.5 million people in the DFW area.

  6. Nov 15, 2018 at 3:00 PM
    #446
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    5,926
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Drive Shaft King in Dallas. Just on the west side of the new bridge. Ask for Steve. He's the guy that made mine.

  7. Nov 19, 2018 at 6:52 PM
    #447
    lordetaco

    lordetaco Well-Known Member

    Joined:
    May 9, 2016
    Member:
    #186463
    Messages:
    949
    Gender:
    Male
    First Name:
    Tristan
    Lawton,OK
    Vehicle:
    2005 Toyota Tacoma
    I have a 4 inch tw driveshaft installed, but I got a vibration at 75+ after I installed 4.88 gears. Thank god for this thread cause I have final figured out where it is coming from. I’ll be trying to acquire a stock driveshaft and taking it to where the op got his done. Have any of y’all had the issues with the smaller spline or is it worth to go with the Dana 300 one that one guy used?

    Biscuits likes this.
  8. Dec 6, 2018 at 8:37 AM
    #448
    Greenlemon21

    Greenlemon21 Member

    Joined:
    Dec 6, 2018
    Member:
    #274997
    Messages:
    19
    First Name:
    Travis
    Vehicle:
    2011 AC TRD OR 4x4
    Has anyone tried using a 1 piece driveline to get rid of the notorious 60mph steering wheel/ gas pedal vibration? I bought a 2011 access cab TRD 4x4 two months ago and they are driving me nuts. Would happily spend $600 to try and sort them out. Running totally stock by the way.

  9. Dec 6, 2018 at 10:37 AM
    #449
    Bobcdn

    Bobcdn Well-Known Member

    Joined:
    Mar 20, 2016
    Member:
    #181827
    Messages:
    284
    Gender:
    Male
    Vehicle:
    WTB; 2nd gen well built Tacoma
    I have a 2012 Access Cab, TRD Off Road and mine is also stock. I have had the entire driveshaft replaced (under warranty) and it still vibrates. Took it back to Bailey Toyota 8 times over 6 months and they could not fix it. When I accelerate anything over 30% throttle it gives a very noticeable vibration as it goes past 40 kilometres and then a drone from 80- 100 kilometres. I added washers to space the carrier bearing and that help a small amount.

    I have read a lot on here about the endless vibrations experienced by Tacoma owners and the various solutions people have used. I have also worked on cars for 30+ years so I have tried to pay attention to what is going on. So after 2 years I am going to try this route;
    I am going to replace the driveshaft with a custom two piece with 1 ton U joints and a double cardon joint after the hanger bearing. I am also going to replace the rear leaf springs as I believe they allow so much axle wrap that it changes the angle of the driveshaft causing binding/ vibration. The OEM leaf springs suck anyway so I hope to get better ride, better load carrying and little to no axle wrap.

  10. Dec 6, 2018 at 11:39 AM
    #450
    Mully

    Mully Well-Known Member

    Joined:
    Feb 12, 2014
    Member:
    #122907
    Messages:
    5,128
    Gender:
    Male
    First Name:
    Chris
    CA
    Vehicle:
    12 DC 4x4 Lifted Sport
    Lifted, Kings, Locked, 295s and more.
    I have 3" lift springs on a 2012 DC 4x4 and only get a slight vibration from 1st to 2nd between 10 and 15 miles an hour. I am also going with a HD 2 piece DS w/DC after CB. It will fix this problem.

    TAC1 likes this.
  11. Dec 6, 2018 at 11:50 AM
    #451
    Greenlemon21

    Greenlemon21 Member

    Joined:
    Dec 6, 2018
    Member:
    #274997
    Messages:
    19
    First Name:
    Travis
    Vehicle:
    2011 AC TRD OR 4x4
    Interesting. Let me know how that goes. Mine only has 54k on it so I’m pretty bummed to have problems right after buying it.

  12. Dec 6, 2018 at 11:56 AM
    #452
    Mully

    Mully Well-Known Member

    Joined:
    Feb 12, 2014
    Member:
    #122907
    Messages:
    5,128
    Gender:
    Male
    First Name:
    Chris
    CA
    Vehicle:
    12 DC 4x4 Lifted Sport
    Lifted, Kings, Locked, 295s and more.
    39K and had vibes from the very first day. What is amazing, they actually got better after the lift. 1st had blocks, then added air bags, now new springs. It's a Toyota feature, new from the factory. They should have put a better drive shaft in these trucks.

    TAC1 likes this.
  13. Dec 6, 2018 at 12:50 PM
    #453
    Greenlemon21

    Greenlemon21 Member

    Joined:
    Dec 6, 2018
    Member:
    #274997
    Messages:
    19
    First Name:
    Travis
    Vehicle:
    2011 AC TRD OR 4x4
    Hmm, strange. Damn, maybe I now have a reason to lift... I called Tom Woods and they said their drive lines are not made to solve the vibration issue... still a chance they could help though.

  14. Dec 6, 2018 at 3:20 PM
    #454
    Mully

    Mully Well-Known Member

    Joined:
    Feb 12, 2014
    Member:
    #122907
    Messages:
    5,128
    Gender:
    Male
    First Name:
    Chris
    CA
    Vehicle:
    12 DC 4x4 Lifted Sport
    Lifted, Kings, Locked, 295s and more.
    I have been using Tom Woods for over 20 years. Never had a problem with any of his products.

    TAC1 likes this.
  15. Dec 6, 2018 at 3:38 PM
    #455
    Greenlemon21

    Greenlemon21 Member

    Joined:
    Dec 6, 2018
    Member:
    #274997
    Messages:
    19
    First Name:
    Travis
    Vehicle:
    2011 AC TRD OR 4x4
    I meant to say that the tech mentioned the 1 piece can help remove the take off shudder below 20mph, but had nothing to say regarding the 60mph steering/pedal vibration that many attribute to the driveline, and that isn't the reason it gets sold.

  16. Dec 6, 2018 at 3:44 PM
    #456
    Mully

    Mully Well-Known Member

    Joined:
    Feb 12, 2014
    Member:
    #122907
    Messages:
    5,128
    Gender:
    Male
    First Name:
    Chris
    CA
    Vehicle:
    12 DC 4x4 Lifted Sport
    Lifted, Kings, Locked, 295s and more.
    2 piece HD DS w/DC joint will fix your problem. Then take your stock shaft in and have them do the same to it. Sell it to some other TW member who needs it. It's all good.

    lordetaco likes this.
  17. Dec 6, 2018 at 3:47 PM
    #457
    ovrlndkull

    ovrlndkull STUKASFK - HC4LIFE

    Joined:
    Jan 7, 2017
    Member:
    #206806
    Messages:
    37,791
    Gender:
    Male
    First Name:
    Skip
    Burlington, NC
    Vehicle:
    2005 DCLB Silver
    63s, XD Machete, Beat not Babied
    So Woods doesn't build a one piece long enough for the DCLB are there any suggestions for shops that will build one long enough for the TL.

  18. Dec 6, 2018 at 3:51 PM
    #458
    Mully

    Mully Well-Known Member

    Joined:
    Feb 12, 2014
    Member:
    #122907
    Messages:
    5,128
    Gender:
    Male
    First Name:
    Chris
    CA
    Vehicle:
    12 DC 4x4 Lifted Sport
    Lifted, Kings, Locked, 295s and more.
    I think he can only build 3 or 3.5
    A 4 or 5' would be huge under these trucks. You can get anything you want out there, just how much are you willing to spend?

  19. Dec 6, 2018 at 3:55 PM
    #459
    Mully

    Mully Well-Known Member

    Joined:
    Feb 12, 2014
    Member:
    #122907
    Messages:
    5,128
    Gender:
    Male
    First Name:
    Chris
    CA
    Vehicle:
    12 DC 4x4 Lifted Sport
    Lifted, Kings, Locked, 295s and more.

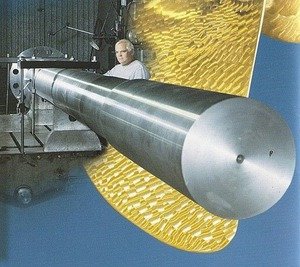

    Solid DS, can you imagine a Tacoma built around this?


    Key-Rei likes this.
  20. Dec 6, 2018 at 3:56 PM
    #460
    Greenlemon21

    Greenlemon21 Member

    Joined:
    Dec 6, 2018
    Member:
    #274997
    Messages:
    19
    First Name:
    Travis
    Vehicle:
    2011 AC TRD OR 4x4
    Are you saying do it like the OP and put in a Dual Cardan joint after the carrier bearing?
    To be clear, I only have a vibe at 60+, under load at about 1.8-2.2k, and feel it only in the steering wheel. Go into neutral, goes away. Let off the gas, goes away. And the thing that has stumped every Tech I have shown it to, go into 4 and let the revs climb, goes away.
