Sleeping Platform Build. Thoughts?

Discussion in '1st Gen. Tacomas (1995-2004)' started by ChrisOC1, Aug 14, 2011.

  1. Aug 14, 2011 at 6:43 AM
    #1
    ChrisOC1

    ChrisOC1 [OP] Member

    Joined:
    Aug 13, 2011
    Member:
    #61643
    Messages:
    17
    Gender:
    Male
    First Name:
    Chris
    SE PA
    Vehicle:
    99 4WD Xtra Cab
    Sleeping platform
    I am in the process of turning my 99 4WD Xtracab into a long term travel vehicle that I will be living out of. The reason? I want to explore North America and paddle my whitewater canoe all over, and need a vehicle that will get me to some crazy places with all the gear I'd need to live long term out of the truck.

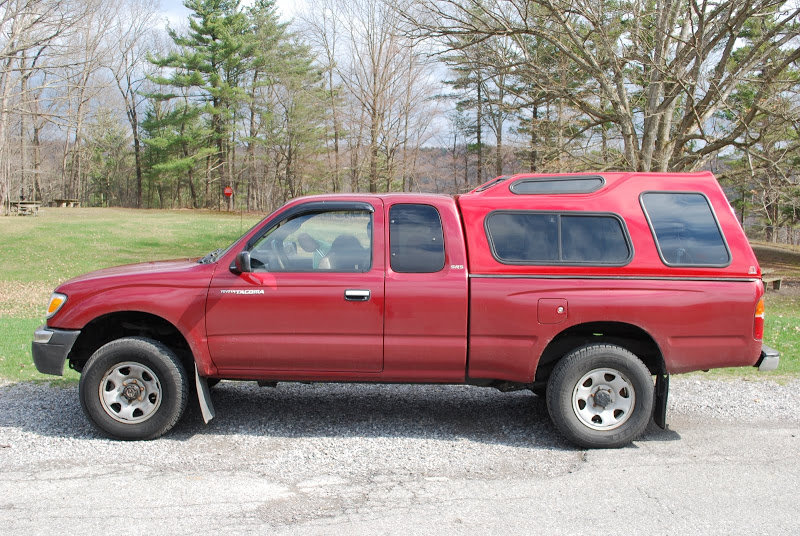

    Here's a pic after I bought a Leer 122 for 100 bucks. At that price, I didn't mind the slight color difference. Besides, this isn't going to be a show truck.
    [​IMG]
    Leafs are a bit saggy. Maybe when I have some spare cash I'll grab some.

    Anyways, I have a few mods planned, but the first I was able to work on was a sleeping platform. I decided to model it after Bajataco's. I'm going to have wet paddling gear and I needed a way to separate it from my sleeping area. So I put a 54" x 72" platform on top of a framework that went in between the wheels. Framework and plywood underneath was 39" inches wide.

    Pics:
    [​IMG]

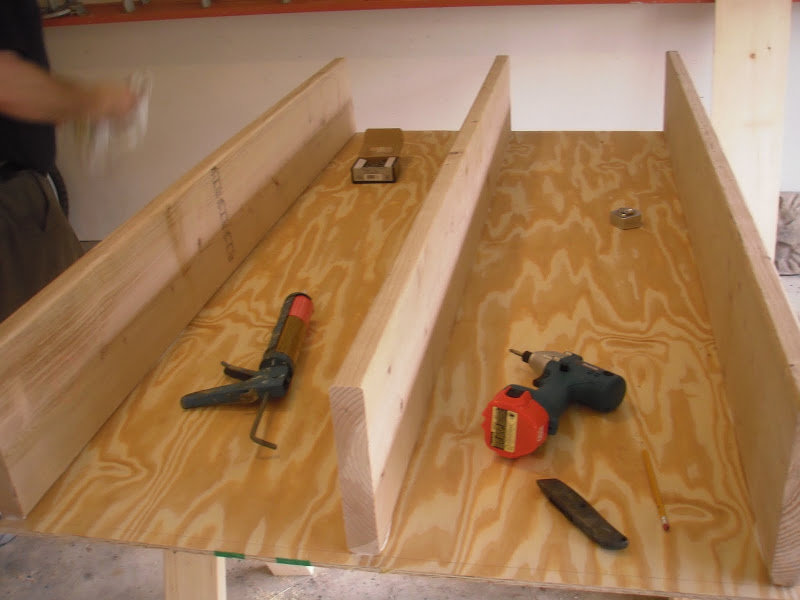

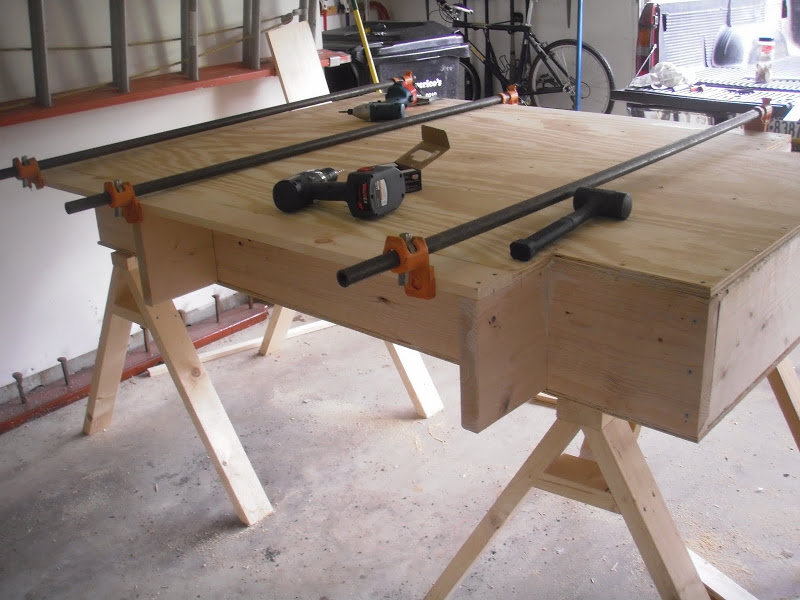

    Screwing in the framework to the bottom plywood

    Biscuit joining 3 inch pieces of wood to either side to make the top platform 54 inches wide
    [​IMG]

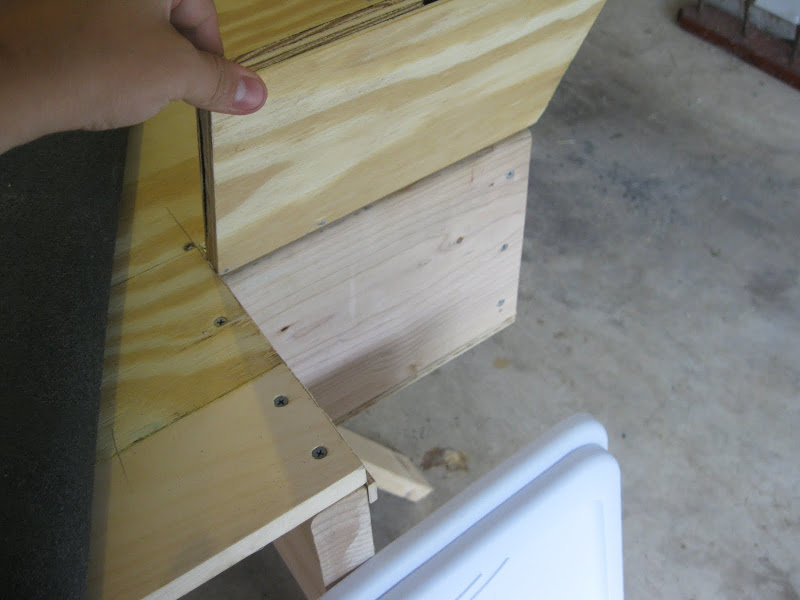

    Cut outs for doors that will provide access to the compartments behind the wheels

    Today I'm going to put all the doors and hinges on, and then carpet the top. One question I still have is should I take the bed liner out? Will I regret doing this in a month or a year?

    Anyways, thanks for looking, I'll have pics as I finish this up today.

    Part Two

    I finished for the platform for all intents and purposes. When the carpet adhesive dries, I'll drop it in.

    [​IMG]

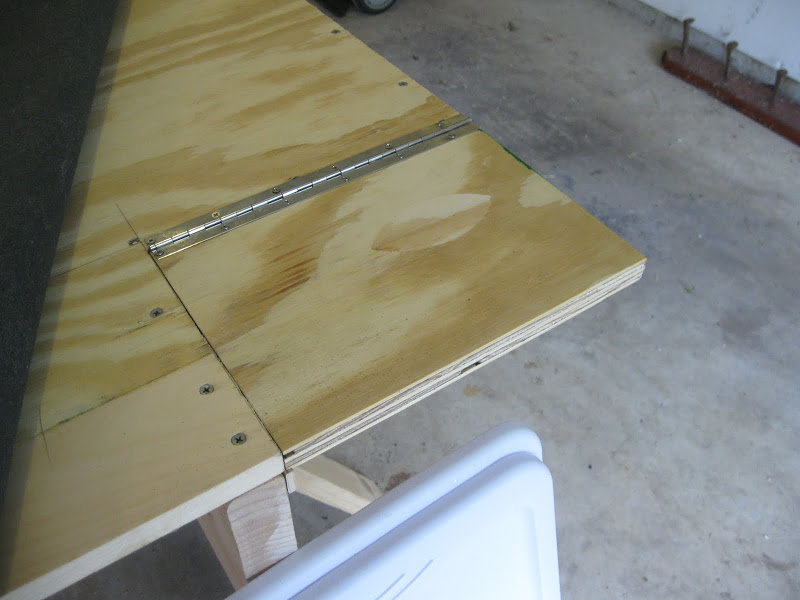

    The compartment doors with piano hinges.

    [​IMG]

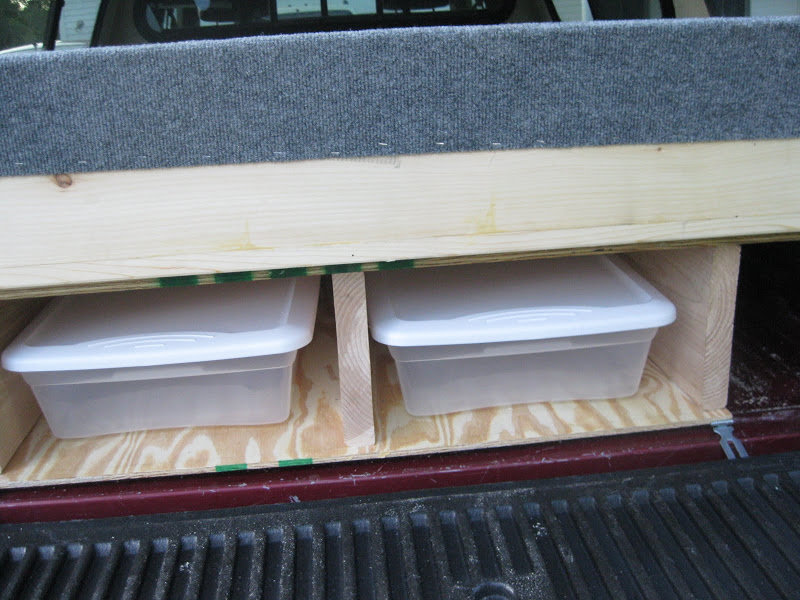

    The compartments are just large enough to hold the old Pelican case I have, which will nice to keep it out of sight.

    [​IMG]
    The front door. I used barn hinges to allow it to rotate all the way back.

    [​IMG]

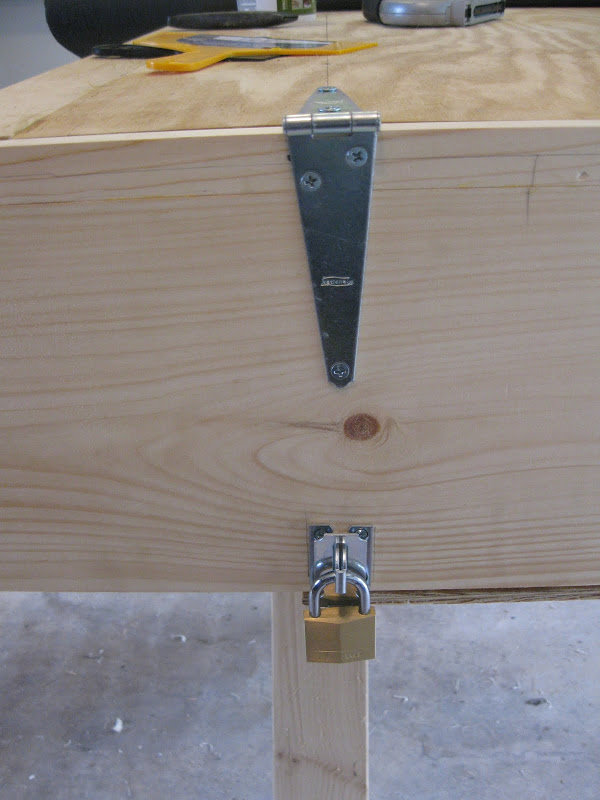

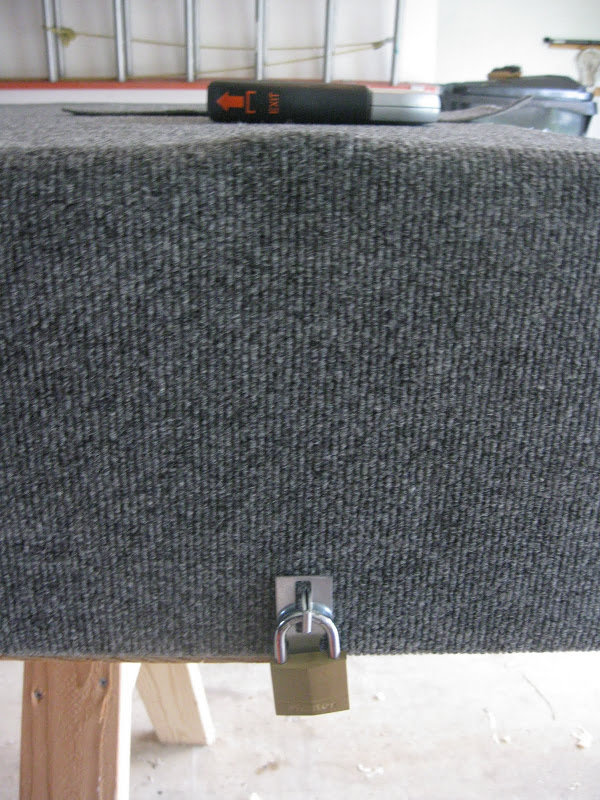

    The hasp and padlock for a bit of security

    [​IMG]

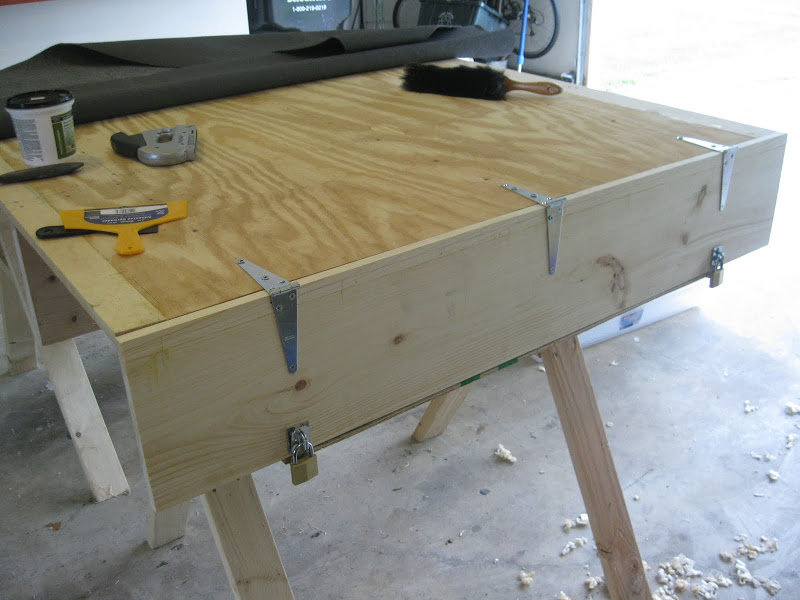

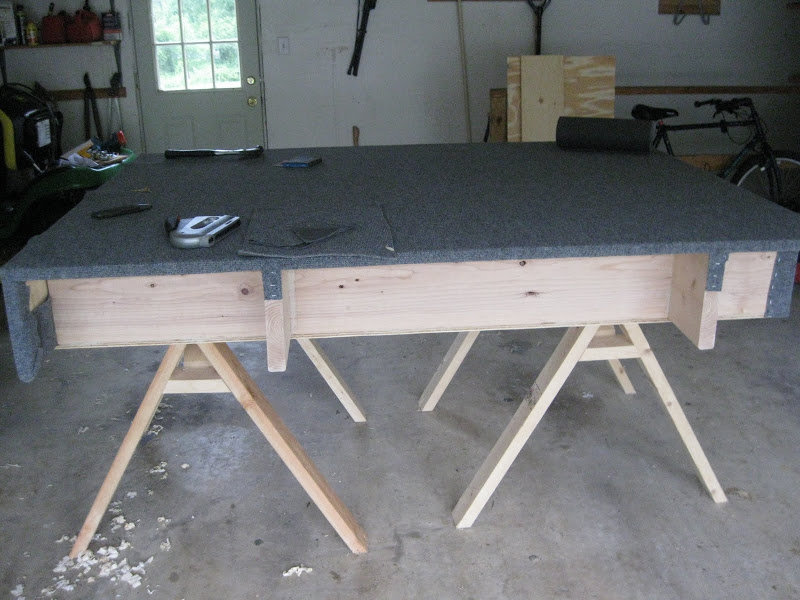

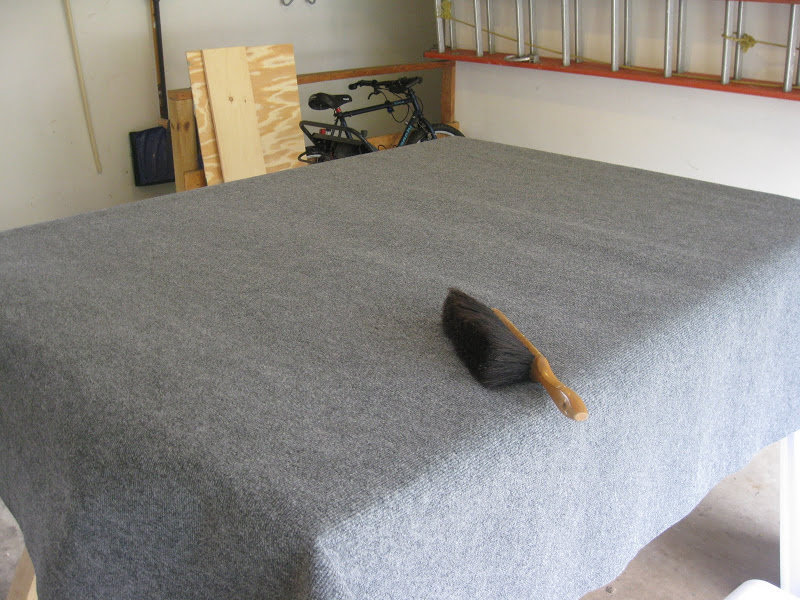

    Laying out the carpet

    [​IMG]
    I can't upholster worth a damn, but I was able to trim the carpet and make it look decent.

    [​IMG]

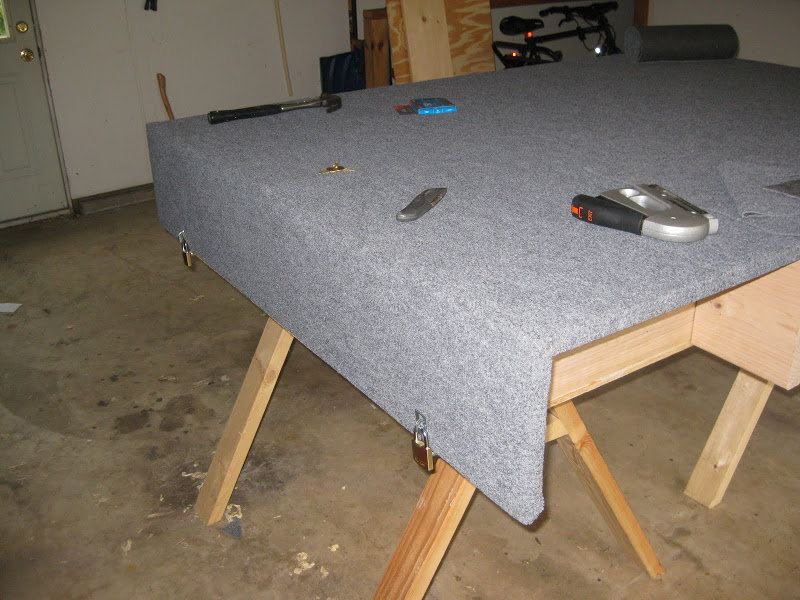

    The front. I carpeted over the hinges, leaving just the hasps showing.

    [​IMG]
    Close up. I haven't glued the carpet to the door, I've just trimmed and stapled it while I trim the edges to make a good fit. I haven't decided whether I should cut the carpet around the barrel of the hinge.

    So that's where it sits today. I still have to put it in, and I'm almost certain I'm taking the bed liner out, unless someone wants to talk me out of it. I'll have some more pictures on Wednesday when I'm able to put it in.

    Part Three

    I dropped it in this afternoon. It's heavier than hell, probably close to 150 pounds. In the end, considering damn near everything I own will be in the back of the truck, I like the added security.

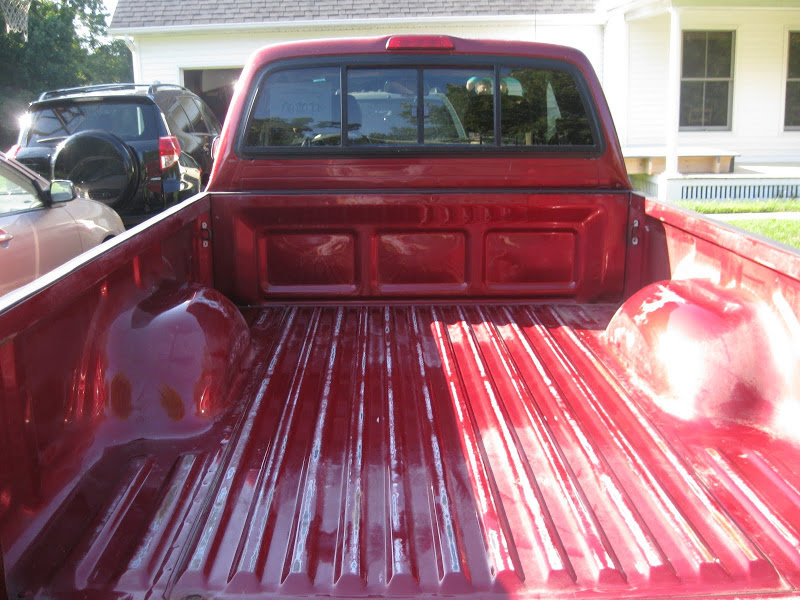

    The bed after I took the liner and cleaned it out with a little TSP. It was dirty beyond belief. I found a bunch of pencils and previous owner's shirt.

    [​IMG]

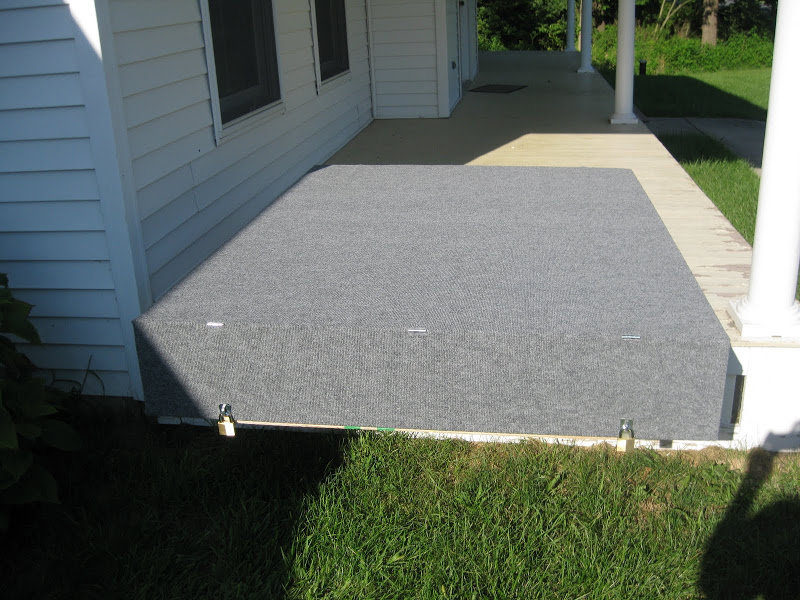

    Here was the completed platform with the door carpet cut and glued. I ended up cutting the carpet to allow the barrels of the hinges to poke through.

    [​IMG]

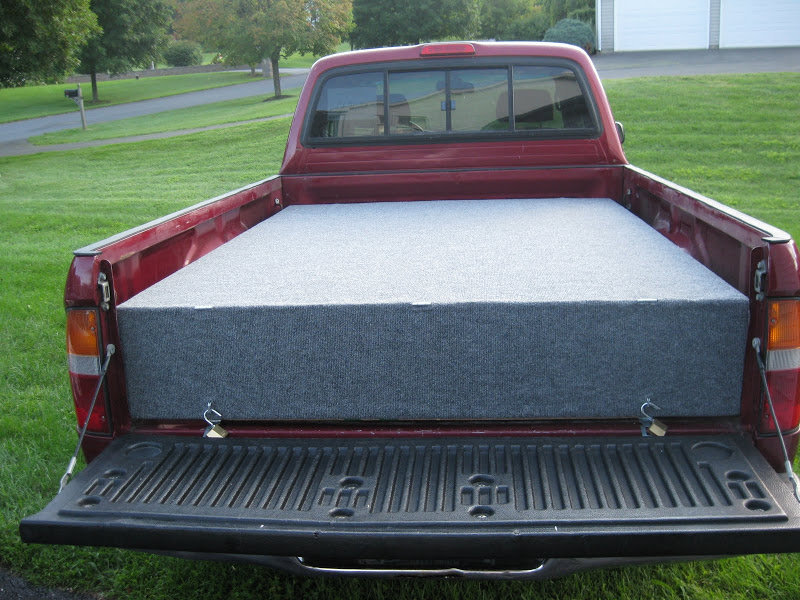

    Fits like a glove
    [​IMG]

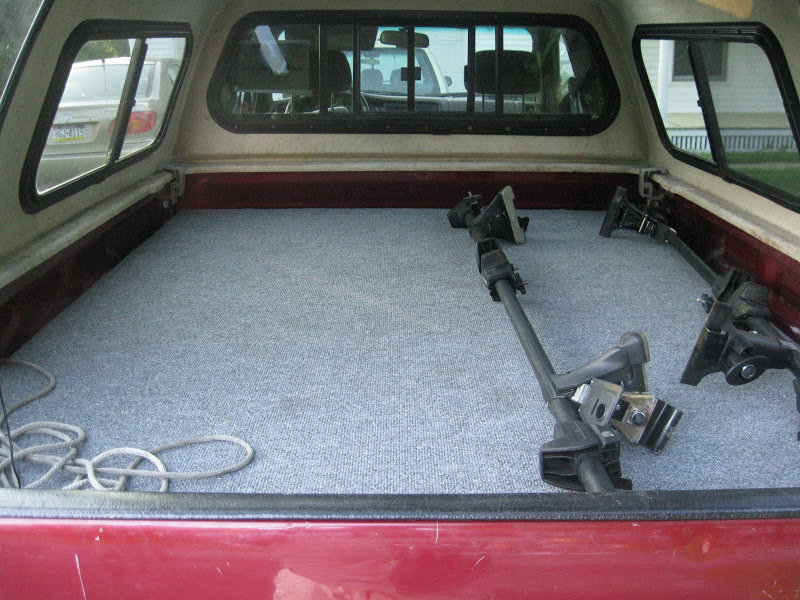

    With the cap back on and tailgate up, and my canoe racks on top. I put a layer of neoprene tape to help seal the cap, and I'll be gasketing and caulking as I go.
    [​IMG]

    With the door up.
    [​IMG]

    I'm taking it out to the Lower Yough this weekend for a test sleep. Also, I'll be putting the liner up for sale soon

    Chris

  2. Aug 14, 2011 at 6:58 AM
    #2
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,990
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Looks good! My only comment is you used 2x's for the framing and it's going to be heavier than hell! 1x's would have supported your weight and weighed less leaving you more for cargo. In the end, it's a truck, it'll handle it. Post up pics of your North American tour!

    Regarding the bed liner, my shell does let some water in when it rains so I would think having the bed liner wouldn't be a good idea since the water would be trapped. Yours may seal up better thouh.

  3. Aug 14, 2011 at 9:20 AM
    #3
    ChrisOC1

    ChrisOC1 [OP] Member

    Joined:
    Aug 13, 2011
    Member:
    #61643
    Messages:
    17
    Gender:
    Male
    First Name:
    Chris
    SE PA
    Vehicle:
    99 4WD Xtra Cab
    Sleeping platform
    It absolutely is heavier than hell, but I want it to last. I'm buying some gasket material to seal up the cap. The goal is to make it waterproof or as damn close as can be.

  4. Aug 14, 2011 at 11:23 AM
    #4
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,522
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
  5. Aug 14, 2011 at 11:25 AM
    #5
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,522
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    From that same guy I posted to above:

    http://www.bajataco.com/camper/camper_seal/index.htm (the link from the "click here")

    My impression of the ARE camper shell thus far is very positive. My biggest concern when I bought the shell was leaks. I initially had a problem with small leaks when I first installed the brackets for the roof rack, but I cured those by using some brand new rubber washers and ample amounts of RTV silicone on the bolts before they were passed through the holes and fastened. I also noticed a problem with the way water was channeled off of the rear window. This issue was addressed by using some tailgate gasket material. To see how I did this, click here. Overall, I am extremely happy with the quality of the shell. The paint color match is perfect. The front window is a slider window, that also has a hinge so that it can be opened from inside the camper. This flip-down window is perfect for cleaning the glass on the back of the truck cab, and cleaning the camper glass on the cab-side of the window. It seals tight with no leaks. The side windows also seal tight with no leaks. One thing I learned from experience is that a boot closure at the cab is not the way to go with the contoured body of the Toyota Tacoma. The boot I had on the last camper shell leaked really bad. I would only recommend getting a window at the front (and a flip-down at that). The ARE shell also has a nice "thickened" rectangular section in the ceiling that I believe is some kind of honeycomb construction, that provides strength and also allows you to mount fixtures to the ceiling (within reason - the screws cannot be very long) such as my halogen lamps.

  6. Aug 14, 2011 at 12:56 PM
    #6
    Norton

    Norton Senior TW Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    2,012
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    04 V6 5-Spd SR5 TRD 4x4
    TRD Supercharger; URD 7th Injector; Injen CAI w/Airaid SynthaMax Filter; Magnaflow Cat-back; Light Racing UCAs, Wheelers 5-Leafs; OME 881s; Bilstein 5100s; Goodridge SS Brake Lines; Goodyear Wrangler Duratracs on 4Runner Ltd 5-Spokes; MetalMiller TRD Skid; B.A.M.F BPV Bracket; Grey Wire, Fog Light, Power Outlet, Door Chime & DRL Mods; FUBAR Moto Bits LED Headlights; Interior, Under-hood, & Reverse LEDs; Kenwood KDC-X895 HU & KFC-C6893PS Spkrs, Sound Ordnance B-8PT Sub & Dynamat; Husky Floor Liners; UltraGauge EM; External Thermometer; Redline Tuning QuickLIFT Elite; Rhino Bed Liner; Toyota Bed Extender; SnugTop Super Sport; SolarGard Tint; CravenSpeed Stubby Antenna; Alarm w/Keyless Entry; Amsoil Lubricants; Adam's Detailing Supplies
  7. Aug 14, 2011 at 7:28 PM
    #7
    ChrisOC1

    ChrisOC1 [OP] Member

    Joined:
    Aug 13, 2011
    Member:
    #61643
    Messages:
    17
    Gender:
    Male
    First Name:
    Chris
    SE PA
    Vehicle:
    99 4WD Xtra Cab
    Sleeping platform
    That's what I modeled mine off of, and I'll be using the same gasket material.

    I actually designed my platform to be 54" x 72" which is the same width as a full mattress. Conveniently for me, the company I work for makes memory foam toppers.

  8. Aug 14, 2011 at 7:43 PM
    #8
    IDtrucks

    IDtrucks Just out for a rip are ya bud?

    Joined:
    Jun 2, 2010
    Member:
    #38254
    Messages:
    20,001
    Gender:
    Male
    First Name:
    Mark
    Boise ID
    Vehicle:
    96' X-Cab 4x4 TRD Off Road Clusterfuck
    JVC Deck, 10" sub mountd in rear seat cubby, 2 LED off road lights mounted in grille, amber raptor style grille lights, LED rock lights, square led bed light, custom made fuse block tray, 12 blade Blue Sea fuse block, 100a marine circuit breaker, black plasti dipped full grille, tinted tail lights + third, Uniden 520 with 4' firestik, Bilstein 5100s with 620lb Eibach coils, Diff drop, Chevy 63 leaf swap, TG creeper joints, 14" triangulated biletein 5125s, 8" extended steel braided brake line, TG Rock Sliders, CBI Moab 1.0 front bumper, custom fabbed bed rack, full TRD E-Locker axle swap and matching re-gear with custom stand alone wiring circuit, 29 spline pinion flange from an 06 wishbone runner, tubbed for 35x12.5" general grabbers on Ultra type 181 wheels, crush sleeve eliminator, Mini ARB compressor, front ARB locker, garage fab aluminum front skid plate, custom built high clearence rear bumper, removable mothafuckin doors
    That is an awesome build! The little hidden compartments with opening doors looks amazing! Op it looks like yours is commin along nicley. Cant wait to see the finished project.

    Question for all of these sleeping platform people, do you guys store more stuff ontop of the platform while driving and remove it at night and leave it outside to sleep? I would assume so seeing how you are going on extended trips, it looks like you would need more gear than fits in the cubby holes

  9. Aug 14, 2011 at 7:50 PM
    #9
    ChrisOC1

    ChrisOC1 [OP] Member

    Joined:
    Aug 13, 2011
    Member:
    #61643
    Messages:
    17
    Gender:
    Male
    First Name:
    Chris
    SE PA
    Vehicle:
    99 4WD Xtra Cab
    Sleeping platform
    I finished for the platform for all intents and purposes. When the carpet adhesive dries, I'll drop it in.

    [pics now at the top]

  10. Aug 14, 2011 at 9:57 PM
    #10
    Digiratus

    Digiratus Adventurer/KG7VFU

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    10,857
    Gender:
    Male
    First Name:
    Mike
    the Pacific Northwest, Exploring
    Vehicle:
    The RedHead
    King ET Coilovers Camburg Uniball UCAs Alcan 8-Leaf Rear Spring Packs Fox 2.0 Resi Rear Shocks FrankenFab Rear Shock Relocate Trail Gear U-bolt Flip Toytec 1" Extended Shackle 4.88 Nitro Gears ARB Front Locker OBA ARB Twin Comp 15x8 D Window Steelies 33" BFG KM2s Limited Edition Elite Front Bumper Smittybilt X2O 10K Winch PIAA 510 SMR Fog Lights Lightforce 170s Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Optima Yellow Top battery Magnaflow 18" Muffler Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Very Nice!

  11. Aug 15, 2011 at 2:41 AM
    #11
    hulkit

    hulkit Well-Known Member

    Joined:
    Nov 20, 2010
    Member:
    #46490
    Messages:
    73
    Gender:
    Male
    sacramento ca
    Vehicle:
    2000 tacoma 2.4l automatic
    such a great idea would love to go and do the same kinda thing with my truck drive around north america only problems i see 1 my trucks 2wd 2 not a double cab for the little extra room and 3 my leer isnt as awsomely high as yours

    im only 26 so im sure later on in my life this will be a great project and great knowledgable page for me

    anyways your build looks awsome keep us updated

  12. Aug 15, 2011 at 3:54 AM
    #12
    SoftShellTaco

    SoftShellTaco Well-Known Member

    Joined:
    Jun 5, 2011
    Member:
    #57772
    Messages:
    228
    Gender:
    Male
    First Name:
    Justin
    Goldsberry, NC
    Vehicle:
    SR5
    Looks awesome man, I will be doing the same type of platform here in a few weeks. I have a different approach but it will be close to this.

  13. Aug 15, 2011 at 4:16 AM
    #13
    brettb

    brettb Well-Known Member

    Joined:
    Nov 27, 2009
    Member:
    #26587
    Messages:
    1,527
    Gender:
    Male
    First Name:
    Brett
    Laramie, Wyoming
    Vehicle:
    '99 Tacoma TRD Offroad sr5
    3" fabtech fox front, 2.5" DAKAR/Bilstein 5100 rear
    Ive always been wanting to do this! But im Going to try to add another battery as well as a inverter so I can plug in 120v plugs such as my phone charger.

  14. Aug 15, 2011 at 10:26 AM
    #14
    JaSkynyrd

    JaSkynyrd Ron F. Swanson

    Joined:
    May 26, 2011
    Member:
    #57269
    Messages:
    486
    Gender:
    Male
    Chattanooga, TN
    Vehicle:
    2001 XtraCab 4x4 V6 SR5
    That's really neat and I'm going to be jealous of your travels...does that cap have an interior light you can switch on and off from the bed? That would be super handy if you could make that happen.

  15. Aug 15, 2011 at 10:32 AM
    #15
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,522
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Chris-

    That's really coming out nicely.

    (that's what she said)

    Can't wait to see the final product

  16. Aug 15, 2011 at 7:49 PM
    #16
    ChrisOC1

    ChrisOC1 [OP] Member

    Joined:
    Aug 13, 2011
    Member:
    #61643
    Messages:
    17
    Gender:
    Male
    First Name:
    Chris
    SE PA
    Vehicle:
    99 4WD Xtra Cab
    Sleeping platform
    Thanks for the comments guys, I really appreciate it.

    I don't have interior lights yet, but I will soon. I'm also planning to put a battery in at some point, but I'm considering putting in a solar panel to power it. Just a thought now, but it would be nice to run some kind of heating pad in the winter and a fan in the summer.

    Wednesday or Thursday, I should have the liner out and the platform in.

  17. Aug 15, 2011 at 10:53 PM
    #17
    hulkit

    hulkit Well-Known Member

    Joined:
    Nov 20, 2010
    Member:
    #46490
    Messages:
    73
    Gender:
    Male
    sacramento ca
    Vehicle:
    2000 tacoma 2.4l automatic
    would be baller to have under a roof rack some solar panel connected to second battery or so im actually learning how to DIY my own solar cells since they are becoming alot cheaper

    something that could be connected to the campershell and moved around to sun when parked or whatever

    ahh the possibilities of a mobile tacoma heh

  18. Aug 16, 2011 at 7:36 AM
    #18
    derekp

    derekp giddy up!

    Joined:
    May 16, 2009
    Member:
    #17281
    Messages:
    439
    Gender:
    Male
    First Name:
    Derek
    Grand Forks, ND
    Vehicle:
    2001 X-Cab 4x4 TRD V6 5Spd
    Deck plate, Flowmaster Delta-Flow 40 series, 265/75-16 Wrangler TDs, more to come...
    That looks great! I have been wanting to build one for a while as well. I'd like to get a plastic bed liner to put in so the cargo boxes slide in nice and easy. The upholstery job looks great in the pics. I like the covered hinges, not sure how they will hold up to wear and tear.
    The solar panel running a second battery is a neat idea. I'd like to know how y'all go about that. I'm not sure how many panels/etc you'd need to charge a car battery in a day. Someone had a write up on using the alternator to charge the second battery (second battery stored in the bed) and it was a clean install.
    Are the padlocks necessary if the camper is locked?

  19. Aug 16, 2011 at 8:12 AM
    #19
    tacomazach

    tacomazach Well-Known Member

    Joined:
    Jul 31, 2010
    Member:
    #41045
    Messages:
    715
    Gender:
    Male
    First Name:
    Zach
    Mississippi
    Vehicle:
    02 doublecab 4x4

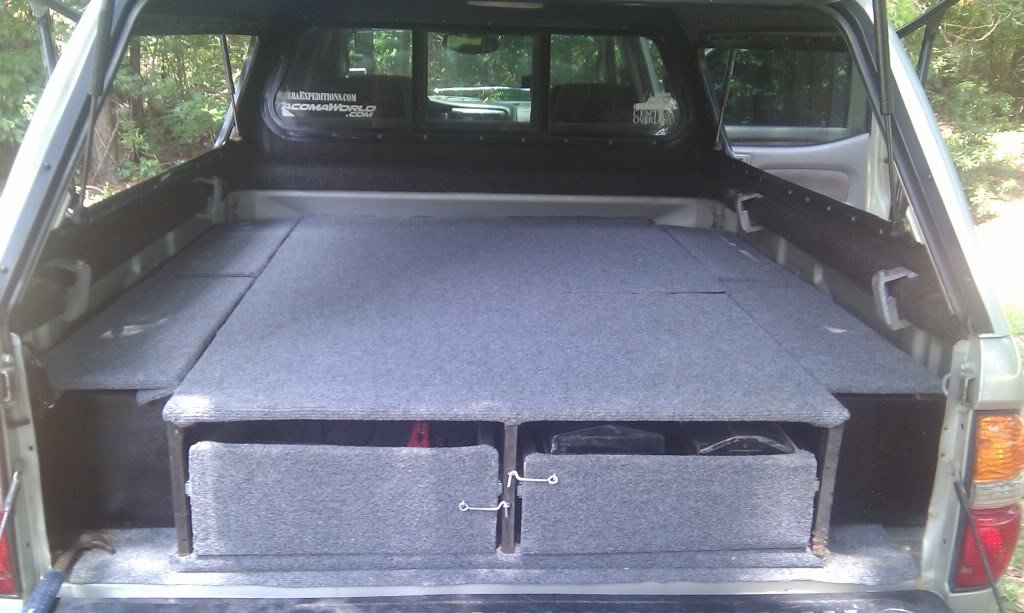

    Looks great man. I love mine. It comes in extremely handy. I built mine with drawers up front and compartments in the back and sides.

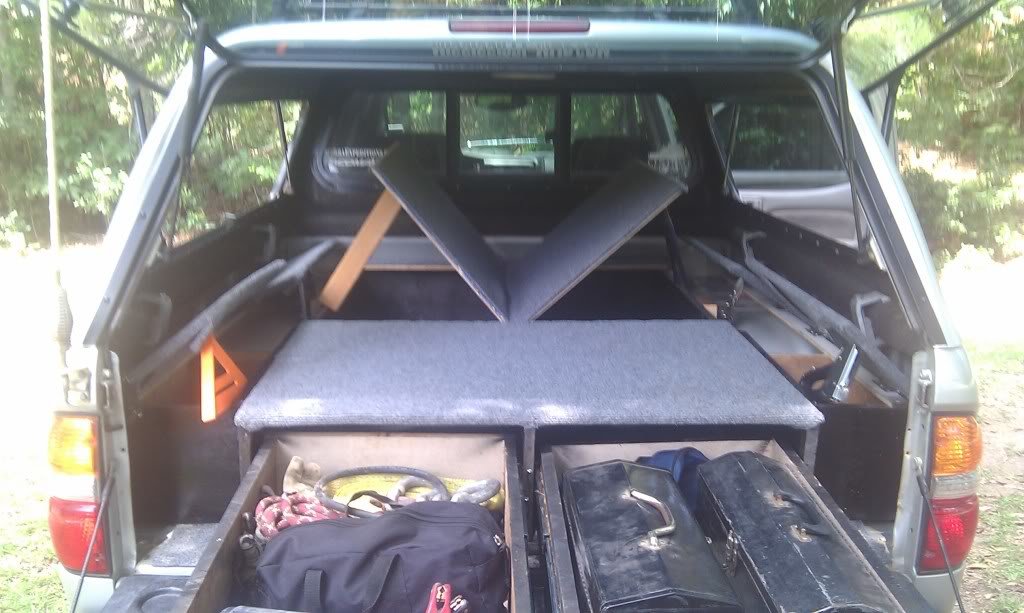

    [​IMG]
    [​IMG]

  20. Aug 17, 2011 at 6:28 PM
    #20
    ChrisOC1

    ChrisOC1 [OP] Member

    Joined:
    Aug 13, 2011
    Member:
    #61643
    Messages:
    17
    Gender:
    Male
    First Name:
    Chris
    SE PA
    Vehicle:
    99 4WD Xtra Cab
    Sleeping platform
    Looks awesome Tacomazach!

    I dropped it in this afternoon. It's heavier than hell, probably close to 150 pounds. In the end, considering damn near everything I own will be in the back of the truck, I like the added security.

    The bed after I took the liner and cleaned it out with a little TSP. It was dirty beyond belief. I found a bunch of pencils and previous owner's shirt.

    [​IMG]

    Here was the completed platform with the door carpet cut and glued. I ended up cutting the carpet to allow the barrels of the hinges to poke through.

    [​IMG]
    Fits like a glove
    [​IMG]

    With the cap back on and tailgate up, and my canoe racks on top. I put a layer of neoprene tape to help seal the cap, and I'll be gasketing and caulking as I go.
    [​IMG]

    With the door up.
    [​IMG]

    I'm taking it out to the Lower Yough this weekend for a test sleep. Also, I'll be putting the liner up for sale soon

    Chris
