Slodgetto's Green Dragon 4x4 Conversion Build

Discussion in '1st Gen. Builds' started by Slodgetto, Mar 29, 2012.

  1. Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,234
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    Yeah I have thought about sc, but don't think I will ever do that. For the cost I think I would benefit from the 4wd more

  2. jesus

    jesus Well-Known Member

    Joined:
    Oct 31, 2009
    Member:
    #25236
    Messages:
    928
    Gender:
    Male
    First Name:
    jesus
    bakersfield
    Vehicle:
    02
    K&N ram intake & doug exs.
    Ok so my question which I'm hopping som can answer is.... if I have an 02 & the donor truck is an 01 ....everything should just be drop and rebolt on ... right...?????

  3. Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    49,595
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,

    Idk..a SC in a prerunner LT truck..bad ass. Be much lighter and supa fast :p haha

    Plus you could Link out back..then custom up front for like 16'' or more travel with no front diff..

  4. Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,234
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    Oh damn you :mad::p

  5. Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    49,595
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    :D :D :D


    just here to help :p haha

  6. Slodgetto

    Slodgetto [OP] Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,328
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.
    Yes. If the engines and transmissions are the same, it should all bolt up. You also have to look at whether or not both trucks have ABS, and wheelbase for the correct rear driveshaft. (Double cabs and ext cabs are the same, but reg cabs are different.)

  7. BradyT88

    BradyT88 Skinkwerks Rockware & Fabrication!!

    Joined:
    Nov 3, 2011
    Member:
    #66419
    Messages:
    34,503
    Gender:
    Male
    Idaho
    Vehicle:
    Rock Damage
    Skinkwerks armor and a lot of other stuff!
    It may be a little different since they are older, but at least on the newer automatic Toyota transmissions (not just Tacomas) the E is the 2wd tranny and the F is the 4wd tranny. ie A750E and A750F. They are identical trannies except for one thing. The A750E is setup to connect a driveshaft to the rear of it. The A750F is setup to connect a Tcase to the rear of it.

  8. jesus

    jesus Well-Known Member

    Joined:
    Oct 31, 2009
    Member:
    #25236
    Messages:
    928
    Gender:
    Male
    First Name:
    jesus
    bakersfield
    Vehicle:
    02
    K&N ram intake & doug exs.
    Yea I lucked out its the same truck but a year older ... I think it may have even been a trd like mine...sweet so all I need then is the mhubs & I'm set.....do ya know if it be easy to the electric or vacuums if I have everything. ..

  9. jesus

    jesus Well-Known Member

    Joined:
    Oct 31, 2009
    Member:
    #25236
    Messages:
    928
    Gender:
    Male
    First Name:
    jesus
    bakersfield
    Vehicle:
    02
    K&N ram intake & doug exs.
    Well my truck is sold as 2002 but was may nov I think of 2001....

  10. BradyT88

    BradyT88 Skinkwerks Rockware & Fabrication!!

    Joined:
    Nov 3, 2011
    Member:
    #66419
    Messages:
    34,503
    Gender:
    Male
    Idaho
    Vehicle:
    Rock Damage
    Skinkwerks armor and a lot of other stuff!
    I just checked out wikipedia and interestingly enough all of the 4wd vehicles that use the A340 tranny use the F version except the Tacoma. All of 2wd versions of those vehicles (4runner, Tundra, T-100, pickup) use the E version and it says the 4wd Tacoma uses the E version as well. I wonder how that works. haha

  11. IDtrucks

    IDtrucks Just out for a rip are ya bud?

    Joined:
    Jun 2, 2010
    Member:
    #38254
    Messages:
    19,917
    Gender:
    Male
    First Name:
    Mark
    Boise ID
    Vehicle:
    96' X-Cab 4x4 TRD Off Road
    JVC Deck, 10" sub mountd in rear seat cubby, 2 LED off road lights mounted in grille, amber raptor style grille lights, LED rock lights, square led bed light, custom made fuse block tray, 12 blade Blue Sea fuse block, 100a marine circuit breaker, black plasti dipped full grille, tinted tail lights + third, Uniden 520 with 4' firestik, Bilstein 5100s with 620lb Eibach coils, Diff drop, Chevy 63 leaf swap, TG creeper joints, 14" triangulated biletein 5125s, 8" extended steel braided brake line, TG Rock Sliders, CBI Moab 1.0 front bumper, custom fabbed bed rack, full TRD E-Locker axle swap and matching re-gear with custom stand alone wiring circuit, tubbed for 35x12.5" general grabbers on Ultra type 181 wheels, crush sleeve eliminator, removable mothafuckin doors
    sell this pile yet


    :D :D :D

  12. bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    4,523
    Gender:
    Male
    Currituck NC
    Vehicle:
    00 4WD Prerunner
    4wd uses A340F got mine off of a 4runner

  13. BradyT88

    BradyT88 Skinkwerks Rockware & Fabrication!!

    Joined:
    Nov 3, 2011
    Member:
    #66419
    Messages:
    34,503
    Gender:
    Male
    Idaho
    Vehicle:
    Rock Damage
    Skinkwerks armor and a lot of other stuff!
    Yeah, it says the 4wd 4runner uses the A340F. Says the 4wd Taco uses the A340E, although I wouldn't be surprised if that is wrong. haha Plus this is enough proof for me to say play it safe and get the A340F.

  14. Slodgetto

    Slodgetto [OP] Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,328
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.
    You may be right... I always thought my 4x4 transmission was an A340E like my PreRunner trans because the ID tag on the side says "30-40LE." I'm now thinking this is actually the AISIN code and is the same on A340E and A340Fs, whereas the Toyota code is the A340E or F (E being the 2wd version and F being the 4wd version.) After all, the only differences between the two transmissions is the tail housing, the output shaft and the location of the speedo sensor. And the 03/04 versions have the fly-by-wire speedo sensors...

    I think the grimmjeeper gear calculator threw me off since it lists the A340Es as used in 98-01 tacomas and the A340Fs as used in 02-present....... (lol) Pretty sure that's incorrect :anonymous: I wish I had a copy of the FSM to see if I can get more clarification on this.

    Nice, man. All you need is manual hubs? Did the donor truck have manual hubs? Just a heads up, but if the donor truck does not have manual hubs, you will also have to source some different spindles, and CV axles. And you won't need the electric/vacuum solenoids for the ADD (auto differential disconnect) actuator.

    EDIT: Just remembered your donor truck is an 01, so that means it definitely doesn't have manual hubs. If you want them you will need to find some spindles that came off a 95.5-00 Tacoma that had manual hubs (these spindles have 6 extra little studs to mount the manual hub body) and some CV axles meant for manual hubs (the outer stub shaft is different than the ADD version--splined all the way vs. threaded end). Ideally, you want to find a diff half tube without an ADD actuator as well (since it's not needed and just more little parts to deal with) but the ADD half tube off the donor truck will work with a simple hose clamp conversion to lock the actuator shifting fork in 'lock' position. :)

    Last edited: Apr 19, 2013
  15. Slodgetto

    Slodgetto [OP] Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,328
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.

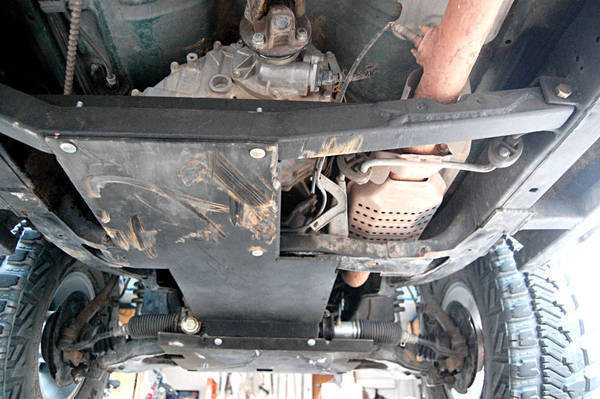

    Welp, the skid plates pass inspection! :woot:

    [​IMG]

  16. IDtrucks

    IDtrucks Just out for a rip are ya bud?

    Joined:
    Jun 2, 2010
    Member:
    #38254
    Messages:
    19,917
    Gender:
    Male
    First Name:
    Mark
    Boise ID
    Vehicle:
    96' X-Cab 4x4 TRD Off Road
    JVC Deck, 10" sub mountd in rear seat cubby, 2 LED off road lights mounted in grille, amber raptor style grille lights, LED rock lights, square led bed light, custom made fuse block tray, 12 blade Blue Sea fuse block, 100a marine circuit breaker, black plasti dipped full grille, tinted tail lights + third, Uniden 520 with 4' firestik, Bilstein 5100s with 620lb Eibach coils, Diff drop, Chevy 63 leaf swap, TG creeper joints, 14" triangulated biletein 5125s, 8" extended steel braided brake line, TG Rock Sliders, CBI Moab 1.0 front bumper, custom fabbed bed rack, full TRD E-Locker axle swap and matching re-gear with custom stand alone wiring circuit, tubbed for 35x12.5" general grabbers on Ultra type 181 wheels, crush sleeve eliminator, removable mothafuckin doors
    Silas, when you sell this pig promise us that in the near future when you get back into 4x4 land you buy another taco (preferably for cheap) and just jump right to building a solid axle crawler?

  17. Slodgetto

    Slodgetto [OP] Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,328
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.
    That's the plan!! :) Maybe even find a taco with a blown engine for a few hundred bucks, and do an ls conversion at the same time.

  18. Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    49,595
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    At this rate..no one will buy this thing for the price he want...so I'm thinking the dragon is just gonna get sac...

  19. IDtrucks

    IDtrucks Just out for a rip are ya bud?

    Joined:
    Jun 2, 2010
    Member:
    #38254
    Messages:
    19,917
    Gender:
    Male
    First Name:
    Mark
    Boise ID
    Vehicle:
    96' X-Cab 4x4 TRD Off Road
    JVC Deck, 10" sub mountd in rear seat cubby, 2 LED off road lights mounted in grille, amber raptor style grille lights, LED rock lights, square led bed light, custom made fuse block tray, 12 blade Blue Sea fuse block, 100a marine circuit breaker, black plasti dipped full grille, tinted tail lights + third, Uniden 520 with 4' firestik, Bilstein 5100s with 620lb Eibach coils, Diff drop, Chevy 63 leaf swap, TG creeper joints, 14" triangulated biletein 5125s, 8" extended steel braided brake line, TG Rock Sliders, CBI Moab 1.0 front bumper, custom fabbed bed rack, full TRD E-Locker axle swap and matching re-gear with custom stand alone wiring circuit, tubbed for 35x12.5" general grabbers on Ultra type 181 wheels, crush sleeve eliminator, removable mothafuckin doors
    an ls swap...shoot for the moon right? might as well!
    good

  20. Slodgetto

    Slodgetto [OP] Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,328
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.

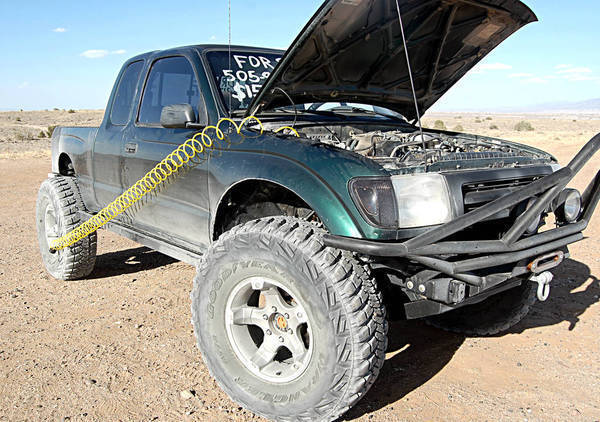

    Yeah price is too high, will be lowering within the week.. I was mostly just trying to gauge interest. So far, only got one offer for a trade. Can you guys see me driving around a blue 2003 Infiniti g35 with chrome wheels? :laugh: Twas a sweet car, but not for me...
