SMKYTXN'S 2011 DCFBFTMFW Solid Axle Swap

Discussion in 'Solid Axle Suspension' started by SMKYTXN, Jun 18, 2017.

  1. Jun 18, 2017 at 3:05 PM
    #1
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,665
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

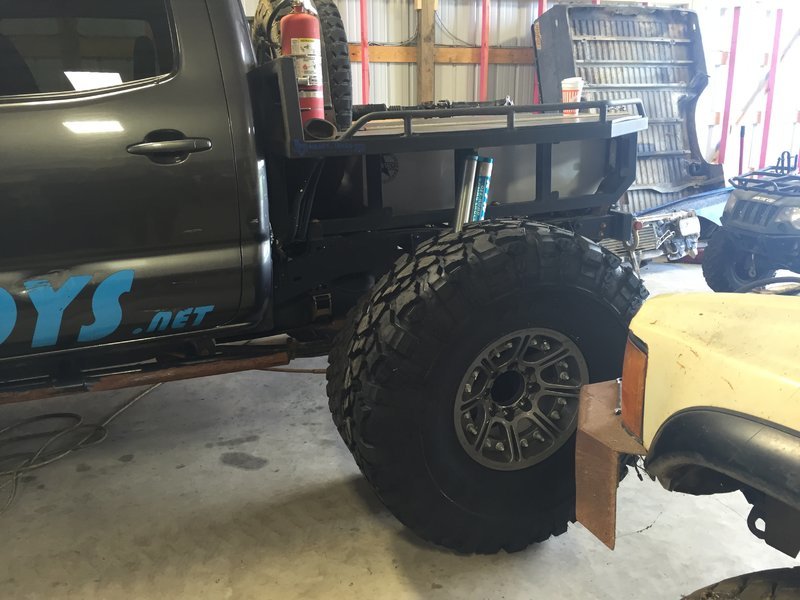

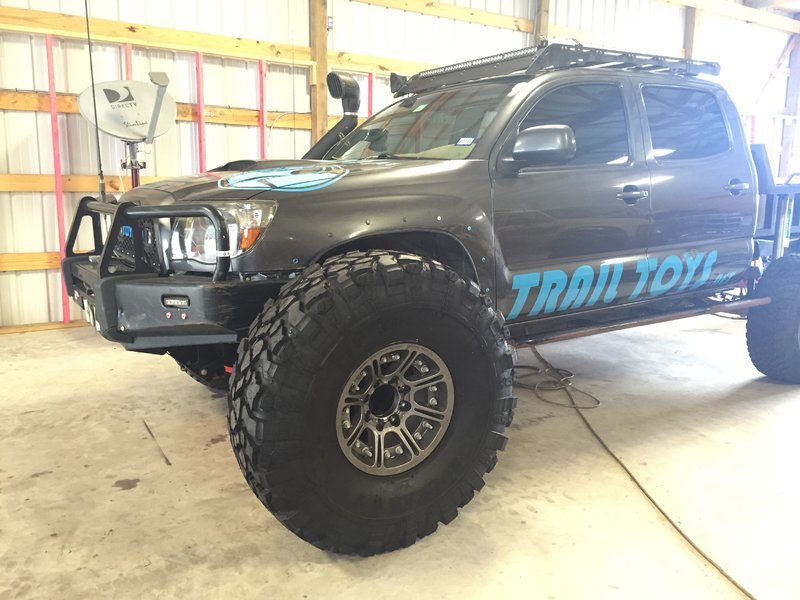

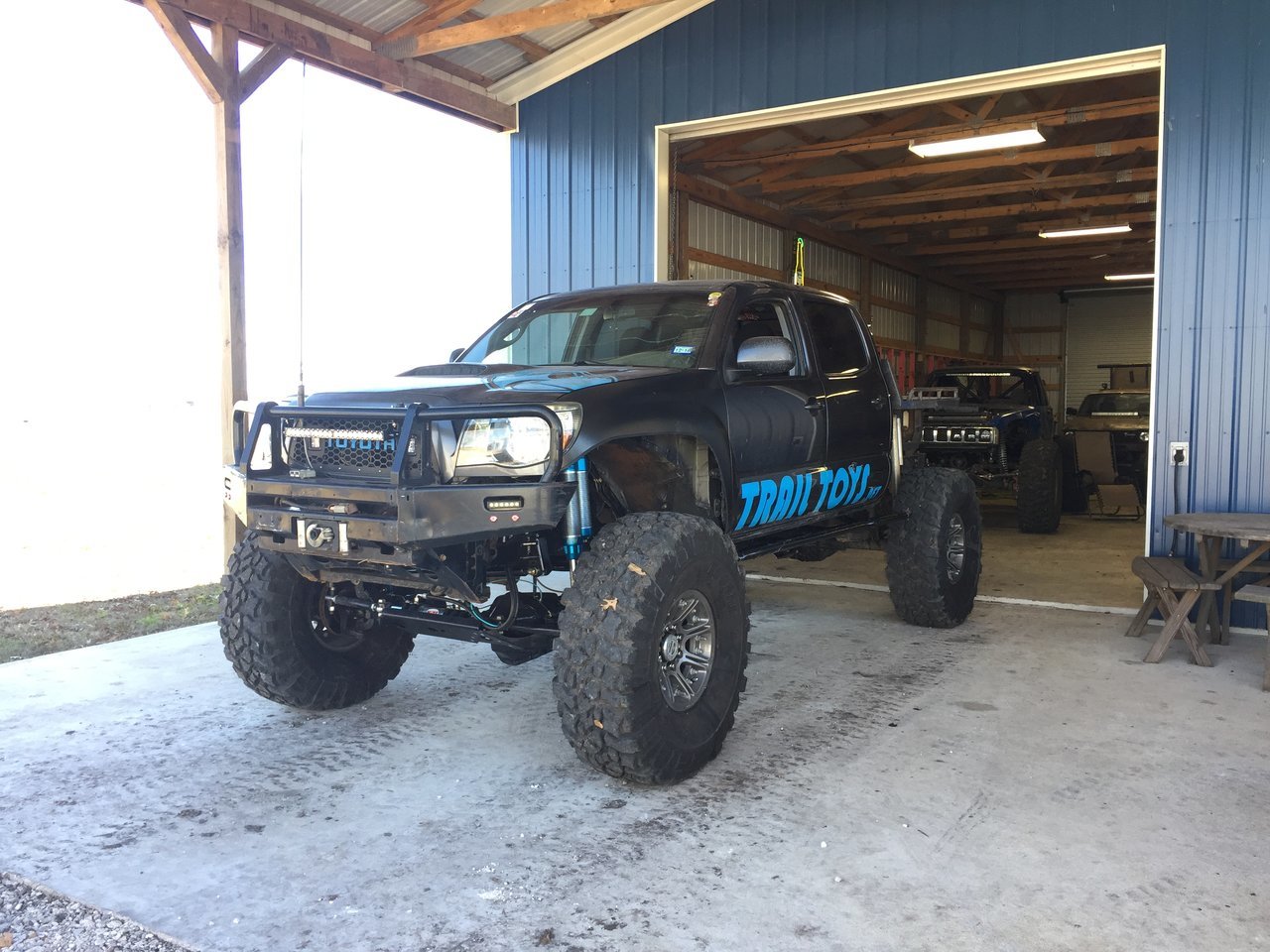

    DONE....ish

    [​IMG]

    [​IMG]


    [​IMG]

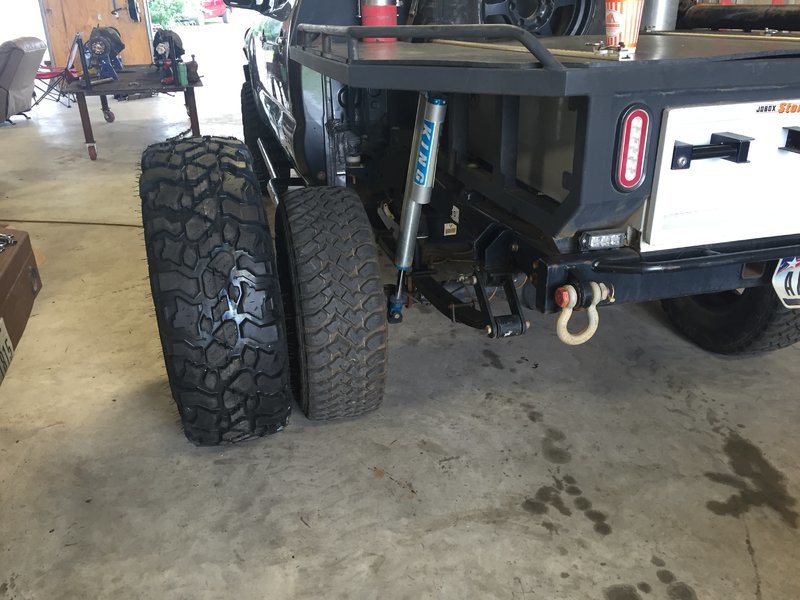

    2017-06-18 09.56.51.jpg

    2017-06-18 09.57.01.jpg

    2017-06-18 09.56.18.jpg

    Last edited: Jan 26, 2018
    FishnTx, Biscuits, MellyMel and 35 others like this.
  2. Jun 18, 2017 at 3:05 PM
    #2
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,665
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    I figure I'll start this off with the parts list. You don't realize just how much crap goes into this swap until you start keeping track of the orders.

    Front Axle

    1994 Ford Dana 60

    ARB RD167
    RuffStuff D60 Diff cover
    Knuckle machining and high steer arms - Four Wheel Supply
    5.38 gears - Yukon
    Install Kit - Yukon
    Yukon Hardcore hubs
    Artec Ram Mount
    Chromoly axles - USA Standard 35 spline, spicer ujoints
    Drive Flange - High angle driveline
    Three link brackets - Rock Solid Toys
    Lugnut4x4 3/4ton disc brake kit

    Rear Axle

    2000 GM Express Van 3500 14 Bolt
    ARB RD115
    14Bolt Pinion Guard - Ruffstuff
    +2 Perch Kit - Ruffstuff
    Side mount lower shock mount - Ruffstuff
    Disc brake swap - Lugnut
    5.38 gears - Yukon
    Master Install Kit - Yukon
    Shave kit - Barnes4wd
    Drive Flange - High Angle driveline

    All the other goodies

    Tire Beads - 15oz per tire
    Traction bar kit - Ruffstuff
    Internal Roll Cage - 4xinnovations
    ORI's - 14", blue anodized, integral reservoir
    Hutchinson Dual Beadlocks
    Pitbull Rocker Radials - 41.5x13.5x17

    Miscellaneous

    Lug Nuts - ET Ultra Tapered 60
    Upper and lower ball joints
    Delrin spindle bushings
    Shock mounts, spacers, etc.

    Last edited: Jun 18, 2017
  3. Jun 18, 2017 at 3:05 PM
    #3
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,665
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

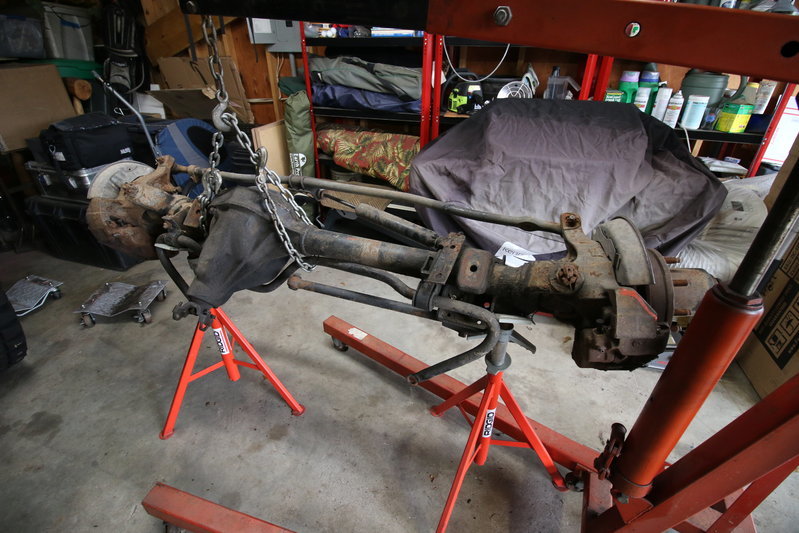

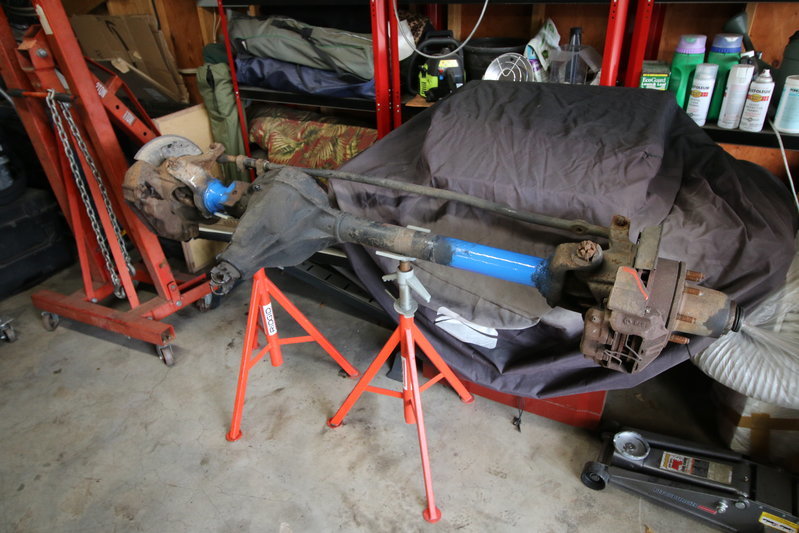

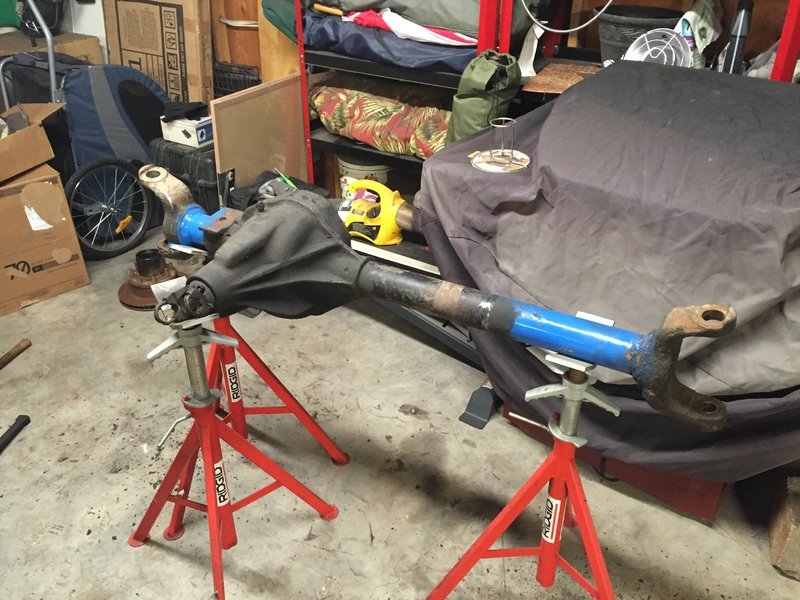

    94 Dan 60. This one still needs to head to the sand blaster.

    Pulled the knuckles. The plan is for full hydro, so I need hi-steer arms. The fun part of every ball joint knuckle is that there isn't provisions for the arm, so off to the machine shop they went.

    2017-05-24 21.31.59.jpg

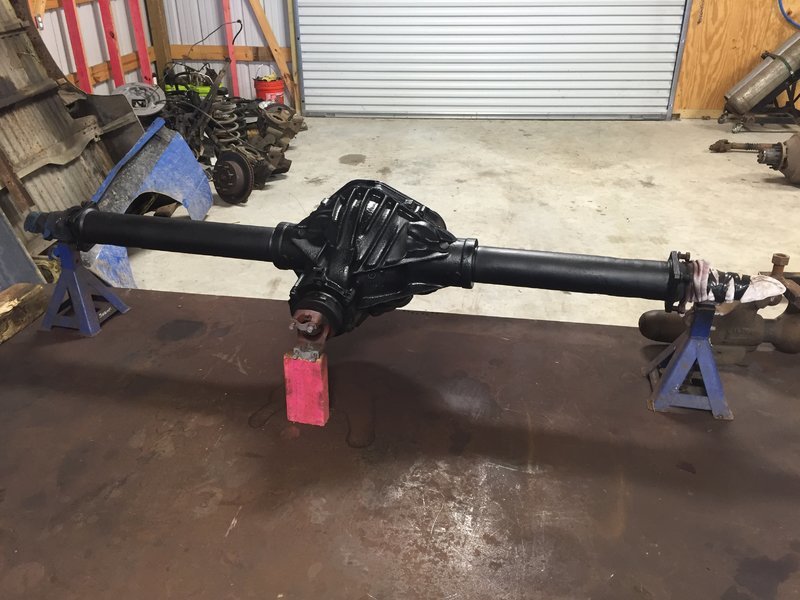

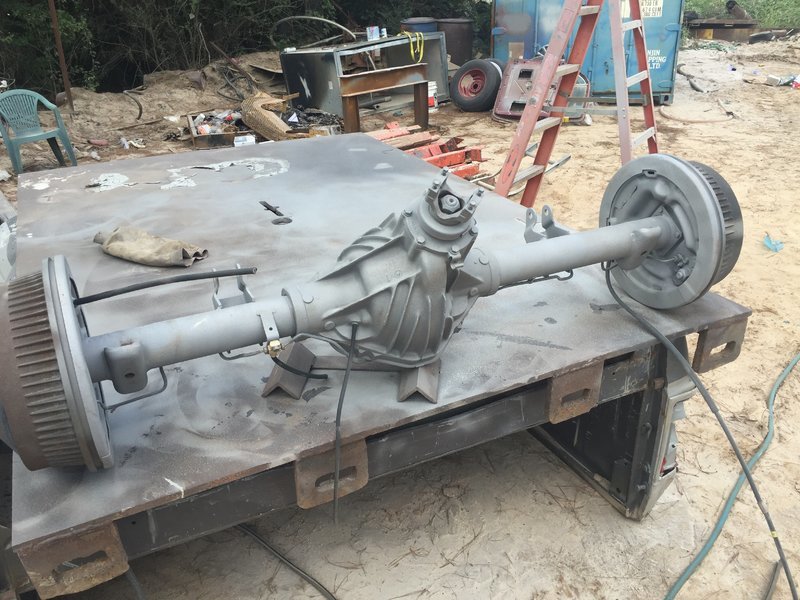

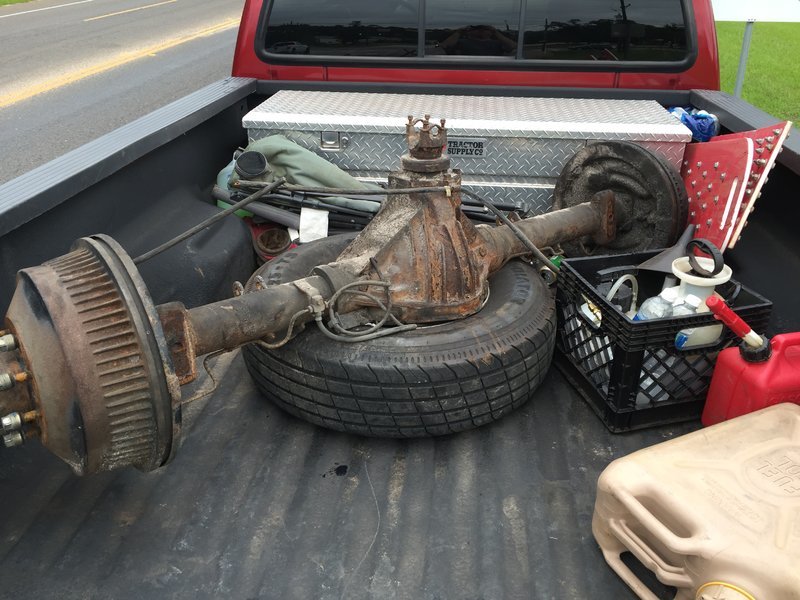

    14Bolt out of a 2000 3500 van. 68.5wms

    2017-05-26 09.37.13.jpg

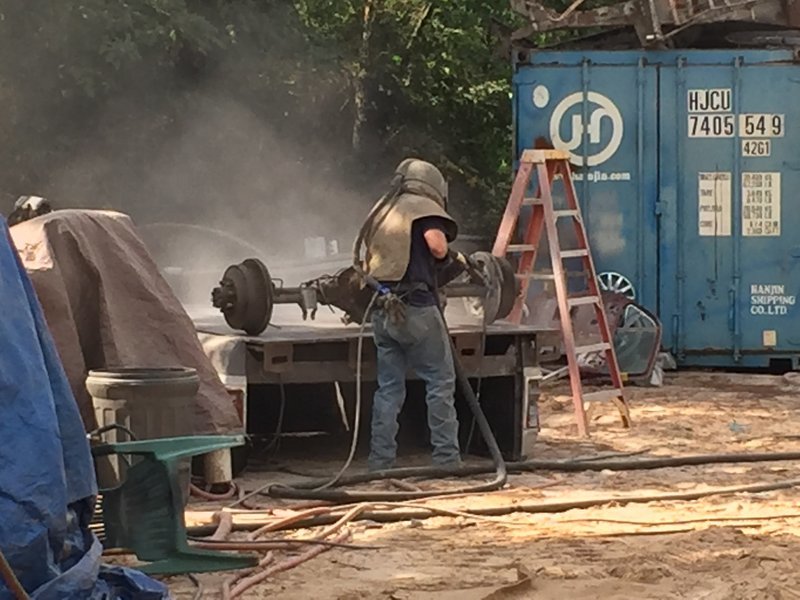

    2017-06-10 09.27.36 HDR.jpg

    2017-06-10 09.50.52.jpg

    2017-06-10 18.20.27.jpg

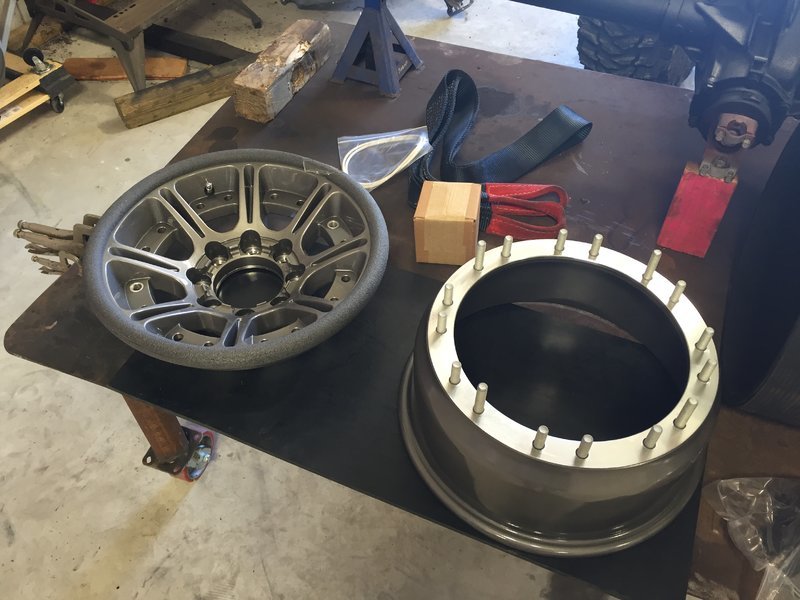

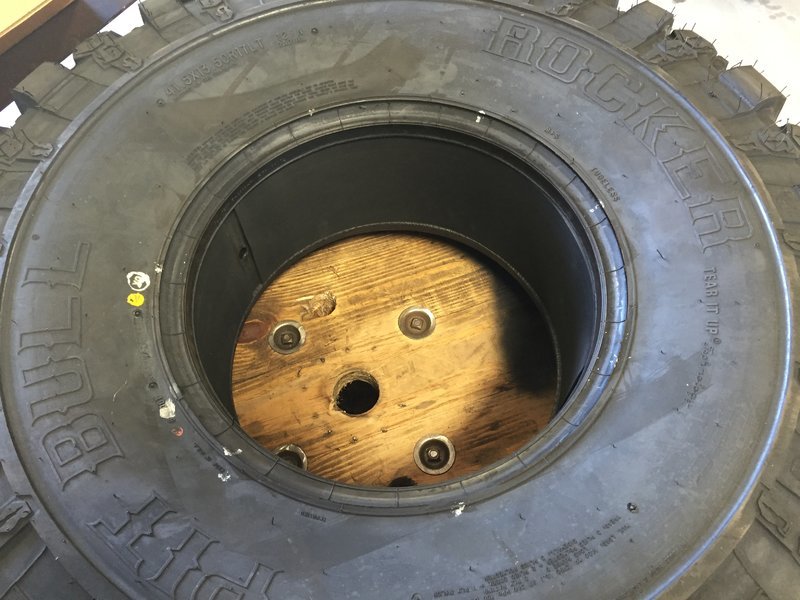

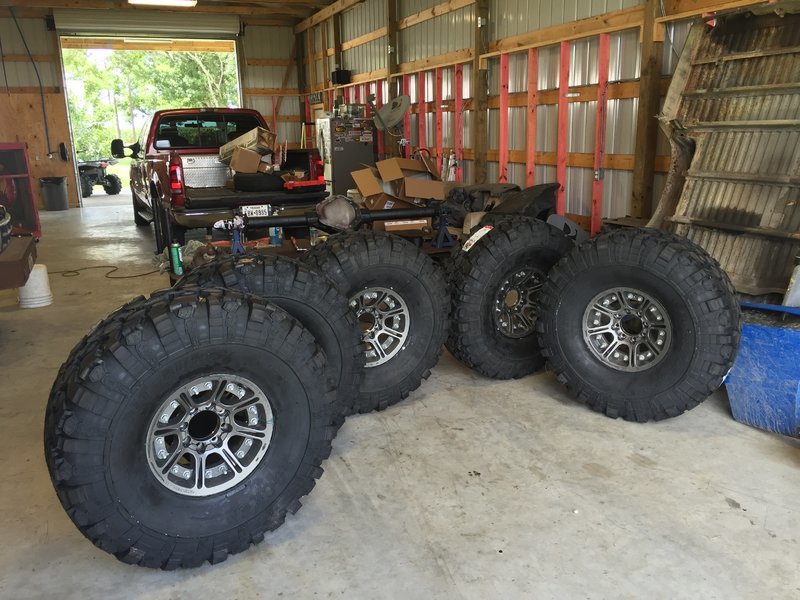

    Hutchinson Dual Beadlocks

    With two sets of hands these weren't too bad to put together. We got it down to 15minutes each.

    2017-06-11 10.12.44.jpg

    2017-06-11 10.38.19.jpg

    2017-06-11 13.39.43 HDR.jpg

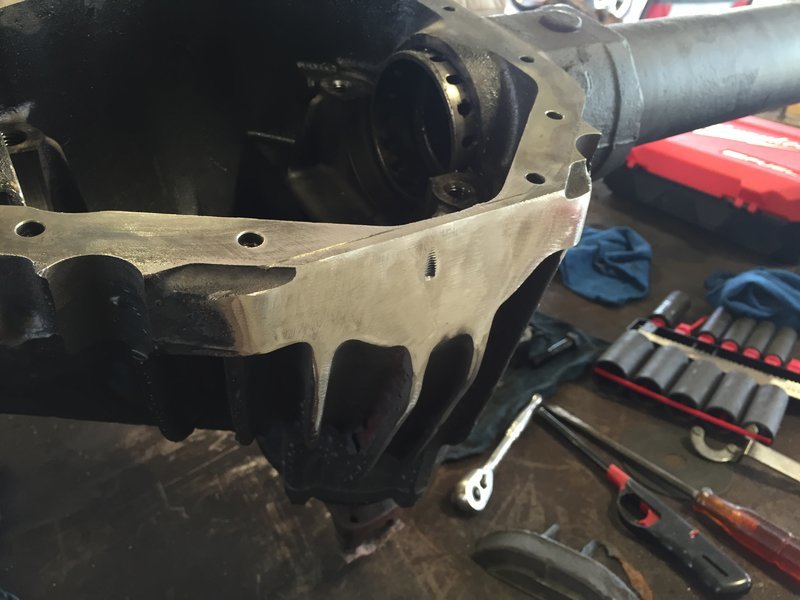

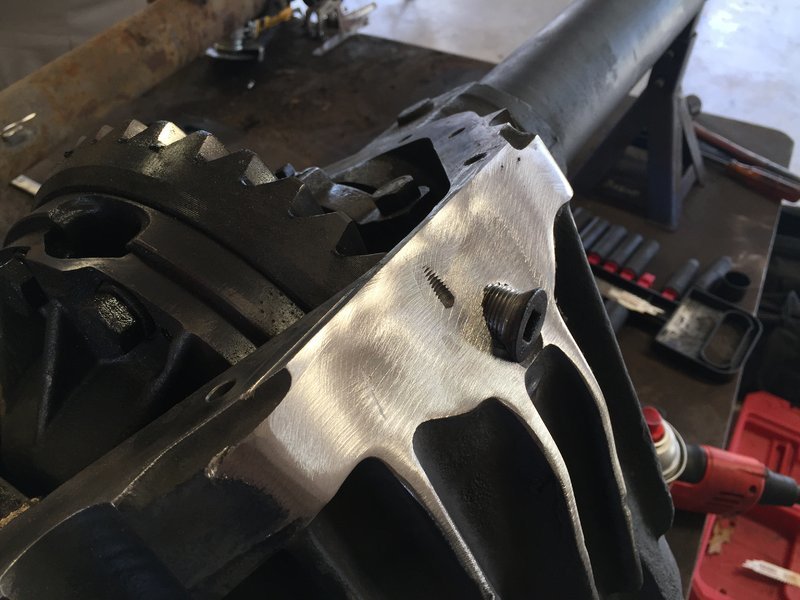

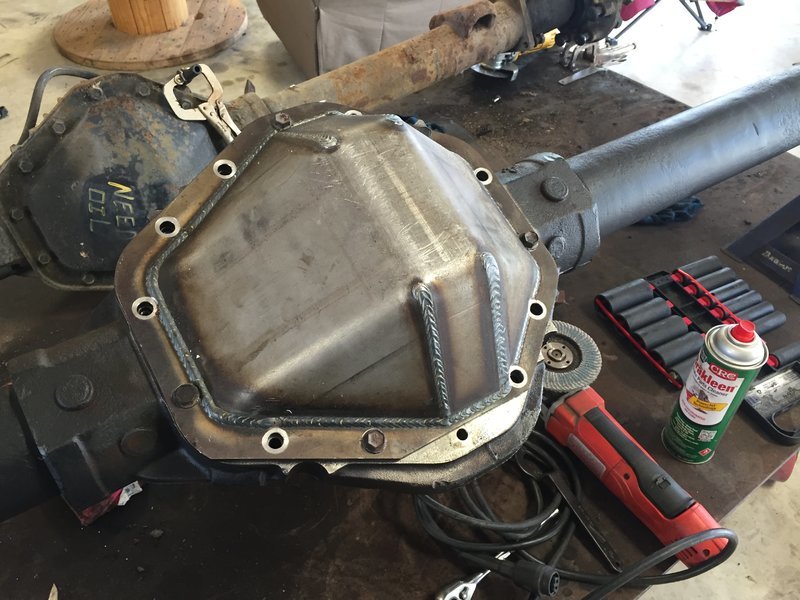

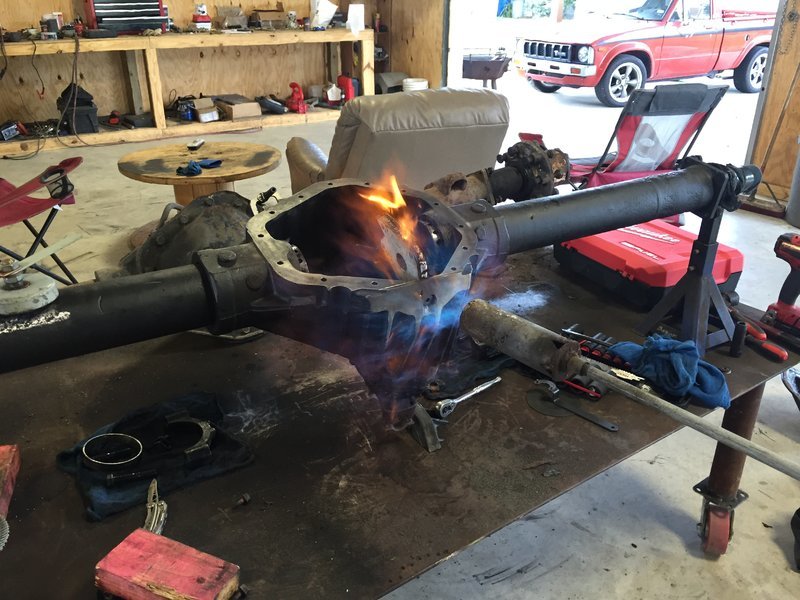

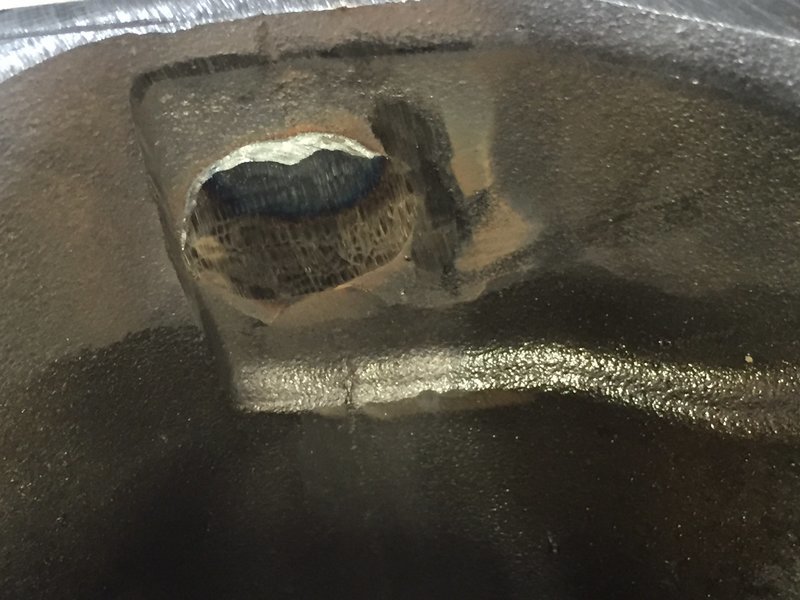

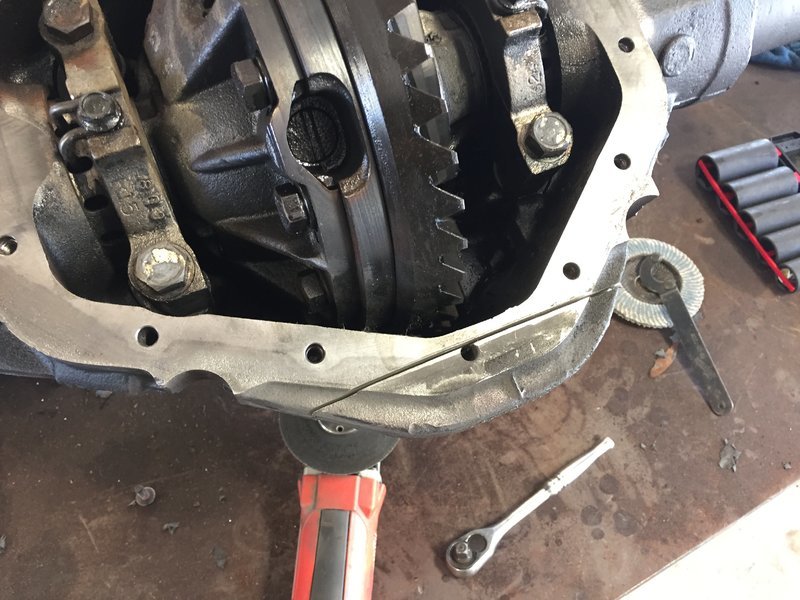

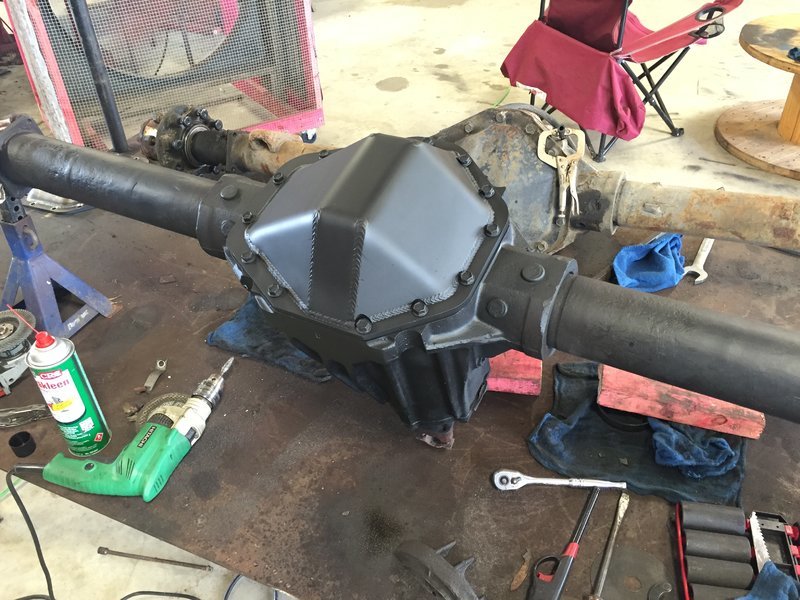

    Shaving the 14Bolt

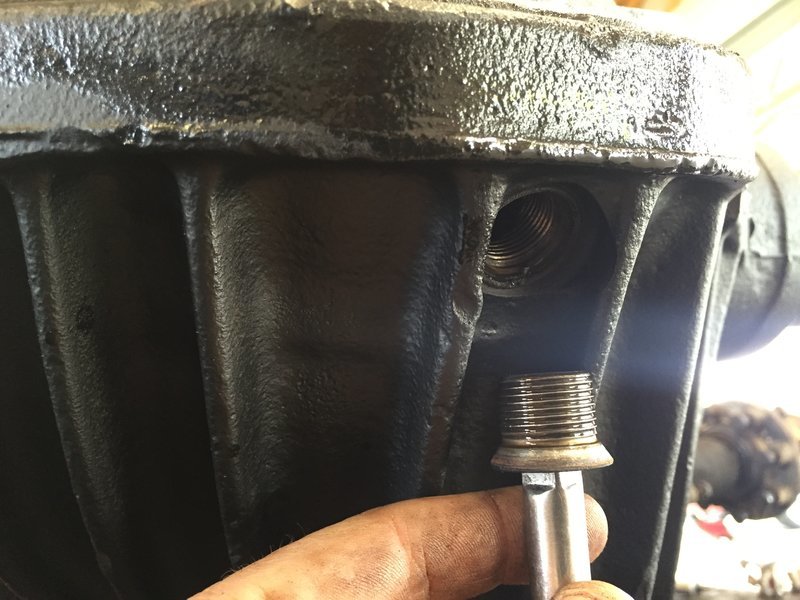

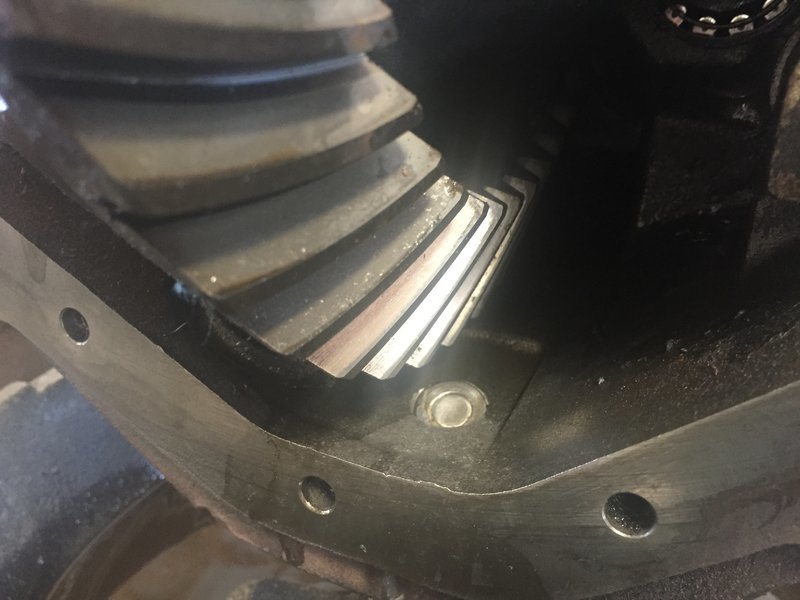

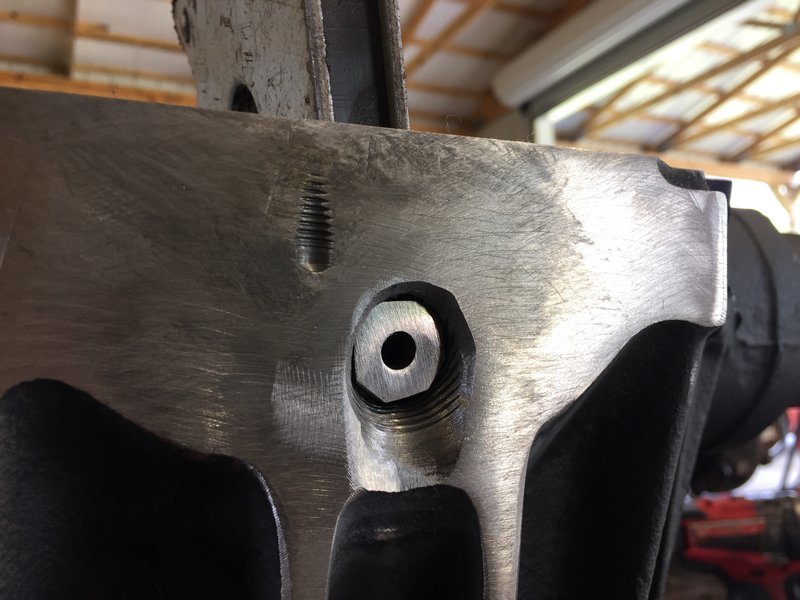

    My 14Bolt ended up with a drain plug, something that most people haven't seen. So that made for an interesting shave since the drain plug had to be filled.

    2017-06-18 10.40.58.jpg
    2017-06-18 10.48.38.jpg

    2017-06-18 10.52.10.jpg
    2017-06-18 11.00.15.jpg
    2017-06-18 11.18.52.jpg
    2017-06-18 11.52.52-1.jpg
    2017-06-18 11.56.38.jpg
    2017-06-18 12.28.48.jpg
    2017-06-18 12.29.12.jpg
    2017-06-18 13.35.57.jpg

    Last edited: Jun 18, 2017
  4. Jun 18, 2017 at 3:06 PM
    #4
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,665
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

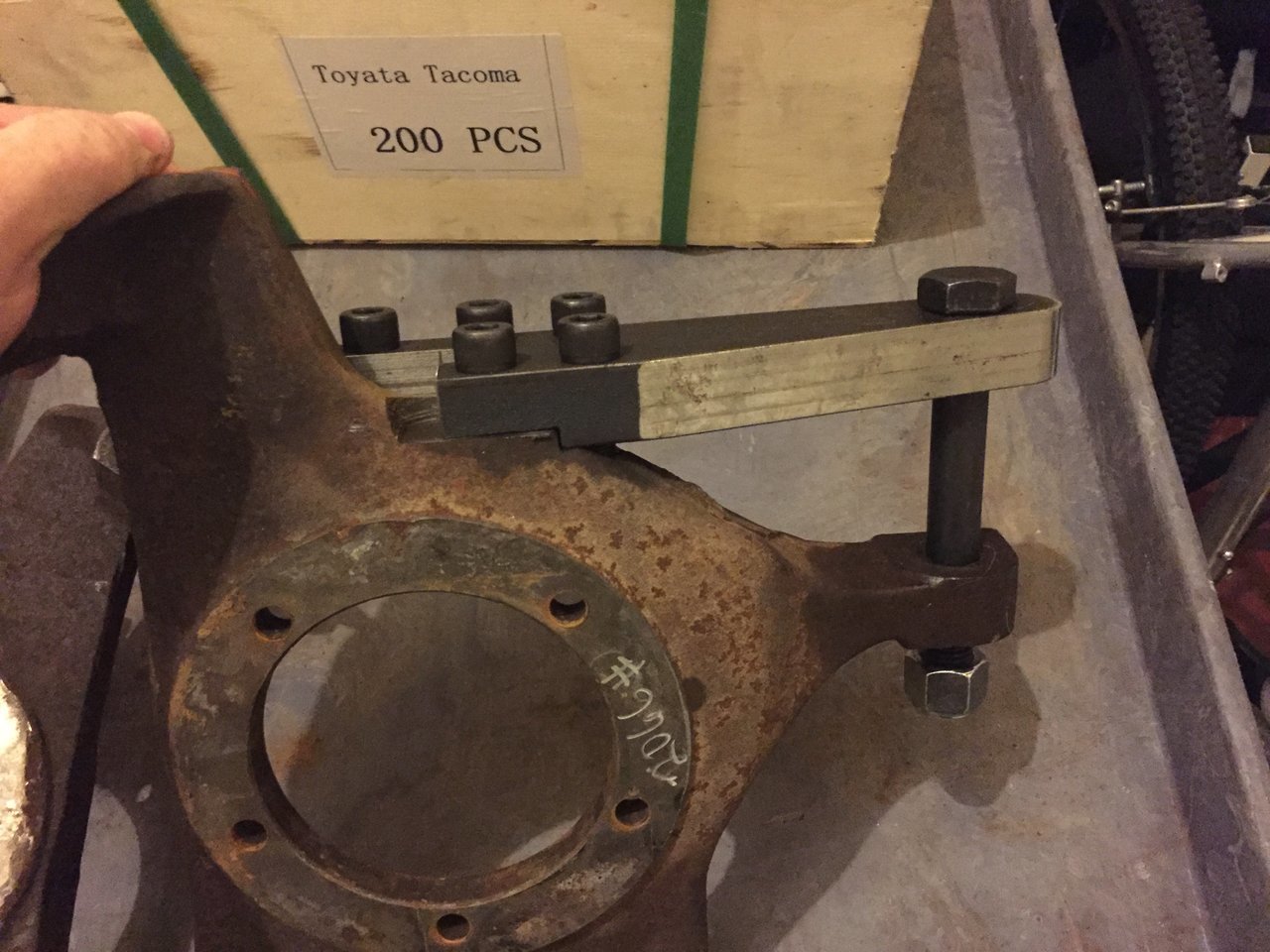

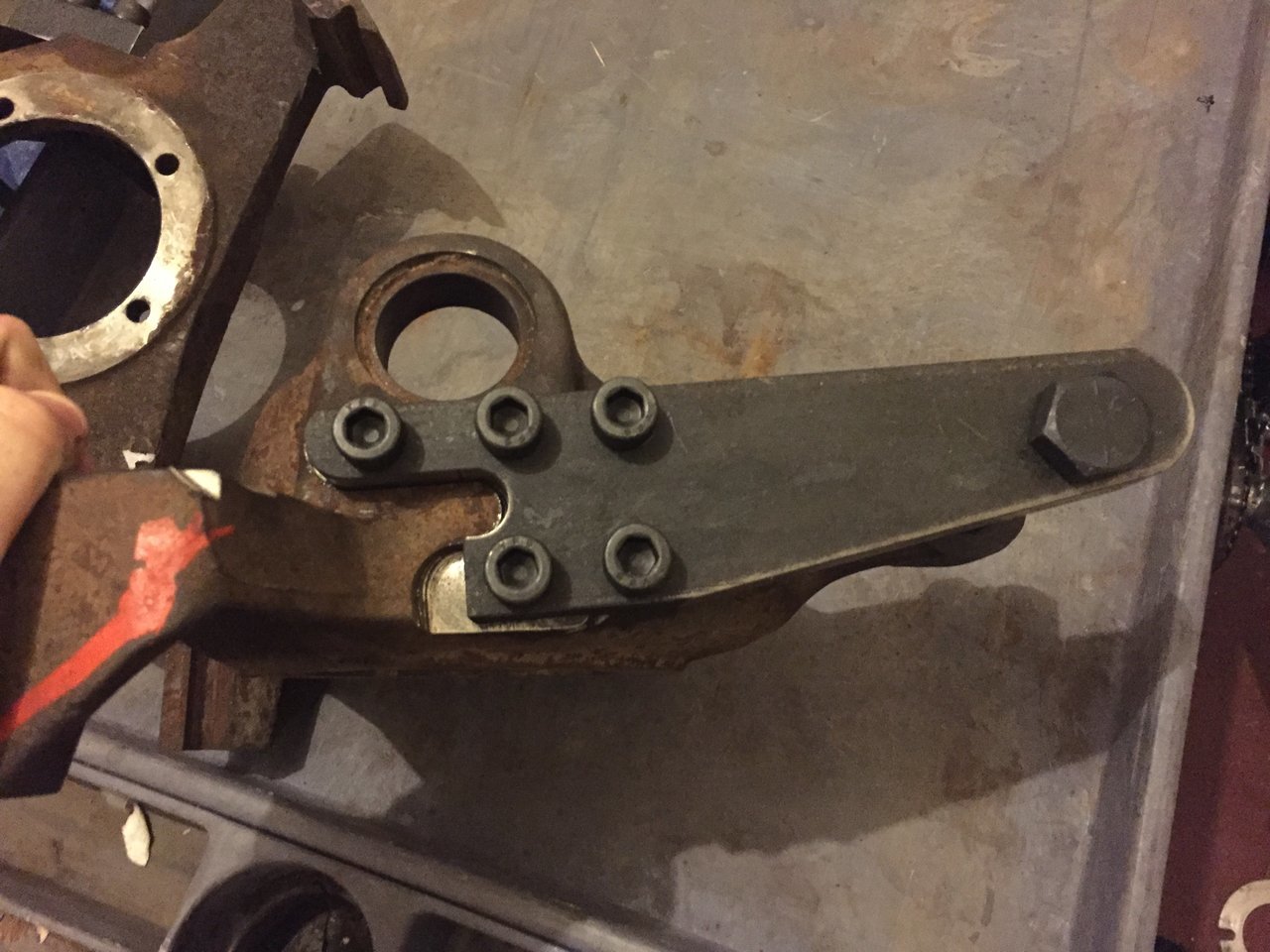

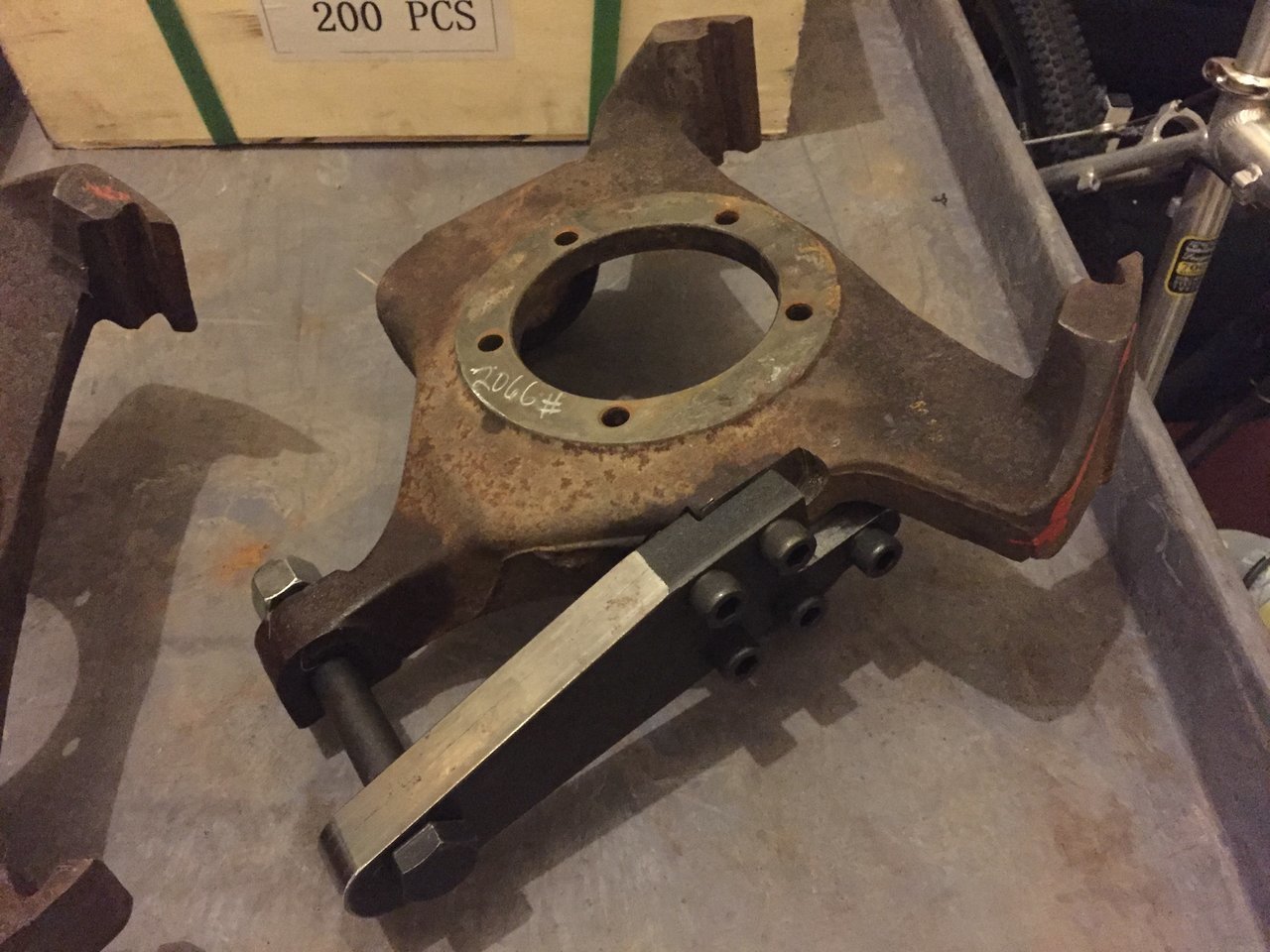

    Received the knuckles back from 4wheelsupply today. 7/26/17

    Photo Jul 26, 10 32 46 PM.jpg Photo Jul 26, 10 33 11 PM.jpg Photo Jul 26, 10 32 59 PM.jpg

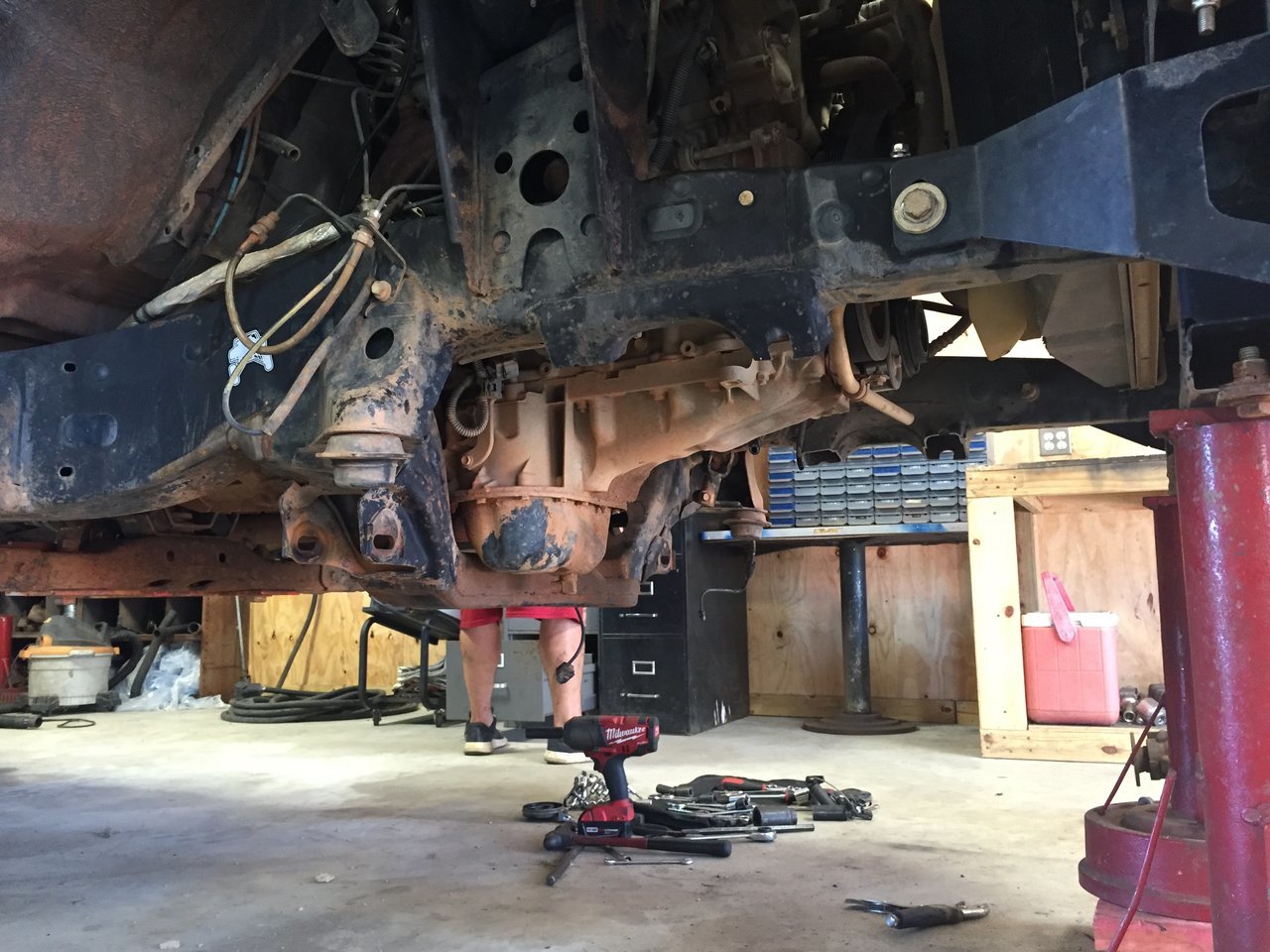

    8/14/17 update

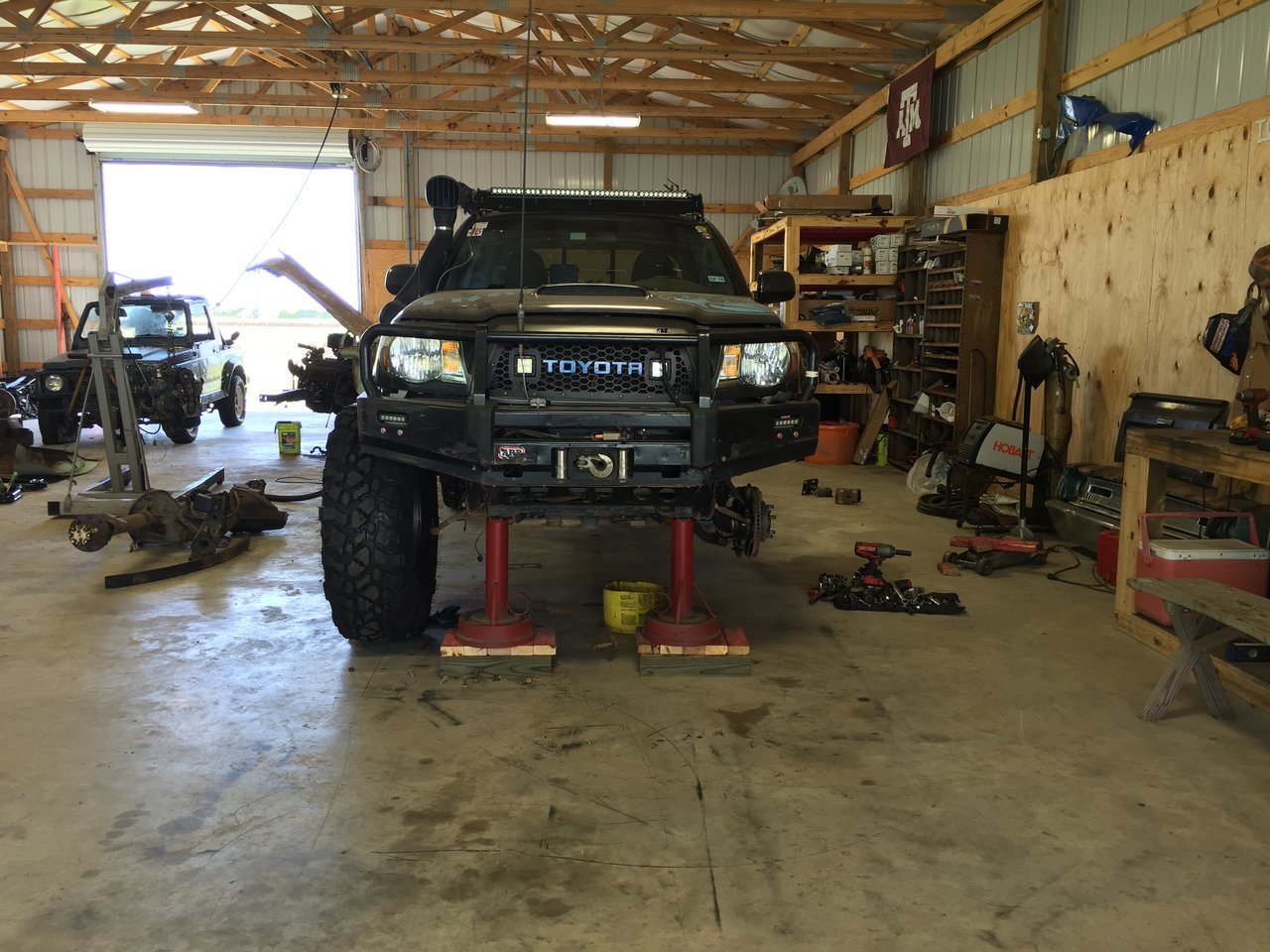

    I made some real progress this weekend. The 14Bolt is under the back end and all of the IFS components are off of the truck.

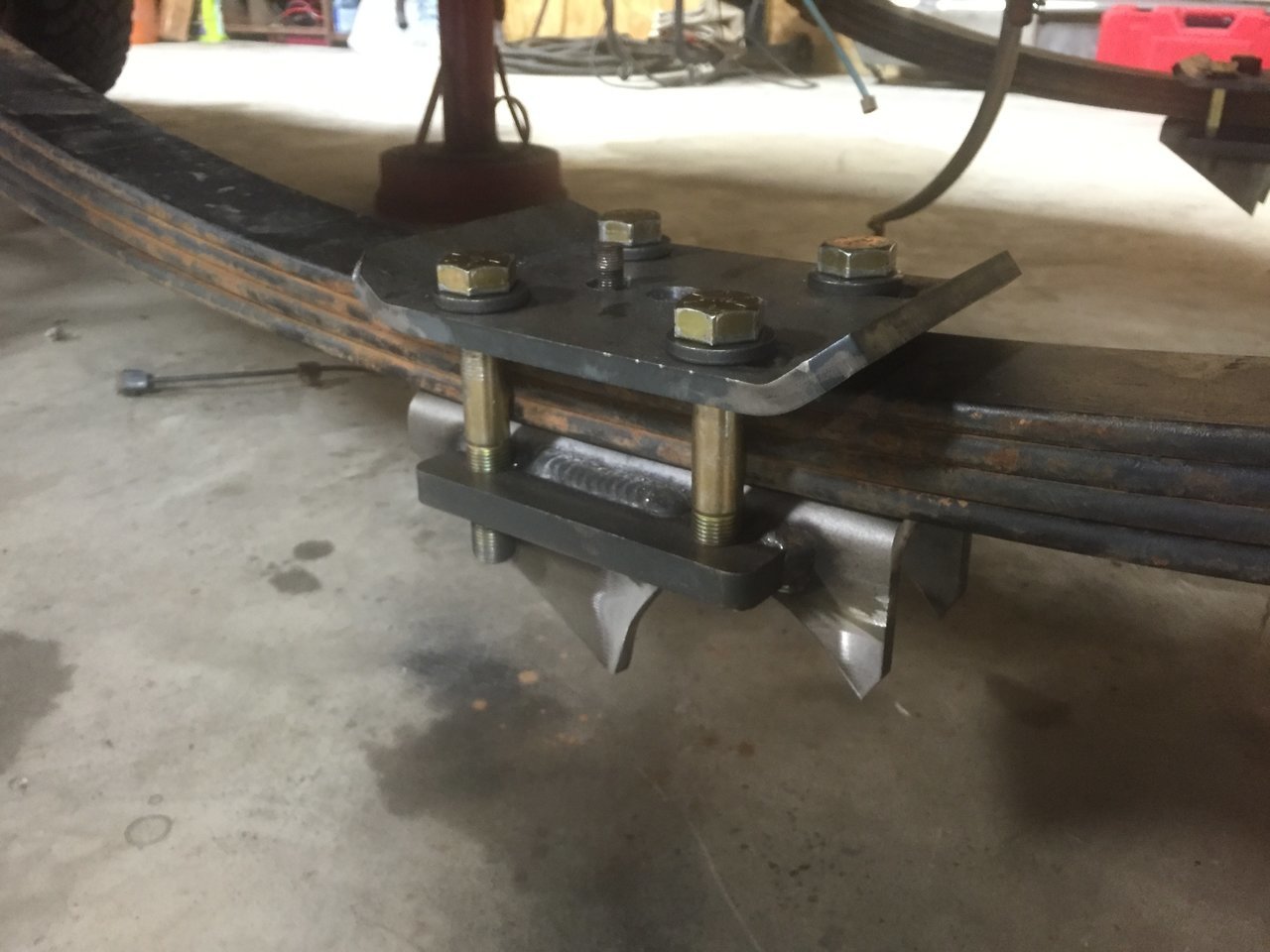

    To keep the pitbulls from eating the cab I used the Ruffstuff offset spring hanger. This allowed me to push the rear axle back 3".


    Of course I had to put a tire under the fender after the IFS was out on that side.


    Those pitbulls don't look so big when they're tucked under.

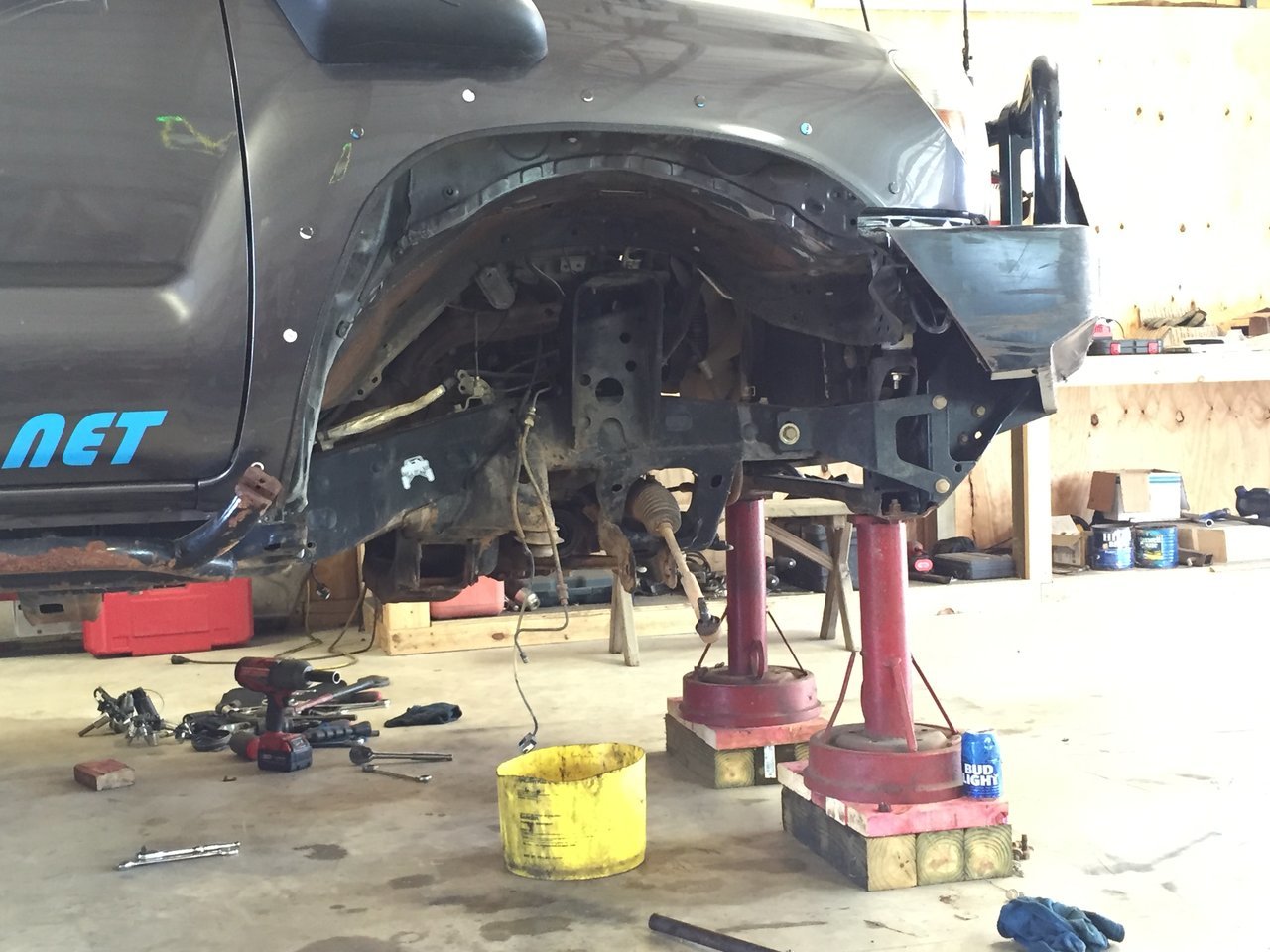

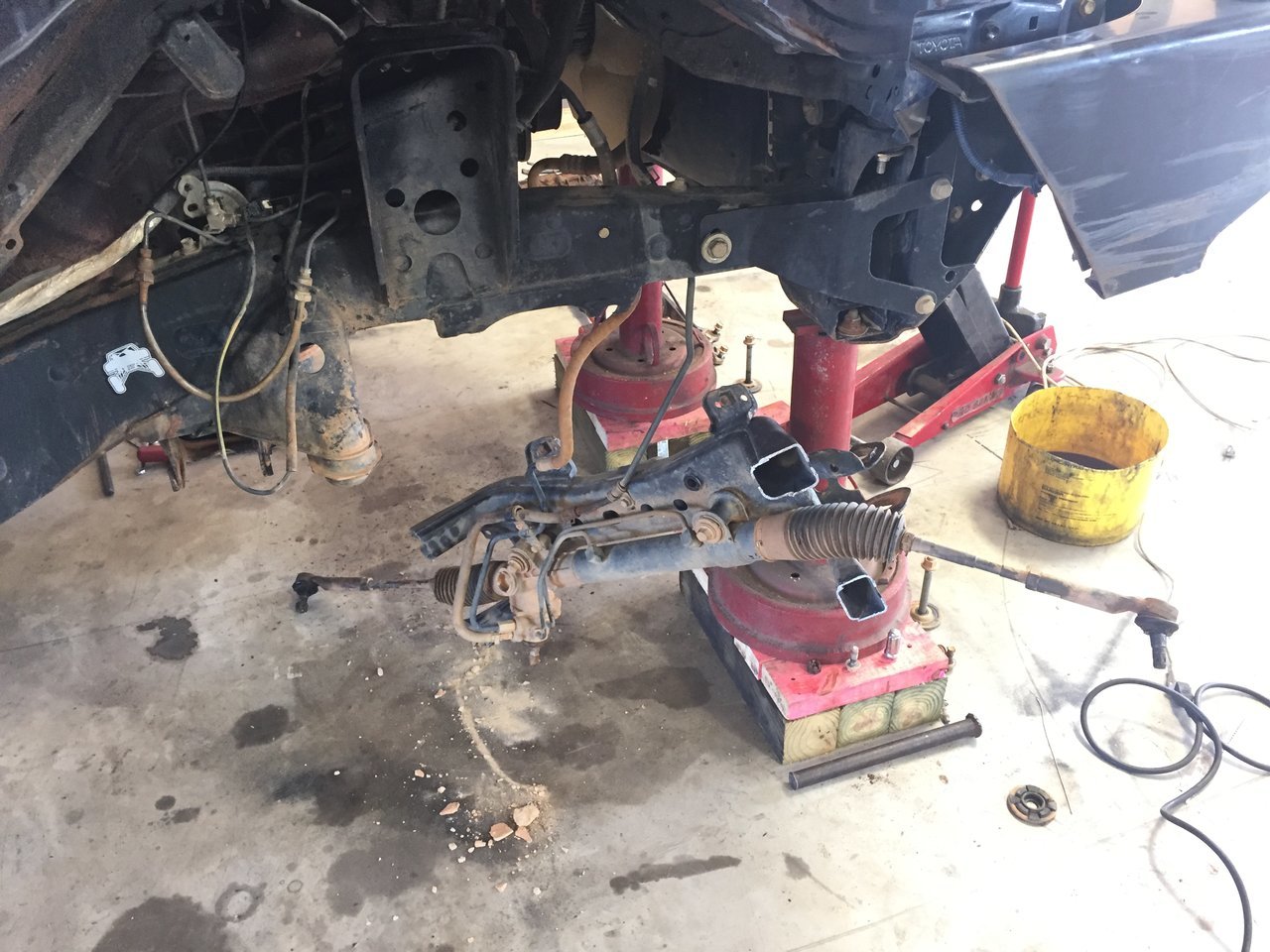

    Buh bye IFS


    The entire PS system came out in one piece. I didn't see an easy way to remove the fluid without making a mess so it all came out together.


    Slowly making room for activities. Next weekend will be the plasma cutter weekend. I'm not looking forward to that at all.

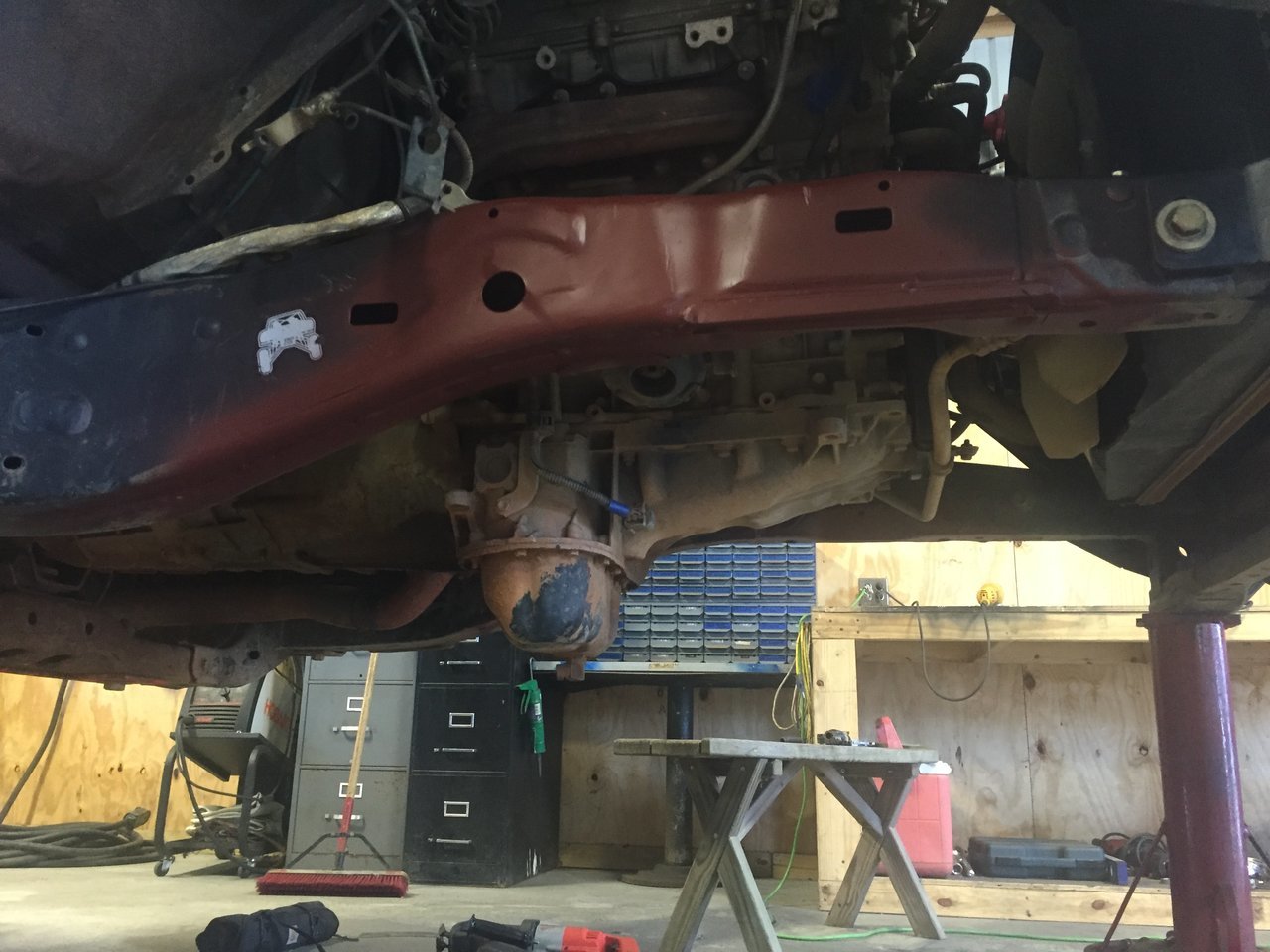

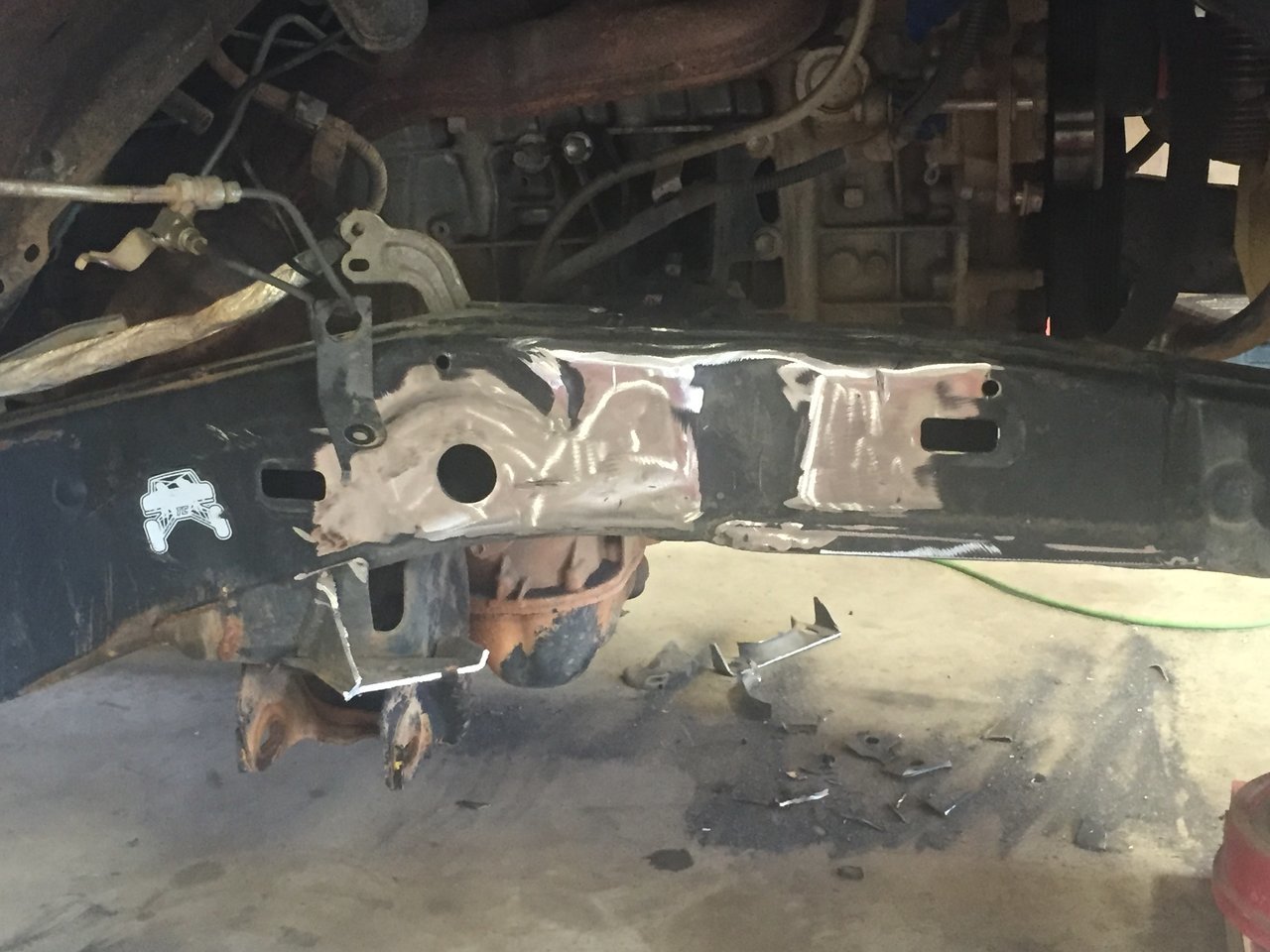

    8/19/2017 Update

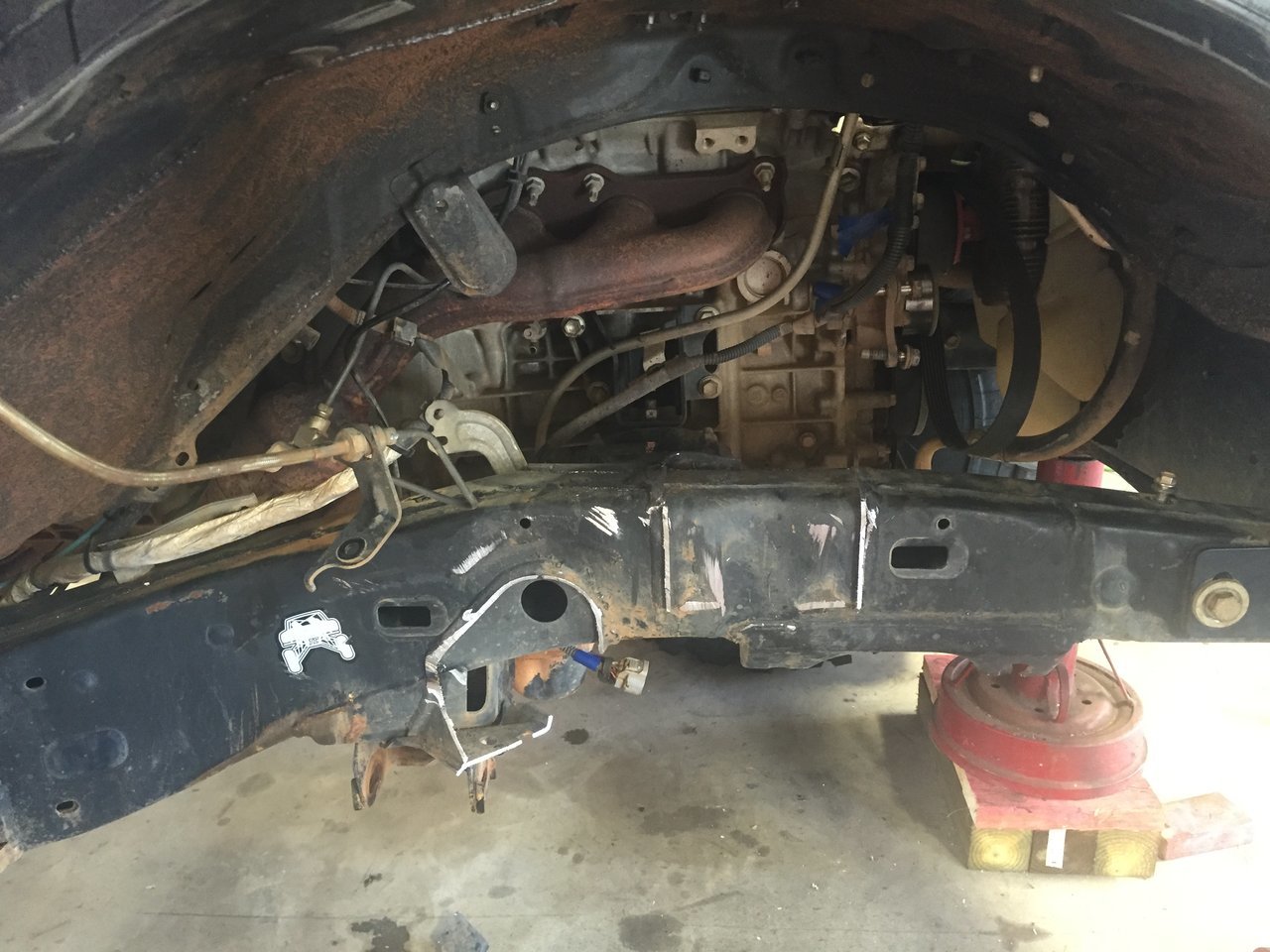

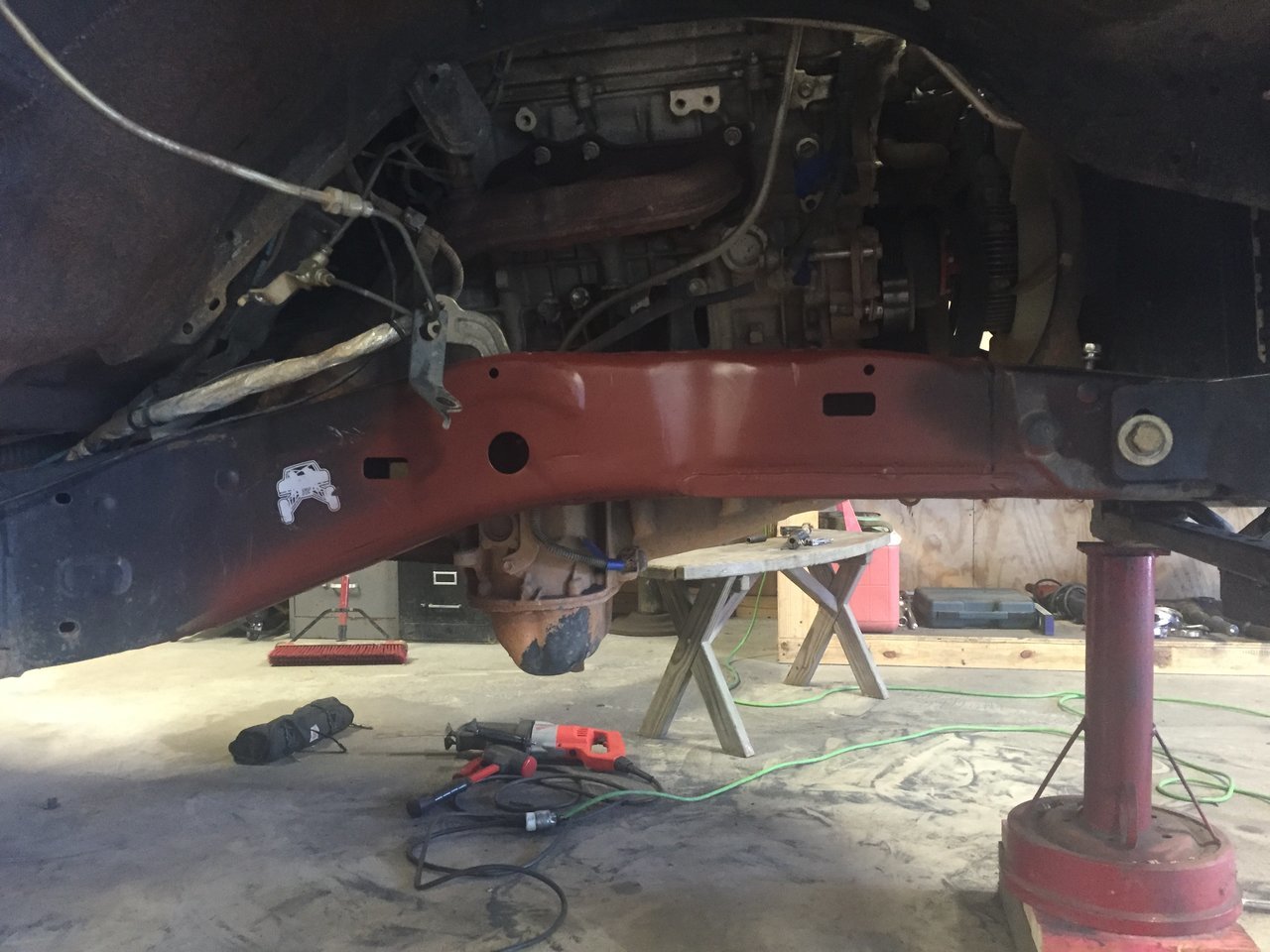

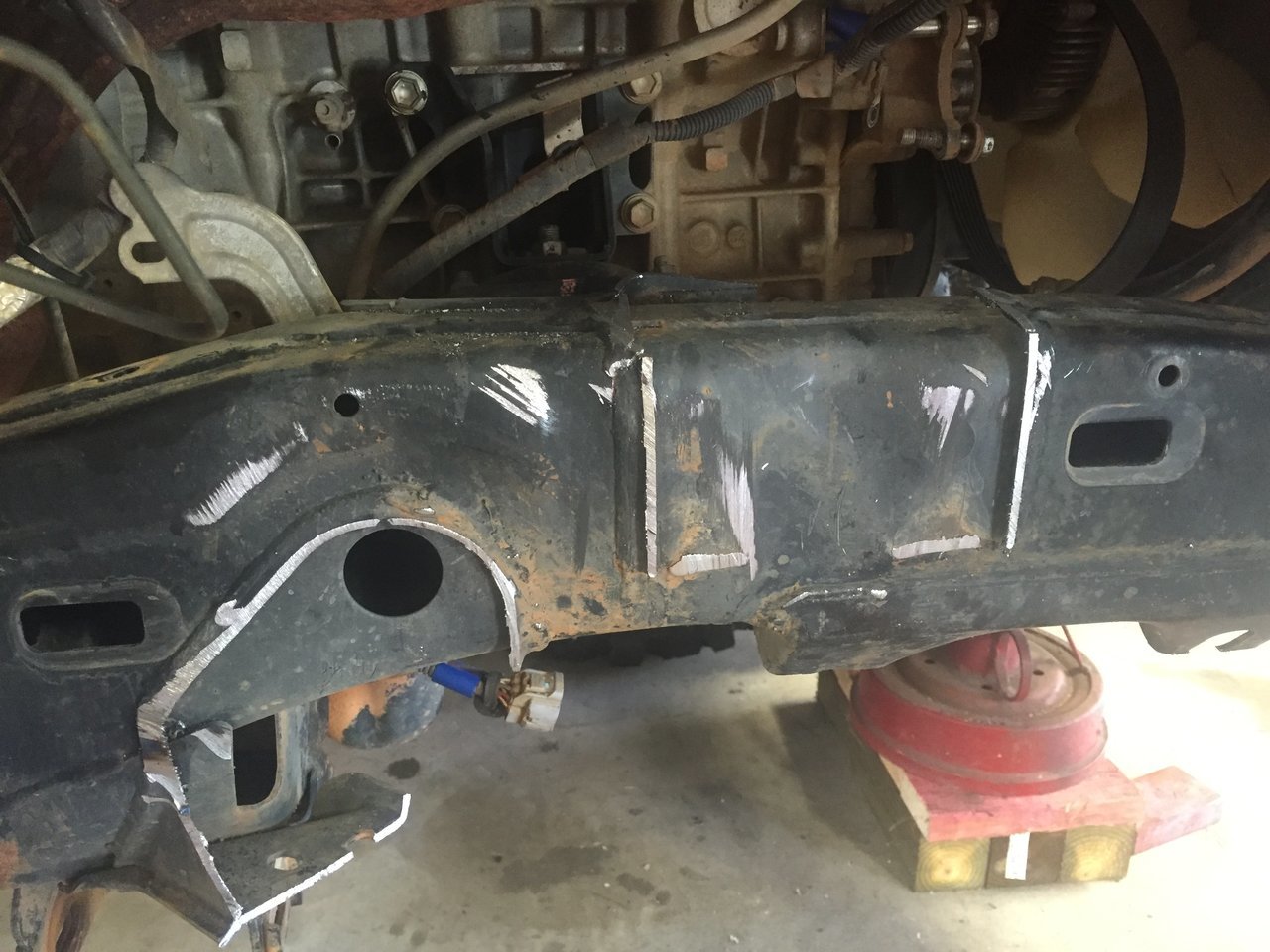

    I managed to get all of the IFS cut out today. What an absolute pain! I still have to cut out the transmission cross member, but that will have to wait till I get my link brackets in. I'll be adding in a couple of temporary cross members to keep the frame square.

    Photo Aug 19, 10 47 49 AM.jpg

    Photo Aug 19, 10 47 53 AM.jpg

    Photo Aug 19, 12 14 07 PM.jpg

    Photo Aug 19, 4 56 34 PM.jpg

    Photo Aug 19, 4 56 41 PM.jpg

    Last edited: Aug 19, 2017
  5. Jun 18, 2017 at 3:06 PM
    #5
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,665
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    One

    ChadsPride likes this.
  6. Jun 18, 2017 at 3:06 PM
    #6
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,665
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    As

    ChadsPride likes this.
  7. Jun 18, 2017 at 3:06 PM
    #7
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,665
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Well

    ChadsPride likes this.
  8. Jun 18, 2017 at 3:08 PM
    #8
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    21,965
    Gender:
    Male
    First Name:
    Brent
    Las Vegas, Nevada
    Vehicle:
    2003 Tacoma TRD 4X4
  9. Jun 18, 2017 at 3:08 PM
    #9
    Enjoihavok

    Enjoihavok Never Forget Z.S.

    Joined:
    Mar 28, 2015
    Member:
    #151992
    Messages:
    6,367
    Gender:
    Male
    First Name:
    Erik
    Chandler, AZ
    Vehicle:
    2015 Tacoma Sport
  10. Jun 18, 2017 at 3:13 PM
    #10
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    8,491
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
  11. Jun 18, 2017 at 4:08 PM
    #11
    Blackout14

    Blackout14 Instagram: @The_Crippled_Angler Vendor

    Joined:
    Aug 19, 2014
    Member:
    #136543
    Messages:
    62,341
    Gender:
    Male
    First Name:
    Joe
    Hatfield pa
    Vehicle:
    2014 DCLB TRD Sport
    Test Pig
  12. Jun 18, 2017 at 4:15 PM
    #12
    Spintly

    Spintly Well-Known Member

    Joined:
    Mar 2, 2014
    Member:
    #124416
    Messages:
    574
    Gender:
    Male
    First Name:
    Greg
    Home of the Groundhog
    Vehicle:
    06 TRD Off-Road
    Sub'd :thumbsup:

    ChadsPride and SMKYTXN [OP] like this.
  13. Jun 18, 2017 at 4:16 PM
    #13
    Wolftaco0503

    Wolftaco0503 Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168040
    Messages:
    9,180
    Gender:
    Male
    First Name:
    Adam
    Recaluating......
    Vehicle:
    2013 Super White LONG BED TRD SPORT 4x4
    Maglite mod Bottle Opener in bed Weathertech Mats Front & Back
    Pics as it sits now

    :worthless:

    ChadsPride and SMKYTXN [OP] like this.
  14. Jun 18, 2017 at 4:17 PM
    #14
    Blackout14

    Blackout14 Instagram: @The_Crippled_Angler Vendor

    Joined:
    Aug 19, 2014
    Member:
    #136543
    Messages:
    62,341
    Gender:
    Male
    First Name:
    Joe
    Hatfield pa
    Vehicle:
    2014 DCLB TRD Sport
    Test Pig
    So it'll be done tommorow?

    ChadsPride and SMKYTXN [OP] like this.
  15. Jun 18, 2017 at 4:21 PM
    #15
    shawnMc

    shawnMc Well-Known Member

    Joined:
    Sep 25, 2015
    Member:
    #165143
    Messages:
    235
    Gender:
    Male
    First Name:
    Shawn
    Santa Barbara
    Vehicle:
    2009 Tacoma regular cab 4x4
    What kind of frame height are you going for on this? Those tires are huge!

    Are you keeping the 63s in back, or linking it?

    ChadsPride and SMKYTXN [OP] like this.
  16. Jun 18, 2017 at 4:22 PM
    #16
    Jcyr

    Jcyr Midnightthetaco

    Joined:
    Mar 16, 2017
    Member:
    #213447
    Messages:
    2,706
    Gender:
    Male
    First Name:
    Jack
    North east
    Vehicle:
    3RZ 04 4x4 black ext cab
    2.5" lift king/total chaos Skids sliders rear tire swing
    Dammmn!!

    ChadsPride and SMKYTXN [OP] like this.
  17. Jun 18, 2017 at 4:27 PM
    #17
    Wolftaco0503

    Wolftaco0503 Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168040
    Messages:
    9,180
    Gender:
    Male
    First Name:
    Adam
    Recaluating......
    Vehicle:
    2013 Super White LONG BED TRD SPORT 4x4
    Maglite mod Bottle Opener in bed Weathertech Mats Front & Back
    So that's were all of our patch money is going! WAY TO GO @SMKYTXN

  18. Jun 18, 2017 at 4:32 PM
    #18
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,665
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Negative ghost rider! Hell, I'm not even going to cut into the truck until mid July due to a work trip. This is all just a tease!

    The 63's are staying for this round and the front will be a 3 link. I'm looking at a frame height around 23-24".

    Trust me, I've been saving my pennies for a while.

  19. Jun 18, 2017 at 4:34 PM
    #19
    cbechtold

    cbechtold @corybechtold

    Joined:
    Jan 19, 2014
    Member:
    #121010
    Messages:
    2,503
    Gender:
    Male
    First Name:
    Cory
    Pleasanton, CA
    Vehicle:
    2001 DCSB SR5 TRD 4x4
    Sub'd :drool::drool::drool::drool::drool:

    ChadsPride and SMKYTXN [OP] like this.
  20. Jun 18, 2017 at 4:37 PM
    #20
    Tretiak30

    Tretiak30 Well-Known Member

    Joined:
    Oct 10, 2013
    Member:
    #114203
    Messages:
    4,901
    Gender:
    Male
    First Name:
    Roman
    Cleveland, Ohio
    Vehicle:
    THE Ohioan.
    Check our the Builds!
    Sub'd. Hopefully I don't bump into the back of this after the SAS.....

    ChadsPride likes this.
