(SOLD OUT) Lower Dash Switch Illumination Harness (ECT Button)

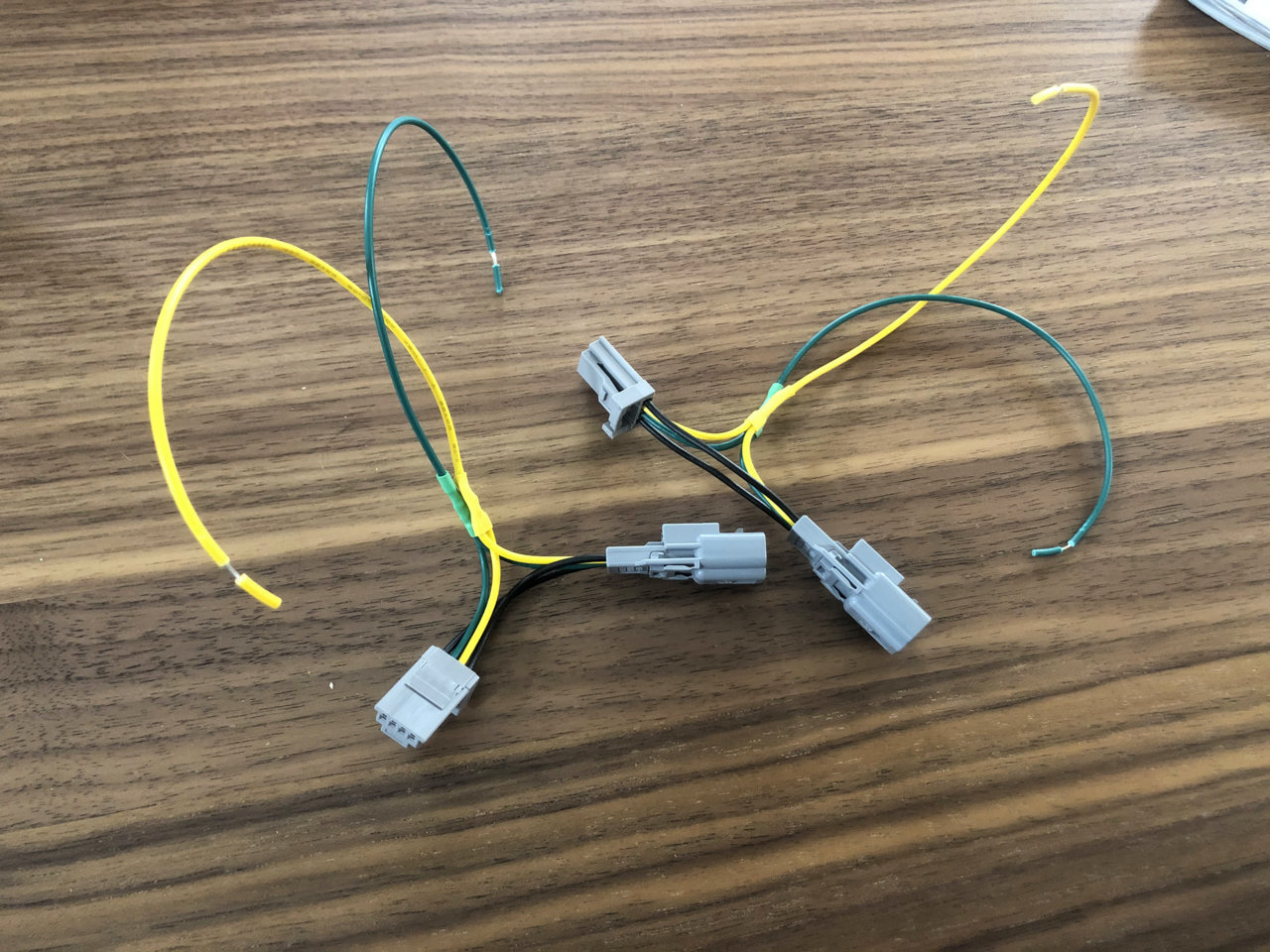

Whipped up a couple of these just to get more samples out in the wild. These are break-out harnesses that allow you to tap the ECT button on your Automatic Transmission Tacoma to illuminate switches below your head unit. Install is easy: Remove the lower valence below your head unit, un-plug your ECT button connector, plug mine in to the connector and the ECT switch, and then use the breakout wires to light-up any switches you want to run in your lower dash (such as with one of MESO's custom panels).

Green wire = Illumination (+)
Yellow wire = Illumination (variable -) -- Sorry I don't have tan 22 awg so you get Oregon colors

With this harness you don't need to cut-up your factory harness. Doing it this way makes things easily serviceable and reversible in the case you need stuff to be. Your switches will dim with the factory dimmer.

$30/ea TYD in the lower 48.



These ones are spoken for. Thanks again and I'm excited to hear some feedback!
