Solid Axle Swap BS Thread

Discussion in 'Solid Axle Suspension' started by Supra TT, Feb 20, 2012.

  1. Jul 8, 2013 at 8:16 PM
    #2041
    99yodataco

    99yodataco Little Taco that could

    Joined:
    Feb 18, 2010
    Member:
    #31633
    Messages:
    1,908
    Gender:
    Male
    First Name:
    Chad
    New Mexico, it's just a little bit fresher.
    Vehicle:
    99 taco 2.7l SAS
    Dana 44 front and some other useless things.
  2. Jul 8, 2013 at 9:57 PM
    #2042
    Redneck92

    Redneck92 Well-Known Member

    Joined:
    Aug 9, 2012
    Member:
    #84398
    Messages:
    1,353
    Gender:
    Male
    First Name:
    Chris
    Concord, NC
    Vehicle:
    02 Tacoma Limited TRD
    ARE Camper shell
    Correct, there was however for some of the j series trucks but I think they were full widths.

  3. Jul 9, 2013 at 9:49 PM
    #2043
    thegame

    thegame WUT?

    Joined:
    Mar 11, 2011
    Member:
    #52855
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Brian
    Bay area
    Vehicle:
    01 Prerunner -> 4wd IFS -> Dana 60 SAS
    Looks like an optical illusion to me. I would call the person and ask them to measure the WMS to WMS on both axles. It's hard to say if it's a stock Wagoneer front axle (60.5" WMS) or a stock wide track J20 axle ('bout 65" WMS). J20's came stock with 8 lug outers but pretty much all the D44 stuff from the knuckle out is interchangeable anyhow so we may be looking at a completely custom setup with a stock Waggy axle and Chevy 8 lug outers :rolleyes:

  4. Jul 9, 2013 at 9:56 PM
    #2044
    thegame

    thegame WUT?

    Joined:
    Mar 11, 2011
    Member:
    #52855
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Brian
    Bay area
    Vehicle:
    01 Prerunner -> 4wd IFS -> Dana 60 SAS
    Now that I think about it, they do make Wide Track Wagoneer axles that are driver drop. Hmmmm...WMS-WMS would tell everything.

  5. Jul 10, 2013 at 12:07 AM
    #2045
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    So in researching cases for my swap, I just don't know what to do.
    NV4500 HD diesel 29 spline behind a 12 valve cummins. Plan is to run chromoly shafts -- 35 spline, and a 14bolt in the rear with 1410 ujoints all around, which leaves me worried about the case.*

    NV4500HD 29 spline to...

    NP205 23 or 29 spline will bolt up with or w/o a cheap adapter. Can't seem to find any doublers for either dodge NP205 case. And these cases are hard to find, even the 23 spline.

    I found advanced adapters makes a kit to bolt a ford NP205 to the trans and I can easily get a jedmachining 205/203 doubler. That route appears to be in the realm of 1500 or so. Easy to find! -- but probably have to make two long trips to pick up cases. edit: not passenger drop

    Dana 300 with a relatively cheap 29 spline input shaft swap will bolt right up. 4:1 gears available for about 500$ -- possibly upgrade output shaft-- all in should be about $1k Downside here is the dana 300 seems to be a weaker unit than the 205/203 or I'd go this route and save trouble and $$. This is pretty much off the table.

    Atlas Stak or Klune V are just too much $$$

    So anyone have any suggestions?

    Last edited: Jul 10, 2013
  6. Jul 10, 2013 at 12:08 AM
    #2046
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
  7. Jul 10, 2013 at 6:29 AM
    #2047
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,927
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Don't waste your time on the DANA300 there only about as strong as a toy case.

  8. Jul 10, 2013 at 9:21 AM
    #2048
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    guess I'll just wait and see what trans I can find (chevy or dodge NV4500HD)
    if I end up with a chevy I'll run a 205 and a doubler
    if not I'll just have to save for an atlas or stak and run the stock NP241HD until

    I don't see any other good options.

  9. Jul 10, 2013 at 5:04 PM
    #2049
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Got these in today. Next thing to roll in will either be the DD or crawl box.

    [​IMG]

  10. Jul 10, 2013 at 6:03 PM
    #2050
    Supra TT

    Supra TT [OP] Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,659
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    Damn those misalign/safety washer heims are nice looking!

  11. Jul 10, 2013 at 9:30 PM
    #2051
    thegame

    thegame WUT?

    Joined:
    Mar 11, 2011
    Member:
    #52855
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Brian
    Bay area
    Vehicle:
    01 Prerunner -> 4wd IFS -> Dana 60 SAS
    Dude, that's why you don't break anything. I thought you had a V6 not the 4 cylinder :p

  12. Jul 11, 2013 at 9:31 AM
    #2052
    Southern01Taco

    Southern01Taco Well-Known Member

    Joined:
    Jul 20, 2010
    Member:
    #40457
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Sean
    Holden, La
    Vehicle:
    01 V6 4x4 Xtra Cab SR5
    X2. I'm guessing those are going to be used for steering? I can't think of anything else that would be single shear.

  13. Jul 11, 2013 at 9:37 AM
    #2053
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,927
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Yes they are.

    Safety washers are used in place of misalignments in applications where minimal misalignment occurs.

    They are also used in single shear application to prevent the heim from completely separating itself and the link dropping free from the connection.

  14. Jul 11, 2013 at 5:46 PM
    #2054
    Supra TT

    Supra TT [OP] Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,659
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    Haha :D And I am only on 36"s with chromo everything.

  15. Jul 11, 2013 at 8:16 PM
    #2055
    Supra TT

    Supra TT [OP] Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,659
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.

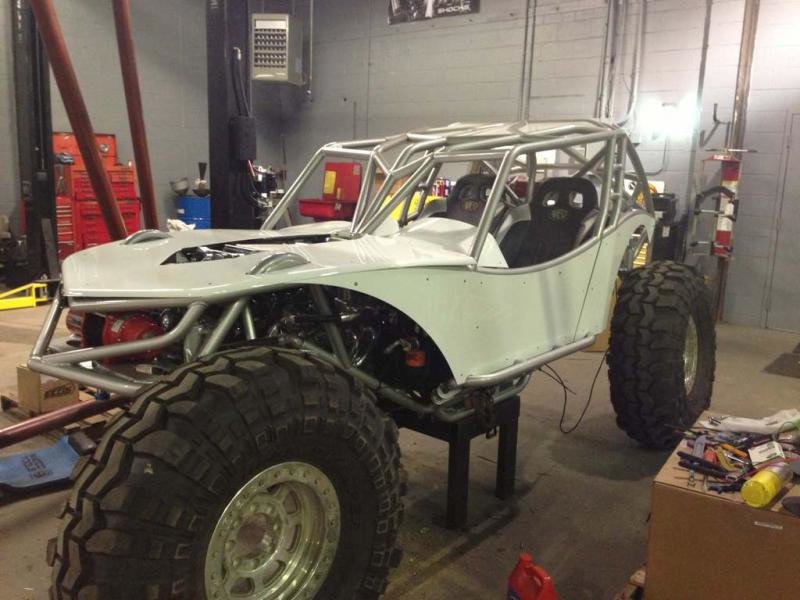

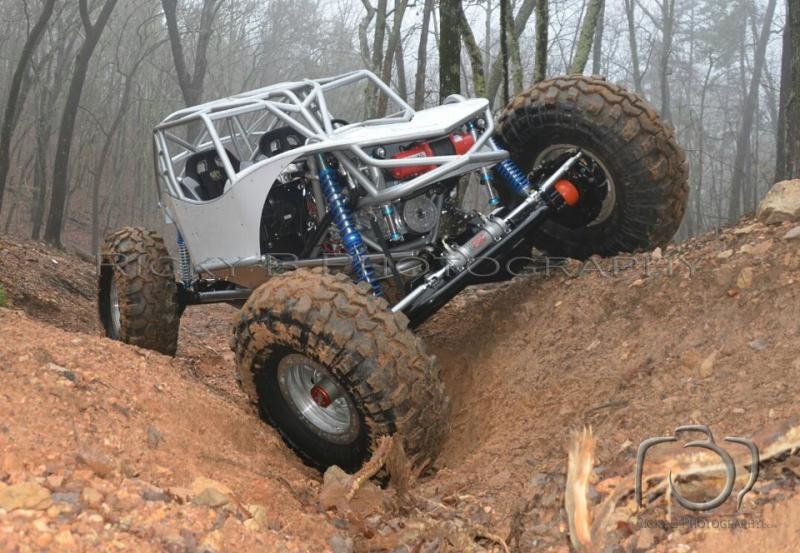

    Oh lewd jesus look at this buggy

    [​IMG]

    [​IMG]

    [​IMG]

  16. Jul 12, 2013 at 4:04 AM
    #2056
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
  17. Jul 12, 2013 at 4:41 AM
    #2057
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Okay, I'm retarded. I've been reading up on the 14B and it seems there are some slight variations that you can come across. Is one more desirable than the others? What Model/Year would I find this?

    I came across this section in the bible-


  18. Jul 13, 2013 at 9:04 AM
    #2058
    Redneck92

    Redneck92 Well-Known Member

    Joined:
    Aug 9, 2012
    Member:
    #84398
    Messages:
    1,353
    Gender:
    Male
    First Name:
    Chris
    Concord, NC
    Vehicle:
    02 Tacoma Limited TRD
    ARE Camper shell
    I'm not sure you can go wrong with any of them but I would stay away from the slip on drum just to make the disc conversion easier.

  19. Jul 14, 2013 at 4:31 PM
    #2059
    Supra TT

    Supra TT [OP] Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,659
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
  20. Jul 14, 2013 at 6:15 PM
    #2060
    Supra TT

    Supra TT [OP] Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,659
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
