Solid Axle Swap BS Thread

Discussion in 'Solid Axle Suspension' started by Supra TT, Feb 20, 2012.

Page 7 of 725
  1. Mar 6, 2012 at 9:19 PM
    #121
    noSKills858

    #121
    noSKills858 battlescars

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    3,522
    Gender:
    Male
    First Name:
    Alex
    Poway, CA
    Vehicle:
    2003 5-lug Prerunner
    Couple shocks, some old tires, and a bad paint job
    Was never really sure, but do trucks that are running 4-link front and rear use some sort of sway bar at all?

    noSKills858, Mar 6, 2012
    #121
  2. Mar 6, 2012 at 9:23 PM
    #122
    noSKills858

    #122
    noSKills858 battlescars

    Joined:
    Jan 5, 2009
    Member:
    #12256
    Messages:
    3,522
    Gender:
    Male
    First Name:
    Alex
    Poway, CA
    Vehicle:
    2003 5-lug Prerunner
    Couple shocks, some old tires, and a bad paint job
    Yeah I don't like sway bars either but I was curious to know if they're used. I would assume there would be a quick disconnect once you hit the trail, but for the street there must be one used?

    noSKills858, Mar 6, 2012
    #122
  3. Mar 6, 2012 at 9:27 PM
    #123
    45acp

    #123
    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,705
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    1981 Long bed 4x4
    How is the body roll at hwy speeds in a SAS? Do you just get used to it or do you have to be a lot more careful while driving?

    45acp, Mar 6, 2012
    #123
  4. Mar 6, 2012 at 9:31 PM
    #124
    45acp

    #124
    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,705
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    1981 Long bed 4x4
    Ah ok. I was in Denver heading to the Toyota Jamboree and some of the TTORA guys blew right by me in some SAS 4runners and pickups so it made me wonder haha

    45acp, Mar 6, 2012
    #124
  5. Mar 6, 2012 at 9:39 PM
    #125
    Rebel Taco 22

    #125
    Rebel Taco 22 mall crawler

    Joined:
    Mar 20, 2011
    Member:
    #53387
    Messages:
    1,598
    Gender:
    Male
    Rebel Taco 22, Mar 6, 2012
    #125
  6. Mar 6, 2012 at 9:43 PM
    #126
    Rebel Taco 22

    #126
    Rebel Taco 22 mall crawler

    Joined:
    Mar 20, 2011
    Member:
    #53387
    Messages:
    1,598
    Gender:
    Male
    IDK. Pretty sure he runs those on the trail also.

    Rebel Taco 22, Mar 6, 2012
    #126
  7. Mar 6, 2012 at 9:47 PM
    #127
    45acp

    #127
    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,705
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    1981 Long bed 4x4
    I like the idea of a quick disconnect sway bar. I don't think I'd feel like getting on a trailer every time I want to go to a trail, esp. if it's close by.

    45acp, Mar 6, 2012
    #127
  8. Mar 6, 2012 at 9:53 PM
    #128
    45acp

    #128
    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,705
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    1981 Long bed 4x4
    I definitely would like to see/get a feel for how they handle sometime. SupraTT, you willing to help me out on that when I come visit?:D

    45acp, Mar 6, 2012
    #128
  9. Mar 6, 2012 at 9:54 PM
    #129
    Rebel Taco 22

    #129
    Rebel Taco 22 mall crawler

    Joined:
    Mar 20, 2011
    Member:
    #53387
    Messages:
    1,598
    Gender:
    Male
    I realize that, but i do not think he takes them off on the trail. Read what he says on the bottom of the post,

    Still flexes out and it drives great on the road. Im making corners 20 mph quicker than I was before.

    which makes me think he leaves them on for the trail.....

    http://www.youtube.com/watch?v=jIJ2tGl8r00&feature=player_embedded

    Rebel Taco 22, Mar 6, 2012
    #129
  10. Mar 6, 2012 at 10:05 PM
    #130
    Rebel Taco 22

    #130
    Rebel Taco 22 mall crawler

    Joined:
    Mar 20, 2011
    Member:
    #53387
    Messages:
    1,598
    Gender:
    Male
    I see what your saying. Maybe its the nature of the sway bar to not hender him off road, but still cut down on body roll on the road. :confused: I believe its a currie sway bar, but not 100% sure. Currie says it doesnt need to be taken off for offroad use. I see what your saying, that does seem odd. If it still allows for flex then how exactly does it cut down on body roll?

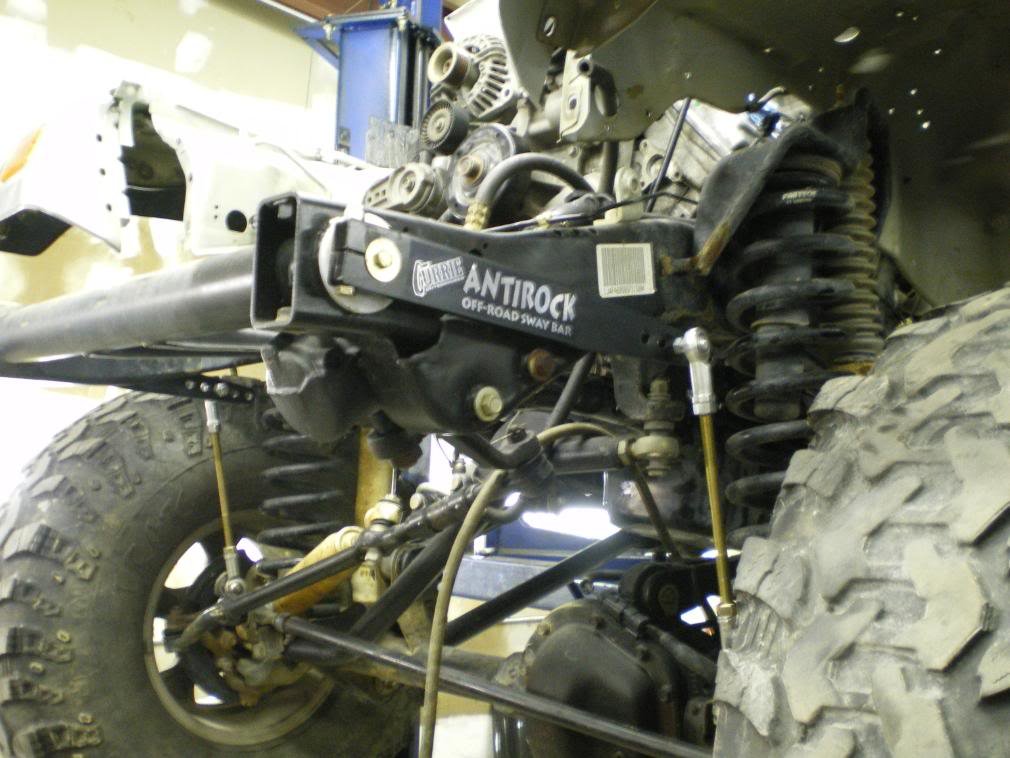

    http://www.currieenterprises.com/cestore/antirock.aspx

    Rebel Taco 22, Mar 6, 2012
    #130
  11. Mar 6, 2012 at 10:14 PM
    #131
    Rebel Taco 22

    #131
    Rebel Taco 22 mall crawler

    Joined:
    Mar 20, 2011
    Member:
    #53387
    Messages:
    1,598
    Gender:
    Male
    Fair enough, I might PM him to find out more about it.

    Rebel Taco 22, Mar 6, 2012
    #131
  12. Mar 6, 2012 at 10:18 PM
    #132
    Rebel Taco 22

    #132
    Rebel Taco 22 mall crawler

    Joined:
    Mar 20, 2011
    Member:
    #53387
    Messages:
    1,598
    Gender:
    Male
    Will do.

    Rebel Taco 22, Mar 6, 2012
    #132
  13. Mar 7, 2012 at 10:31 AM
    #133
    Supra TT

    #133
    Supra TT [OP] Supercharged Lifter

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    7,226
    Gender:
    Male
    First Name:
    Eric
    Indiana
    Vehicle:
    2000 SAS D60 F/R Supercharged
    Supercharged on One Tons
    The sway bar setup that mossy uses is designed to not limit suspension flex due to the articulation of the mounting area. It still limits body roll by distrubuting weight over the 4 tires but isn't as effecient as a true sway bar.

    Supra TT, Mar 7, 2012
    #133
  14. Mar 13, 2012 at 1:22 PM
    #134
    Box Rocket

    #134
    Box Rocket Well-Known Member

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    7,184
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    1995 FZJ80 Land Cruiser
    3xLocked, lifted, well used

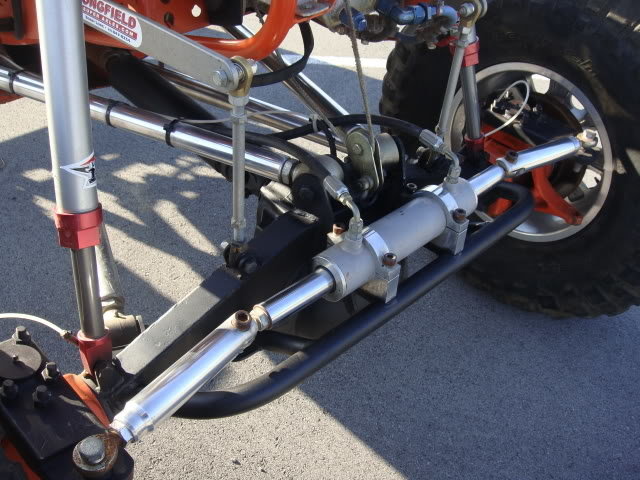

    So all of those competition buggies out there that are using almost the exact same Anti-Rock swaybar setup are clueless?


    [​IMG]


    Just saying. The right swaybar is definitely NOT useless.

    Box Rocket, Mar 13, 2012
    #134
  15. Mar 14, 2012 at 3:08 PM
    #135
    45acp

    #135
    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,705
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    1981 Long bed 4x4
    I've been doing more research on linked suspension. Looks like a pretty intimidating task. :anonymous:

    Considering I have little to no experience with this stuff, I figured I shouldn't scratch the leaf sprung option off the list right away, especially if I want to think about doing any of the work myself. I guess my reasoning for wanting to go linked was added weight for a lower COG and flex.

    Is there really that much of a difference between linked and leaf sprung to warrant the extra effort to make a linked setup? What are some downsides to considering leaf sprung? If the leaf packs were setup a little narrower, could you get significantly more flex, or are you risking too much in regards to strength and stability?

    45acp, Mar 14, 2012
    #135
  16. Mar 14, 2012 at 3:33 PM
    #136
    Supra TT

    #136
    Supra TT [OP] Supercharged Lifter

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    7,226
    Gender:
    Male
    First Name:
    Eric
    Indiana
    Vehicle:
    2000 SAS D60 F/R Supercharged
    Supercharged on One Tons
    The truck will still have a good lower COG.. and flex with leafs.

    Coils are better, always have been and always will be. Links can be replaced easily and can perform MUCH better than any leaf sprung rig in every aspect. Coils are expensive though, very expensive. When you run coils it is IDEAL to chop the frame off and design a new higher clearance frame so you can achieve more than the standard shitty 3-5" uptravel of the leafsprings

    The thing about setting up leaf springs is that you pretty much have to go with the width of the frame. Theres not much more you can do with that. The way to get more flex from leafs is to run longer leafs, but then again you will need to extend your frame for the front otherwise you will just RUB so badly on the firewall.

    Supra TT, Mar 14, 2012
    #136
  17. Mar 14, 2012 at 3:34 PM
    #137
    Cr250jumper

    #137
    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    11,968
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan©
    Tacoma with some stuff melted to it
    What is the cable going through the snatch block in the center of the axle for?

    Cr250jumper, Mar 14, 2012
    #137
  18. Mar 14, 2012 at 3:41 PM
    #138
    Supra TT

    #138
    Supra TT [OP] Supercharged Lifter

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    7,226
    Gender:
    Male
    First Name:
    Eric
    Indiana
    Vehicle:
    2000 SAS D60 F/R Supercharged
    Supercharged on One Tons

    Usually a suckdown winch, used to allow droop and limit droop. when you're on a HUGE rock and your fat ass is drooped out, you can used the winch to suck it up and get over the obstacle. (Not 100% sure this is a suckdown winch, but pretty sure.)

    Supra TT, Mar 14, 2012
    #138
  19. Mar 14, 2012 at 3:45 PM
    #139
    Cr250jumper

    #139
    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    11,968
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan©
    Tacoma with some stuff melted to it
    That was all I could think of, thats amazing

    Cr250jumper, Mar 14, 2012
    #139
  20. Mar 14, 2012 at 3:52 PM
    #140
    45acp

    #140
    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,705
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    1981 Long bed 4x4
    You're not making the decision easy.:p

    I've leaned towards the "do it right the first time" method/mentality. But would it be better to start out with leaf sprung (being a beginner) and eventually convert to linked, or would it be too much of a PITA/too unnecessarily expensive to eventually convert to linked?

    Or have I simply not done enough research and linked is not as hard as it looks at first?

    45acp, Mar 14, 2012
    #140
    blotcher likes this.
