(Solved) 3rz starts and dies, no CEL

I mean will, I tagged you.
So I suppose I should be the one doing the majority of the work.
I just needed some back up.



Okay i believe i have just the thing a co worker showed me its a standard 9007 head light bulb and socket with wire and alligator clips on the ends he said a older gentleman showed him the trick years ago for electrical work when he was starting out i will get some input from him as well



Op, disconnect E7.
Place red lead of voltage meter on pin 1.
The other lead (black) to pin 15 on DLC1.
Set meter to ohms.

Report back to us the reading.



I appreciate all the help electrical is definitely not my strong suit but i have been trying to learn more as i go because we are starting to see electrical issues on the internationals with x15 cummins at the fleet shop i work at.



As I said above I'd do a resistance measurement on that wire instead of using a light.
Unplug the connector on the PCM, set you meter to resistance, put one end of your meter to the wire and the other to a known good ground. It should be OL or at least greater than 10K ohms.



Will do i will know more by tomorrow evening hopefully before i head into work.



I don’t know when I’ll be able to respond tomorrow.
Probably won’t be around until after 7pm EST.

Hang in there. I’ll get back to you. It might just take me awhile.



I know next to nothing about those.
I can’t help you there.



If it checks out I'd really like to load check the powers and grounds with a headlight just to be sure we aren't missing something.

Powers:

E5 Pin 1 (Black/Yellow)
E5 Pin 12 (White/Red)

Grounds:

E8 Pin 13 (Brown)
E8 Pin 14 (Brown)
E8 Pin 25 (Brown)
E8 Pin 26 (Brown)



OP, load check means with a test light

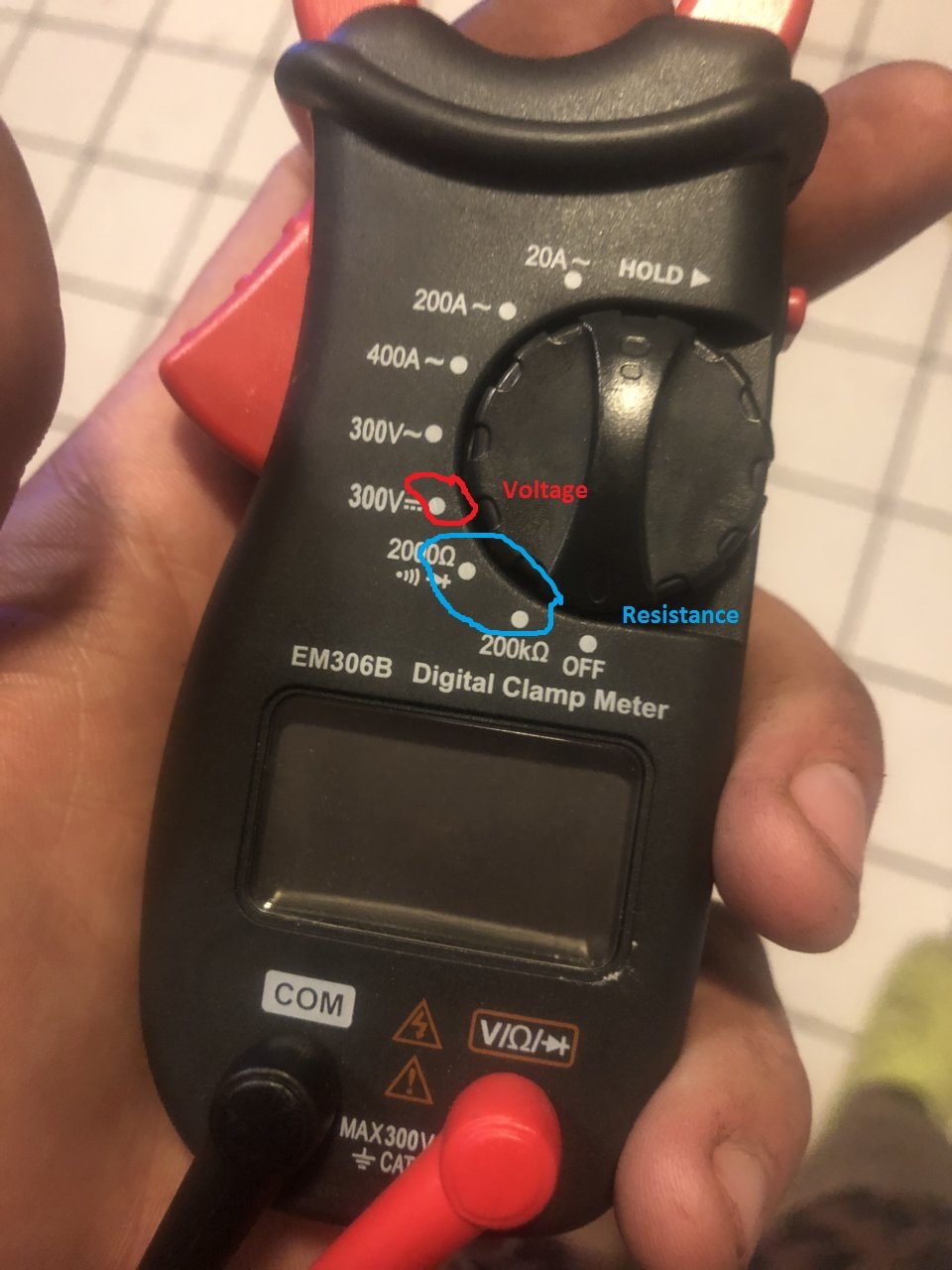

Resistance test shows 000.0



That's on the TE1 wire?

You have your meter set to resistance correct?



E5 pin 1 14.3 volts
E5 pin 12 14.3 volts
E8 pin 13 -14.4
E8 pin 14 is a green and yellow wire not brown
E8 pin 25 -14.4
E8 pin 26 -14.4



Yes



Where do you have your ground lead when checking the ground pins?

Interesting, the 97 diagram shows it to be a Brown wire (Ground) but the 98 diagram shows it to be a Green/Yellow wire (Circuit Opening Relay Control)
Are you sure the truck isn't a 98?

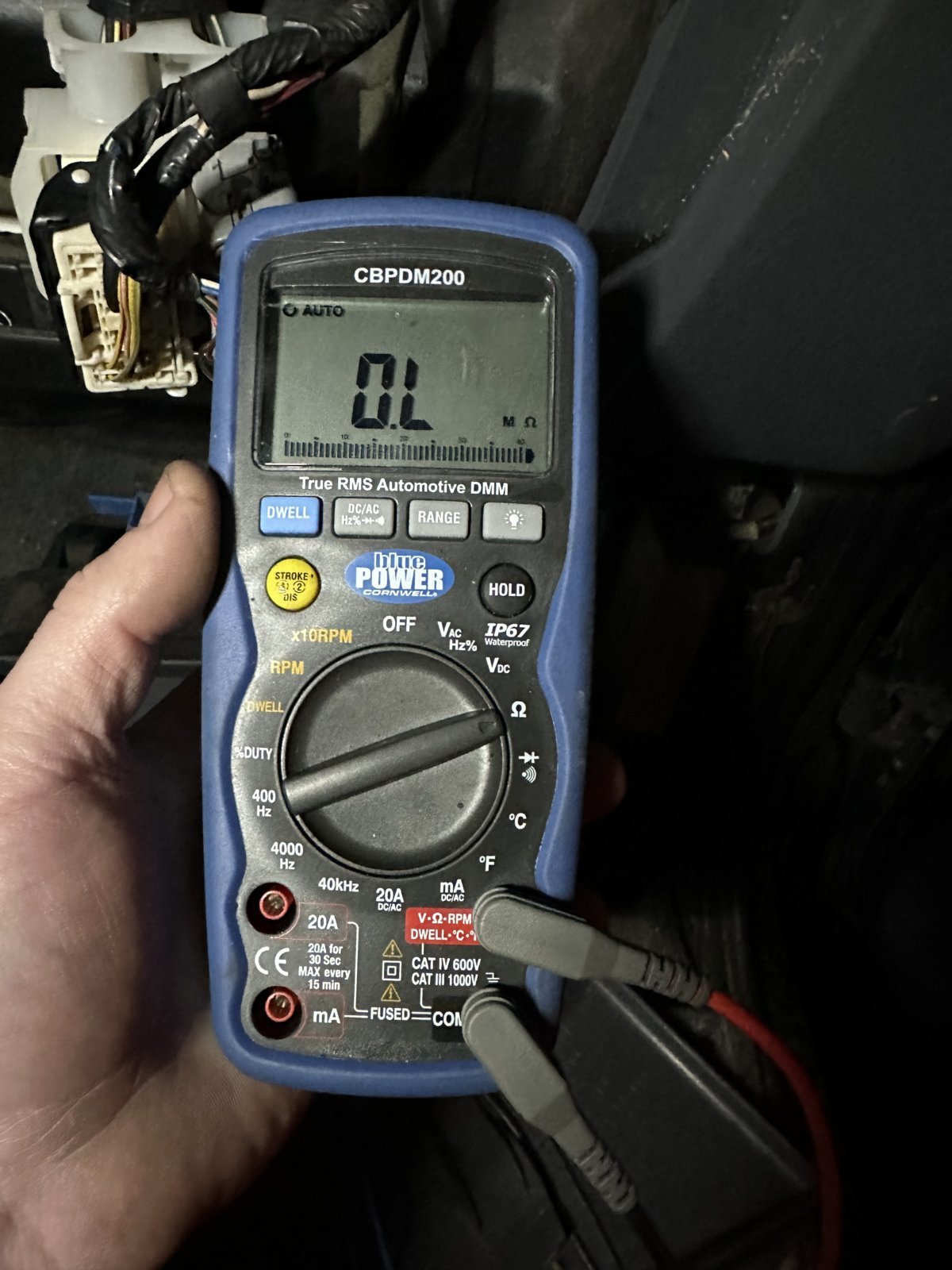

Ah ok that's open circuit, that makes more sense.



The title says 97 the door shows 04/97



Had the red lead on a bolt head going into body of truck checked with test light to make sure it had ground before i done the resistance test



I'm going off the wiring diagrams, the door could have been swapped.
What's the 10th digit of the VIN tag at the upper left corner of the dash?



V



4tavl52n6vz309411
