Some pictures from a new member :)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by wolf73, Nov 26, 2009.

  1. Nov 26, 2009 at 11:27 AM
    #1
    wolf73

    wolf73 [OP] Active Member

    Joined:
    Oct 26, 2009
    Member:
    #24950
    Messages:
    44
    Gender:
    Male
    I have been reading this forum for many hours since I found it about a month ago when I was looking for information on a 3" lift and I must say there is a ton of information on here and now you guys got me addicted to this site!

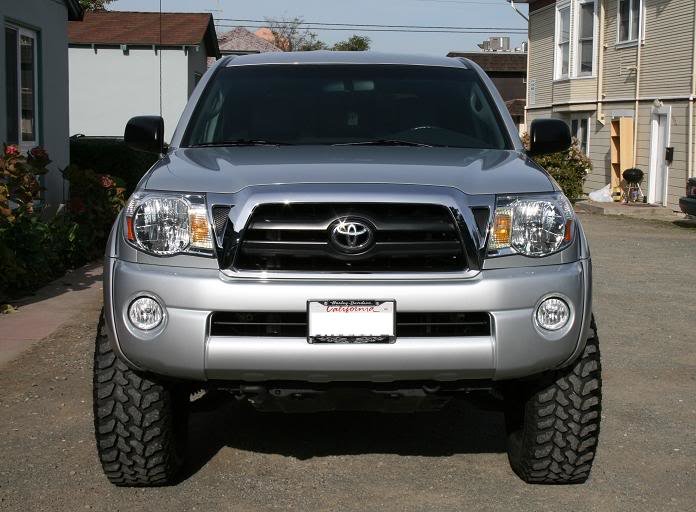

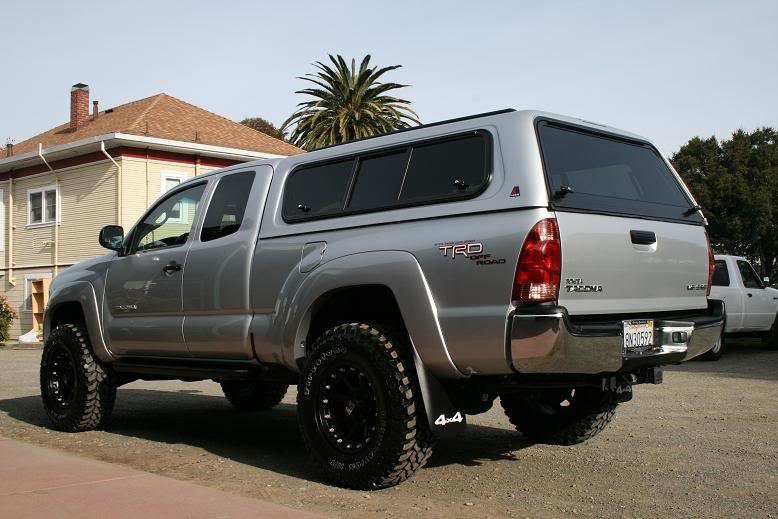

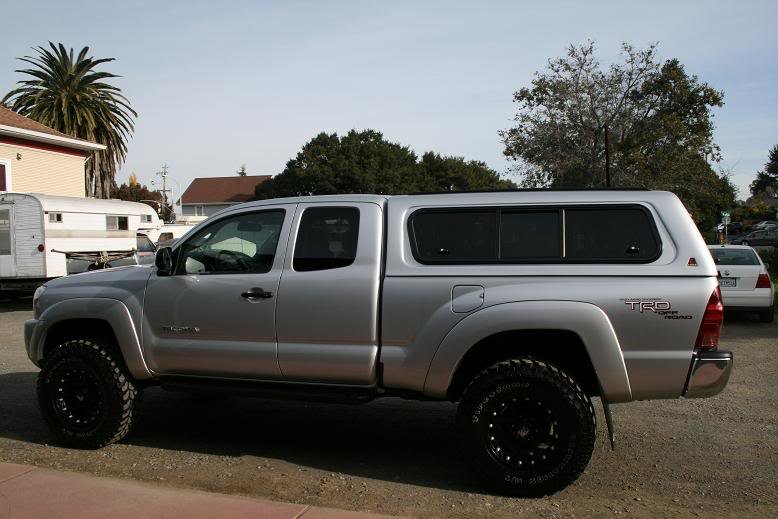

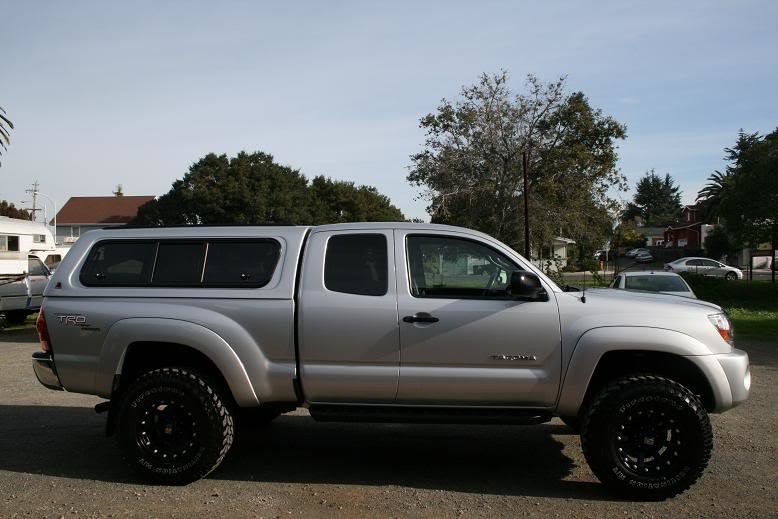

    Finally I decided to put up some pictures of my truck. It is an 07 Access Cab 4x4 TRD that I purchased new in October 07. I installed a 3" Toytec Ultimate Lift Kit with 285/70/17 Firestone Destination MT and Addict rims.

    Without all the information on this forum I would have had no clue about suspension possibilities, tire and rim sizes... So hereby thanks to you all!

    Any advice or comments for improvement would be very welcome :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

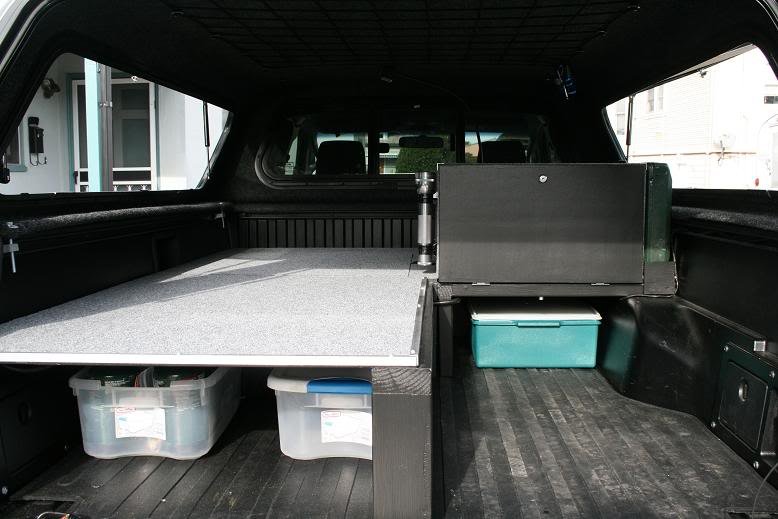

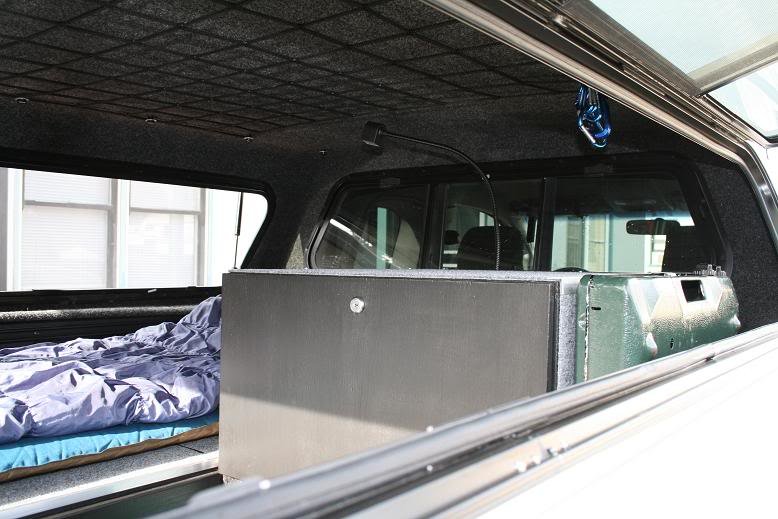

    I am very much into camping and build a platform in the bed with storage:
    [​IMG]

    [​IMG]

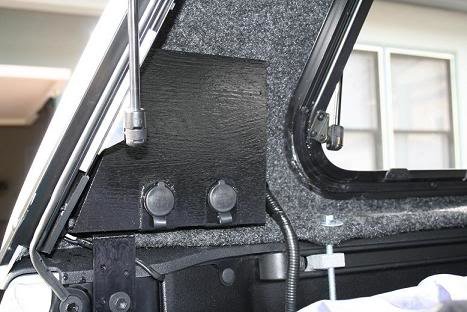

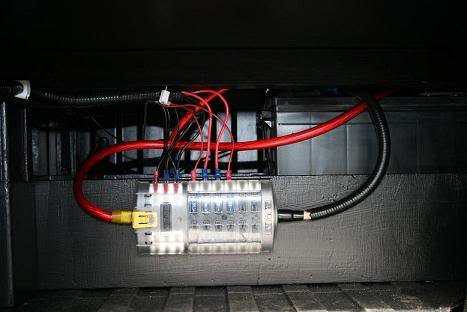

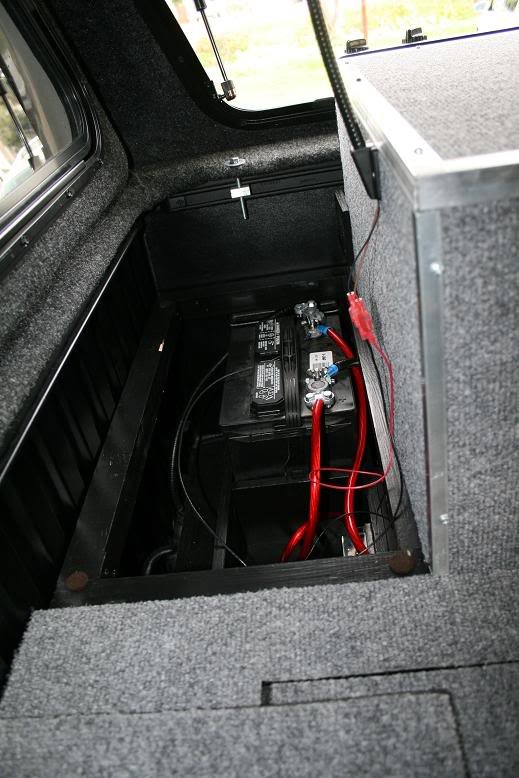

    Because I didn't want to worry about draining my car battery while camping I installed a second battery in the bed . Ignore the red cable on the ground, I still have to tape it with black. I run out of black 4 gauge wire :)
    [​IMG]

    [​IMG]

    [​IMG]

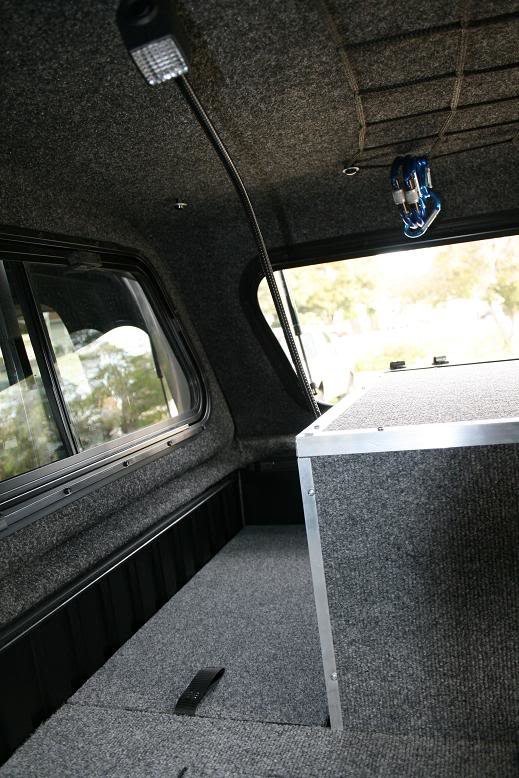

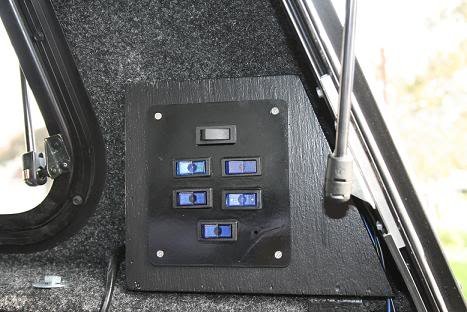

    The dome light of the camper shell is wired into the second battery and I added a map light and LED lights in the storage areas so I can see when I look for something without having to use a flash light. Still waiting for 2 mini LED light strips to arrive to attach to the top frame of the Windoors. I also added some 12V outlets:
    [​IMG]

    [​IMG]

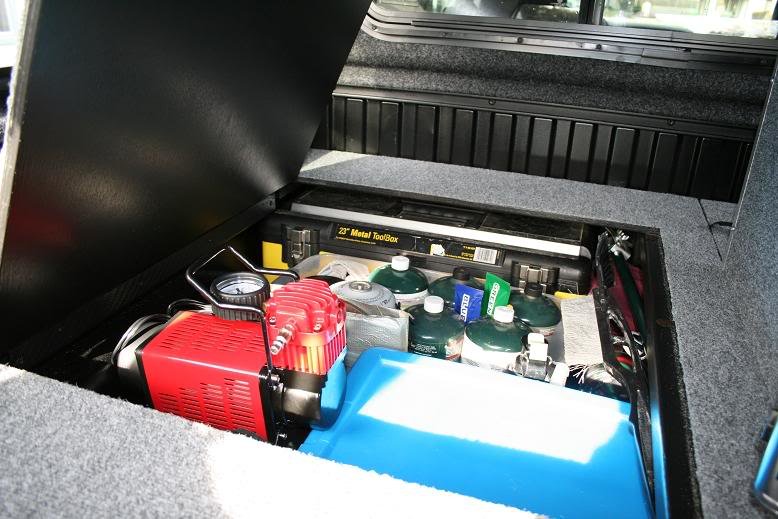

    In the front storage compartment I have tools and a little air compressor:
    [​IMG]

  2. Nov 26, 2009 at 11:30 AM
    #2
    JAG

    JAG Well-Known Member

    Joined:
    Oct 9, 2008
    Member:
    #9847
    Messages:
    1,753
    UHHHH..... WOW! :eek: You have got one good look.n truck. Very clean!

  3. Nov 26, 2009 at 11:33 AM
    #3
    silver07taco

    silver07taco Well-Known Member

    Joined:
    Apr 27, 2008
    Member:
    #6241
    Messages:
    4,554
    Gender:
    Male
    First Name:
    COIL
    Maryland
    Vehicle:
    13 Tundra RCSB 5.7 4x4,07 Tacoma AC 4.0 4x4
    2013 Tundra RCSB 5.7 4x4, 2007 Tacoma AC 4.0 4x4
    Good lookin taco, You have done some real nice work with it:thumbsup:

  4. Nov 26, 2009 at 11:35 AM
    #4
    moto932

    moto932 What's the matter, Colonel Sandurz? CHICKEN?

    Joined:
    Apr 9, 2009
    Member:
    #15770
    Messages:
    3,236
    Gender:
    Male
    First Name:
    Eric
    Dayton, Ohio
    Vehicle:
    04 TRD Off Road SR5 Impulse Red
    5100's @ 1.25", Scangaugae II, deck plate mod w/AFE Pro Dry S filter, grey wire mod, alarm mod, defrost w/o compressor mod, de-badged, 17" sport wheels powder coated black, 1" B.O.R.A. wheel spacers, 265/70/17 Cooper Zeon LTZ's, sockmonkey beside decals.
    very nice truck! welcome to tw.

  5. Nov 26, 2009 at 11:35 AM
    #5
    jtav2002

    jtav2002 Kenny Fuckin Powers

    Joined:
    Jun 29, 2009
    Member:
    #19074
    Messages:
    4,483
    Gender:
    Male
    First Name:
    Josh
    Reading, PA
    Vehicle:
    2013 Tundra DBL Cab TRD OR
    Awesome! Nice work so far.

  6. Nov 26, 2009 at 11:35 AM
    #6
    hendooman

    hendooman The Stroker Ace

    Joined:
    Mar 6, 2009
    Member:
    #14421
    Messages:
    3,040
    Gender:
    Male
    First Name:
    Jeff
    KC
    Vehicle:
    2015 TRD PRO 4Runner
    great looking truck, I really like your tire and wheel set up as well. I love the camping set up as well. Sometimes I wish I had a longbed, my tall self is way to long for a shortbed.

  7. Nov 26, 2009 at 11:35 AM
    #7
    RoyB

    RoyB Well-Known Member

    Joined:
    Oct 5, 2008
    Member:
    #9708
    Messages:
    1,646
    Gender:
    Male
    Chicago burbs
    Vehicle:
    '09 TRD DC Sport
    very nice truck. i really like what you did with the bed.

  8. Nov 26, 2009 at 11:38 AM
    #8
    ak47

    ak47 v.hey its my Avatar avatar.v

    Joined:
    Nov 9, 2009
    Member:
    #25696
    Messages:
    677
    Gender:
    Male
    First Name:
    Anthony
    Washington
    Vehicle:
    stock 2nd owner
    that setup is awesome. i'd love to do something like that...

  9. Nov 26, 2009 at 11:42 AM
    #9
    deeznutz

    deeznutz Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20585
    Messages:
    237
    Gender:
    Male
    Seattle, WA
    Vehicle:
    09 SR5 DC LB 4x4

    x2 :eek:

    Any more info on how you built the bed like progress pics? Would like to do something like that.

  10. Nov 26, 2009 at 11:44 AM
    #10
    JAG

    JAG Well-Known Member

    Joined:
    Oct 9, 2008
    Member:
    #9847
    Messages:
    1,753
    x3 How did you fasten that?

  11. Nov 26, 2009 at 11:47 AM
    #11
    David Tarantino

    David Tarantino Well-Known Member

    Joined:
    Jun 20, 2008
    Member:
    #7428
    Messages:
    6,123
    Gender:
    Male
    N.J.
    Vehicle:
    08 tacoma
    thats a lot of work looks great nice work
    And Welcome To T/W

  12. Nov 26, 2009 at 11:47 AM
    #12
    wolf73

    wolf73 [OP] Active Member

    Joined:
    Oct 26, 2009
    Member:
    #24950
    Messages:
    44
    Gender:
    Male
    Thanks everybody!

    I still have quite a few things I would like to change but I have to save up a little bit first.
    Eventually I would like to add an All Pro front bumper with lights, Shrockworks sliders, a roof cargo basked and a few more goodies :)

    I am not planning on doing extreme off roading but want to have a setup that I can get off the beaten path for camping and exploring. I used to be a tourguide for camping adventure tours for 6 years and have spent lots and lots of time hiking most of the National Parks in the southwest and northwest. Now I would like to be able to get to places regular cars can't go and that I haven't seen before.

    I am still trying to figure out where I could put two gas cans when I go on long trips and I figure the only place could be in a cargo basket on top of the camper shell?

  13. Nov 26, 2009 at 11:54 AM
    #13
    JAG

    JAG Well-Known Member

    Joined:
    Oct 9, 2008
    Member:
    #9847
    Messages:
    1,753
    [​IMG]

    You could do this as a cheaper route for the time being.

  14. Nov 26, 2009 at 11:56 AM
    #14
    Jason'sLawnCare

    Jason'sLawnCare Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,365
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    :eek::eek::eek: Your setup is so awesome.

  15. Nov 26, 2009 at 11:58 AM
    #15
    wolf73

    wolf73 [OP] Active Member

    Joined:
    Oct 26, 2009
    Member:
    #24950
    Messages:
    44
    Gender:
    Male
    I might have some pictures from when I was building the platform in the back but will have to see if I can find them. I built it in three sections so it can be removed easily.

    The first long section on the left is one piece. The left side of it is sitting on the edge of the side of the bed itself. The right side of that section is a 2x4 frame running front to back. The part towards the front of the bed is enclosed with access from the top.

    The second section is the shorter one on the right. That one is bolted to the left section so it is a very tight fit and does not move at all. The storage box on top of that is separate of it as well and bolted down. When I want to take somebody camping I can just remove that storage box and lay a panel in there.

    I will be building another part that will fit on the right so the whole truck bed could be transformed into one platform for two people to sleep.

    It's all kind of hard to explain without pictures but will see if I can find them.

  16. Nov 26, 2009 at 12:10 PM
    #16
    Toyota Truck

    Toyota Truck Well-Known Member

    Joined:
    Nov 21, 2008
    Member:
    #10925
    Messages:
    1,942
    Gender:
    Male
    First Name:
    JT
    Texas
    Vehicle:
    2008 Prerunnner
    Magnaflow Muffler-TSB springs-Nuvi 265wt-aFe pro dry s filter-Husky Liners-Blue dome light-extra d-rings-OME 90000 sport struts-885 coils-N182 shocks-TSB AAL-LR UCAs-procomp black alloy rims- nitto terra grapplers-20% tint
  17. Nov 26, 2009 at 12:13 PM
    #17
    wolf73

    wolf73 [OP] Active Member

    Joined:
    Oct 26, 2009
    Member:
    #24950
    Messages:
    44
    Gender:
    Male
    Jag: Thanks for the idea! I have seen these before but was worried they would drag easily when driving up or coming down a hill. Do you have any problems with that?

    The platform itself is not fastened to the bed. The sections are bolted together and I built them so it is a very tight fit. I tried pulling the back part away from the bed to get some wiring through and I had a hard time pulling it away to get a 1/4 inch gap.
    It also doesn't jump up because the front compartment is enclosed and has all the weight in it from my toolbox etc.

  18. Nov 26, 2009 at 12:25 PM
    #18
    JAG

    JAG Well-Known Member

    Joined:
    Oct 9, 2008
    Member:
    #9847
    Messages:
    1,753
    The one i have used has never dragged. But i never did serious offroading with it. They do have some that will fold up when not in use. I wonder if you could weld one yourself that gave you a higher ground clearance.

  19. Nov 26, 2009 at 12:32 PM
    #19
    sandman427

    sandman427 KR FAB

    Joined:
    Mar 9, 2009
    Member:
    #14497
    Messages:
    5,891
    Gender:
    Male
    First Name:
    Amir
    WAY THE HELL OUT THERE, So Cal
    Vehicle:
    BAMF TACO!!
    2 ten inch kicker cvt subs, pioneer deck and alpine 1000 watt class D amp, and flowmaster exhaust, 4 inch camburg lift spindles and my coilover is adjusted to 1" (5inch total) in front and 3" All Pro leafs, KING off road racing reservoir shocks and coil-overs, KR FAB CUSTOM BUMPER with three 9" HELLA 4000 Race LIGHTS , HID headlights with rigid amber LEDs , "KR Fabrication" custom built bumper, sliders and tiregate, Full size spare with matching rim, custom bed bar with two amber off road lights, cb radio, also BHLM (thanks Ray), and debagged
    welcome... amazing truck... was it a pain having to setup a second battery... cuz im looking into doing that...

  20. Nov 26, 2009 at 12:49 PM
    #20
    wolf73

    wolf73 [OP] Active Member

    Joined:
    Oct 26, 2009
    Member:
    #24950
    Messages:
    44
    Gender:
    Male
    Sandman427 - It was actually very easy. I ran a 4 gauge wire from the car battery plus to a relay in the bed with an inline fuse at the car battery and a second fuse between the relay and the second battery plus.
    A 4 gauge wire connects the second battery to a ground at the frame.
    Drilling of the bed is very easy since it is not metal.

    I also protected all wires with black wire conduit. When I had the camper shell "professionally" installed at a Campway's they had run a constant hot wire for the dome light all along the frame to the back with no protection at all. When I noticed that and only after two weeks of driving I could already see some wear on the insulation of the wire where it was rubbing on the frame...

    Then an ignition wire to the relays and a ground wire to the relay. This way when the ignition gets turned on the relay connects the batteries, when turned off the batteries are not connected anymore. I spliced of one of the trailer wiring ignition wires.

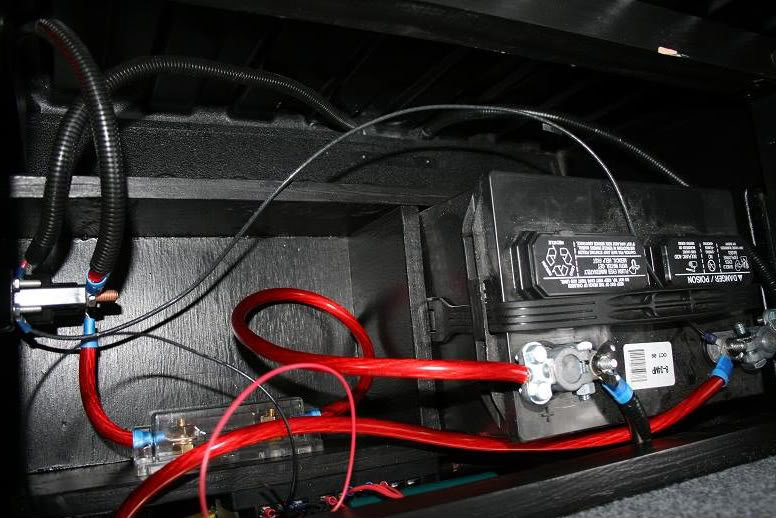

    Here is a picture. Ignore the fact that there is a red wire at the plus and a red wire at the minus of the battery. I ran out of black wire and used a red one going from the battery minus to the fuse box minus. I will tape it with black electrical tape.

    [​IMG]
