Special Service Tool - Crank Pulley Remover

Discussion in '1st Gen. Tacomas (1995-2004)' started by TacomaJPP, Jan 8, 2011.

  1. Jan 8, 2011 at 10:45 AM
    #1
    TacomaJPP

    TacomaJPP [OP] To secure peace, is to prepare for war

    Joined:
    Dec 5, 2010
    Member:
    #47218
    Messages:
    559
    Gender:
    Male
    East TN
    Vehicle:
    03 4WD TRD XTD Cab
    Snugtop Camper Brushguard
    NegroTundra asked me to post pics/print of my homemade Special Service Tool (SST) for removing the crank pulley.

    Here it is.

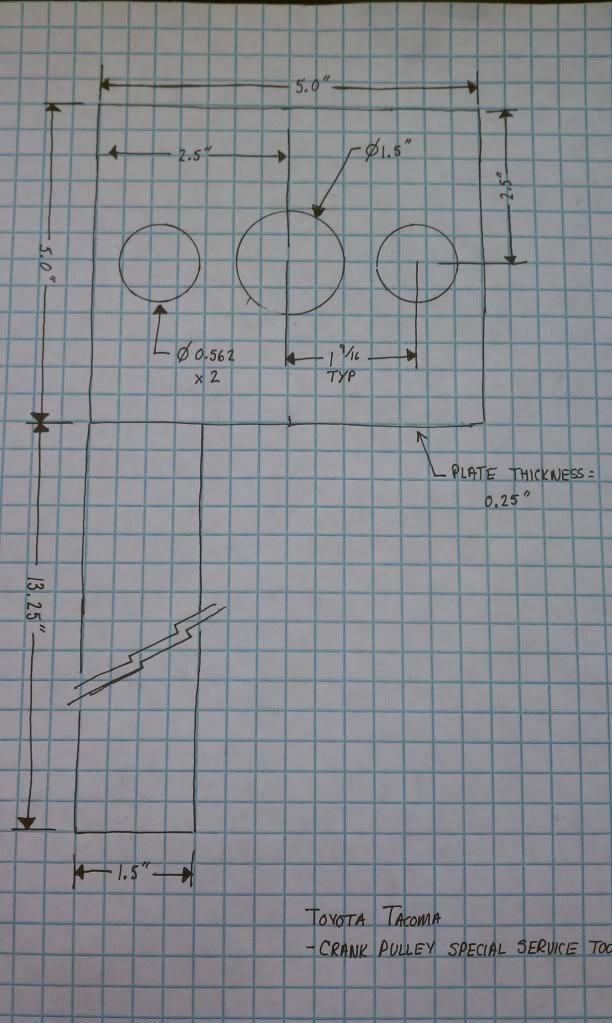

    EDIT: Please note, I screwed up on my print! Rotate the three bolt holes 90 degrees. Arghhhhh. See picture.

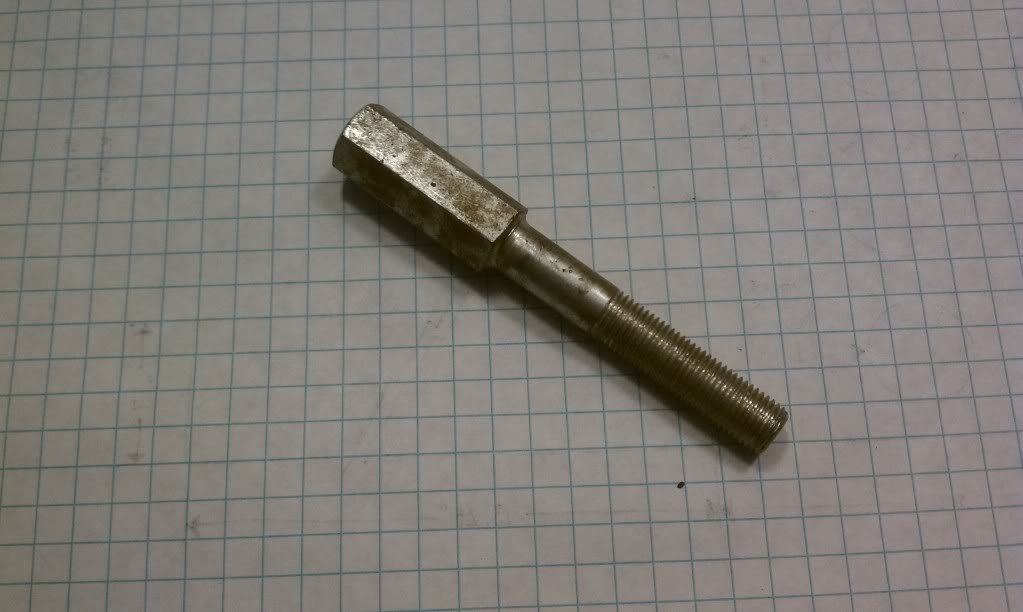

    I use the couple nuts to stick through the holes in the SST plate and thread onto the studs behind the crank pulley. The "tee" post lays against the frame rail and locks there as pressure is applied to the crank pulley nut. If I recall, it takes 217 ft-lbs to torque the crank pulley nut.

    Enjoy:

    [​IMG]

    [​IMG]

    [​IMG]

  2. Jan 8, 2011 at 11:10 AM
    #2
    twfsa

    twfsa Well-Known Member

    Joined:
    May 29, 2010
    Member:
    #37997
    Messages:
    1,342
    Gender:
    Male
    First Name:
    Tom
    Omaha Ne
    Vehicle:
    04 TRD 4X4
    881 Front coils, Bilstien 5100's all the way front set to "0" Icon Dynamic's mini leafs in rear, stock tires.
  3. Jan 8, 2011 at 5:53 PM
    #3
    NegroTundra

    NegroTundra Well-Known Member

    Joined:
    Oct 25, 2010
    Member:
    #45227
    Messages:
    652
    Gender:
    Male
    Land of Enchantment
    Vehicle:
    03 Tacoma TRD 4WD 5 spd
    Cool beans man....thanks a lot. Will print this out and start fabbing!

    Are the holes on the diagnal ends of the flat stock there for a reason? Or were they just there when you got the plate?

  4. Jan 8, 2011 at 5:59 PM
    #4
    wired_af

    wired_af Well-Known Member

    Joined:
    Jul 1, 2008
    Member:
    #7687
    Messages:
    120
    Gender:
    Male
    First Name:
    Alex
    Colorado Springs, CO
    Vehicle:
    '07 DC TRD Sport S/C
    How do you keep from bending the bolts? I made a tool out of bar stock and bent several grade 8.8 bolts.

  5. Jan 8, 2011 at 6:53 PM
    #5
    Miata Tech

    Miata Tech Well-Known Member

    Joined:
    Dec 1, 2010
    Member:
    #46999
    Messages:
    64
    Gender:
    Male
    First Name:
    Jim
    Lawrence, KS
    Vehicle:
    2002 4X4 SR-5 TRD
    ChaseCam Video System, Optima YellowTop, ScanGauge II, Heated Drivers Seat, Sirius Satellite Radio, K&N Drop In, E-Locker Guard, Extang Black Max Tonneau , Streamlight Stinger, All Synthetic Fluids, USA-Spec iPhone Interface, Gentex Auto Dimming Compass/Temp Mirror
    Wouldn't be a bad idea to use a New crank bolt too.

  6. Jan 8, 2011 at 9:34 PM
    #6
    joeer77

    joeer77 Active Member

    Joined:
    Nov 1, 2010
    Member:
    #45546
    Messages:
    41
    Gender:
    Male
    North Plains OR
    Bilstein 5100s
    Can you rent a torque multiplier and "pulley locker" from Autozone? I bet they have at least one of these tools for rent. 210ft-lbs sounds awful high. Is that out of the FSM? I think my wrench only goes to 150ft-lbs darn it.

  7. Jan 8, 2011 at 10:09 PM
    #7
    TacomaJPP

    TacomaJPP [OP] To secure peace, is to prepare for war

    Joined:
    Dec 5, 2010
    Member:
    #47218
    Messages:
    559
    Gender:
    Male
    East TN
    Vehicle:
    03 4WD TRD XTD Cab
    Snugtop Camper Brushguard
    Did you catch my note above where the holes need to be rotated?

    Anyway, about the diagonals holes...they were already there.

  8. Jan 8, 2011 at 10:10 PM
    #8
    TacomaJPP

    TacomaJPP [OP] To secure peace, is to prepare for war

    Joined:
    Dec 5, 2010
    Member:
    #47218
    Messages:
    559
    Gender:
    Male
    East TN
    Vehicle:
    03 4WD TRD XTD Cab
    Snugtop Camper Brushguard
    I used a 250 ft-lbs torque wrench (I'm guessing a 24" handle on it) and I had no problems breaking it loose. Of course I am a fine specimen of the male physique....
