Starting my SAS tomorrow on my 97 :)

Discussion in 'Solid Axle Suspension' started by im gooby, Oct 28, 2013.

  1. Oct 28, 2013 at 12:17 AM
    #1
    im gooby

    im gooby [OP] Well-Known Member

    Joined:
    Mar 10, 2013
    Member:
    #99444
    Messages:
    64
    Gender:
    Male
    First Name:
    Johnathan
    Winnipeg, MB
    Vehicle:
    97 4x4 V6 Xtra Cab
    2" shackles in rear, Bilstein 5100's up front, Bilsetin 5165's 14" travel in the rear,35" MTR's, complete stereo, added power windows and power locks, blue dash lights and cluster lights, debadged.
    So one of my friend's who owns a shop is selling me a pair of toyota axles. But these are not normal toyota axles, oh no no no. They are industrial land cruiser axles - basically taco sized Rockwell's. The vehicle these axles come on has on the serial number sticker a line that reads "This vehicle is an all terrain vehicle and as such, is not suitable or licensable for operation on public roads/highways."

    [​IMG]

    The rear axle comes factory with a clutch driven LSD, and axles are geared to 4:30 again from stock. The only place in Canada that deals with these trucks is Saskatoon Industrial Toyota. Only rebuilding the axles need are Birfield joints in the front and pulling the 3rd's to clean them up.

    Will be built with coilovers up front, 3 link with trac bar, and about 8" of overall lift, plus an extra 2" with the 35's for a total of 10" above stock.

    So far the price list is as follows:
    $1500 for axles, complete
    $2000 for labour/parts to install
    Coilovers: TBD
    Tires have already been bought and paid for, already on the ifs, for now :p

    I know there are threads of people saying "ima sas my taco for 2500-5000" and what have you, that is not the point of this thread.I just want to share with everyone the process of my trucks SAS. I'm getting a solid deal and should come in between $5000-$6500 cost, and doing everything the correct, quality way.

    Will post pictures tomorrow of the axles and the truck they will be going on.

    Cheers, John :)


    Edit, Nov7/13: budget blown away!

    Last edited: Nov 7, 2013
  2. Oct 28, 2013 at 12:25 AM
    #2
    95 taco

    95 taco Redneck rich

    Joined:
    May 3, 2012
    Member:
    #78175
    Messages:
    10,680
    Gender:
    Male
    South Miss.
    Vehicle:
    2003 4x4 TRD SR5
    OME 883 front, OMD 3.5" rear Relentless front bumper
  3. Oct 28, 2013 at 12:28 AM
    #3
    brettb

    brettb Well-Known Member

    Joined:
    Nov 27, 2009
    Member:
    #26587
    Messages:
    1,527
    Gender:
    Male
    First Name:
    Brett
    Laramie, Wyoming
    Vehicle:
    '99 Tacoma TRD Offroad sr5
    3" fabtech fox front, 2.5" DAKAR/Bilstein 5100 rear
    Subbed

  4. Oct 28, 2013 at 1:07 AM
    #4
    YotaOverAll

    YotaOverAll Run it

    Joined:
    Jul 9, 2012
    Member:
    #82254
    Messages:
    8,003
    Gender:
    Male
    First Name:
    Jessie
    Panama City, FL
    Vehicle:
    02 Prerunner SR5
    3" Toytec spacers, Bilstein 5100s in the back with add a leaf and overloads removed.
  5. Oct 28, 2013 at 5:12 PM
    #5
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,699
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    10" of lift on 35's is going to be RIDICULOUS. Pretty much like my truck with these pesky leafs I set up wrong... You'll be at 28" frame height on links... Were with 35s you should be roughly around 23" frame height and still have decent uptravel.

    Where are you getting your steering box, heim joints, pitman arm, axle and frame brackets for links, frame reinforcement, shock mounts, steering shaft, bolts etc...

    When you say axle is complete, does it include hysteer arms, steering linkage?

    :popcorn:

  6. Oct 28, 2013 at 5:26 PM
    #6
    Fiolo

    Fiolo Senior member

    Joined:
    Sep 10, 2011
    Member:
    #63227
    Messages:
    4,262
    Gender:
    Male
    Vehicle:
    98 Regular cab lifted 4wd
    Lost track many mods ago
    Pass the popcorn

  7. Oct 28, 2013 at 5:27 PM
    #7
    Fenwick1993

    Fenwick1993 Hillbilly

    Joined:
    Sep 1, 2012
    Member:
    #85996
    Messages:
    3,249
    Gender:
    Male
    First Name:
    Fenwick
    Chesapeake, VA
    Vehicle:
    Stonewall Jackson, '96 Xtracab, rebuilt motor
    Full rebuild short of machine work, mean green motherfucker! Lime green block, hand-polished valve cover, and stickers! Too broke for real mods right now. Stonewall is my baby, but he's also a work truck.
    :popcorn:
    Subbed for moar!

  8. Oct 28, 2013 at 5:31 PM
    #8
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,431
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    Tough as woodpecker lips...
    Icon Ext Travel COs w/700lb King ID springs Icon VS 2.0 Rear Shocks All-Pro Expo Leaf Pack TC UCA Retrofit Headlights Wet Okles Weathertech Floor Mats TRD Exhaust ATO rear bumper w/swing out tire carrier ARB bumper Smittybilt XRC8 ATO IFS, Tranny, Transfer, and gas tanks skid 4x Innovation DOM sliders w/kickout
  9. Oct 28, 2013 at 5:45 PM
    #9
    Gear Head

    Gear Head Well-Known Member

    Joined:
    Oct 27, 2012
    Member:
    #89921
    Messages:
    3,821
    Gender:
    Male
    First Name:
    Jacob
    Winston Salem, NC
    Vehicle:
    96 Tacoma
    fj60 front, full hydro, 5.29's, locked/welded, twin sticked 2.28/4.70 duals, 39.5's, inboarded 63's
  10. Oct 29, 2013 at 3:52 PM
    #10
    PantherTaco

    PantherTaco Well-Known Member

    Joined:
    Apr 11, 2012
    Member:
    #76704
    Messages:
    7,170
    Gender:
    Male
    First Name:
    Luke
    Lexington, VA
    Vehicle:
    07 TRD Off-Road SR5 BSP
    mall crawler
    pass that ova here

  11. Oct 29, 2013 at 3:58 PM
    #11
    DHwreckage

    DHwreckage Well-Known Member

    Joined:
    Oct 12, 2012
    Member:
    #88868
    Messages:
    412
    Gender:
    Male
    Boulder, CO
    Vehicle:
    Moby Dick (FZJ-80)
    ill take some:popcorn:too, i wanna see these industrial LC axles :eek:

  12. Oct 29, 2013 at 3:59 PM
    #12
    Ghost848

    Ghost848 Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74480
    Messages:
    1,518
    Gender:
    Male
    First Name:
    Tony
    Alberta,Canada
    Vehicle:
    09 V6 TRD OR Silver M6
    OME + Dakers, 285/75R16 Nitto Trail Grapplers, ARB Bumper, Columbia overland Dual battery, Super winch,CC stage 4 clutch, bestop supertop, URD TO bearing, BHLM headlights, Cruisin offroad rear bumper, Harrop front E-locker.
    Hmmmmmm popcorn extra butter?

  13. Oct 29, 2013 at 4:01 PM
    #13
    2000GTacoma

    2000GTacoma Well-Known Member

    Joined:
    Jan 29, 2011
    Member:
    #50183
    Messages:
    2,183
    Gender:
    Male
    Snow Hill NC
    Vehicle:
    00 Tacoma Ext. 3.4L SR5
  14. Oct 29, 2013 at 7:07 PM
    #14
    im gooby

    im gooby [OP] Well-Known Member

    Joined:
    Mar 10, 2013
    Member:
    #99444
    Messages:
    64
    Gender:
    Male
    First Name:
    Johnathan
    Winnipeg, MB
    Vehicle:
    97 4x4 V6 Xtra Cab
    2" shackles in rear, Bilstein 5100's up front, Bilsetin 5165's 14" travel in the rear,35" MTR's, complete stereo, added power windows and power locks, blue dash lights and cluster lights, debadged.
    Sorry I didn't post yesterday, was at the shop till about 2am(only worked for about 4 hours though haha)

    So we drug the front axle in, and i picked away at stripping it all off the housing.

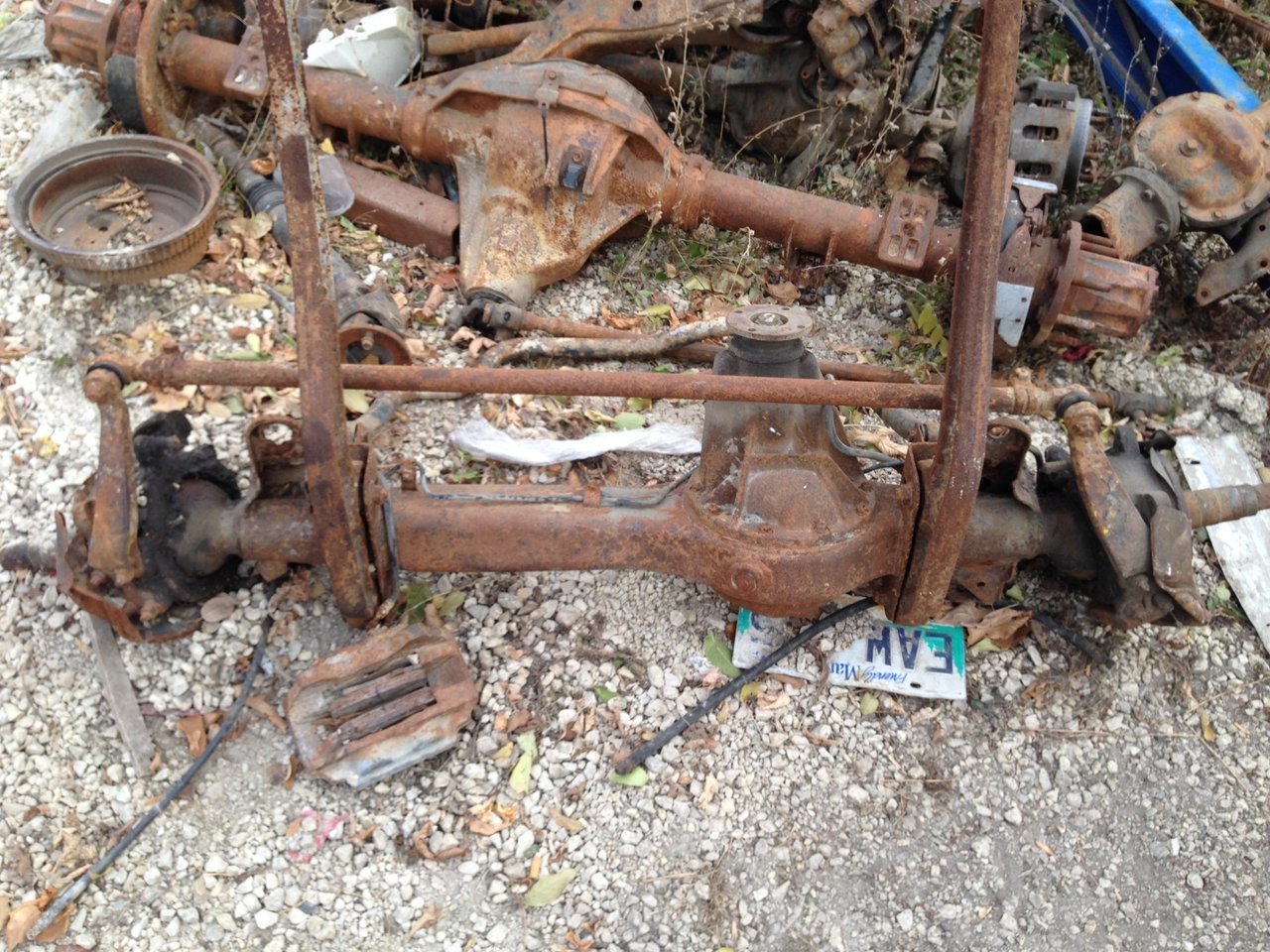

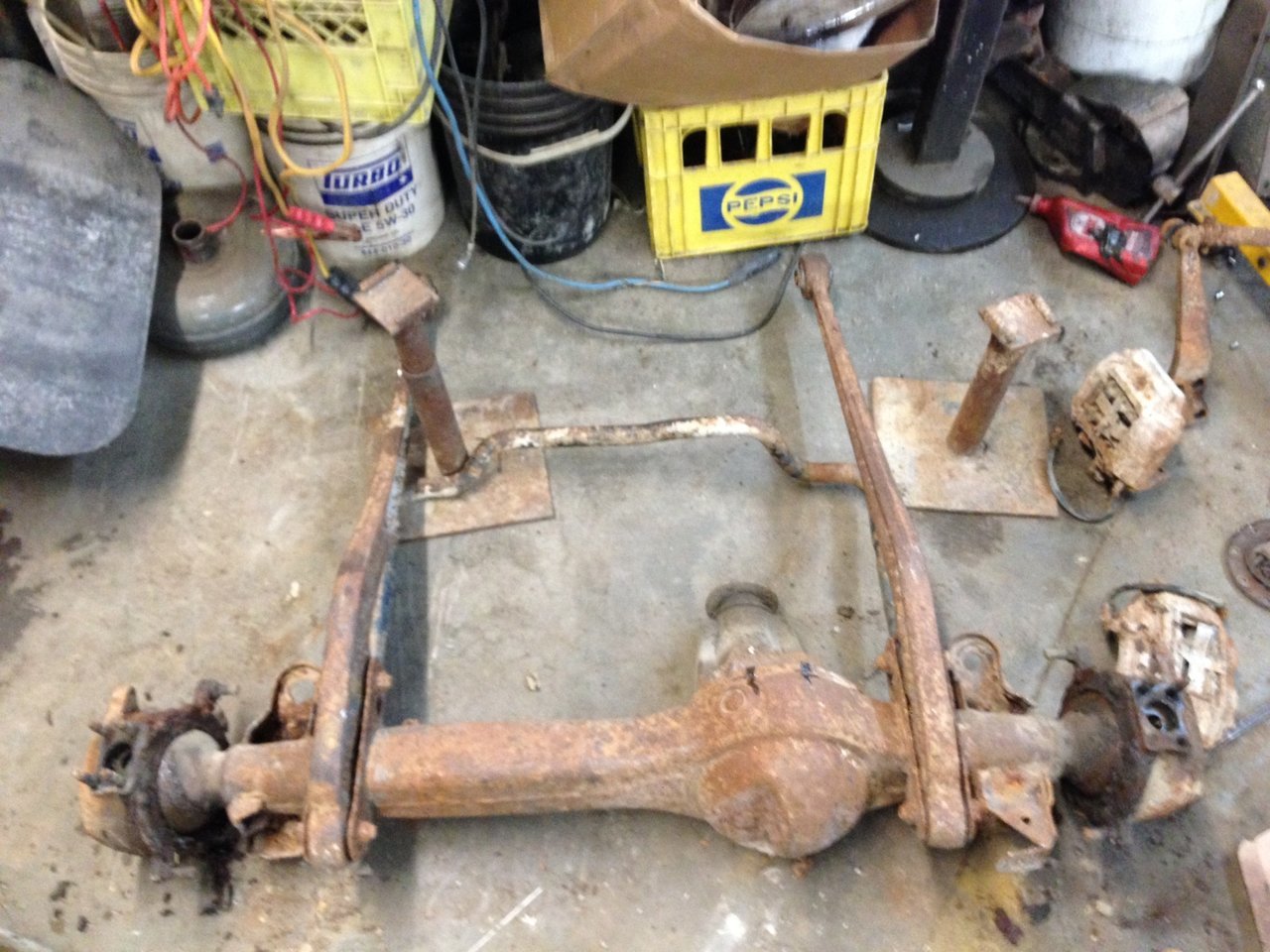

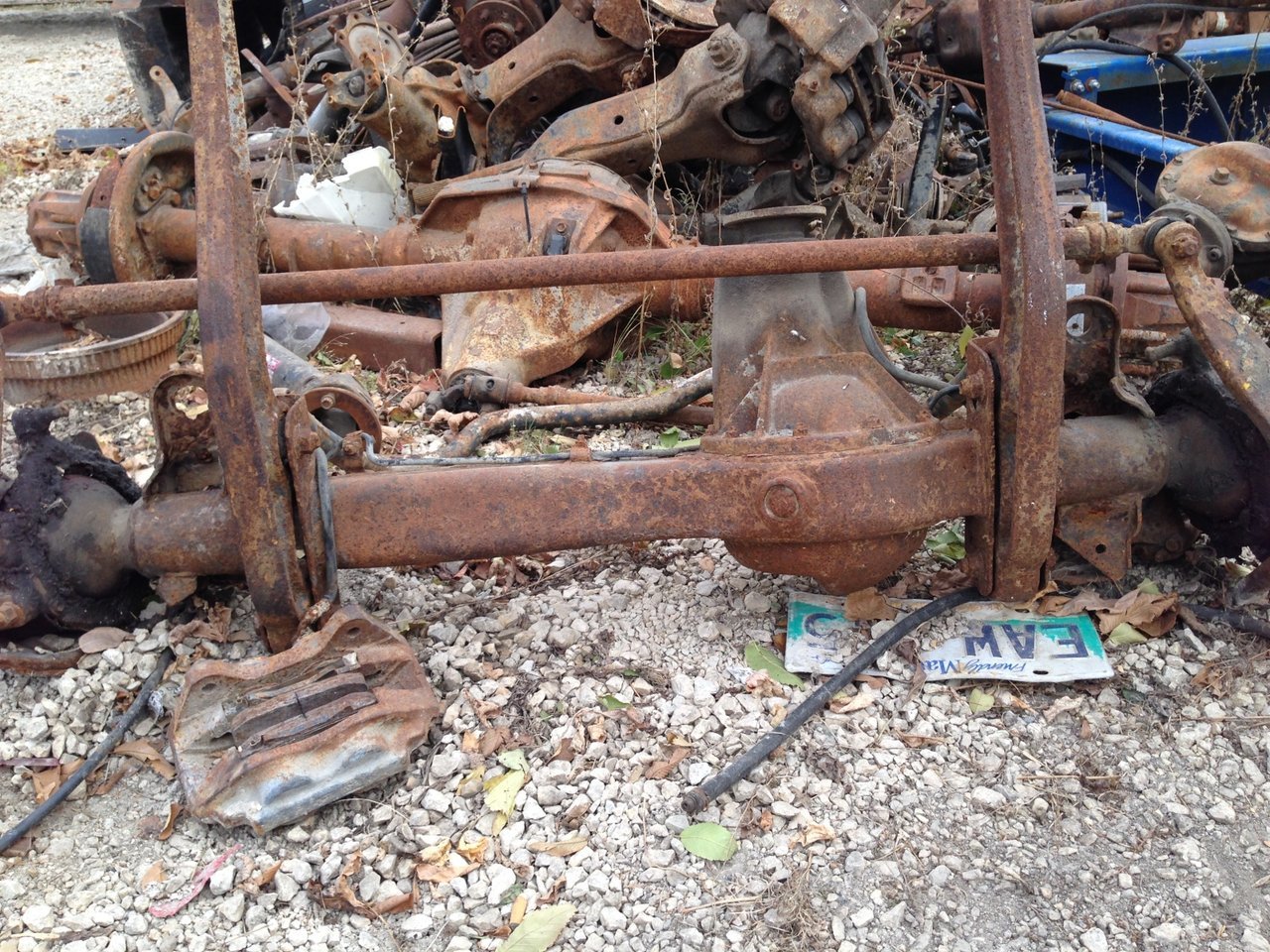

    The axle as it sat before we brought it in
    [​IMG]

    [​IMG]

    [​IMG]

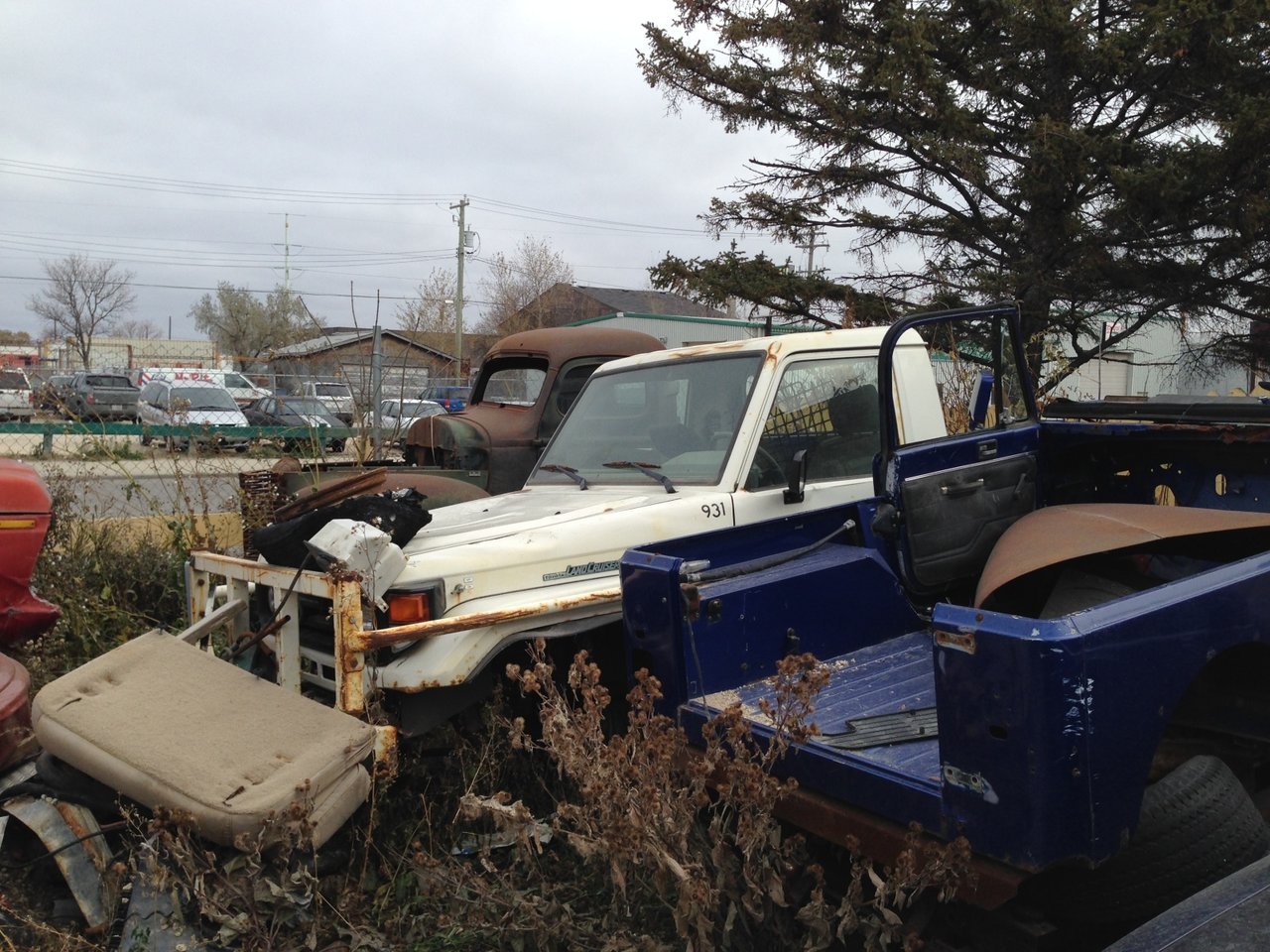

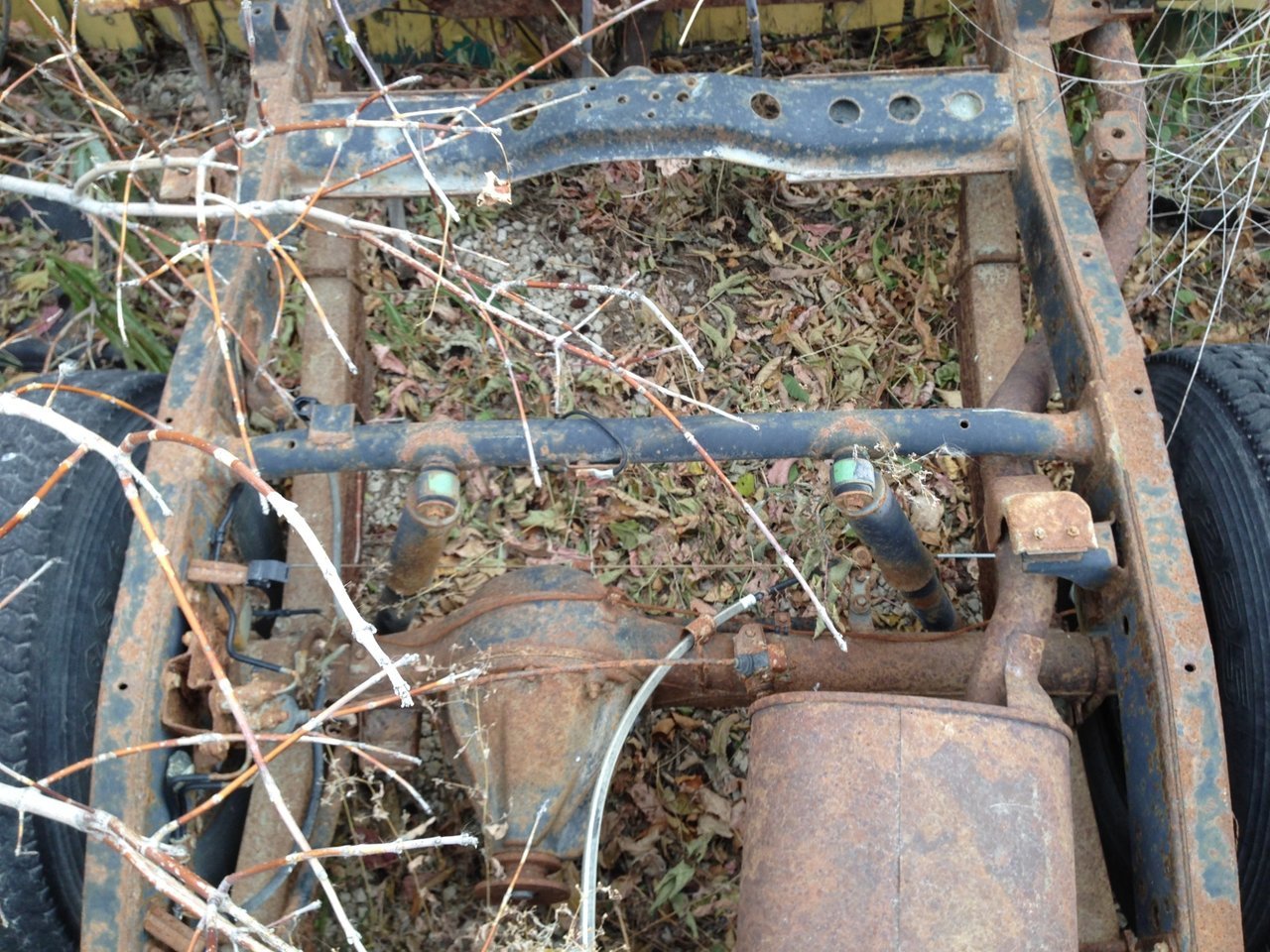

    And the truck we are using the axles from (the rear is still on it for ease of moving the vehicle until we are ready to put the rear on)
    [​IMG]

    [​IMG]

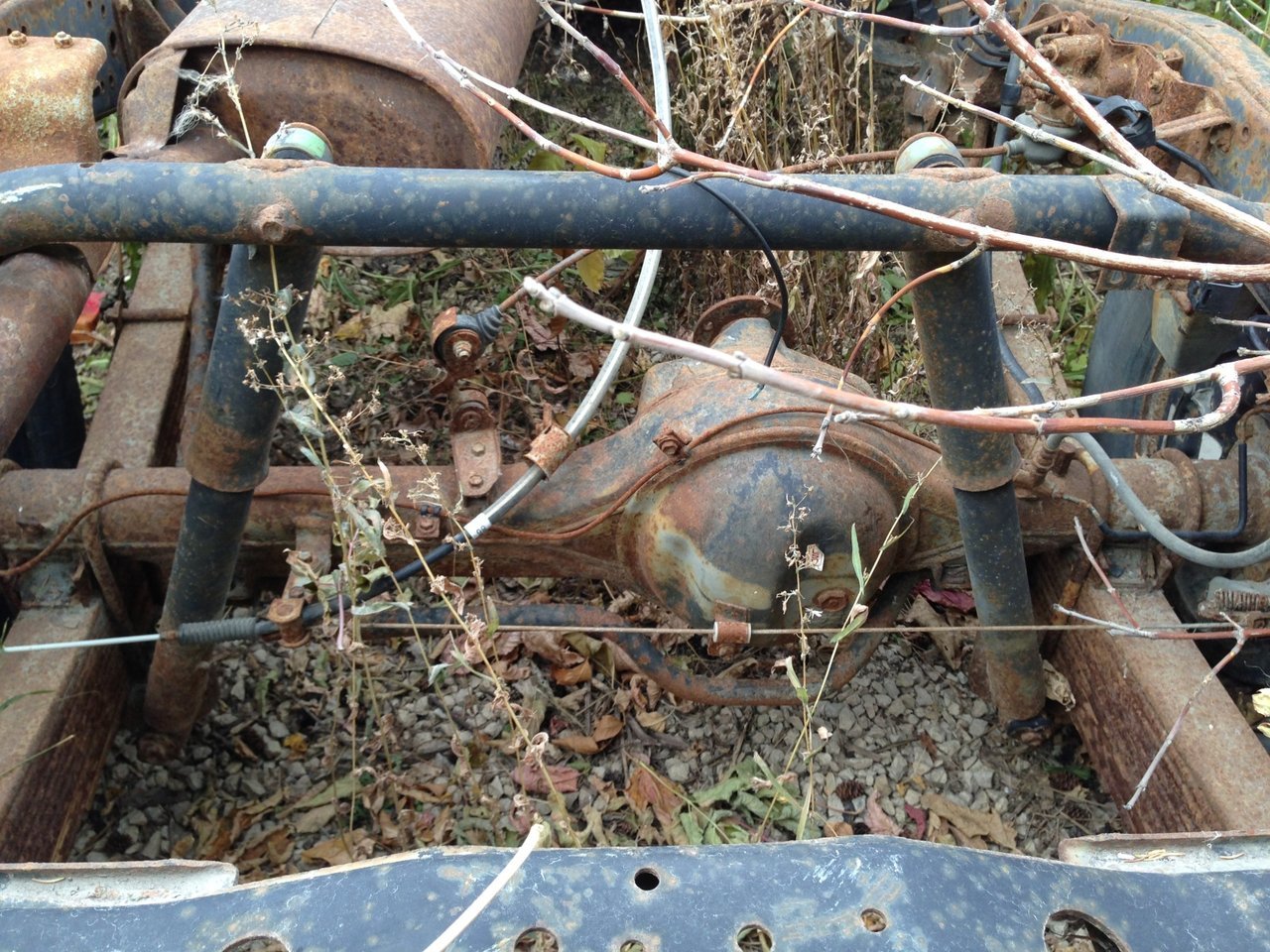

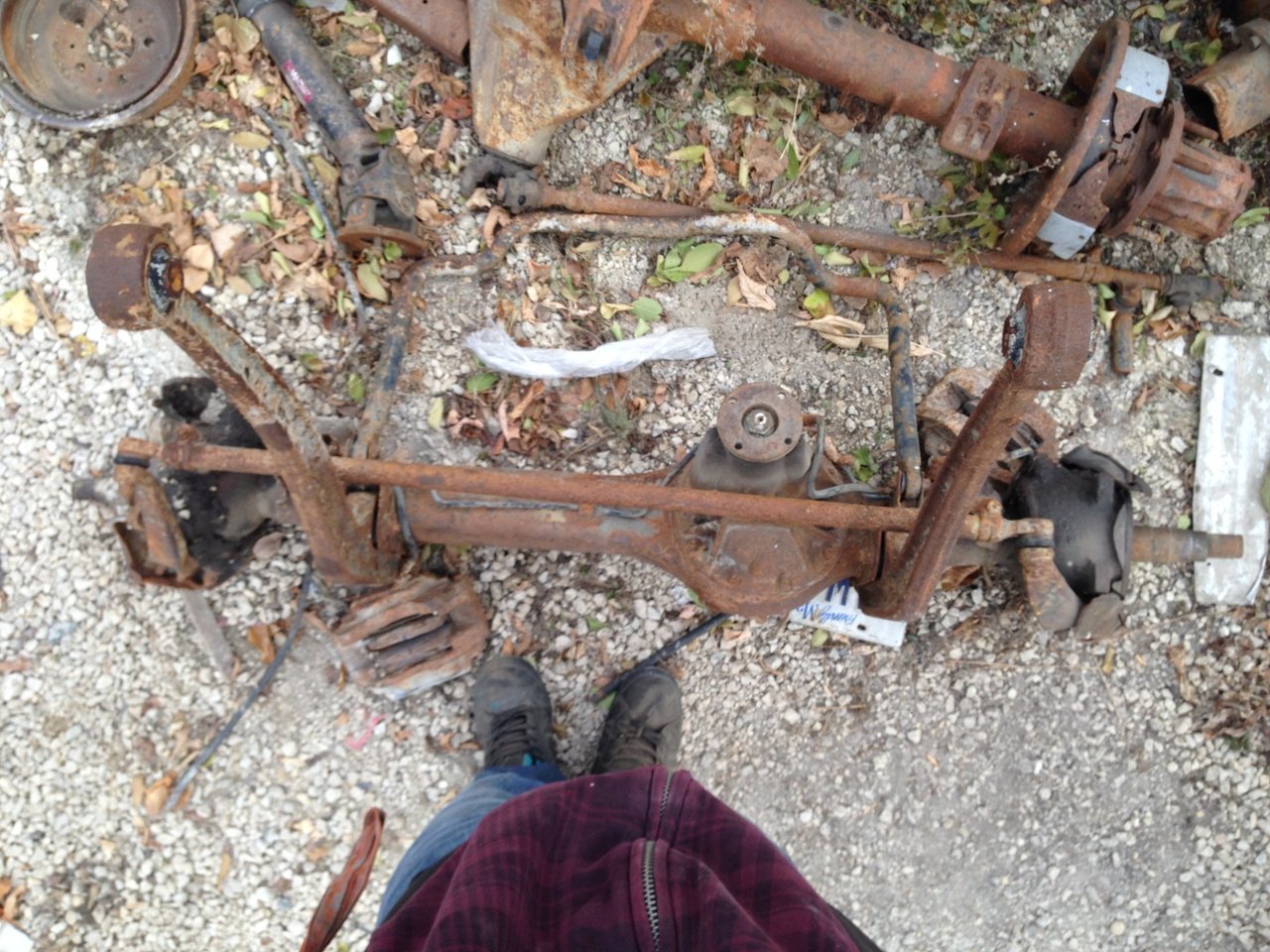

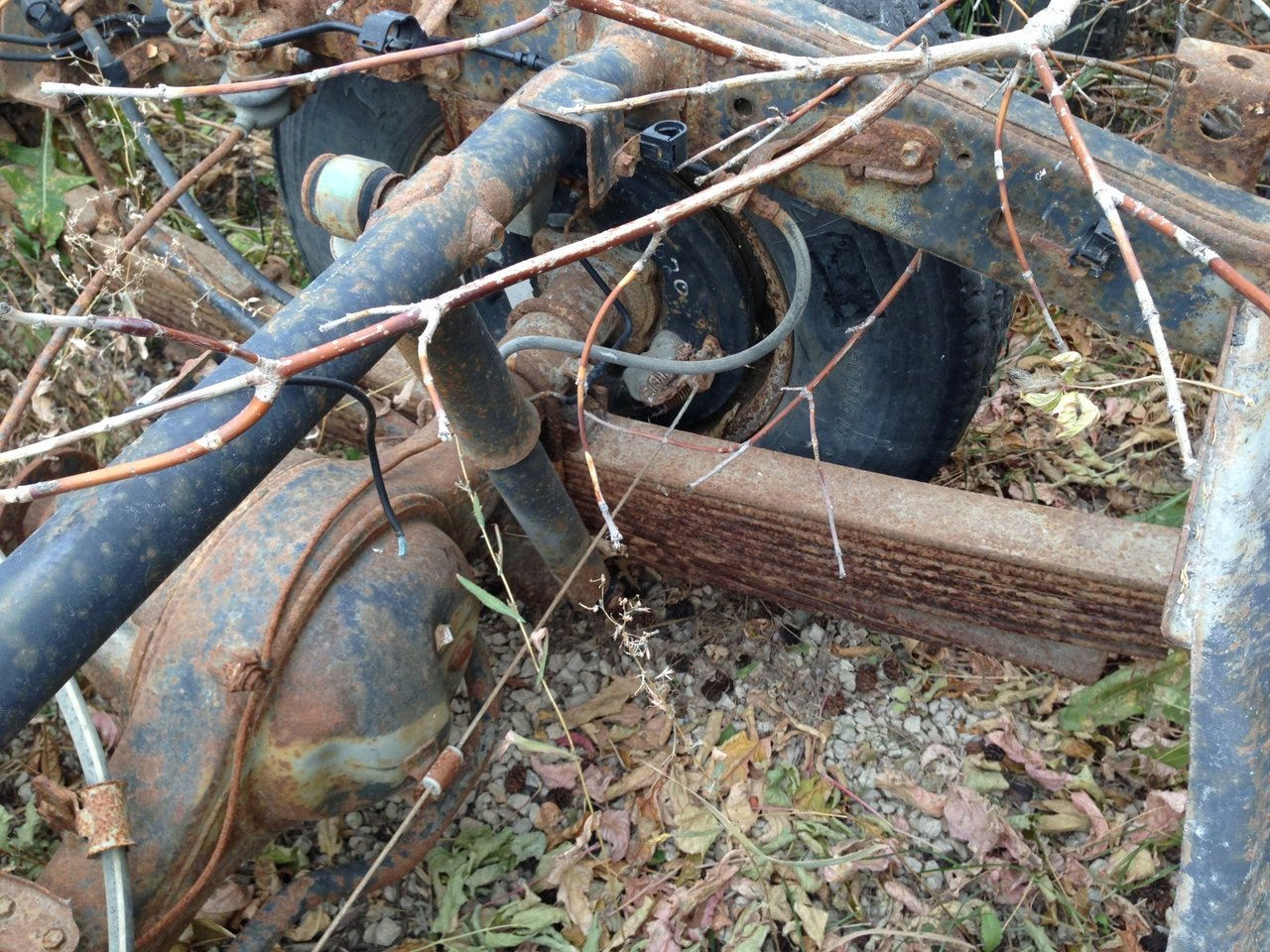

    The rear axle:
    [​IMG]

    [​IMG]

    [​IMG]
    Look at that leaf pack!!!

    The stickers in the door jamb
    [​IMG]

    [​IMG]

    [​IMG]

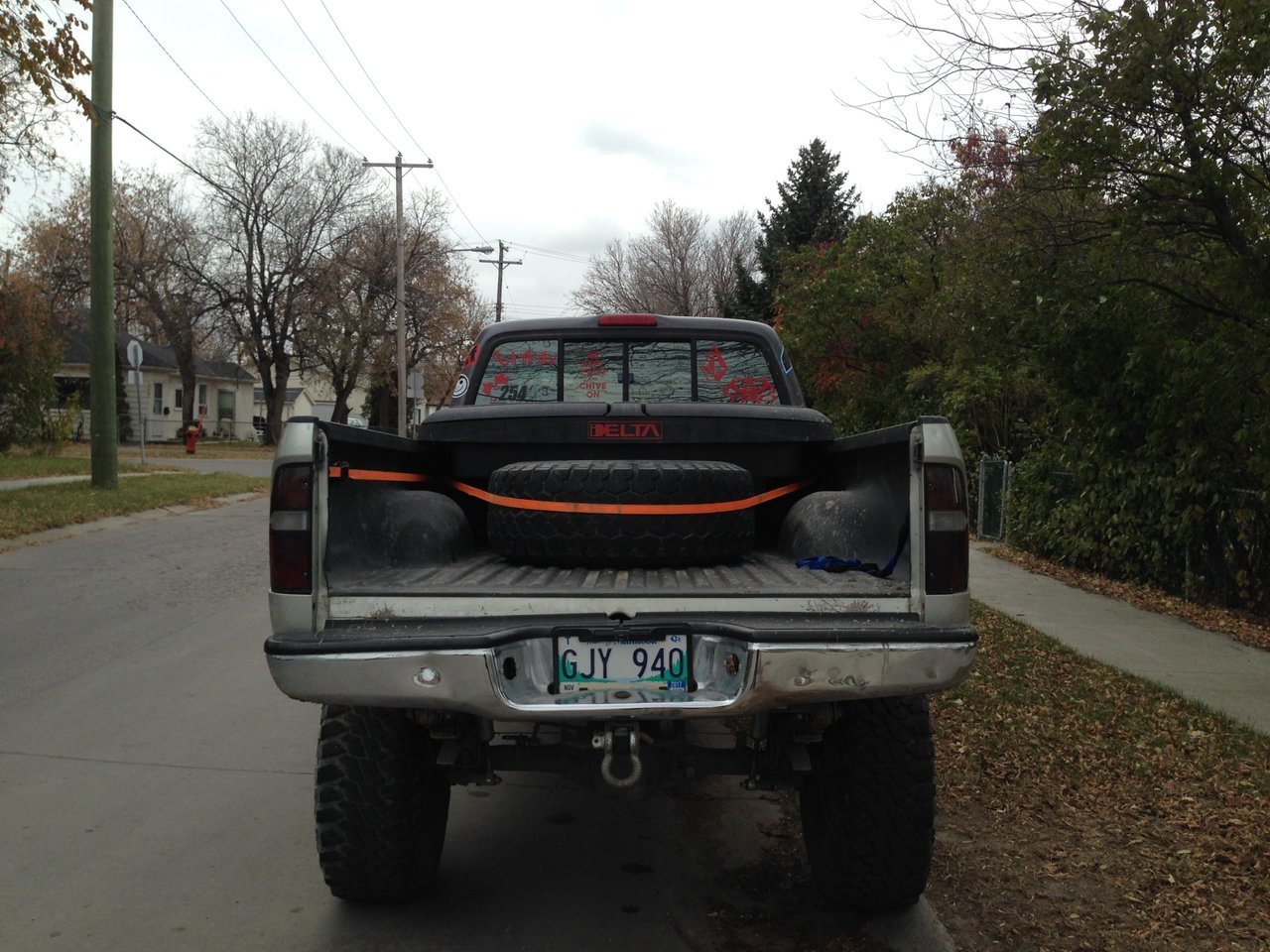

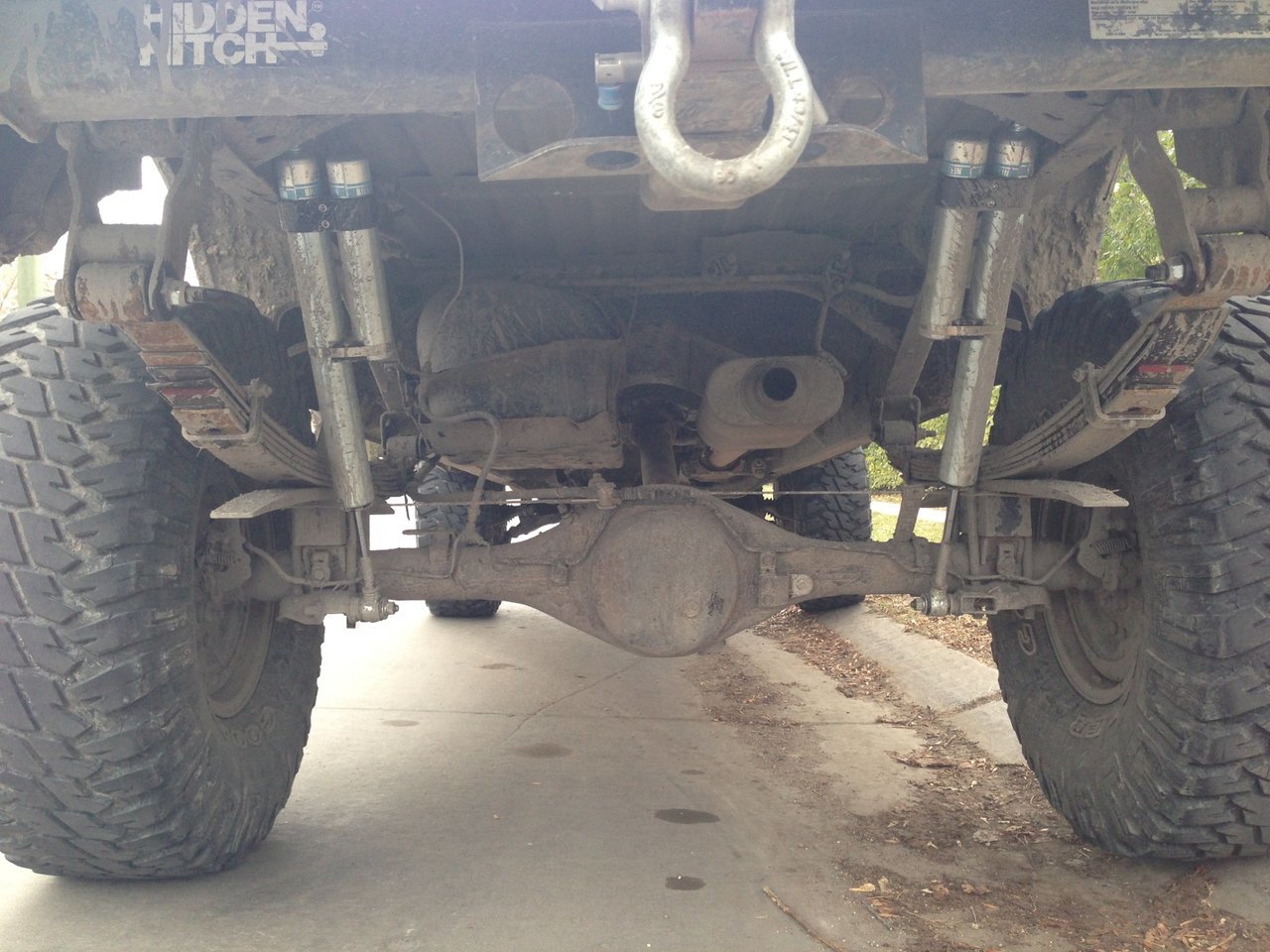

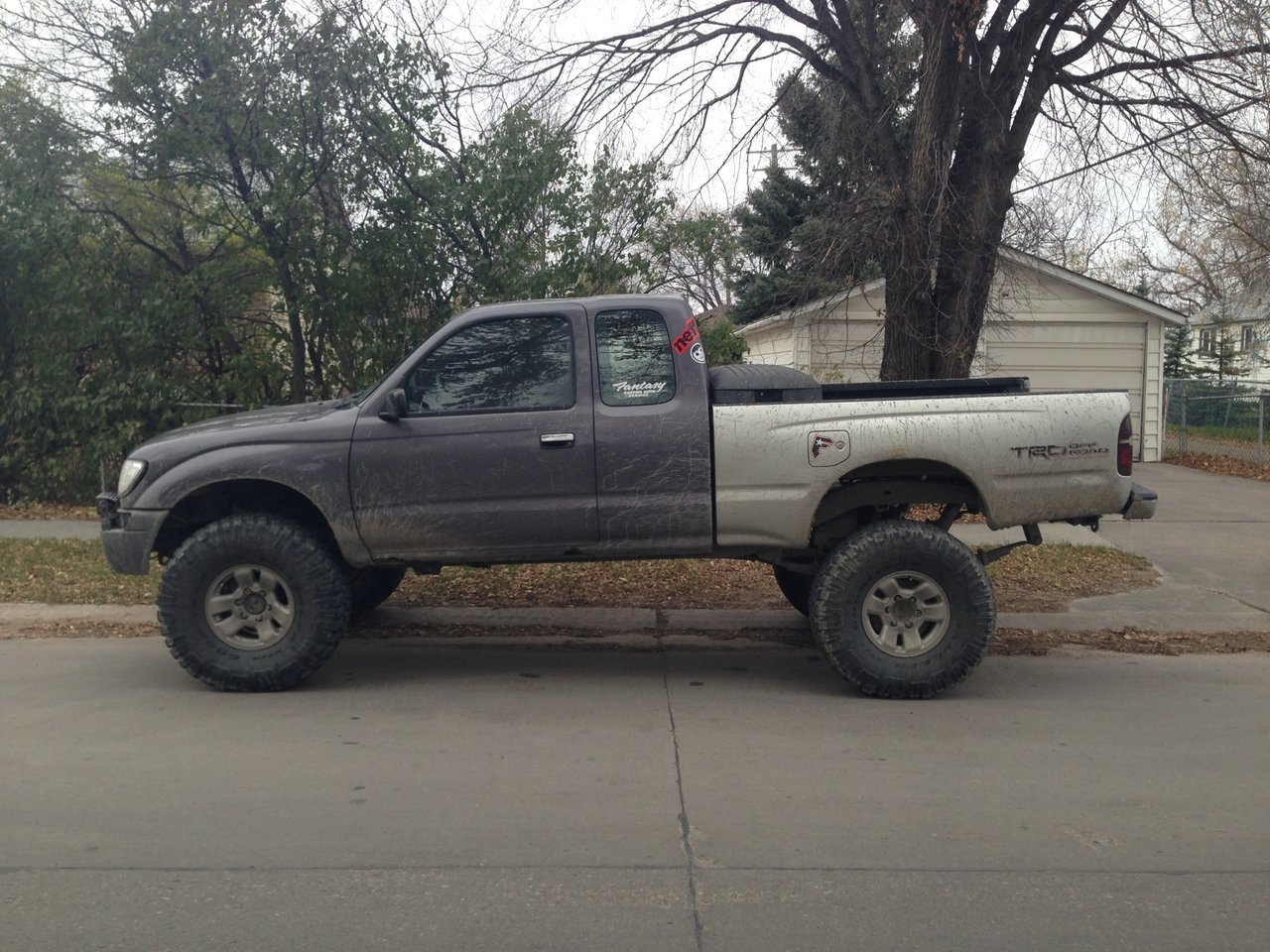

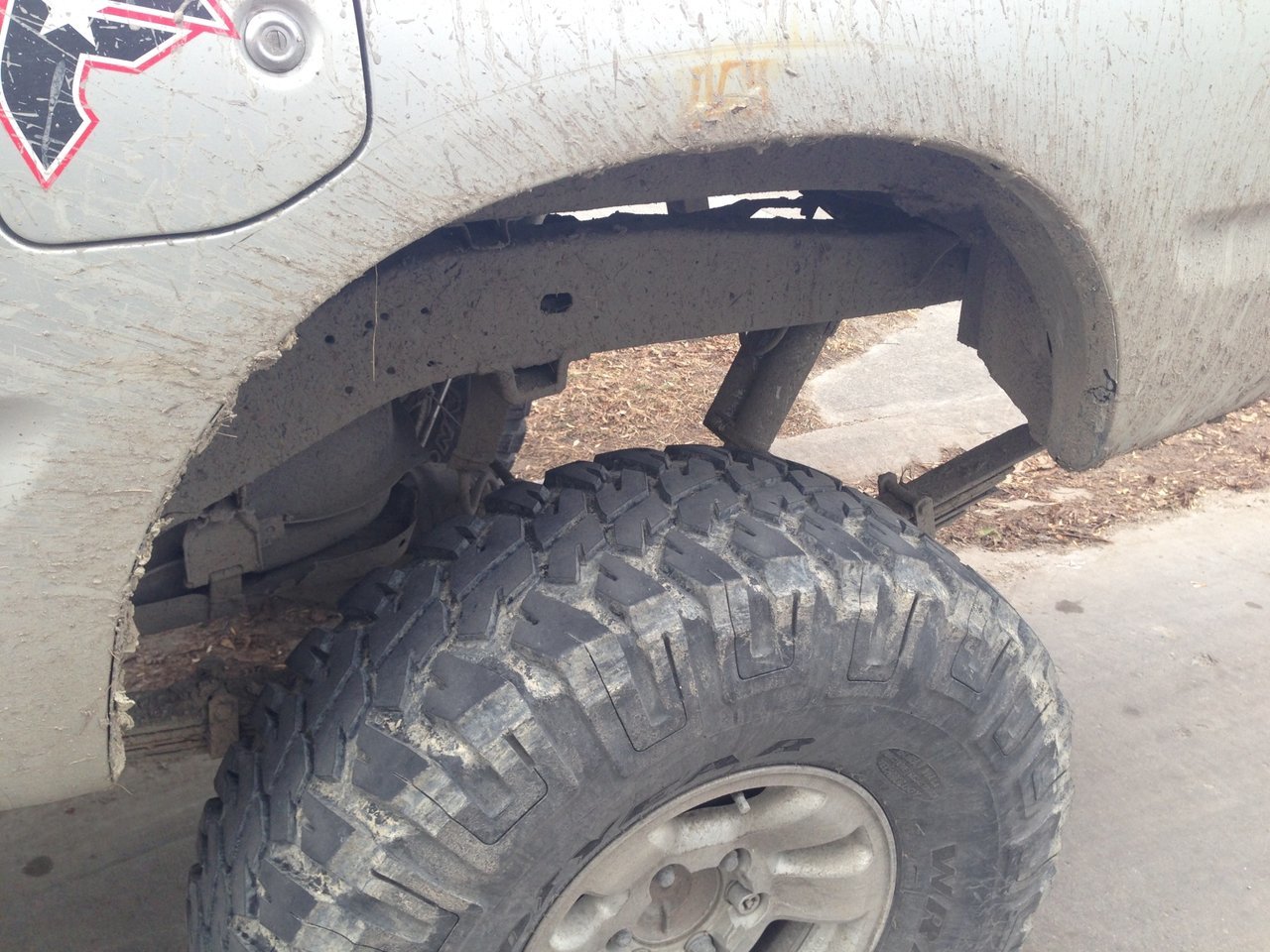

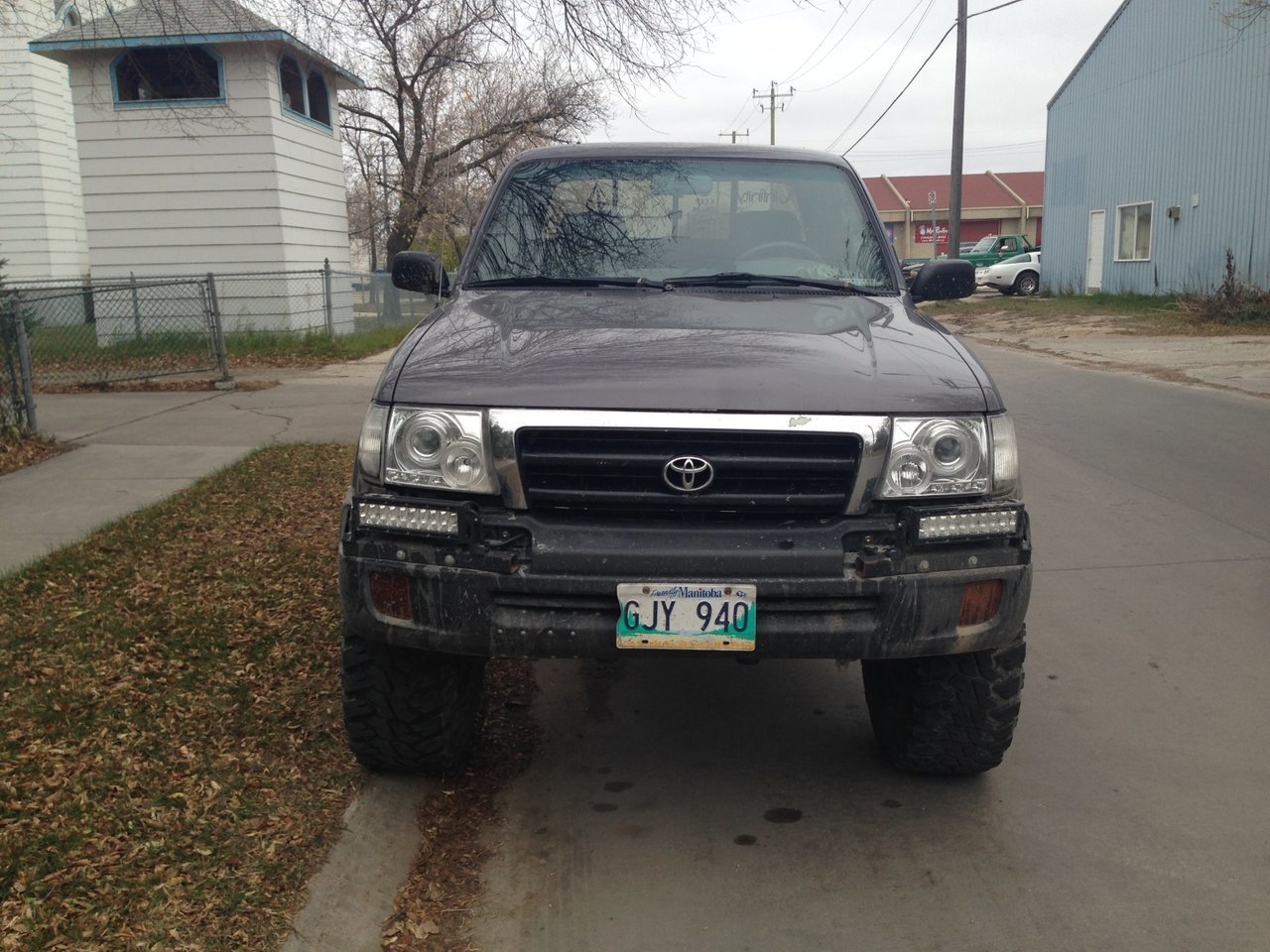

    My truck as it sits today(I spent last week replacing the springs, had the worn out inverted yota springs re arched and added two leafs. Ride height in the back is 12" above stock including the 35's)
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    The axle on the shop floor(I took a few pictures that are probably useless but oh well. better to have more than less right?)
    [​IMG]

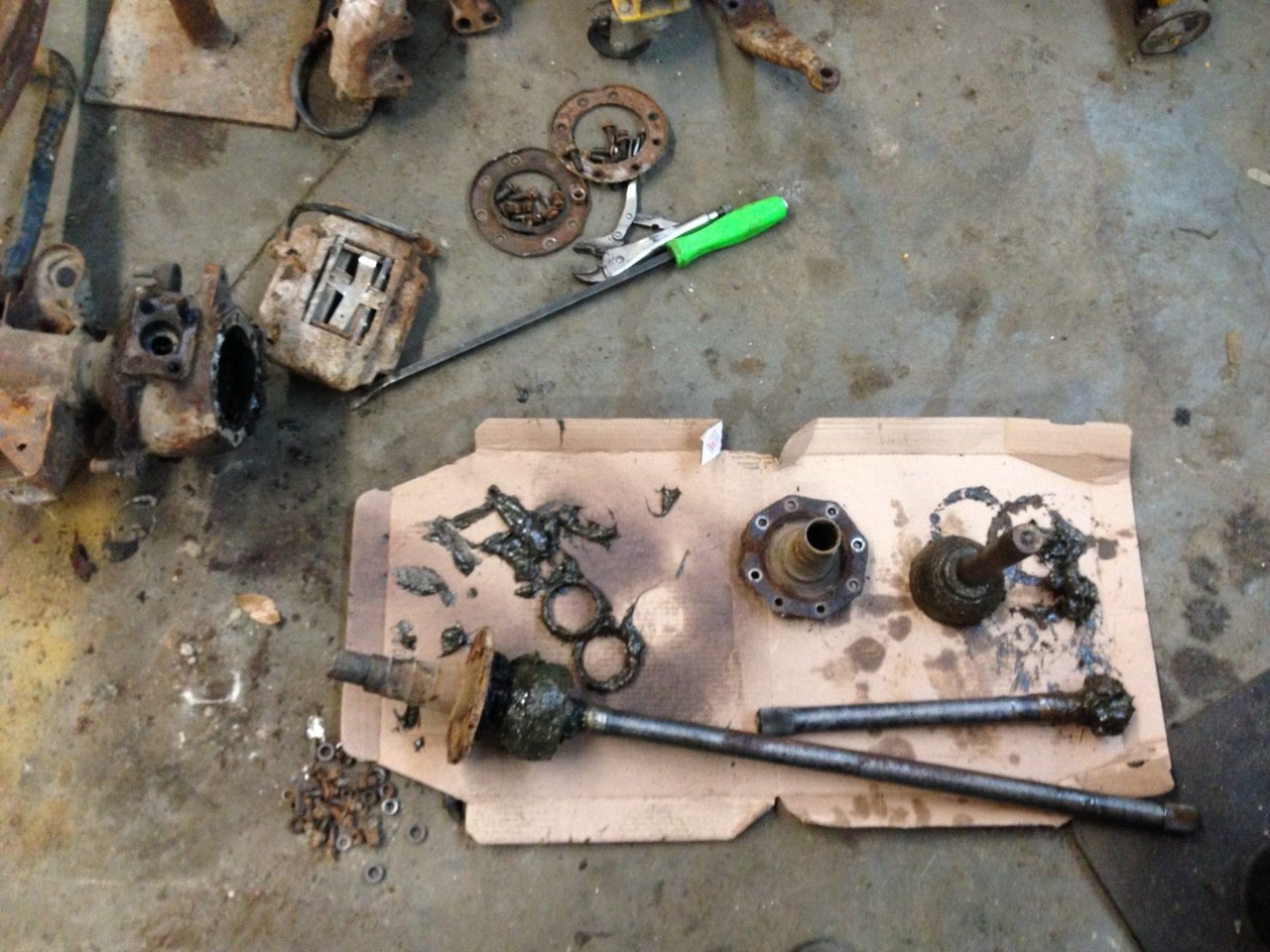

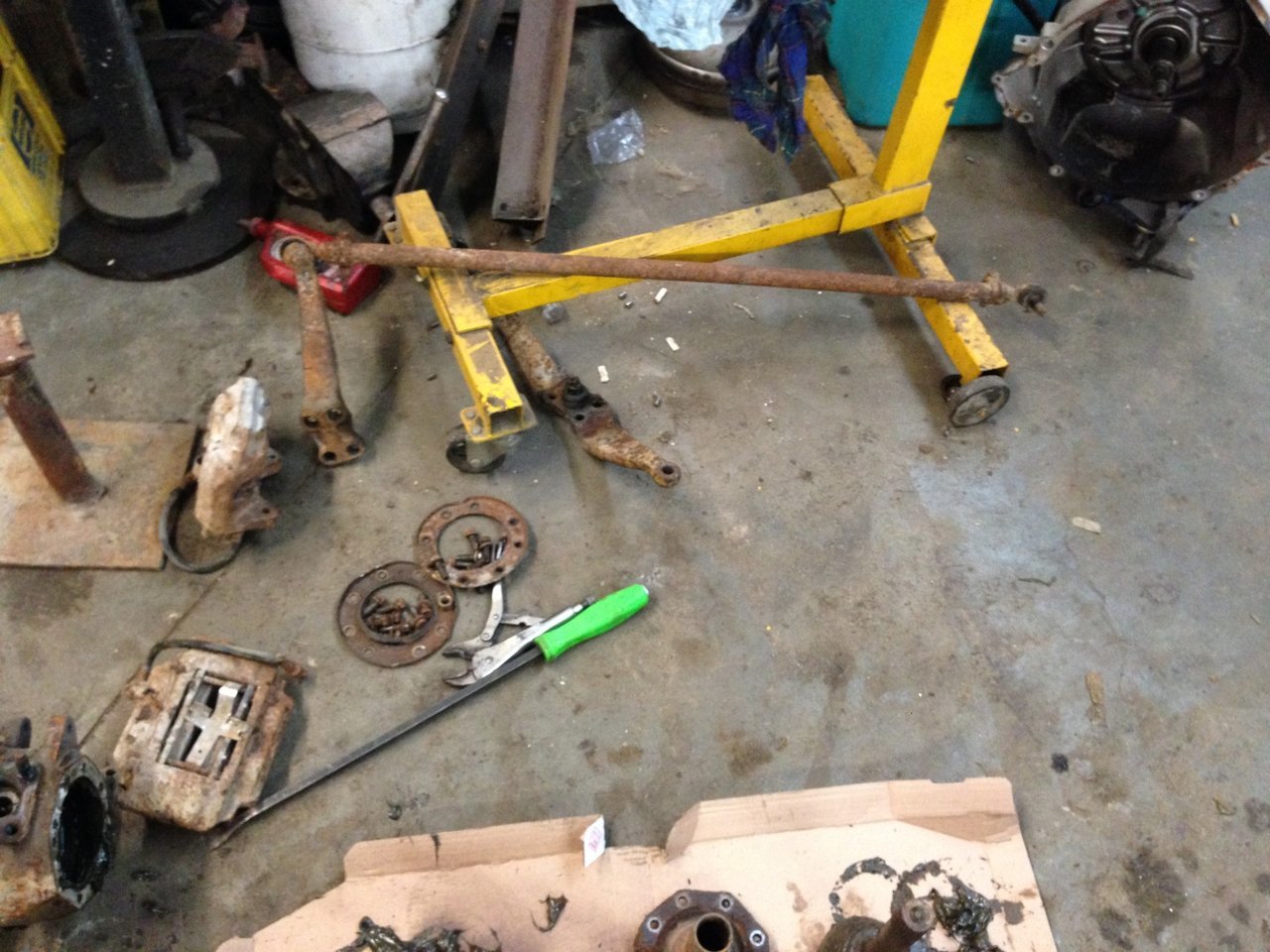

    The aftermath of stripping the axle
    [​IMG]

    [​IMG]

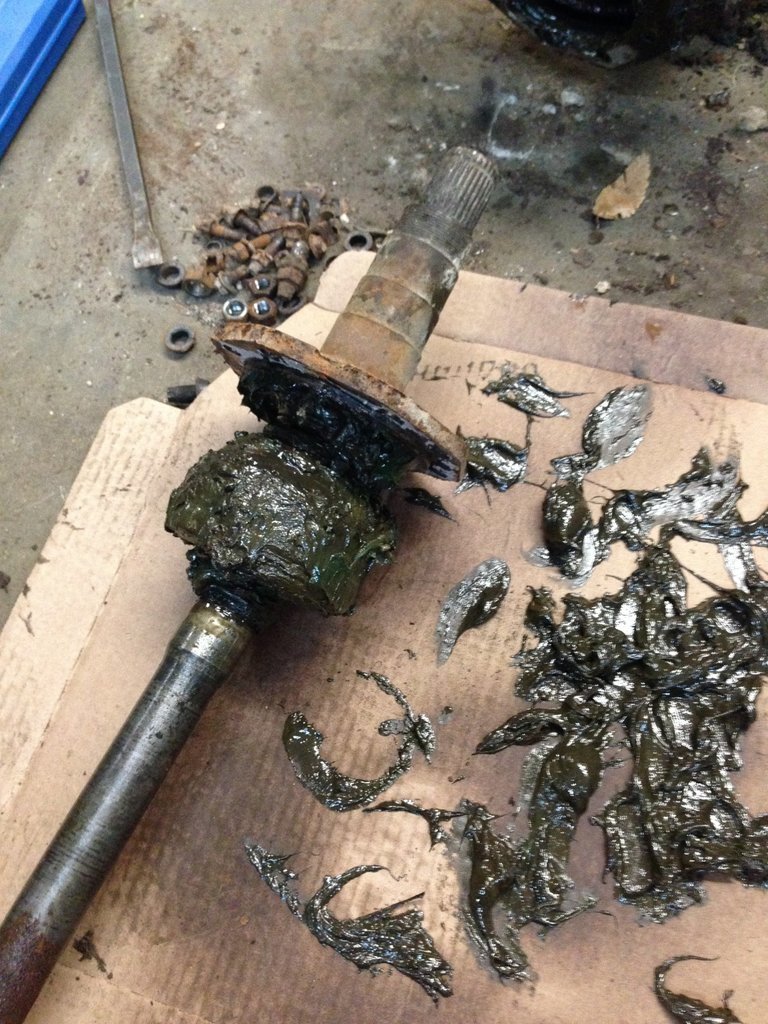

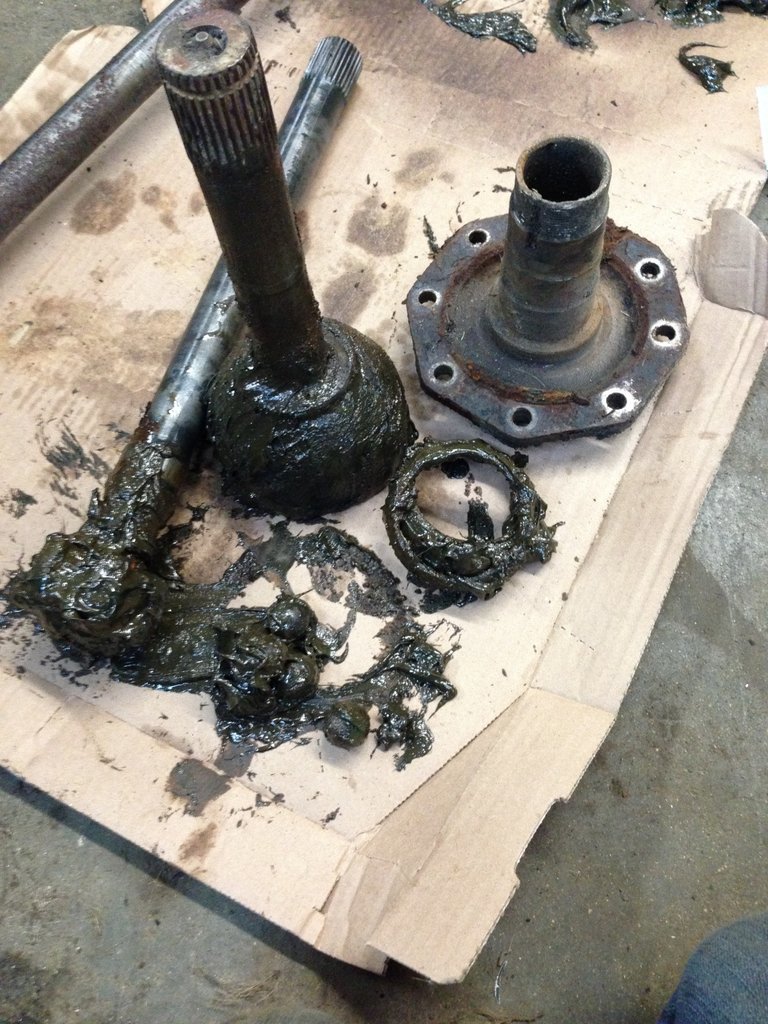

    Blown Birf :(
    [​IMG]

    In tact Birf :)
    [​IMG]

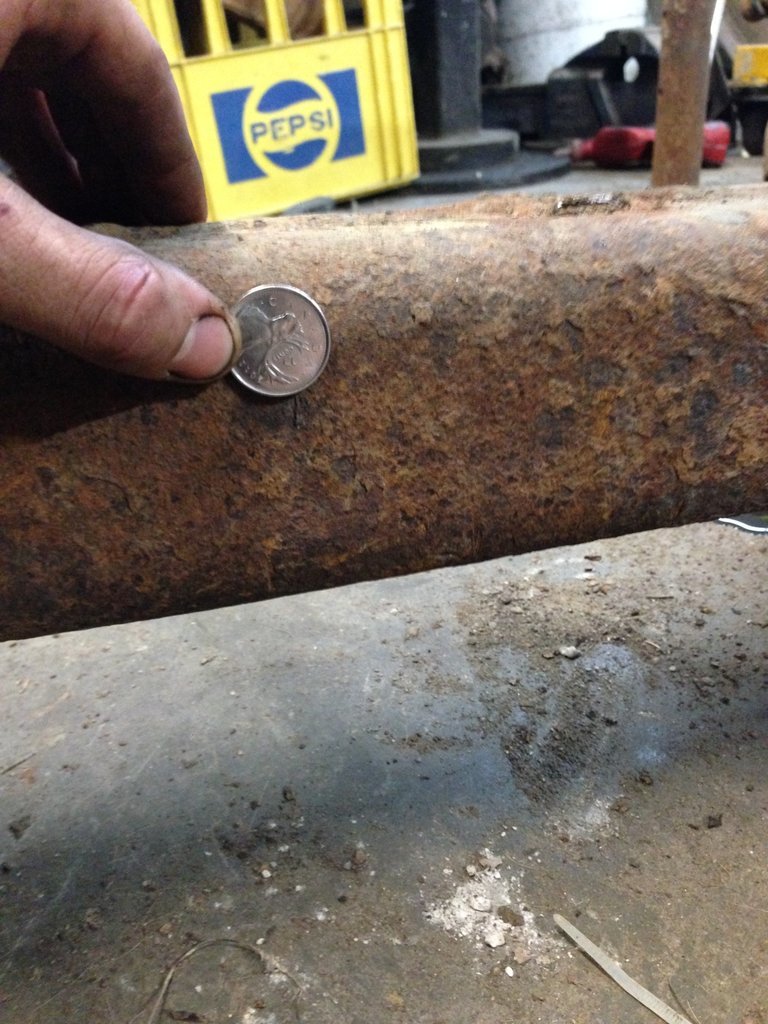

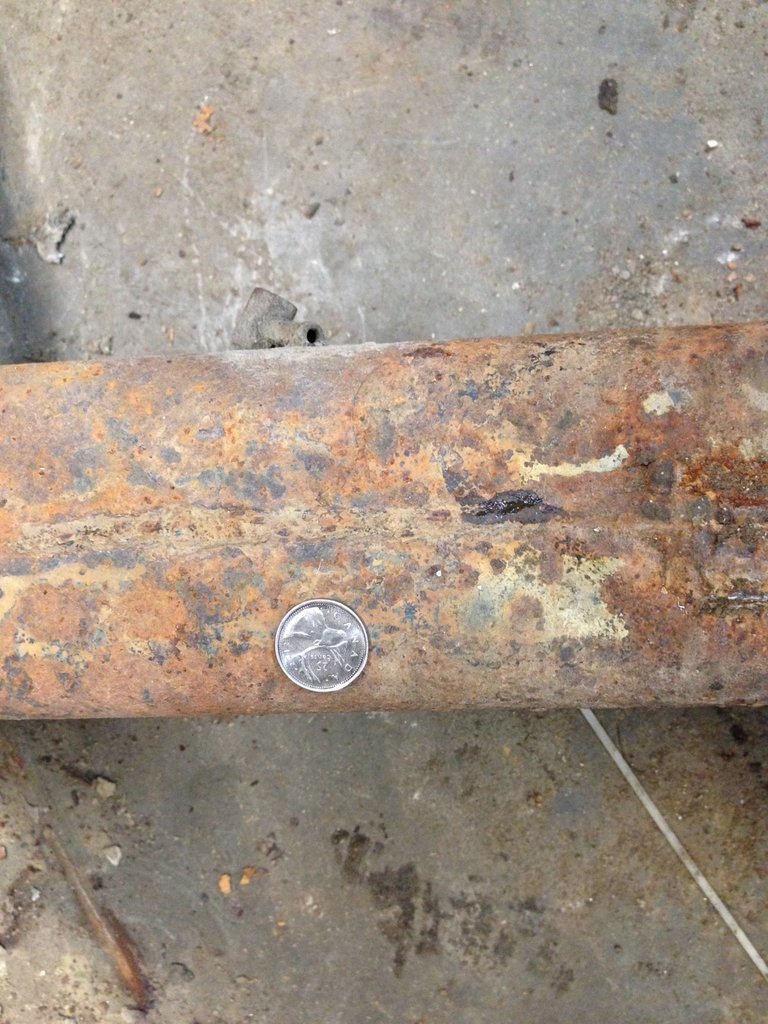

    The walls of this axle in comparison to a quarter(thinking on it i could've held a tape measure up to it as well haha)

    Top/bottom of axle
    [​IMG]

    Front/back of axle
    [​IMG]

    Third pulled
    [​IMG]

    The axle housing is this thick the whole length from birf to birf
    [​IMG]

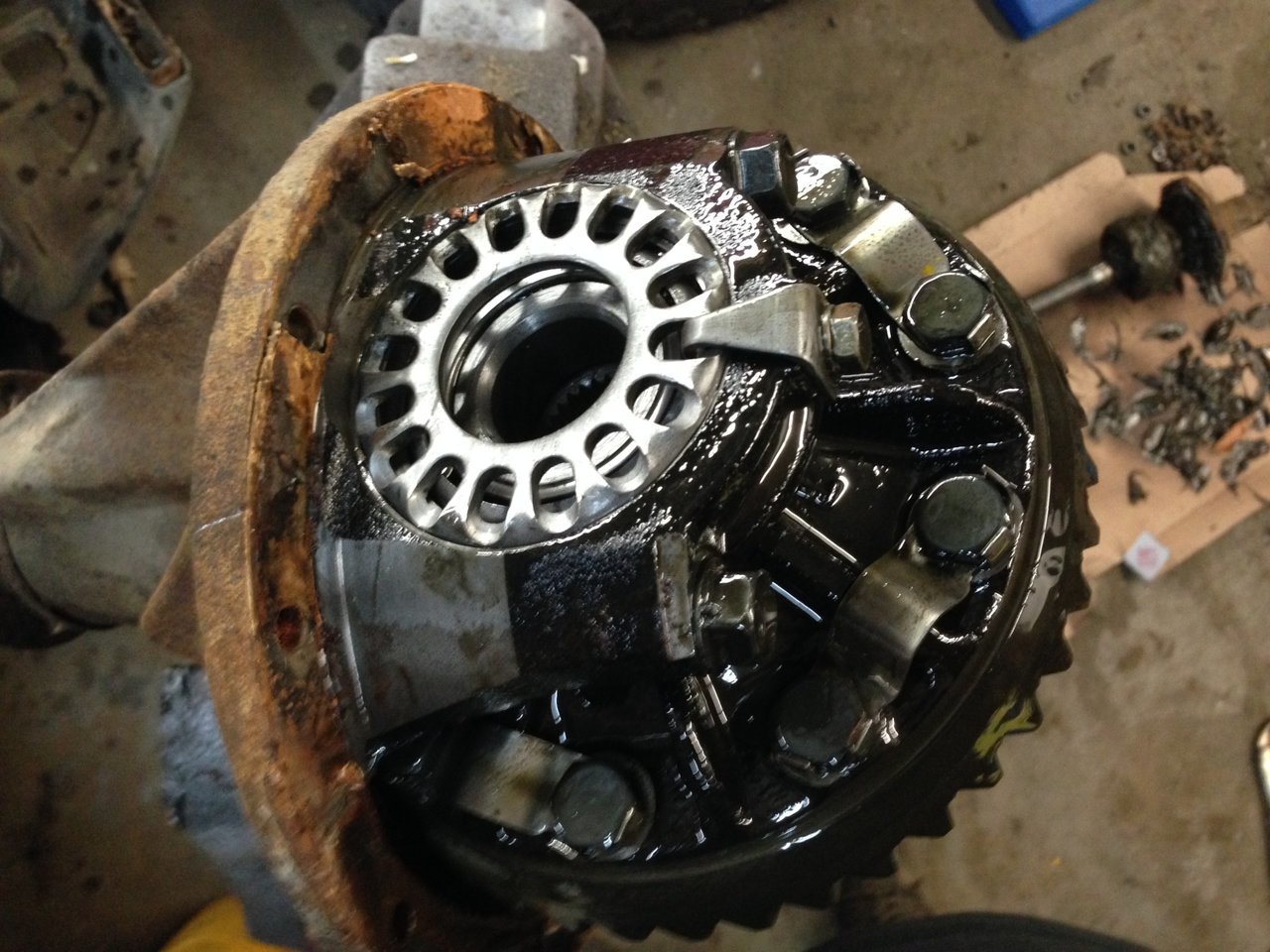

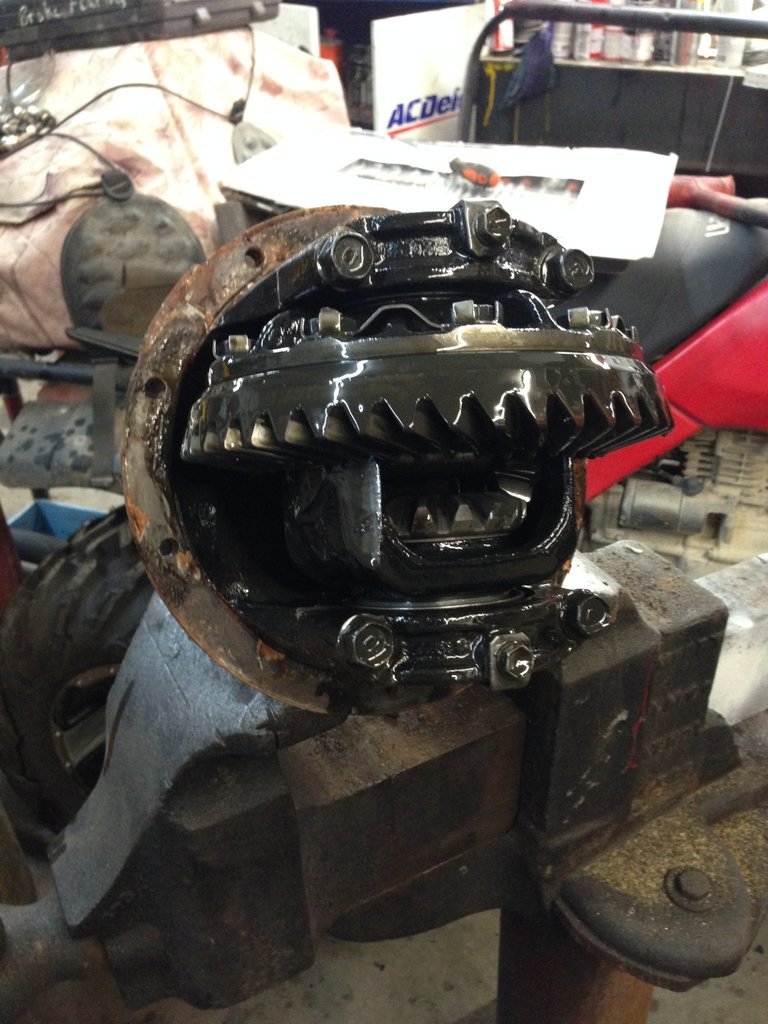

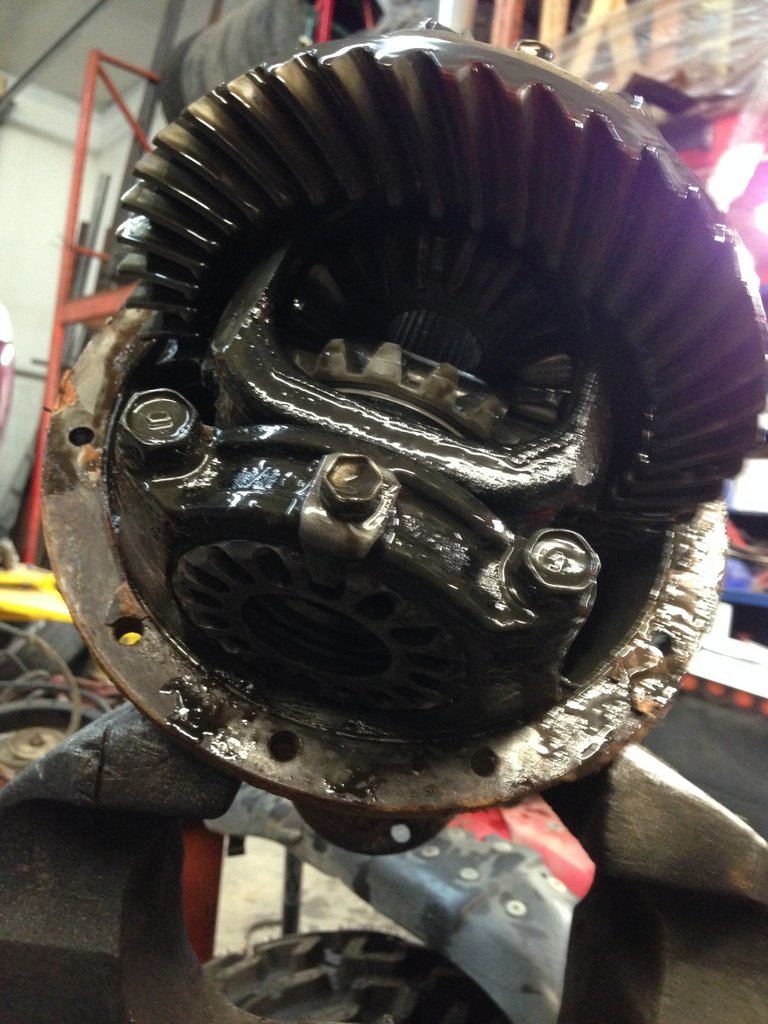

    The third
    [​IMG]

    [​IMG]

    [​IMG]

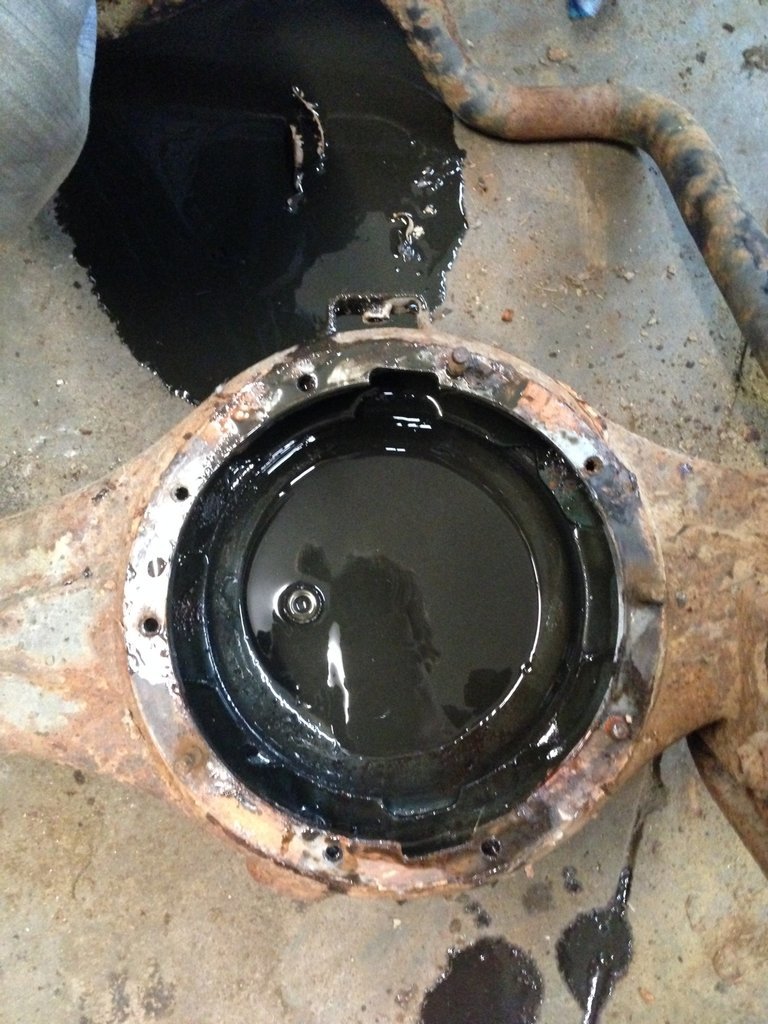

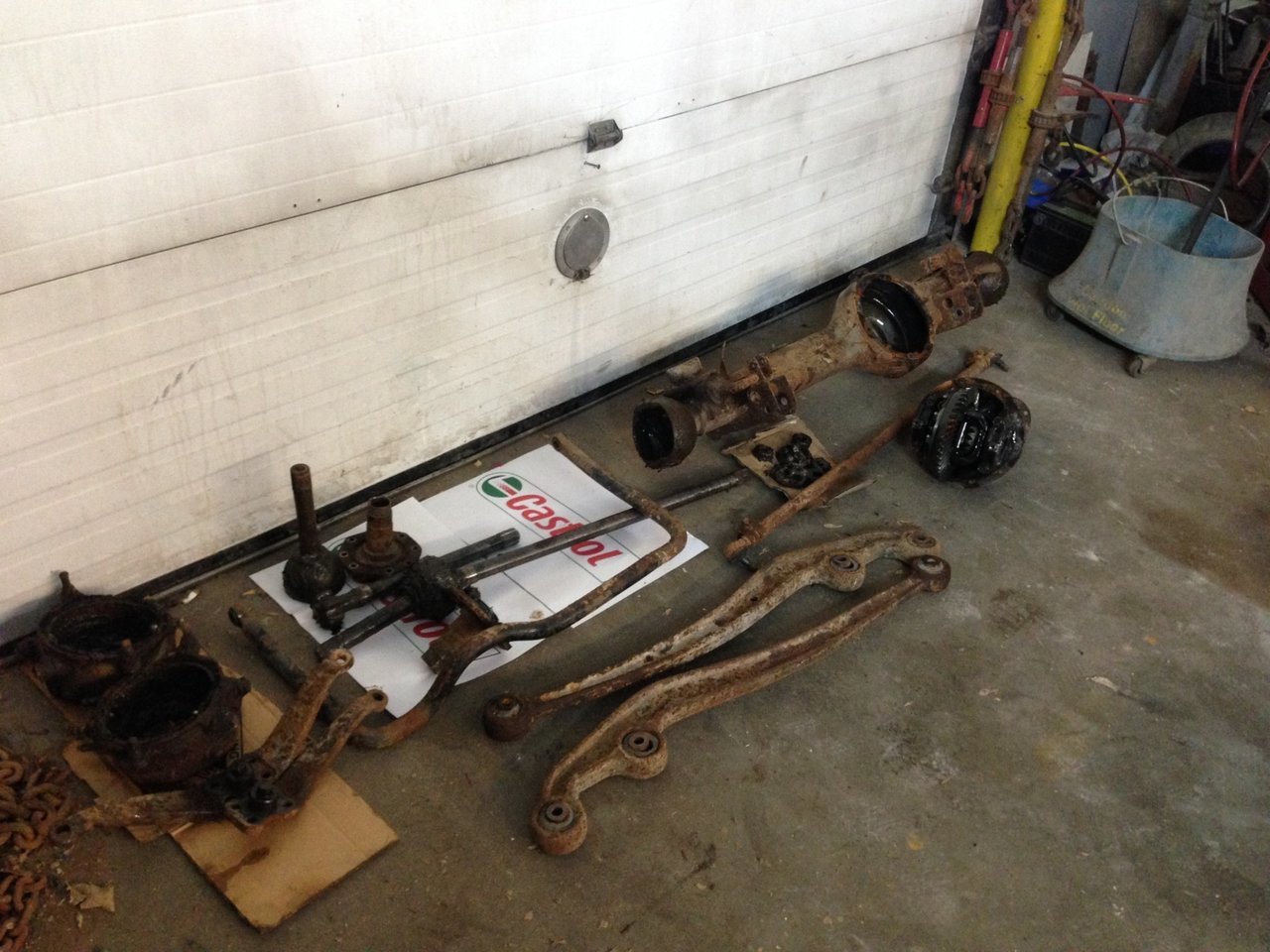

    And the parts all separated and how I left them last night
    [​IMG]

    Last edited: Oct 29, 2013
  15. Oct 29, 2013 at 7:24 PM
    #15
    im gooby

    im gooby [OP] Well-Known Member

    Joined:
    Mar 10, 2013
    Member:
    #99444
    Messages:
    64
    Gender:
    Male
    First Name:
    Johnathan
    Winnipeg, MB
    Vehicle:
    97 4x4 V6 Xtra Cab
    2" shackles in rear, Bilstein 5100's up front, Bilsetin 5165's 14" travel in the rear,35" MTR's, complete stereo, added power windows and power locks, blue dash lights and cluster lights, debadged.
    Updated price list:
    $1500 for axles
    $2000 for labour/parts to install
    $1050 for 12" King dual rate coilovers

    Still needed:
    6 lug outers from an FJ80
    Rotors for said hubs
    Turns out the same calipers as stock on our trucks are the same on this axle
    Short side birf + axle shaft

    Because the front axle is passenger side input and my yota is driver side output, we will also be pulling the transfer case from the land cruiser and having an adapter plate made so we can use it. The rear axle is also passenger side input, so that will cause problems with the exhaust system. It is TBD how we will deal with that, but we will figure it out after the front is on and rolling.

    SupraTT, in answer to your questions, Steering box, pitman, and brackets for links will be coming off the land cruiser, frame reinforcement will probably be the trailgear kit, shock mounts will be made in house custom, bolts are stocked in his shop as well. Heim joints are illegal in Canada. The steer arms that it has now will be what we use. The linkage came with the axle as well but we realized that its bent so rather than straightening it out we will be purchasing a new one.
    same as stock, but hopefully without the bend :p

    Last edited: Oct 29, 2013
  16. Oct 29, 2013 at 7:26 PM
    #16
    BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,478
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Subbed because it is a 97! lol.

  17. Oct 30, 2013 at 3:07 PM
    #17
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,699
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    You say quality, and the right way; yet you are re-using everything that was made over 30 years ago...

    Heim joints are illegal everywhere, only on steering linkages; which not one person ever abides by that since no cop in the world knows the difference.

    If you are performing a 3 link, you will need to lop them radius arm brackets off and create your own 3 link with coil overs.

    Using the stock arms and knuckles is going to get really tricky as the tie rod is behind the axle and therefor it will be difficult to land the steering box and draglink behind the axle... this will not work. Also, please post a photo of the steering box.

    Axles look great, and I am looking forward to seeing this work out. But I just want to inform you on this stuff as people assume a SAC is just cut shit off put shit on... Much more is involved. Truck looks good too, and I'd guess you only have about 6" of lift in the rear. There is not 12" there. Measure your frame height just in front of the front leaf spring hangers under the cab.

  18. Oct 30, 2013 at 4:43 PM
    #18
    im gooby

    im gooby [OP] Well-Known Member

    Joined:
    Mar 10, 2013
    Member:
    #99444
    Messages:
    64
    Gender:
    Male
    First Name:
    Johnathan
    Winnipeg, MB
    Vehicle:
    97 4x4 V6 Xtra Cab
    2" shackles in rear, Bilstein 5100's up front, Bilsetin 5165's 14" travel in the rear,35" MTR's, complete stereo, added power windows and power locks, blue dash lights and cluster lights, debadged.
    We understand that it is not plug and play. The donor truck is a 2001, so 12 years old as opposed to 30.

    I live in Manitoba, and heim joints are illegal on every aspect of the vehicle. If we could use them we would.

    We have two options with the 3 link. Either making a sub frame for the stock arms or make a custom set up. We are leaning more towards the custom, the first option was just what we had discussed prior to looking too heavily into the topic.

    The beautiful thing about the steering knuckles is they are reversible. The major down side to the front axle is the steering arms are on the bottom and raise to about mid axle. There is a kit to switch the steering to the top, but we are shooting to use the stock arms as they will be adequate for the intended purpose.

    We got under the donor truck today and found out that the steering box has been removed - my guy doesn't remember removing it, so we are thinking someone jumped his fence and stole it.

    Also realized that my comparison measurements for my trucks height have been compared to my dads 03 DC PreRunner with sagged springs. Measurement is 25"(this will increase when the front goes up, may not be much but it will)

    I appreciate the criticism, and the help.

  19. Oct 30, 2013 at 4:44 PM
    #19
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,941
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    First time I have ever heard of a 8" high pinion lc80 axle called a toyota rockwell. Its a friggin 8". Doesnt matter what it came out of. Its an 8" or a 9.5" thats all they came with. And you better look into hellfire knuckles for highsteer and longfields if youre actually gonna wheel this thing.

    Subbed so I can learn the "right way" lol. Haha

    Last edited: Oct 30, 2013
  20. Oct 30, 2013 at 5:07 PM
    #20
    im gooby

    im gooby [OP] Well-Known Member

    Joined:
    Mar 10, 2013
    Member:
    #99444
    Messages:
    64
    Gender:
    Male
    First Name:
    Johnathan
    Winnipeg, MB
    Vehicle:
    97 4x4 V6 Xtra Cab
    2" shackles in rear, Bilstein 5100's up front, Bilsetin 5165's 14" travel in the rear,35" MTR's, complete stereo, added power windows and power locks, blue dash lights and cluster lights, debadged.
    You don't actually realize that there's a difference between a regular LC80 series and an industrial one made by the industrial side of toyota.

    How's about you go play in traffic and wait until the finished product to pass judgement?
