Steering Wheel Conversion With Audio & Optional Bluetooth Phone Controls (official write up).

Discussion in '1st Gen. Tacomas (1995-2004)' started by mechanicjon, Mar 5, 2018.

  1. Jan 6, 2023 at 3:04 PM
    #241
    RodrickHeffley

    RodrickHeffley Member

    Joined:
    Jan 6, 2023
    Member:
    #414906
    Messages:
    11
    Hey! I'm here from the 4runner forums and wondering how similar this would be on my 4runner. I have a 1998 but am using a clockspring and steering wheel/airbag from a 1997 one. I don't plan on adding the bluetooth controls so it should be easier.

    The stalks for the lights and wipers can be removed separately so I believe this would allow me to use the new cancel cam.

    [​IMG]

    From what I've been reading the best option for me would be using a GS Clockspring and an 01-04 GS wheel. My question is if that steering wheel is required or if I can use one from say a tundra or sequoia along with the single connector airbag from the 03-04 tundra/sequoia.

    ideally I would like a four spoke wheel though so I'd rather do that instead of the GS.

    I should have the same cruise control switch and stuff that the tacoma does (or at least to my understanding)

    Sorry if this is out of place, nobody over on my forums have done this swap and I'd like to (at least try) to be the first.

    Thanks!

    Last edited: Jan 6, 2023
  2. Jan 6, 2023 at 3:41 PM
    #242
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,112
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    So your wanting to just change steering wheel and air bag to a 01-04 GS wheel? I'd have to see the back of the wheel and what your column looks like under your steering wheel. Is the GS airbag a single connection or a 2 plug connection?

  3. Jan 6, 2023 at 4:13 PM
    #243
    RodrickHeffley

    RodrickHeffley Member

    Joined:
    Jan 6, 2023
    Member:
    #414906
    Messages:
    11
    Thanks for the quick response! I was thinking about the GS because based off the post on the first page it seems easier, however I'd prefer to have the four spoke wheel from the tundra or sequoia. Either way I would like to have radio controls though.
    My 4runner is a single plug so I know the 03/04 tundra/sequoia airbags would work, however I'm just trying to find out how similar it truly is to the tacoma so I can do the swap.


    Post in question:

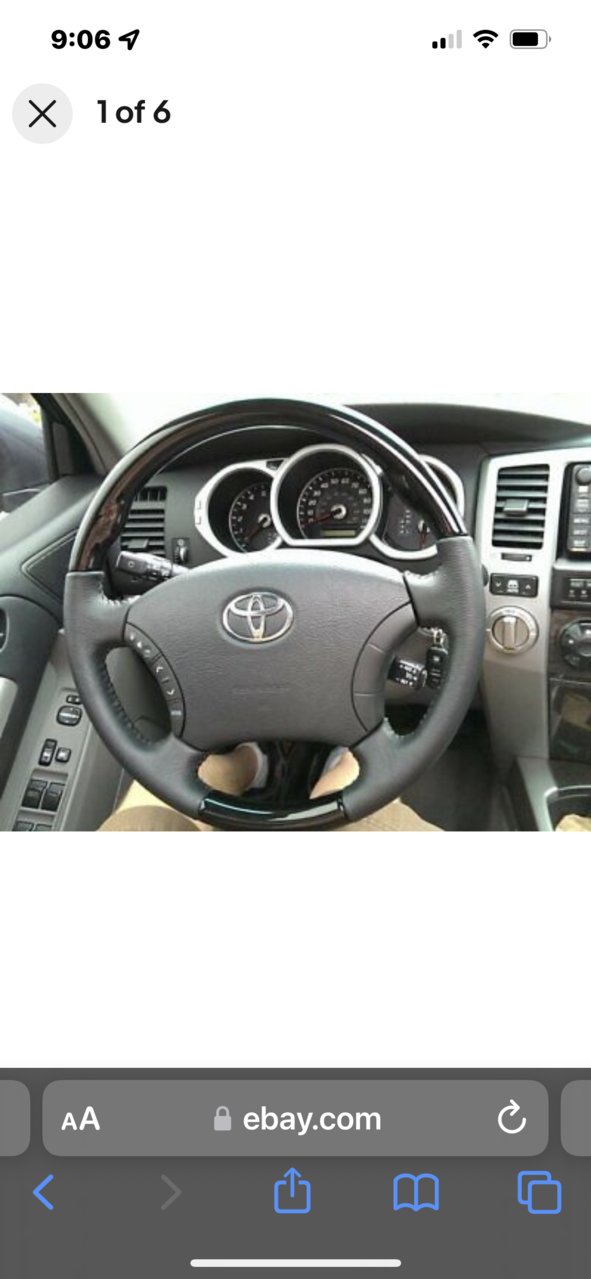

    If possible though I'd rather do the tundra wheel over the lexus one

    This is what the steering column looks like
    https://www.ebay.com/itm/134350275542

    I assumed this swap into the 4runner should be relatively similar as the tacoma uses the same airbag and clockspring that mine does

    the clockspring uses a four pin like the tacoma: https://www.ebay.com/itm/153377541234

    Last edited: Jan 6, 2023
    This site contains affiliate links for which the site may be compensated.
  4. Jan 6, 2023 at 6:23 PM
    #244
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,112
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    4 runner is the same as the Tacoma in that year. I need to see a complete column from the top after the steering wheel and outer cover is off. With the turnsignal switch and wiper switch. You always swap the airbag charges over (1 vs 2 plug connection ) to another airbage.

  5. Jan 6, 2023 at 6:38 PM
    #245
    RodrickHeffley

    RodrickHeffley Member

    Joined:
    Jan 6, 2023
    Member:
    #414906
    Messages:
    11

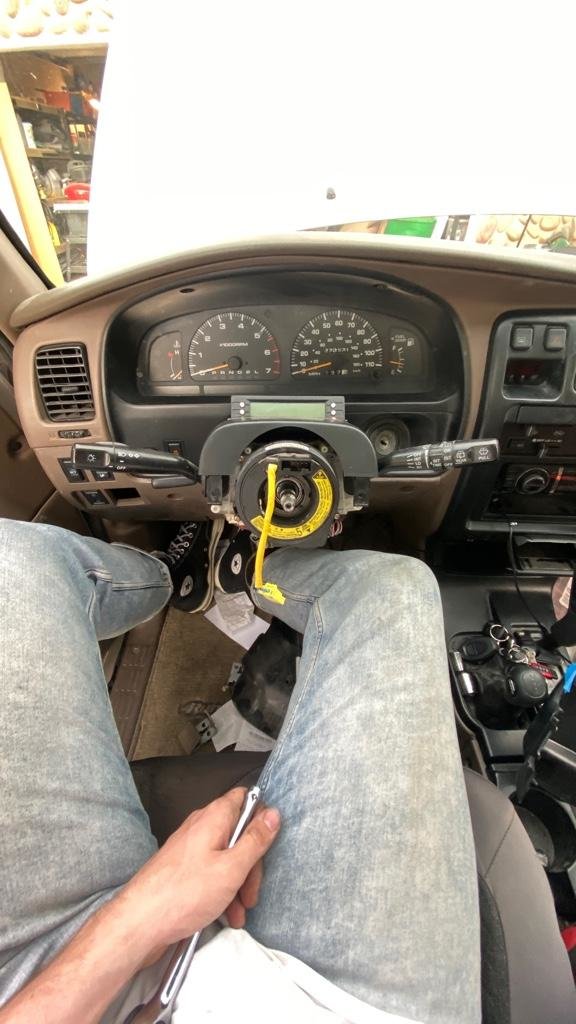

    does this work? the weather is pretty bad where I'm at right now so I can't take it off at the moment. I have this picture from when I was putting the wheel on

    I know that the light stalk and wiper stalk come off independently

    this picture is from another swap (hence the clock spring being different)
    [​IMG]

  6. Jan 6, 2023 at 6:47 PM
    #246
    RodrickHeffley

    RodrickHeffley Member

    Joined:
    Jan 6, 2023
    Member:
    #414906
    Messages:
    11
    I found another picture that might(?) work
    [​IMG]

  7. Jan 6, 2023 at 6:51 PM
    #247
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,112
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    That column will accept the later model 6 wire clock spring.

  8. Jan 6, 2023 at 6:53 PM
    #248
    RodrickHeffley

    RodrickHeffley Member

    Joined:
    Jan 6, 2023
    Member:
    #414906
    Messages:
    11
    do you think it'll also accept the 12 pin? that's the one I'm hoping will work

  9. Jan 6, 2023 at 6:54 PM
    #249
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,112
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
  10. Jan 6, 2023 at 6:55 PM
    #250
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,112
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I miss typed. Yes the 12 pin like I used.

  11. Jan 6, 2023 at 6:56 PM
    #251
    RodrickHeffley

    RodrickHeffley Member

    Joined:
    Jan 6, 2023
    Member:
    #414906
    Messages:
    11
    all good, glad to hear it! I'm planning on getting most of the parts tomorrow from a parts vehicle locally so I'll have to see what I get but I'm sure I'll have more questions

    Thanks for all your help!

  12. Jan 6, 2023 at 7:13 PM
    #252
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,112
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
  13. Jan 6, 2023 at 8:04 PM
    #253
    Rldanie

    Rldanie Punisher78

    Joined:
    Jan 28, 2018
    Member:
    #242763
    Messages:
    829
    Gender:
    Male
    First Name:
    Ryan
    Colorado
    Vehicle:
    2002 Supercharged, 2” pulley, FIC, Methanol, Transgo Shift Kit
    Engine Performance upgrades: Supercharged (Magnuson) FIC/6 Champion Radiator Toyota Corolla thermostat 168° JBA Headers JBA cat back exhaust Upgraded fuel pump Volant Cold Air Intake With custom plexiglass cover TransGo Transmission A340F Valve Body upgrade B&M Transmission cooler Methanol Injection 2 inch pulley Future Plans Supra Injectors Light weight crankshaft pulley Leather seats Off-road upgrades 3” rough country lift 33x12.5” Dick Cepeks Other upgrades: JL Audio 12W6 Sub in custom box JL Audio C5 Mids and tweets all the way around Sound dampened whole cab Transmission temp sensor Gen Tex rear view mirror (temp and compass) Blue instrument panel, a/c control panel lights, shifter, ashtray, glove box. Blacked out badges Blackout bumpers and grill MariMoto Projectors with demon eyes LED Taillights Second generation leather steering wheel with audio controls Custom leather wrapped automatic transmission shifter 3rd gen 4 Runner key ring light (blue) 3rd gen 4 Runner hood scoop

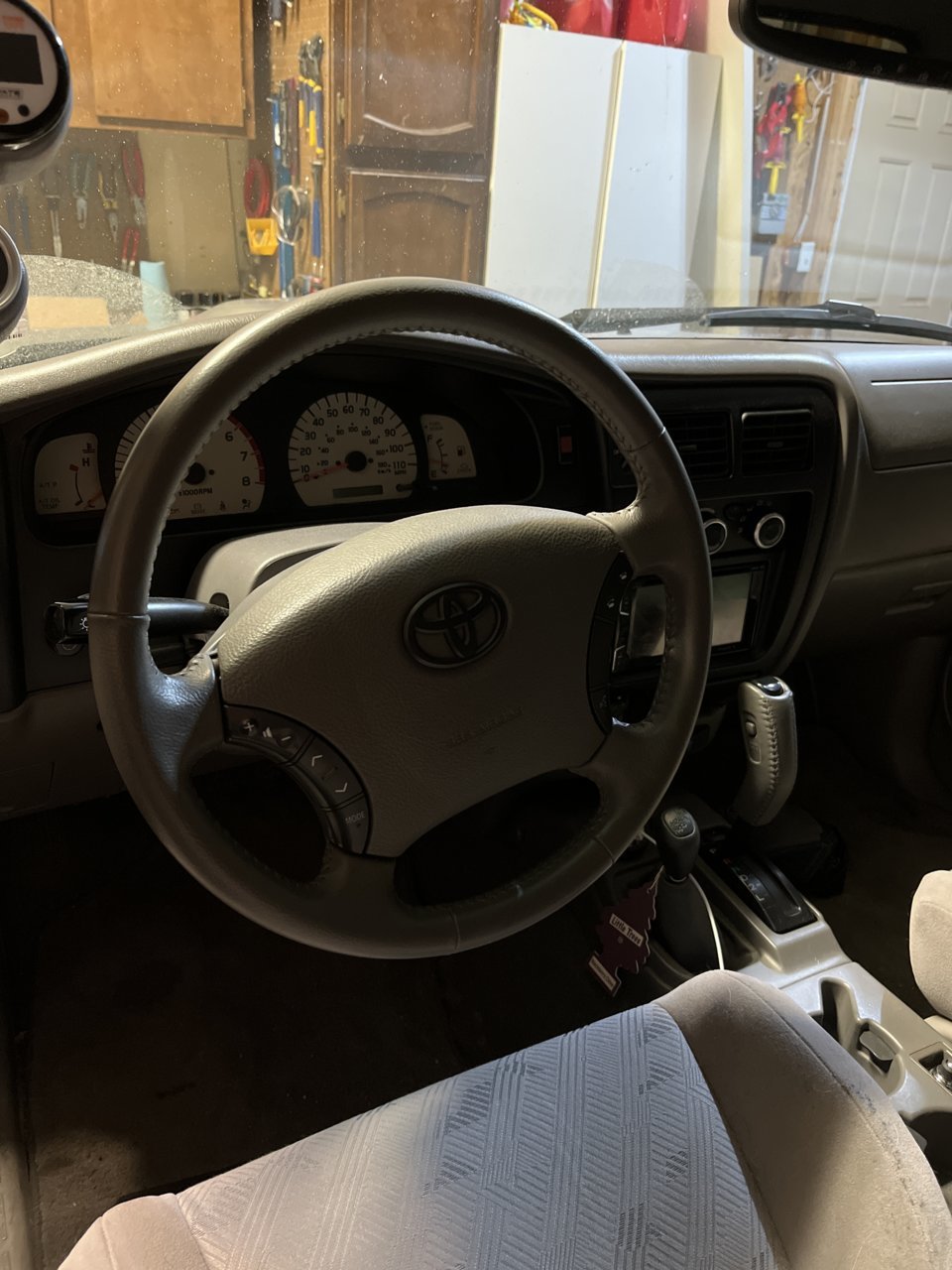

    Attached Files:

    Last edited: Jan 6, 2023
    This site contains affiliate links for which the site may be compensated.
  14. Jan 9, 2023 at 2:46 PM
    #254
    RodrickHeffley

    RodrickHeffley Member

    Joined:
    Jan 6, 2023
    Member:
    #414906
    Messages:
    11
    I've managed to get everything but the airbag now, so I've started writing down everything that I need to do. My 4runner uses three wires for the cruise control and I can see that I'll need to modify the switch and also add a wire to the plug. I noticed the wire colors are different other than the horn so I'd like to ask what wires I should use, diagram below, you can ignore the bottom part, the top four wires are my concern:

    298455d1527134608-steering-wheel-swap-le_a0e2ce41a08cb17e0aeddfd2cf8dbf4dae7e8a40.jpg

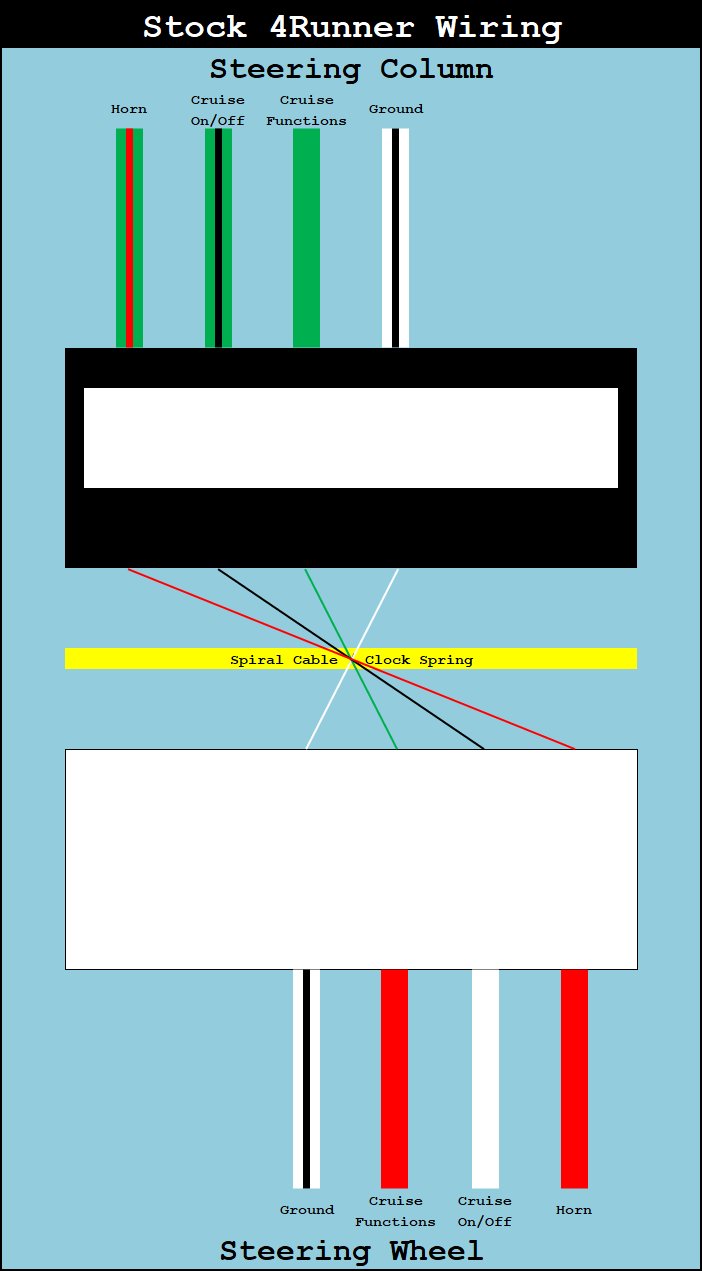

    So from what I understand the black/yellow from the 12pin goes to my green/red, like in your diagram, but the other ones are just labeled "cruise control" so I'm not sure where the wires on mine will go as they're different colors.

    I'm still also slightly confused on how I connect everything with the CC.

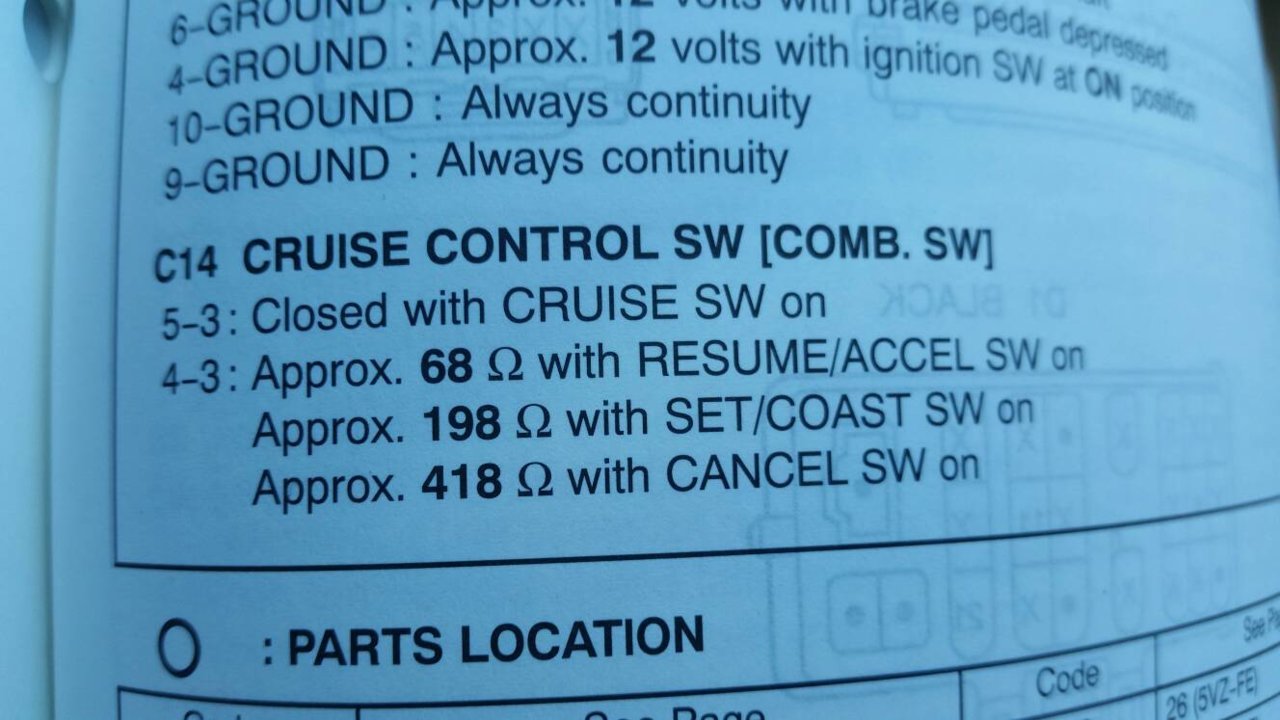

    I've read before that my cruise control switch is reliant on resistors to work and I'm not 100% sure if that'd work here
    Resistors:

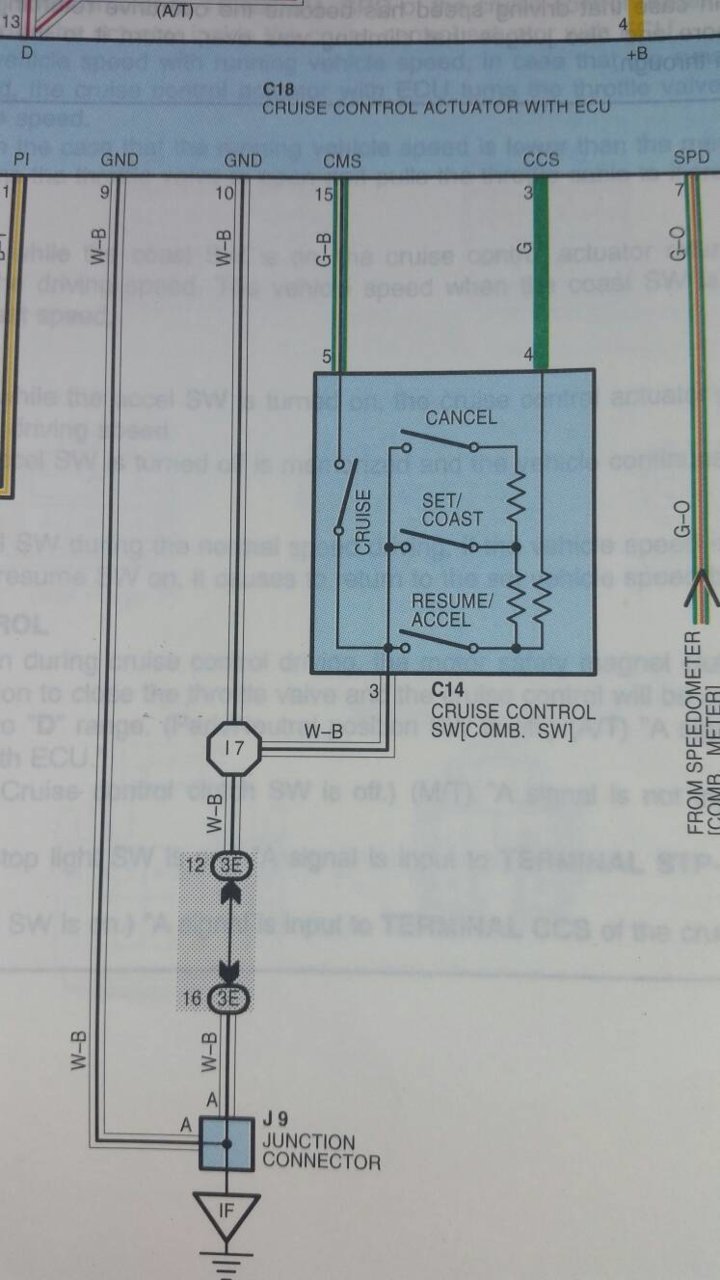

    CC diagram from my FSM:

    Last edited: Jan 9, 2023
  15. Jan 9, 2023 at 5:28 PM
    #255
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,112
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    It's been discovered that the resistors have to be changed in most of the cruise control switches. I've only found one that worked without changing them and it was given to me. Unknown what veh it cam from. I can change them for you or get you the info yo do yourself.

  16. Jan 9, 2023 at 6:12 PM
    #256
    RodrickHeffley

    RodrickHeffley Member

    Joined:
    Jan 6, 2023
    Member:
    #414906
    Messages:
    11
    Yeah that's what I was thinking, so the red wire splice won't work for me then I'm guessing
    I guess I could reuse the old switch and use the existing wires then just add another wire on the other side accordingly

    I might be able to add the resistors myself, could I add them inline with the new CC switch wire or would I have to add some kind of terminal for them?

    Edit: The easiest approach seems to be wiring in a switch from a 98+ or 92-98 camry as they're the same and are not at an angle like the 96 switch I'm using is

    Last edited: Jan 9, 2023
  17. Jan 10, 2023 at 1:41 AM
    #257
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,112
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Yes you need a newer type cc switch.

  18. Apr 19, 2023 at 6:25 AM
    #258
    TimberSkidder

    TimberSkidder Member

    Joined:
    Mar 22, 2023
    Member:
    #420720
    Messages:
    11
    Vehicle:
    1997 2.7L 5spd 4x4 Regular Cab
    Following this to do a steering wheel swap in my '97. I've found a perfect wheel from a 2005 Tundra with a two-wire airbag. Has anybody successfully swapped igniters/charges? Read conflicting reports, just curious. One wire Tundra/Sequoia airbags appear to be rare as hen's teeth.

    mechanicjon[OP] likes this.
  19. Apr 19, 2023 at 6:28 AM
    #259
    RodrickHeffley

    RodrickHeffley Member

    Joined:
    Jan 6, 2023
    Member:
    #414906
    Messages:
    11
    This is what I'm planning on doing in my 4Runner. I have the single stage charge, just need to grab myself a dual stage airbag and I suppose we'll find out

    mechanicjon[OP] likes this.
  20. Apr 19, 2023 at 8:45 PM
    #260
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,112
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I've swapped them with no problems.
