Steering Wheel Conversion With Audio & Optional Bluetooth Phone Controls (official write up).

Discussion in '1st Gen. Tacomas (1995-2004)' started by mechanicjon, Mar 5, 2018.

  1. Apr 26, 2018 at 11:17 PM
    #41
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    This

  2. Apr 27, 2018 at 12:17 AM
    #42
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,
    Ok got it' I do have the new clock Spring. Just received it today. I think I jacked the FFF question up, sorry. So this set up ,4Runner Steering wheel, with CC/ and the RC, that is in this photo should work for this mod ? and this Cruise control unit that's in this wheel, does have (3) three wires coming out of it ? or (2) It looks like 2, but can't see the dam connector, if you look at it pretty close you will know what I mean.
    Your photo shows three wires looks like a yellow, red and black. Could this CC be a newer model only having 2 wires ? Or do all the CC have three wires, and I just can't see the dam wires..............
    :notsure:

  3. Apr 27, 2018 at 12:35 AM
    #43
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Thats the correct one. Like you said its just hard to see.

  4. Apr 27, 2018 at 8:29 PM
    #44
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

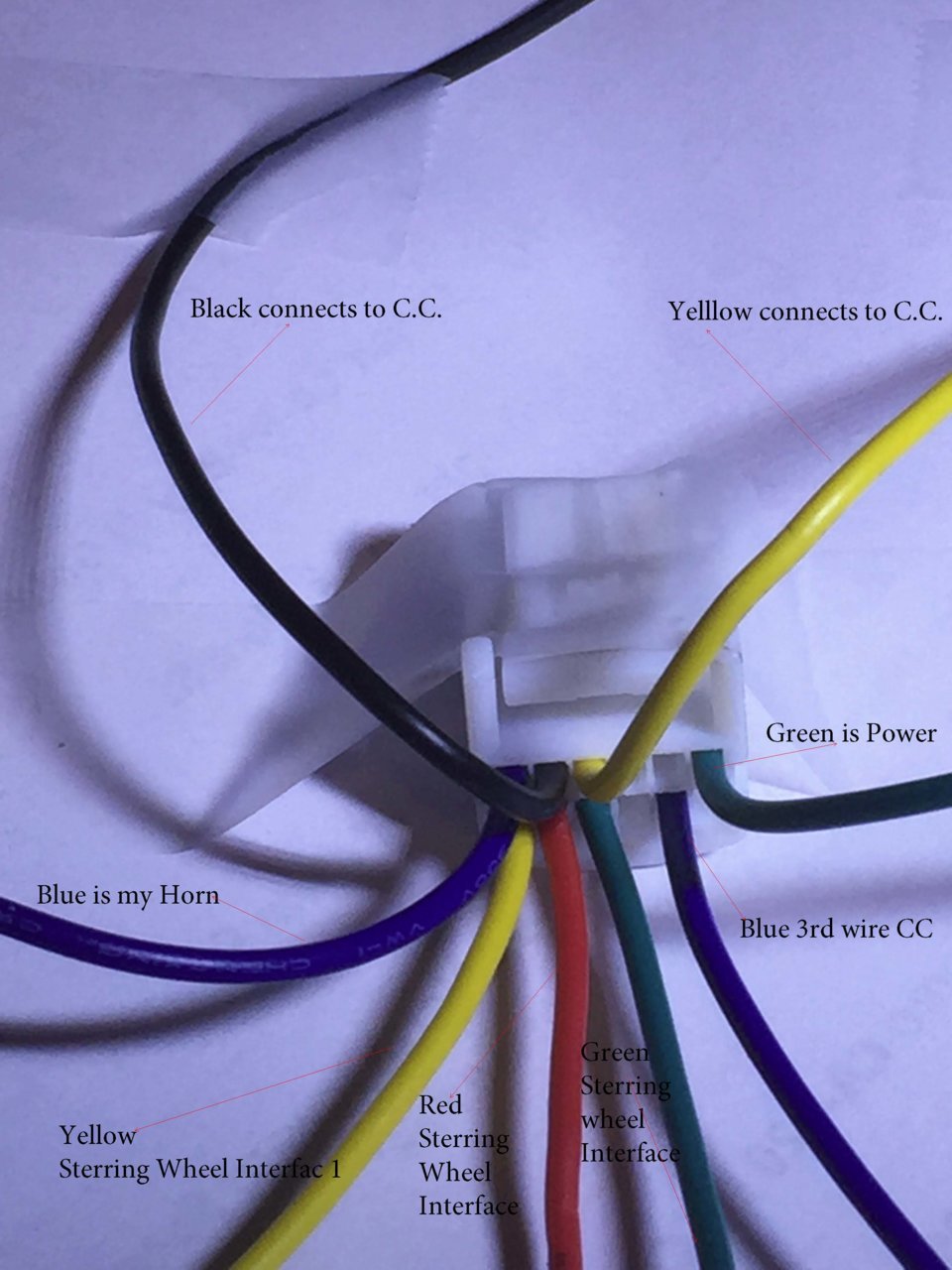

    Just wired my 12 Pin Connector, that connects to the back side of the Clock Spring. Added the extra wire. My wires are all diff FFF colors, so I will just have to label them when the time comes.
    Picking up the Steering wheel Tomorrow....... Hope to add the 3rd wire Sunday. Going to use those Solder Seal Wire Connectors, that you recommend on the Air bag have a few left, can't solder worth of Crap.......will these work ? Thanks

    My 12 Pin Wires.jpg

  5. Apr 27, 2018 at 10:32 PM
    #45
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

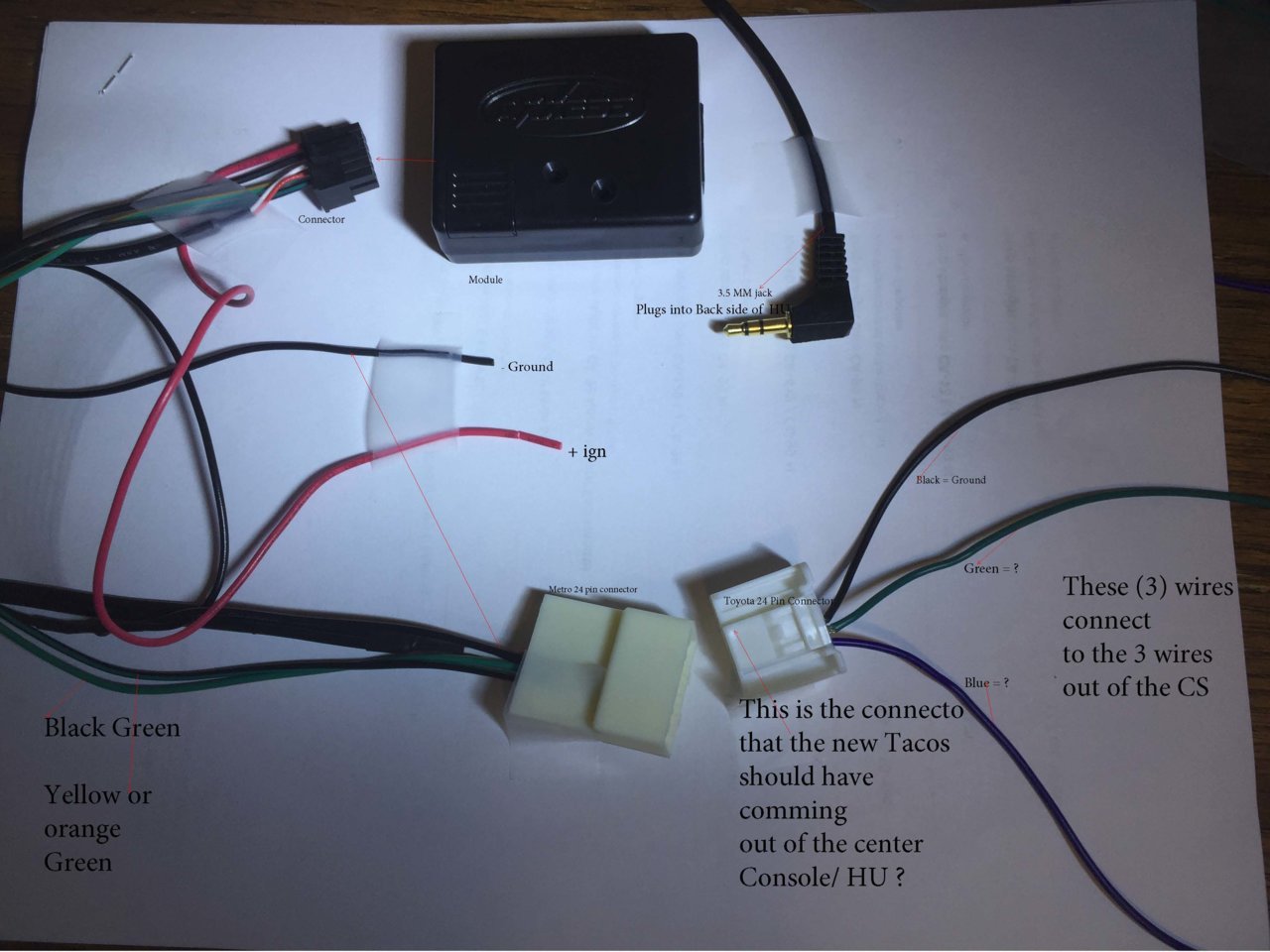

    Jumping ahead here a little, on the radio control Interface, there is a company called Metra, they make the ASWC-1 AXXESS METRA UNIVERSAL OEM STEERING WHEEL CONTROL INTERFACE MODULE, They also make a adapter for the Toyotas, a 24 Pin male white connector, which inserts right into the Female connector, that you should have coming from the newer Tacos stereo harness, or center console harness. Since I do not have that female 24 pin white connector coming out of my System, I bought one and inserted the 3 wires that are required for the SW radio harness. So I need to match the (3) three wires coming out of my clock spring, 12 pin connector the yellow, red and green to the 3 wires from the 24 pin connector. I know, one of them is the ground wire, Black the other two I have no I idea,.? Here is a photo of the layout... if it make any sense at all.......


  6. Apr 28, 2018 at 1:22 AM
    #46
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Your running a newer Tacoma factory radio? What year of truck and make of stereo?

    Last edited: Apr 28, 2018
  7. Apr 28, 2018 at 1:35 AM
    #47
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    this might help


    Attached Files:

  8. Apr 28, 2018 at 7:33 AM
    #48
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,
    Hey Jon, No Factory radio........ Its a 1995 1/2 one of the First Tacos ......Had an old CD unit when I bought it way back, have upgraded twice now, my latest HU is a Alpine, Model INE-960S Nav. Good system. The Metra Module has a computer inside of it, all you have to do is hook it up with the 3.5, jack to the back side of the alpine. along with the CS wires, along with power/ ground and it will identify yours system. like: Toyota Tacoma/ Alpine Radio.
    So on that diagram, it looks like the wires from the Spiral Cable are AU1, EAU and AU2. So which pins on the SC would they be for me? again, I know one is a ground wire. On yours its shows 3 wires bottom left, it also shows a ground wire for the switches, so would that be 4 wires ? But the Diagram only shows 3 wires - SC to the HU?

    Wires identified.jpg

  9. Apr 28, 2018 at 7:40 AM
    #49
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

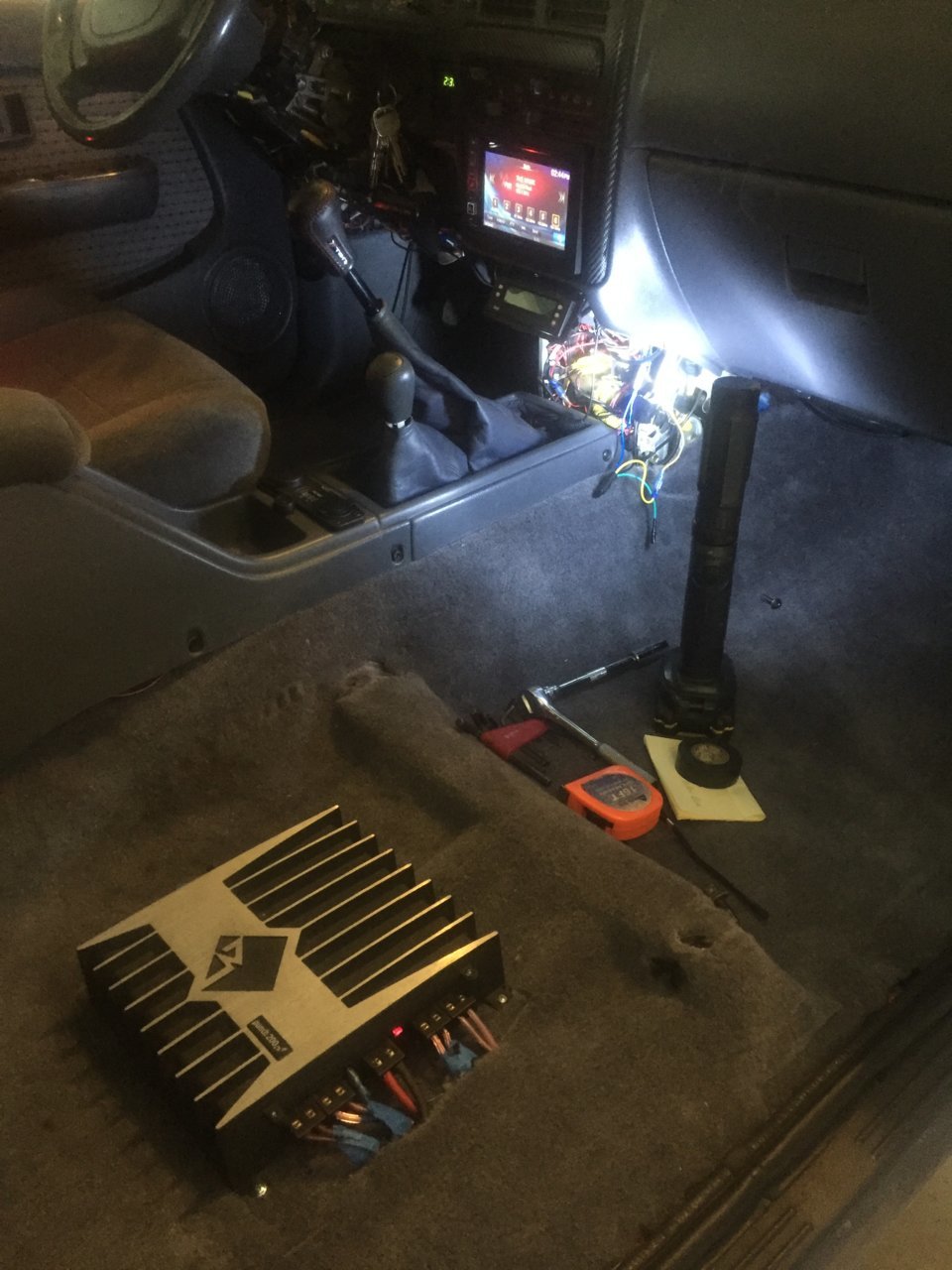

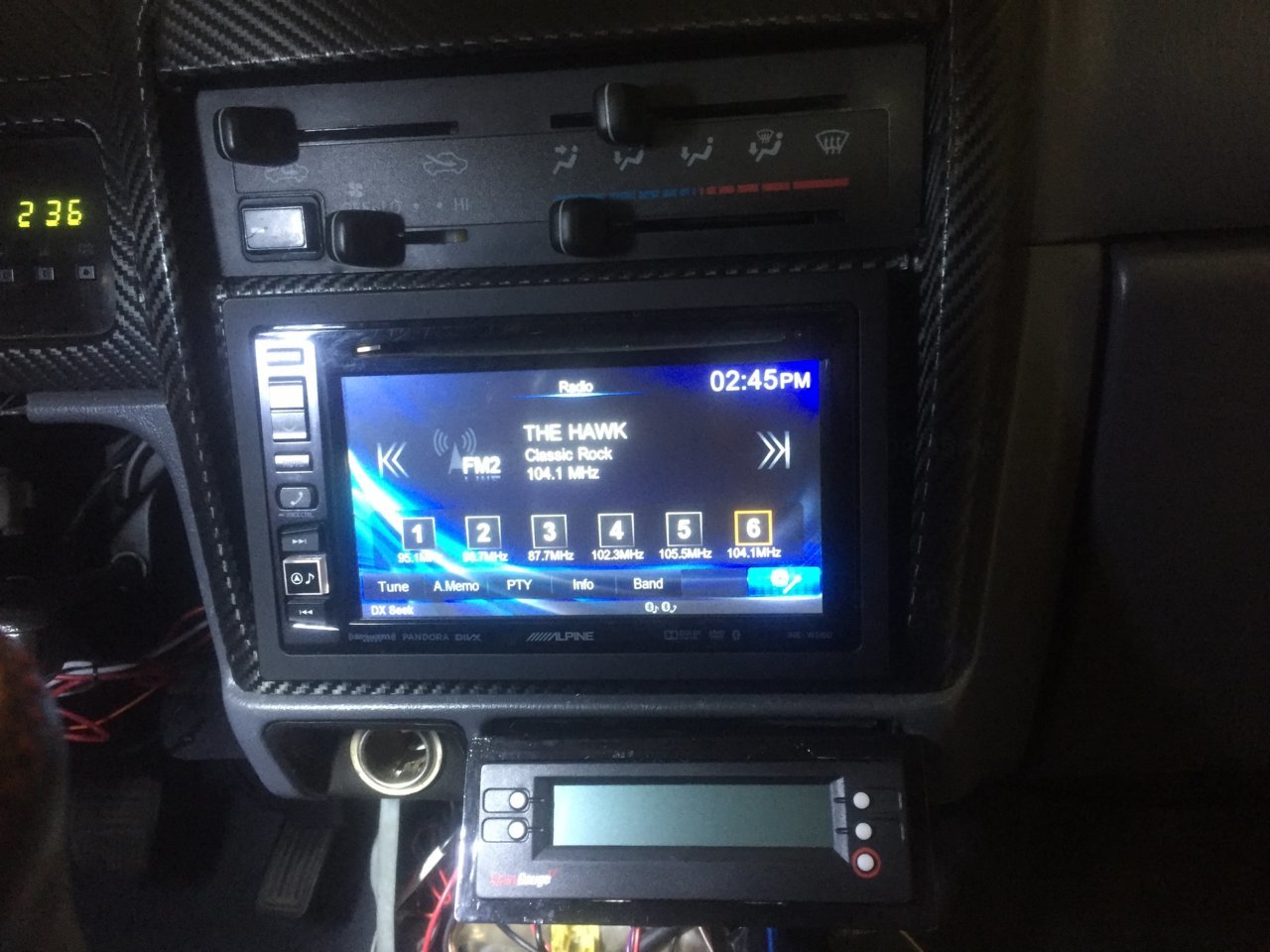

    HU = Alpine INE-W960, Power Amp = Rockford Fosgate punch 200


    mechanicjon [OP] likes this.
  10. Apr 28, 2018 at 9:09 AM
    #50
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I'm going to have to drop my steering colum cover to determine for sure on those 3 wires.

  11. Apr 28, 2018 at 10:44 AM
    #51
    4x4Taco09

    4x4Taco09 Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,432
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff
    I assume this is possible to do on a 2nd Gen? I just want to add the Bluetooth controls on the right side of the steering wheel

  12. Apr 28, 2018 at 12:20 PM
    #52
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    ya. But you have to have radio controls also.

  13. Apr 28, 2018 at 2:26 PM
    #53
    4x4Taco09

    4x4Taco09 Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,432
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff
    Well I’m switching headunits out that have these features as well

  14. Apr 28, 2018 at 8:16 PM
    #54
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

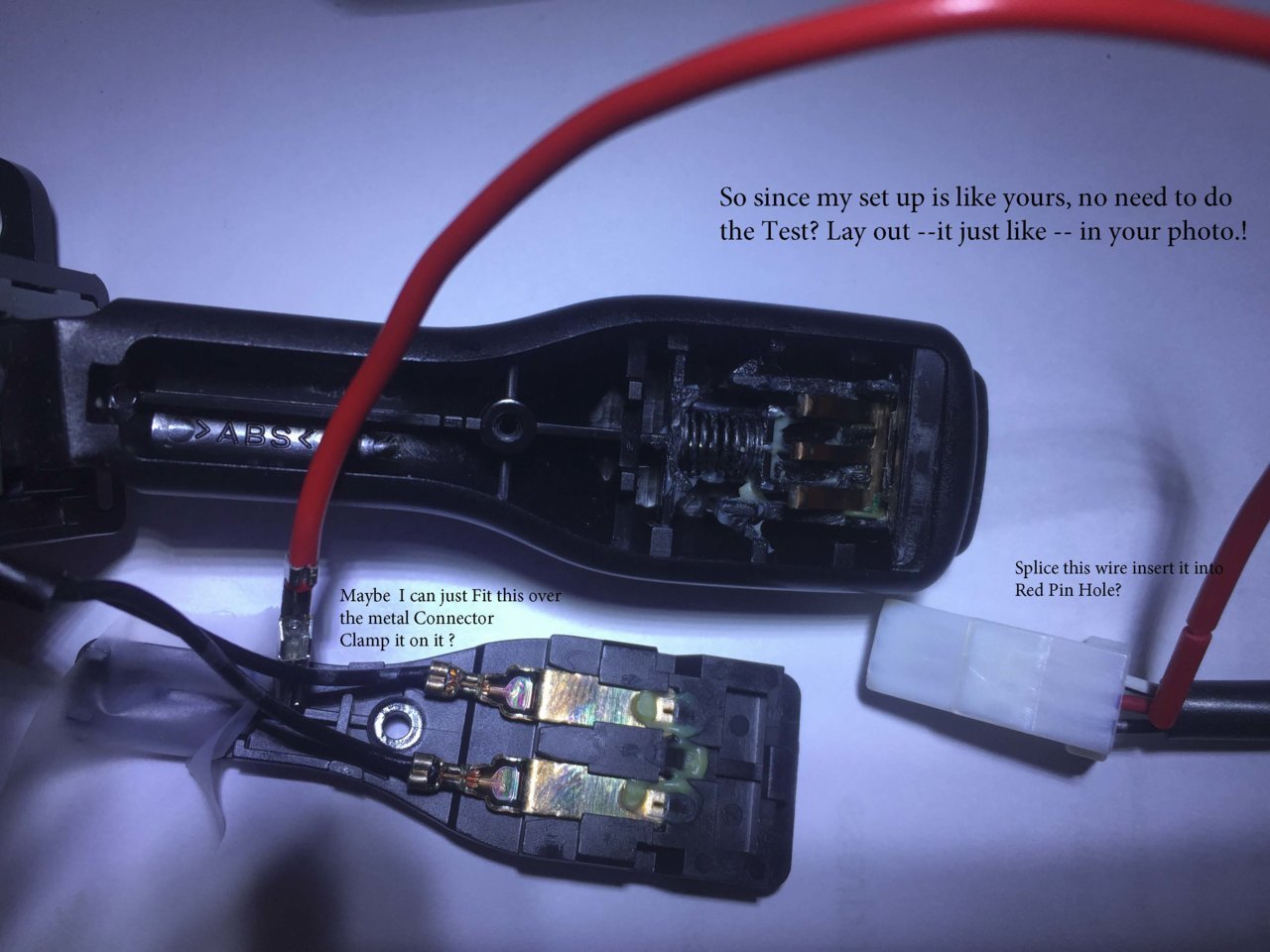

    I appreciate checking those 3 wires, good luck, I have the new CC all laid out, your correct 3 wires. Red, Black/Silver and Black/White. Adding the third wire procedure, I have a photo. The lay out it just like yours.

    CC Layout.jpg

  15. Apr 28, 2018 at 9:10 PM
    #55
    4x4Taco09

    4x4Taco09 Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,432
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff
    Yeah my truck came from the factory with the radio controls. Just wondering howninvolvednitd be to add the bluetooth ones on the right side now. Wondering if i could get lucky and just need the clockspring and switches. Idk if my truck was wired up for them in the column from the factory but just not any further

  16. Apr 28, 2018 at 9:17 PM
    #56
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Don't splice into the connector. Plice into the red wire itself. It's a dead wire in the switch. Connects to absolutly nothing. On the column harness that plgs into the clock spring there is no matching wire. It's an empty hole.
    It should be just like in the photo. The extra wire just needs to be added to the column side plug in the hole next to your yellow CC wire. So you'll need to move the blue wire you added. For the interface wires the brown/white (your green wire) is the EAU wire. AU1 my light green and red (your yellow) AU2 my gray/red (your red wire)

  17. Apr 28, 2018 at 9:20 PM
    #57
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    move blue wire here.
    My 12 Pin Wires.jpg

  18. Apr 28, 2018 at 9:25 PM
    #58
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    The one i have labeled ground for switches that is the ground for the cruise control switch. It also grounds the rest of the switches also.

  19. Apr 28, 2018 at 9:48 PM
    #59
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Edited your picture.
    1995 SR5  Circuit Cruise Control.jpg
    My 12 Pin Wires.jpg

    Last edited: Apr 29, 2018
  20. Apr 29, 2018 at 11:52 AM
    #60
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,558
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    HOLD ON I MADE A MISTAKE ON THE CRUISE CONTROL WIRE TO MODIFY!
    It's the other wire not the one i have the meter on.
