Steering Wheel Conversion With Audio & Optional Bluetooth Phone Controls (official write up).

Discussion in '1st Gen. Tacomas (1995-2004)' started by mechanicjon, Mar 5, 2018.

  1. Apr 29, 2018 at 12:11 PM
    #61
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Corrected CC stalk mod.


  2. Apr 29, 2018 at 12:44 PM
    #62
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.

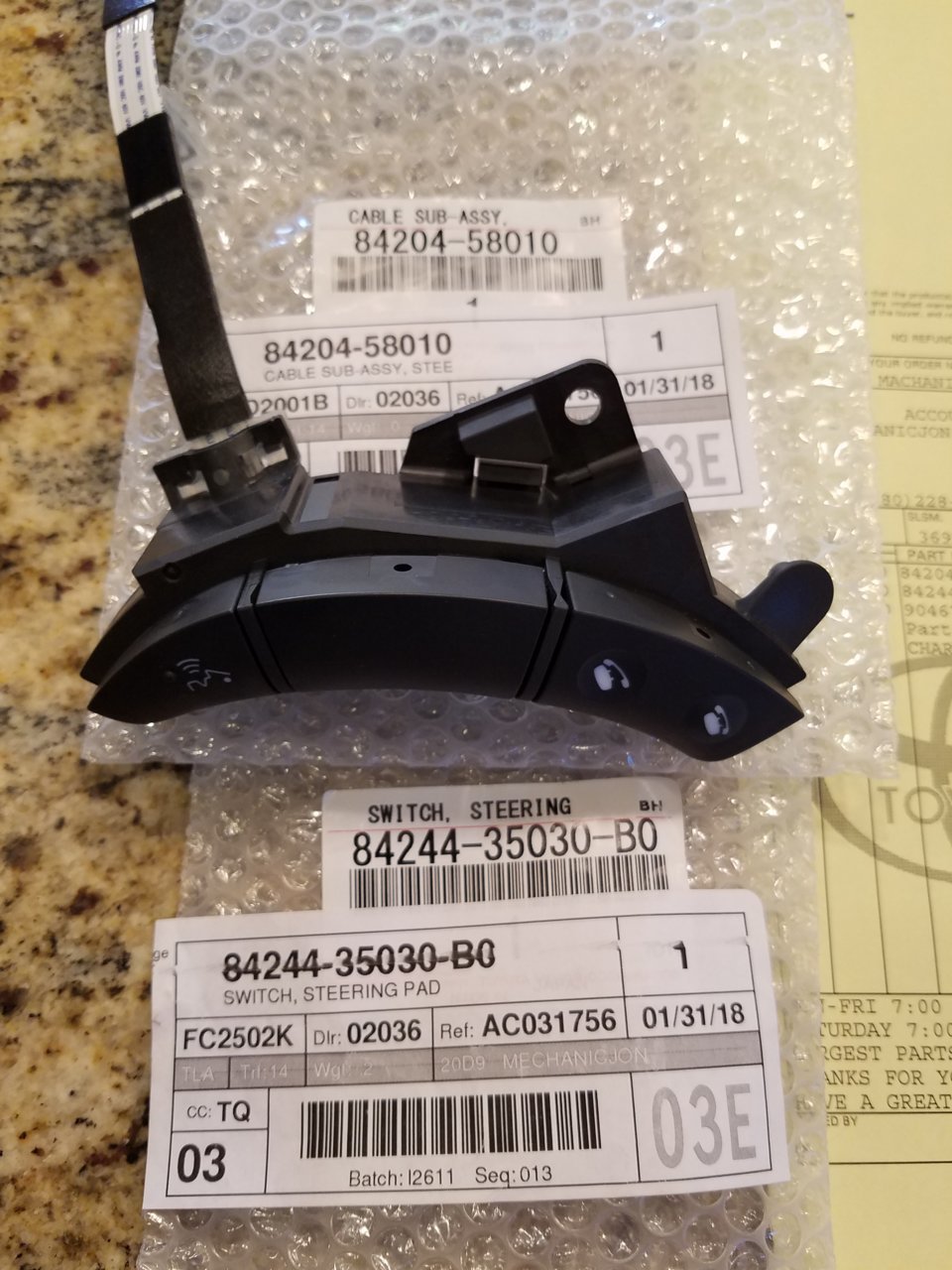

    Sorry missed this. If you have radio switches you just have to buy the blue tooth switches and cable. Also you need the interface to wotk with aftermarket radio. Factory radio if the radio is capable of it. You would just need the bluetooth switches and cable. Every thing else is already there.

    4x4Taco09 likes this.
  3. Apr 29, 2018 at 12:47 PM
    #63
    4x4Taco09

    4x4Taco09 Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,383
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff
    Thanks. I’m searching for the cable and switch right now. I think I need to use the SWI-CP5 from PAC for the Sony XA100. Most guys are using the SWI-RC but under the detail it lists will not work with the headunit I’m planning on running :(

  4. Apr 29, 2018 at 1:08 PM
    #64
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
  5. Apr 29, 2018 at 1:13 PM
    #65
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    The back of that radio appears to have a remote plug in jack.

  6. Apr 29, 2018 at 7:07 PM
    #66
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    76
    Gender:
    Male
    Weast Coats, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,
    Ok, just in time............. Got your Message..... Thanks

  7. Apr 29, 2018 at 9:53 PM
    #67
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    76
    Gender:
    Male
    Weast Coats, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,
    :fingerscrossed:The CC wires are soooo dam small, can't See/ Cut/ it. Sooooooooo- I tried this way- connected the wires using there own connectors, nice and tight/ Secured & Clean ..........

    Will this way work ? Right to the Source.??? I hope so. or I can disconnect them and do it the other way ? Have to get 10000 x Magnifier Glass, dammmmmmm

    CC Convert.jpg

  8. Apr 29, 2018 at 9:59 PM
    #68
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    perfect

  9. Apr 30, 2018 at 12:31 PM
    #69
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    76
    Gender:
    Male
    Weast Coats, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

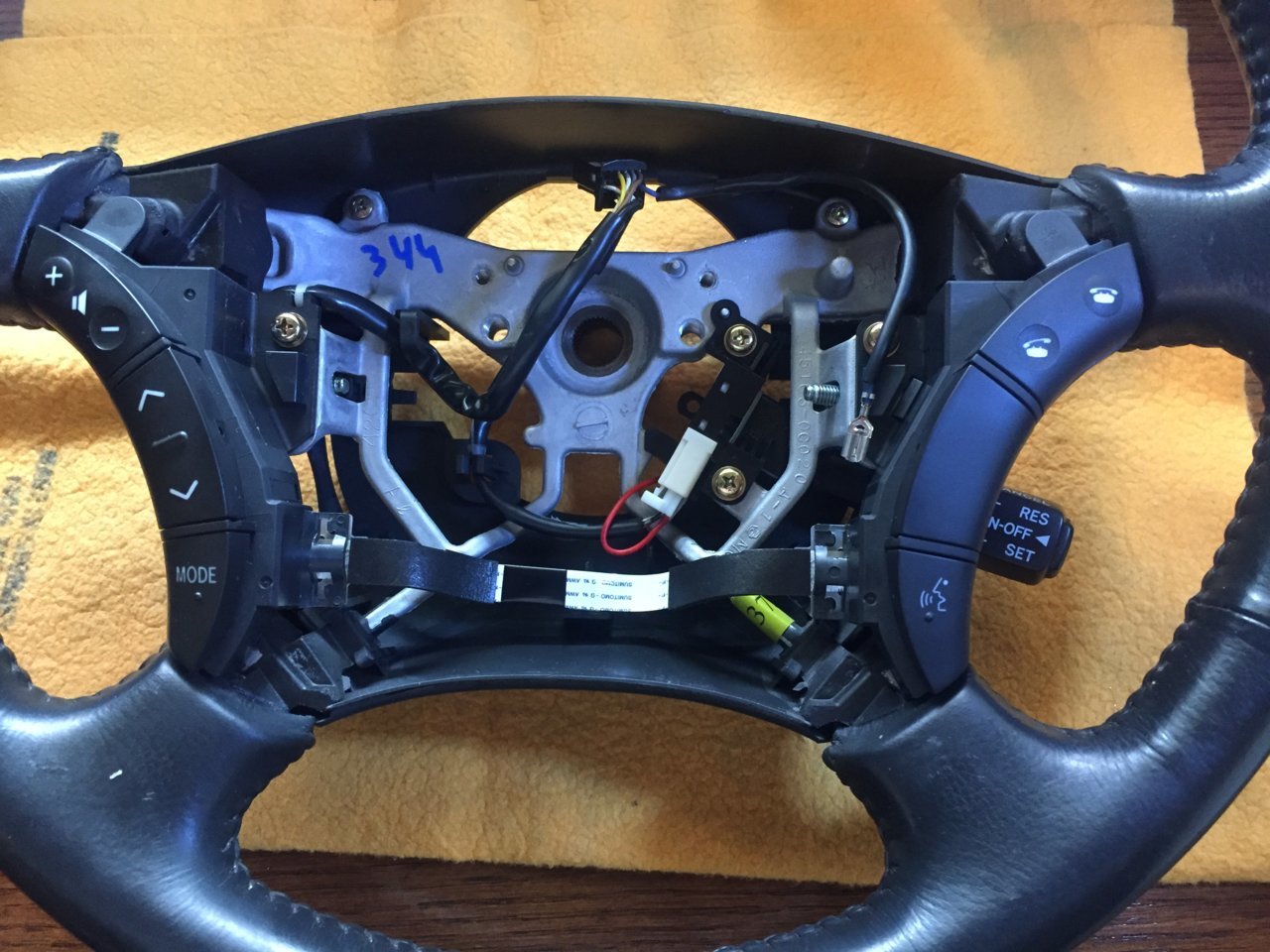

    Ok, sounds good. Steering wheel should be complete now, just added the ribbon, phone module.


    mechanicjon [OP] likes this.
  10. Apr 30, 2018 at 12:39 PM
    #70
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    76
    Gender:
    Male
    Weast Coats, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

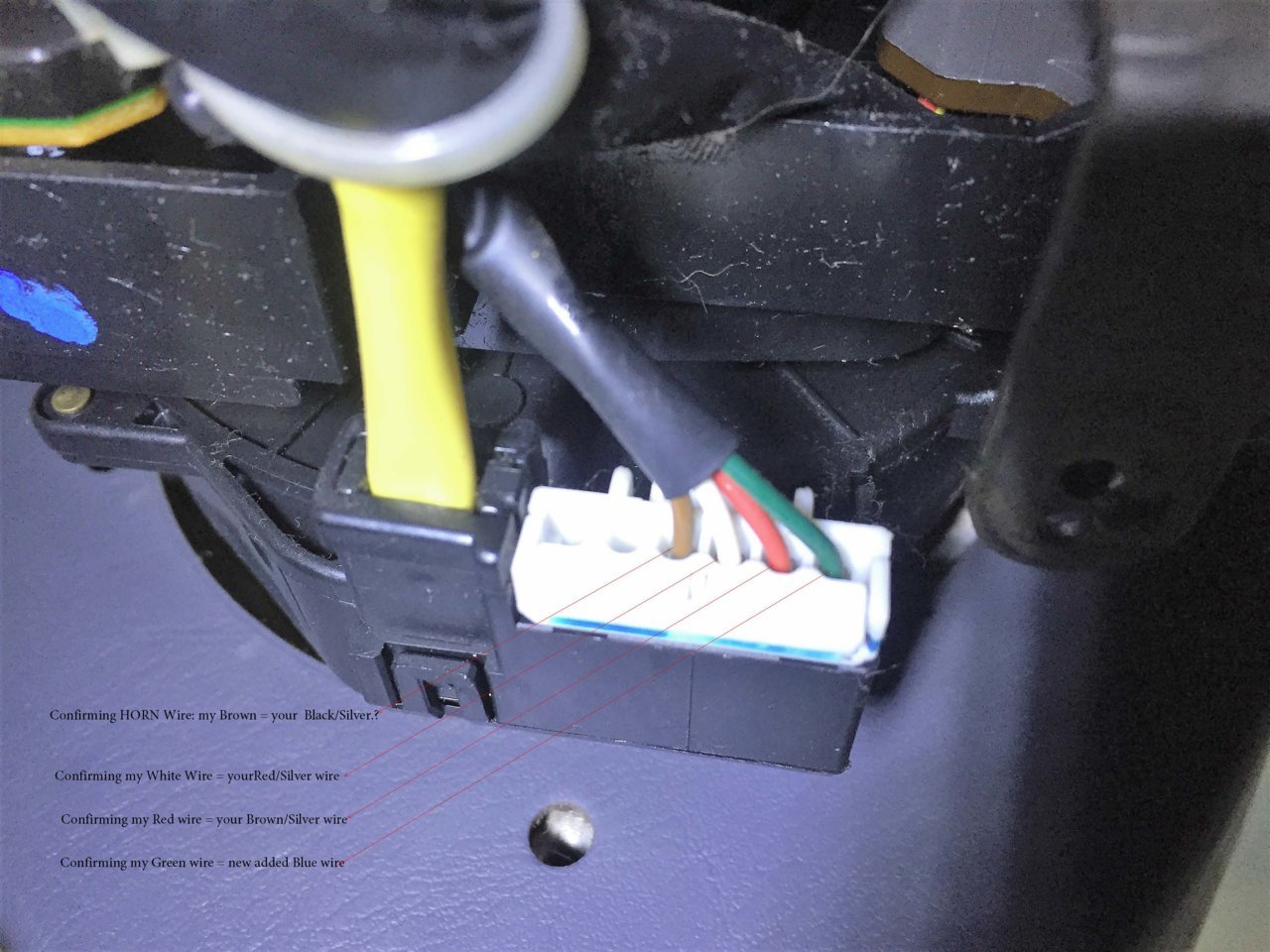

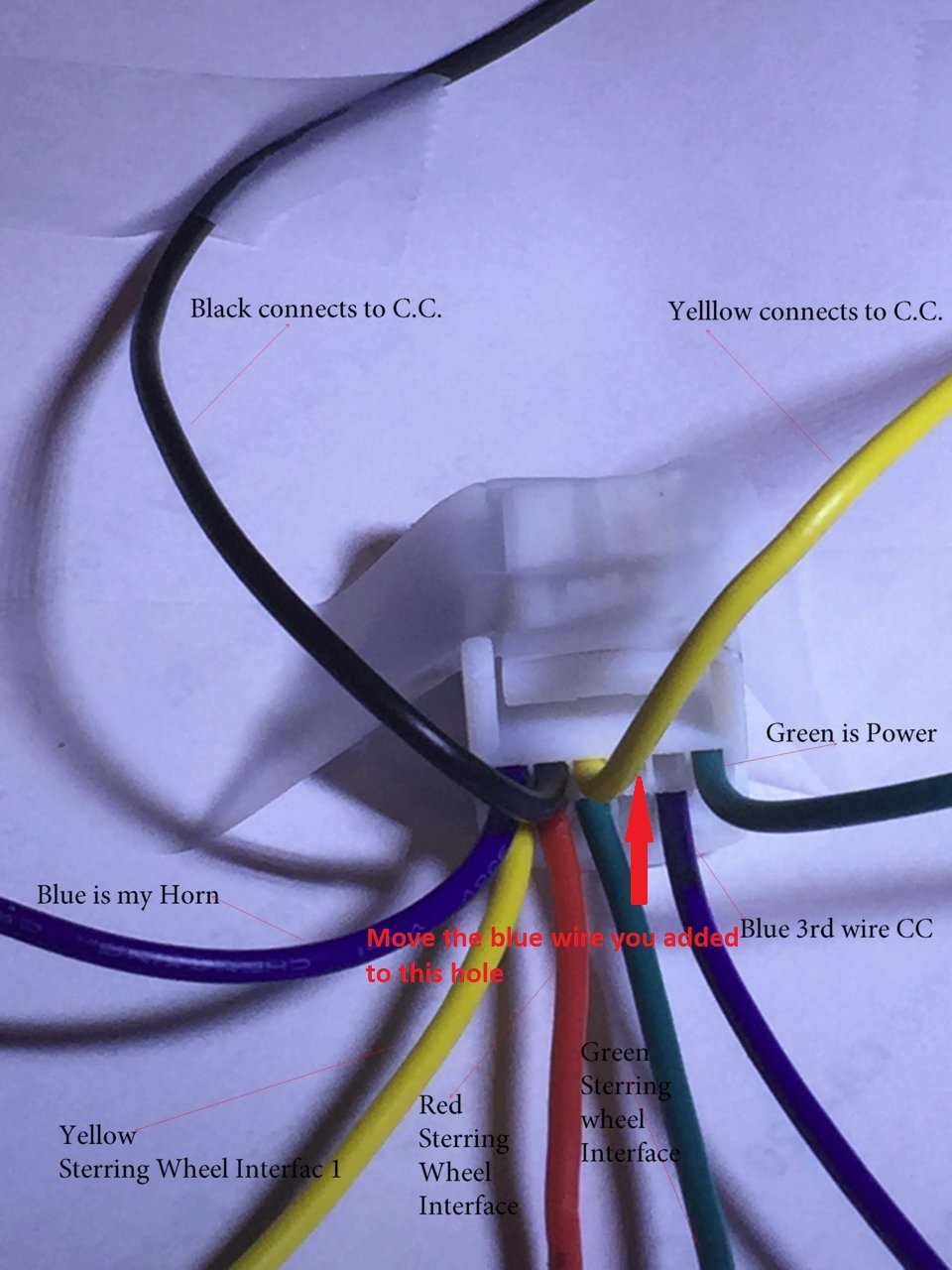

    Now the wiring, for the horn, CC connections that is coming into the clock spring, from the taco Wire harness. Using only the colors on the photo. OI know is way diff for everybody else....or for the newer Tacos...
    Again this is coming out of my Taco Wire Harness.

    12 pin hook up stereo .jpg
    Out of Clock Spring 122.jpg

  11. Apr 30, 2018 at 1:58 PM
    #71
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    This i laid out the colors in your new column side plug.

  12. Apr 30, 2018 at 2:01 PM
    #72
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Oh you needing to knoworiginal colors to new colors. give me a min

  13. Apr 30, 2018 at 2:31 PM
    #73
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Green to new blue=horn
    green power is new wire it goes to a dash illumination bulb positive side. Doesn't go through original harness plug.
    Brown to new Yellow wire
    New black CC wire will go to original red wire
    New CC blue wire will go to the left over wire.

    Last edited: May 1, 2018
  14. Apr 30, 2018 at 3:19 PM
    #74
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    76
    Gender:
    Male
    Weast Coats, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

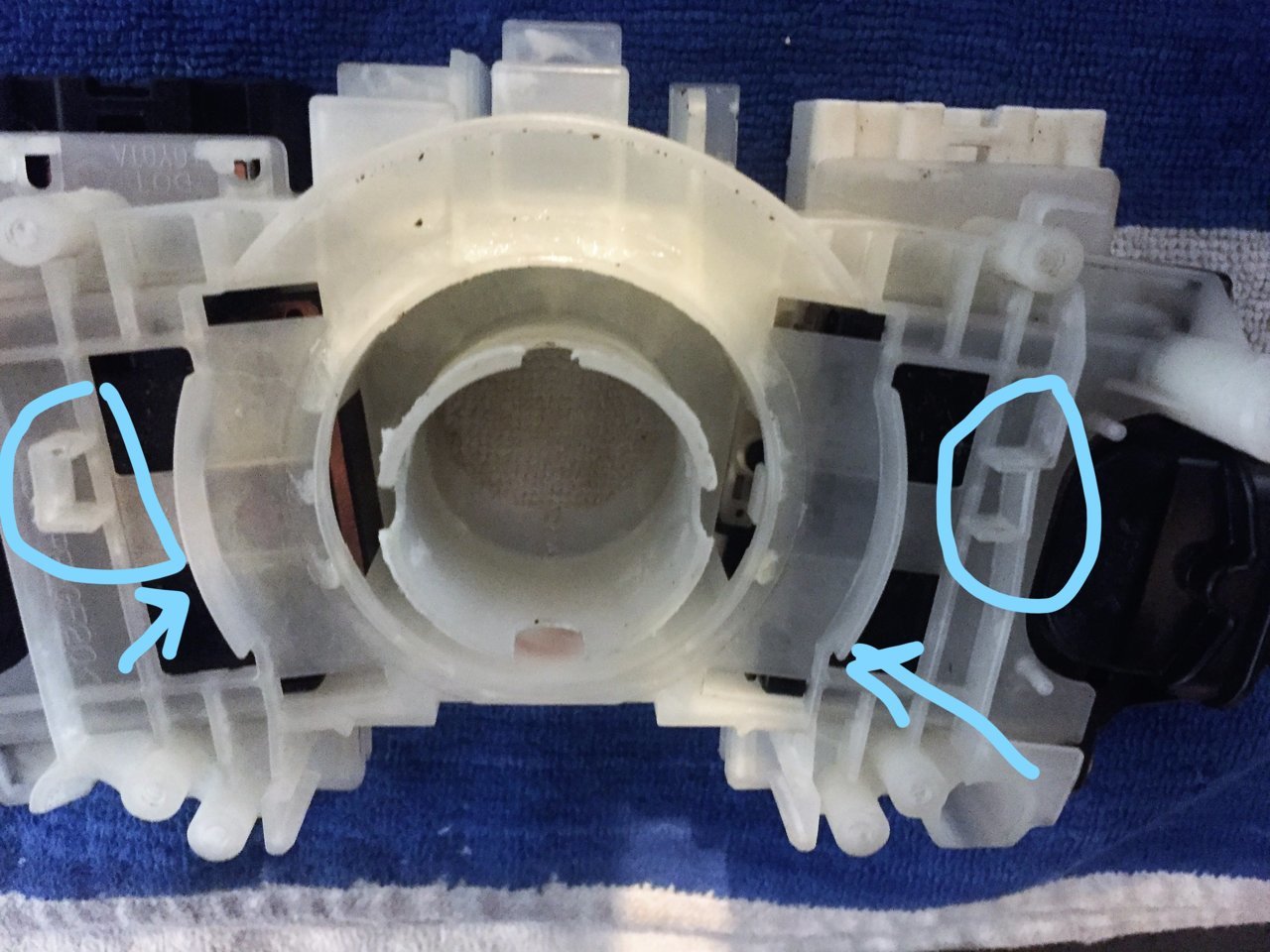

    NASA We got a problem........... Just a few MAJOR issues''''''''''' 1#
    Did a little home - Work , should of did a little more.!! Got a chance to pull, the bag, steering wheel & CS. today. Wow, what a diff Toyota Makes. hah'''''''
    shitttttttttt-- well maybe -- Wulf Banned, Jake was right on the 1st page of your write up, for the Very Old Tacoma's, about the whole steering stock, needs to be change, the whole enchilada . Well when I look at the CS, like I told you it looks like the new CS will fit, we look at the screws holes, looked like a match. Well it does, and the screw holes all match up. !! BUT''' the my Old CS, the back side is totally flat. The New CS, has edges, and a few dimples. It won't lay flat on the Steering module. Those edges, and dimples, are meant for your guys, newer, steering modules, it looks like they insert latch into it, and secure it some way. I bought the whole Steering Turning module for a Tundra, when I was up in Sac last week getting my Steering wheel. Like the Tacoma's, got it cheap to use the cancel cam just in case I have to abort this project'

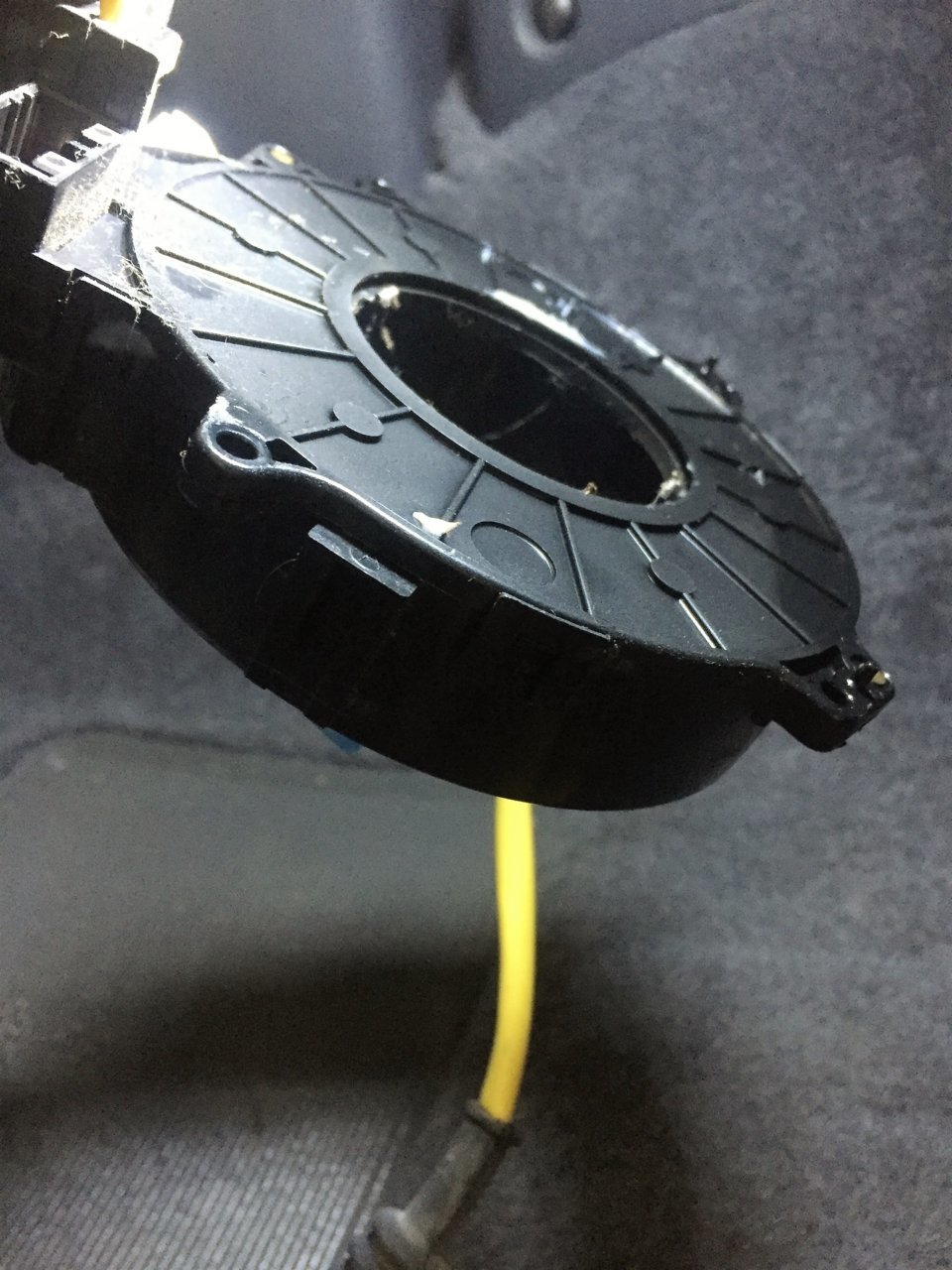

    So I laid the CS on its back into it, bingo, it looks like it just holds the CS in place?. So that's my first Bump.... Options ???? 1. Can I grind down the back of that new CS, to make it flat>? just plastic, won't hurt the function of the CS.????


  15. Apr 30, 2018 at 3:37 PM
    #75
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    76
    Gender:
    Male
    Weast Coats, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,
    Ok'''''' Shall go on ''''''''' hahah O'well, lesson Learn. 2# Problem, kind of relates to the first one, but here it is.

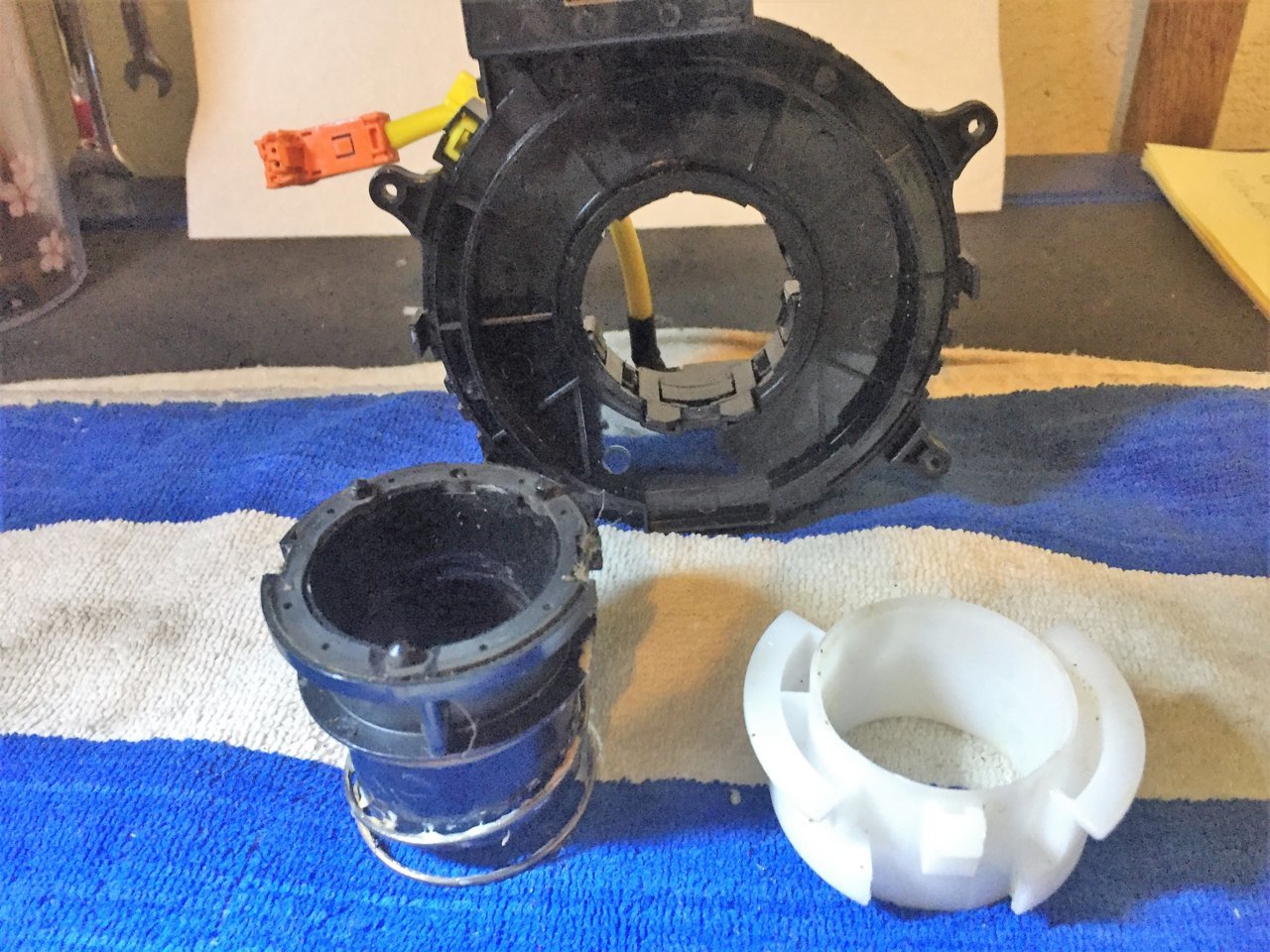

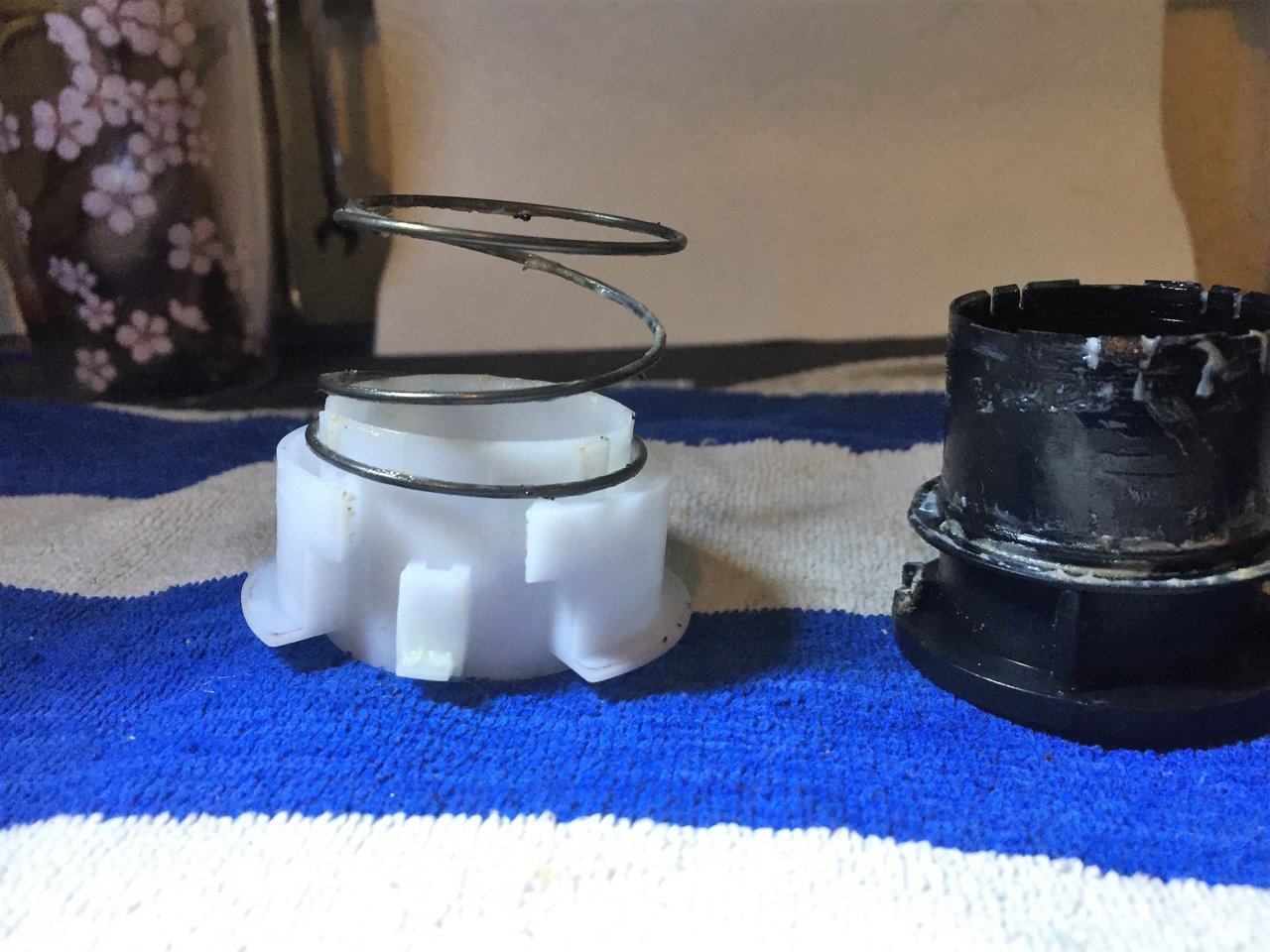

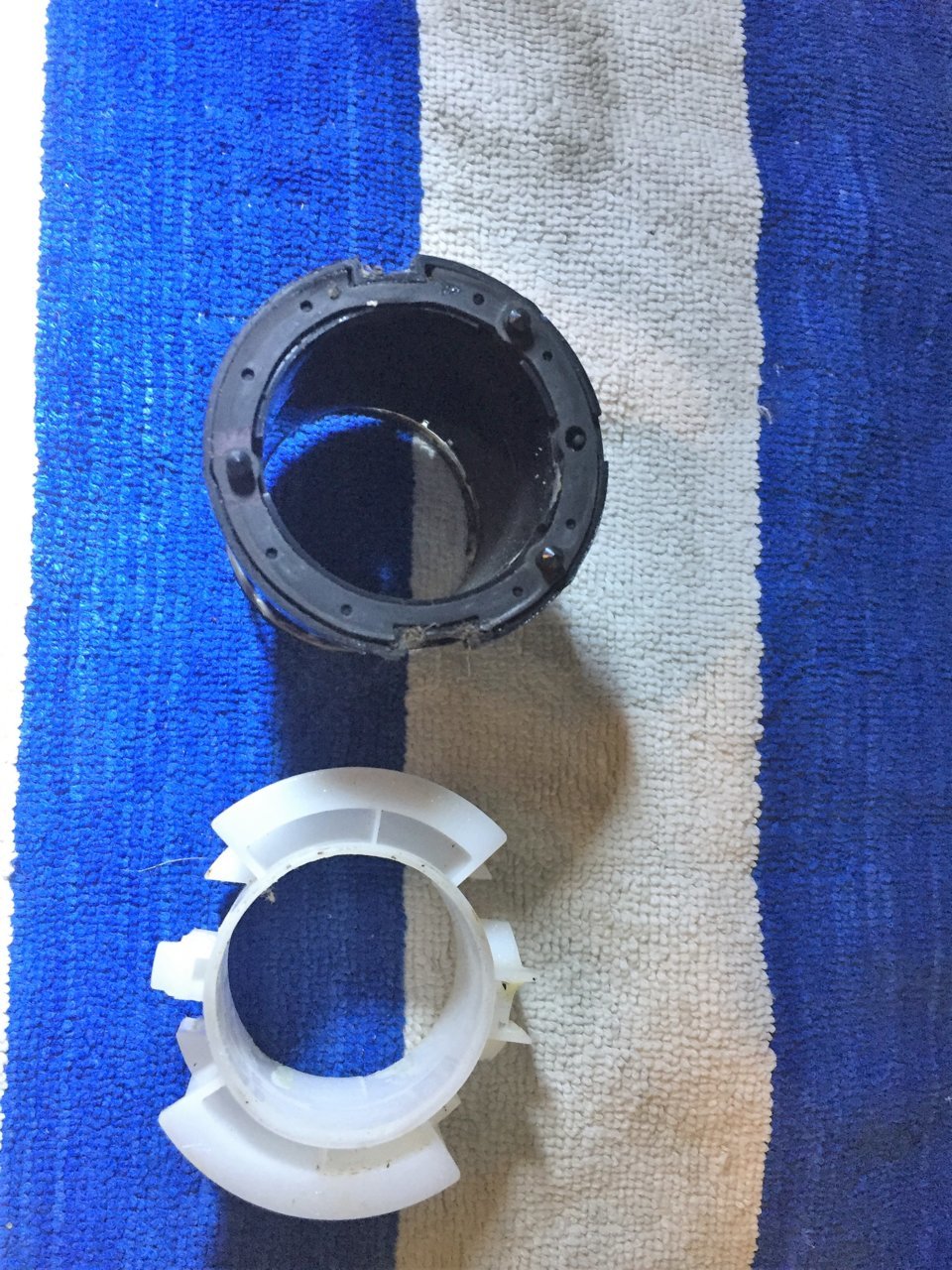

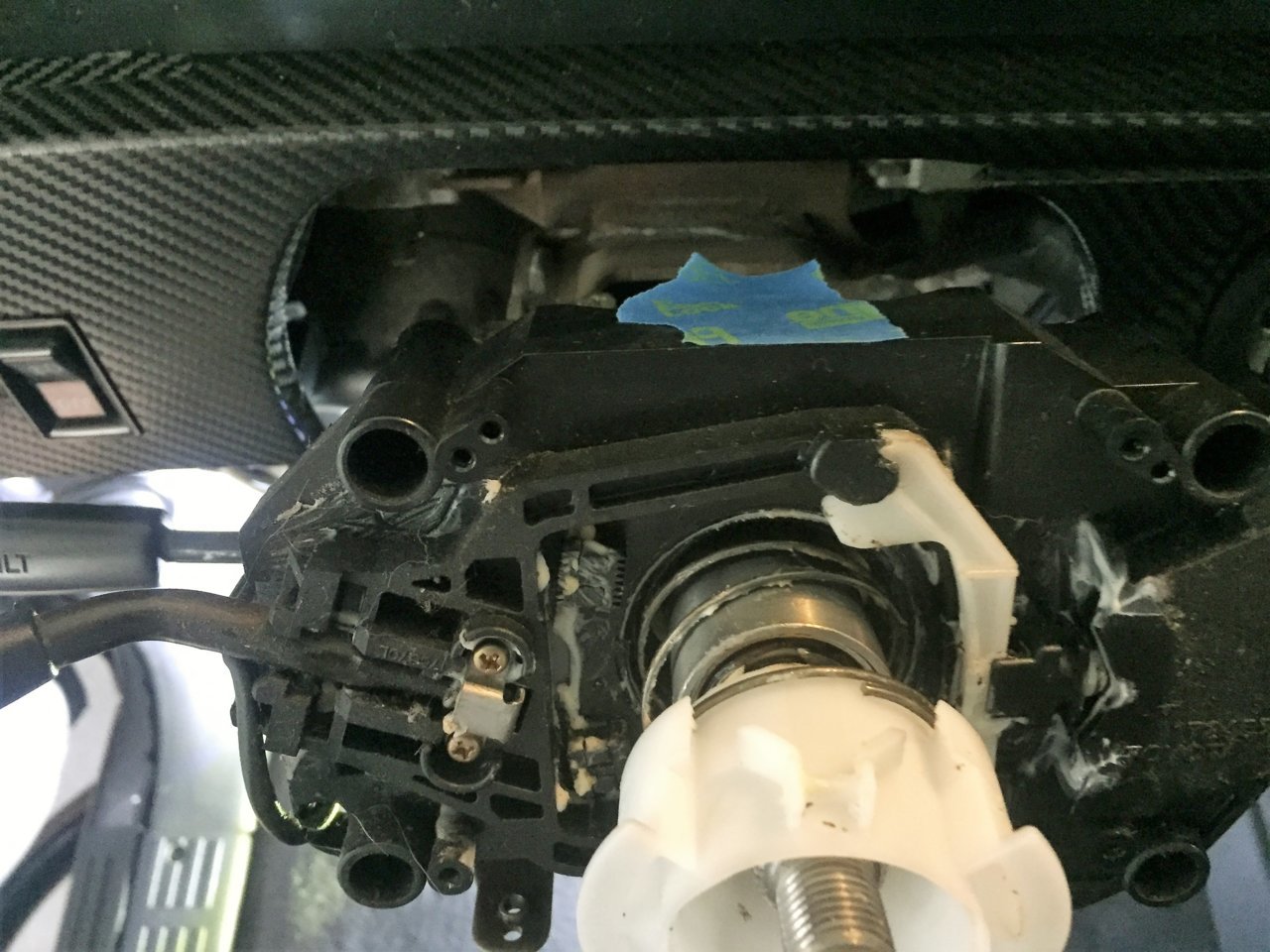

    Cancel Cam. Pull the CS, and then pulled the Cancel cam/ Spring out, bingo easy. Had the new CC waiting right there on the work bench. dammmmmmm, new Cancel cam looks pretty short?, compared to mind. Inserted the spring, into the new CC, then into the steering wheel shaft. to short.? The spring goes in first, made up for most of the deep hole/ space. not sure if it supposed to work that way. Now its getting to where this project might Crash & Burn ...........shaaaaaaa'' here is a few photos. Any suggestion's ? would gladly be appreciated ''

    IMG_8230 1.jpg
    IMG_8233 1.jpg

  16. Apr 30, 2018 at 4:23 PM
    #76
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.

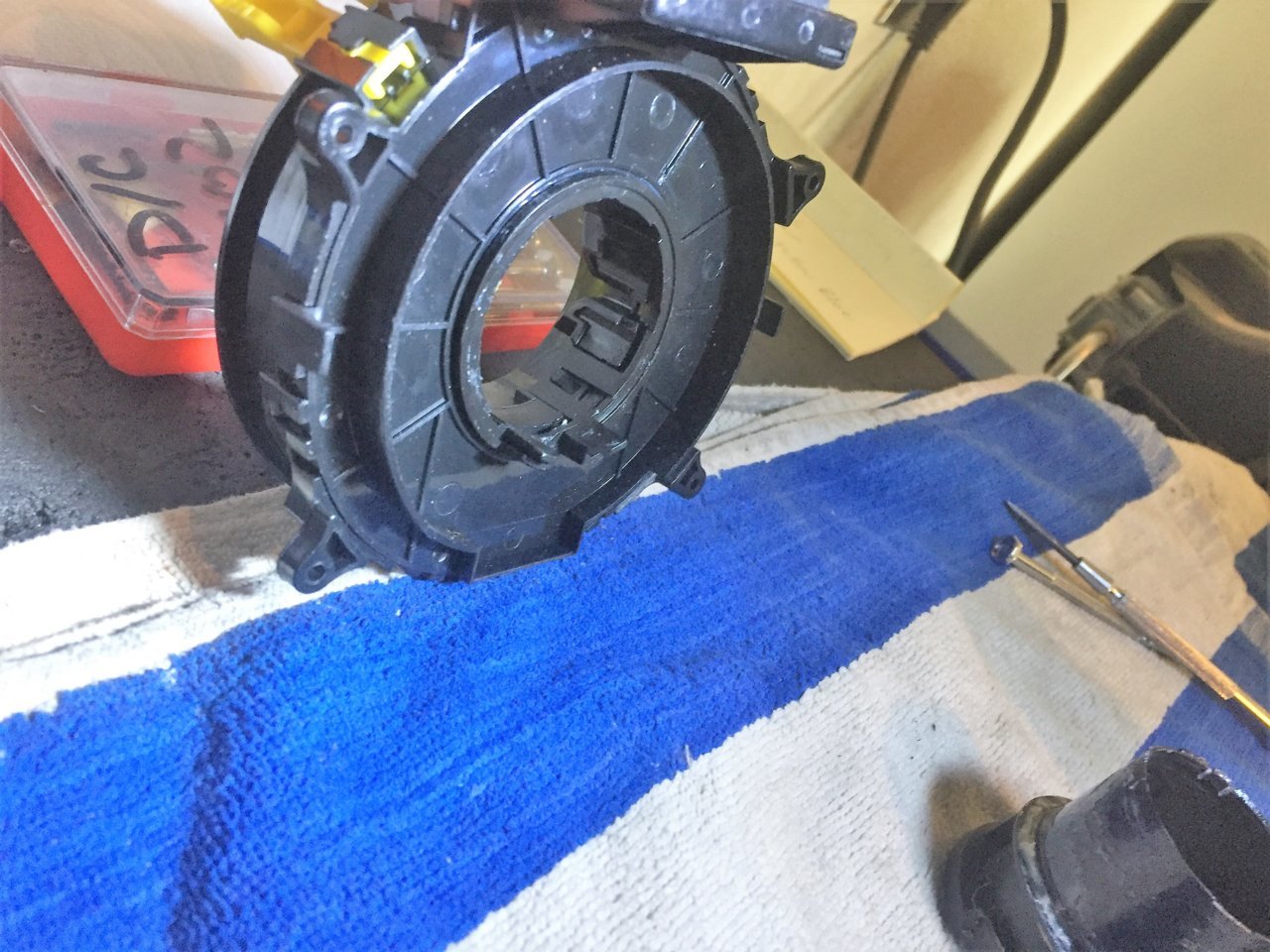

    You can smooth the back of the clock spring off.

    I left spring off. Get the clock spring on and see how it looks.

    Last edited: May 1, 2018
  17. Apr 30, 2018 at 4:24 PM
    #77
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    You can always modify your original cancel cam.

  18. Apr 30, 2018 at 4:31 PM
    #78
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Spring goes in first. On mine i couldnt use the spring. There wasn't enough room with new cancel cam. You have to remeber with the new steering wheel the CC stays behind CS and catches slots. Were the old one came clear through clock spring and caught the back of the steering wheel.

  19. Apr 30, 2018 at 4:50 PM
    #79
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    76
    Gender:
    Male
    Weast Coats, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

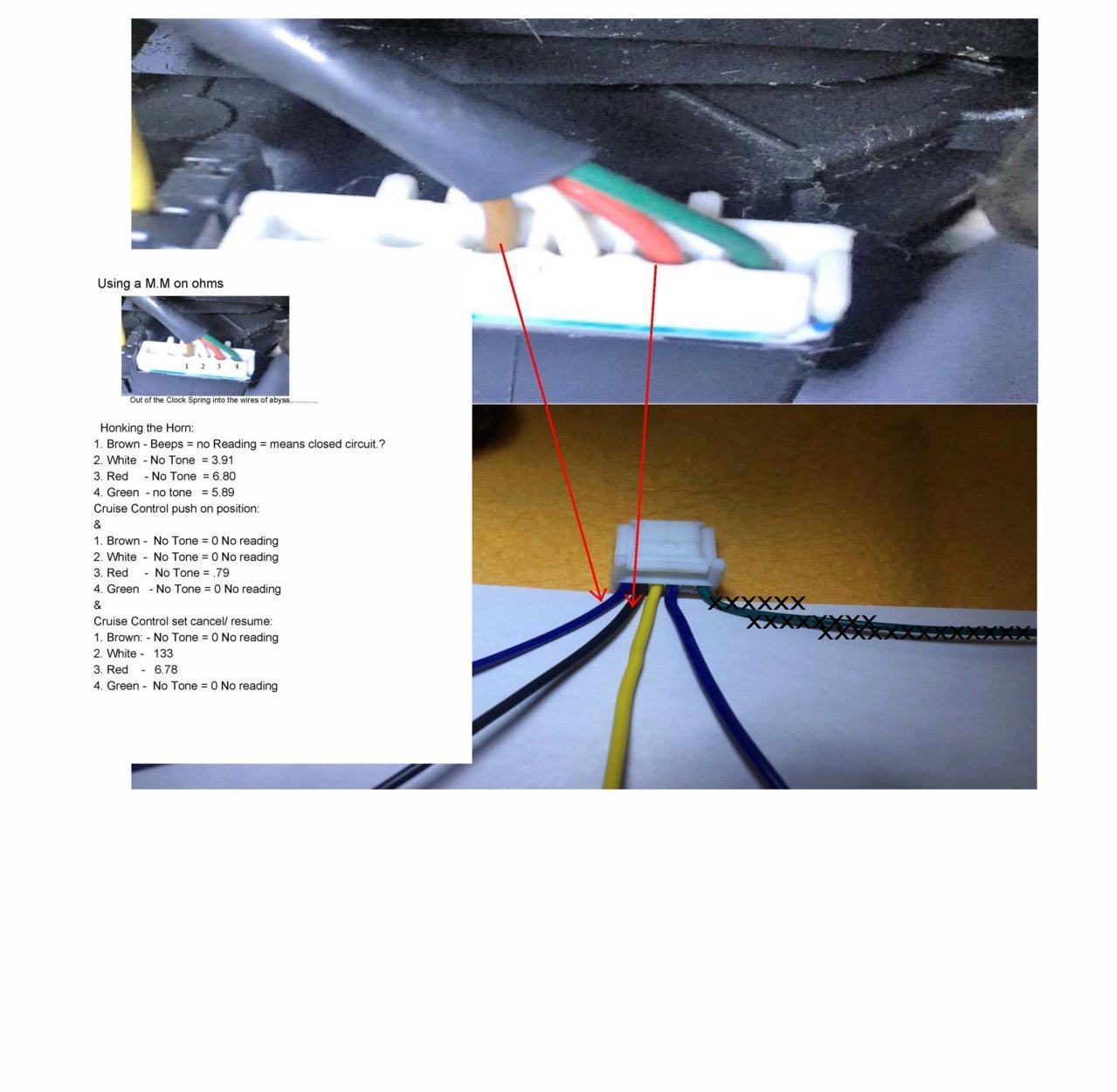

    Ok will give it a shot....... also, I did get some readings for you a couple days ago on the wires.... Not that good at electrical shit, But I did the OHMs, at your request.
    So would the white go to Yellow, and Green go to Blue ???? Thanks

    CC and Horn Layout current  11.jpg

  20. Apr 30, 2018 at 6:34 PM
    #80
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,468
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.

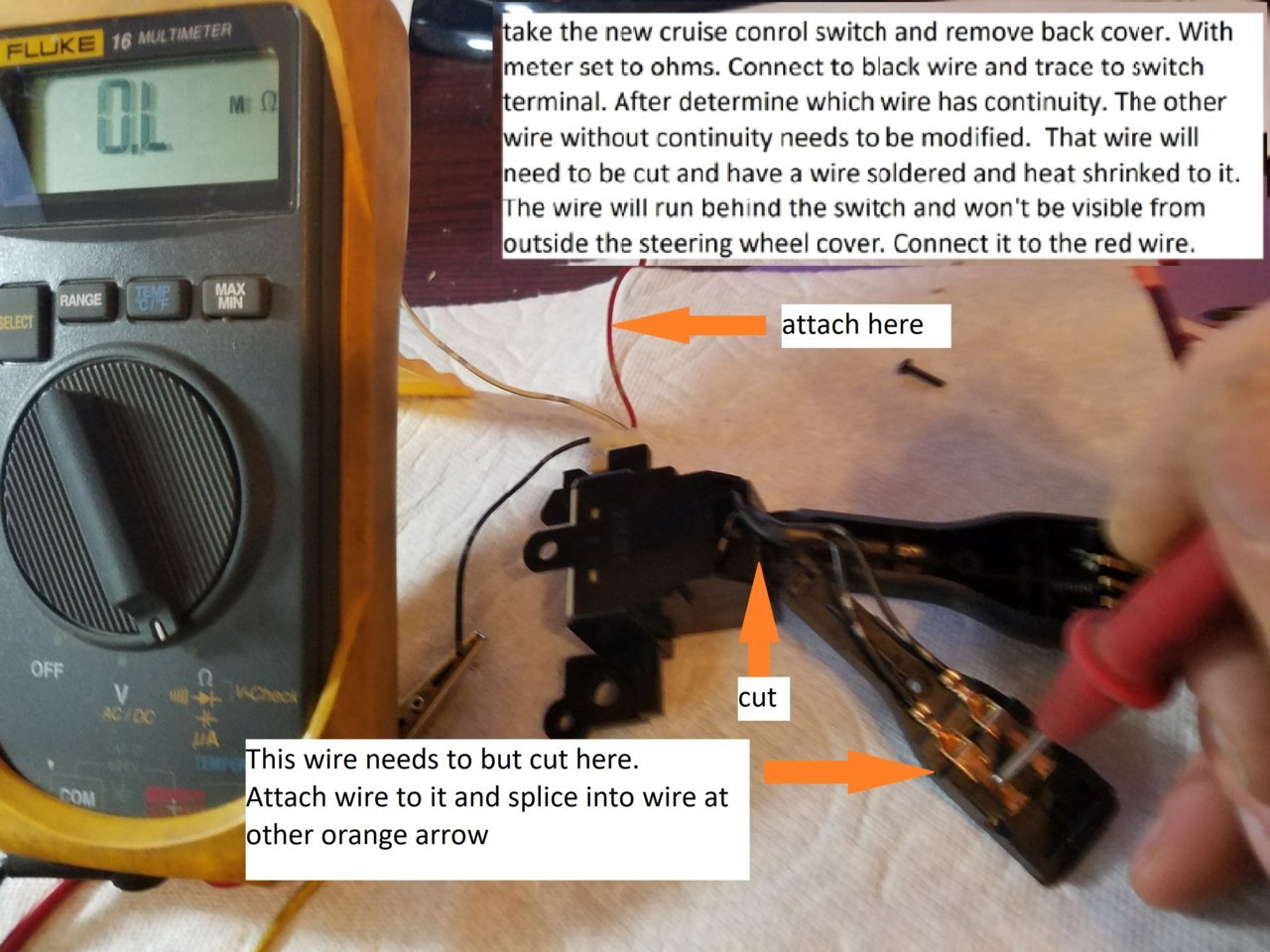

    You checked wires going to the switch. I need you to check wires going into the dash this time.
