Steering Wheel Conversion With Audio & Optional Bluetooth Phone Controls (official write up).

Discussion in '1st Gen. Tacomas (1995-2004)' started by mechanicjon, Mar 5, 2018.

  1. Apr 30, 2018 at 11:49 PM
    #81
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

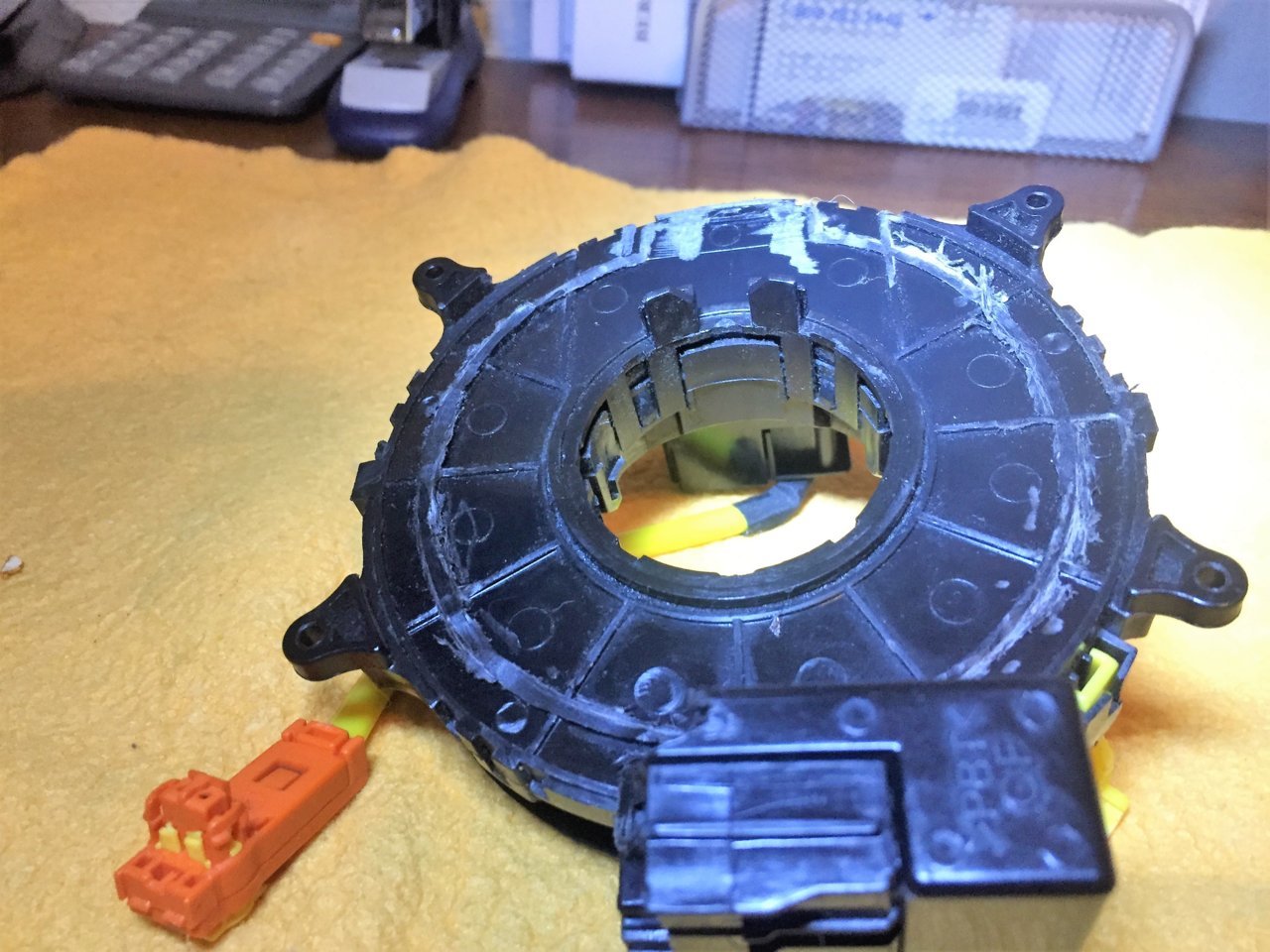

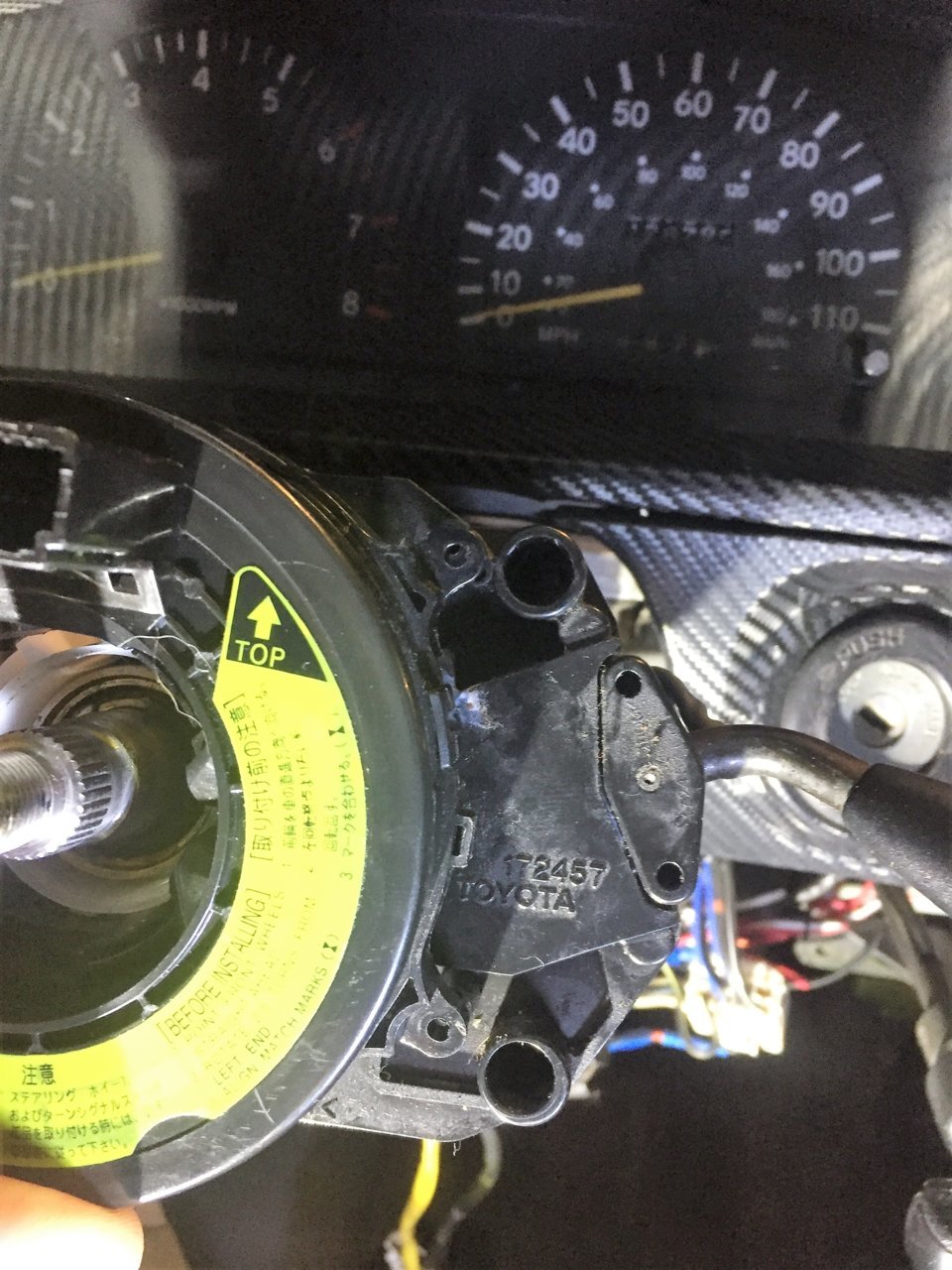

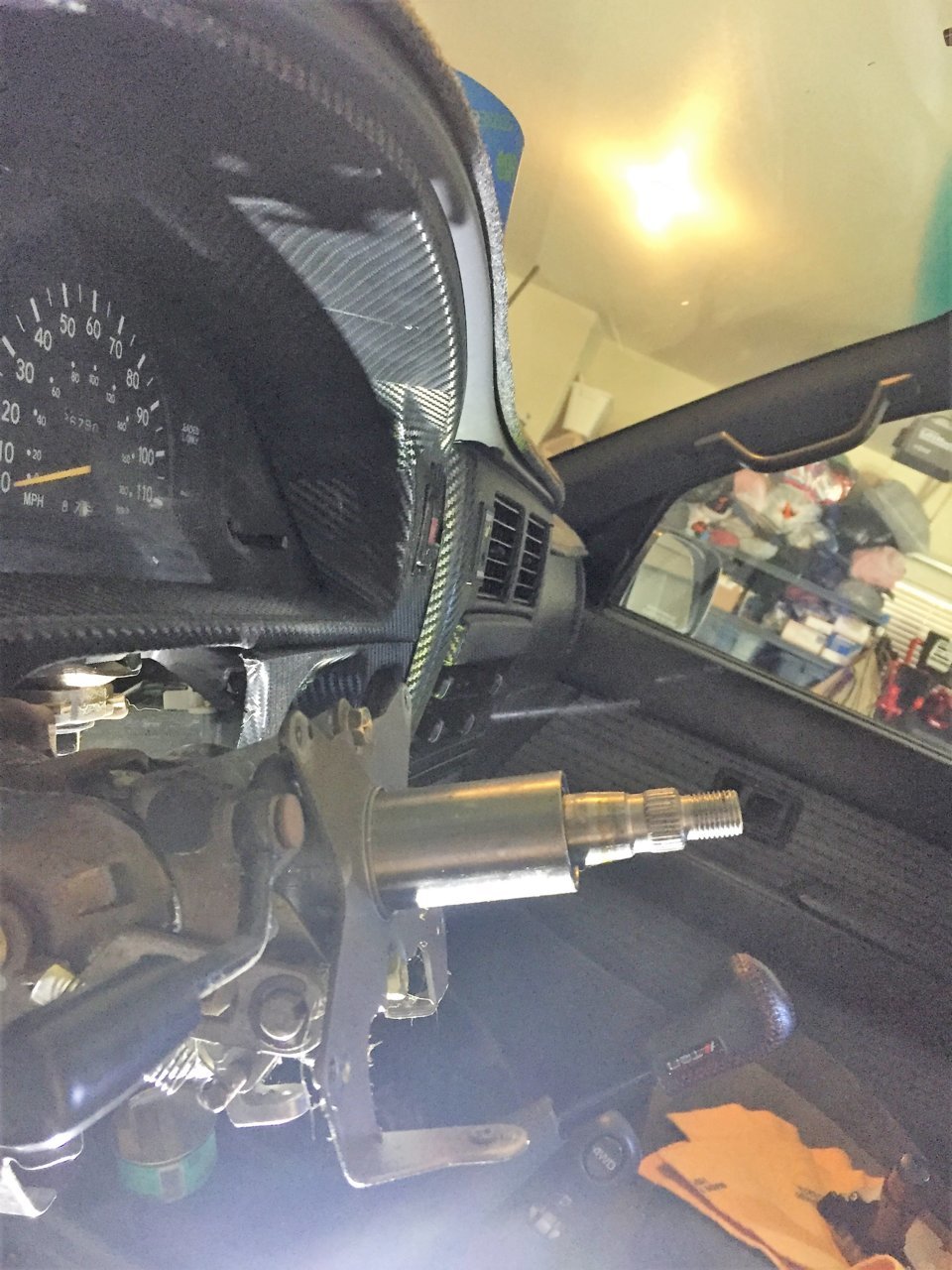

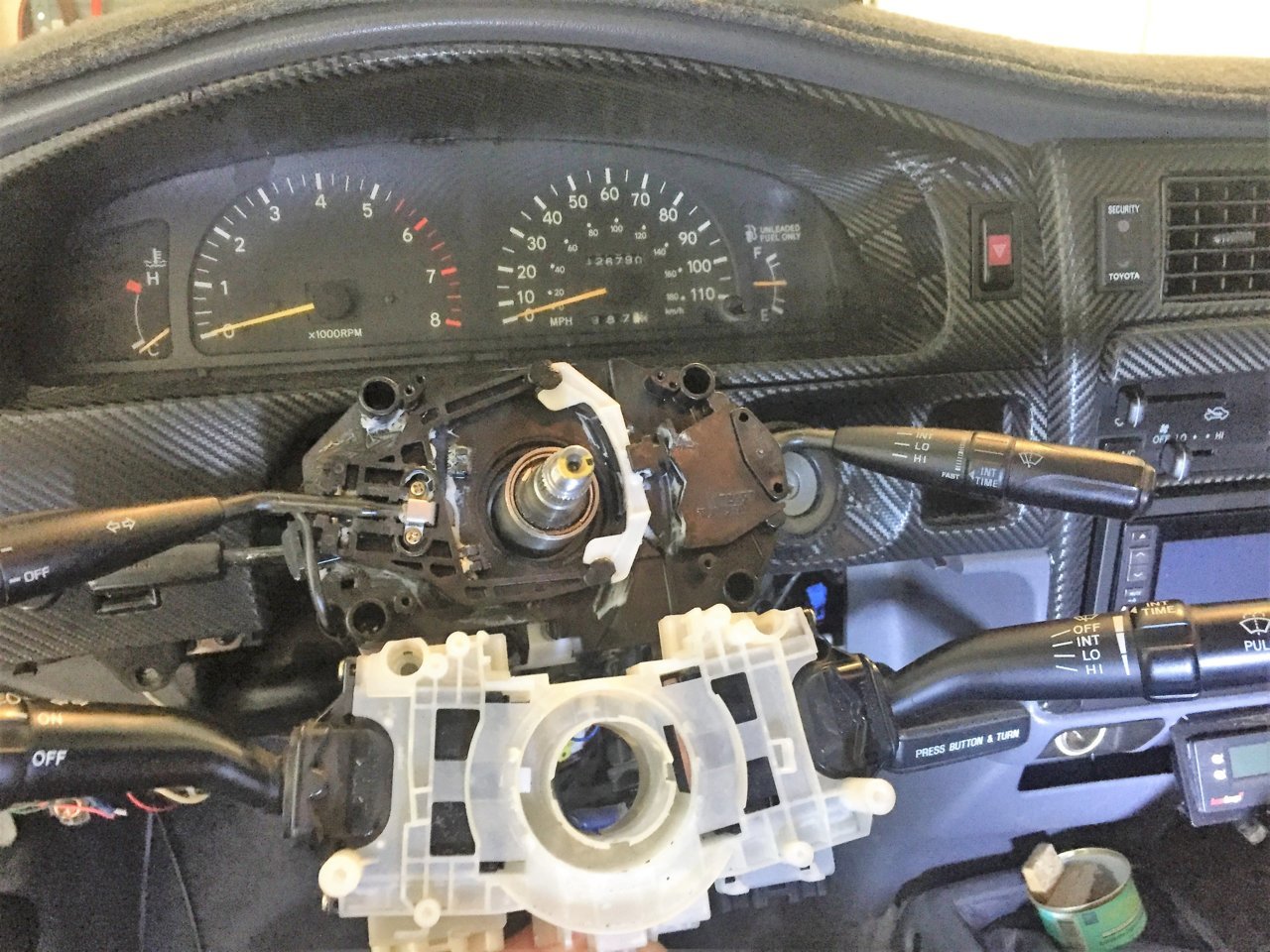

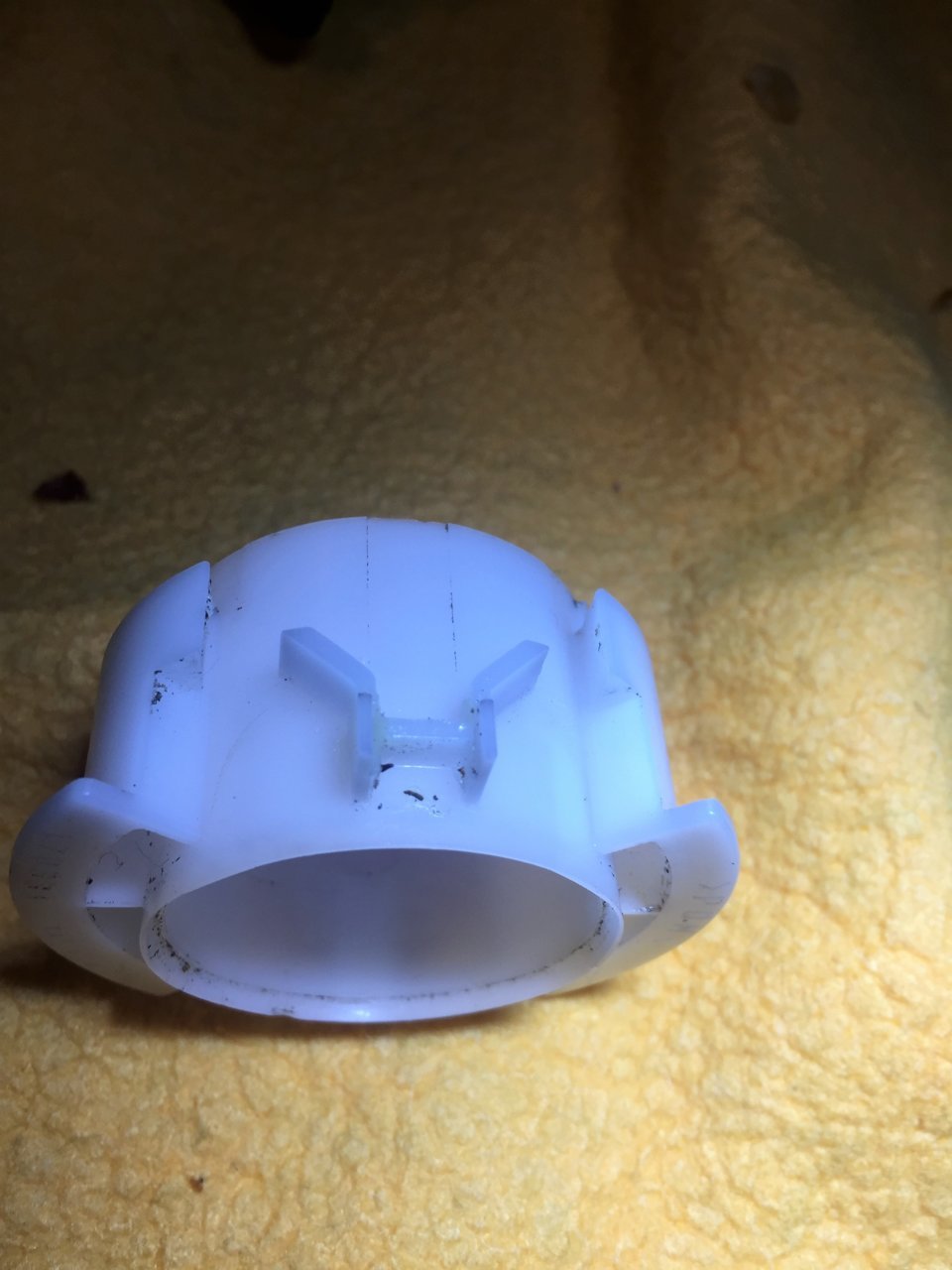

    Got it....... Getting back to the CS. I was just checking yours out, in the photo, the one to buy on Amazon. So I bought it, but its giving me all kinds of of FFF trouble. The Screw holes do not line up, The right side are just off by a hair. the left side more........ Also yours is yellow, this one I bought off Amazon is green and one of your instructions was to line the small insert and the larger insert from the CS, to the CC, and it should snap / click in . Well I have the small insert but no Large insert on this CS. ????? Very strange ----Also I did grind the back of the CS down flush, that help a little Do I have the correct one, maybe that's why the screws holes won't line up. Also I thought I had the right CC, if you can take a look at it for me, I really don't want to Mod my old one, just in case this project, Crash & Burns........Have to put it back together ahhhhh Thanks ... All check the wires for you in the Moor.

    IMG_8258 1.jpg

  2. May 1, 2018 at 12:29 AM
    #82
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
  3. May 1, 2018 at 12:31 AM
    #83
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    measure between all 4 screws holes on your column and compare to the White Sequoia mount. Or better yet does the the new CS line up on Sequoia bracket?

  4. May 1, 2018 at 8:57 AM
    #84
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

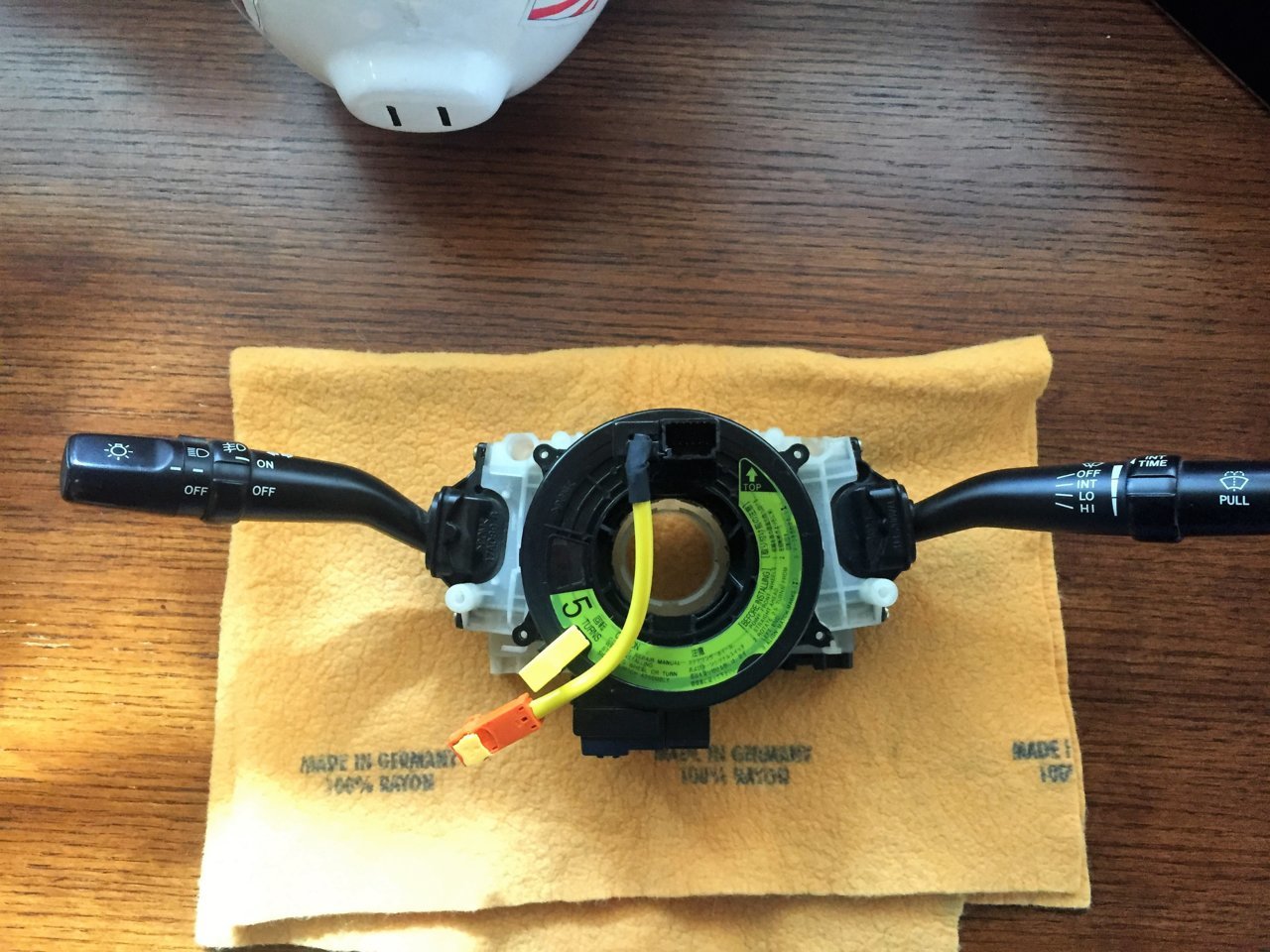

    Just bought the one off eBay........ Should be here in a few days.......add $$ it to the total project. It is what --it - is. Moving on '''''''' to the om numbers. So since I have the steering wheel off, system is tore apart. What location do I take the readings, do I need to plug the connector back into old clock spring, and hook the steering connector back up? so I can take the CC readings ? or from the white connector to the ???


  5. May 1, 2018 at 9:34 AM
    #85
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

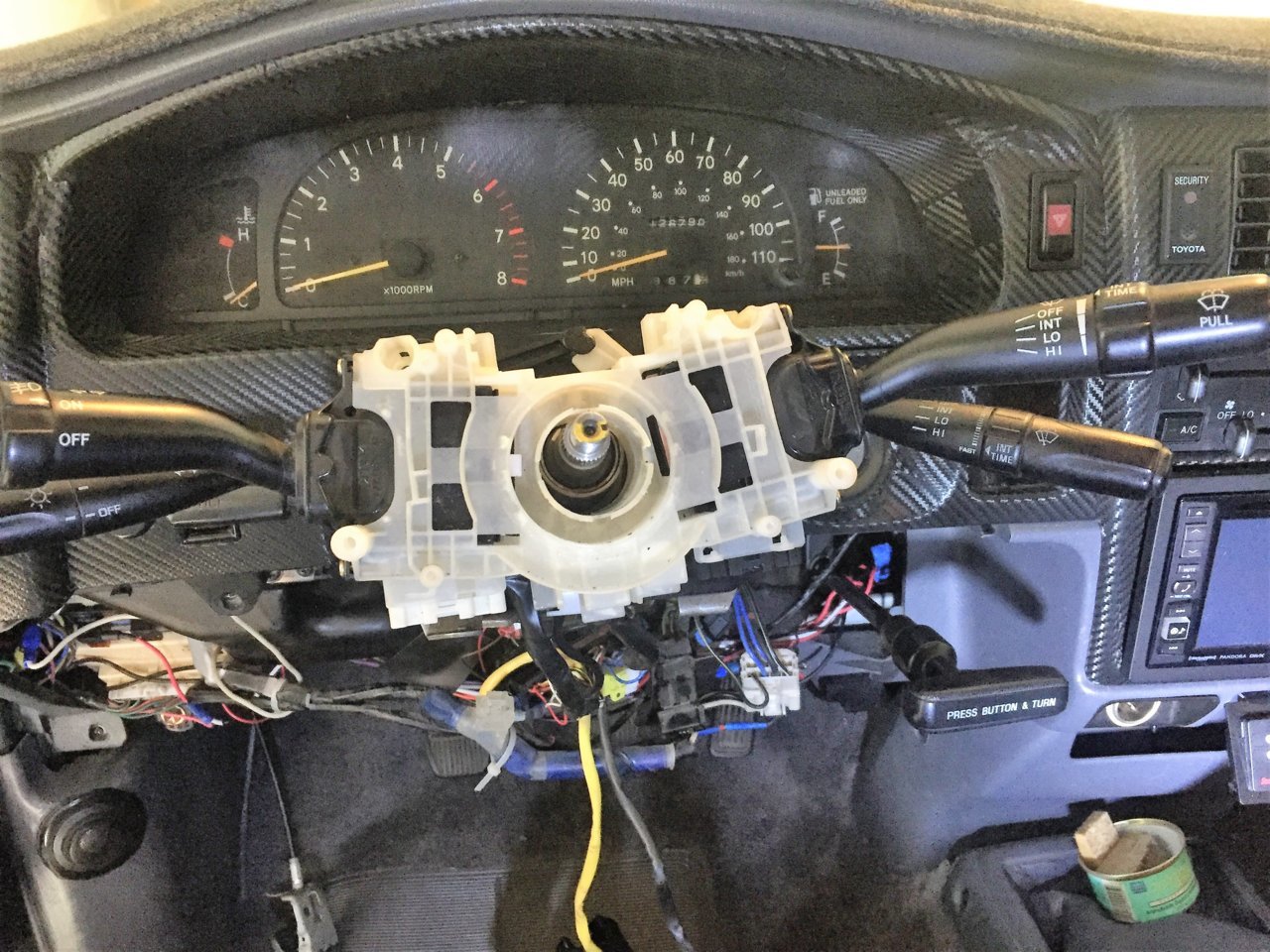

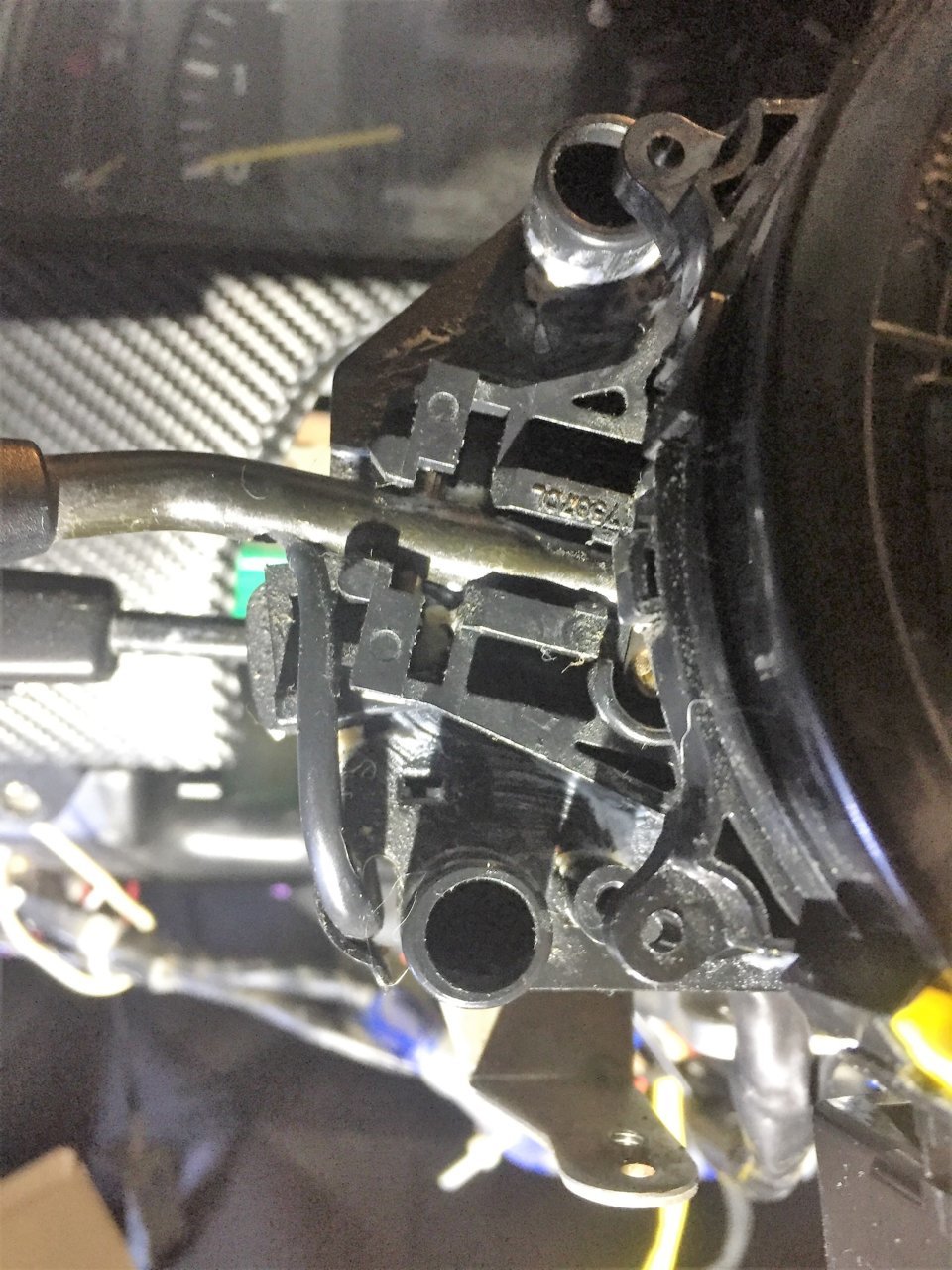

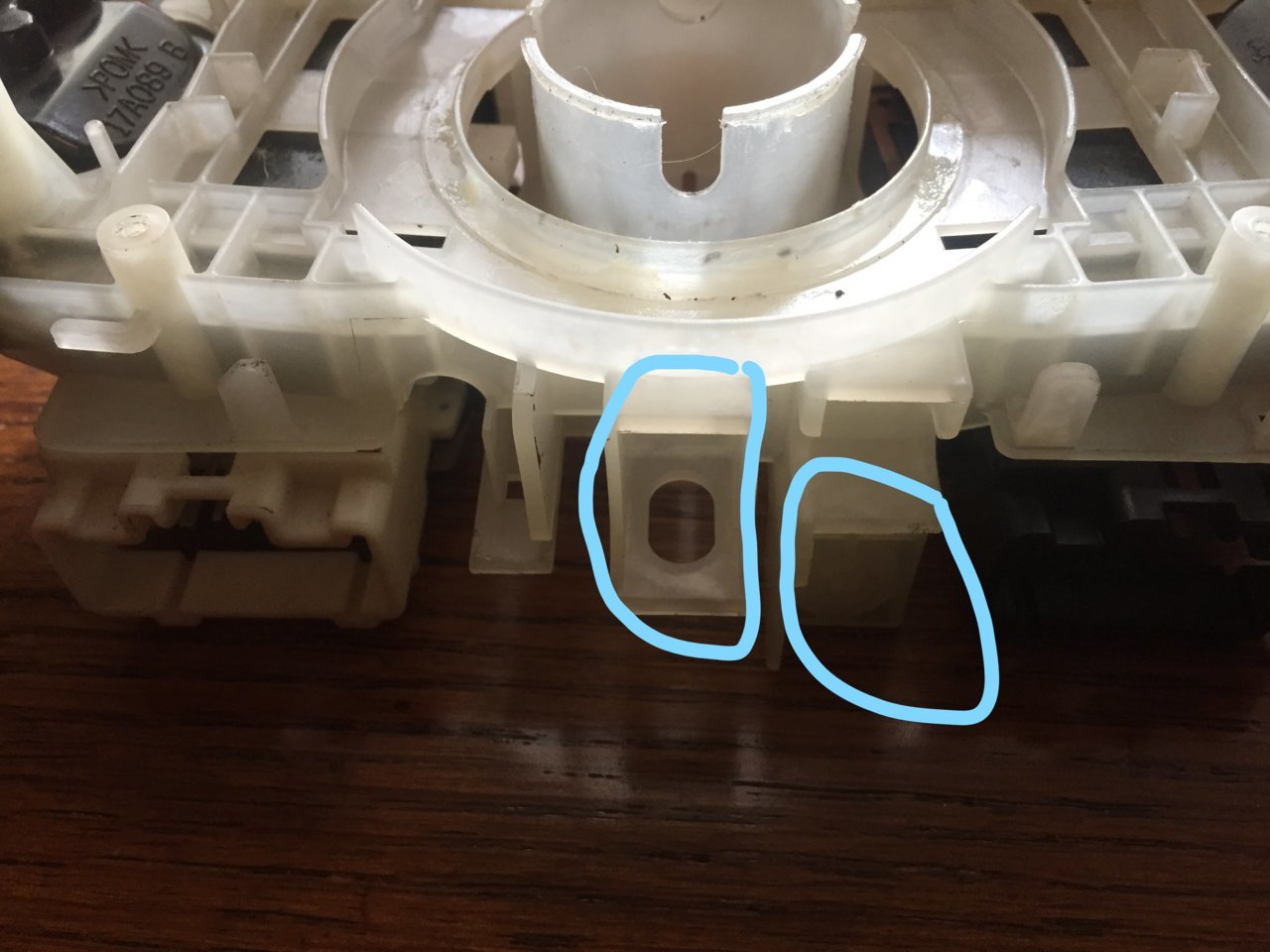

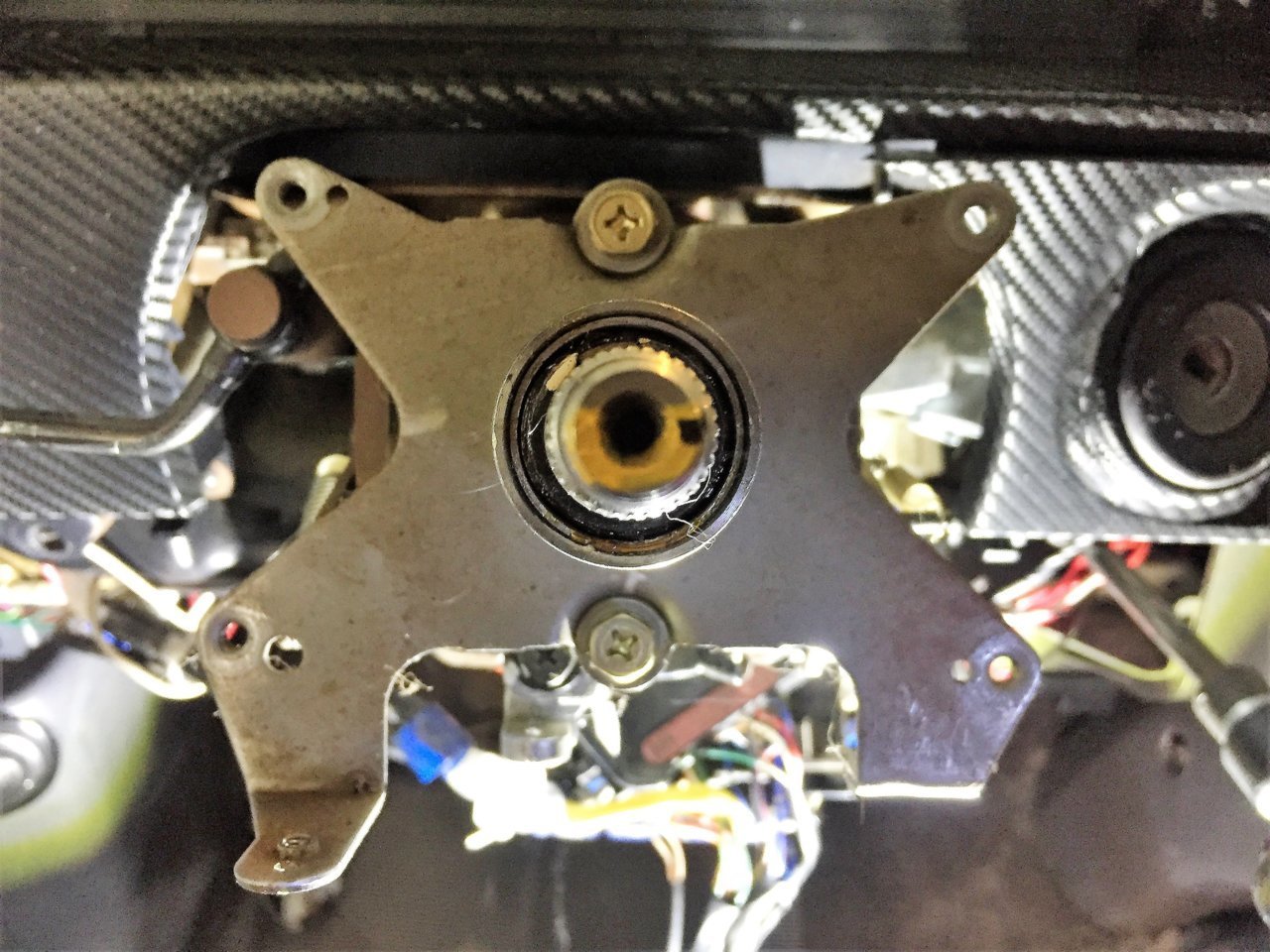

    I did ck the Tundra/Sequoia Mount: Well maybe, another option ;;;;;;;;;; Take my old Mount off----Use the Sequoia/ Tundra mount it looks like the CS does fit. also it looks like the mount will almost fit on my steering wheel rack, the top 2 screws are align, bottom 2 are way off, will see if I can fab a metal bracket to fit the bottom holes for the mount. Lets just say I make it fit. The beast would be to match all the wires to each Stick - component, lights, turn signal, wind shield wiper etc. Remember, my old sticks, are hard wire right into the Taco steering harness located way into the Old Tacoma's wire abyss, hahah- dammmmmmmmm. Have to buy the white connectors, look that up, plumb the wire's into the connector's, then match all functions of each stick to the pins in the connectors....find the wire diagram for the year, make model. also, the cover to the steering wheel rack, will my old one fit, have to ck that one, the plastic covers. More electrical shit, that I'm not sure if its worth it. Last Resort---Is it doable ????? It would be one hell of a 1st Gen Tacoma MOD
    "What have you done to your Tacoma today"

    bottom holes.jpg

  6. May 1, 2018 at 11:04 AM
    #86
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

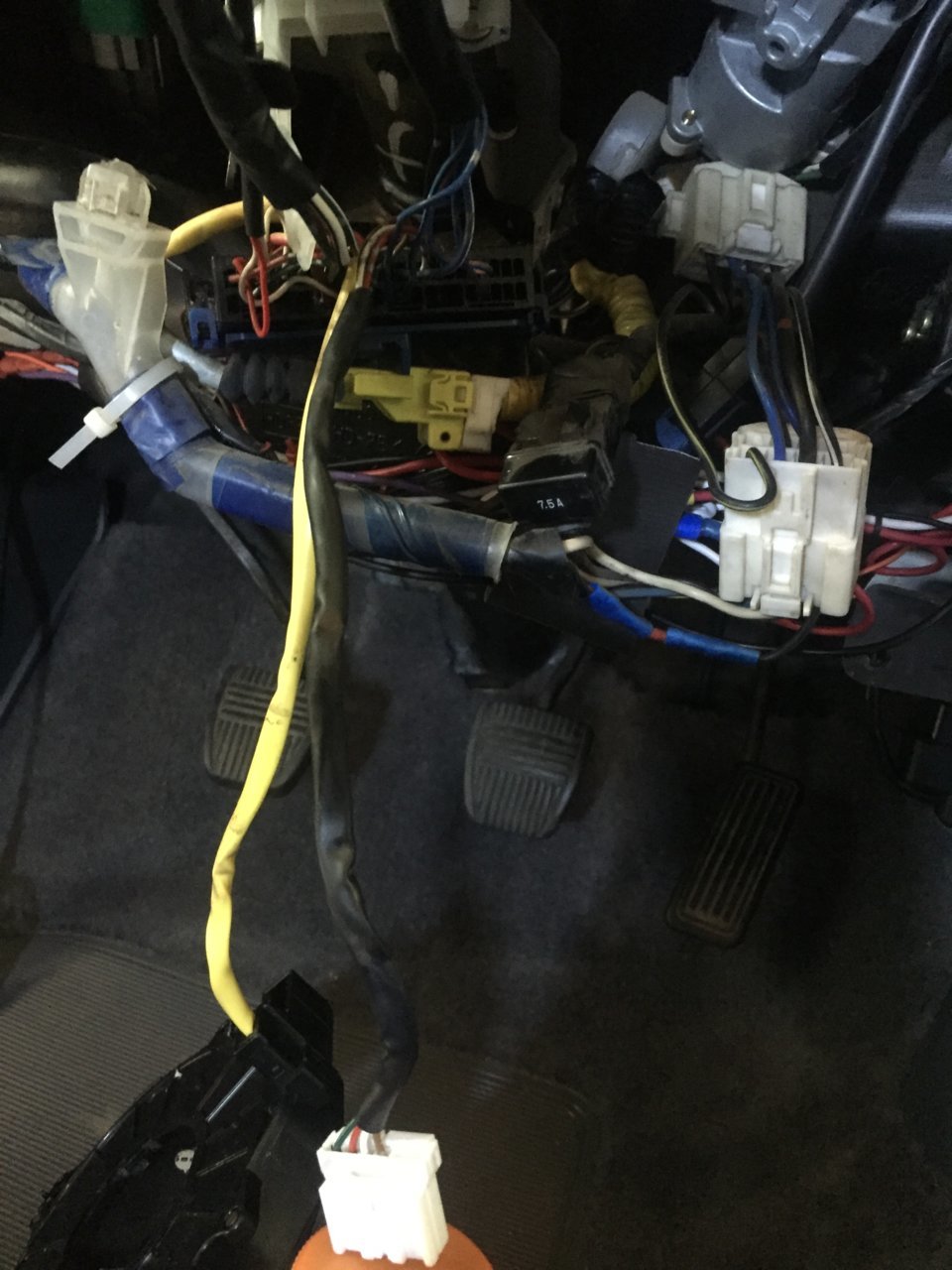

    Steering column plugged in and CS unplugged. Take measurments from the plug thats in your hand.

  7. May 1, 2018 at 11:12 AM
    #87
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I have the plug and pigtasils for the turn and wiper switch for a Sequoia. I can start looking at rewiring the new switches. The Ebay CS should have both sets of tabs but the holes aren't going to line up to mount it. What if you had a thin ring that woyld mount to you original mount holes. then screw clock spring to it. I'll draw up a pic.

  8. May 1, 2018 at 11:17 AM
    #88
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

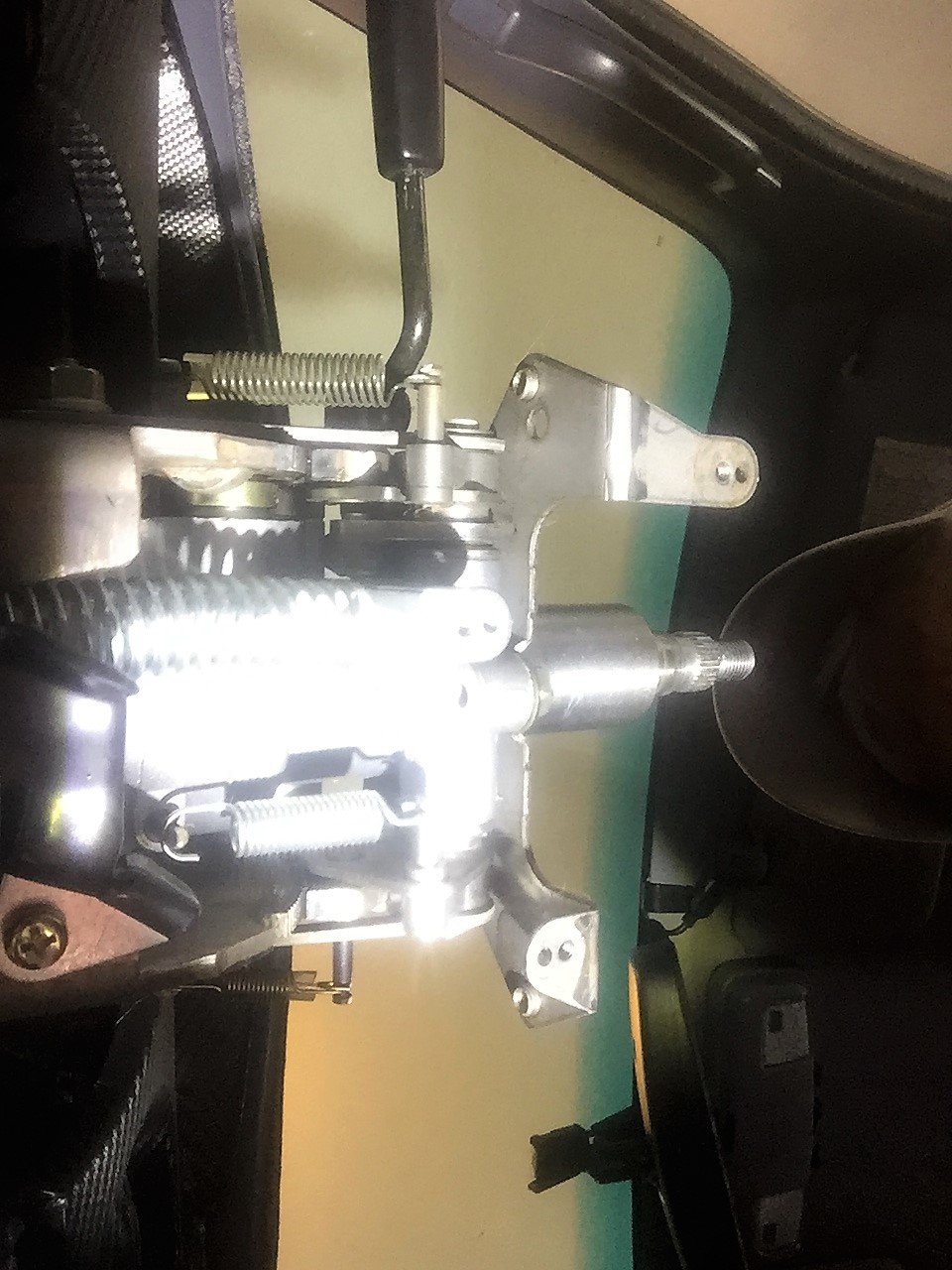

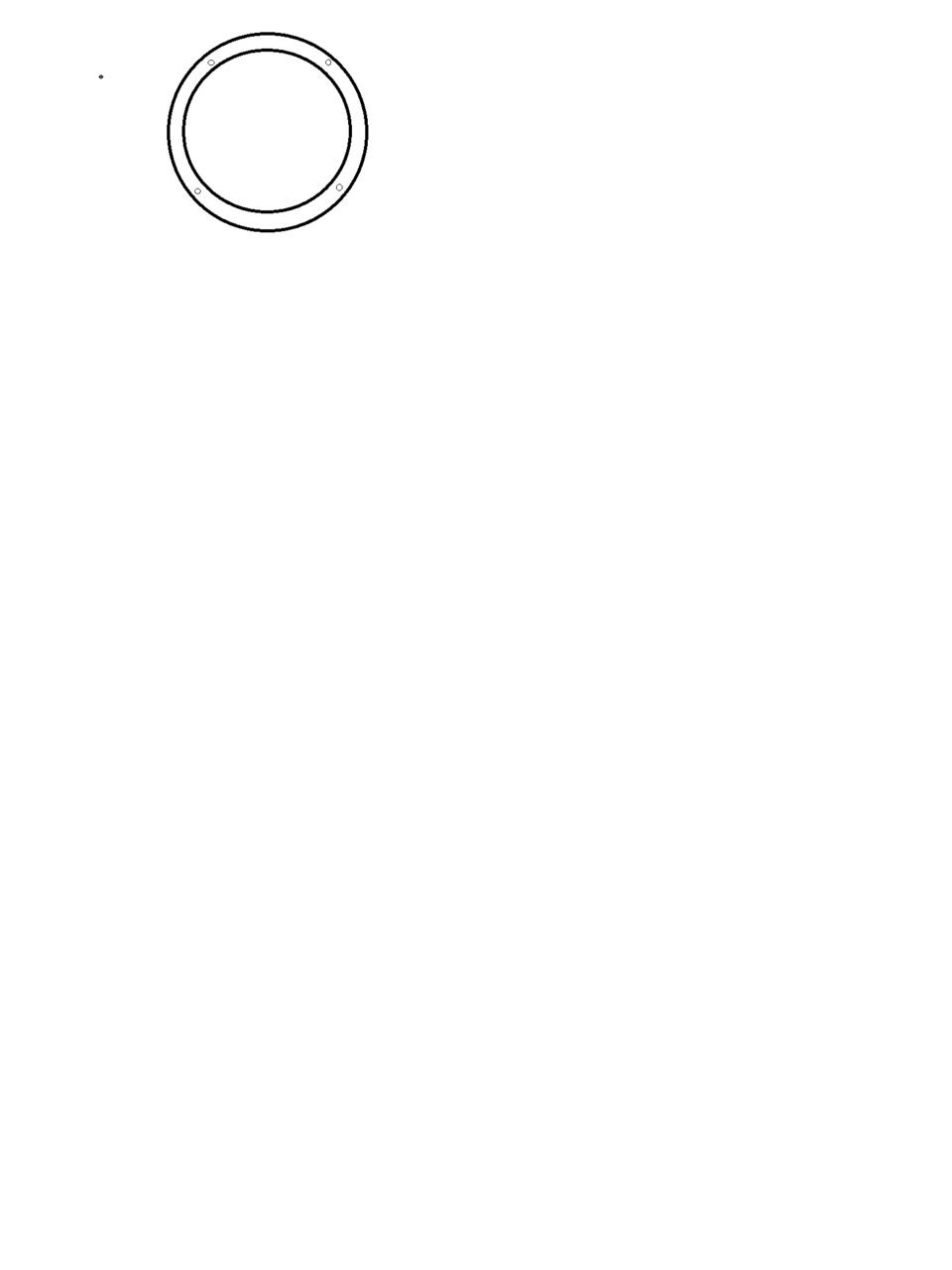

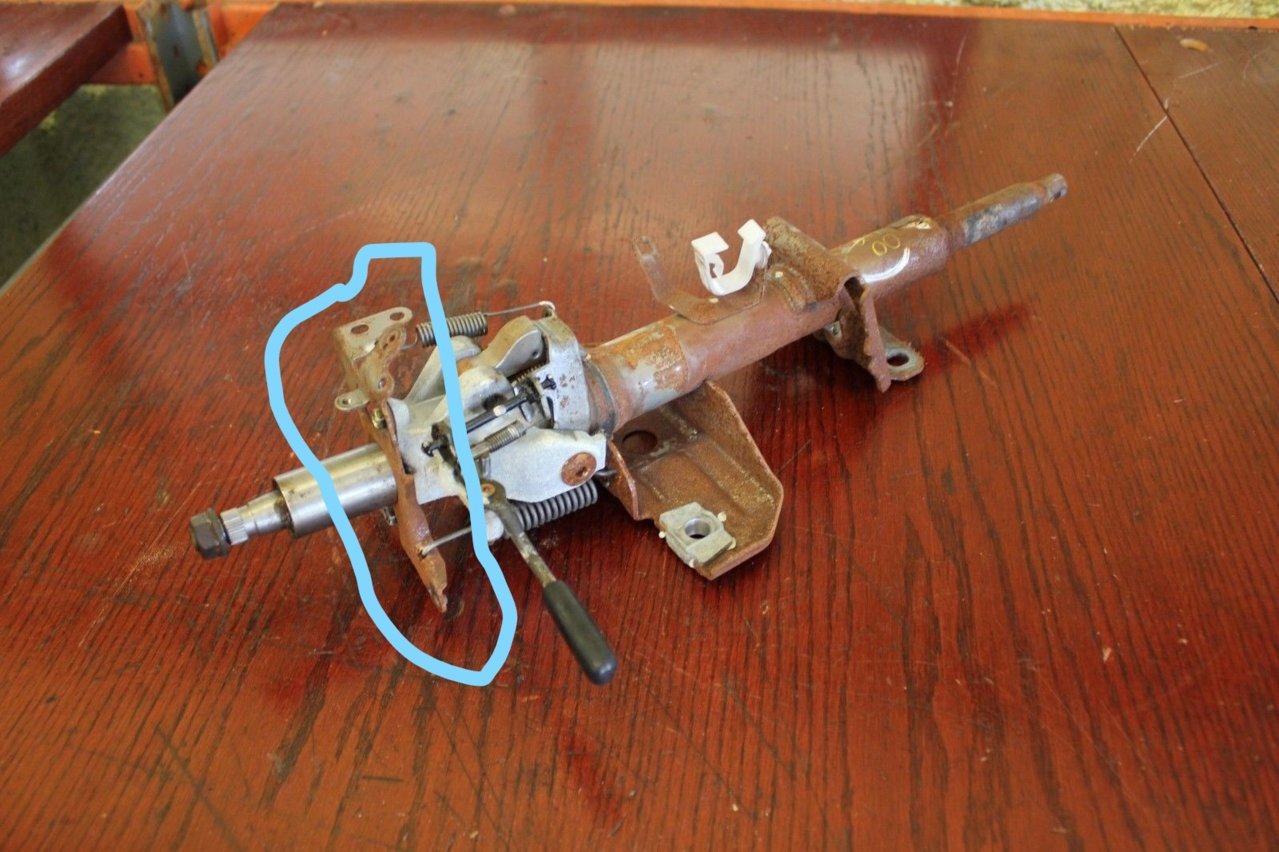

    Something like this. Thin metal. I'm thinking a washer for the bottom side of a kitchen sink drain would be the correct size. The critical think would be getting the CS centered. Screw the ring to the mount and the CS to the ring.
    Another option: Would a newert tacoma steering column bolt into your truck? Still have wiring to do, hmm I know who to ask. I'll find out. adapter ring.jpg

  9. May 1, 2018 at 4:44 PM
    #89
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

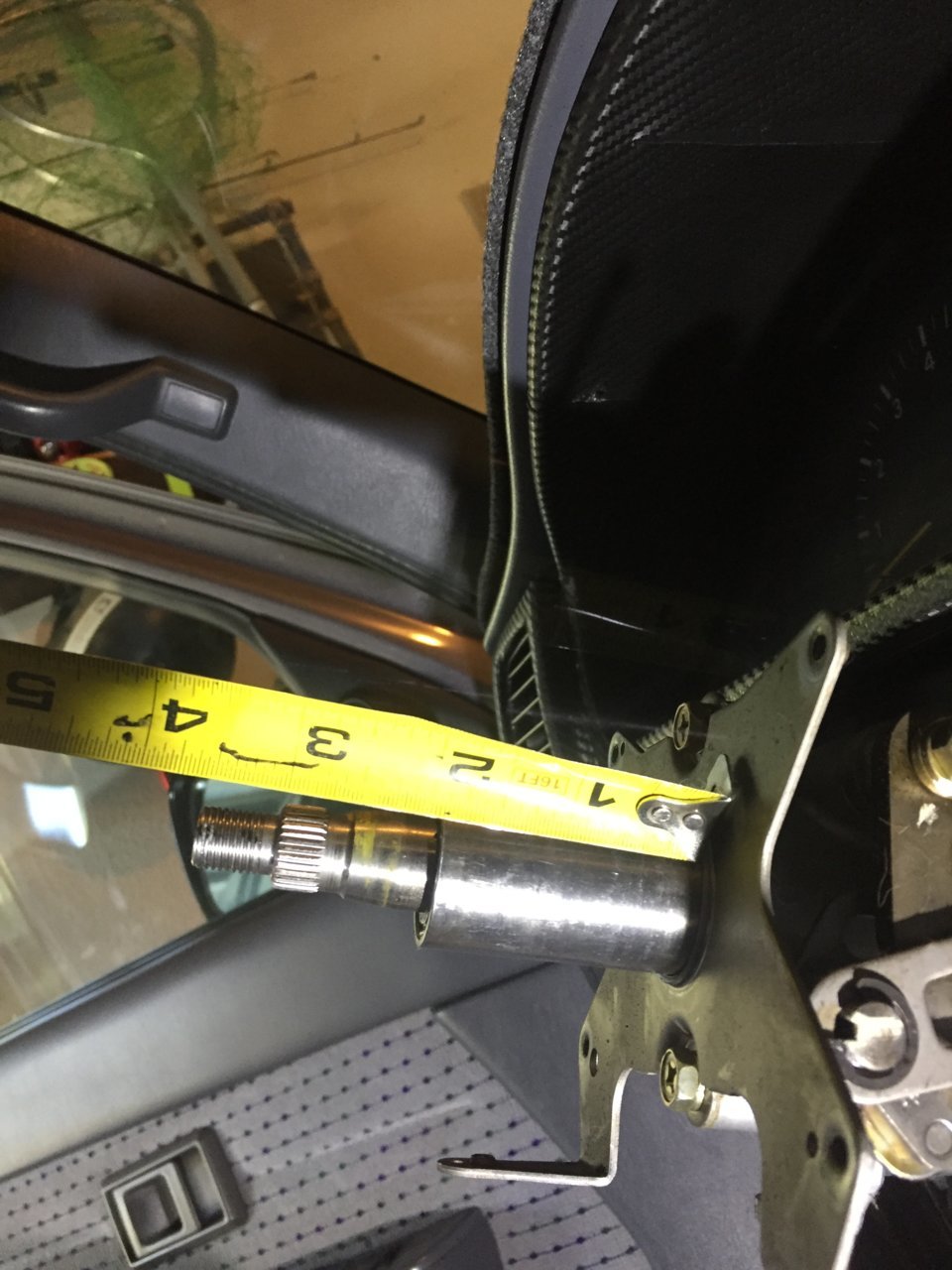

    Steering Column plugged in and CS unplugged. Take the measurements from the plug in your hand.?? Not sure what I'm doing here,


  10. May 1, 2018 at 6:02 PM
    #90
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

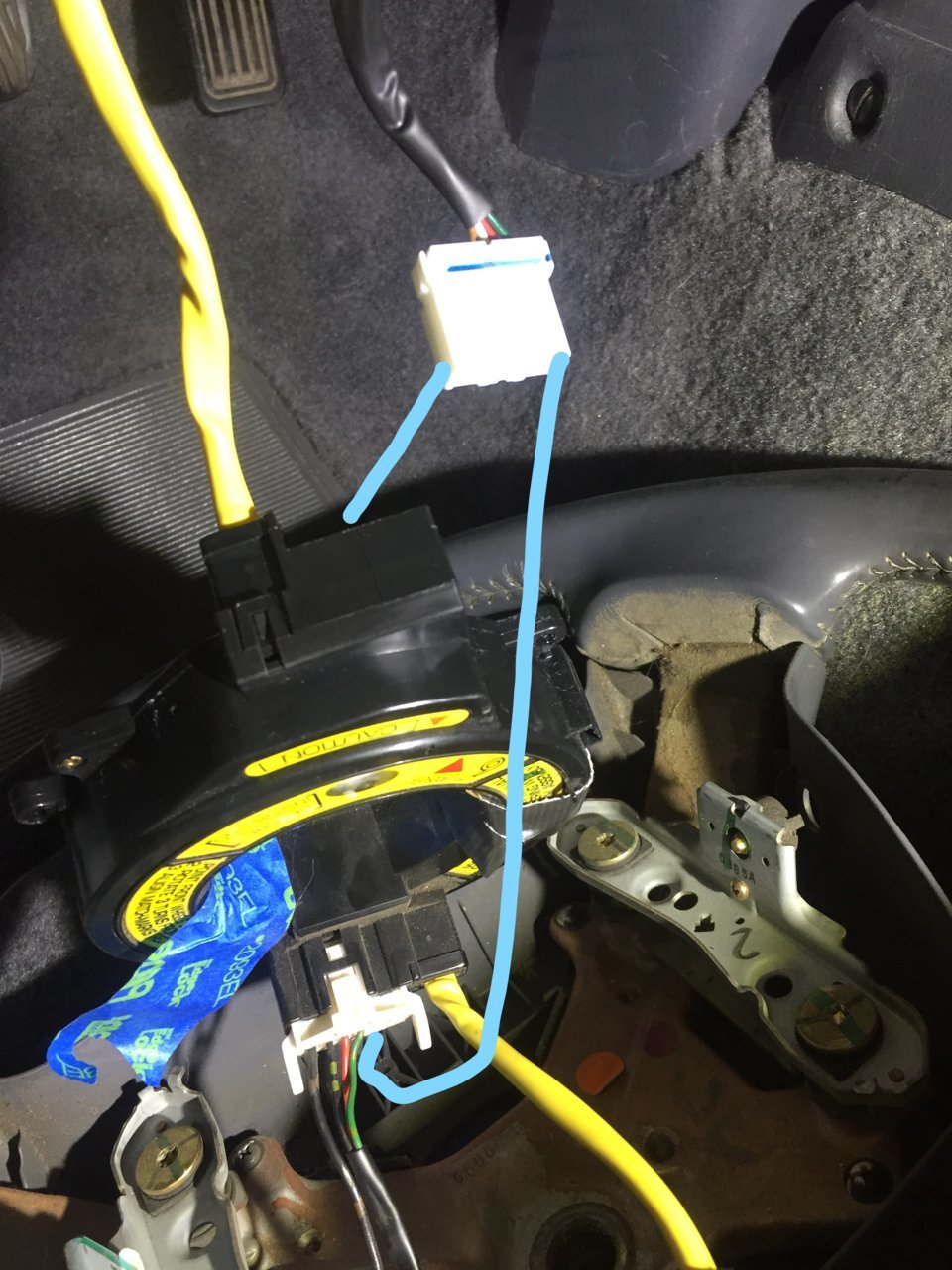

    From that white plug in the picture to ground with an ohm meter.

  11. May 1, 2018 at 7:15 PM
    #91
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

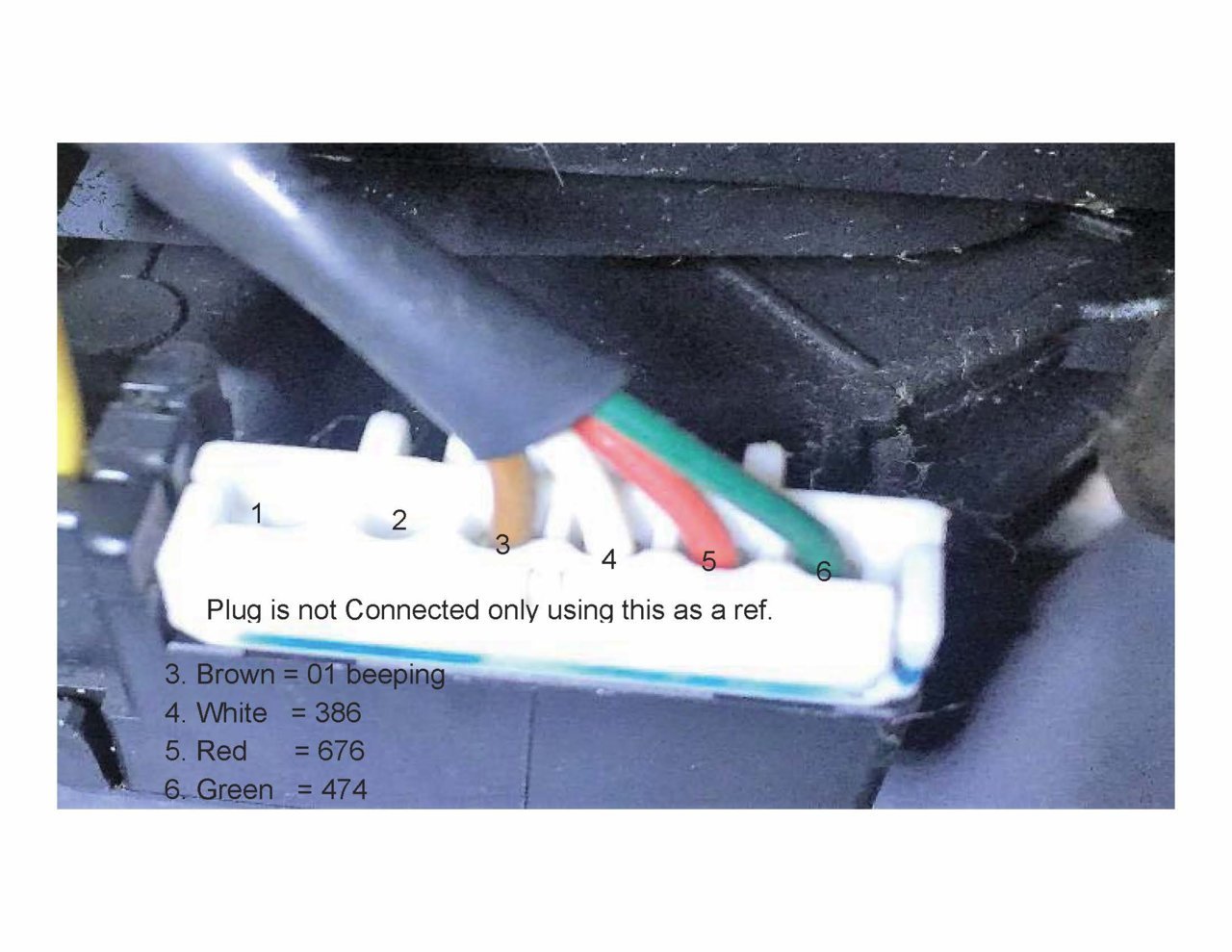

    Ok here are the readings... Going to take the steering module, off, just for the hell of it, see what is back there.!! Got some diagrams today of all the electrical systems for my Taco and the Tundra 2004. Again not that good with electrical, but trying. Question concerning the pins, lets just take a look at the left side, which is the head light switch/ turn signal switch, for the Tundra module I have. I counted 15 pins in that dam unit... On the diagram is shows 5 wires, the turn signal diagram only has 3 wires. where do all those other FFF pins go ????/ Or I just can't read a electrical diagram . ;(

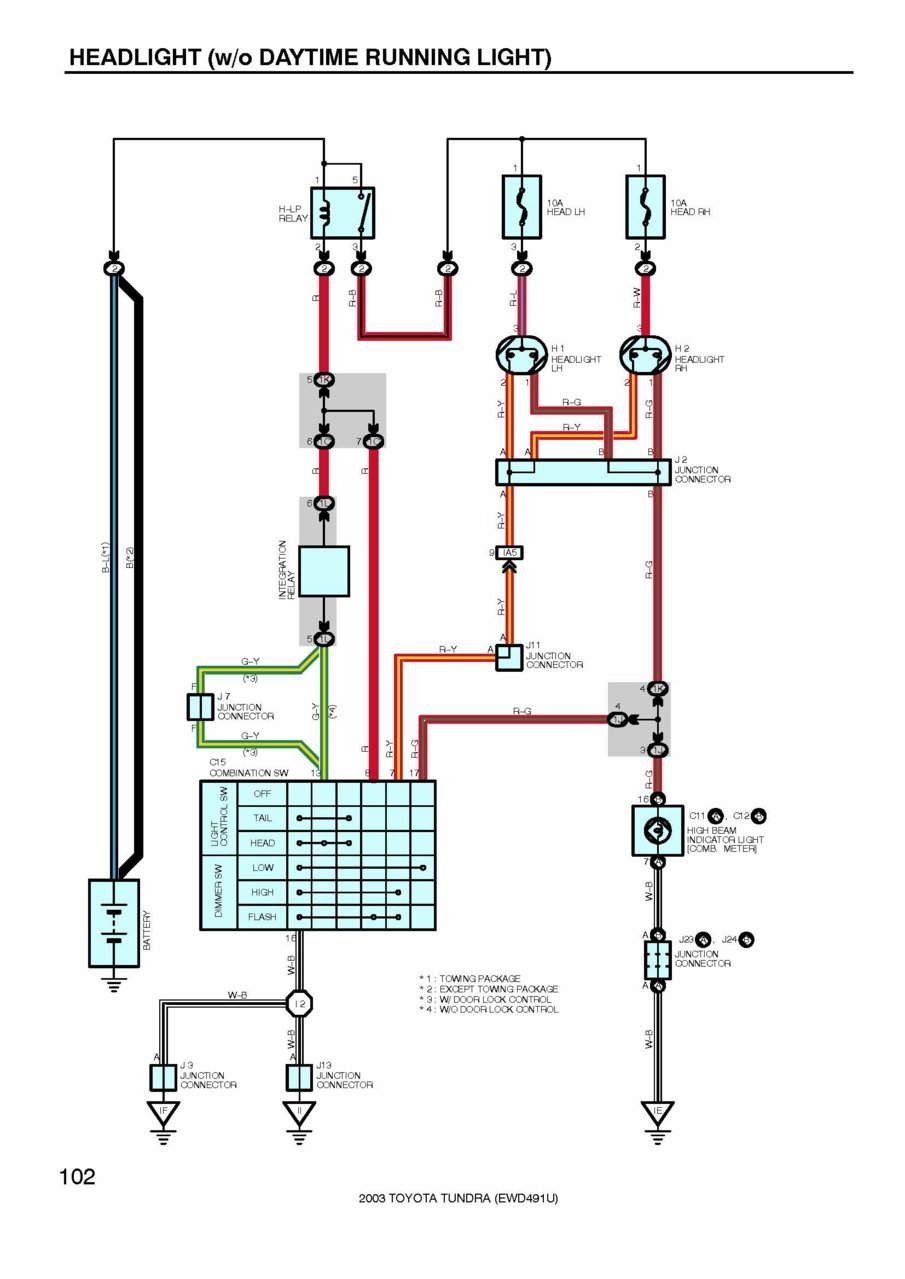

    2003 Tundra Head Light System_Page_1.jpg

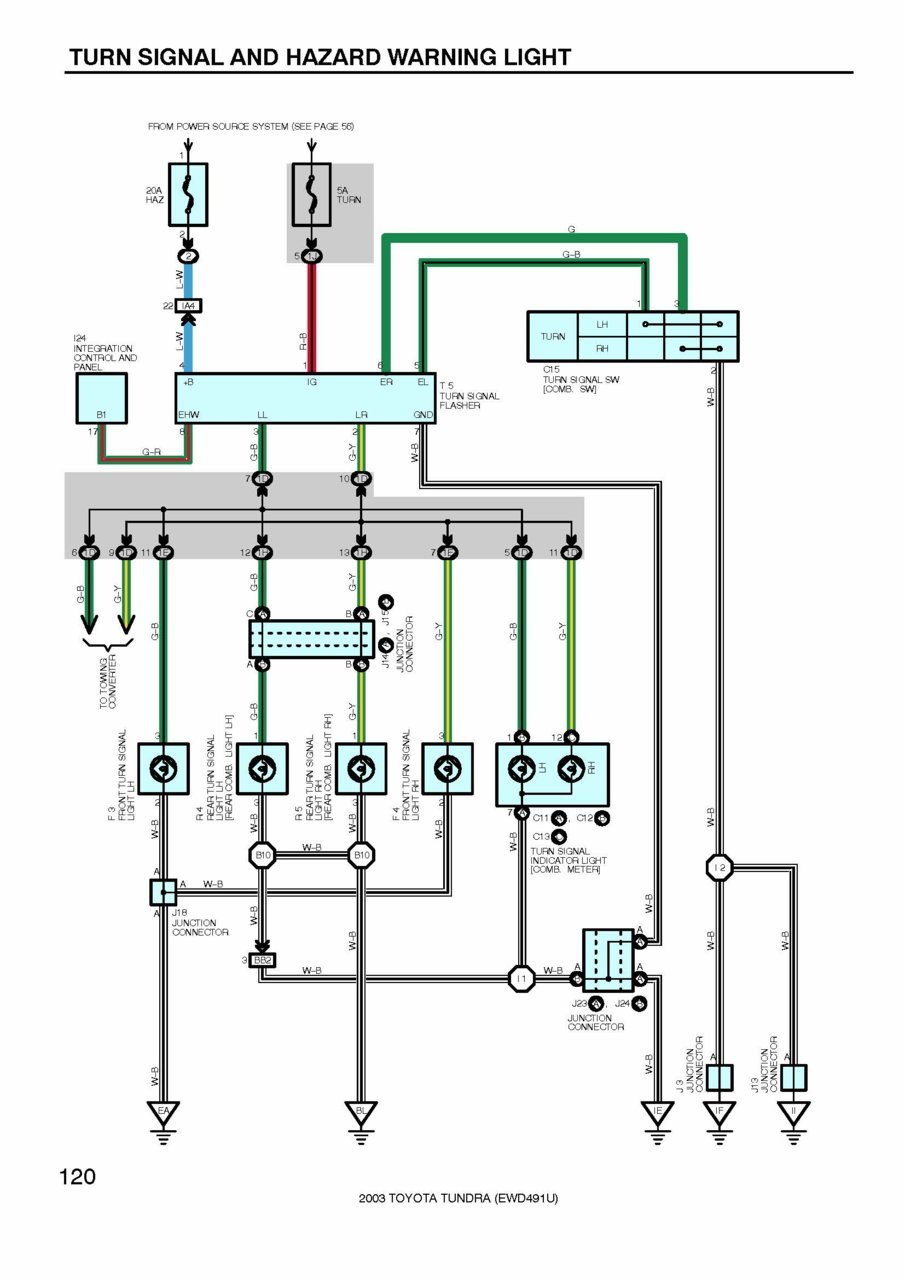

    2003 Tundra Turn Signal System_Page_1.jpg

  12. May 1, 2018 at 7:18 PM
    #92
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    44,600
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    I thought I knew a lot about wiring until I read through this thread.

    Rldanie and mechanicjon [OP] like this.
  13. May 1, 2018 at 8:31 PM
    #93
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Green to new blue=horn
    green power is new wire it goes to a dash illumination bulb positive side. Doesn't go through original harness plug.
    Brown to new Yellow wire
    New black CC wire will go to original red wire
    New CC blue wire will go to the left over wire.

  14. May 2, 2018 at 3:54 PM
    #94
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,
    Thank you very much .... Color codes......New Clock Spring should be here Thursday. Removed my column switch, and found some more challenges......... but again, this is my 2nd option if we go down that road. I like your option about the steel ring. Any who'' I was wondering if I can get the back plate, that supports the steering column switch module, I know I can fab one, but maybe if someone has a extra one in a Junk yard. It would make the match - up so easy, just keep adding parts, Dammmm Its the only part I'm missing, I have the SW, CS, Air Bag, Column SW Radio/ Phone controls. If I can see a photo of it, a Tacoma, or tundra and the years it would match ''shah'' Looking at both column switches, you can see the many diff's, mount holes do not line up, the sticks are at a different angle, length width, almost the same, thickness also, diameter of the hole same. The plastic cover, for the column are a little diff also. but can prob mod the old one, or just get a used one off eBay. lots of photos, Your Thoughts ????????


  15. May 2, 2018 at 3:57 PM
    #95
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

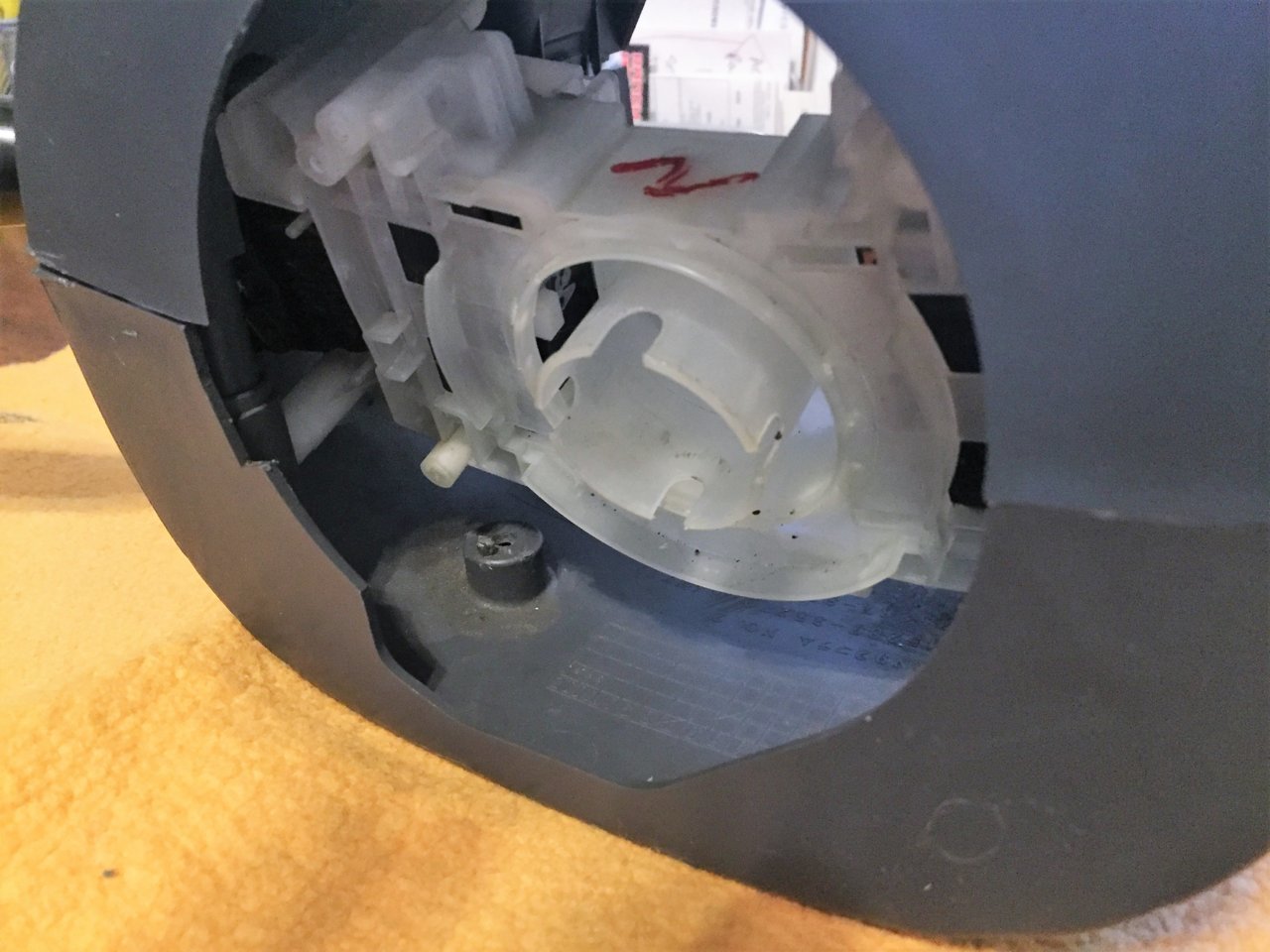

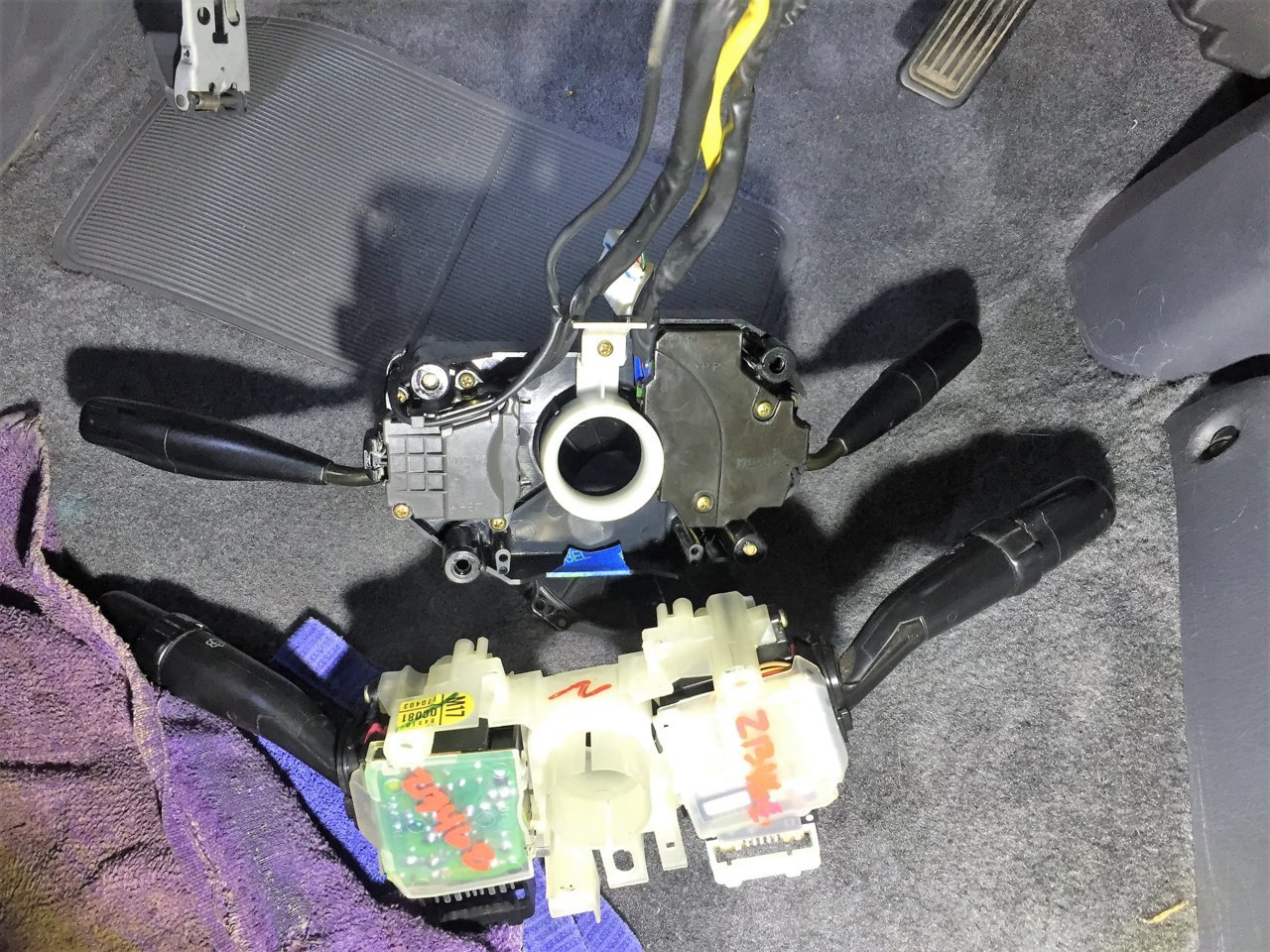

    A few more for your viewing


  16. May 2, 2018 at 4:03 PM
    #96
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I'll be at my buddies house tomorrow thats has a shitload of used Tacoma parts. I'll pull a coulmn apart and look at that mounting bracket and an 2004 switch setup. I was looking at the wiring diagrams today. The newer switchs can be wired to work on your truck. If thats the route it ends up going. I can get a column harness and use my left over Seqouia pigtails and make a harness that should be a plug and play.

  17. May 2, 2018 at 4:09 PM
    #97
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    I like the carbon fiber dash. Did you do that yourself? Is it sticker or actual carbon fiber mat?

  18. May 2, 2018 at 4:51 PM
    #98
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,

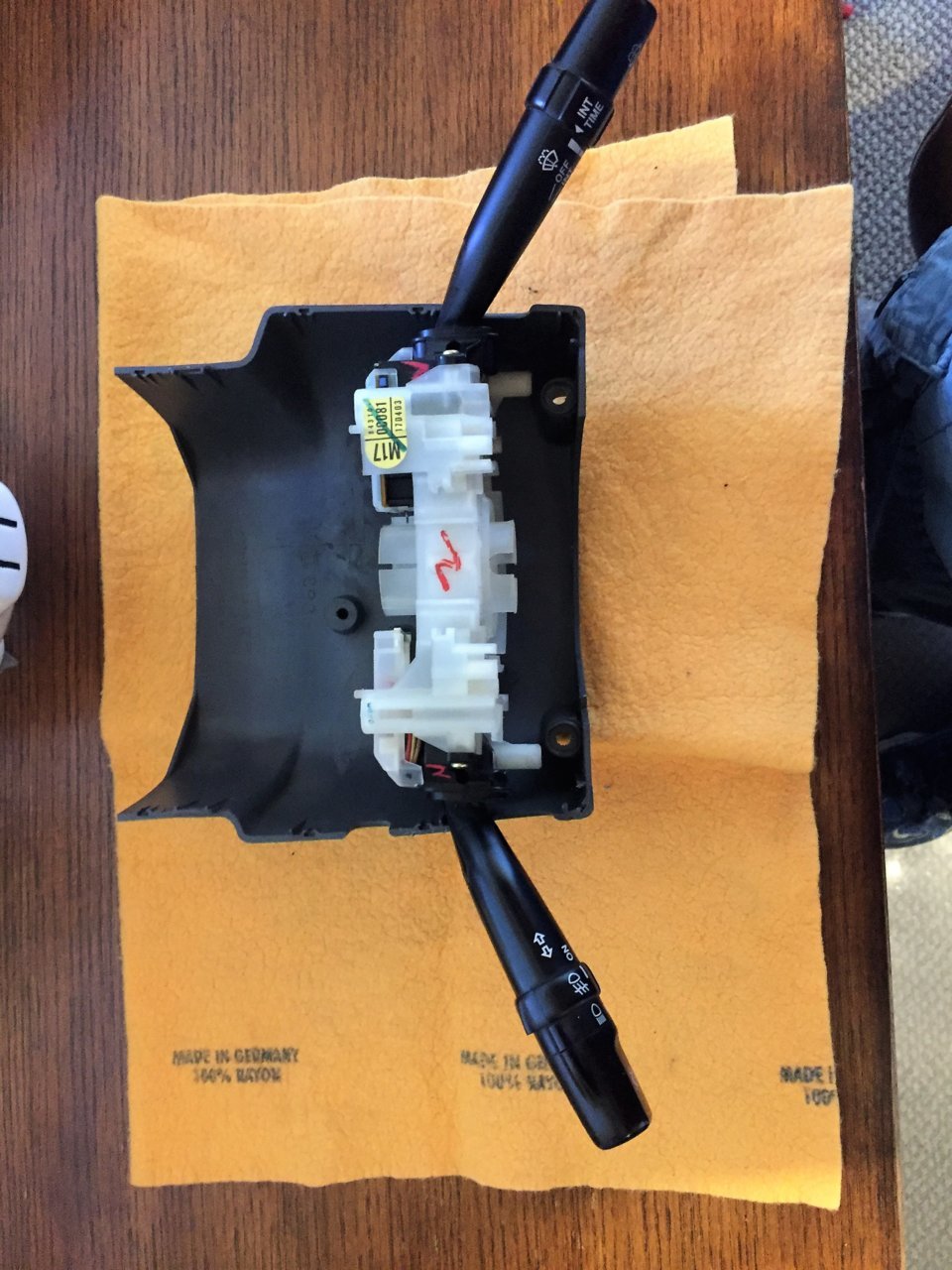

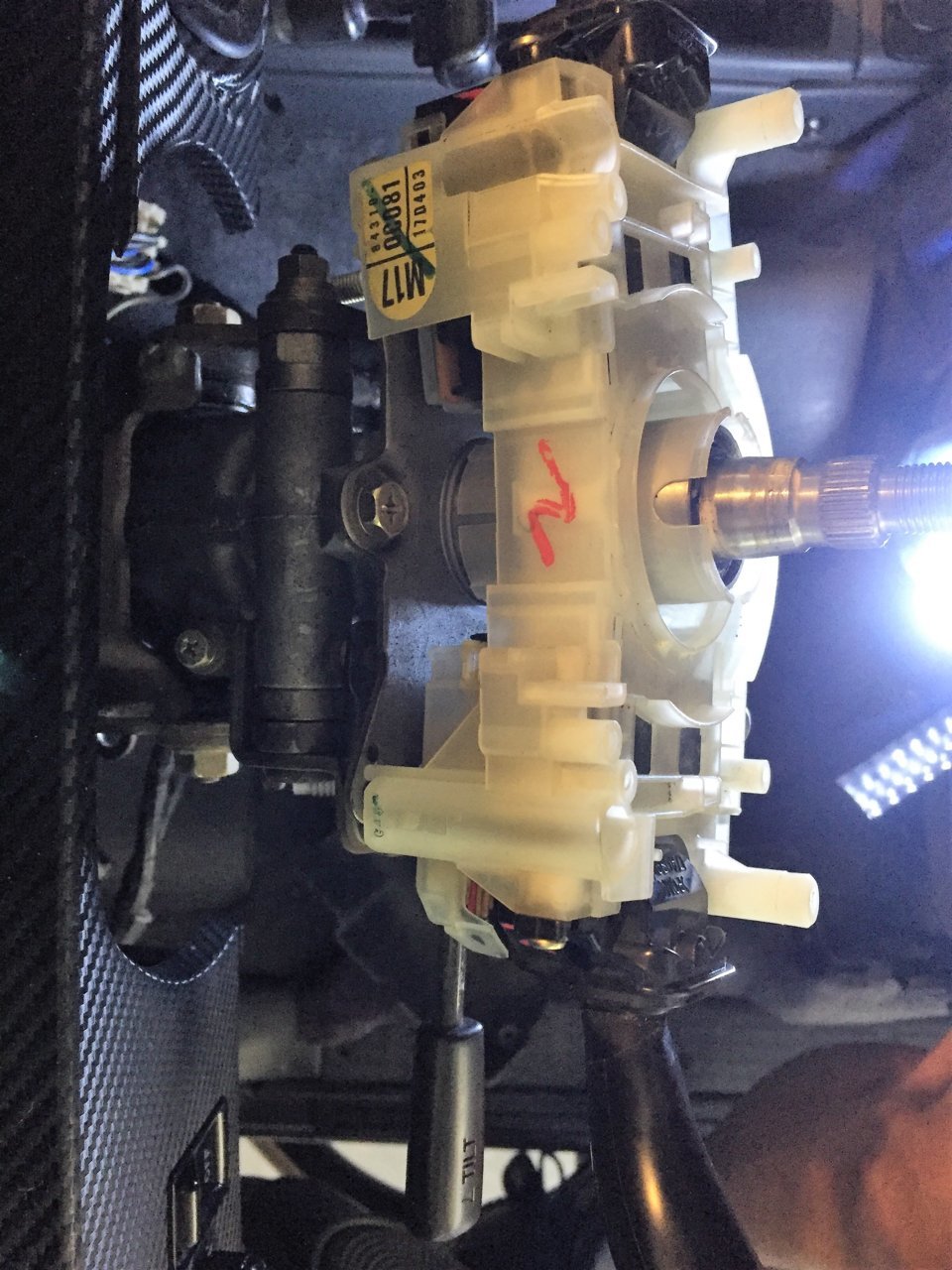

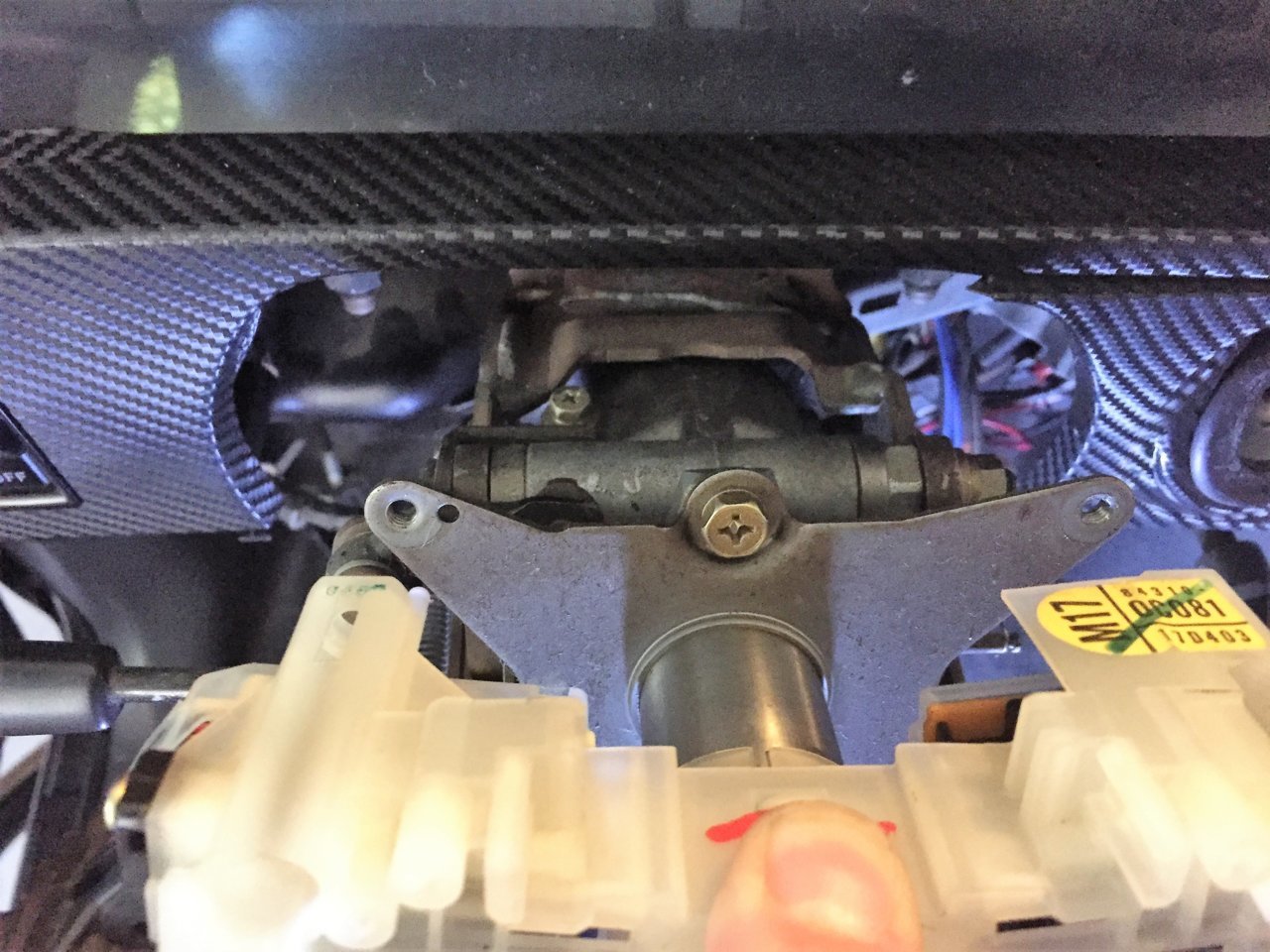

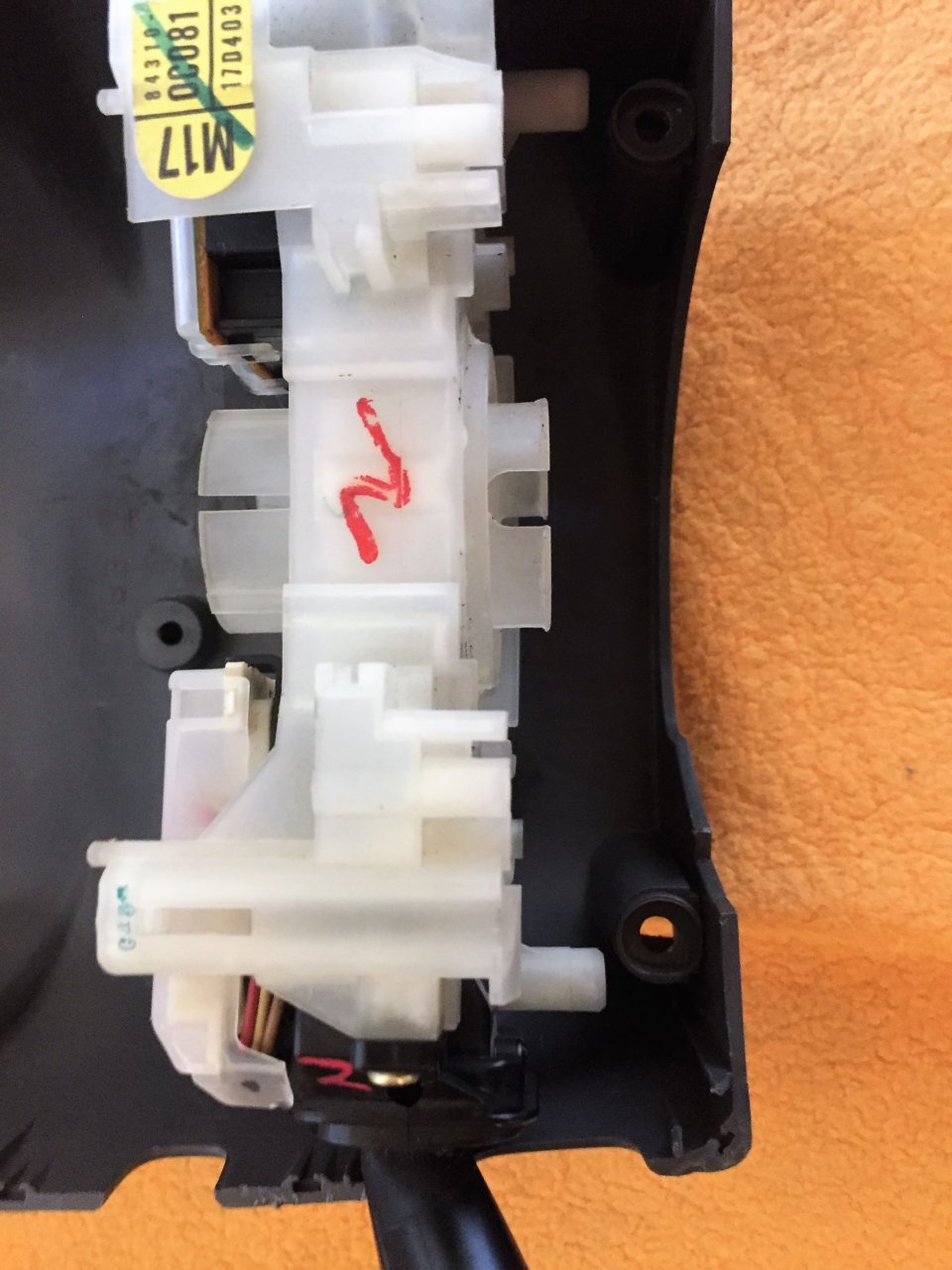

    Kool, Good Luck, I found a few on eBay, just to see how the Tacoma/ Tundra's are put together, I think this is the plate, has two bolts to secure the plate onto the steering stock, just like mind, and it looks like it will bolt right onto the column Switch.... not sure about the length....

    IMG_8309 1.jpg

  19. May 2, 2018 at 4:54 PM
    #99
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    137
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,
    Carbon dash, is stick on , its a B&&&&^ to work with , Heat Gun / hair dryer lots blades -----time & nerves.

  20. May 2, 2018 at 5:18 PM
    #100
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,548
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

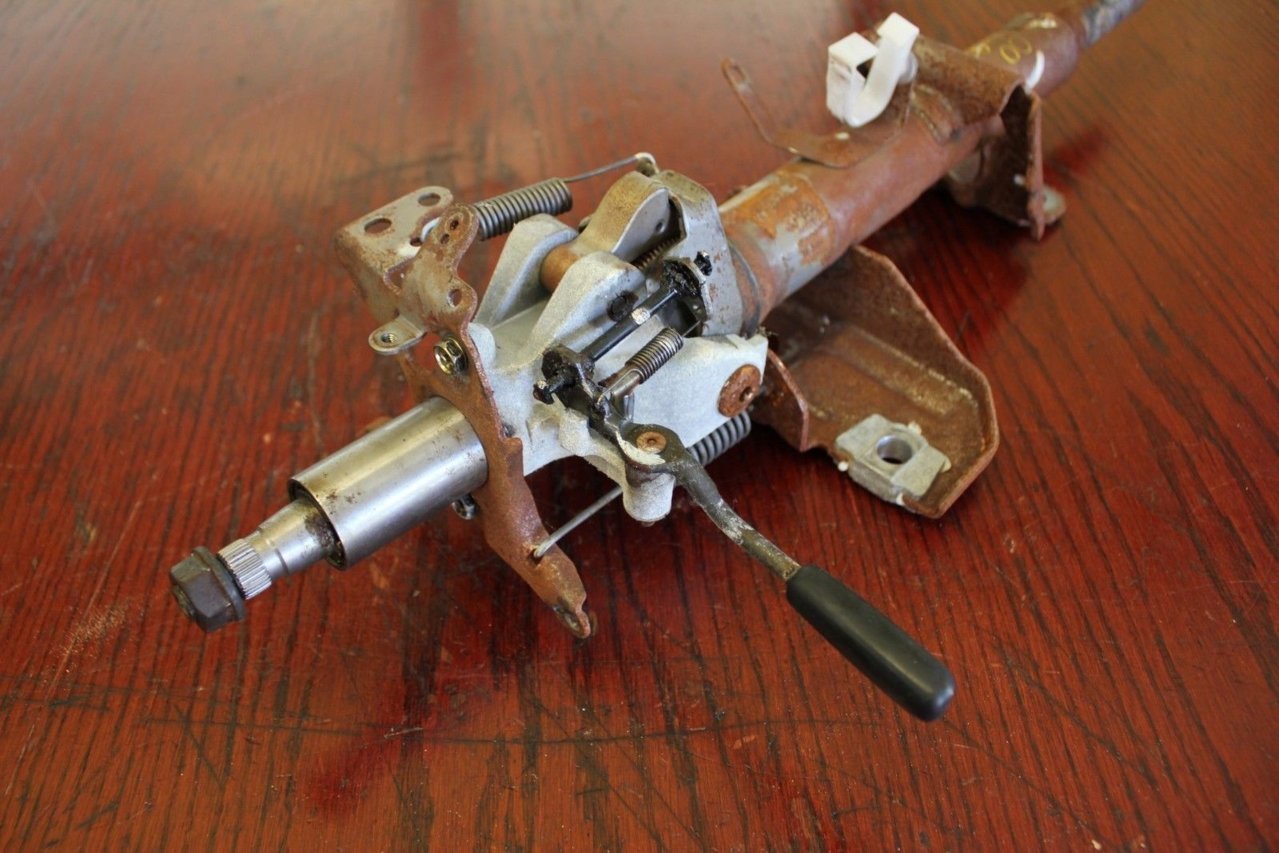

    The 2004 column is a bolt right in swap just wires are differant.
    what year is that column?
