Stock 8.75" BD22AN Locker dissection

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Jowett, Jul 5, 2020.

Post Reply

Jul 5, 2020 at 11:55 AM

#1

#1
Jowett [OP] Well-Known Member

Joined:

May 5, 2016

Member:

#186182

Messages:

1,625

Gender:

Male

First Name:

Brian

North Adams, MA

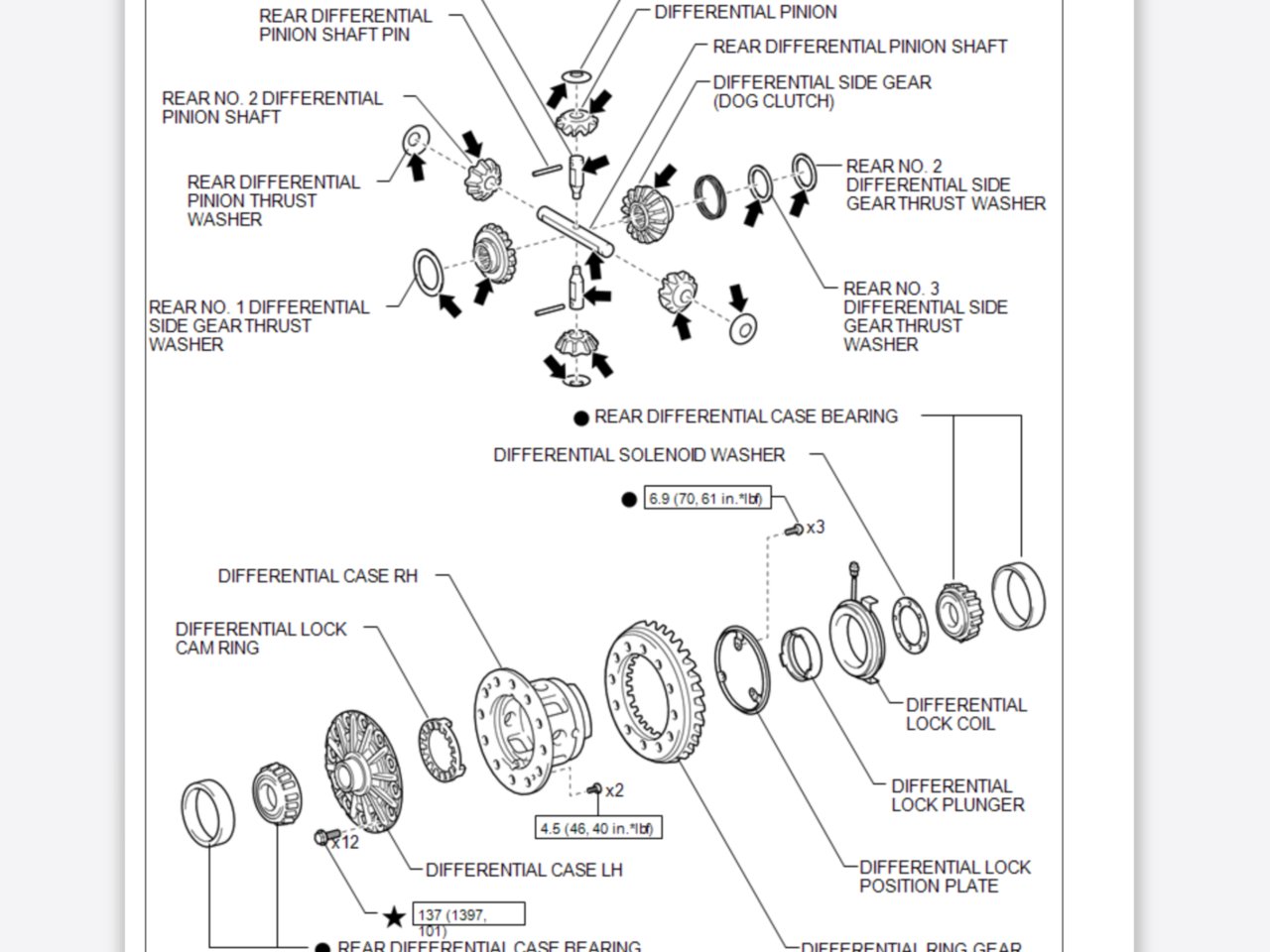

Picked up a new take out stock locker for dissecting. Disassembly was fairly easy. It was designed by Tochigi Fuji Sangyo Japan, parent company is GKN Driveline. Various versions are used by Nissan in the Titan Dana 44 and AAM 250/9.8", Jeep in the Dana 44 JL Rubicon Wrangler, and probably several others. Shared parts are unknown.

Any questions? Photos? Measurements?

Jowett, Jul 5, 2020

#1

Ricertruc, Toycoma2021, SR-71A and 4 others like this.

Jul 5, 2020 at 1:08 PM

#2

#2
Yann Well-Known Member

Joined:

Oct 6, 2018

Member:

#268498

Messages:

790

Gender:

Male

First Name:

Mick

South Carolina

Vehicle:

98 Base I4 4x2 / 18 SR V6 4x4

A/C Drain Pro Grille Intermittent Wipers Blacked out Wheels Blacked out Badges Gasshole Nfab Predator Bars Tweeter Upgrade Kicker Upgrade Morimoto Amber LED Fog Lights Meso fuse box Stage 1 taillights

Sick dude, thanks for the research!

Yann, Jul 5, 2020

#2

Jul 5, 2020 at 1:10 PM

#3

#3
Skydvrr IG: @kalopsianick

Joined:

Sep 13, 2017

Member:

#229889

Messages:

12,654

First Name:

Nick

YMH

Vehicle:

Black '17 OR

It's so pretty

Skydvrr, Jul 5, 2020

#3

Jul 5, 2020 at 1:29 PM

#4

#4
windyhill Active Member

Joined:

Nov 25, 2019

Member:

#311646

Messages:

37

Gender:

Male

First Name:

John

Vehicle:

2019 Tacoma TRD

None.

So, with a flick of a switch the dif. lock coil energizes, then what? I’m thinking the lock plunger moves back and forth, but don’t see a spring to move it back to unlocked. Sorry for the newb question, just curious.

windyhill, Jul 5, 2020

#4

Jul 5, 2020 at 3:15 PM

#5

#5
Jowett [OP] Well-Known Member

Joined:

May 5, 2016

Member:

#186182

Messages:

1,625

Gender:

Male

First Name:

Brian

North Adams, MA

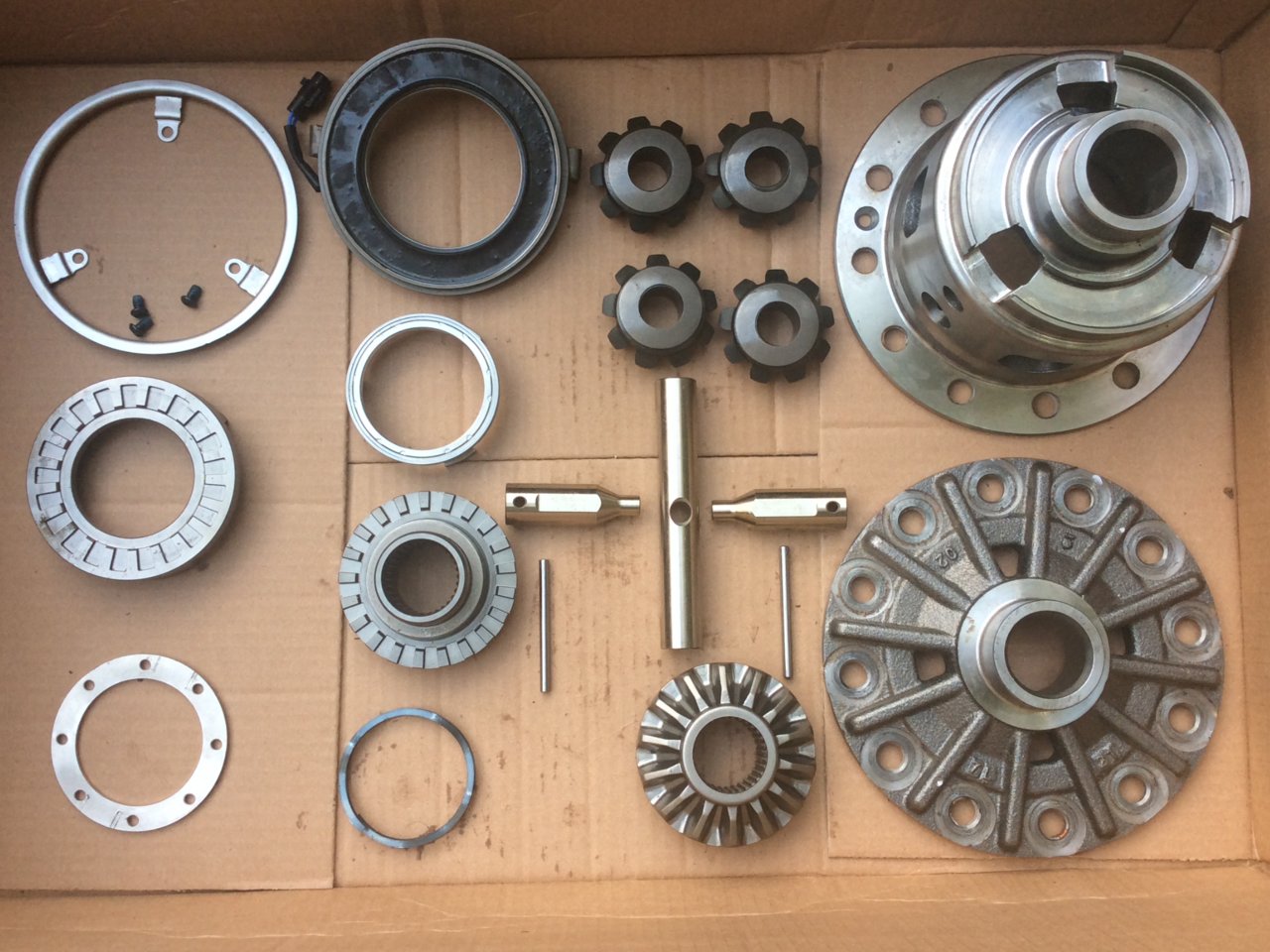

It uses a wave spring for unlocking, bottom row, second item from the left.

Jowett, Jul 5, 2020

#5

Jul 5, 2020 at 4:37 PM

#6

#6
ClassyTacos National Treasure 3, Times a ticking Nickolas

Joined:

Sep 26, 2019

Member:

#306325

Messages:

1,911

Gender:

Male

First Name:

Papalote

Florida

Vehicle:

2017 TRD Sport 4x4

Stockish

Thank you!

ClassyTacos, Jul 5, 2020

#6
