Stop that rub

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Berg_dw, Mar 30, 2009.

  1. Mar 30, 2009 at 2:22 PM
    #1
    Berg_dw

    Berg_dw [OP] New Member

    Joined:
    Mar 30, 2009
    Member:
    #15343
    Messages:
    2
    Gender:
    Male
    Indiana
    Vehicle:
    08 tacoma ex cab 4x4
    3 in. lift /33 in. tires/hitch
    I have put a 3 in. lift on my 08 with 285 pro comp's/w classic II 's which in turn has caused some tire rub when fully cranked. I then tried 2 in. spacers to stop the rubbing but this only made it worse. Is there anything I can do other than invest in a 6 in. lift to correct this problem ? Any help would be appeciated.

  2. Mar 30, 2009 at 2:28 PM
    #2
    Armyballer

    Armyballer Well-Known Member

    Joined:
    Mar 27, 2009
    Member:
    #15203
    Messages:
    70
    Gender:
    Male
    Alabama
    Vehicle:
    05 4x4TRD

    3in level kit? I just did the same thing and have no rub, however I went with 4x 275/85/16 Nitto's

  3. Mar 30, 2009 at 2:48 PM
    #3
    Jpf8653

    Jpf8653 Well-Known Member

    Joined:
    Jan 29, 2009
    Member:
    #13073
    Messages:
    288
    Gender:
    Male
    First Name:
    Justin
    Baton Rouge,LA
    Revtek 3" lift, Tinted Windows Wheels n' Tires Door Sill Protectors Rockford fosgate P3 shallow w/ alpine mono 500 amp in a MR MARV PORTED box Weathertech floor liner Rear TSB Pioneer 3200BT Double Din touch screen
    Spacers will not help. the only thing u could done when running a 285 is to have went with a rim that has stock offset and then put small spacers. the offset is what makes it rub when it turns. Either go smaller or new rims or trim a little.

    By the way what exact tire size do u have.

  4. Mar 30, 2009 at 2:52 PM
    #4
    stevomac59

    stevomac59 Is mod CraZy...

    Joined:
    Feb 9, 2009
    Member:
    #13452
    Messages:
    419
    Gender:
    Male
    Laredo, Texas
    Vehicle:
    07 PreRunner TRD
    3'' lift, custom stereo deck, 33'' toyo Mt tires, 17'' MotoMetal Rims, 20%Tinted front Windows, 5% Rear Windows, Blacked out Grille Surround, Bull Bar, HID Head and Fog lights, KC Daylighters, BHLM, Strobe Lights, Sockmonkey TRD 3rd BreakLight decal, 12'' MTX Thunder Subwoofer, 1000Watt Planet Audio Amplifier, Flowmaster Muffler Xhaust S40
    Trimm the inside of the fender...the back tires should be good, but trim the fender closest to the front...that's what rubbing (I think)

  5. Mar 30, 2009 at 4:50 PM
    #5
    Jpf8653

    Jpf8653 Well-Known Member

    Joined:
    Jan 29, 2009
    Member:
    #13073
    Messages:
    288
    Gender:
    Male
    First Name:
    Justin
    Baton Rouge,LA
    Revtek 3" lift, Tinted Windows Wheels n' Tires Door Sill Protectors Rockford fosgate P3 shallow w/ alpine mono 500 amp in a MR MARV PORTED box Weathertech floor liner Rear TSB Pioneer 3200BT Double Din touch screen
    i would like to see what u trimmed. Do u have any pictures? i been curious bout that since i first saw your truck. Did u ever figure out if your lift is actually sold as 3.5" or is it sold under the name 3" suspension lift.

  6. Mar 30, 2009 at 5:17 PM
    #6
    stevomac59

    stevomac59 Is mod CraZy...

    Joined:
    Feb 9, 2009
    Member:
    #13452
    Messages:
    419
    Gender:
    Male
    Laredo, Texas
    Vehicle:
    07 PreRunner TRD
    3'' lift, custom stereo deck, 33'' toyo Mt tires, 17'' MotoMetal Rims, 20%Tinted front Windows, 5% Rear Windows, Blacked out Grille Surround, Bull Bar, HID Head and Fog lights, KC Daylighters, BHLM, Strobe Lights, Sockmonkey TRD 3rd BreakLight decal, 12'' MTX Thunder Subwoofer, 1000Watt Planet Audio Amplifier, Flowmaster Muffler Xhaust S40
    It was sold as a 3''

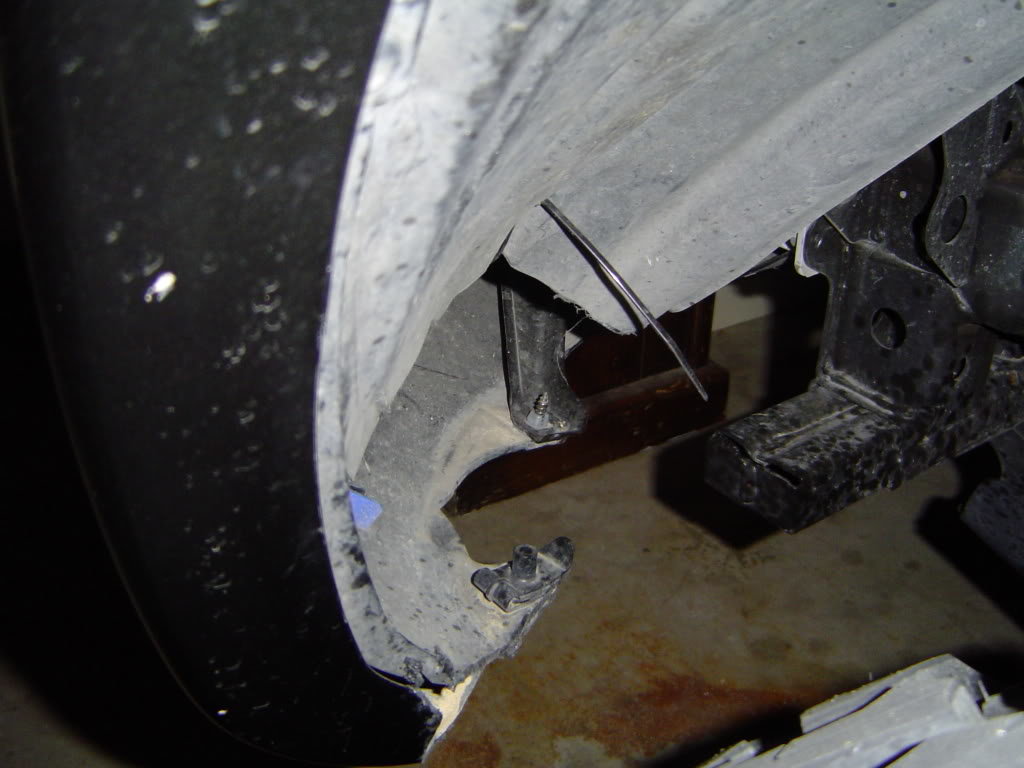

    Now for the trimming, they cut the lower part of the fender in which connects with the plastic chasis:
    [​IMG]

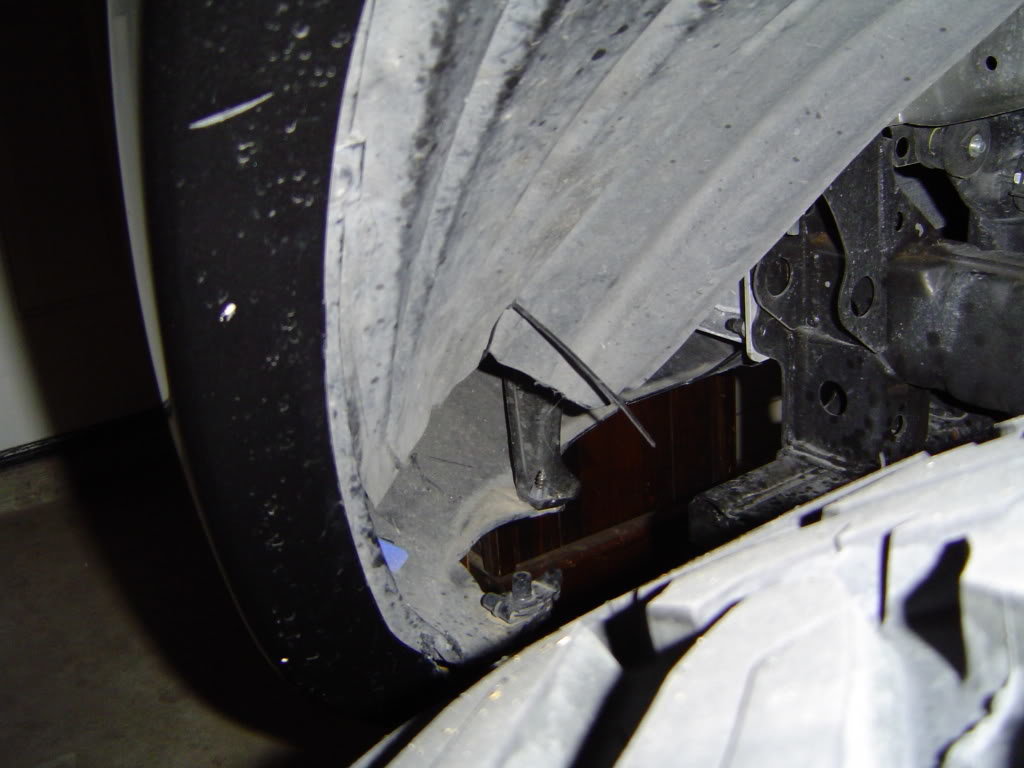

    Then they raised the inner part of the fender:
    [​IMG]

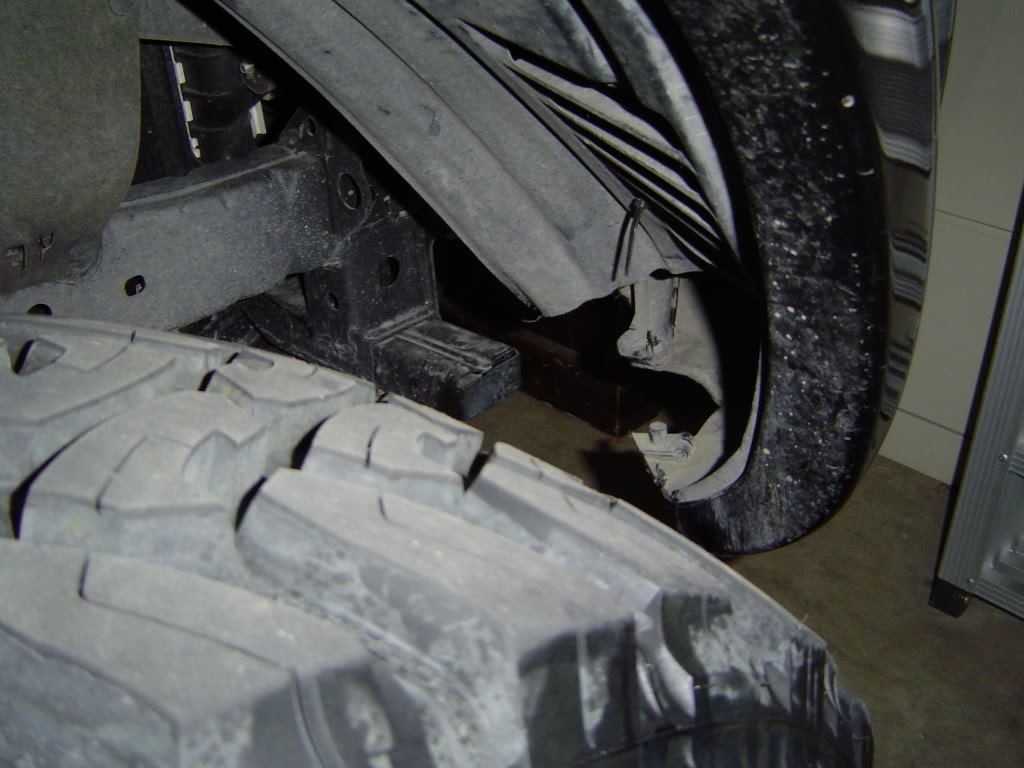

    You can see where the inside fender is supposed to meet with the cut plastic but they raised it so that it wont rub against it:
    [​IMG]

    It's pretty difficult to explain EXACTLY what they cut....but if you take a look inside of your front untrimmed fender, then look at mine, you can tell the difference

    hope this helps


    s
    t
    e
    v
    o
    m
    a
    c
    59

  7. Mar 30, 2009 at 5:28 PM
    #7
    Jpf8653

    Jpf8653 Well-Known Member

    Joined:
    Jan 29, 2009
    Member:
    #13073
    Messages:
    288
    Gender:
    Male
    First Name:
    Justin
    Baton Rouge,LA
    Revtek 3" lift, Tinted Windows Wheels n' Tires Door Sill Protectors Rockford fosgate P3 shallow w/ alpine mono 500 amp in a MR MARV PORTED box Weathertech floor liner Rear TSB Pioneer 3200BT Double Din touch screen
    Thanks buddy!

  8. Mar 30, 2009 at 5:30 PM
    #8
    stevomac59

    stevomac59 Is mod CraZy...

    Joined:
    Feb 9, 2009
    Member:
    #13452
    Messages:
    419
    Gender:
    Male
    Laredo, Texas
    Vehicle:
    07 PreRunner TRD
    3'' lift, custom stereo deck, 33'' toyo Mt tires, 17'' MotoMetal Rims, 20%Tinted front Windows, 5% Rear Windows, Blacked out Grille Surround, Bull Bar, HID Head and Fog lights, KC Daylighters, BHLM, Strobe Lights, Sockmonkey TRD 3rd BreakLight decal, 12'' MTX Thunder Subwoofer, 1000Watt Planet Audio Amplifier, Flowmaster Muffler Xhaust S40
    updated above!

    Oh, also.. They still do rub every now and then (only when I turn onto a hill in a weird manner :S :O!) but they dont rub when I go out on the hills

  9. Mar 30, 2009 at 5:53 PM
    #9
    Jpf8653

    Jpf8653 Well-Known Member

    Joined:
    Jan 29, 2009
    Member:
    #13073
    Messages:
    288
    Gender:
    Male
    First Name:
    Justin
    Baton Rouge,LA
    Revtek 3" lift, Tinted Windows Wheels n' Tires Door Sill Protectors Rockford fosgate P3 shallow w/ alpine mono 500 amp in a MR MARV PORTED box Weathertech floor liner Rear TSB Pioneer 3200BT Double Din touch screen
    Yeah i would think there is some rubbing still when the suspension is tweaked, but that does look good. Like i said before ur one the few with 3" lift running full 33's. Looks great!

  10. Mar 30, 2009 at 6:13 PM
    #10
    stevomac59

    stevomac59 Is mod CraZy...

    Joined:
    Feb 9, 2009
    Member:
    #13452
    Messages:
    419
    Gender:
    Male
    Laredo, Texas
    Vehicle:
    07 PreRunner TRD
    3'' lift, custom stereo deck, 33'' toyo Mt tires, 17'' MotoMetal Rims, 20%Tinted front Windows, 5% Rear Windows, Blacked out Grille Surround, Bull Bar, HID Head and Fog lights, KC Daylighters, BHLM, Strobe Lights, Sockmonkey TRD 3rd BreakLight decal, 12'' MTX Thunder Subwoofer, 1000Watt Planet Audio Amplifier, Flowmaster Muffler Xhaust S40
    Thanks man!
