Streetacos bolt on 4-link

Discussion in 'Street Trucks' started by VooDooTrip, Nov 3, 2010.

  1. Nov 3, 2010 at 1:44 PM
    #1
    VooDooTrip

    VooDooTrip [OP] Defector

    Joined:
    Dec 17, 2008
    Member:
    #11696
    Messages:
    282
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    01' BSP S/C S-Runner
    S/C, URD fuel Upgrade, 2.2 Pulley, URD crank pulley, Truetrax locker, custom exhaust, plx, scangauge, D/P mod, amsoil drop in, 18x9.5 stern hyperblacks, ACA projectors, Grillcraft blackmesh, Performance Products valance, R/C Tails, B&M Short shifter, QA1 Coilovers all the way around, upgraded strut rod bars with heim joints, poly bushings everywhere lol, 1st model Streetacos bolt on four link!
    Here is the debut on TW of Beefed tacos bolt on 4link kit. C/O's and heims are qa1's. Will post some pics but mostly all are available in my photobucket. User ID on that is voodootrip and album is public.

    Thanks to Brian and all his hard work!!!

    edit: Copied and pasted all info from my CT thread.. Enjoy!!!

    Ok, it's been awhile since me and Brian started this project. It's been a long road but well worth it. Brian (BeefedTaco) has created a masterpiece with this and will soon be in full blown production.. my job.. be the guinea pig and supply the parts... and some beer... and more beer.. mmmmm beer... Take a seat and enjoy the ride... I know I do now.. :D


    Well, I figured I'd start a progress thread since this will be pretty extensive. Heres the start of the project:

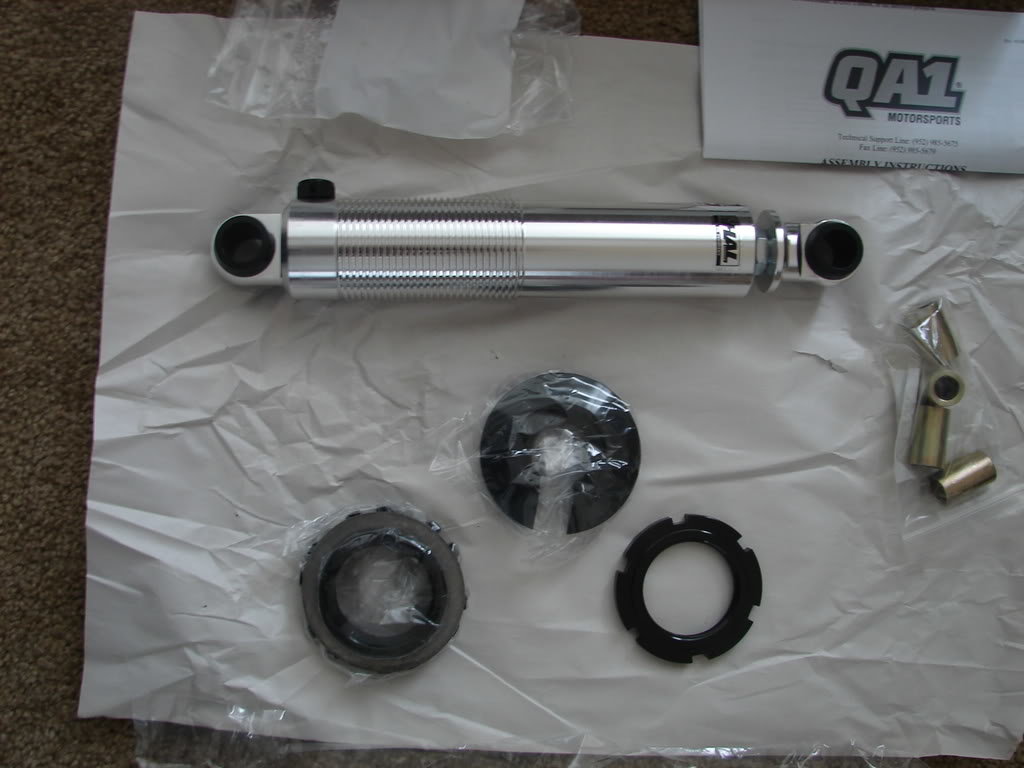

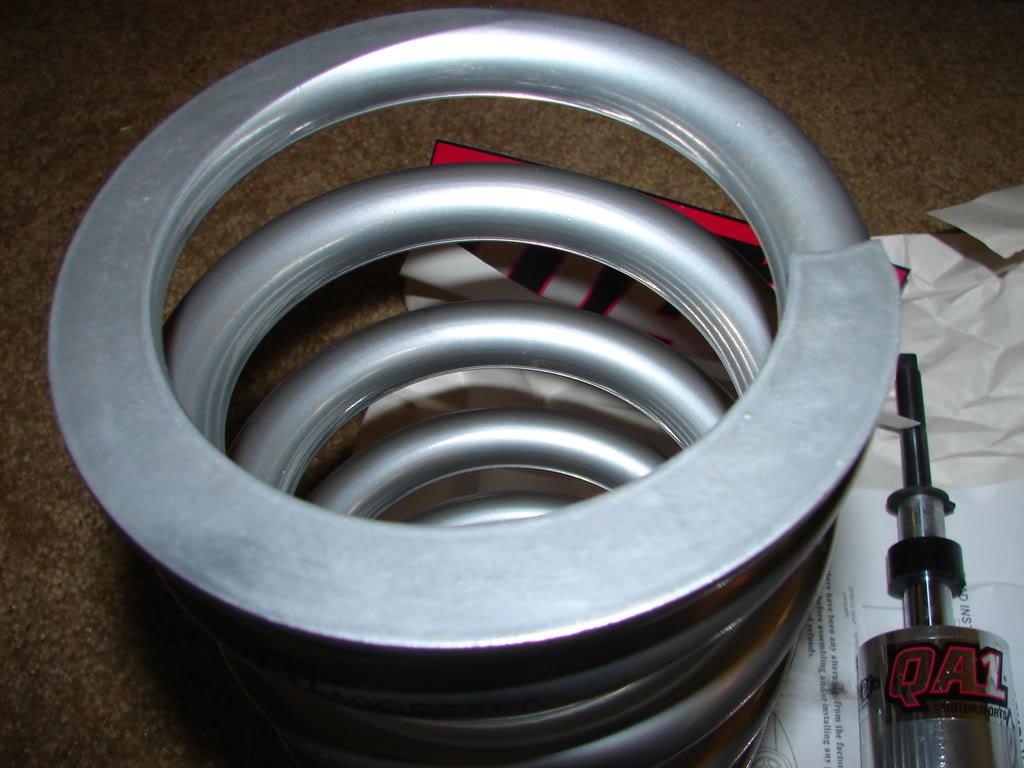

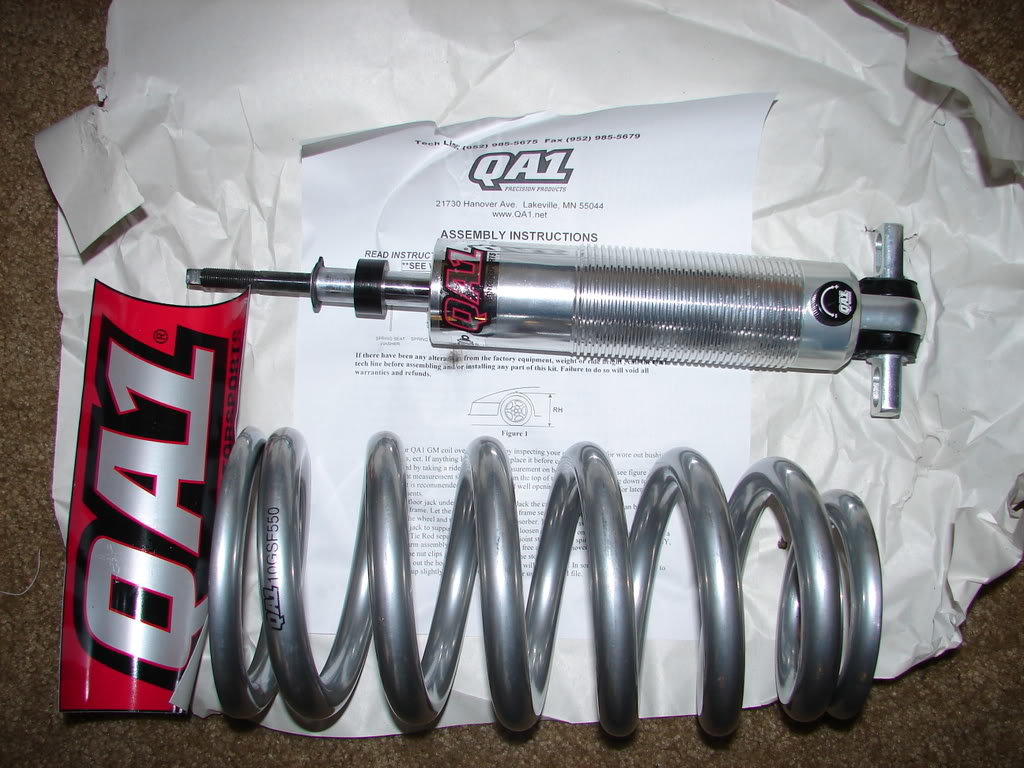

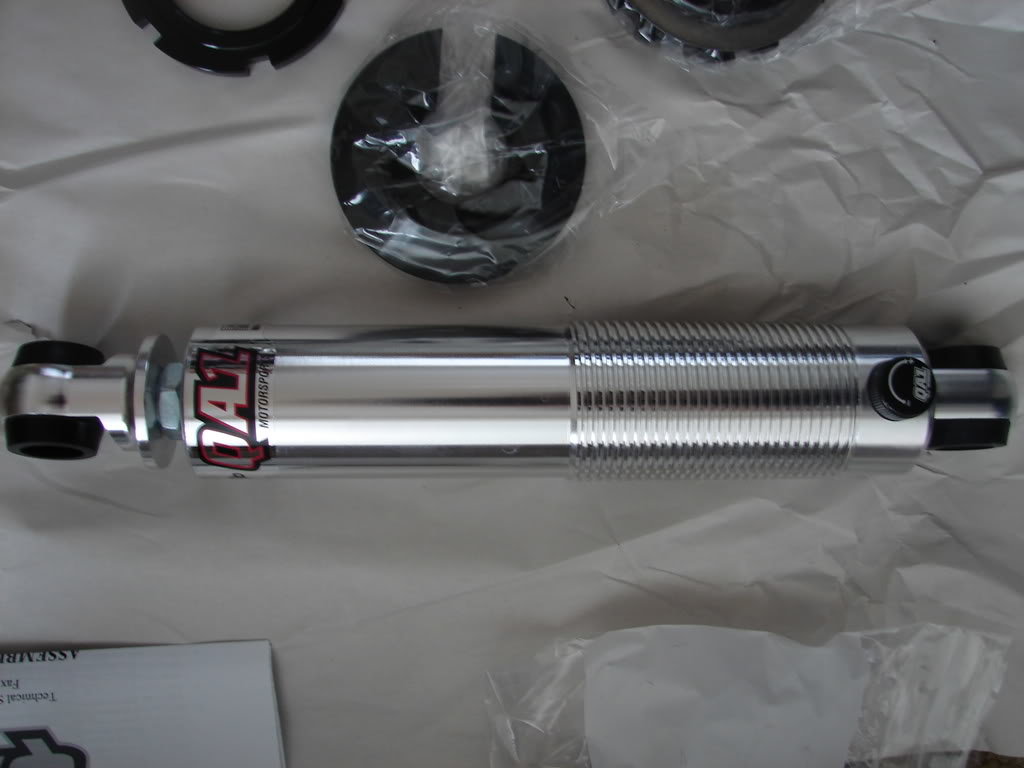

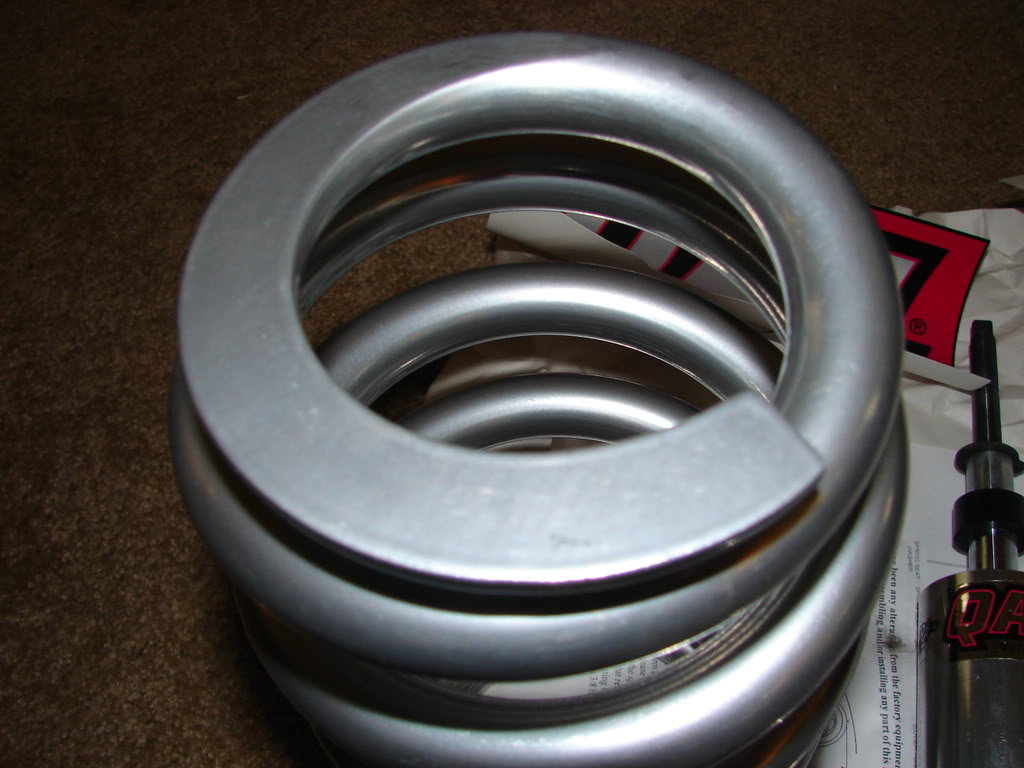

    I received these in today. Instead of going with the round top and bottom I figured I would go with the flat version. Here is the part number : GSF-1550-1

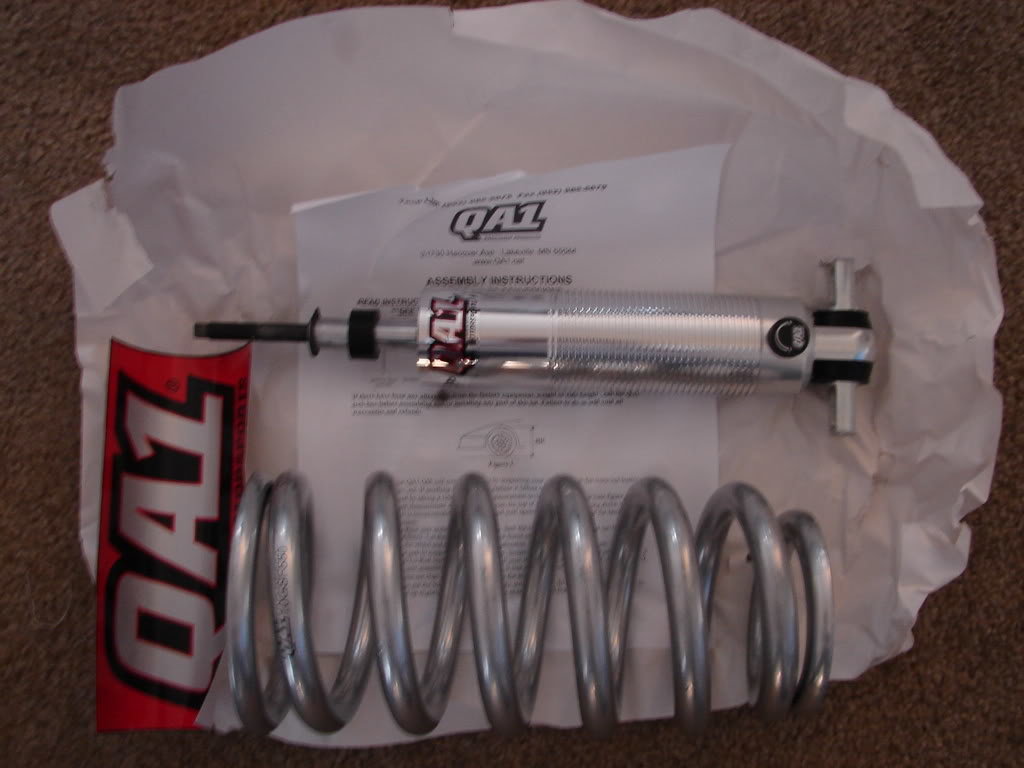

    They are 10in length, and 550lbs. spring rate. Here's the first pics!

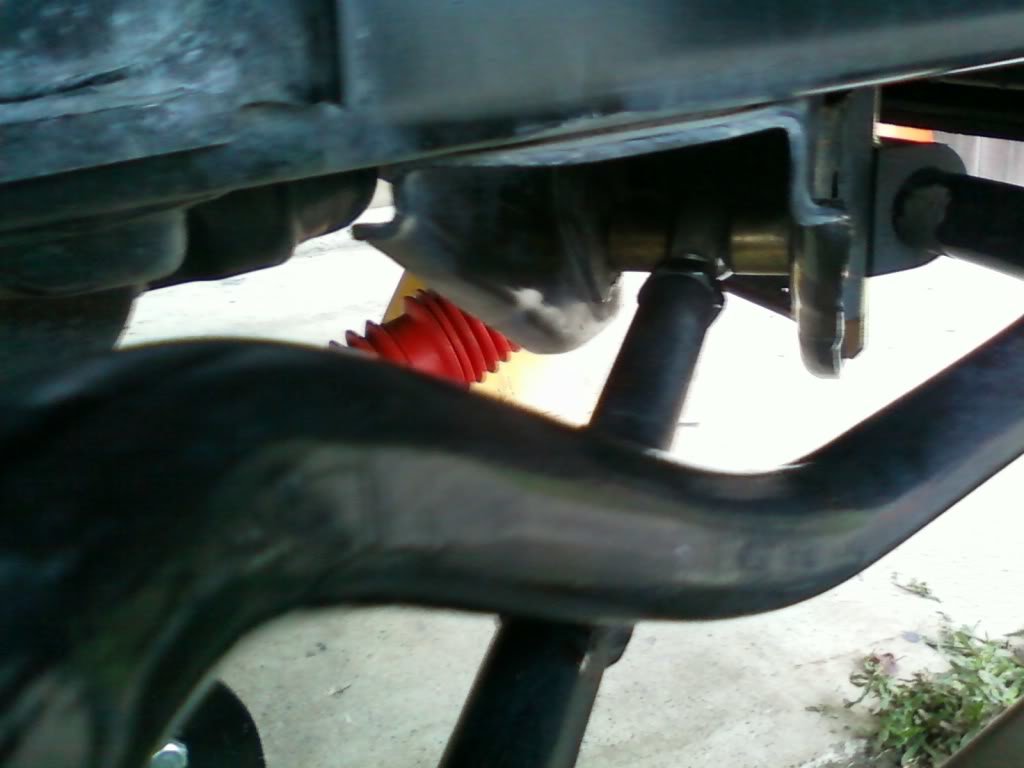

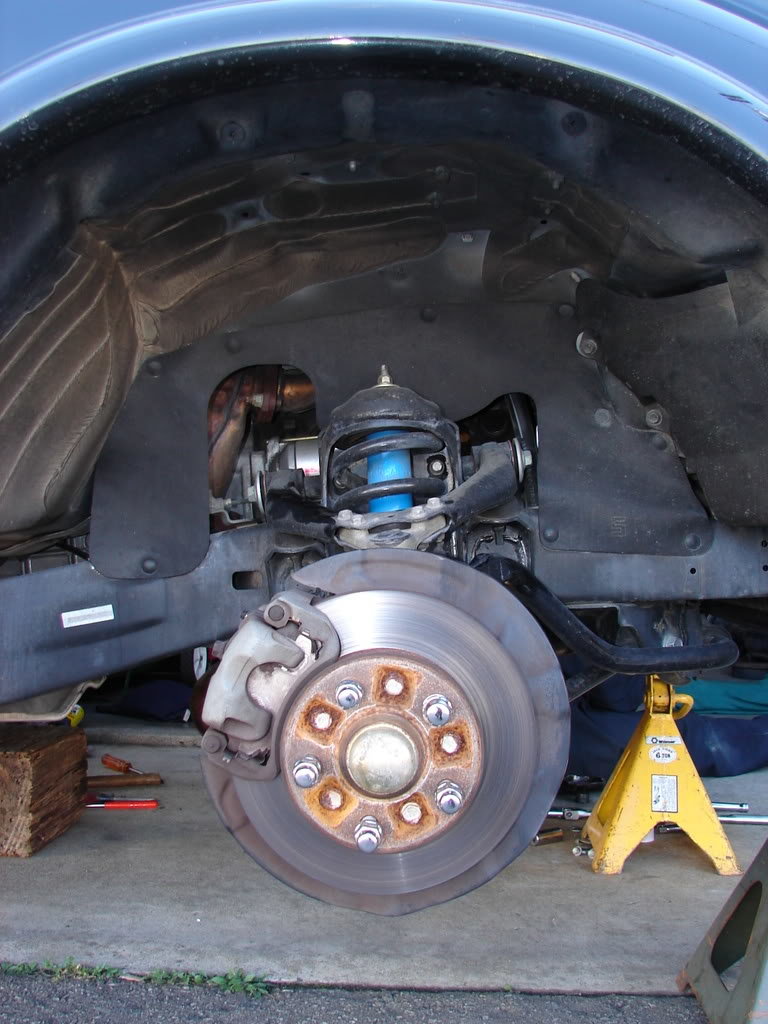

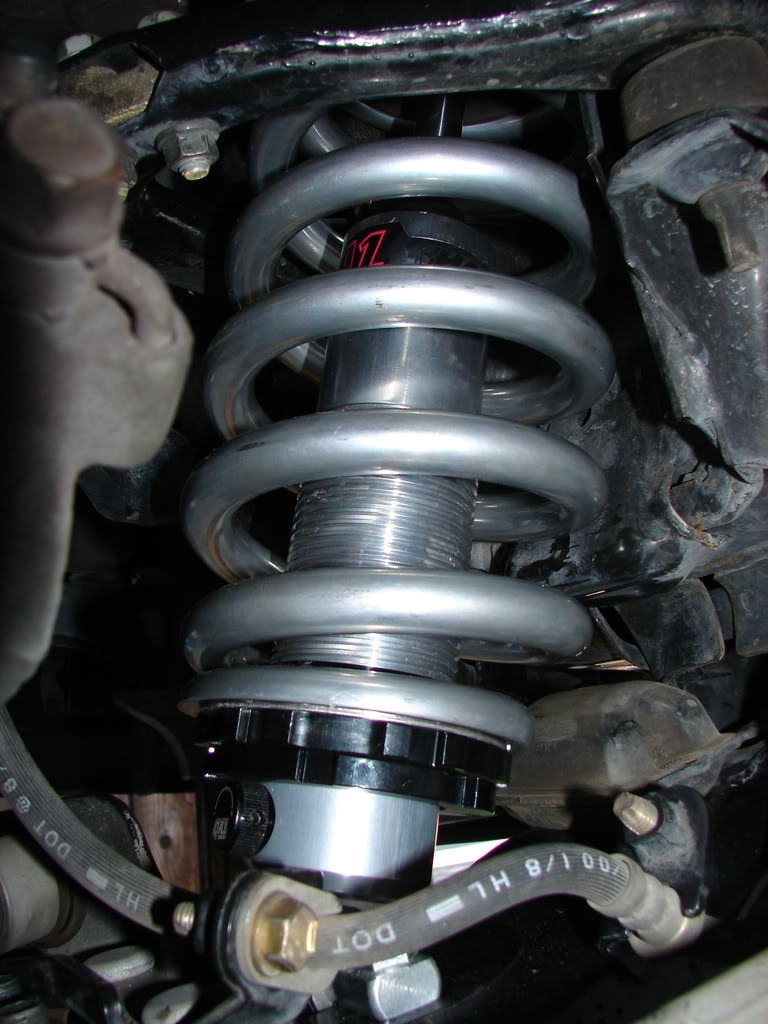

    From this point the QA1's were installed and gave me roughly a 3in drop up front. I kept the stock spring isolators, but originally was going to switch to the poly ones from ES. For those with S-Runners looking to do this same mod I would highly recommend going with the 8in spring and a higher spring rate for aggressive driving. The springs I have now are fine for your normal everyday driving, but if you have an SR and you're installing these chances are you're going to be doing some spirited driving...


    before:


    after:

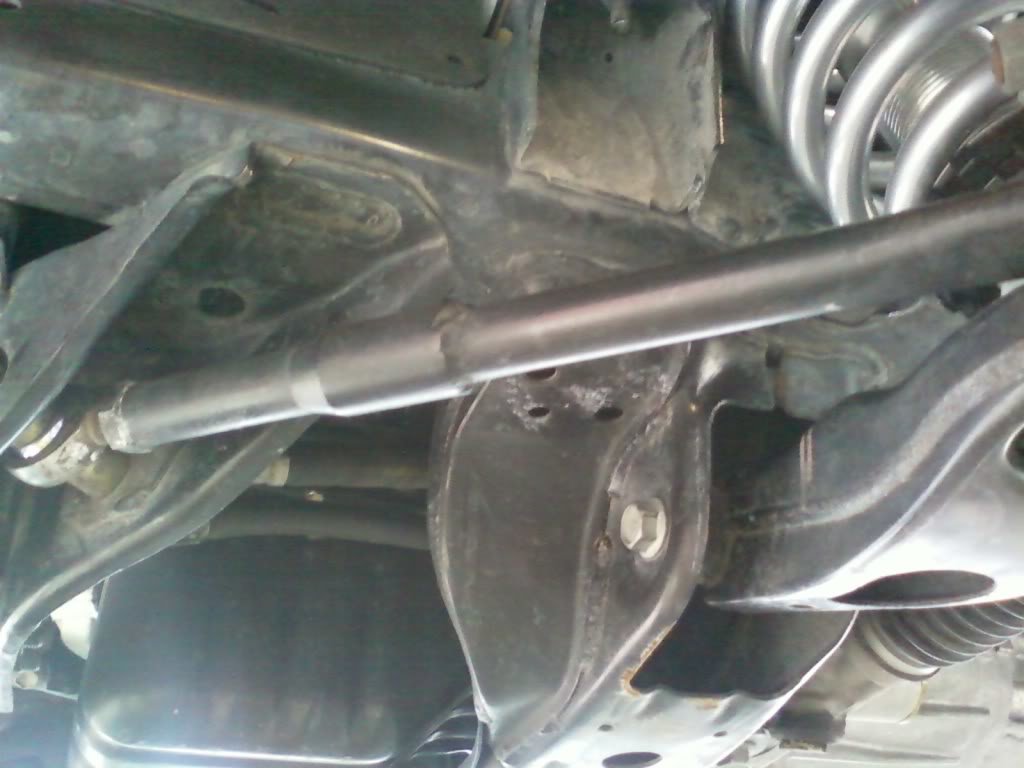

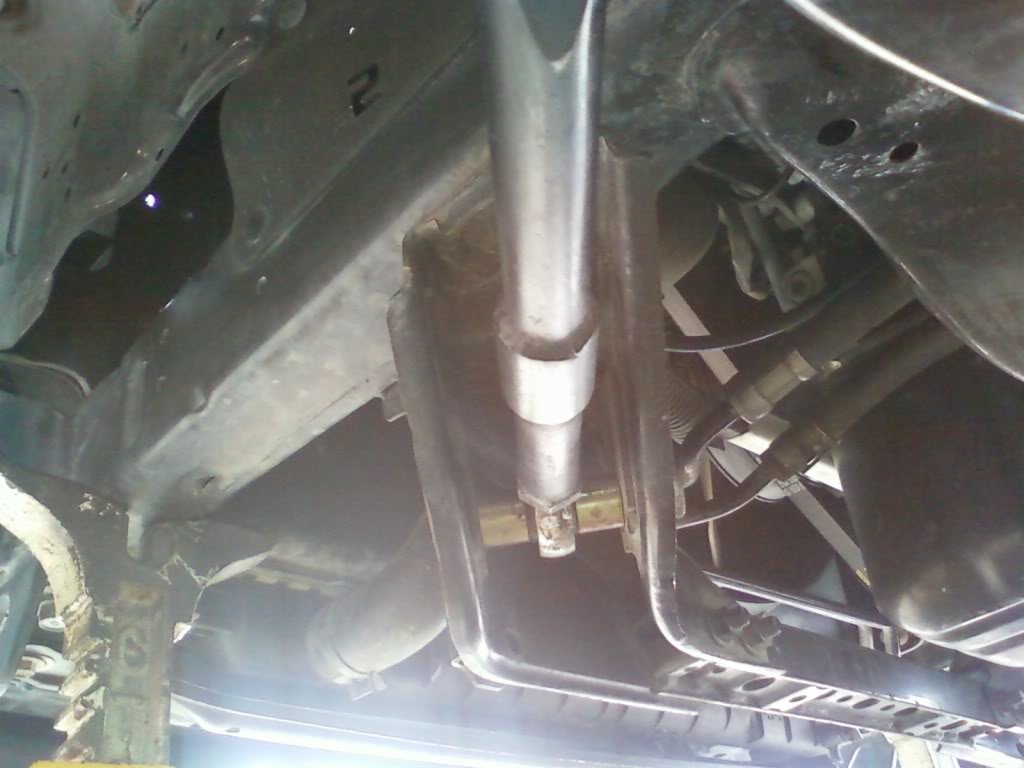

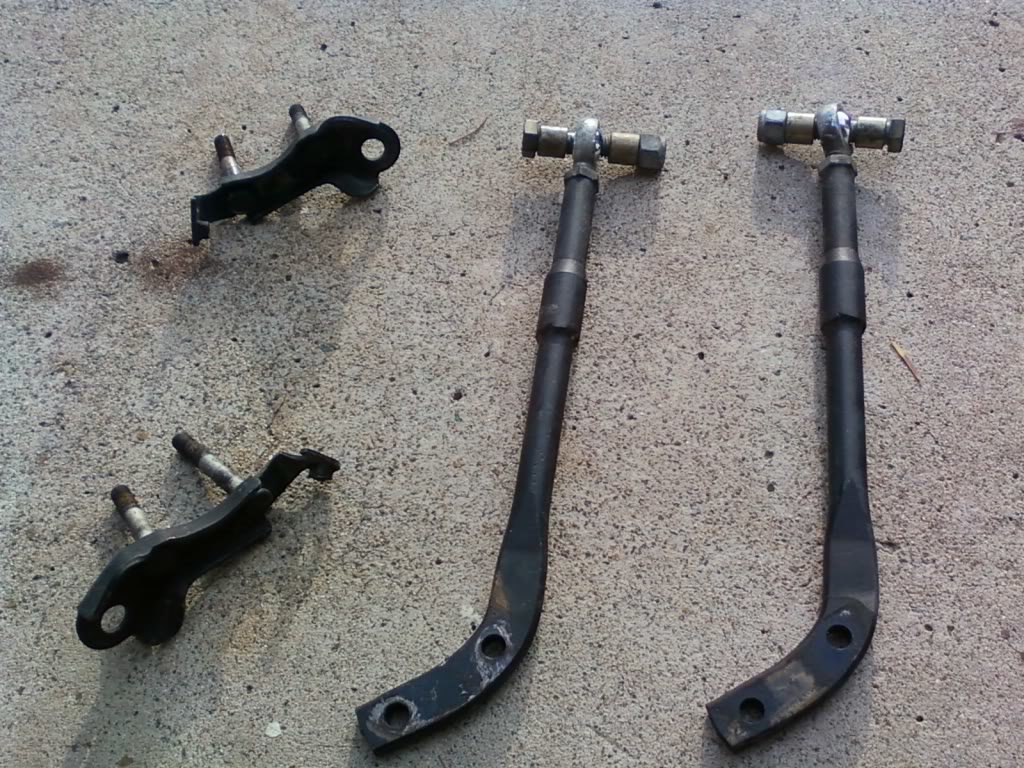

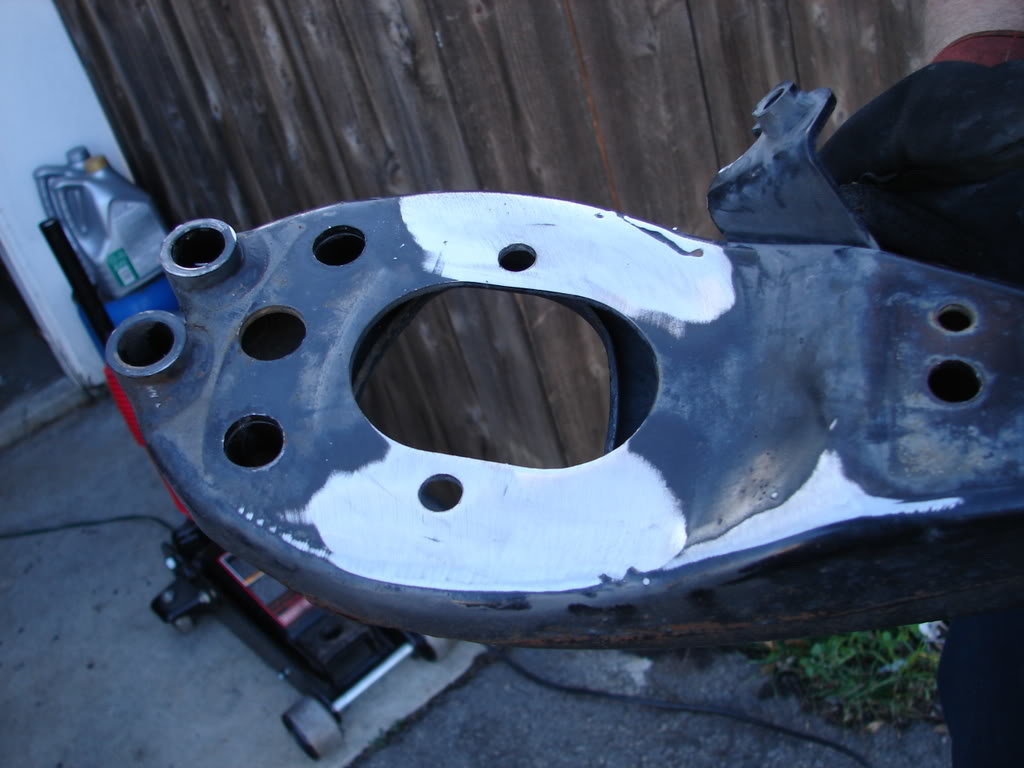

    From this point on I liked the outcome but was not satisfied with the understeer I was getting along with the slop present in the steering. Kevinthefaulker had some heimed steering rods usually used on lifted trucks but I decided to buy and install them on my truck. Along with those I had Beefed Taco order me some energy suspension bushings for everything on the front end. This greatly improved the point and shoot mentality behind it. Of course there was still understeer but the slop was greatly improved. We also found that the LCA bumpstops were bottoming out causing limited movement on the arm so we went ahead and replaced those with a low profile bumpstop.

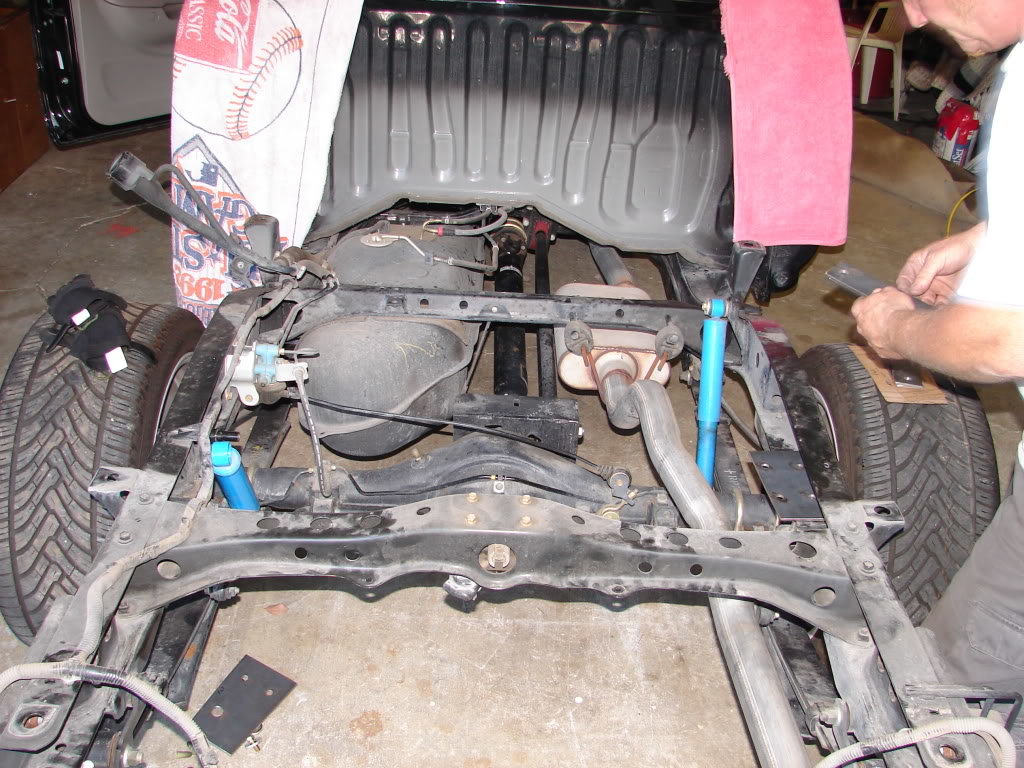

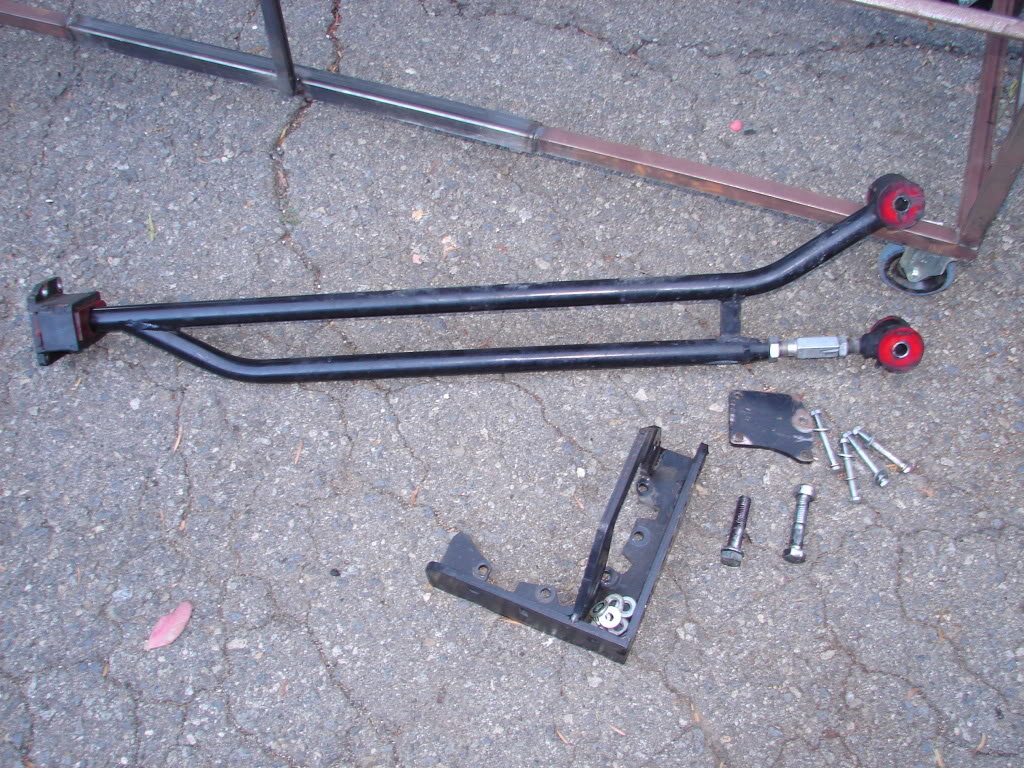

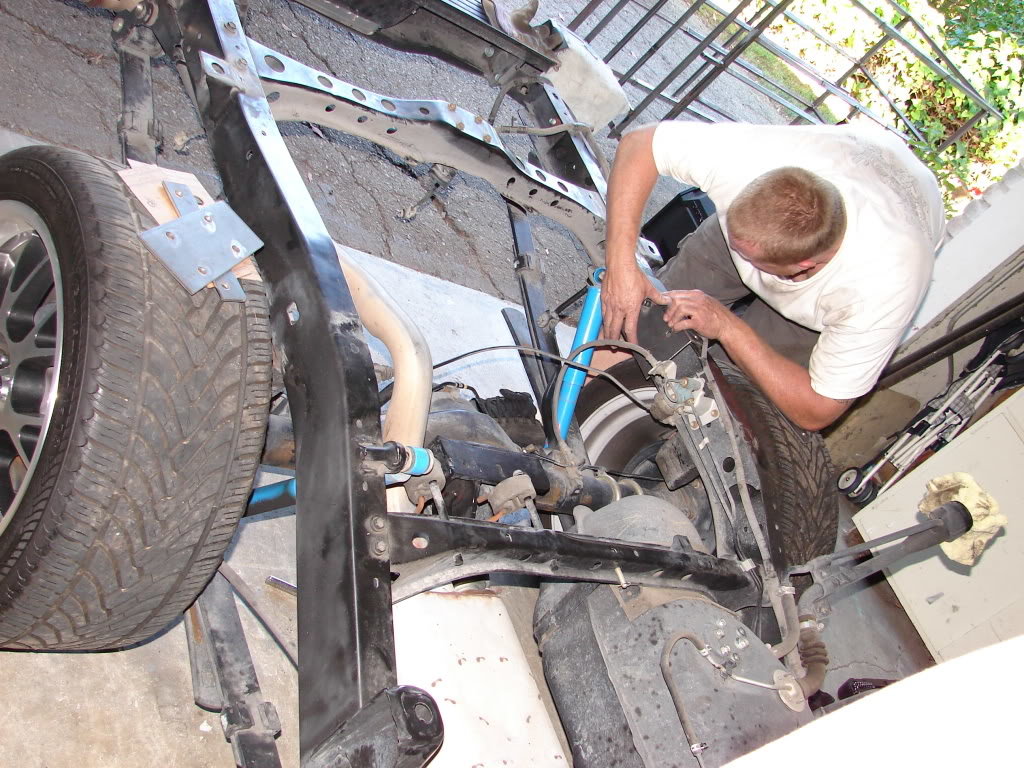

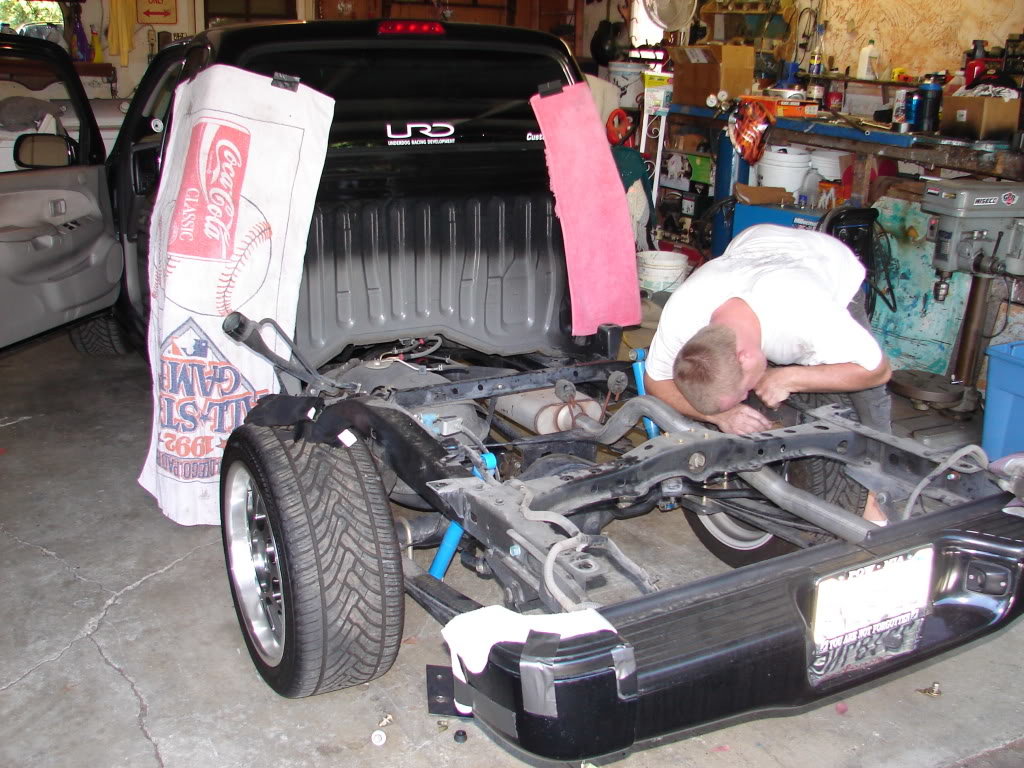

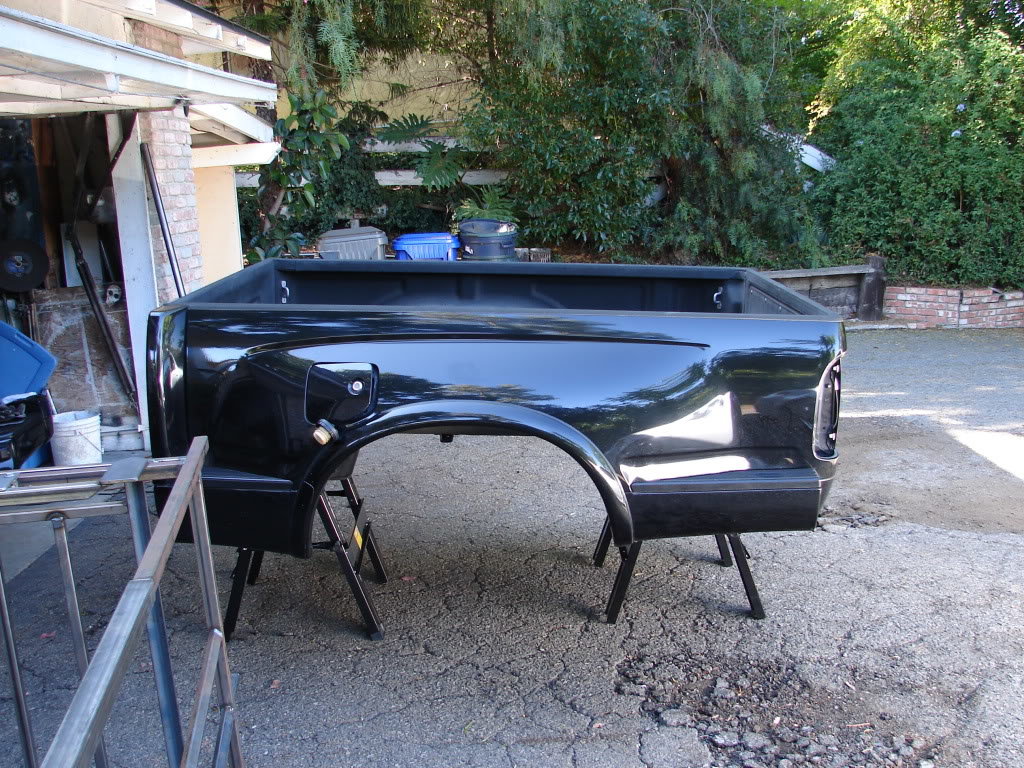

    After that we began the project of tackling the rear end of the truck. To the best of our knowledge this had never been done before so we were jumping in pretty much head first. We began with the removal of the URD traction bar that was on the truck, since this was just going to get in the way anyways. After many trips back and forth to Brians pulling the bed, taking measurements, putting the bed back on, pulling the bed taking more measurements, test fitting, putting the bed back on, pulling the bed again, test fit, trim, put the bed back on.. (you see where I am going with this) until we got the stock rear crossmember off and the new one on (which eventually gets scrapped, but thats later in the story :lol: ).





    more info and pics can be found in these threads:

    http://www.customtacos.com/forum/showthread.php?t=136263&highlight=bolt+on+4+link
    http://www.customtacos.com/forum/showthread.php?t=136033

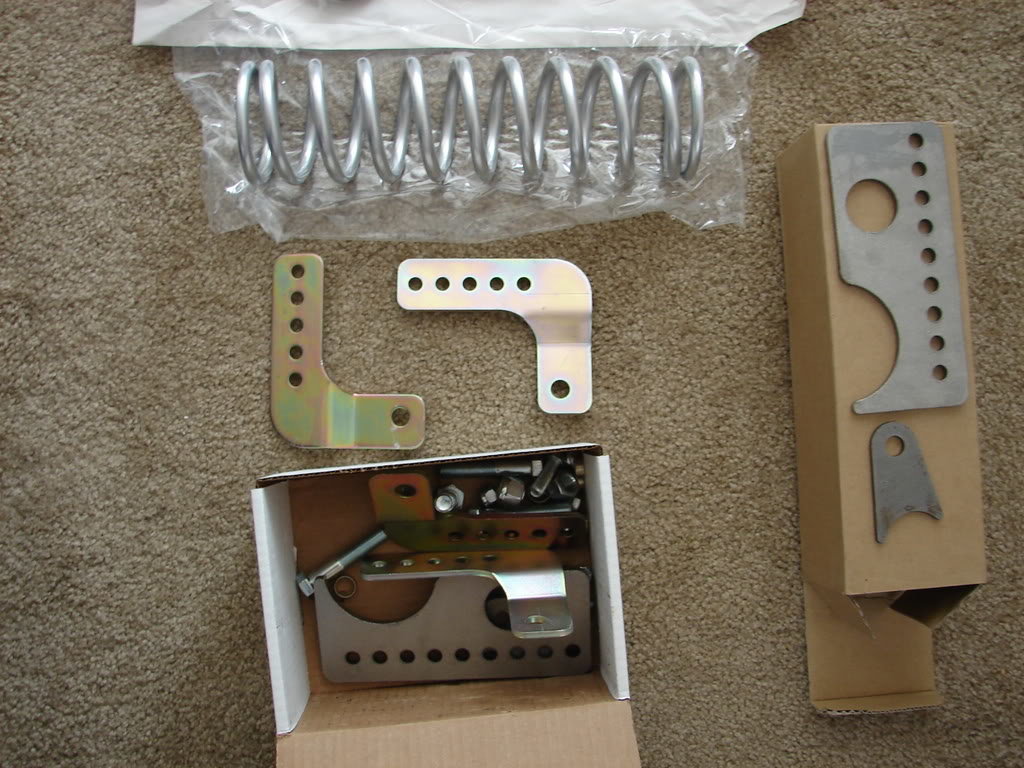

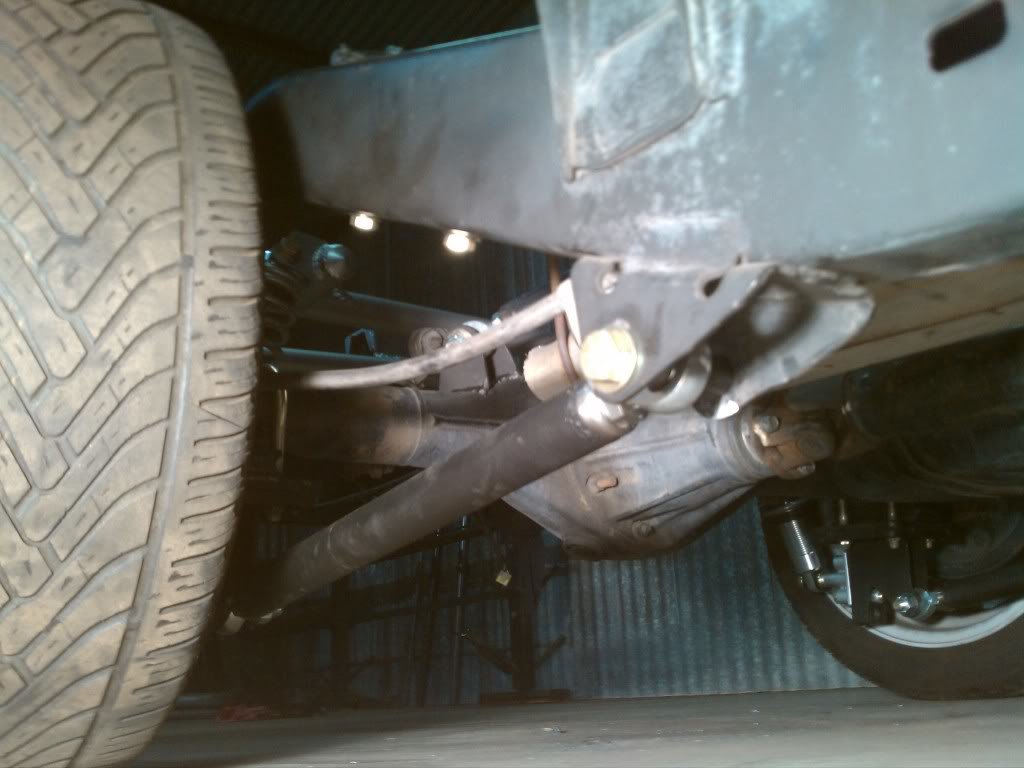

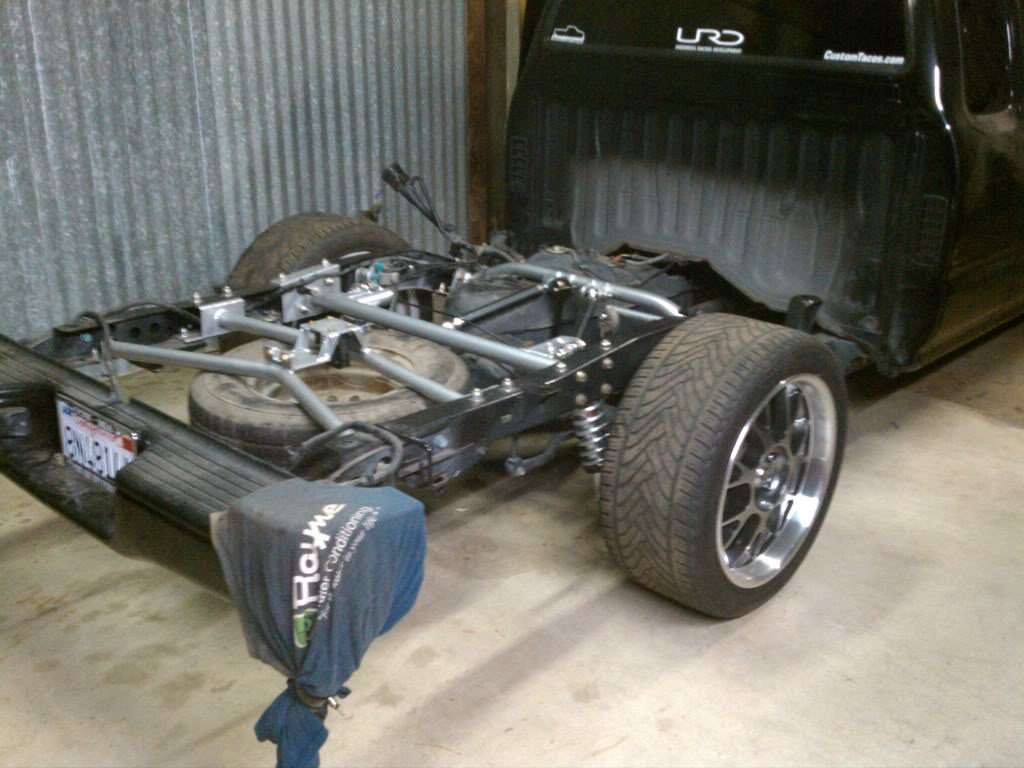

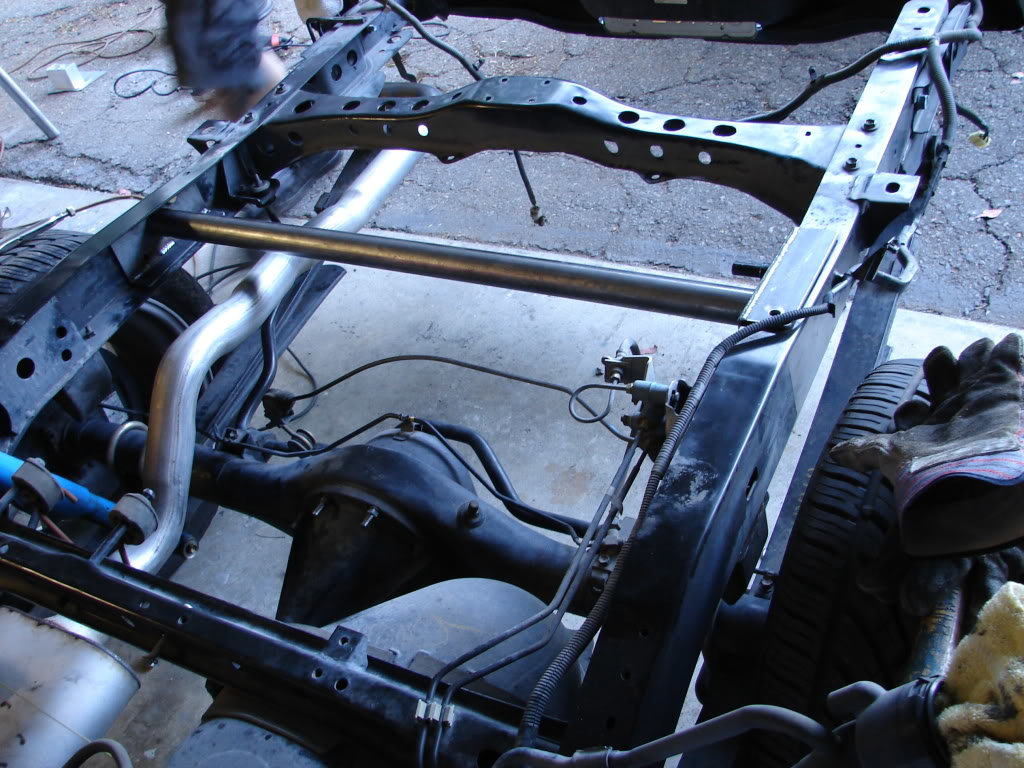

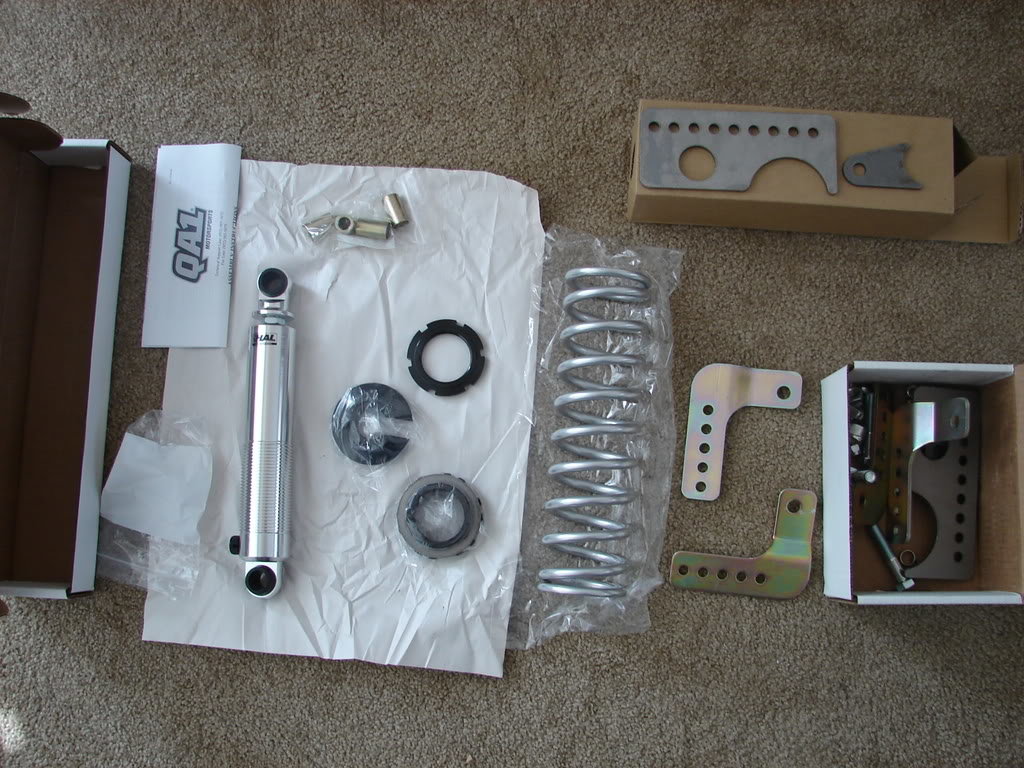

    So now were have the rear brace and crossmember in. The rear QA1's have arrived already and they are 12in 150lbs rate springs as recommended (issues with these will also get addressed later). Now we start taking measurements for links and placement of the coilovers and how we are going to mount them. We ended up finding an awesome website that had the pieces we needed to mount the lower coilovers with a little bit of fabbing:


    http://www.welderseries.com/catalog/product_info.php?cPath=24_109&products_id=461

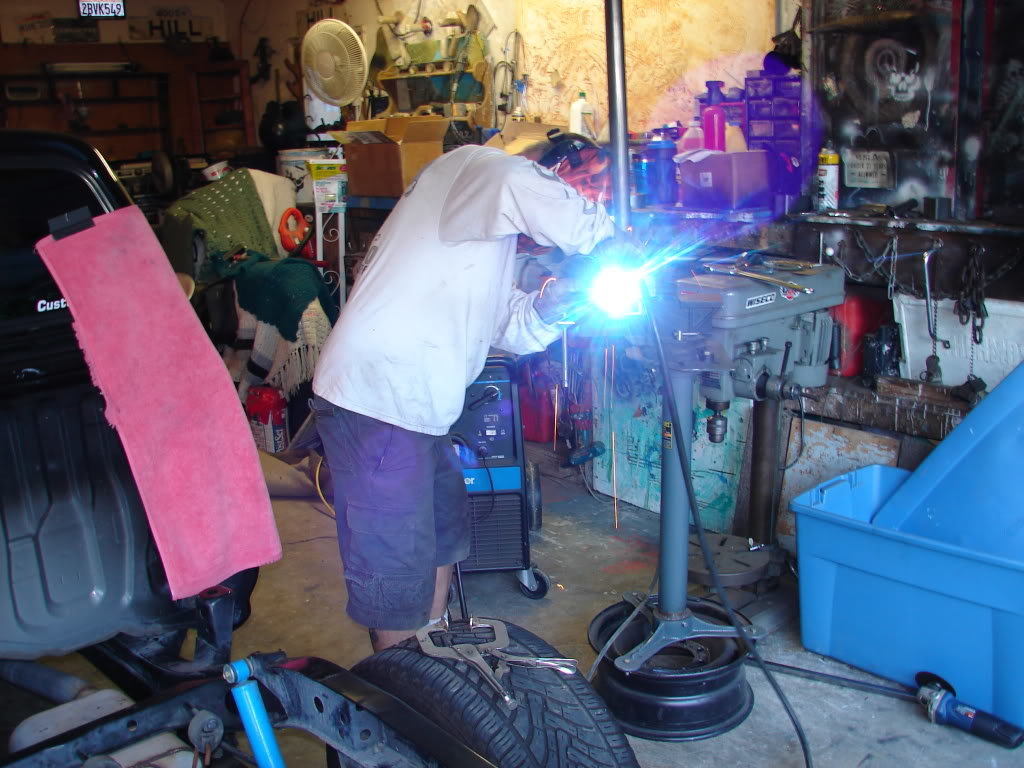

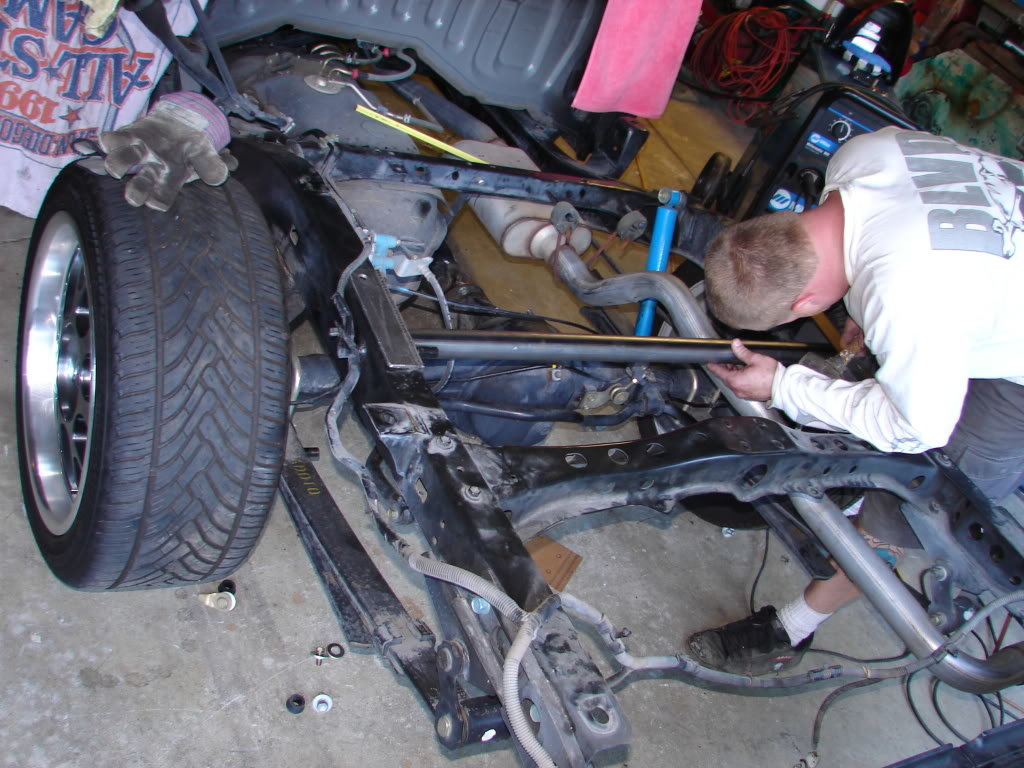

    This place gave us some great templates for a starting point and with Brians brain he was able to come up with a lower mount piece that secures into place were the stock leafs rest on the axle secured in place by the u-bolts. This gave us a placement point for the C/O's and we began to mark our permanent measurements. Now we need some heims and metal... the metal was easy.. heims not so much...



    http://www.customtacos.com/forum/attachment.php?attachmentid=55268&d=1251341353




    So after getting some major progress on this kit we get put on a hiatus for three months waiting on heims I ordered. I went with a set of 8 QA1 heims. I am not sure on the measurements and will try to get those from Brian to post here.

    Example:
    http://qa1.thomasnet.com/viewitems/trial-products-rod-ends-loaded-slot-injection-mold/xm-rod-ends?

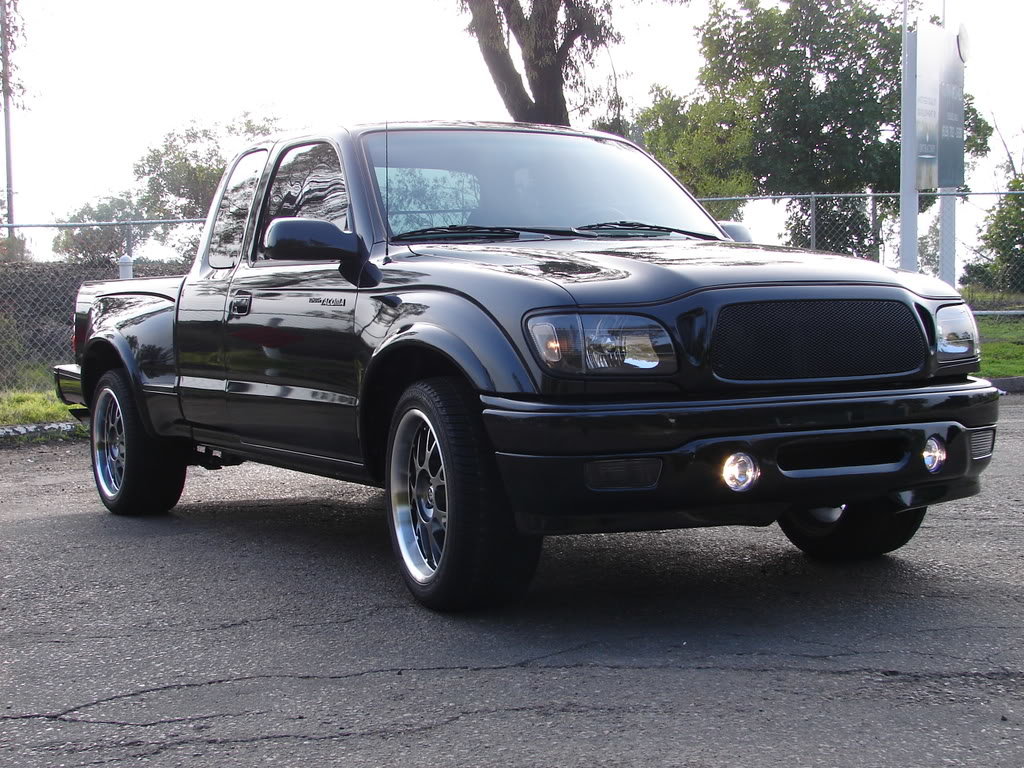

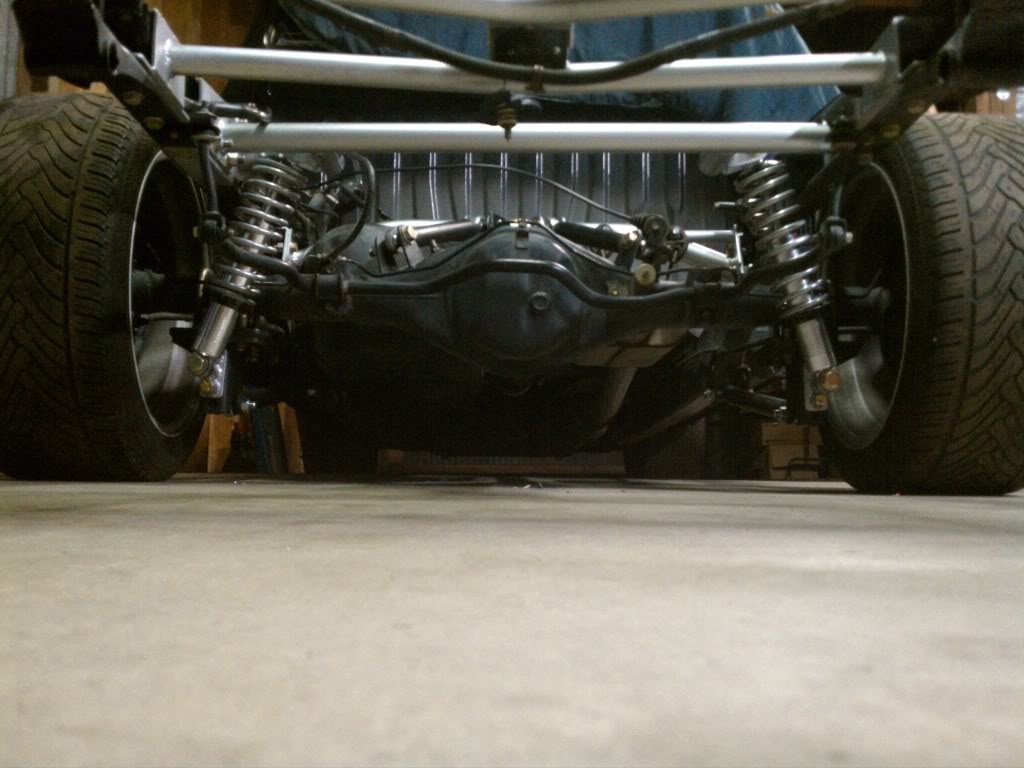

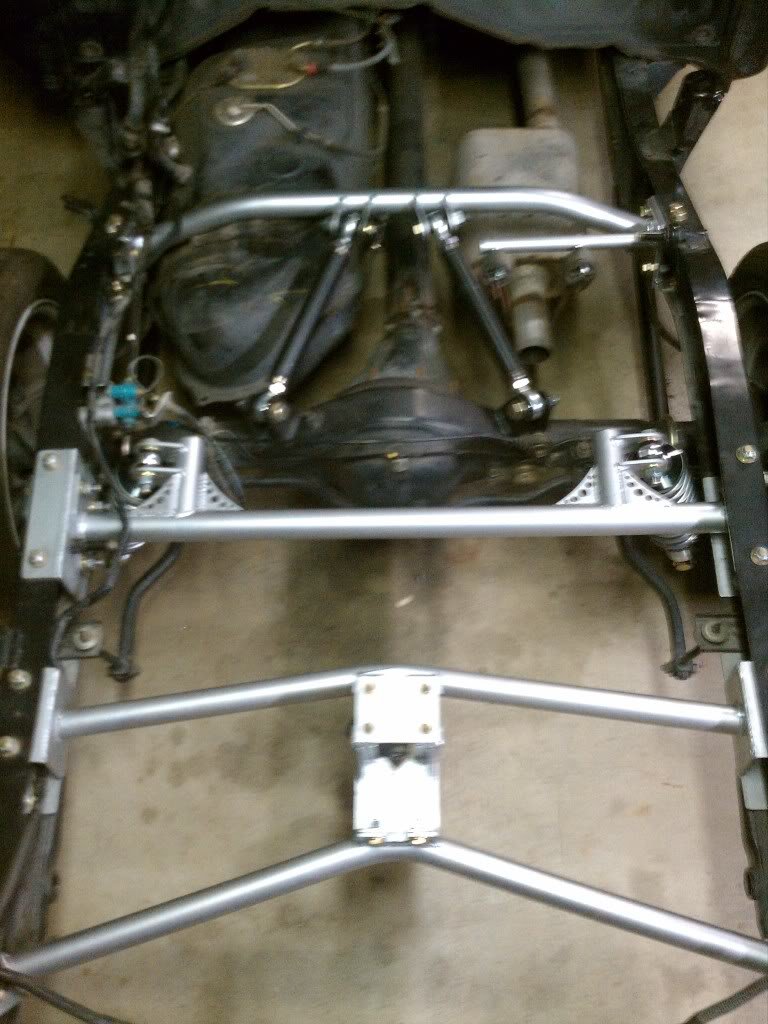

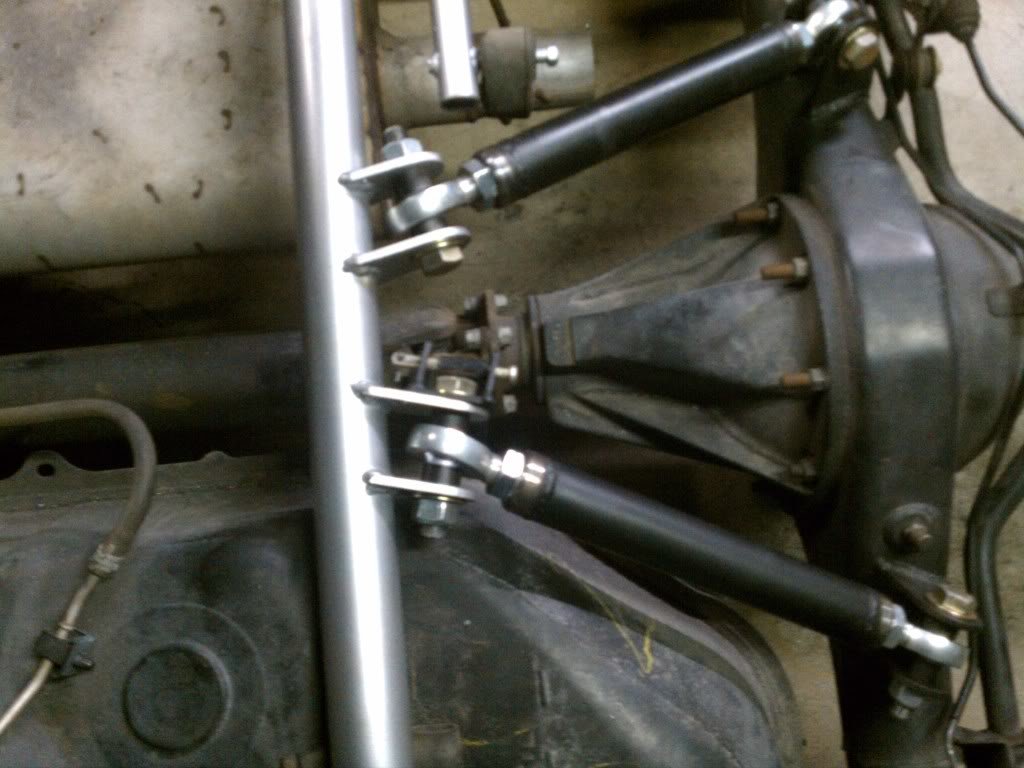

    Here is the final product after much R&D and many trials and tribulations along the way... Great work Brian!!

    [​IMG]

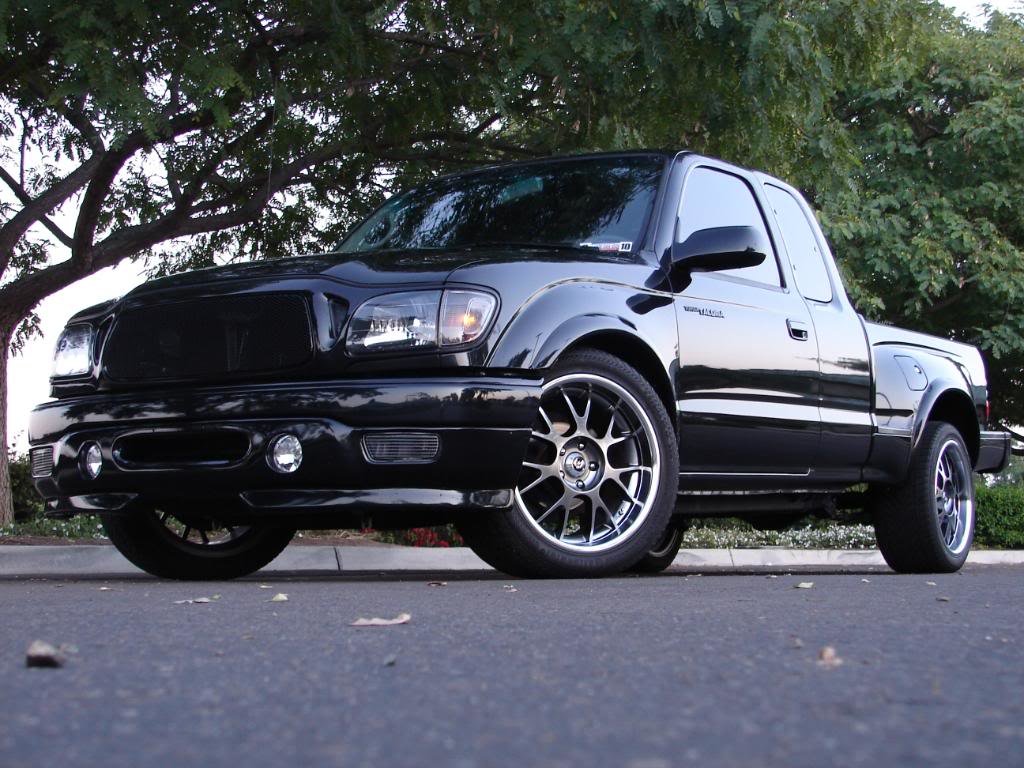

    Before:

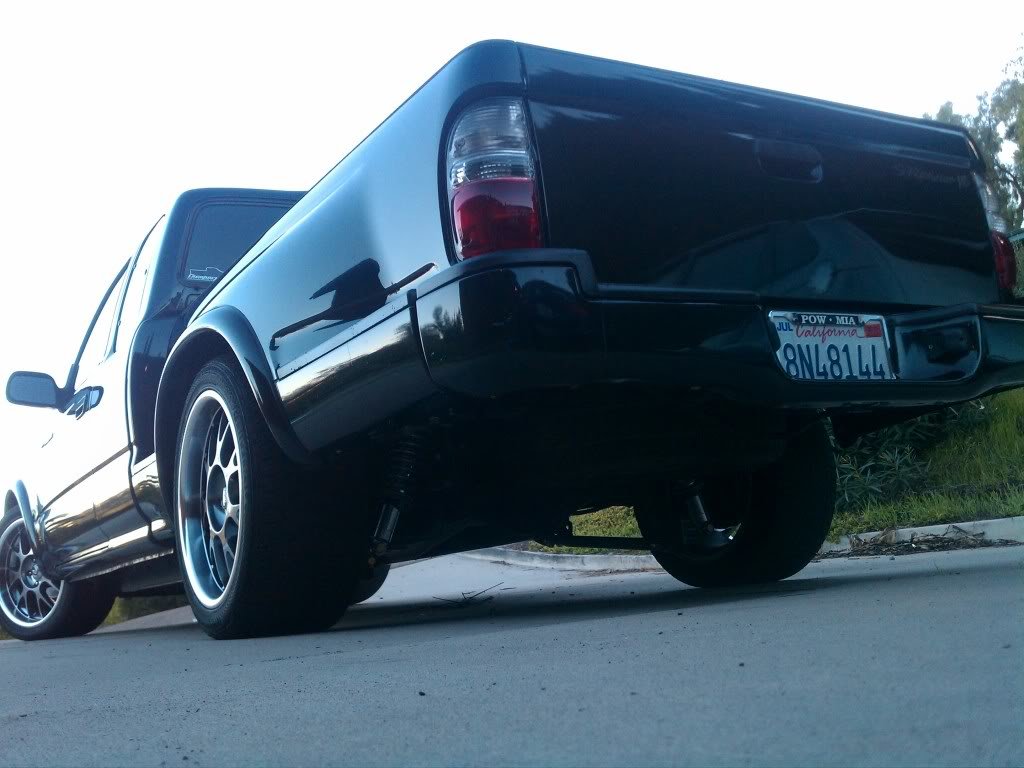

    After:



  2. Nov 3, 2010 at 1:54 PM
    #2
    mjp2

    mjp2 Living vicariously though myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    18,817
    Gender:
    Male
    First Name:
    Milton Juevos Portimous II
    NJ
    Vehicle:
    '06 TRD Access Cab, v6, 6-speed
    Scaffolding and a painted grill
    Do you have any detail shots of the upper coil mounts and that crossmember? Since the weight of the rear of the vehicle rests solely on those, I'd like to see how stout they are.

    Clean setup. :thumbsup:

  3. Nov 3, 2010 at 1:56 PM
    #3
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,015
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    2011 taco, sport 4x4
    oil change...
    sick!, now replace those C/O's with some bags :cool:

  4. Nov 3, 2010 at 1:57 PM
    #4
    blackhawke88

    blackhawke88 wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,660
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
  5. Nov 3, 2010 at 4:52 PM
    #5
    VooDooTrip

    VooDooTrip [OP] Defector

    Joined:
    Dec 17, 2008
    Member:
    #11696
    Messages:
    282
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    01' BSP S/C S-Runner
    S/C, URD fuel Upgrade, 2.2 Pulley, URD crank pulley, Truetrax locker, custom exhaust, plx, scangauge, D/P mod, amsoil drop in, 18x9.5 stern hyperblacks, ACA projectors, Grillcraft blackmesh, Performance Products valance, R/C Tails, B&M Short shifter, QA1 Coilovers all the way around, upgraded strut rod bars with heim joints, poly bushings everywhere lol, 1st model Streetacos bolt on four link!
    I do but they are all in my photobucket which I do not have access too. The link to my album is in my first post. Are you curious to type and size of metal of it?

  6. Nov 4, 2010 at 9:20 AM
    #6
    mjp2

    mjp2 Living vicariously though myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    18,817
    Gender:
    Male
    First Name:
    Milton Juevos Portimous II
    NJ
    Vehicle:
    '06 TRD Access Cab, v6, 6-speed
    Scaffolding and a painted grill
    Size, type of metal, attachment points, etc. The mounts on the frame look solid but I'm wondering about that single tube running between them.

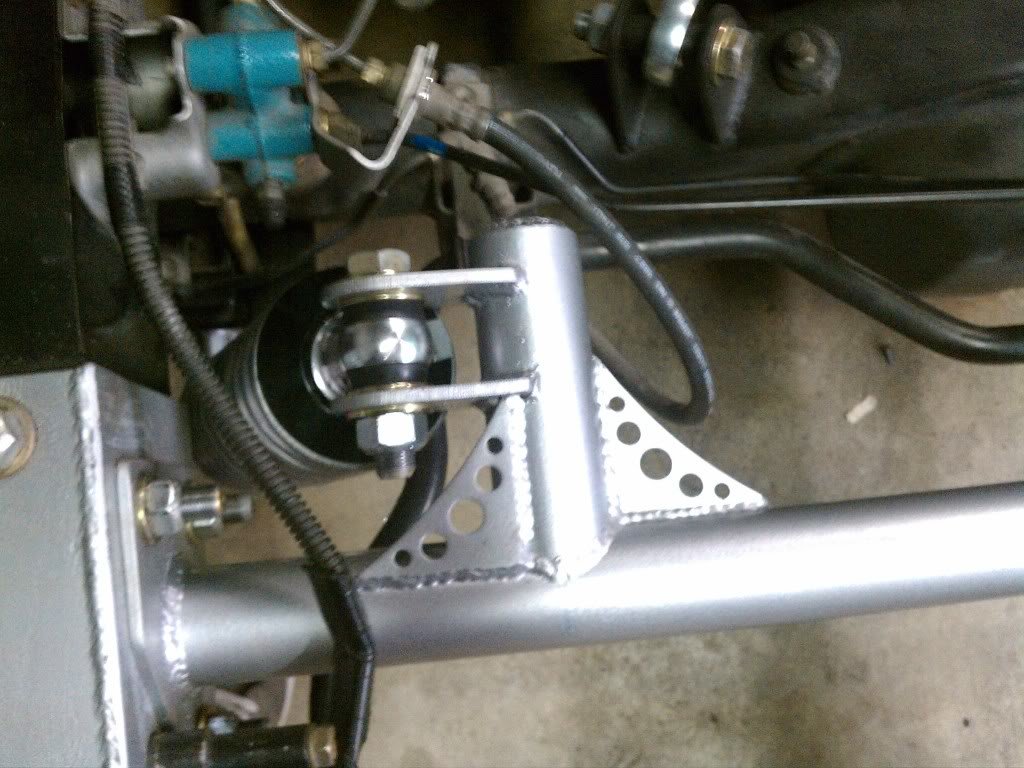

    The mounts for the coilovers are double-sheared, and I see that the tube stubs coming off the main tube are gusseted, but there's a lot of torsional force on that tube running between the frame rails. I'd like to see how that is attached and if it has anything reinforcing the attachment points.

    I'll check out the photobucket album and see what you've got posted. :)

  7. Nov 4, 2010 at 9:23 AM
    #7
    mjp2

    mjp2 Living vicariously though myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    18,817
    Gender:
    Male
    First Name:
    Milton Juevos Portimous II
    NJ
    Vehicle:
    '06 TRD Access Cab, v6, 6-speed
    Scaffolding and a painted grill
  8. Nov 4, 2010 at 2:09 PM
    #8
    Kelson

    Kelson My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,502
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    HOLY SHT IT'S REALLLLL!!!! FKN MEANNNNNNNNNNN!!!!

    was this on customtacos for awhile? i need to get back on there....

  9. Nov 4, 2010 at 4:50 PM
    #9
    VooDooTrip

    VooDooTrip [OP] Defector

    Joined:
    Dec 17, 2008
    Member:
    #11696
    Messages:
    282
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    01' BSP S/C S-Runner
    S/C, URD fuel Upgrade, 2.2 Pulley, URD crank pulley, Truetrax locker, custom exhaust, plx, scangauge, D/P mod, amsoil drop in, 18x9.5 stern hyperblacks, ACA projectors, Grillcraft blackmesh, Performance Products valance, R/C Tails, B&M Short shifter, QA1 Coilovers all the way around, upgraded strut rod bars with heim joints, poly bushings everywhere lol, 1st model Streetacos bolt on four link!
    The crossmembers are all chromoly, you'll have to figure me as I do not remember the exact diameter of the tubing or the sidewall thickness. It is pretty damn beefy though. Off the top of my head it was 1-1.5'' diameter. Btw, still on CT as a mod.

  10. Nov 4, 2010 at 4:53 PM
    #10
    VooDooTrip

    VooDooTrip [OP] Defector

    Joined:
    Dec 17, 2008
    Member:
    #11696
    Messages:
    282
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    01' BSP S/C S-Runner
    S/C, URD fuel Upgrade, 2.2 Pulley, URD crank pulley, Truetrax locker, custom exhaust, plx, scangauge, D/P mod, amsoil drop in, 18x9.5 stern hyperblacks, ACA projectors, Grillcraft blackmesh, Performance Products valance, R/C Tails, B&M Short shifter, QA1 Coilovers all the way around, upgraded strut rod bars with heim joints, poly bushings everywhere lol, 1st model Streetacos bolt on four link!
  11. Nov 5, 2010 at 3:13 PM
    #11
    VooDooTrip

    VooDooTrip [OP] Defector

    Joined:
    Dec 17, 2008
    Member:
    #11696
    Messages:
    282
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    01' BSP S/C S-Runner
    S/C, URD fuel Upgrade, 2.2 Pulley, URD crank pulley, Truetrax locker, custom exhaust, plx, scangauge, D/P mod, amsoil drop in, 18x9.5 stern hyperblacks, ACA projectors, Grillcraft blackmesh, Performance Products valance, R/C Tails, B&M Short shifter, QA1 Coilovers all the way around, upgraded strut rod bars with heim joints, poly bushings everywhere lol, 1st model Streetacos bolt on four link!
    All info updated in OP.. any questions I'll do my best to answer. This is from my all encompassing suspension thread from CT.

  12. Nov 17, 2010 at 6:35 PM
    #12
    VooDooTrip

    VooDooTrip [OP] Defector

    Joined:
    Dec 17, 2008
    Member:
    #11696
    Messages:
    282
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    01' BSP S/C S-Runner
    S/C, URD fuel Upgrade, 2.2 Pulley, URD crank pulley, Truetrax locker, custom exhaust, plx, scangauge, D/P mod, amsoil drop in, 18x9.5 stern hyperblacks, ACA projectors, Grillcraft blackmesh, Performance Products valance, R/C Tails, B&M Short shifter, QA1 Coilovers all the way around, upgraded strut rod bars with heim joints, poly bushings everywhere lol, 1st model Streetacos bolt on four link!
    Talked to the guys from QA1 today, will be getting the 300lbs springs in early Dec. :D

  13. Nov 17, 2010 at 6:38 PM
    #13
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,587
    Gender:
    Male
    First Name:
    Sean
    Colorado Springs, CO
    Vehicle:
    08 Taco 4x4 TRD OffRoad Rugged Trail
    Fox 2.5, Built right UCAs, CBI Front bumper, NWTI Rear bumper, 35s
    Thats pretty bad ass.

  14. Nov 17, 2010 at 6:44 PM
    #14
    113tac

    113tac Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18439
    Messages:
    4,704
    Gender:
    Male
    First Name:
    Stephen
    Northern Virginia
    Vehicle:
    05 4 banger
    tint 35/20 colormatched (by me) grill.
    man that is sick! awesome work. i was actually just wondering if anyone had ever done that haha

  15. Nov 17, 2010 at 6:46 PM
    #15
    HomerTaco

    HomerTaco Grill Sergeant Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    35,350
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    This is SUCH a Bad Ass Truck!
    Nice Job!:thumbsup:

  16. Nov 17, 2010 at 7:32 PM
    #16
    VooDooTrip

    VooDooTrip [OP] Defector

    Joined:
    Dec 17, 2008
    Member:
    #11696
    Messages:
    282
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    01' BSP S/C S-Runner
    S/C, URD fuel Upgrade, 2.2 Pulley, URD crank pulley, Truetrax locker, custom exhaust, plx, scangauge, D/P mod, amsoil drop in, 18x9.5 stern hyperblacks, ACA projectors, Grillcraft blackmesh, Performance Products valance, R/C Tails, B&M Short shifter, QA1 Coilovers all the way around, upgraded strut rod bars with heim joints, poly bushings everywhere lol, 1st model Streetacos bolt on four link!
    Thank-you all for the comments, beefed made my dream truck come true. :D

  17. Nov 17, 2010 at 9:57 PM
    #17
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,869
    Gender:
    Male
  18. Nov 18, 2010 at 10:52 AM
    #18
    bram

    bram Well-Known Member

    Joined:
    Oct 1, 2008
    Member:
    #9613
    Messages:
    110
    Gender:
    Male
    First Name:
    Bram
    belgium
    Vehicle:
    08 x-runner
    bedlid. custom made intake ... dt shorties and a flowtech warlock mufler lpi install and some music
    thats how the truck should been build !!!
    AWSOME mod

  19. Nov 18, 2010 at 1:09 PM
    #19
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,869
    Gender:
    Male
    now you gotta make one for the 2nd gen tacoma

  20. Dec 22, 2010 at 5:59 PM
    #20
    mitzu

    mitzu Well-Known Member

    Joined:
    Dec 12, 2010
    Member:
    #47599
    Messages:
    106
    Gender:
    Male
    First Name:
    mike
    WY
    Vehicle:
    03SRunner
    plenty
    bumpidity bump voodoo, hows the 4 link. any word from beefed on when the kit will be for sale?
