Strut Mount Issue (Huge) Please Help!

Discussion in 'Long Travel Suspension' started by cnix43, Jan 1, 2011.

  1. Jan 1, 2011 at 10:54 PM
    #1
    cnix43

    cnix43 [OP] Well-Known Member

    Joined:
    Jan 1, 2011
    Member:
    #48584
    Messages:
    54
    Gender:
    Male
    First Name:
    Christopher
    Boise Idaho
    Vehicle:
    09 BullyDog TRD
    ...Umm...
    Hey guys, I just purchased my 09 TRD Tacoma. And today I noticed that it wasn't sitting level, so after some inspection this is what I found:

    Driver' side

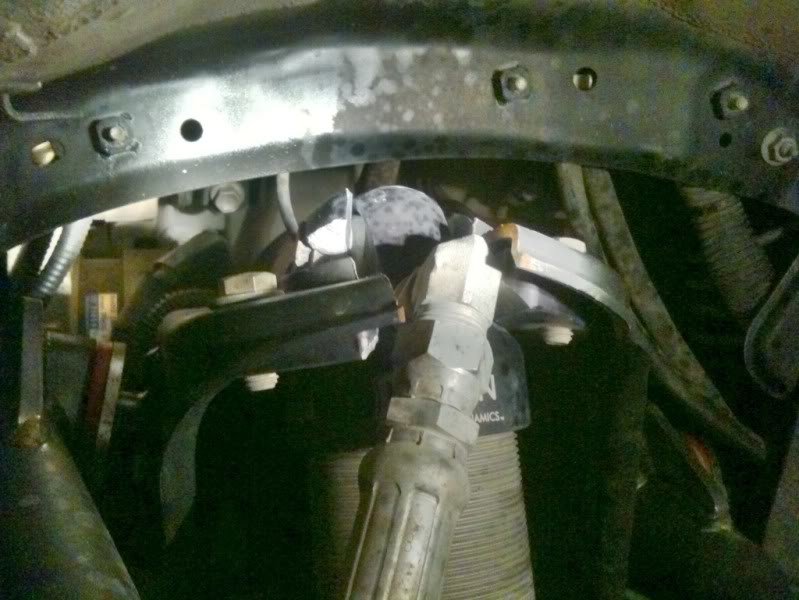

    [​IMG]

    Passenger's side

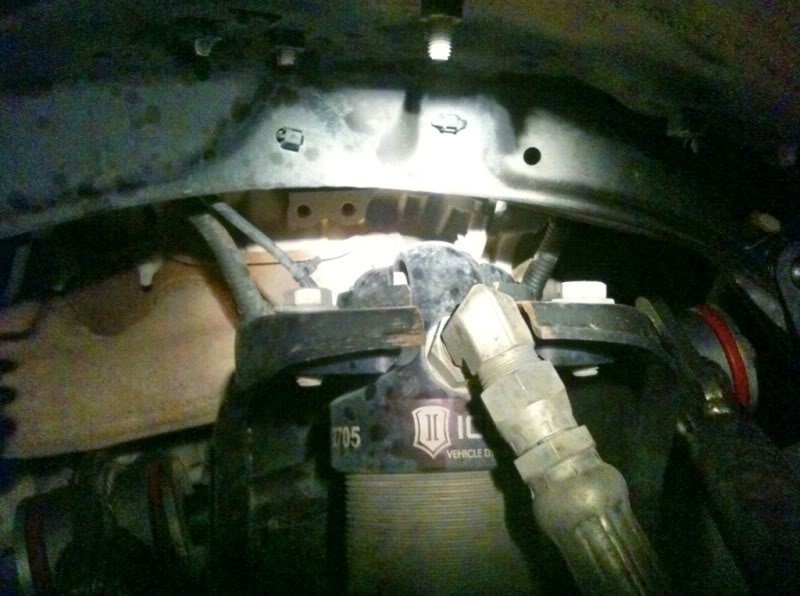

    [​IMG]

    So any advice? I'm new to the truck world, I have been a rally/cosworth/subaru/euro/ford guy until very recently. I have some pretty good automotive technical knowledge but when it comes to long travel, i'm still learning.
    Anyway, any help would be appreciated.
    Thanks,
    Chris

  2. Jan 1, 2011 at 11:03 PM
    #2
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    4,969
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk
    so im guessing you have the total chaos long travel kit. Those coilbuckets were notched for the outlets of the remote resis. I would take out those icon coilovers and try to pound the coilbucket back in shape and weld a brace in between those. Have you recently been beating on the truck.

  3. Jan 1, 2011 at 11:05 PM
    #3
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    4,969
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk

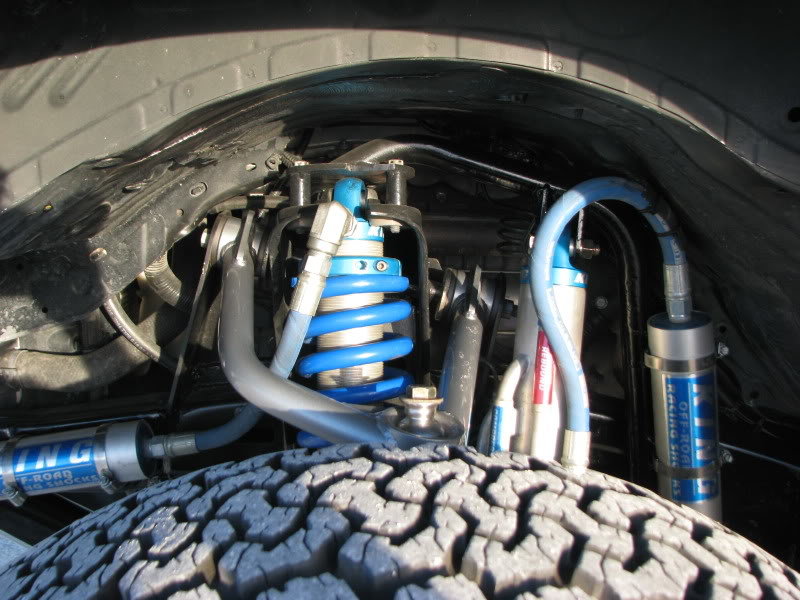

    heres some thing thats the origional shape.

    [​IMG]

  4. Jan 1, 2011 at 11:21 PM
    #4
    DWreck

    DWreck Famous Retrieval Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,135
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2004 Tacoma Smurf Truck
    Plasti-dip paint, TRD S/C, MCM Fab LT kit, bunches of my fab
    That top plate cannot be left like that. It has to be reinforced somehow. Why someone would notch that is beyond me.

  5. Jan 1, 2011 at 11:33 PM
    #5
    woody6047

    woody6047 McGrubber

    Joined:
    Nov 20, 2009
    Member:
    #26254
    Messages:
    4,696
    Gender:
    Male
    First Name:
    Beau
    Austin/ Waco Texas
    Vehicle:
    05 tacoma 4x4 dc
    100%stock, except for the exhaust leak and custom windshield crack mod
    Damn are all remote resi's like that? I just bought some Fox's and the thought of notching that is kinda no bueno....

  6. Jan 1, 2011 at 11:49 PM
    #6
    ETaco23

    ETaco23 Marshall offroad Fabrication

    Joined:
    Feb 2, 2008
    Member:
    #4544
    Messages:
    5,330
    Gender:
    Male
    First Name:
    Evan
    PNW
    Vehicle:
    13' Pyrite Mica TRD Offroad DCSB 4x4
    Color Match Grille, Bed mat, Icon's with JBA UCA's, Dakars and 295 BFG KO2, Bora 1" spacers, Snugtop Canopy, and my "Marshall Fabrication" Rock Sliders.
    looks terrible and not safe...
    Def. need to weld some sort of sapport on it. I wonder if theres another way?

  7. Jan 2, 2011 at 9:42 AM
    #7
    cnix43

    cnix43 [OP] Well-Known Member

    Joined:
    Jan 1, 2011
    Member:
    #48584
    Messages:
    54
    Gender:
    Male
    First Name:
    Christopher
    Boise Idaho
    Vehicle:
    09 BullyDog TRD
    ...Umm...
    Well as I stated in my first post, I just got the truck. Last week in fact. So NO I haven't been hard on it. I haven't even taken it off the pavement at all. And Yes, I do have the TC Long travel kit.
    This is my truck:
    http://www.longtravelzine.com/article.php?ID=2

    Anyway, I was wondering myself why the coil buckets were notched, I really doesn't seem strong at all.
    But here's a very important question that I really need answered though, can just the top (strut) mount be removed or is it permanently attached to the whole coilover?
    Because half of that one side is completely broken, and I'm trying to figure out if it needs a new top mount to the coil or a whole new coilover itself because it's not removable.
    Thanks for your help guys, I really appreciate it.

  8. Jan 2, 2011 at 9:44 AM
    #8
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    5,660
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
    That happened to me too. http://www.chaosfab.com sells a secondary shock hoop that fixes the problem, and also gives you a place to mount a second shock. Also Icon has changed their top hat design and they are much beefier now, they should send you a couple new ones if you send them those pictures.

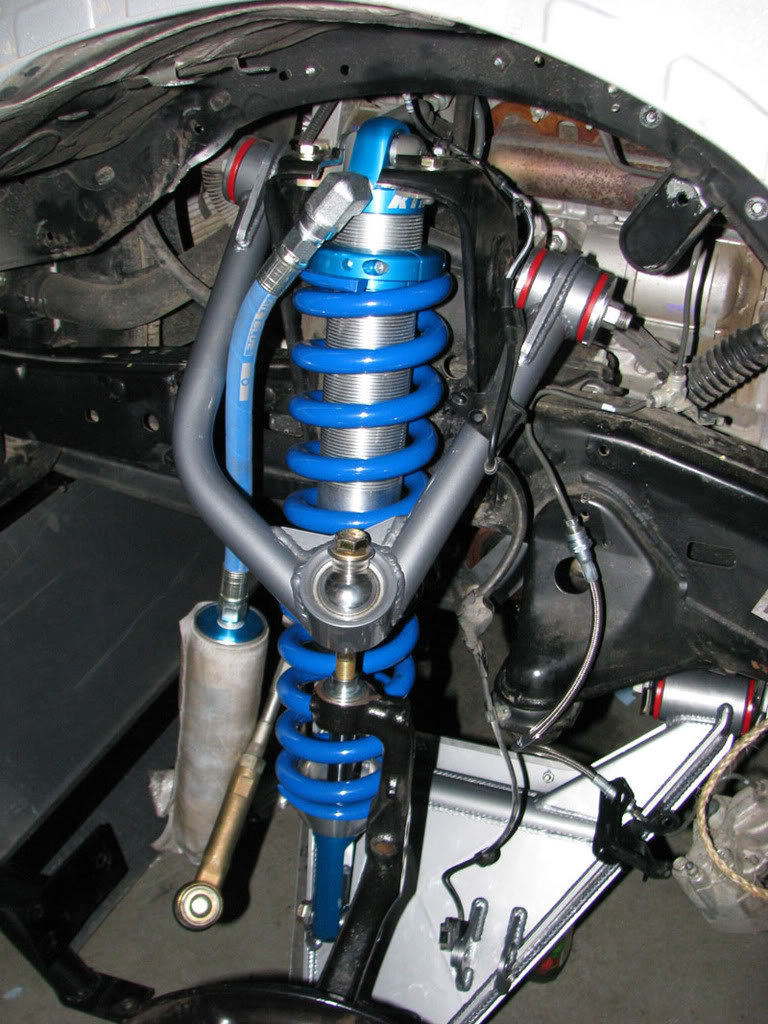

    [​IMG][​IMG]

    [​IMG]

  9. Jan 2, 2011 at 9:47 AM
    #9
    jr114

    jr114 Well-Known Member

    Joined:
    Nov 18, 2009
    Member:
    #26147
    Messages:
    1,176
    Gender:
    Male
    First Name:
    Jon
    SoCal
    Vehicle:
    Truck
    Icon Ext travel CO, Icon tubular uniball UCAs, Maxtrac Spindles, Icon RR rear w 2"aal.
    In your first pic it also looks like there is an issue with the top plate on the coilover. Looks like it has been bent up along with the mount. Try to post some more pics if you can

  10. Jan 2, 2011 at 10:00 AM
    #10
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,180
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    [​IMG]

    Why are these COs requiring notching the coil bucket? Is this some long-travel exclusive headache?

  11. Jan 2, 2011 at 10:04 AM
    #11
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    5,660
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
    No, but it is a reservoir specific headache. The hose hits the bucket if you don't notch it. I ended up flipping my hats over to match the stroke of the kings, but it means you need extended bumps in order to prevent bottoming.

  12. Jan 2, 2011 at 10:05 AM
    #12
    woody6047

    woody6047 McGrubber

    Joined:
    Nov 20, 2009
    Member:
    #26254
    Messages:
    4,696
    Gender:
    Male
    First Name:
    Beau
    Austin/ Waco Texas
    Vehicle:
    05 tacoma 4x4 dc
    100%stock, except for the exhaust leak and custom windshield crack mod
    Thats what i wanna know, i just bought some fox CO's and i dont wanna notch shit

  13. Jan 2, 2011 at 10:15 AM
    #13
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,180
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    Not with late model Icons it isn't.

  14. Jan 2, 2011 at 10:15 AM
    #14
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    5,660
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
    Unscrew the resi hose (discharge nitrogen first) and cap it off and you won't have to notch shit. It's only to make room for the res hose, and if you flip the top hat and extend the bumps you can do it without notching, but I assure you if you go hard you will still bend the coil bucket. TC secondary shock hoops with a tube between the pass and drivers side (basic engine cage) and you won't have any problems. Everyone does shit the fast way instead of the "right" way and ends up crying when shit breaks.

  15. Jan 2, 2011 at 10:17 AM
    #15
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    5,660
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
    You're saying the hose doesn't hit? I couldn't even get mine bolted in they rubbed so bad, I tried it without notching and it was a no go.

  16. Jan 2, 2011 at 10:30 AM
    #16
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,180
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    I haven't notched my buckets. I'm running part # ICO-5-8735 found here:
    http://www.iconvehicledynamics.com/...-Remote-Reservoir-Front-Coil%2dover-Shock-Kit

    No rubbing. You made me nervous so I just went out and checked...the JIC fitting is VERY close in tolerance, but I cut a strip out of an index card and was able to slide it between the fitting and the roof of the coil bucket. It clears.

    Also, Icon's installation instructions say nothing about notching the coil bucket.

    Looks like either Icon or Toyota changed something in the past few years.

  17. Jan 2, 2011 at 10:32 AM
    #17
    06HAOLE

    06HAOLE Well-Known Member

    Joined:
    Jan 4, 2008
    Member:
    #4102
    Messages:
    2,955
    Gender:
    Male
    Sherman Oaks, CA
    I have too many pics on the net:D

    Here is my set-up now with the shock hoop and coil over bucket gussets. A few hundred in buying pre-fabbed gussets or taking the time to make your own are priceless compared to the costs/time incurred to repairing damage to unreinforced coil buckets. Engine cage needs to happen for me as well to really give me peace of mind.

    [​IMG]

  18. Jan 2, 2011 at 10:36 AM
    #18
    06HAOLE

    06HAOLE Well-Known Member

    Joined:
    Jan 4, 2008
    Member:
    #4102
    Messages:
    2,955
    Gender:
    Male
    Sherman Oaks, CA
    Yup

  19. Jan 2, 2011 at 10:37 AM
    #19
    woody6047

    woody6047 McGrubber

    Joined:
    Nov 20, 2009
    Member:
    #26254
    Messages:
    4,696
    Gender:
    Male
    First Name:
    Beau
    Austin/ Waco Texas
    Vehicle:
    05 tacoma 4x4 dc
    100%stock, except for the exhaust leak and custom windshield crack mod
    Im probably going to be bringing my truck to yall to get some help with my CO's in February.

  20. Jan 2, 2011 at 10:39 AM
    #20
    06HAOLE

    06HAOLE Well-Known Member

    Joined:
    Jan 4, 2008
    Member:
    #4102
    Messages:
    2,955
    Gender:
    Male
    Sherman Oaks, CA
    Are you running a LT set-up or just a bolt in coil over. Icon's bolt in coil over may have been specifically made so you dont have to notch anything. The longer LT coil over shock may not have the exact same 90 degree dimensions. They just spent the extra time for a vehicle specific configuration. Thats one of many things I really like about Icon.
