Super Ultimate 3rd Brake Light Build

Discussion in '3rd Gen. Tacomas (2016+)' started by mesojdm, Nov 30, 2017.

  1. Apr 12, 2019 at 2:13 PM
    #2181
    Nv2056

    Nv2056 Hunt, fish, trap, repeat

    Joined:
    Jan 23, 2019
    Member:
    #280374
    Messages:
    49
    Gender:
    Male
    Rural Nevada
    Vehicle:
    17 DCSB TRD OR
    Icon suspension stage 3 with Toyo MT 255 85 16
    My BD4 arrived this week, thank you guys!

  2. Apr 13, 2019 at 6:55 AM
    #2182
    Tacoma1845

    Tacoma1845 Well-Known Member

    Joined:
    Jun 13, 2018
    Member:
    #256302
    Messages:
    267
    Gender:
    Male
    First Name:
    Anthony
    Central Virginia
    Vehicle:
    2018 Tacoma TRD Sport DCLB (Inferno- Premium/Tech)
    @mesojdm Thanks man, It looks awesome!Tacoma.jpg

    1bad2k likes this.
  3. Apr 13, 2019 at 7:04 AM
    #2183
    Tacoma1845

    Tacoma1845 Well-Known Member

    Joined:
    Jun 13, 2018
    Member:
    #256302
    Messages:
    267
    Gender:
    Male
    First Name:
    Anthony
    Central Virginia
    Vehicle:
    2018 Tacoma TRD Sport DCLB (Inferno- Premium/Tech)
    Great job man. The only part I was dreading was the headliner removal, but you just made this mod a lot easier. Thanks man.

    Cav_BluTRD likes this.
  4. Apr 13, 2019 at 2:10 PM
    #2184
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    1,706
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2018 Tacoma DCLB OR (AT) - MGM
    2018 SR5 - (Sold) 2018 OR (or what?) Louisiana Edition
    Anybody want to send me the factory harness/connector they cut off when they did this mod?
    I’ll PayPal F&F for shipping...
    Just send me a PM (so as not to clutter thread).

  5. Apr 13, 2019 at 6:17 PM
    #2185
    whitetaco97

    whitetaco97 Well-Known Member

    Joined:
    Mar 21, 2016
    Member:
    #181939
    Messages:
    315
    Gender:
    Male
    First Name:
    Tyger
    Vehicle:
    2017 White TRD sport
    What’s the eta on the rest of them shipping

  6. Apr 13, 2019 at 6:18 PM
    #2186
    mesojdm

    mesojdm [OP] Major Modder

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    12,171
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    The second half went out Friday. I have 9 housings(out of 100) that did not pass my QC, so I am reprinting them Monday.

  7. Apr 13, 2019 at 6:52 PM
    #2187
    elizer91

    elizer91 Active Member

    Joined:
    Mar 13, 2016
    Member:
    #181149
    Messages:
    31
    Gender:
    Male
    First Name:
    randolf
    Vehicle:
    2016 tacoma
    When's the new batch

  8. Apr 14, 2019 at 2:41 AM
    #2188
    MaukatoMakai4V6tacoma

    MaukatoMakai4V6tacoma Active Member

    Joined:
    Dec 6, 2016
    Member:
    #204179
    Messages:
    34
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2016 4V6 DCLB TRD Sport heavy hitter
    One of those nine must be mines :fingerscrossed::fingerscrossed:

    Sam275 likes this.
  9. Apr 14, 2019 at 6:20 AM
    #2189
    sonic77

    sonic77 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70696
    Messages:
    317
    Gender:
    Male
    First Name:
    Justin
    Peoria IL.
    Vehicle:
    2013 Magnetic Grey 4x4 TRD
    None Yet!
    Thank you for your attention to detail can’t wait to see mine!

  10. Apr 14, 2019 at 8:04 AM
    #2190
    ShadyCoh

    ShadyCoh Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265200
    Messages:
    175
    Gender:
    Male
    Burnet, Tx
    if its just surface problems are you going to list them for sale as blems to guys that plan on sanding and painting them.


    PapaRee likes this.
  11. Apr 14, 2019 at 8:17 AM
    #2191
    PapaRee

    PapaRee And now I'll do what's best for me

    Joined:
    Oct 31, 2015
    Member:
    #168275
    Messages:
    386
    Gender:
    Male
    First Name:
    Kreg
    Prairieville, Louisiana
    Vehicle:
    2016 Black TRD Sport DCSB OVTUNED
    OVTune, GTS Dobinson’s suspension lift, Raceline Assault 18x9 -6 Offset wheels, Bfg KO2 275/65/18 tires, Backflip G2 bed cover, Magnaflow exhaust, Pro grille, predator side steps, tinted windows, ProTuning Black HID headlights, LED Lexus fogs, LED interior lights, LED reverse lights, LED license plate lights, Tacoma tailgate 3D letters, removed air dam, Custom TRD Sport emblems.
    That’s a great idea!
    @mesojdm Sell them half off. Like you did all the other blems. I’d buy one

    FloBass likes this.
  12. Apr 14, 2019 at 10:30 AM
    #2192
    Boomer3731

    Boomer3731 Well-Known Member

    Joined:
    Aug 22, 2016
    Member:
    #195239
    Messages:
    305
    Gender:
    Male
    First Name:
    Ryan
    CO
    Vehicle:
    2017 DCSB TRD Sport
    Got my light harness wrapped up. Waiting on NMO parts.
    [​IMG]

  13. Apr 14, 2019 at 10:44 AM
    #2193
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,446
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    Got mine installed. I will be ordering a 3/8 NMO at a future date. I also did not wire up the white LEDs yet either, as I don’t have time to pull the headliner and run wires this weekend/too lazy to go through pulling all the interior panels to do it right. So I’ll just tackle it all at one time later. Anyway, pics:

    Installed a new DIY gasket (EPDM rubber)

    KC connections crimped and added to male connector:


    New female OEM connector after cutting off old:


    I couldn’t find plain 3/4” hole caps at local Ace hardware so I went with 3/4” diameter snapping bolt caps which I think look really good and clean.

    Will also be getting some anodized aluminum M3 bolts for the KC’s.

    Personal feedback on the install:
    The KC lights don’t have much in regards to wire length, and soldering in a new length of wire is in my eyes adding another potential failure point, and same goes for their included connectors, so I just worked with what I had. This meant it took a little bit of tugging either way to move the white end KC’s to get to the OEM mounting screws with a screwdriver when it came time to mount to the truck.

    Maveric likes this.
  14. Apr 14, 2019 at 1:37 PM
    #2194
    ryanl2425

    ryanl2425 Well-Known Member

    Joined:
    Nov 21, 2015
    Member:
    #170334
    Messages:
    187
    Gender:
    Male
    First Name:
    Ryan
    Oakland, CA
    Vehicle:
    2015 MGM Tacoma DCSB
    Got any 2nd gen KC that we can buy b-stock?

  15. Apr 14, 2019 at 2:20 PM
    #2195
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    1,706
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2018 Tacoma DCLB OR (AT) - MGM
    2018 SR5 - (Sold) 2018 OR (or what?) Louisiana Edition
    These can also be found at HomeDepot and Lowes in the “Specialty” drawers section as well (If your store has the drawers, as the trend is to remove them).

  16. Apr 14, 2019 at 3:48 PM
    #2196
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,446
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    That’s where I looked. Unfortunately my local Home Depot sucks total ass. Ace has always had what I needed or something close enough, and you don’t get bent over on metric hardware like HD or Lowes

  17. Apr 14, 2019 at 4:58 PM
    #2197
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    1,706
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2018 Tacoma DCLB OR (AT) - MGM
    2018 SR5 - (Sold) 2018 OR (or what?) Louisiana Edition
    Oh, don’t misunderstand... I support my local Ace/TrueValue 100%. I just wanted to offer additional info for those who may have something different in their backyard.

  18. Apr 14, 2019 at 5:09 PM
    #2198
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,446
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    Oh no I’m not saying you don’t, sorry that’s lost in my text. I’m just frustrated my HD that is literally a 1/4 mile from my house sucks so bad. They literally didn’t even have GE Silicone II which I just didn’t understand. And didn’t have any stainless metric hardware in the sizes I needed. I usually prefer Lowes but the nearest one is 25 min away.

    However I actually like the bolt caps I ended up with than the 3/4” Hillman plugs. The bolt caps sit recessed down in the light.

    NoOne likes this.
  19. Apr 15, 2019 at 1:11 PM
    #2199
    stiles88

    stiles88 Well-Known Member

    Joined:
    May 15, 2018
    Member:
    #253552
    Messages:
    301
    Gender:
    Male
    Seattle
    Vehicle:
    2018 Cement TRD Off Road

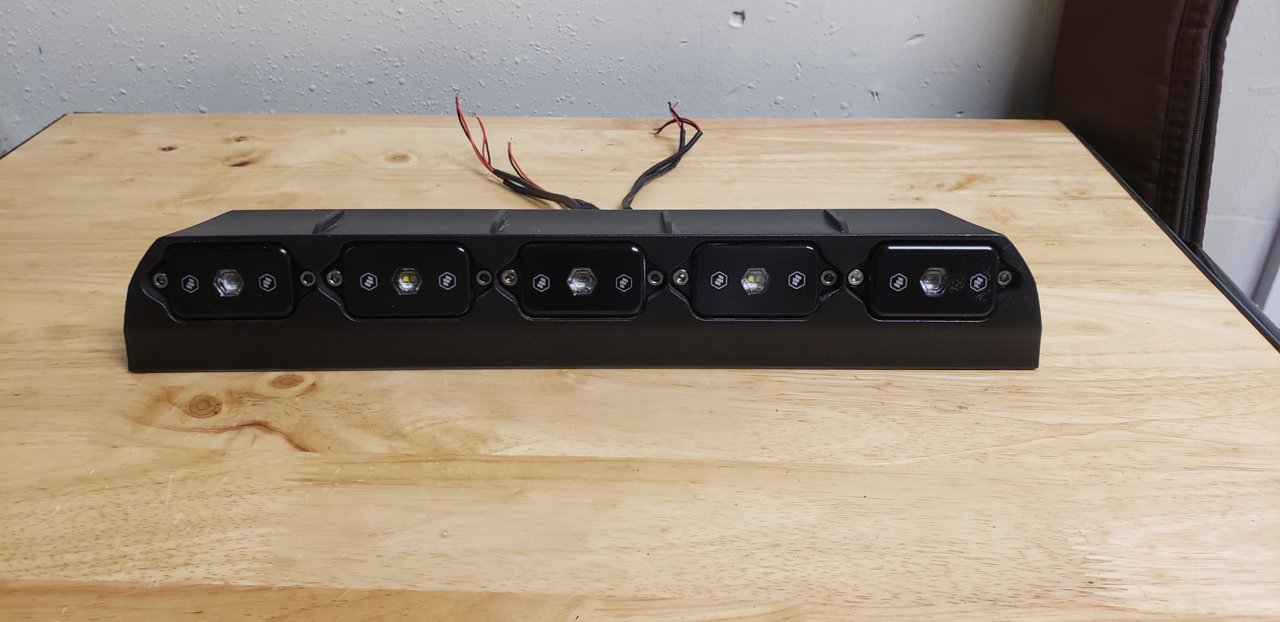

    What is the hardware size for the BD models? The hardware that came with the BD lights is not screwing into the individual holes in the housing.

    I am also having issues routing the wiring through the housing. I got the middle one through after I stripped off some of the heat shrink on the BD wiring, but I have no idea how I'll get the wiring from the two outer lights since there is not really access back there.

  20. Apr 15, 2019 at 1:27 PM
    #2200
    mesojdm

    mesojdm [OP] Major Modder

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    12,171
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    i Made the holes for BD hardware slightly undersized so all you have to do is put pressure as it self threads into the plastic. The 2 outside wire holes are a little tricky for routing. I suggest a coat hanger or bendable solder to fish though first

    74cam and stiles88 like this.
