Super Ultimate 3rd Brake Light Build

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Nov 30, 2017.

  1. Jun 28, 2019 at 5:43 PM
    #2621
    Tacospike

    Tacospike Go Away

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    1,117
    Gender:
    Male
    Austin, TX
    Vehicle:
    2016 BLK TRD Sport DCSB
    Spiked hood
    I’d leave the reds but that’s just my option. I’m sure if you do it will look great. A little curious about output de-ratings (if applicable at all) but looks slick and a more one off one of a kind detail mod. Props for that.

    photoguy190 likes this.
  2. Jun 28, 2019 at 5:52 PM
    #2622
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    2,356
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR
    No derate. Only the PCB is painted. LED and lens are OEM.

    Tacospike likes this.
  3. Jun 28, 2019 at 6:04 PM
    #2623
    Tacospike

    Tacospike Go Away

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    1,117
    Gender:
    Male
    Austin, TX
    Vehicle:
    2016 BLK TRD Sport DCSB
    Spiked hood
    Makes sense. Just wondering if de/reflection output had an account or variable for this output factor.

    Skydvrr likes this.
  4. Jun 29, 2019 at 2:09 AM
    #2624
    KnckleChldrn

    KnckleChldrn Well-Known Member

    Joined:
    Dec 31, 2017
    Member:
    #239864
    Messages:
    347
    Gender:
    Male
    First Name:
    Jamie
    Mass
    Vehicle:
    2017 Tacoma TRD Sport DCSB MT
    Kicker tweeters Hondo Garage stereo knobs Hondo Garage un-Holley mount MESO ultimate red map lights MESO ultimate red dome MESO gasshole SpartanXCustoms scoop light Baja Designs Squadron Sports fogs (amber) Baja Designs Squadron Pro ditch (amber) 300 Industries grill Bakflip Fibermax cover K&N air intake
    Hex looks awesome! Kind of glad I’ve been too busy to install. Highly likely I’ll be selling my bd4 w/ camera. If anyone is interested pm me

  5. Jun 29, 2019 at 8:35 AM
    #2625
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    13,422
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    The HEX9 will be much more user configurable and customizable. I plan to make inserts so you can either delete a light or convert it over to a camera for example. The best part is going to be the price. I am targeting the whole package (housing, 9 LED lights, OEM harness, etc) in the ~$200 range.

    mtip, Tommyb08, dskakie and 20 others like this.
  6. Jun 29, 2019 at 9:00 AM
    #2626
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    2,356
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR
    I think u had a typo last time and said 20, I was like hell yeah! I'll take 4!

    Tommyb08 and Tacospike like this.
  7. Jun 29, 2019 at 9:35 AM
    #2627
    Tacospike

    Tacospike Go Away

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    1,117
    Gender:
    Male
    Austin, TX
    Vehicle:
    2016 BLK TRD Sport DCSB
    Spiked hood
    Hell yeah!!! I would say this would complete my entire lighting set up for my truck, but who knows what the new thing will be from Meso in like two months. Just keep upgrading to new and selling the old.
    Hahahaha. That would be sweet, I think it was just the light though ;)

  8. Jun 29, 2019 at 9:40 AM
    #2628
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    13,422
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    That’s the target price for individual LED pods

    Knapz, Naughty, Maveric and 1 other person like this.
  9. Jun 29, 2019 at 10:15 AM
    #2629
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    2,356
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    Ahhh I see.

  10. Jun 30, 2019 at 1:29 PM
    #2630
    photoguy190

    photoguy190 Well-Known Member

    Joined:
    Feb 16, 2012
    Member:
    #72950
    Messages:
    122
    Gender:
    Male
    First Name:
    James Goff
    Middle TN

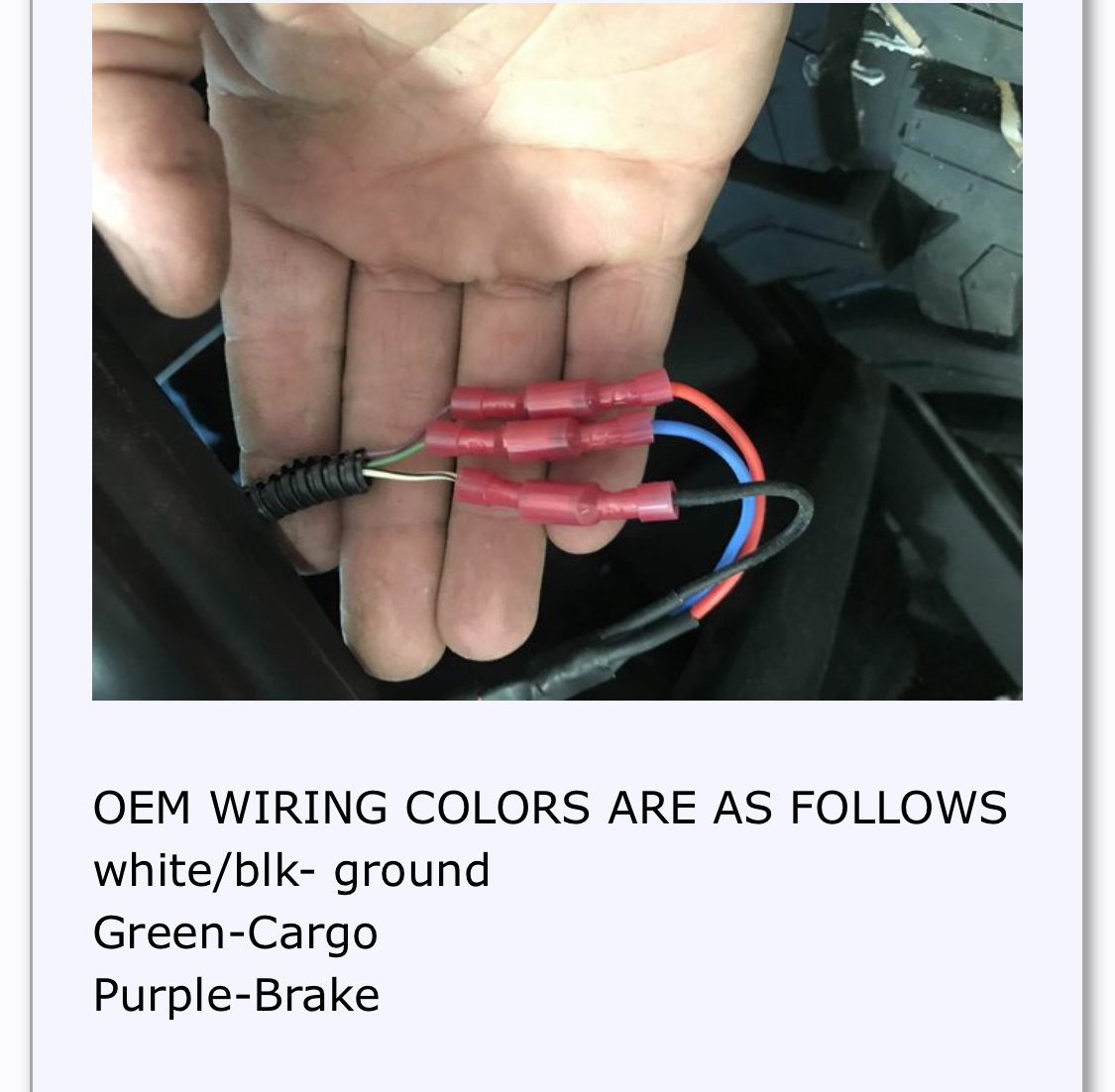

    What a project. Had fun with the wiring. Lining it all up was the hardest part for me. Ended up putting s bead of silicon around the whole thing to make me fell better. Love the end result


    mtip, Atl_taco_, BOMBS and 6 others like this.
  11. Jun 30, 2019 at 1:32 PM
    #2631
    FishnTx

    FishnTx Father of the one they call Asher

    Joined:
    Mar 22, 2017
    Member:
    #214004
    Messages:
    1,221
    Gender:
    Male
    South East Texas
    Vehicle:
    ‘17 Trd 4x4 OR
    trd pro grille, pro tail lights, baja designs wide corner fogs ,ditch pro spots, v led micro headlight v led turn signals, all brand new painted gloss black badges all rockford audio 2x t2 components t 600 x4 with cap and 360.3 processor sound deadened doors and back cab with custom box( 2 t1s1 10s )t500 per sub, total chaos bed stiffeners, sliders coming soon, jack mount , ax and shovel mount rod holder mount numerous meso mods...
    Still waiting on my bd4 to comeback from paint :annoyed:

  12. Jun 30, 2019 at 1:43 PM
    #2632
    DiamondW

    DiamondW Stockblocker

    Joined:
    Feb 1, 2019
    Member:
    #281480
    Messages:
    1,576
    Gender:
    Male
    First Name:
    Kent
    Gonzales Co. TX
    Vehicle:
    08 White DCSB TRD OR
    If anyone wants to let go of a BD3 NMO hit me up.

  13. Jun 30, 2019 at 2:51 PM
    #2633
    FishnTx

    FishnTx Father of the one they call Asher

    Joined:
    Mar 22, 2017
    Member:
    #214004
    Messages:
    1,221
    Gender:
    Male
    South East Texas
    Vehicle:
    ‘17 Trd 4x4 OR
    trd pro grille, pro tail lights, baja designs wide corner fogs ,ditch pro spots, v led micro headlight v led turn signals, all brand new painted gloss black badges all rockford audio 2x t2 components t 600 x4 with cap and 360.3 processor sound deadened doors and back cab with custom box( 2 t1s1 10s )t500 per sub, total chaos bed stiffeners, sliders coming soon, jack mount , ax and shovel mount rod holder mount numerous meso mods...
    Any one know the size / length of the Allen screws , that come with the bd rock lights?

    hirod likes this.
  14. Jun 30, 2019 at 3:58 PM
    #2634
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    2,356
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    What connectors didja use?

  15. Jun 30, 2019 at 4:12 PM
    #2635
    MoofTaco

    MoofTaco Well-Known Member

    Joined:
    Feb 6, 2017
    Member:
    #209853
    Messages:
    97
    Gender:
    Male
    First Name:
    Joe
    Roseville, CA
    Vehicle:
    2017 Silver Tacoma TRD Sport 4x4
    Dreaming of the Hex9. If I’m lucky enough to grab one I’ll sell my BD5 to someone for cost. :fistbump:

    Tacospike likes this.
  16. Jul 1, 2019 at 7:20 AM
    #2636
    photoguy190

    photoguy190 Well-Known Member

    Joined:
    Feb 16, 2012
    Member:
    #72950
    Messages:
    122
    Gender:
    Male
    First Name:
    James Goff
    Middle TN
  17. Jul 1, 2019 at 11:09 AM
    #2637
    pop.tremuloides

    pop.tremuloides Wheeling, Fly Fishing, Camping, shooting!

    Joined:
    Dec 10, 2018
    Member:
    #275450
    Messages:
    894
    Gender:
    Male
    First Name:
    Mike
    Colorado
    Vehicle:
    2019 TRD OR DCSB
    DBACK HD, DMM, lights, Armor

    Holy crap! Easy explanation!

    I would add that the nuts mentioned in step 8 are 10mm.

    It wasn’t hard once I dropped the rear of the headliner. I used a 1/4” drive with a small extension. The deep socket is a must to get over the post.

    I did manage to lose one nut but a dab of silicone on my finger made it stick so I could get it back.

    In retrospect, I would probably put some tape in the socket or rubber cement so that I wouldn’t lose the nut.

    Edit: so if you do happen to lose a nut, once you have removed the 3rd brake light you have way better access to retrieving it as long as it hasn’t traveled too far.

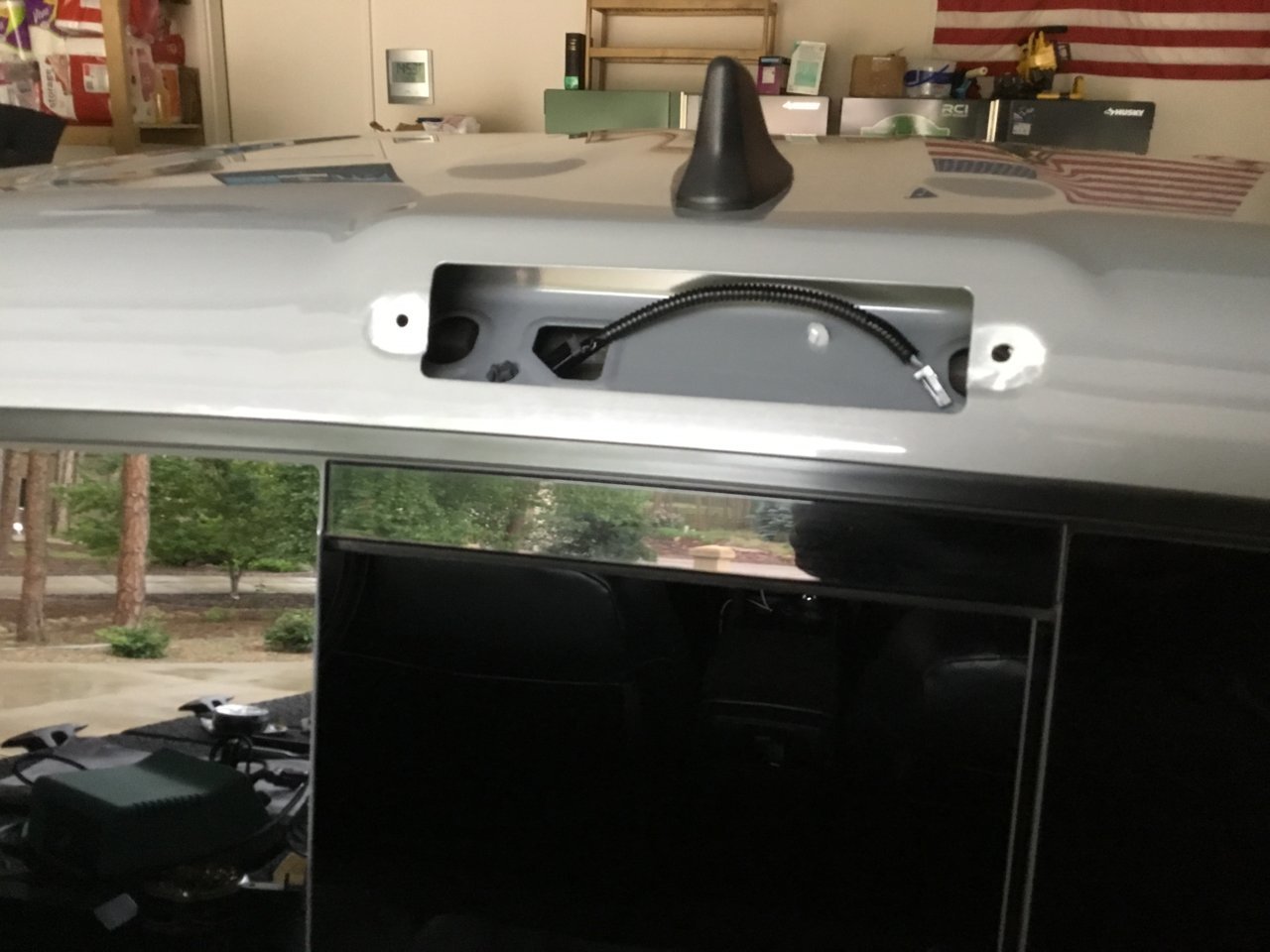

    The oval hole is where the posts and nut go. It is relatively flat for several inches either direction so you can probably snag a lost nut. ;)

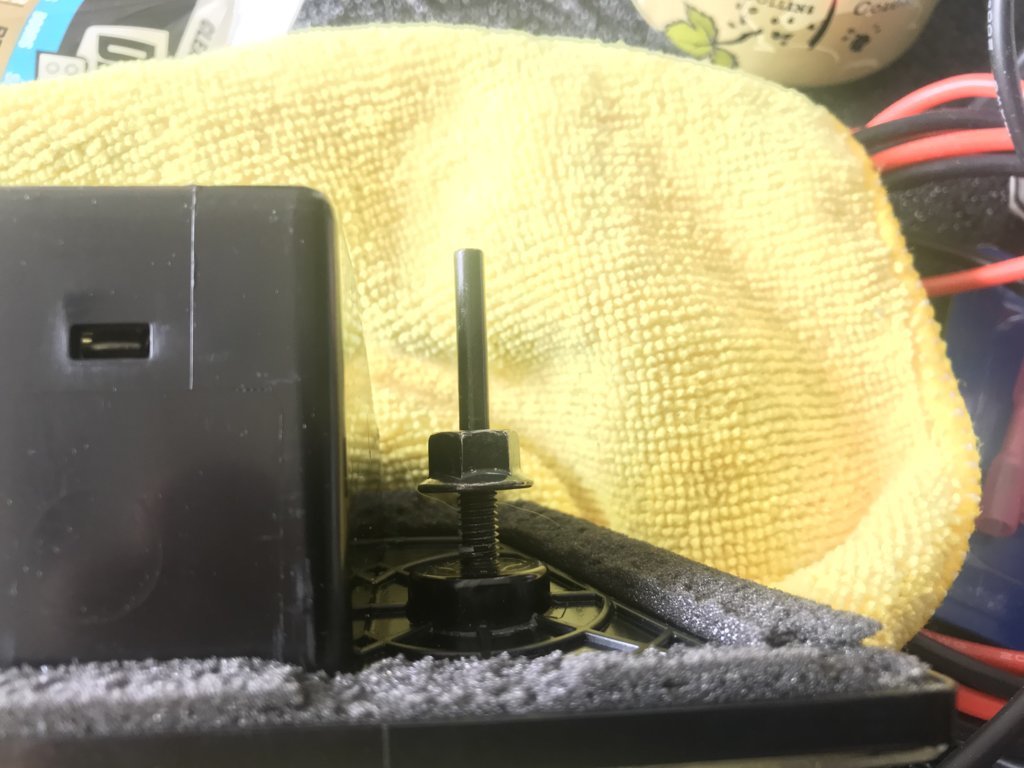

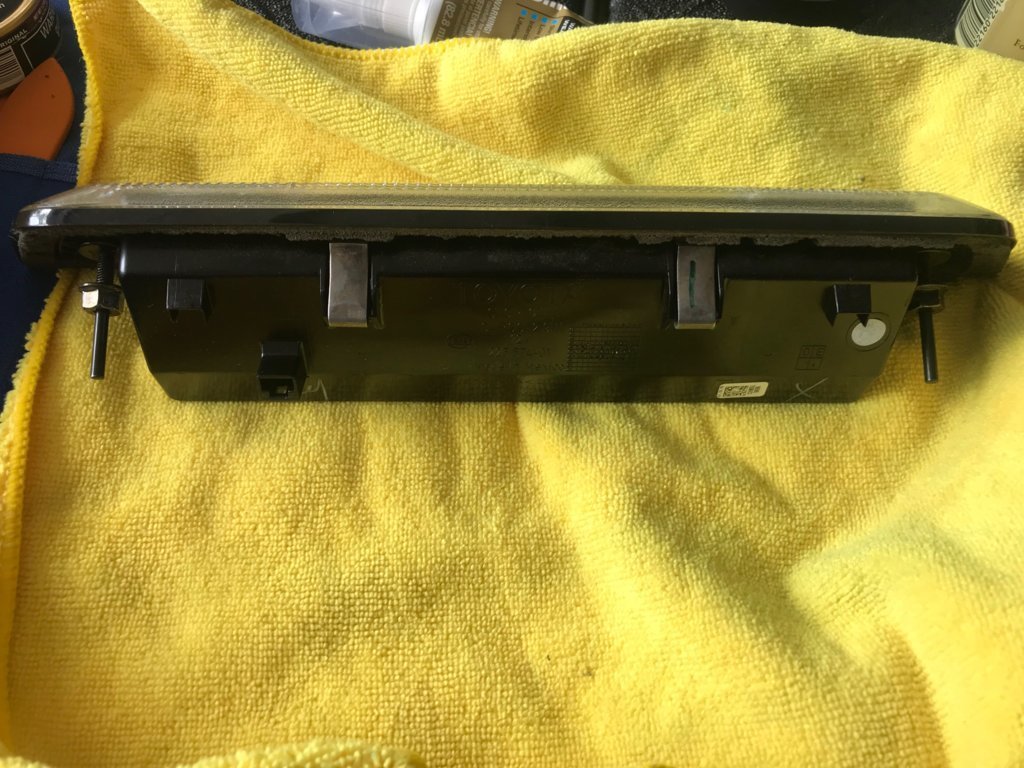

    Here is what the removed brake light looks like. You can see the posts and the 10mm nut. It was not tightened down for me and it came off easily.



    ONWARD!

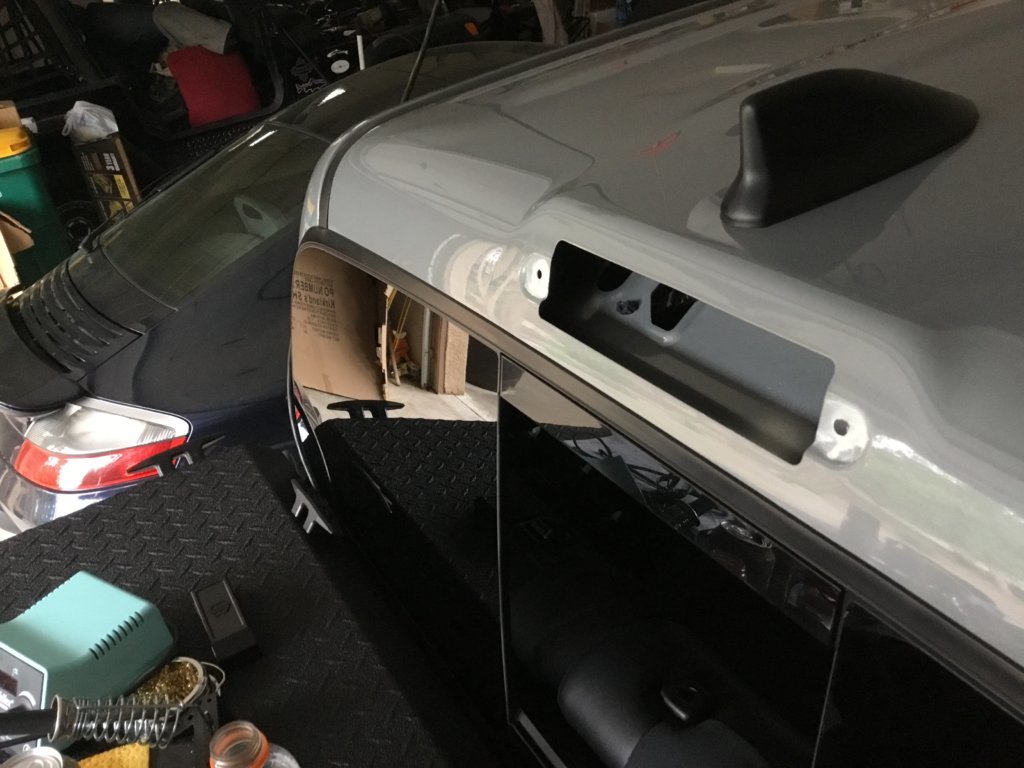

    Cleaned up the sealant...used acetone from another build...this took a little while.

    Removed the foam and adhesive.

    Thanks @MESO for the “blemished” BD5....went with primer filler and then a duplicolor rock guard coating. $17 bucks well spent.

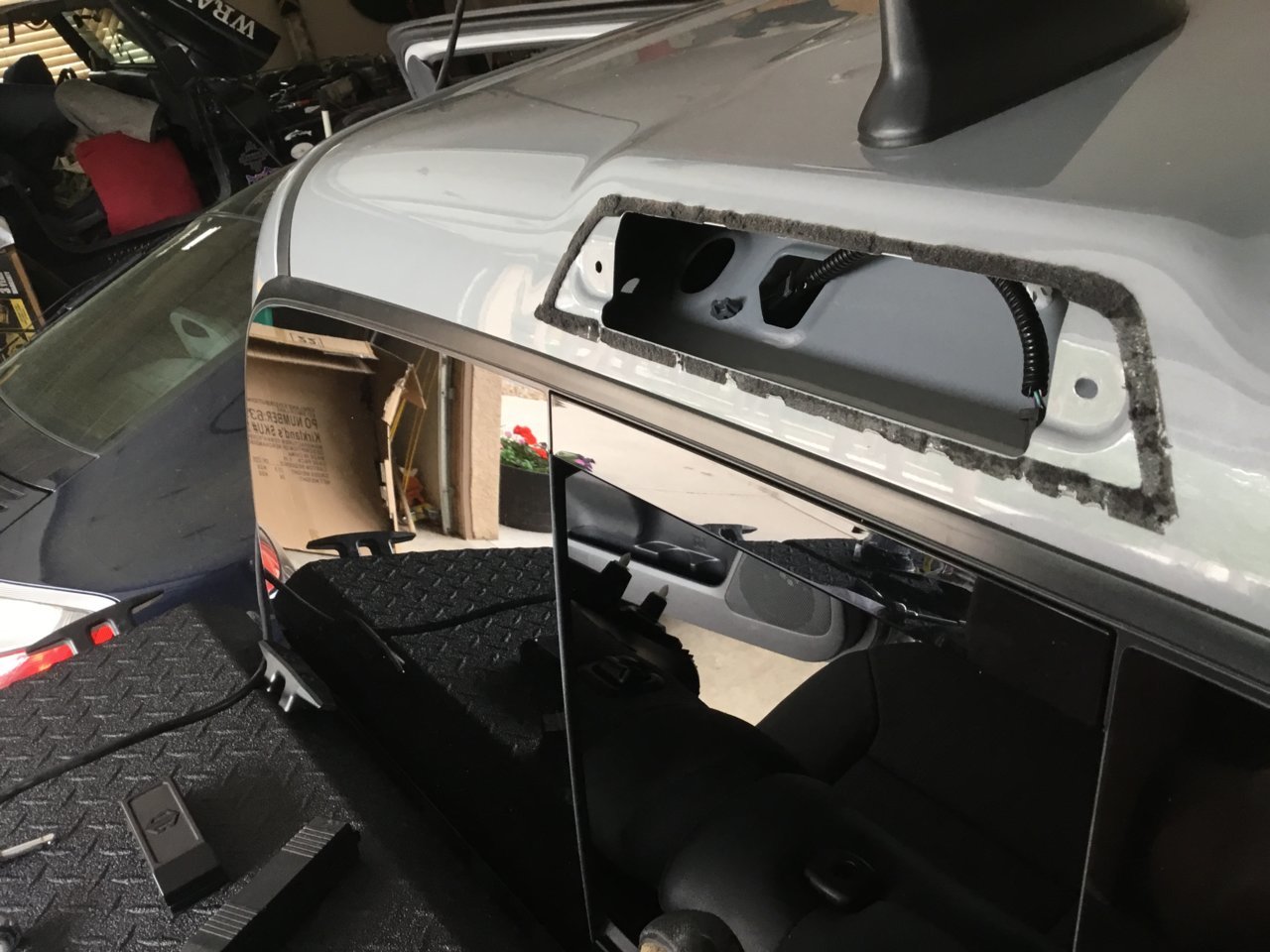

    Here is a shot before the soldering and old adhesive cleaned off with acetone then a wipe down.

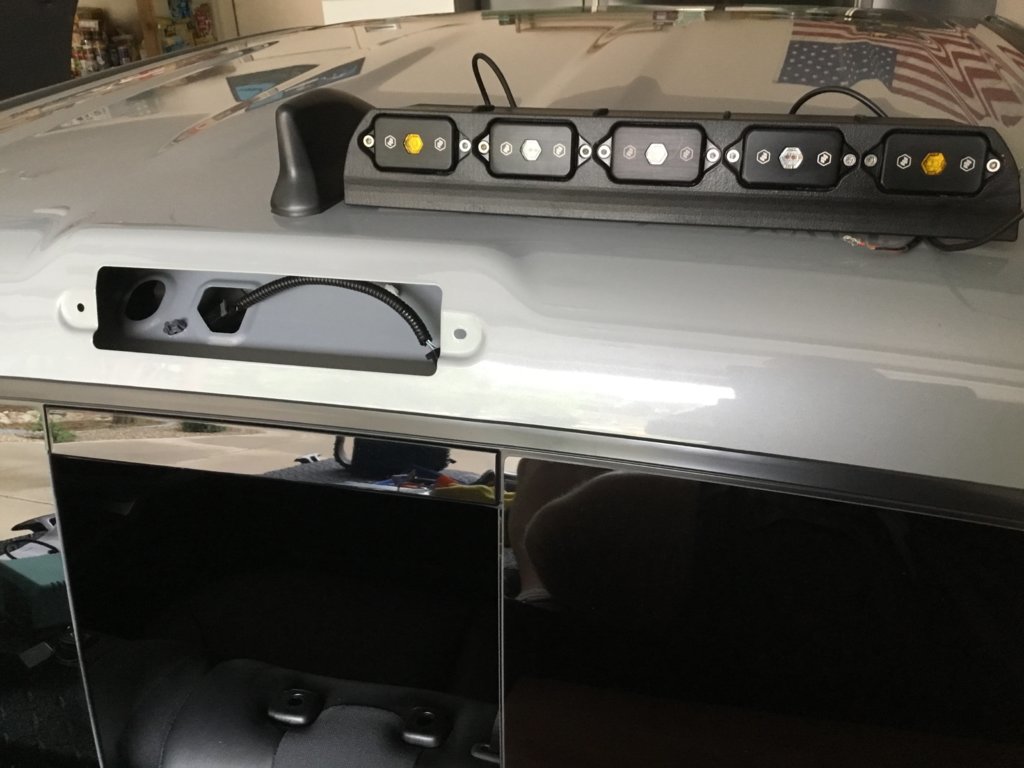

    As some people have stated the attachment bolts are a tiny, and I say, tiny bit smaller than the 2019 OR holes. I simply drilled them a tad bit and sprayed with primer..

    Here’s the shot.






    Thanks again for the well written explanation @NoOne


    Attached Files:

    Last edited: Jul 1, 2019
    FishnTx, Inferno__Taco and NoOne like this.
  18. Jul 1, 2019 at 11:44 AM
    #2638
    pop.tremuloides

    pop.tremuloides Wheeling, Fly Fishing, Camping, shooting!

    Joined:
    Dec 10, 2018
    Member:
    #275450
    Messages:
    894
    Gender:
    Male
    First Name:
    Mike
    Colorado
    Vehicle:
    2019 TRD OR DCSB
    DBACK HD, DMM, lights, Armor
  19. Jul 1, 2019 at 2:30 PM
    #2639
    BringbackSnacks

    BringbackSnacks The H

    Joined:
    Jun 4, 2009
    Member:
    #18035
    Messages:
    340
    Gender:
    Male
    First Name:
    Ryan
    Pasadena,CA
    Vehicle:
    2017 TRD PRO

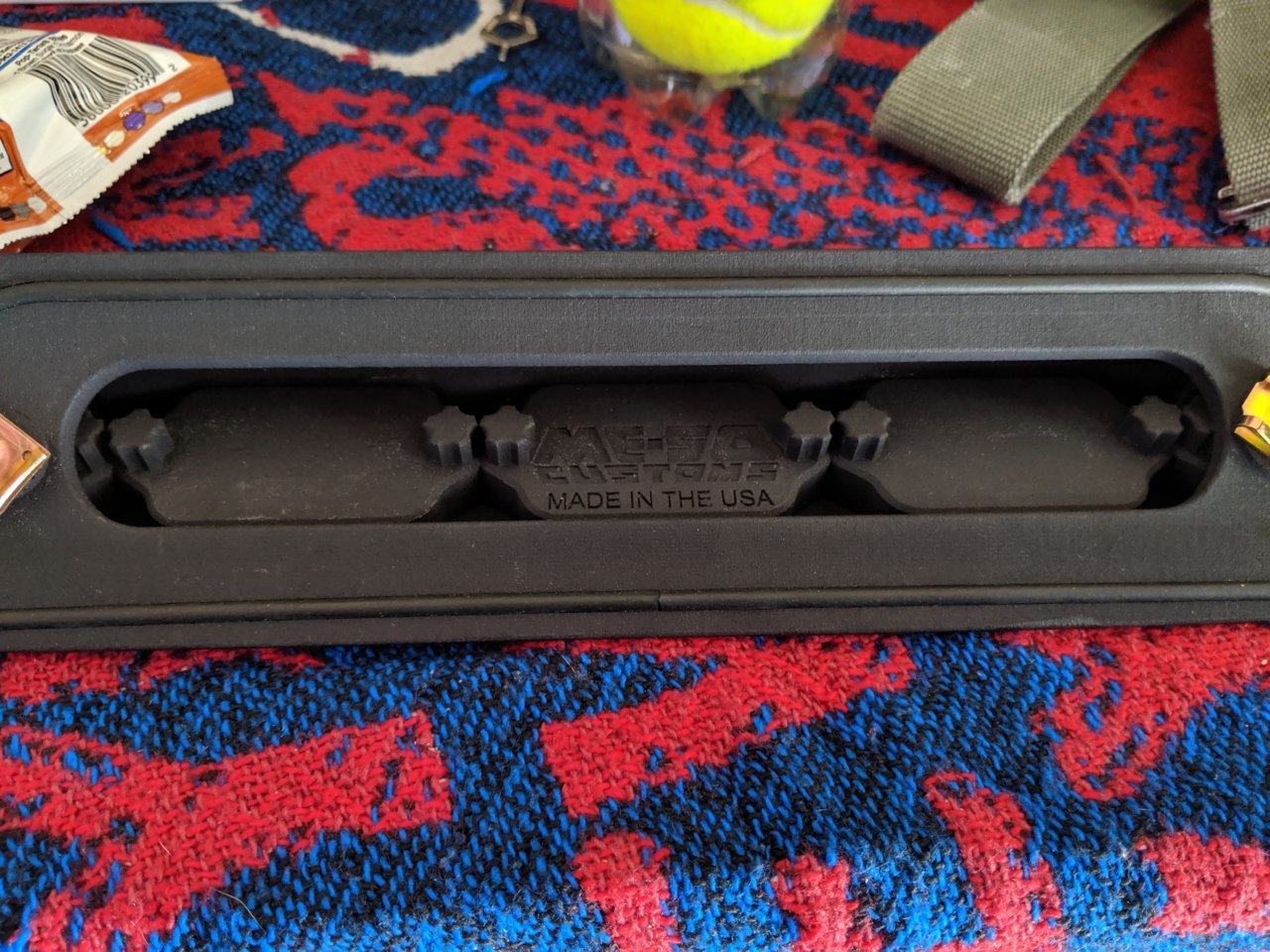

    I'm tackling this mod in the next week or two. Am I missing something here? How am I supposed to run the Baja lights through this? Do those tiny cogs need to be twisted off? Or should they already have come off?


  20. Jul 1, 2019 at 2:33 PM
    #2640
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    13,422
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    no they do not remove. I just made the star as a design. You will use the 2 SHORT allen screws included with our Baja Rock lights and self thread them into the premade holes.
    here is a video showing how easy it makes threads
    https://vimeo.com/342787569
