Super Ultimate 3rd Brake Light Build

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Nov 30, 2017.

  1. Jul 23, 2019 at 3:44 PM
    #2721
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    2,195
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2018 Tacoma DCLB OR (AT) - MGM
    2018 SR5 - (Sold) 2018 OR (or what?) Louisiana Edition
    Not KC specific - if you think you probably voided the warranty... you probably voided the warranty!

    1bad2k likes this.
  2. Jul 23, 2019 at 4:00 PM
    #2722
    Ronzio

    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    1,367
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR
    Yup I used a 1/2 drill bit here...it was just big enough to free the metal bolts from the plastic...came right off and cleaned up nice. No need to drop the headliner and disturb the wires that are glued into it if you have a powered sunroof.



    D5745635-09BF-45AE-9BB6-27F2CAA02C29.jpg 68B84184-0D30-4CC9-B8EF-8C3ECF40A071.jpg 5F665397-8B11-4AFD-A345-10E8559F9E6A.jpg

  3. Jul 23, 2019 at 6:34 PM
    #2723
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    2,395
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR
    Yeah, you're not drilling through the bolt. Just enough to weaken the plastic around it.

    Ronzio likes this.
  4. Jul 25, 2019 at 5:56 AM
    #2724
    KnckleChldrn

    KnckleChldrn Well-Known Member

    Joined:
    Dec 31, 2017
    Member:
    #239864
    Messages:
    351
    Gender:
    Male
    First Name:
    Jamie
    Mass
    Vehicle:
    2017 Tacoma TRD Sport DCSB MT
    Kicker tweeters Hondo Garage stereo knobs Hondo Garage un-Holley mount MESO ultimate red map lights MESO ultimate red dome MESO gasshole SpartanXCustoms scoop light Baja Designs Squadron Sports fogs (amber) Baja Designs Squadron Pro ditch (amber) 300 Industries grill Bakflip Fibermax cover K&N air intake
    BD4-cam available. Message me if interested.

  5. Aug 4, 2019 at 9:23 AM
    #2725
    Toyoduhh

    Toyoduhh Member

    Joined:
    Jun 22, 2016
    Member:
    #190233
    Messages:
    22
    Gender:
    Male
    Vehicle:
    Trd dcsb
    Can someone link me to the black screw replacement for the KC lights, can find them, thanks in advance!

  6. Aug 4, 2019 at 9:35 AM
    #2726
    Atl_taco_

    Atl_taco_ Well-Known Member

    Joined:
    May 9, 2018
    Member:
    #253012
    Messages:
    278
    Gender:
    Male
    First Name:
    Sam
    ATL
    Vehicle:
    2017 MGM OR
    Toyoduhh likes this.
  7. Aug 4, 2019 at 10:41 AM
    #2727
    xsquid

    xsquid Well-Known Member

    Joined:
    May 8, 2018
    Member:
    #252897
    Messages:
    96
    Gender:
    Male
    SF Bay Area
    I bought and used the above screws thinking that it would look neater than spray painting the screws that came with the light. Within a week they started oxidizing and already look reddish/brownish :( I'm back to painting the original screws black.

  8. Aug 4, 2019 at 10:55 AM
    #2728
    Toyoduhh

    Toyoduhh Member

    Joined:
    Jun 22, 2016
    Member:
    #190233
    Messages:
    22
    Gender:
    Male
    Vehicle:
    Trd dcsb
    that’s my fear

  9. Aug 4, 2019 at 3:55 PM
    #2729
    Atl_taco_

    Atl_taco_ Well-Known Member

    Joined:
    May 9, 2018
    Member:
    #253012
    Messages:
    278
    Gender:
    Male
    First Name:
    Sam
    ATL
    Vehicle:
    2017 MGM OR
    Oh wow good to know.. I saved that link a while back but never got around to buying them to install.

  10. Aug 4, 2019 at 4:01 PM
    #2730
    LandLover

    LandLover Well-Known Member

    Joined:
    Oct 19, 2018
    Member:
    #269927
    Messages:
    94
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    17 Tacoma Limited
    I actually painted the ones I got from mcmaster and they still rusted around outer edge. I may scotch-bright the stainless ones and paint them. Anyone had any luck with doing this?

  11. Aug 4, 2019 at 9:49 PM
    #2731
    SC4333

    SC4333 Well-Known Member

    Joined:
    Dec 9, 2008
    Member:
    #11412
    Messages:
    2,678
    Gender:
    Male
    First Name:
    Grant
    Tucson, AZ
    Vehicle:
    2016 TRD Off-Road 4x4 DCSB

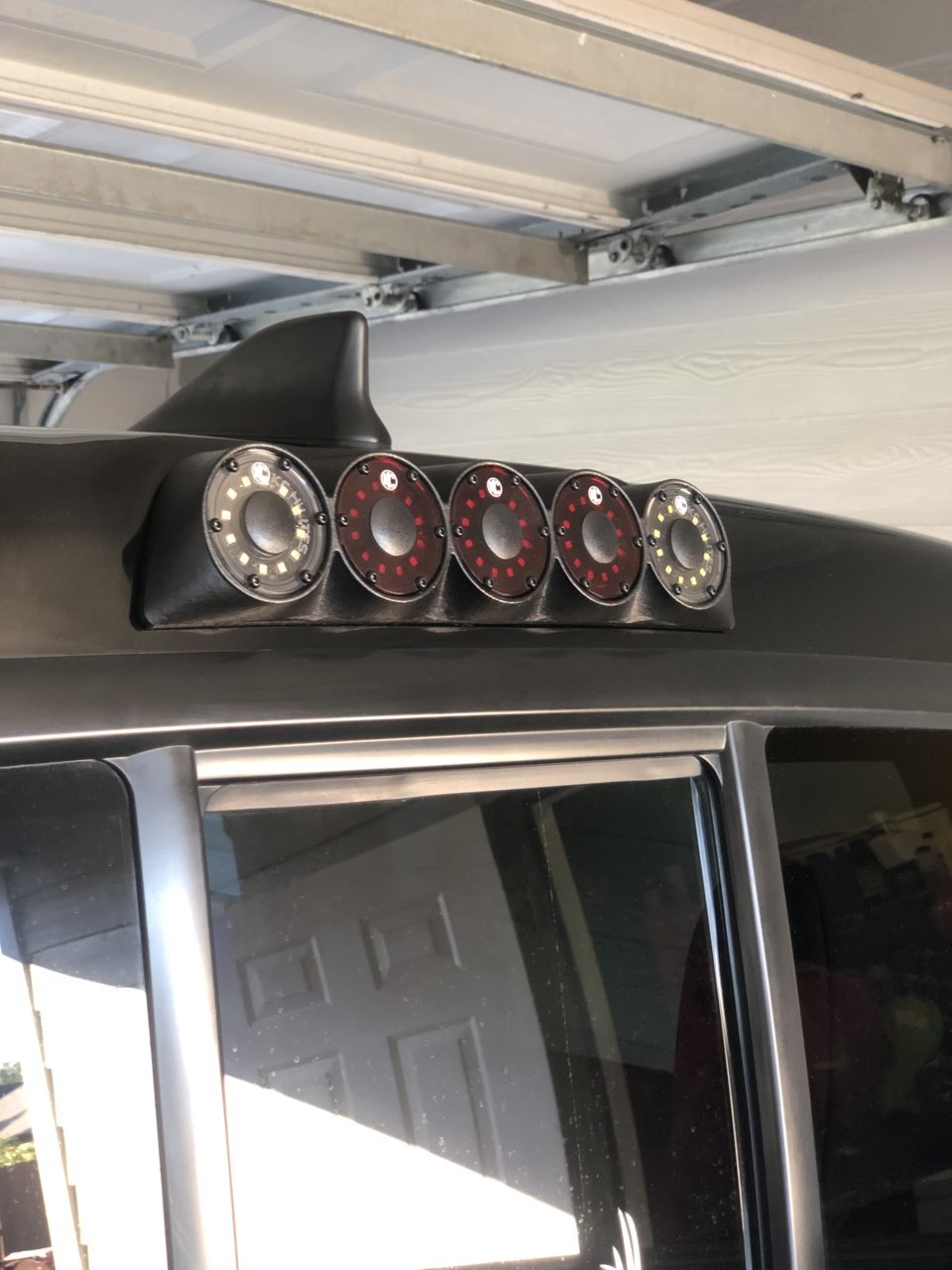

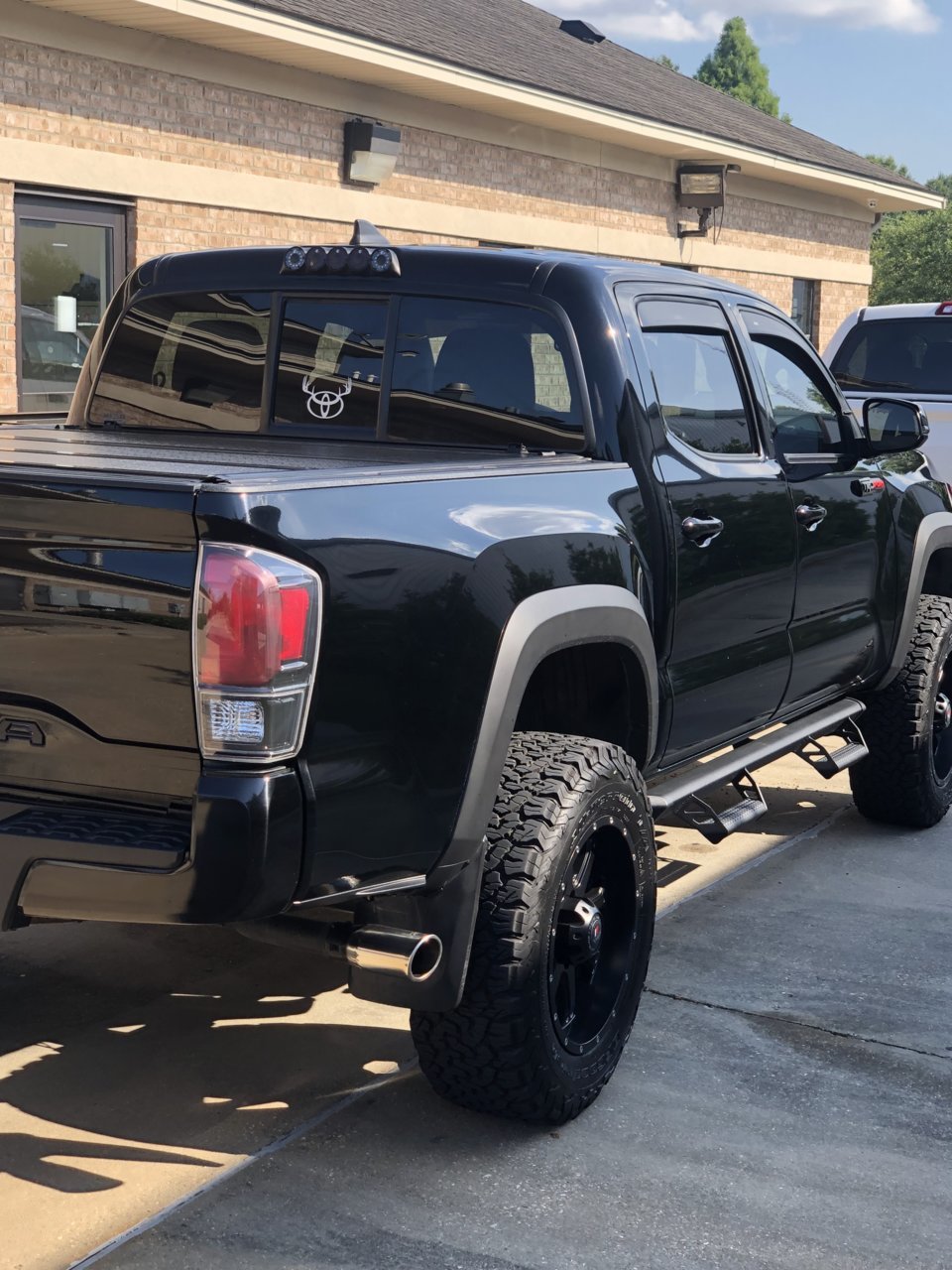

    Finally, she’s done! BD4 Cam, 2 red at center, 2 white cargo lights on the outside. Ran the cam to the head unit and will be using the Car Solutions TTG2 to interface with the OEM steering wheel controls and retain factory use of the tailgate cam under normal operation. I went ahead and used some Delphi connectors to connect the factory wiring with the third brake light.

    UPDATE: TTG2 has been installed and all works as intended. Overall, everything was straight forward to install. I did take my time wiring and removing panels as I’m a little OCD about that kind of stuff. Plan on a couple hrs for the BD4 Cam and you’ll be good. The most time consuming part is running the camera wire from the third brake light, down the rear pillar and back up to the head unit (I ran it and on the passenger side as I already had the glove box dropped.)

    FAE4BE24-C94E-46A7-A472-034A22025061.jpg B8B29EC1-8383-43A4-B1F2-908EBB429A69.jpg 01CC2D95-8D28-4859-A617-0B3F125EC8EF.jpg 983DCCA5-4C81-4CA9-B80C-E3333D9C037A.jpg

    Last edited: Aug 12, 2019
  12. Aug 4, 2019 at 10:20 PM
    #2732
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    13,428
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    UPDATE:
    I am planning another run of 100 of these later this month. (Capped at 100 because I don’t want to get buried). They will also be available PAINTED or RAW.
    This will save some money if the user want to DIY, and me some time because painting all 100 was the biggest time consuming task last time.
    I will most likely do a few more batches of these before I phase out and into my own brand/light. The HEXPOD.

    Also, After looking high and low the mating male side connector that will plug into the OEM truck side.. I have concluded it is non existent. So, I met with my connector supply company and we are molding my very own connector so people won’t have to splice/cut/etc. small details, but they all add up to a seamless install:D

    That looks great. The cam is really hidden in there.

    CanadaToy, Gtdznts, Knapz and 11 others like this.
  13. Aug 4, 2019 at 10:29 PM
    #2733
    SC4333

    SC4333 Well-Known Member

    Joined:
    Dec 9, 2008
    Member:
    #11412
    Messages:
    2,678
    Gender:
    Male
    First Name:
    Grant
    Tucson, AZ
    Vehicle:
    2016 TRD Off-Road 4x4 DCSB
    It really is. You can’t hardly notice it unless you’re really paying attention, and even then, it’s subtle and does not look out of place. The cam is a very snug fit as well, so water penetration or rotation of the cam itself will be a non-issue.

    Great job on the housing. You put some serious time and thought into the build!

    MESO [OP] likes this.
  14. Aug 4, 2019 at 10:34 PM
    #2734
    Caboose117

    Caboose117 foul mouthed Marine

    Joined:
    Aug 3, 2014
    Member:
    #135375
    Messages:
    2,352
    Gender:
    Male
    First Name:
    Chad
    Kentucky
    Vehicle:
    ;IGY6 Rescue Truck
    smashed this, broke that, covered it up with tape and paint
    I need one of those connectors :)

    When do you expect to have them?

  15. Aug 4, 2019 at 10:35 PM
    #2735
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    13,428
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    Just finalized all dimensions, so the mold with start soon. As for ETA, I am not sure yet but it’s a small part so I wouldn’t think too long.

    Inferno__Taco, Jonicus and Caboose117 like this.
  16. Aug 4, 2019 at 10:38 PM
    #2736
    Caboose117

    Caboose117 foul mouthed Marine

    Joined:
    Aug 3, 2014
    Member:
    #135375
    Messages:
    2,352
    Gender:
    Male
    First Name:
    Chad
    Kentucky
    Vehicle:
    ;IGY6 Rescue Truck
    smashed this, broke that, covered it up with tape and paint
    Sweet
    Also
    Quick question
    Tacoma tailgate latch
    Or tundra tailgate latch?

    Since bigger truck now and whatnot

  17. Aug 4, 2019 at 10:42 PM
    #2737
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    13,428
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    Not restricted to any hole/mouthing layout, so go big or go home :D

    Caboose117 and Jonicus like this.
  18. Aug 4, 2019 at 11:38 PM
    #2738
    Caboose117

    Caboose117 foul mouthed Marine

    Joined:
    Aug 3, 2014
    Member:
    #135375
    Messages:
    2,352
    Gender:
    Male
    First Name:
    Chad
    Kentucky
    Vehicle:
    ;IGY6 Rescue Truck
    smashed this, broke that, covered it up with tape and paint
    Gonna go to pull a part this week to look
    I’m assuming the camera will be basically the same for wiring it back up later

  19. Aug 7, 2019 at 7:05 PM
    #2739
    DiamondW

    DiamondW Stockblocker

    Joined:
    Feb 1, 2019
    Member:
    #281480
    Messages:
    1,591
    Gender:
    Male
    First Name:
    Kent
    Gonzales Co. TX
    Vehicle:
    08 White DCSB TRD OR
    Best news I’ve heard all week! I hope I’m fast enough this time.
    BD3-NMO is on my serious need list.

  20. Aug 15, 2019 at 10:52 AM
    #2740
    mackdave

    mackdave Member

    Joined:
    Jul 3, 2018
    Member:
    #258206
    Messages:
    21
    Gender:
    Male
    Vehicle:
    2019 TRD OR QS
    2" bilstein lift, custom grill, ditch lights, fog lights, light bar, rear work light, switch pros, remote start, kicker speaker upgrade, alpine amp, raptor lights, carbon fiber dash trim wrap, OVTUNED
    Does the KC5 come in Black or do you have to paint it?
