Super Ultimate 3rd Brake Light Build

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Nov 30, 2017.

  1. Oct 26, 2019 at 5:24 PM
    #2981
    crashdb

    crashdb Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    3,951
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.
    Is there a threaded insert for the Baja Designs lights? I'm looking at mine real quick wondering how I'm going to attach the last two lights after attaching the housing to the truck.

  2. Oct 26, 2019 at 5:31 PM
    #2982
    CttAznRanger

    CttAznRanger Crazy NE Asian

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    2,704
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    It should go in exactly like the others do, just after it gets mounted to the truck. If you could post up a pic, we can get a better look at it.

  3. Oct 26, 2019 at 5:41 PM
    #2983
    crashdb

    crashdb Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    3,951
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.
    The outside lights cover the holes for the bolts that mount the light to the truck. So unless there are threaded inserts for the lights, I'd have to use self-tapping screws. Although any pictures I could find on here looks like they used the cap screws the lights come with.


  4. Oct 26, 2019 at 5:59 PM
    #2984
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,535
    Vehicle:
    TRD Pro in metallic primer
    It’s plastic and you can cut the thread with the supplied Allen bolt. So, pre cut the threads in the plastic on your bench, remove the two outside lights, bolt up the housing to the truck with lights hanging by the wires, put the light back.

    CttAznRanger and oly51 like this.
  5. Oct 26, 2019 at 6:23 PM
    #2985
    crashdb

    crashdb Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    3,951
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.
    Gotcha. Thanks!

  6. Oct 27, 2019 at 1:52 PM
    #2986
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,535
    Vehicle:
    TRD Pro in metallic primer
    I got it all apart at the moment, I can confirm the wire gauge is 22~24, (comes out at 23 by my calculations) it's simply not enough for the ground. If you do run a decent ground wire (tap into original, so you're using both OEM and new) you will increase key-fob range, but still not back to normal. If you run a separate power wire (don't use OEM at all) you will increase range again, I'm still testing but doesn't seem back to normal, but it's close.

    One thing to also note is it messes with the touch door handle as well.

    Last edited: Oct 27, 2019
    SC4333 likes this.
  7. Nov 10, 2019 at 4:59 PM
    #2987
    Bosco944

    Bosco944 Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245408
    Messages:
    231
    Gender:
    Male
    First Name:
    Todd
    Vehicle:
    2017 TRD Sport
    Probably going away from my BD5, problem is I cut off the connector that plugs into the original OEM brake light. Anyone have any idea where I can by one or someone here cut theirs off and want to sell it?

  8. Nov 10, 2019 at 5:39 PM
    #2988
    crashdb

    crashdb Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    3,951
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.
    Any reason why?

  9. Nov 10, 2019 at 5:48 PM
    #2989
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,535
    Vehicle:
    TRD Pro in metallic primer

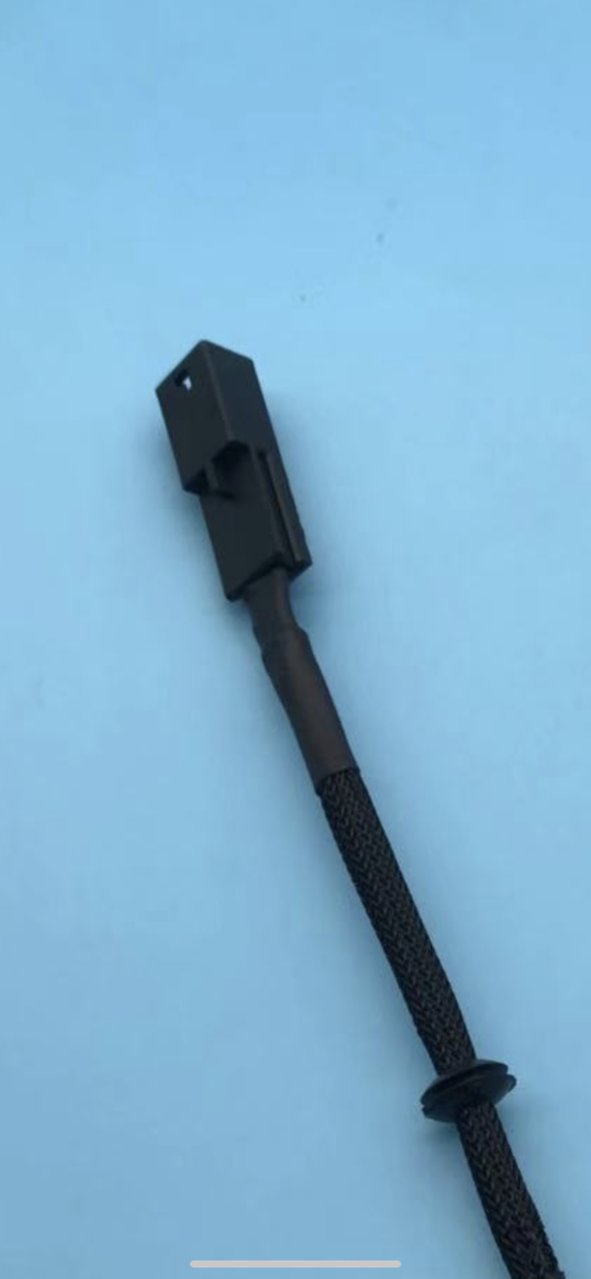

    I’m not selling mine as I always keep OEM parts so I can go back. It’s an odd connector that I’ve never seen before, tomorrow, I can take some pics and dimensions if you need them. But the pins are fairly standard, you could easily buy the pins, crimp them on the wires, and put it back that way without the actual connector.
    I’m sure there are cheaper options, but the female pins from this kit would probably work.
    https://www.amazon.com/WayinTop-Con...locphy=9027658&hvtargid=pla-624538377296&th=1

  10. Nov 10, 2019 at 6:51 PM
    #2990
    Bosco944

    Bosco944 Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245408
    Messages:
    231
    Gender:
    Male
    First Name:
    Todd
    Vehicle:
    2017 TRD Sport
    Thanks, I have done that for now, it's fairly solid, but always prefer the right connection.


  11. Nov 10, 2019 at 6:53 PM
    #2991
    Bosco944

    Bosco944 Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245408
    Messages:
    231
    Gender:
    Male
    First Name:
    Todd
    Vehicle:
    2017 TRD Sport
    Same problem that is discussed with the fob not working unless the bed light switch is off, and two of the red BD lights and one of the white are very dim and not working properly. Removed everything and bench tested them and same problem. Worked good for 7 months.

  12. Nov 10, 2019 at 6:53 PM
    #2992
    airmac_11

    airmac_11 Well-Known Member

    Joined:
    Nov 13, 2018
    Member:
    #272596
    Messages:
    261
    Gender:
    Male
    Vehicle:
    2019 Cement DCSB Premium/ Tech TRD 4x4 Sport

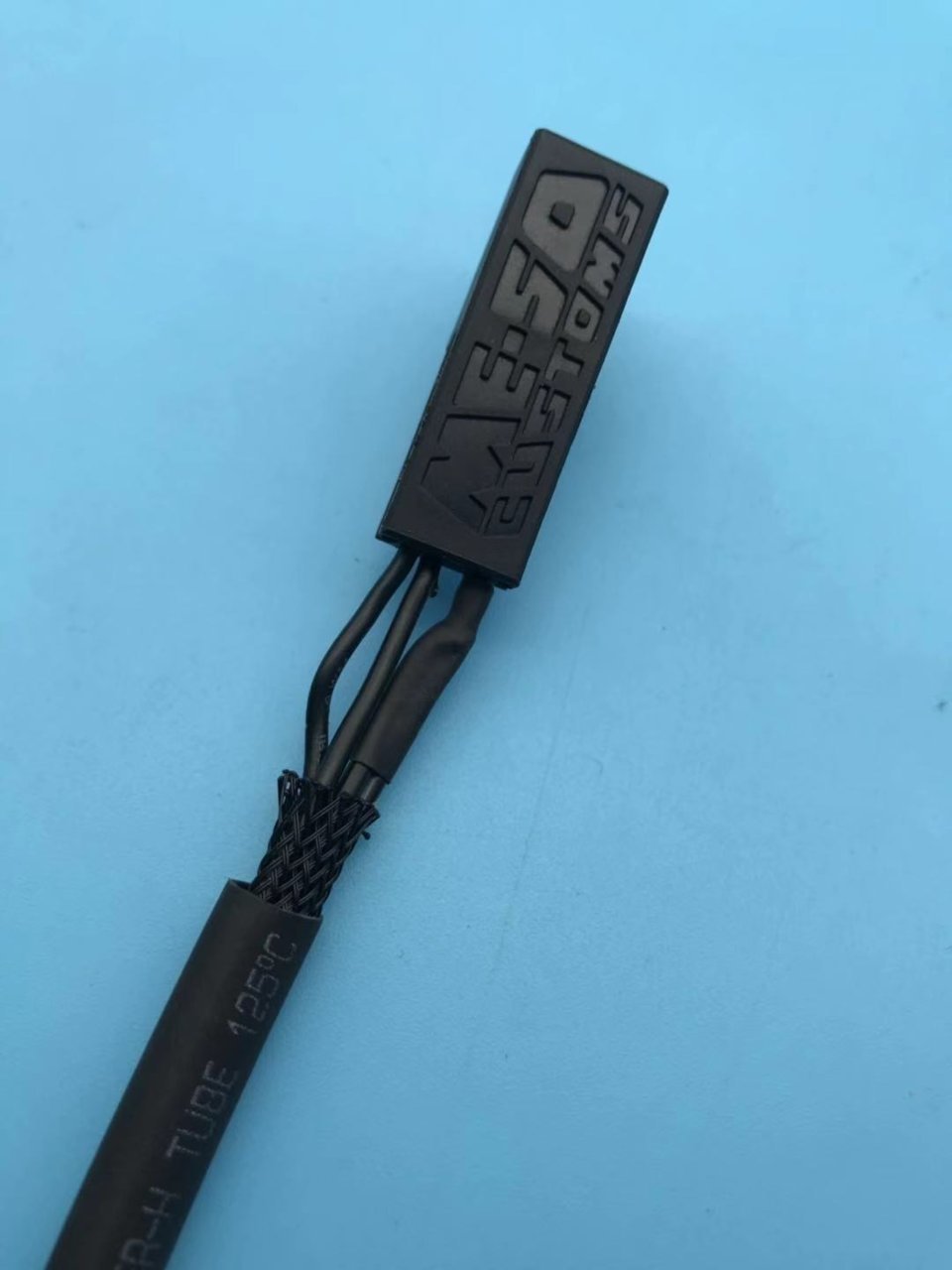

    There was talk (pre SEMA) of a MESO wire harness that would be put in production- I don’t know if this has been abandoned or delayed but it might be an answer for those with install issues.

  13. Nov 10, 2019 at 6:55 PM
    #2993
    Tacospike

    Tacospike Semi-Unknown Custodial Member

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    6,048
    Gender:
    Male
    Quarantine A-TX
    Vehicle:
    1 Owner 16 Attitude BLK TRD Spiked Sport
    Murderface Spike Edition
    The OEM style harness for plug and play?

  14. Nov 10, 2019 at 6:58 PM
    #2994
    airmac_11

    airmac_11 Well-Known Member

    Joined:
    Nov 13, 2018
    Member:
    #272596
    Messages:
    261
    Gender:
    Male
    Vehicle:
    2019 Cement DCSB Premium/ Tech TRD 4x4 Sport

    I believe so but then again as time flies this may become a urban legend. Stew is a busy man and has many stoves to work.

    Tacospike likes this.
  15. Nov 11, 2019 at 4:12 AM
    #2995
    CttAznRanger

    CttAznRanger Crazy NE Asian

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    2,704
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    I noticed the key fob issue as well. Was there a particular reason why this is the case?
    I believe he abandoned the idea as the original connector was molded to the 3rd brake light housing and would be difficult to make. Could be wrong though.

  16. Nov 11, 2019 at 9:21 AM
    #2996
    tomgru

    tomgru Well-Known Member

    Joined:
    Oct 3, 2017
    Member:
    #231939
    Messages:
    368
    Gender:
    Male
    First Name:
    Thomas
    Vehicle:
    2017 Taco Limited
    There is another thread on this. Seems to be a grounding issue. I haven't done the fix yet but if you run a separate ground apparently solves the problem.

    Caboose117 likes this.
  17. Nov 11, 2019 at 4:40 PM
    #2997
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,535
    Vehicle:
    TRD Pro in metallic primer
    it doesn’t complete solve it, but it does help. I did it, and have a better keyfob range (when you click the button), what I didn’t test when everything was apart was the touch door handle. That is completely inoperable for me at present (when bed lights are on). The keyfob receiver is drivers side roof next to shark fin (above the headliner). I’ve got some other ideas to play with, but waiting on parts at present.

    CttAznRanger likes this.
  18. Nov 11, 2019 at 8:29 PM
    #2998
    Naughty

    Naughty Well-Known Member

    Joined:
    Feb 21, 2019
    Member:
    #283871
    Messages:
    50
    Gender:
    Male
    First Name:
    Mike
    Chicago
    @MESO hey, just saw you and your truck in a YouTube interview with George. That thing looks pretty sick man not gonna lie. Glad everything is going well for ya man. Love the custom... roof rack lights? Idk if I'd call it a light bar but it looks great. More importantly, did I catch a prototype hex9? Super excited about that one. Keep being awesome man, hope you had fun at sema :)

  19. Nov 11, 2019 at 9:32 PM
    #2999
    Caboose117

    Caboose117 foul mouthed Marine

    Joined:
    Aug 3, 2014
    Member:
    #135375
    Messages:
    2,613
    Gender:
    Male
    First Name:
    Chad
    Kentucky
    Vehicle:
    ;IGY6 Rescue Truck
    smashed this, broke that, covered it up with tape and paint
    I was the one who solved that
    I posted that same info in here a few pages back

    tomgru likes this.
  20. Nov 11, 2019 at 11:17 PM
    #3000
    Bosco944

    Bosco944 Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245408
    Messages:
    231
    Gender:
    Male
    First Name:
    Todd
    Vehicle:
    2017 TRD Sport
    Do you think if you use a tap screw in the metal behind the light and wire to that it would a sufficient ground, or does it need to go to another wired ground?
