Super Ultimate 3rd Brake Light Build

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Nov 30, 2017.

  1. Feb 23, 2020 at 12:41 PM
    #3081
    TacoTuesday!!

    TacoTuesday!! Well-Known Member

    Joined:
    May 31, 2019
    Member:
    #294945
    Messages:
    185
    Gender:
    Male
    Vehicle:
    '10 Metallic Gray 4.0 V6 4x4 DCLB
    6 in Rough Country Lift, Body Armor Front and Rear Steel Bumpers, Spare Swingarm, Smittybuilt X2O Winch, ProComp rims on 35"s, Bilstein 5100 shocks, Tuff Country UCA's, Wheeler's Off-Road multiple leaf add-a-leafs, BlackOak LED fogs, BlackOak LED backup lights, Yakima Roof Racks, Morimoto Projector Headlight conversion with Halos, smoked tail lights, Grill Raptor lights, Custom Grill with Tacoma lettering, Studded Fender Flares, Bugflector, WeatherTec mats, Bedrail quickgrips, UWS Toolbox, VIAIR onboard air, Train horn, Viper remote start alarm system
    anybody out there know when the new @MESO hex 3rd brake light will be released and if he's making them for 2nd gens?

  2. Feb 23, 2020 at 8:59 PM
    #3082
    Maveric

    Maveric Active Member

    Joined:
    Sep 19, 2017
    Member:
    #230477
    Messages:
    39
    Gender:
    Male
    First Name:
    Michael
    Vista, CA
    Vehicle:
    2008 DCSB PreRunner
    Stuff..and things. Mostly stuff
    No one knows when any hex lights will be released, any info will be put on this or any of MESO's other threads regarding 3rd brake lights.

  3. Feb 24, 2020 at 10:12 AM
    #3083
    TacoTuesday!!

    TacoTuesday!! Well-Known Member

    Joined:
    May 31, 2019
    Member:
    #294945
    Messages:
    185
    Gender:
    Male
    Vehicle:
    '10 Metallic Gray 4.0 V6 4x4 DCLB
    6 in Rough Country Lift, Body Armor Front and Rear Steel Bumpers, Spare Swingarm, Smittybuilt X2O Winch, ProComp rims on 35"s, Bilstein 5100 shocks, Tuff Country UCA's, Wheeler's Off-Road multiple leaf add-a-leafs, BlackOak LED fogs, BlackOak LED backup lights, Yakima Roof Racks, Morimoto Projector Headlight conversion with Halos, smoked tail lights, Grill Raptor lights, Custom Grill with Tacoma lettering, Studded Fender Flares, Bugflector, WeatherTec mats, Bedrail quickgrips, UWS Toolbox, VIAIR onboard air, Train horn, Viper remote start alarm system
    :thumbsup:

  4. Mar 4, 2020 at 11:21 PM
    #3084
    Captbrad88

    Captbrad88 Well-Known Member

    Joined:
    Jul 18, 2018
    Member:
    #259774
    Messages:
    180
    Gender:
    Male
    First Name:
    Brad
    Vehicle:
    2018 Tacoma trd offroad

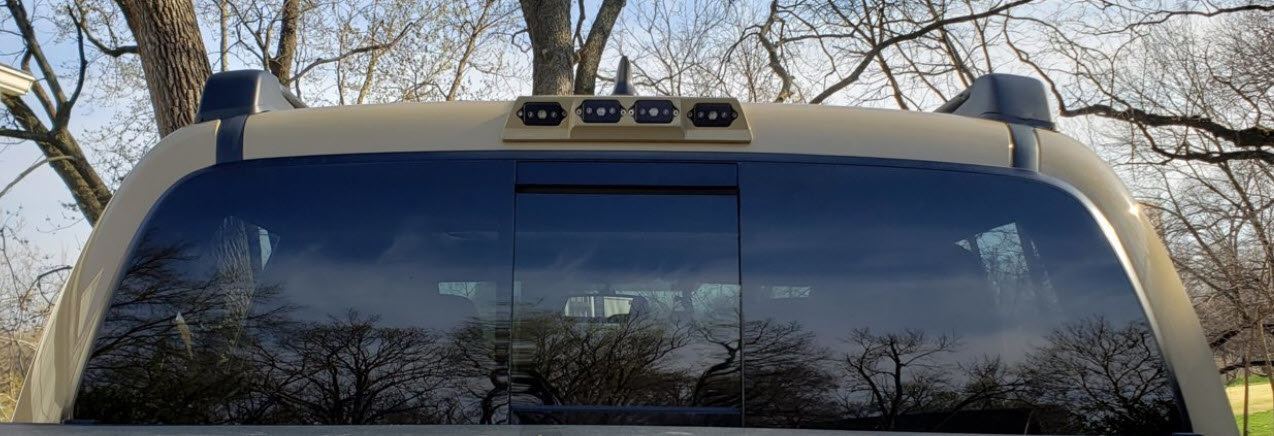

    Someone should make a mount that fits rigid flush mounts. I’d like to stay brand specific please.

  5. Mar 5, 2020 at 11:05 AM
    #3085
    5nahalf

    5nahalf Well-Known Member

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2018 inferno orange trd off-road
    You mean like this? These are not my pictures credit goes to taco_tallua







  6. Mar 5, 2020 at 11:07 AM
    #3086
    Captbrad88

    Captbrad88 Well-Known Member

    Joined:
    Jul 18, 2018
    Member:
    #259774
    Messages:
    180
    Gender:
    Male
    First Name:
    Brad
    Vehicle:
    2018 Tacoma trd offroad
    Yea
    Yeah, just like that. All my lights are rigid and I’d like to stay with the same brand

  7. Mar 5, 2020 at 11:09 AM
    #3087
    5nahalf

    5nahalf Well-Known Member

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    2,556
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2018 inferno orange trd off-road
    Skydvrr and JasonT87 like this.
  8. Mar 6, 2020 at 5:38 AM
    #3088
    txranger83

    txranger83 Well-Known Member

    Joined:
    Oct 11, 2019
    Member:
    #307712
    Messages:
    57
    Gender:
    Male
    First Name:
    Colby
    Republic of Texas
    Vehicle:
    2020 Tacoma TRD Off Road
    Any updates on the hex rear lights?

    Tacospike likes this.
  9. Mar 17, 2020 at 2:28 PM
    #3089
    DartFrog

    DartFrog Well-Known Member

    Joined:
    Nov 16, 2018
    Member:
    #272863
    Messages:
    121
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD Off Road

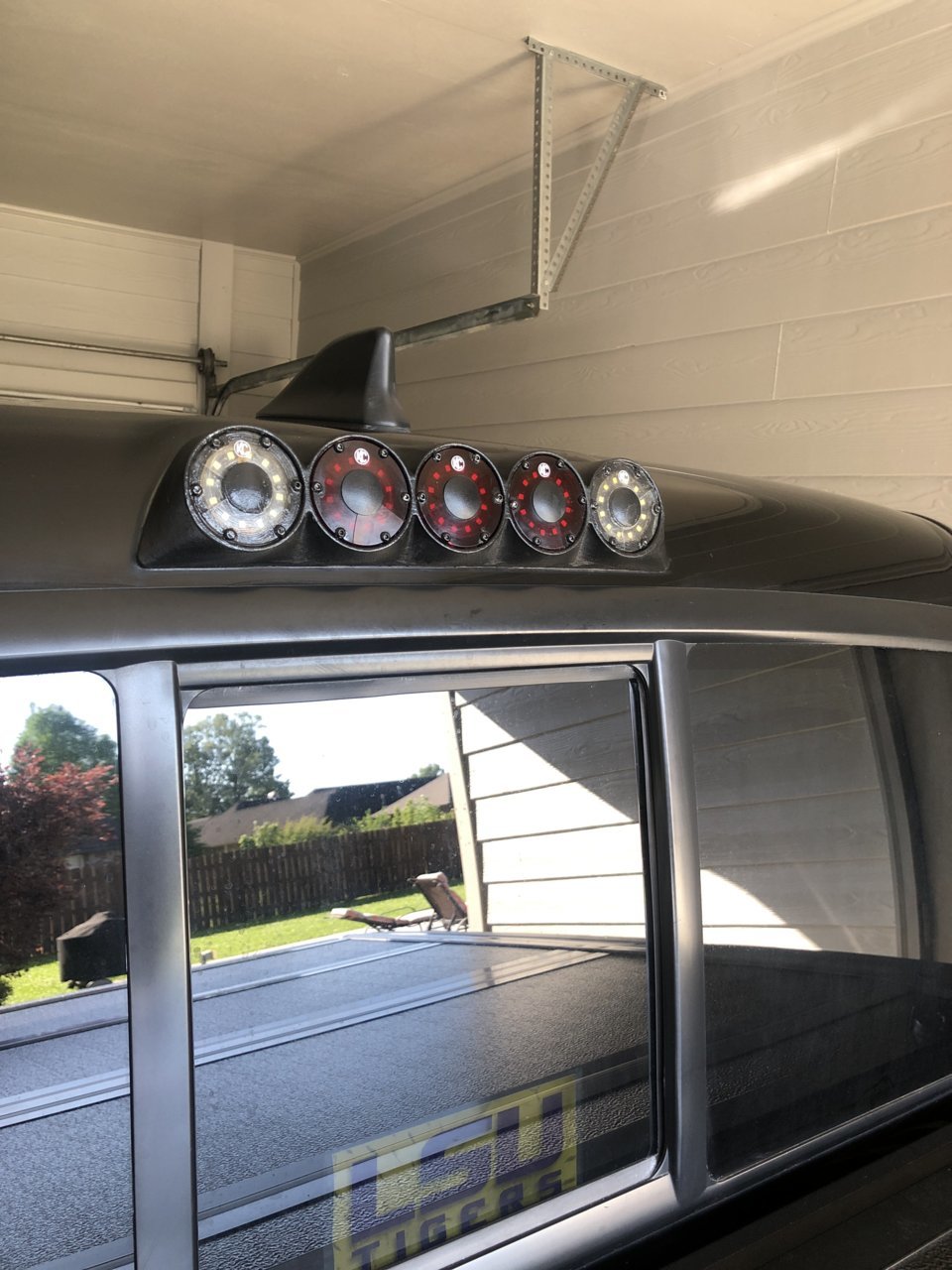

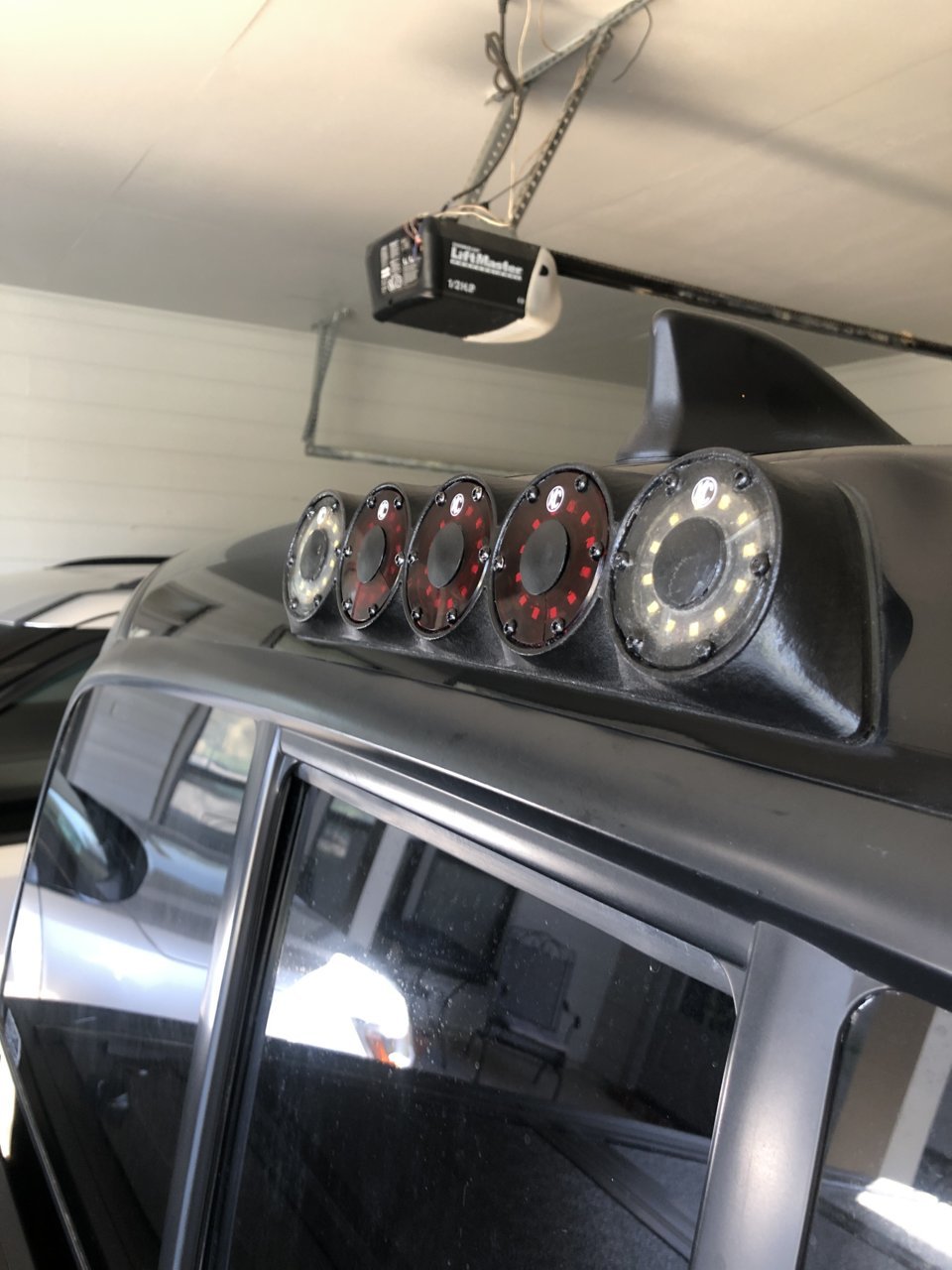

    I'm running the KC option, 3 white, 2 red. Awesome upgrade, love it & can't see any choice being bad. Had ice pulling down trees & just used my Meso 3rd brake light cab light to light up where I was working. Again, love it! Sorry the pics aren't better, but the snowfall was starting to get heavier. But my Meso lights cut thru nicely, no extra lighting needed. Bonus points to whoever correctly identifies the beer in the pic, no money, just worthless points.

    How was the install? I've been sitting on a KC5 unit for months.

  10. Mar 17, 2020 at 3:54 PM
    #3090
    DartFrog

    DartFrog Well-Known Member

    Joined:
    Nov 16, 2018
    Member:
    #272863
    Messages:
    121
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD Off Road
    I have the KC5 unit. Is it supposed to have hardware? I only have the housing no nuts, bolts, etc...

  11. Mar 18, 2020 at 2:03 PM
    #3091
    DartFrog

    DartFrog Well-Known Member

    Joined:
    Nov 16, 2018
    Member:
    #272863
    Messages:
    121
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD Off Road
    what size hardware did you use? mine did not come with harware. also did you use nutserts to attach to the truck?

    FishnTx likes this.
  12. Mar 18, 2020 at 2:20 PM
    #3092
    FishnTx

    FishnTx Father of the one they call Asher

    Joined:
    Mar 22, 2017
    Member:
    #214004
    Messages:
    4,007
    Gender:
    Male
    South East Texas
    Vehicle:
    ‘17 Trd 4x4 OR
    Contact @MESO he’ ll hook ya up

  13. Mar 19, 2020 at 8:57 AM
    #3093
    DartFrog

    DartFrog Well-Known Member

    Joined:
    Nov 16, 2018
    Member:
    #272863
    Messages:
    121
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD Off Road
    i've reached out and haven't heard back :notsure:

  14. Mar 31, 2020 at 4:15 PM
    #3094
    LandLover

    LandLover Well-Known Member

    Joined:
    Oct 19, 2018
    Member:
    #269927
    Messages:
    192
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    17 Tacoma Limited
    Just installed my BD4 same issue. Once cargos go off I am good but if they are lit no key worky. So you are no,longer using the factory switch then???

  15. Mar 31, 2020 at 7:23 PM
    #3095
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,263
    Vehicle:
    TRD Pro in metallic primer
    using factory switch, but bypassing the power it feeds the lights. Use the power from the factory switch to power a relay coil, the contacts of that relay feeds power to the lights, I’m also not using factory negative. So it all works just like factory, only using my own wiring and not the factory harness.

    Boomer3731 and St.Germain like this.
  16. Mar 31, 2020 at 7:46 PM
    #3096
    St.Germain

    St.Germain TacomaKart

    Joined:
    Jul 30, 2016
    Member:
    #193316
    Messages:
    7,505
    TW
    do you have more info? details?

    i have the unit wired and ready, but connecting to the truck has been holding me back for that reason ^. if you have a specific relay and wiring diagram or similar handy, would you please share? if i get that part square then i'm ready to go with it.

  17. Mar 31, 2020 at 7:59 PM
    #3097
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,263
    Vehicle:
    TRD Pro in metallic primer

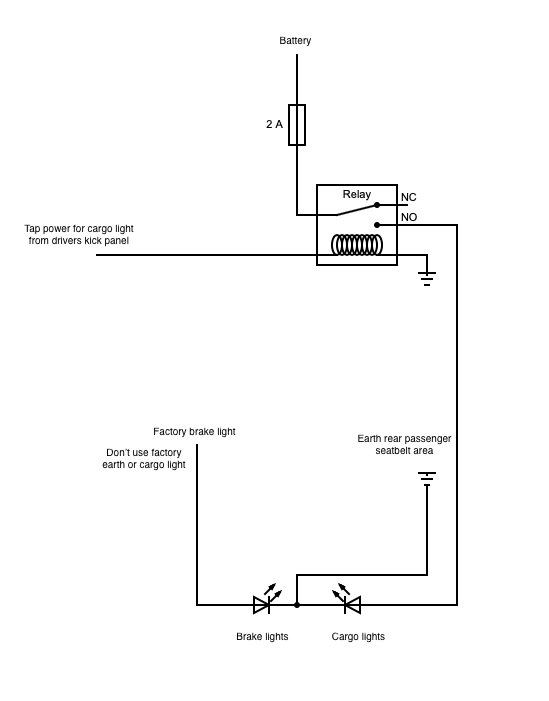

    No diagram, it’s about as basic as it gets. you can pickup the power from the factory switch from behind the drivers kick panel. If you look at the Toyota OEM install pdf for cargo lights, it shows you that power. Simply run that to the coil of a relay and the other side of the coil to earth. Then run power from battery (through fuse) to the contact of the relay, and the other side of the contact up to the light. (Ran that on passenger side of vehicle). When you put in the light, simply use the OEM brake light power (not cargo power or earth). Then use your new cargo power and use your own earth. There is a good earth by the rear seatbelt anchor. Personally recommend you use AWG 18 or lower wire.

    St.Germain and MESO [OP] like this.
  18. Mar 31, 2020 at 8:38 PM
    #3098
    St.Germain

    St.Germain TacomaKart

    Joined:
    Jul 30, 2016
    Member:
    #193316
    Messages:
    7,505
    TW
    thank you. i have the wire and planned to use the seatbelt anchor so I'm good there. which relay did you use?

  19. Mar 31, 2020 at 9:06 PM
    #3099
    LandLover

    LandLover Well-Known Member

    Joined:
    Oct 19, 2018
    Member:
    #269927
    Messages:
    192
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    17 Tacoma Limited
    I'll give you $5 if you draw this on a big chief tablet and post :anonymous:

  20. Apr 1, 2020 at 10:00 AM
    #3100
    tomgru

    tomgru Well-Known Member

    Joined:
    Oct 3, 2017
    Member:
    #231939
    Messages:
    339
    Gender:
    Male
    First Name:
    Thomas
    Vehicle:
    2017 Taco Limited
    Please!!!!
