Super Ultimate 3rd Brake Light Build

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Nov 30, 2017.

  1. Dec 9, 2021 at 3:28 PM
    #3461
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    3,328
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Good question. Maybe behind the rear seats as low as possible? That might be the most muffled. Wrap in some MLV maybe? Not sure.

  2. Dec 9, 2021 at 3:39 PM
    #3462
    RoostrC0gburn

    RoostrC0gburn Well-Known Member

    Joined:
    Mar 5, 2020
    Member:
    #321337
    Messages:
    259
    Gender:
    Male
    Oregon
    Vehicle:
    2017 Super White DCLB TRD Sport 4x4
    yeah... like maybe not even "mounted" just wrapped in foam and left to dangle behind the seat storage or something. i'll have to figure that out when i dig into it

    daveeasa likes this.
  3. Dec 10, 2021 at 6:30 AM
    #3463
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,734
    Vehicle:
    TRD Pro in metallic primer
    Mine are under the dash, that way they are next to the fuses and easily accessible. You don’t hear them and it’s also a very common OEM relay location from most manufacturers so.

    RoostrC0gburn and daveeasa like this.
  4. Dec 10, 2021 at 11:58 AM
    #3464
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,734
    Vehicle:
    TRD Pro in metallic primer

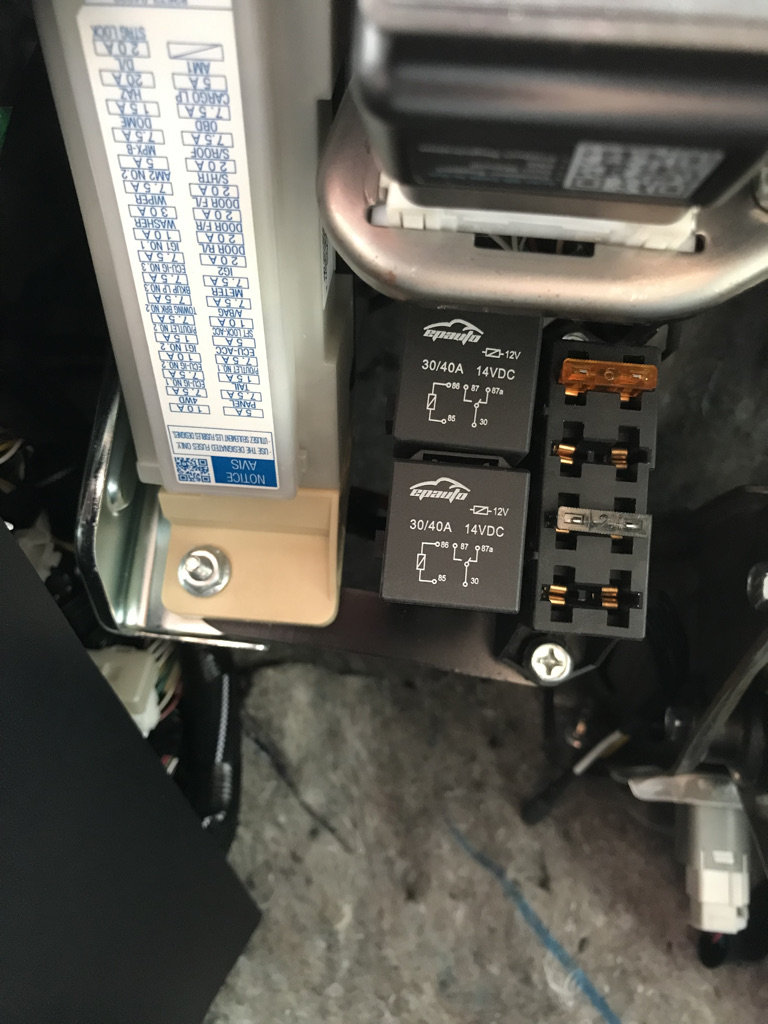

    Made a small bracket to mount relay holders and new fuses next to the OEM location.

    Used the parts linked below, the relay holders clip into to the fuse box. Also like this style of fuse holder as it gives you the option to run each fuse from a separate power / join them together or any combination. Mine are configured as 2 fuses powered direct from battery and 2 fuses on ignition power.
    https://www.amazon.com/gp/product/B000CO7I04?ie=UTF8
    https://www.amazon.com/gp/product/B017VDI0GY?ie=UTF8

  5. Dec 10, 2021 at 1:19 PM
    #3465
    Boomer3731

    Boomer3731 Well-Known Member

    Joined:
    Aug 22, 2016
    Member:
    #195239
    Messages:
    484
    Gender:
    Male
    First Name:
    Ryan
    CO
    Vehicle:
    2017 DCSB TRD Sport

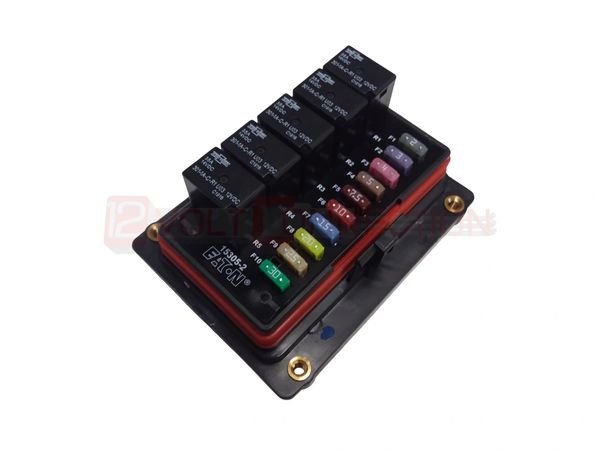

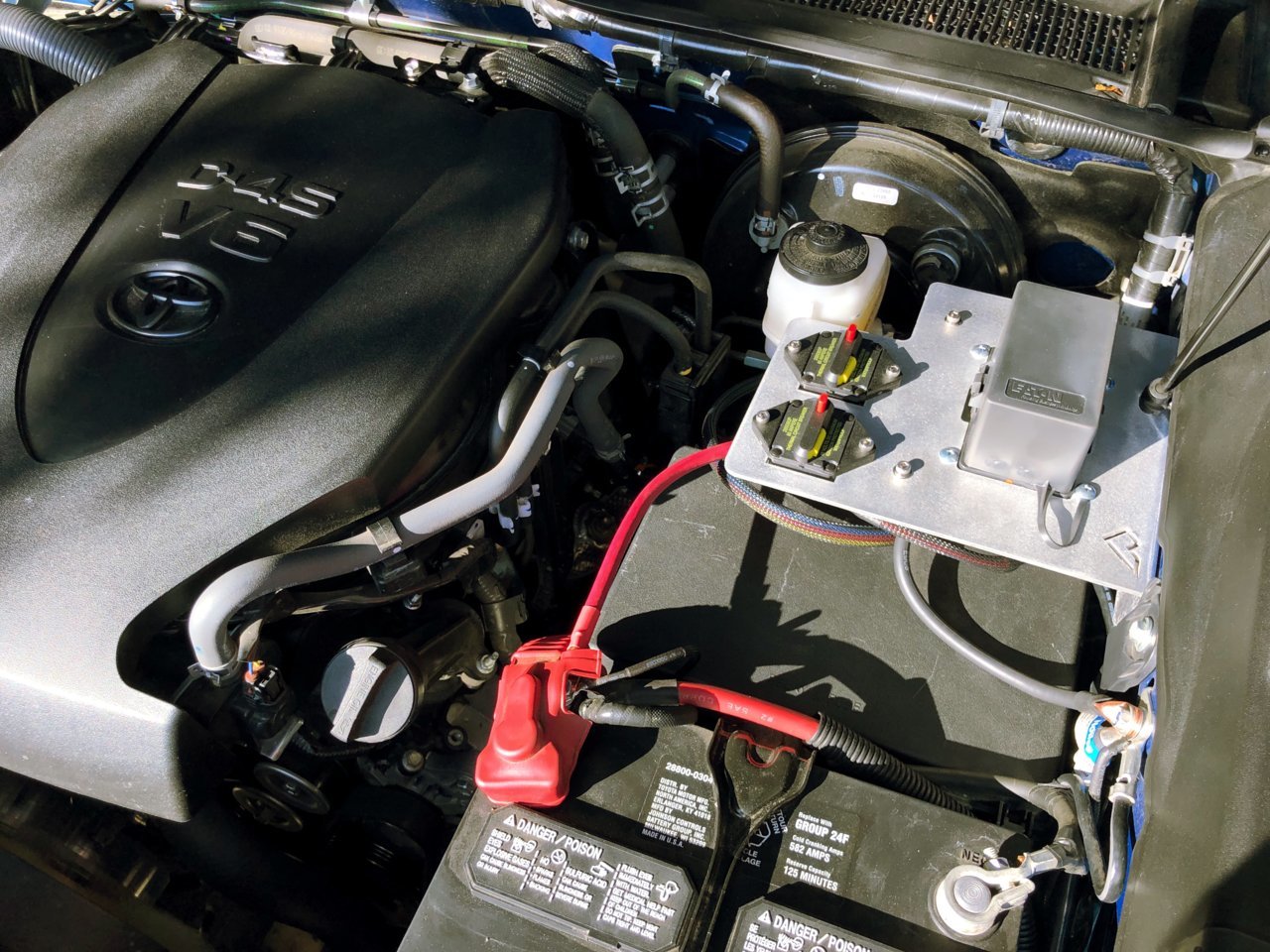

    Mine are all in a Bussmann relay box under the hood.


  6. Dec 10, 2021 at 2:28 PM
    #3466
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,283
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    I've built a few of these for people with Double Cabs. I just used 2 micro relays and they seemed to fit just fine up in the brake light area. At least I haven't had any complaints from the people that asked me to do it.


  7. Dec 16, 2021 at 1:53 PM
    #3467
    JDAISE

    JDAISE Active Member

    Joined:
    Oct 14, 2021
    Member:
    #379651
    Messages:
    43
    Gender:
    Male
    First Name:
    Jeremy
    LANCASTER, PA
    Vehicle:
    17' SR5
    DOBINSONS 3" ALL THE WAY AROUND DIRT KING UCA 285/75/16 FALKEN WILDPEAK ATW3 METHOD 701 1.25" SPACERS
    I need to jump on these ASAP

  8. Dec 29, 2021 at 7:34 AM
    #3468
    5hanman

    5hanman Member

    Joined:
    Jul 1, 2021
    Member:
    #370129
    Messages:
    11
    Gender:
    Male
    Columbia, Missouri
    Vehicle:
    2021 Tacoma SR 4x4 ACLB Silver Sky (Beskar)
    I put the KC4 on my 21 Access Cab last weekend. Only 2 screws to remove. Kit has 3 bulb plugs to wire up to the 4 KC lights (I wired the 2 center ones together) then just pull the existing bulbs and insert plugs. Used the existing rubber seal and two screws to mount it up…and done. So easy, and what a difference. A+ from me.

    Ahomeofbones and BOMBS like this.
  9. Jan 17, 2022 at 7:36 PM
    #3469
    TACO5AU5

    TACO5AU5 Active Member

    Joined:
    Jan 2, 2021
    Member:
    #351485
    Messages:
    37
    Gender:
    Male
    New york
    Vehicle:
    2020 Tacoma Trd offroad
    SSO slime line hybrid bumper Baja design s8 Baja design ditch lights Eibach coilovers Icon rear leaf springs
    I’m
    So for the Bd5’s a relay is required it seems that a relay would sit on the liner might cause some noise inthe cab

  10. Jan 17, 2022 at 7:39 PM
    #3470
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,283
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    That’s why they’re wrapped in loom tape — it’s a felt texture and makes it very quiet. You can also tape it to the inside of the lip.

    TACO5AU5 likes this.
