    I think MESO said not to use the factory ground because they sometimes have feedback issues. There is a factory ground point behind the seatbelt in the drivers C-Pillar which is where I ran my ground to.

  2. Jun 14, 2022 at 5:48 PM
    #3582
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,803
    Vehicle:
    TRD Pro in metallic primer
    I built my own interface as I don’t like how the anytime backup camera is wired. Plus I wanted to use the steering wheel controls to change cameras. But there are other off the shelf options you can use.

  3. Jun 14, 2022 at 6:44 PM
    #3583
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    3,443
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2018 Tacoma DCLB OR (AT) - MGM
    2018 SR5 - (Sold) 2018 OR (or what?) Louisiana Edition

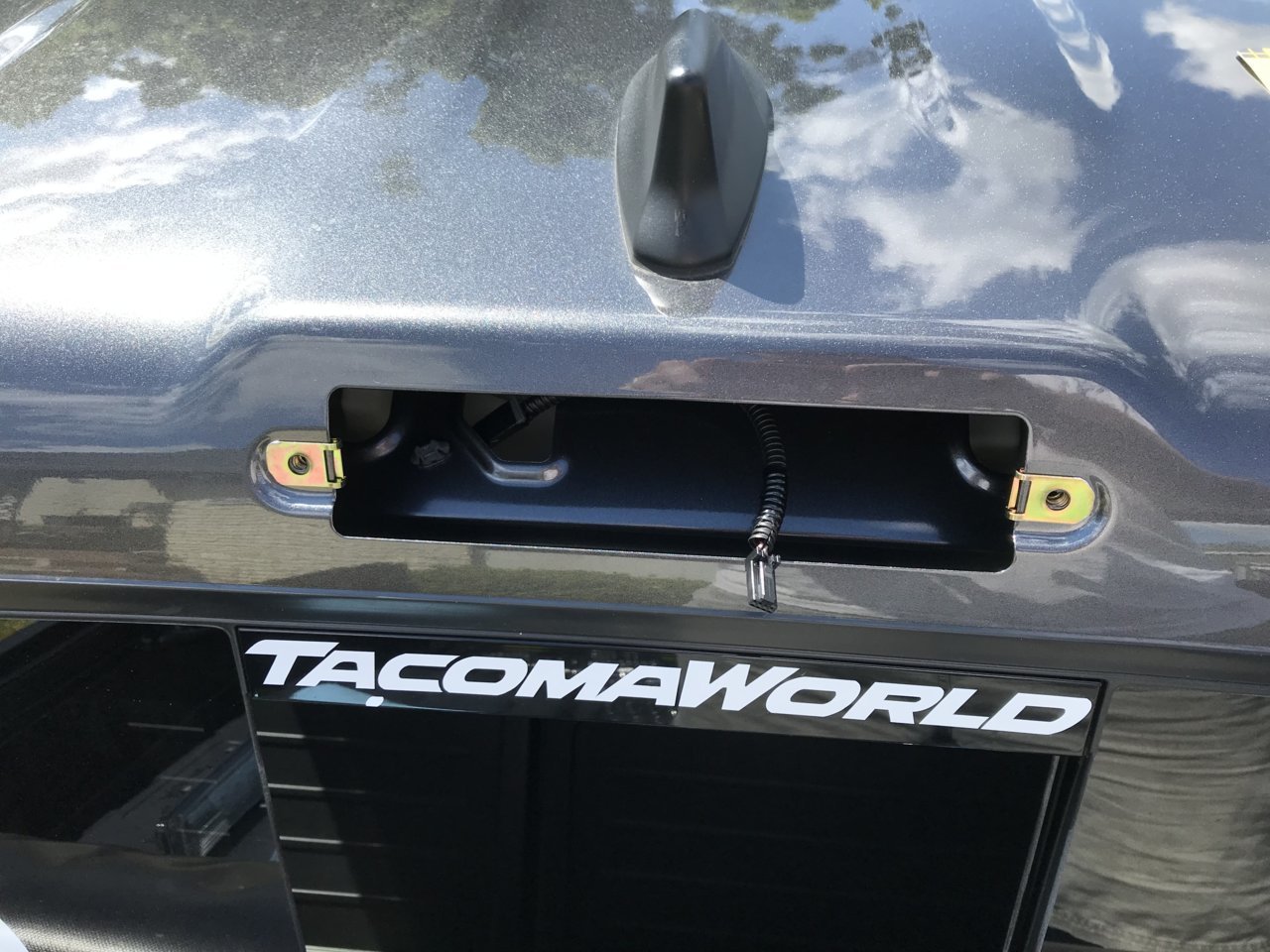

    It wouldn’t be on the back side of the clip. It would be between the clip and the body, so it gets compressed between the body/clip by the bolt. This should give you a better visual picture…


    PNWWanderer, SpyGoat and treyfive like this.
  4. Jun 14, 2022 at 6:49 PM
    #3584
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    3,443
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2018 Tacoma DCLB OR (AT) - MGM
    2018 SR5 - (Sold) 2018 OR (or what?) Louisiana Edition
    That factory ground is actually ON the factory connector. That reference is for those who do that, not that the clip-nut ground is bad. Choices. FWIW, I used the factory harness connector as is with no ill results… on a KC5. I’m going to open it up for the first time since it was installed this weekend, just for a look see.

  5. Jun 14, 2022 at 6:53 PM
    #3585
    treyfive

    treyfive Well-Known Member

    Joined:
    Jan 24, 2020
    Member:
    #317114
    Messages:
    458
    Gender:
    Male
    First Name:
    Brandon
    New York
    Vehicle:
    2017 PEARL BLUE TACOMA TRD OFF ROAD

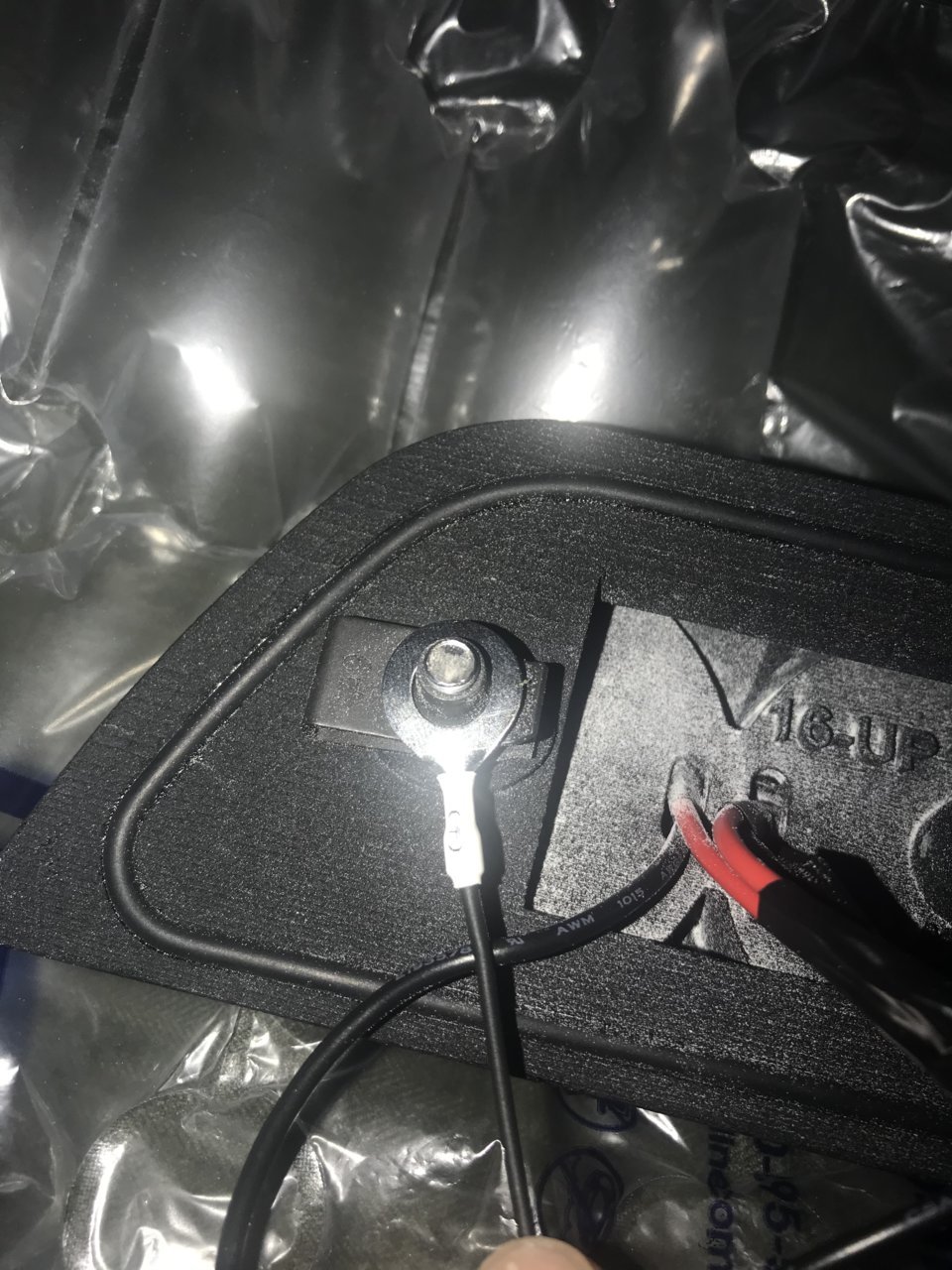

    Thanks so much. So slipped under the clip making contact with the body in the back side. Then to be compressed when the bolt goes through both the clip and the grounding ring and finally tightened with the nut.

    NoOne likes this.
  6. Jun 15, 2022 at 3:26 AM
    #3586
    EFG

    EFG Well-Known Member

    Joined:
    Mar 27, 2022
    Member:
    #393635
    Messages:
    160
    Gender:
    Male
    First Name:
    Eddy
    New England
    Vehicle:
    2022 Tacoma TRD Sport
    factory lift kit, Stinger Off Road Stereo, Customized leather interior, Backflip X4S Tonneau,
    Hey there fellow Bostonian…I’ve been looking for ways to do what it sounds like you have accomplished…Any pictures and or details would be greatly appreciated

  7. Jun 15, 2022 at 4:39 AM
    #3587
    CttAznRanger

    CttAznRanger Crazy NE Asian with the Cali Lean (temporary)

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    3,913
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    I’ll draw up a diagram for you for reference when I get back home, but for now, here’s reference shots of the cameras.

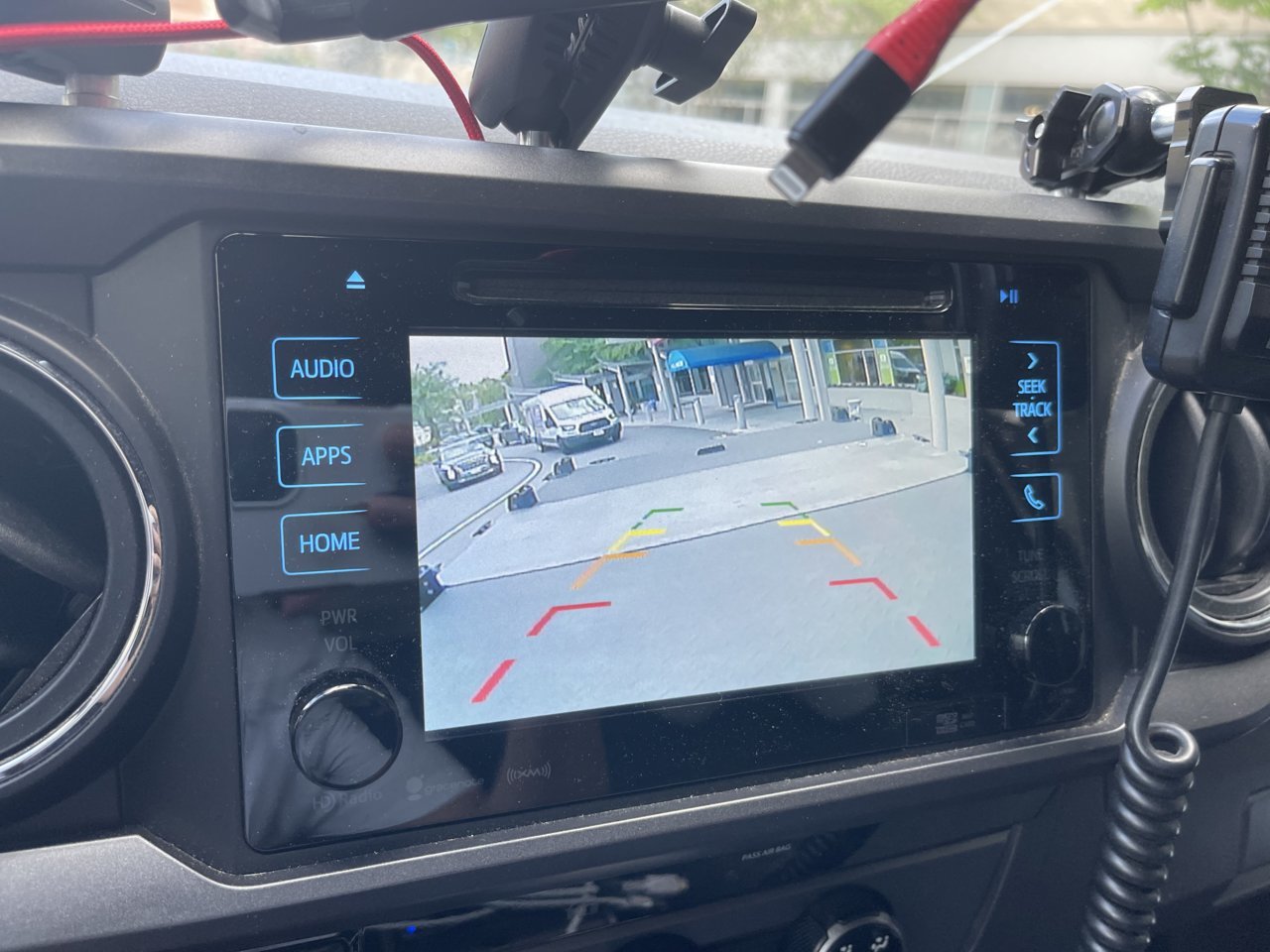

    Here is default front view when you turn it on:

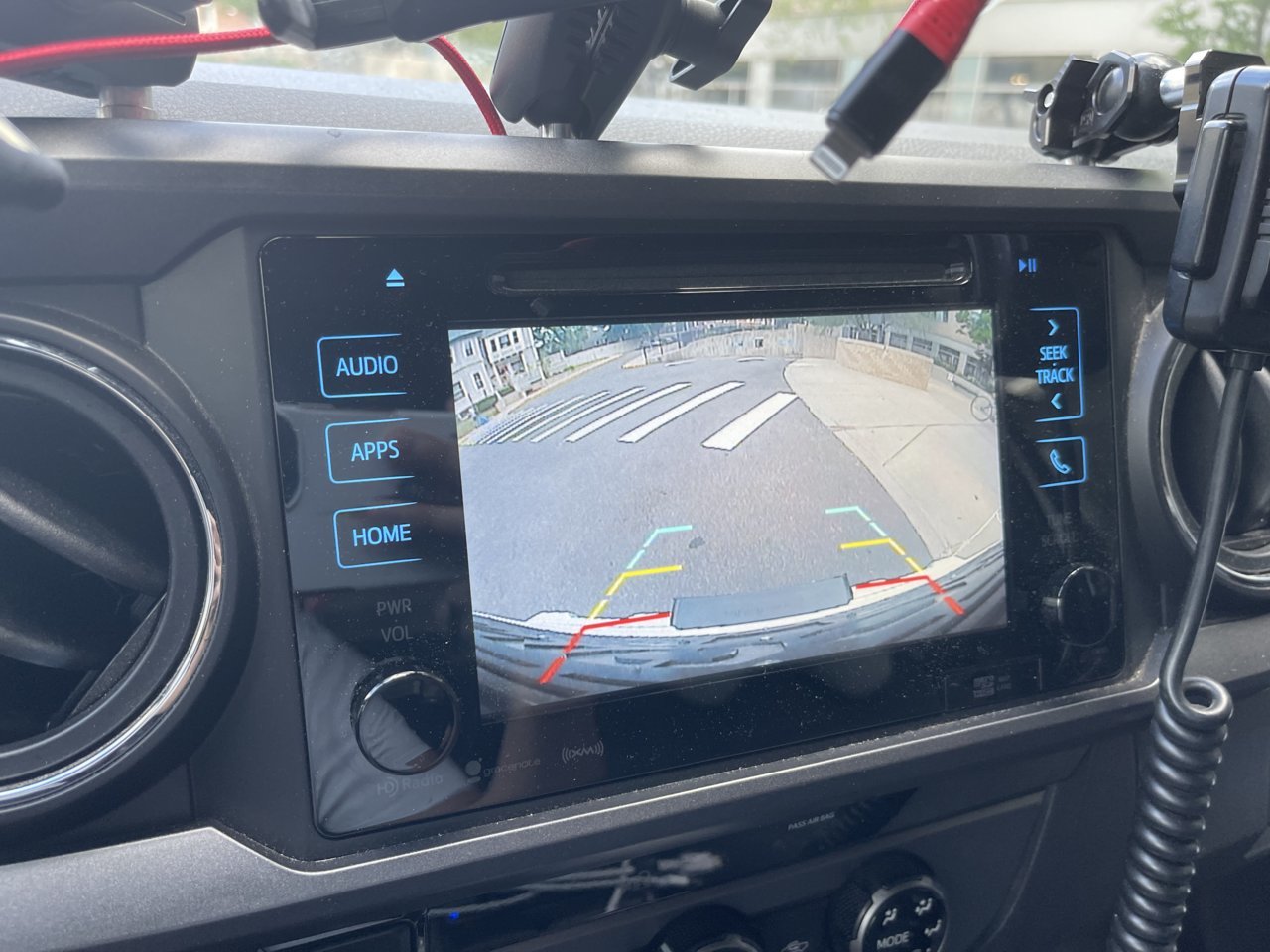

    Here is swapped to OEM rear camera:

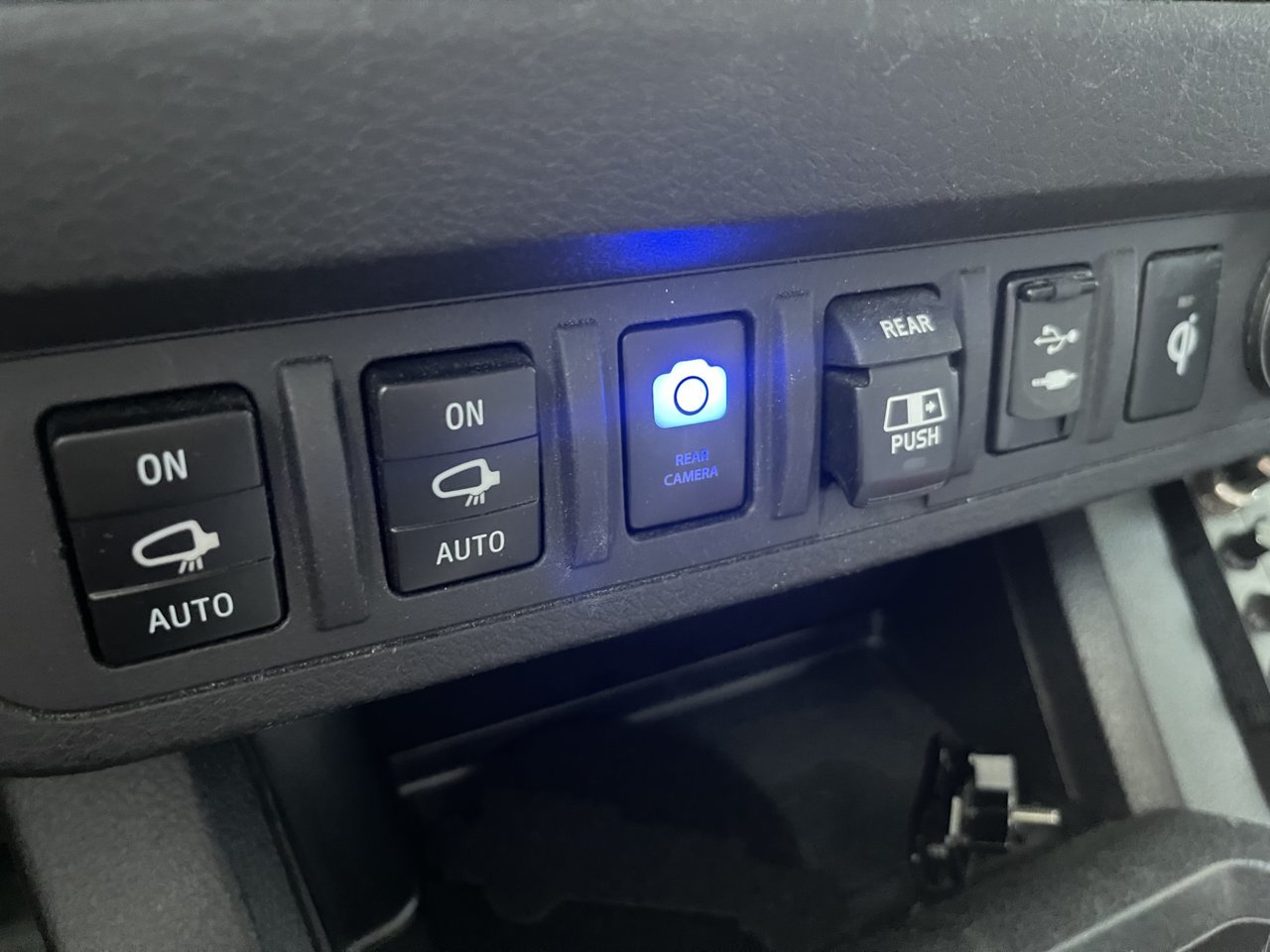

    Then clicking on this switch:

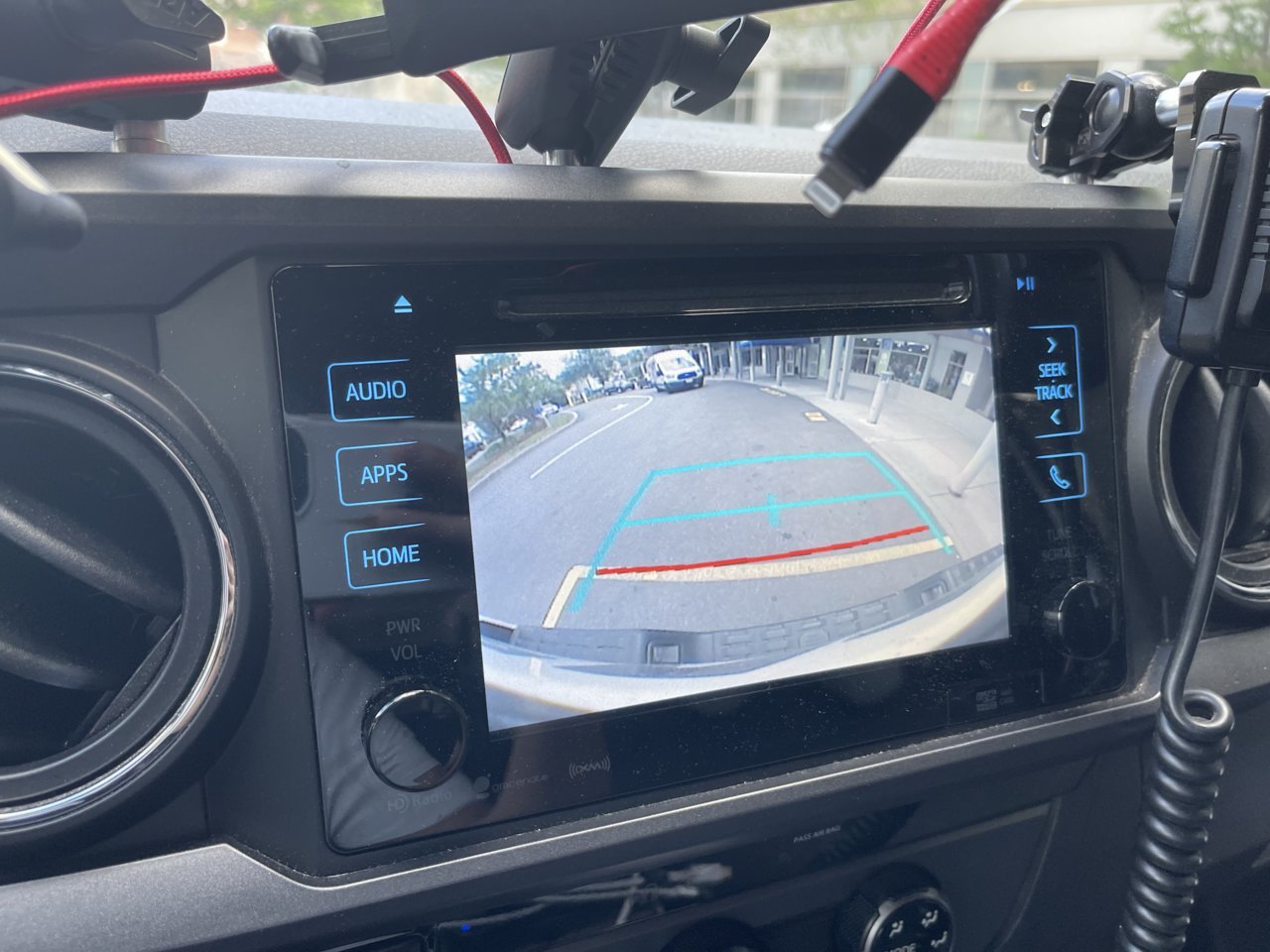

    I can get it swapped to this view: Yes, it is crooked, I never got that sealed in place.

  8. Jun 15, 2022 at 5:45 AM
    #3588
    EFG

    EFG Well-Known Member

    Joined:
    Mar 27, 2022
    Member:
    #393635
    Messages:
    160
    Gender:
    Male
    First Name:
    Eddy
    New England
    Vehicle:
    2022 Tacoma TRD Sport
    factory lift kit, Stinger Off Road Stereo, Customized leather interior, Backflip X4S Tonneau,
    I’ve actually got a Stinger off-road head unit installed that has 4 camera slots….right now I’m just using the oem back up camera which on this unit with its 10” screen is awesome…
    What I really need is camera and mounting options… I originally thought the shark fin antenna was good spot but the third brake like sounds nice as well.
    I’m thinking that vantage point would offer a great view of my boat and or kayak trailer…

    Last edited: Jun 15, 2022
  9. Jun 15, 2022 at 7:30 AM
    #3589
    CttAznRanger

    CttAznRanger Crazy NE Asian with the Cali Lean (temporary)

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    3,913
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    If the head unit you have allows for other camera slots, then yeah, you can add it wherever. The 3rd brake light spot is good because you can turn on the other lights for more visibility if you need. From what you can see in my photo, I can see almost the entire trunk, and some space behind it. Not perfect, but it would help.

  10. Jun 18, 2022 at 6:40 PM
    #3590
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,276
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    Not sure if it's related but I've been having a hard time locking my truck via the driver door handle, I can't say for certain but I honestly think this issue only started AFTER my 3rd brake light got installed :confused: :notsure:

    Other than that, love how the BD 4 light setup looks lol

  11. Jun 18, 2022 at 6:48 PM
    #3591
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    3,443
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2018 Tacoma DCLB OR (AT) - MGM
    2018 SR5 - (Sold) 2018 OR (or what?) Louisiana Edition
    Same issue, but I know it’s definitely not from that. Started happening after I added remote start/cellular management. Some of it can also be related to the battery in your remote. Change that first…

    patdeezy likes this.
  12. Jun 18, 2022 at 6:55 PM
    #3592
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,803
    Vehicle:
    TRD Pro in metallic primer

    I disagree. The BD lights interference with door lock is well known, there are tons of posts about it, and a few different fixes. (doesn’t seem to be one fix that works for everyone though).

  13. Jun 18, 2022 at 6:56 PM
    #3593
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,276
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    Yeah, that was the first thing I thought of, the battery was dying. Changed it out and still the same.

    Good to know you know your issue didn't start with the 3rd brake light install :thumbsup:

  14. Jun 18, 2022 at 6:57 PM
    #3594
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,276
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    I'll have to go through the thread to see what the different types of fixes are

  15. Jun 18, 2022 at 6:58 PM
    #3595
    CttAznRanger

    CttAznRanger Crazy NE Asian with the Cali Lean (temporary)

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    3,913
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    I know one of the fixes is to connect the lights to a separate ground and not the one that is from the original 3rd brake light.

    patdeezy likes this.
  16. Jun 18, 2022 at 6:58 PM
    #3596
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,803
    Vehicle:
    TRD Pro in metallic primer
    Running a new negative wire is one, running new power (direct from battery through a relay) is another.

    CttAznRanger and patdeezy like this.
  17. Jun 18, 2022 at 6:59 PM
    #3597
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,276
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    Appreciate the info fellas :thumbsup:

    CttAznRanger likes this.
  18. Jun 18, 2022 at 7:09 PM
    #3598
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,803
    Vehicle:
    TRD Pro in metallic primer
    BTW an easy test to see if it is the BD lights is to simply turn them off on the switch by the steering wheel, or wait until they go out and then try to lock it.

    Tacoma1845 and patdeezy like this.
  19. Jun 18, 2022 at 7:20 PM
    #3599
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    3,443
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2018 Tacoma DCLB OR (AT) - MGM
    2018 SR5 - (Sold) 2018 OR (or what?) Louisiana Edition
    You’re right, I’ve heard that about BD5.

  20. Jun 19, 2022 at 5:18 AM
    #3600
    SpyGoat

    SpyGoat I miss you Hobbs

    Joined:
    Sep 25, 2021
    Member:
    #378032
    Messages:
    1,160
    Gender:
    Male
    First Name:
    Tom
    Long Island, NY
    Vehicle:
    2021 TRD Off Road MGM DCSB
    A bunch..and no build thread!
    Any issue with the KC Cyclone V2's doing this?
