Super Ultimate 3rd Brake Light Build

Discussion in '3rd Gen. Tacomas (2016-2023)' started by MESO, Nov 30, 2017.

  1. Jun 19, 2022 at 8:17 AM
    #3601
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    4,894
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2022 Tacoma DCLB OR (AT) - BC
    2018 SR5 - (Sold) 2018 OR - RIPieces 2022 OR - BluCrush
    I haven’t heard of any. MESO’s newer kits include the body ground to avoid the issue. I’m an original via factory harness (v1 KCs) with no issues. I can’t speak for the v2s, but the KCs had a lower draw, which is what spurred the BD need for additional power/relays. The 4 was ok, but the 5 was pushing the limits of gauge/length/draw. Keep in mind, what folks are discussing is related to the bed lights, coming on with /related to door/lock unlock. I also recall something about radios and the BDs, but I could be wrong there too.

  2. Jun 19, 2022 at 11:28 AM
    #3602
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,334
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    Appreciate the info! I'll give that a try!

  3. Jul 2, 2022 at 3:59 AM
    #3603
    SpyGoat

    SpyGoat I miss you Hobbs

    Joined:
    Sep 25, 2021
    Member:
    #378032
    Messages:
    1,379
    Gender:
    Male
    First Name:
    Tom
    Long Island, NY
    Vehicle:
    2021 TRD Off Road MGM DCSB
    A bunch..and no build thread!

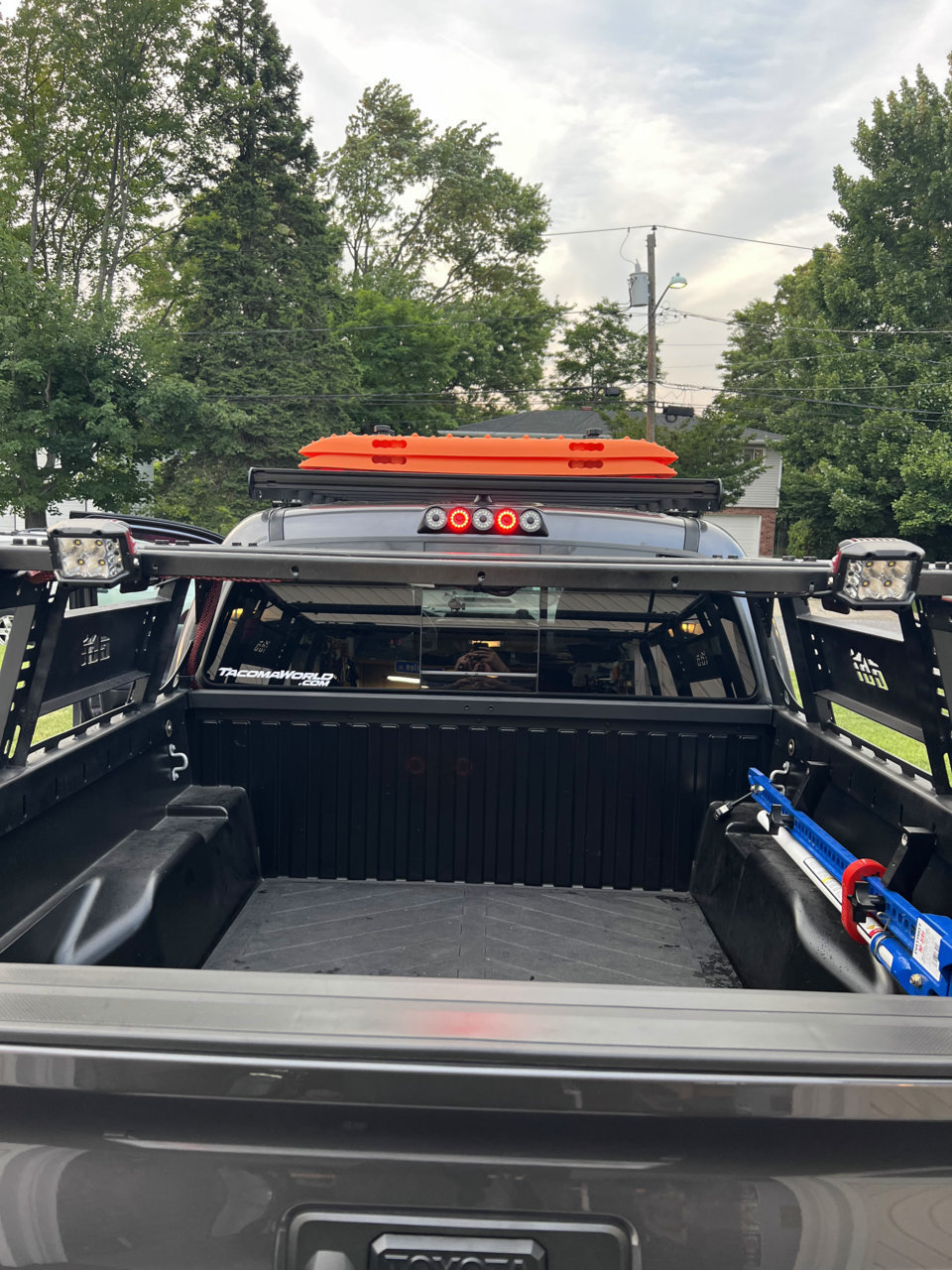

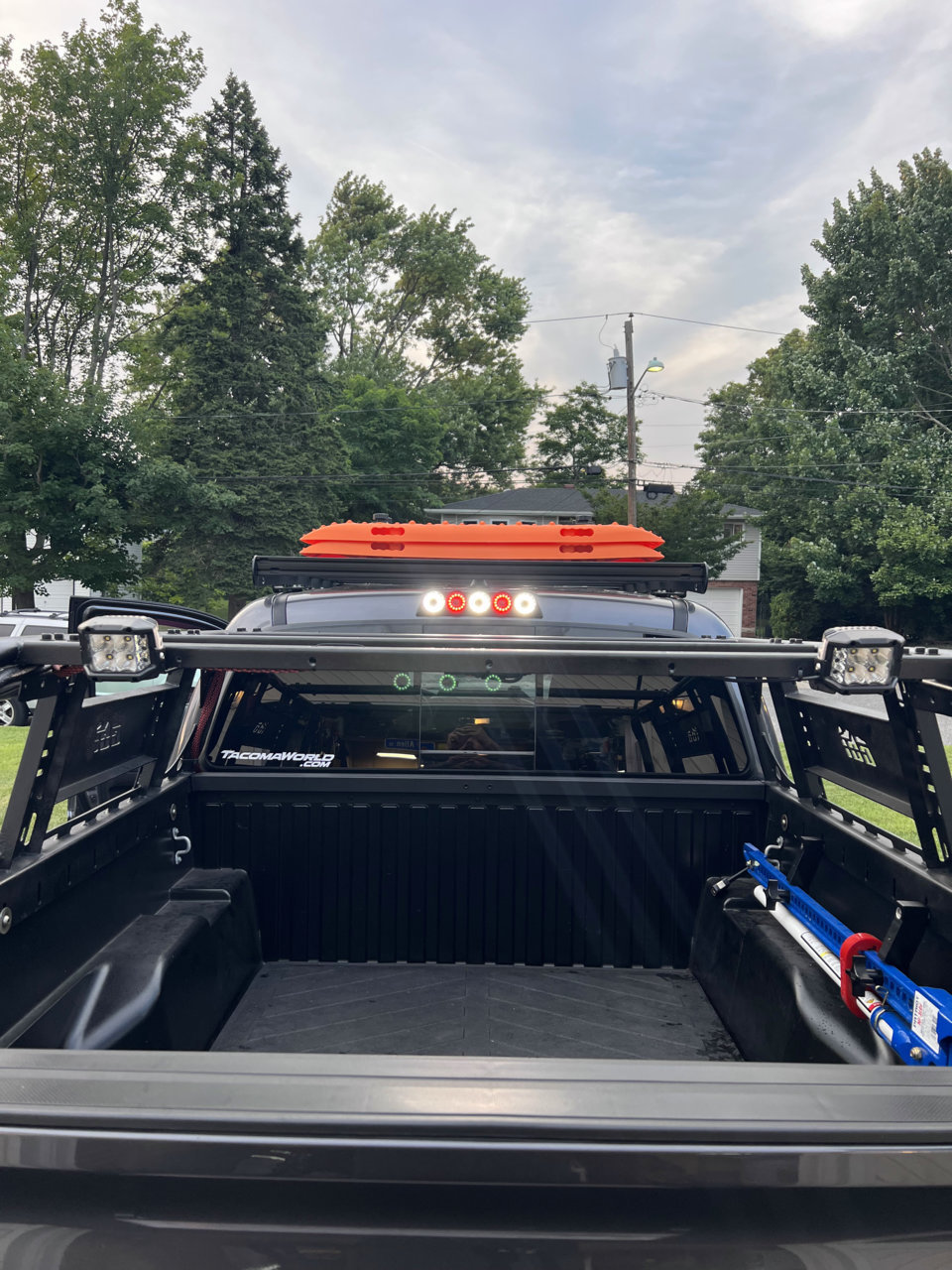

    Finally installed mine, big shout out to @MESO for sending me a hardware kit and connector (I was gifted my housing but it didn't come with anything but the housing and gasket) and @NoOne for all the PM help with wiring and my questions!

    Since I do not care about stock parts, I drilled out the rivets (took all of 10 seconds) to remove the old brake light, cleaned off the old foam gasket (probably the toughest part), wired the grounds from all 5 KC Cyclone V2's to the body and plugged in the connector!





    MTBTACORN, japjoe7, treyfive and 4 others like this.
  4. Jul 2, 2022 at 8:14 AM
    #3604
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,334
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    Also, update. Can confirm the 3rd brake light was messing with my touchless driver side door lock. Turned the 3rd brake light 'off' at the switch and the truck locks instantly w/ touchless lock. Also, waiting until the 3rd brake light has 'dimmed off' also locks immediately. Not sure if I want to go through the hassle of regrounding it or just waiting until the light fully dims every time lol, oh welllll.

    Have a good 4th everyone!

  5. Jul 4, 2022 at 6:26 AM
    #3605
    treyfive

    treyfive Well-Known Member

    Joined:
    Jan 24, 2020
    Member:
    #317114
    Messages:
    569
    Gender:
    Male
    First Name:
    Brandon
    New York
    Vehicle:
    2017 PEARL BLUE TACOMA TRD OFF ROAD

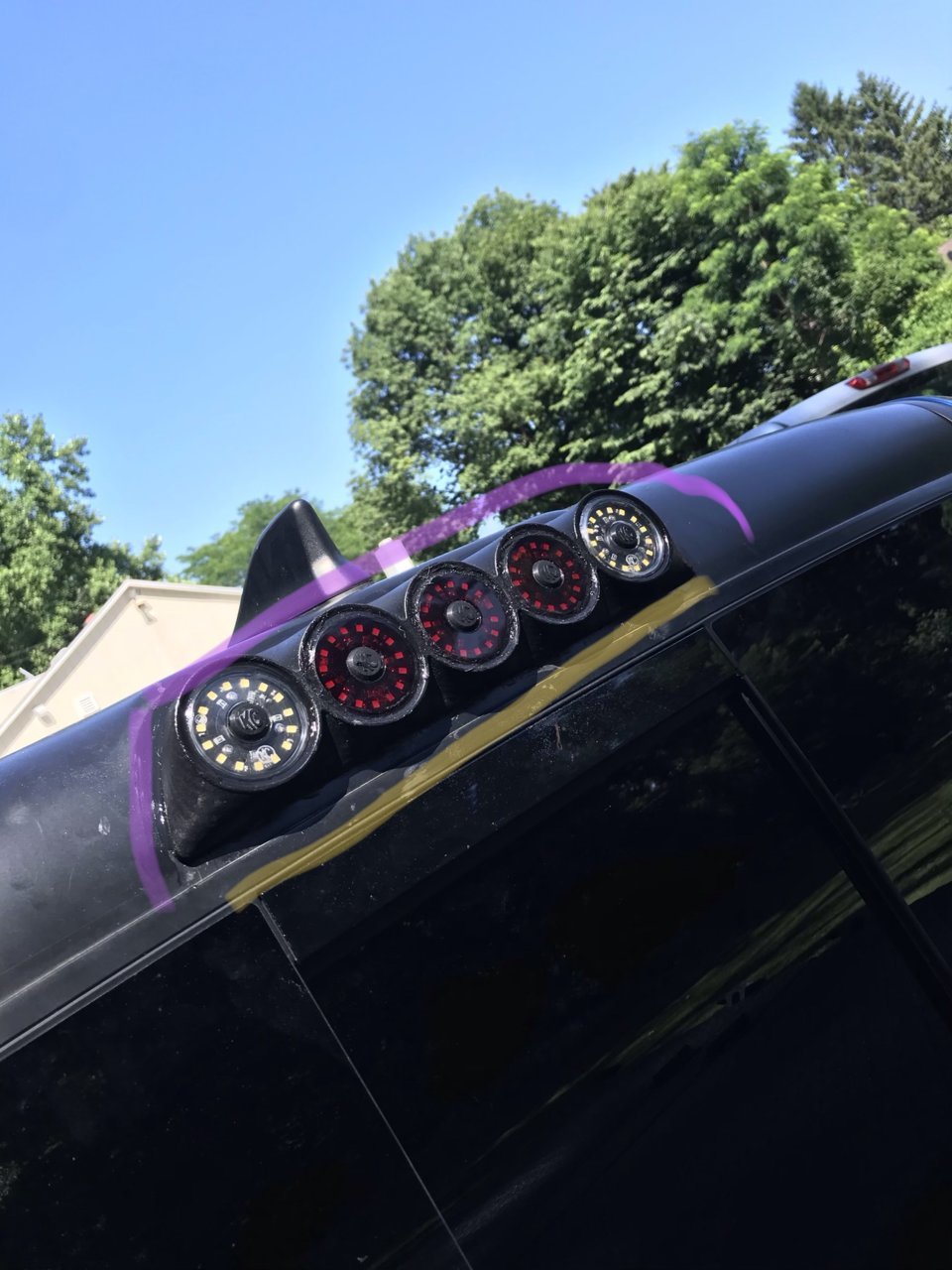

    Installed yesterday. Had some help by the father in law. Quick question do you guys silicone / RTV the bottom of the light (yellow). Friend told me to only do the top and sides (pink) because he said rain/water won’t get in from the bottom but if it did it could drain out. Thoughts?


    MTBTACORN likes this.
  6. Jul 4, 2022 at 9:53 AM
    #3606
    SpyGoat

    SpyGoat I miss you Hobbs

    Joined:
    Sep 25, 2021
    Member:
    #378032
    Messages:
    1,379
    Gender:
    Male
    First Name:
    Tom
    Long Island, NY
    Vehicle:
    2021 TRD Off Road MGM DCSB
    A bunch..and no build thread!
    I sealed all the way around.

    ponts and treyfive like this.
  7. Jul 4, 2022 at 10:56 AM
    #3607
    treyfive

    treyfive Well-Known Member

    Joined:
    Jan 24, 2020
    Member:
    #317114
    Messages:
    569
    Gender:
    Male
    First Name:
    Brandon
    New York
    Vehicle:
    2017 PEARL BLUE TACOMA TRD OFF ROAD
    Thanks for the response man. I’m curious to see what others in this thread say about not sealing the bottom of the KC5... I may seal all the way around this week. I’m still deciding what makes the most sense. I put some RTV on the inside of the light around the gasket that MESO installs.

  8. Jul 4, 2022 at 12:32 PM
    #3608
    PapaRee

    PapaRee Pro Tuner

    Joined:
    Oct 31, 2015
    Member:
    #168275
    Messages:
    3,241
    Gender:
    Male
    First Name:
    Kreg
    Prairieville, Louisiana
    Vehicle:
    2016 Black TRD Sport, Tuned, BHLM OEM LEDs
    GTS Dobinson's lift, 33"-Wildpeak Atw3-18x9 -6 Offset ,265/70/18 tires, Raceline Assault wheels, Backflip G2 bed cover, Magnaflow exhaust, Pro tail lights, Pro fog lights, Pro grille, Raptor grille lights, Predator side steps, RedLine Hood Struts, Toyota bedmat, tinted windows, Retrofitted-BHLM-Amber Halo-Amber DRL-HID headlights, LED Highbeams, LED Hood Scoop lightbar, LED hidden bumper lightbar, LED under hood light, LED Bed lights, LED license plate lights, Tacoma tailgate 3d letters, Tacoma glovebox 3D letters, removed air dam, Custom TRD Sport emblems, Pro Shift Knob with Meso ECT Stealth button, Meso LED dome and map lights, Meso V3 smoked mirror turn signals, Meso Stage 2 Tail lights, Meso Mirror Puddle lights, Meso KC-5 Brake/Cargo light, Meso center console bucket with OG lid, Tailgate PNP kit, Garage door opener button in overhead console, Meso Minimalist keyfobs, Matte black Pro hood decal, KTJO4x4 Led door handle LED lights, Pioneer 6x9 3 way front speakers, Rockford Fosgate 6.75' rear speakers, TacoTunes tweeters, AJT black vent rings, JDM Gas cap cover.

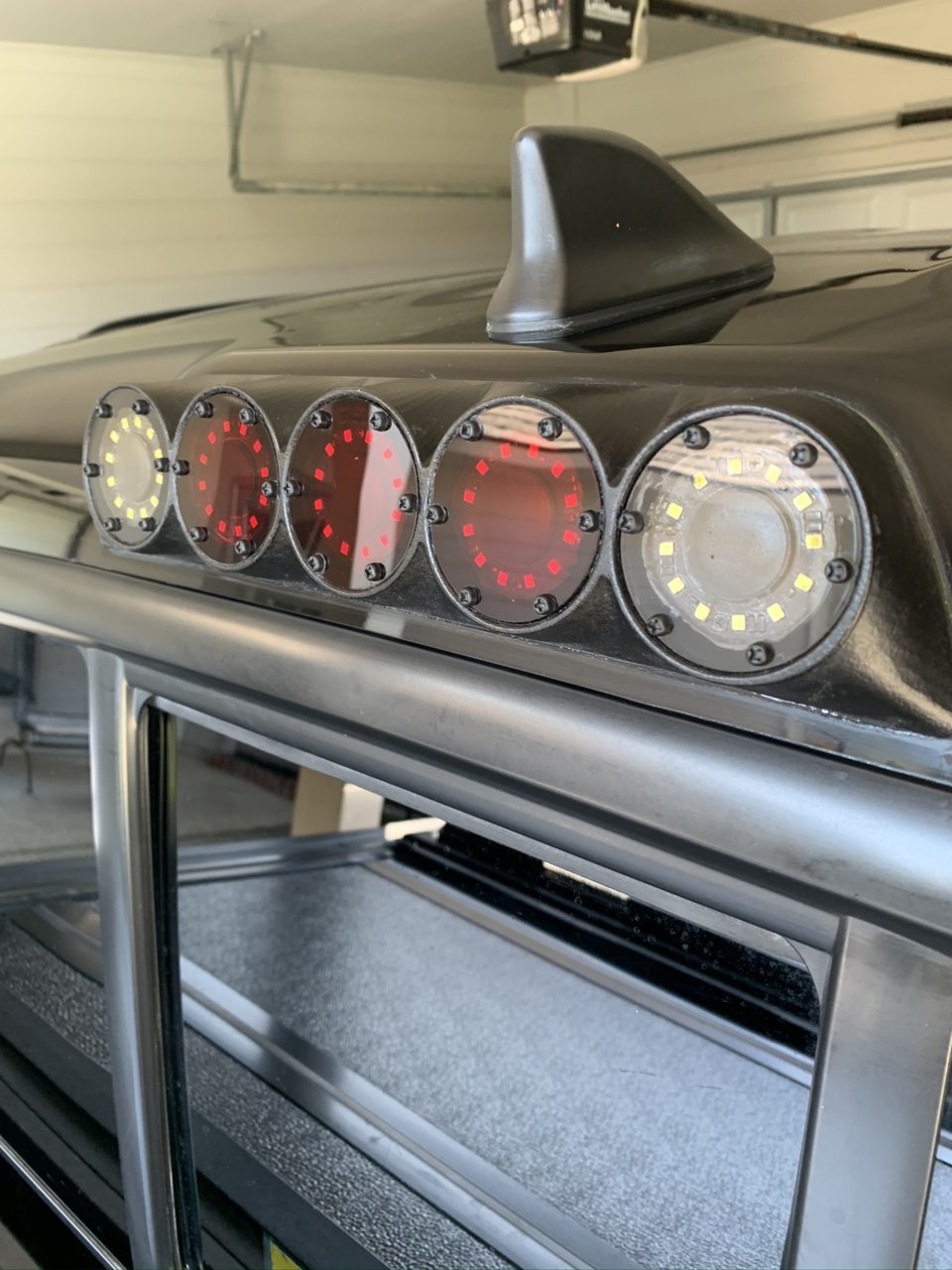

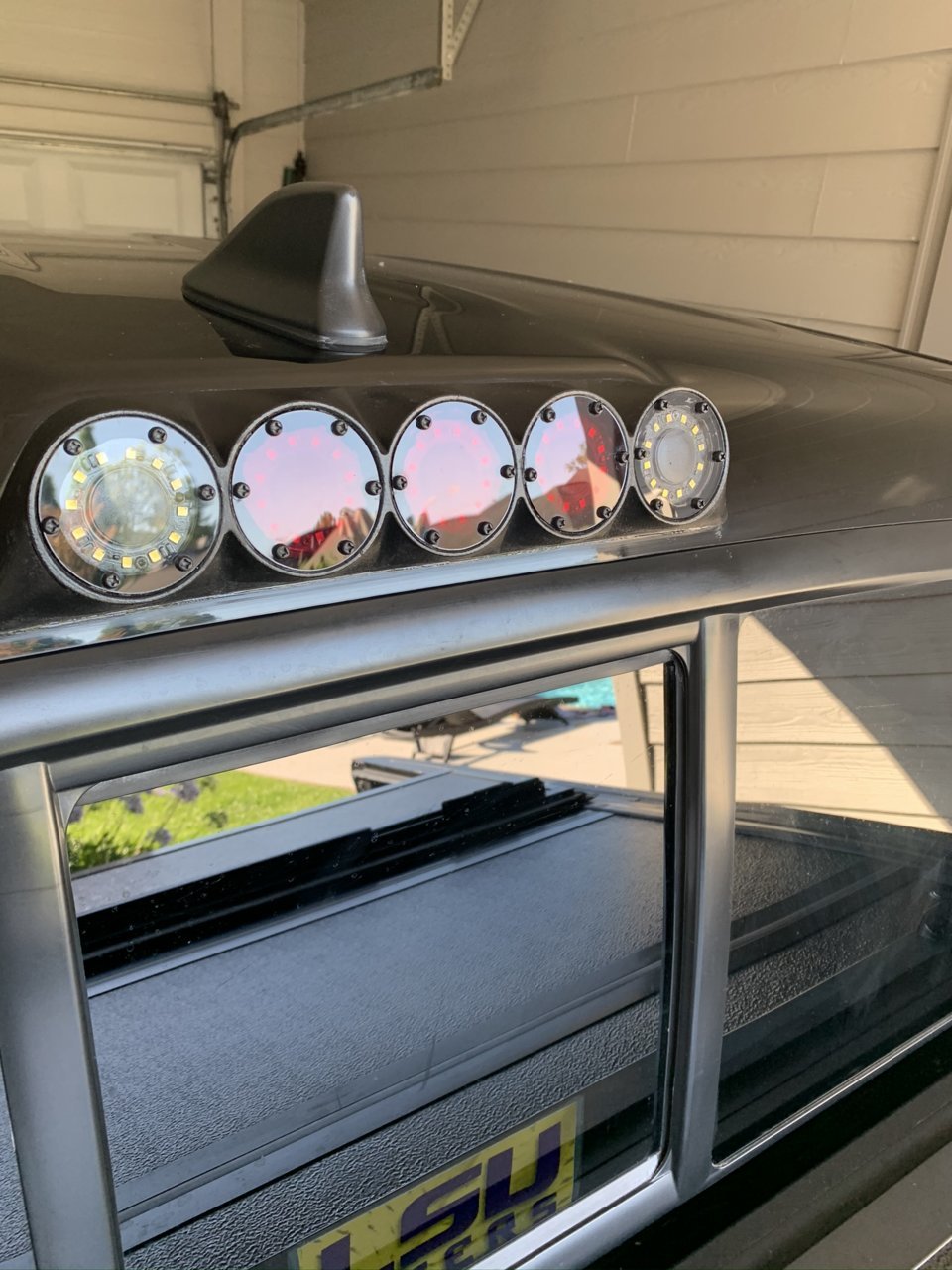

    I have the KC5. I first sealed it everywhere but the bottom. I went through an auto carwash and the high-pressure water spray got through. So I went ahead and put black RTV all the way around. It has been dry ever since. I go through the auto wash at least once a week. I’ve had my light installed over a year. Had to replace lenses twice because of cracks. None since getting the plexiglass lenses cut.
    049A899D-8918-4B7C-B8AE-137AE16FB952.jpg 0EB6BB49-B0AE-4058-8418-7A7CE45DA2C3.jpg

  9. Jul 4, 2022 at 1:11 PM
    #3609
    treyfive

    treyfive Well-Known Member

    Joined:
    Jan 24, 2020
    Member:
    #317114
    Messages:
    569
    Gender:
    Male
    First Name:
    Brandon
    New York
    Vehicle:
    2017 PEARL BLUE TACOMA TRD OFF ROAD
    Thanks man I’m gonna silicone the bottom then. I have the V2 version but the plexiglass looks sick

    PapaRee[QUOTED] likes this.
  10. Jul 4, 2022 at 3:25 PM
    #3610
    SpyGoat

    SpyGoat I miss you Hobbs

    Joined:
    Sep 25, 2021
    Member:
    #378032
    Messages:
    1,379
    Gender:
    Male
    First Name:
    Tom
    Long Island, NY
    Vehicle:
    2021 TRD Off Road MGM DCSB
    A bunch..and no build thread!
    I have the V2's on mine as well. I figured if I seal all of it really well, it is added insurance, especially since you had to have everything off the truck in the first place..lol

    treyfive likes this.
  11. Jul 4, 2022 at 4:23 PM
    #3611
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    4,894
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2022 Tacoma DCLB OR (AT) - BC
    2018 SR5 - (Sold) 2018 OR - RIPieces 2022 OR - BluCrush
    Just the MESO gasket, nothing else. No leaks in several years… I did use rubber fender washers on back side of each of the KCs as well as silicone where the wires come through… but just a dab before I pulled the last bit in.

    treyfive, SpyGoat and PapaRee like this.
  12. Jul 4, 2022 at 5:06 PM
    #3612
    SpyGoat

    SpyGoat I miss you Hobbs

    Joined:
    Sep 25, 2021
    Member:
    #378032
    Messages:
    1,379
    Gender:
    Male
    First Name:
    Tom
    Long Island, NY
    Vehicle:
    2021 TRD Off Road MGM DCSB
    A bunch..and no build thread!
    I did the same wit the washer idea!

  13. Jul 5, 2022 at 12:57 AM
    #3613
    Buttskevin21

    Buttskevin21 Well-Known Member

    Joined:
    Dec 14, 2020
    Member:
    #349654
    Messages:
    2,471
    Gender:
    Male
    First Name:
    Kevin
    Washington
    Vehicle:
    2019 Brocoma, 37s, Lt, Dual Tcases, blah blah blah https://www.instagram.com/kevinjbutts/
    Stock-ish

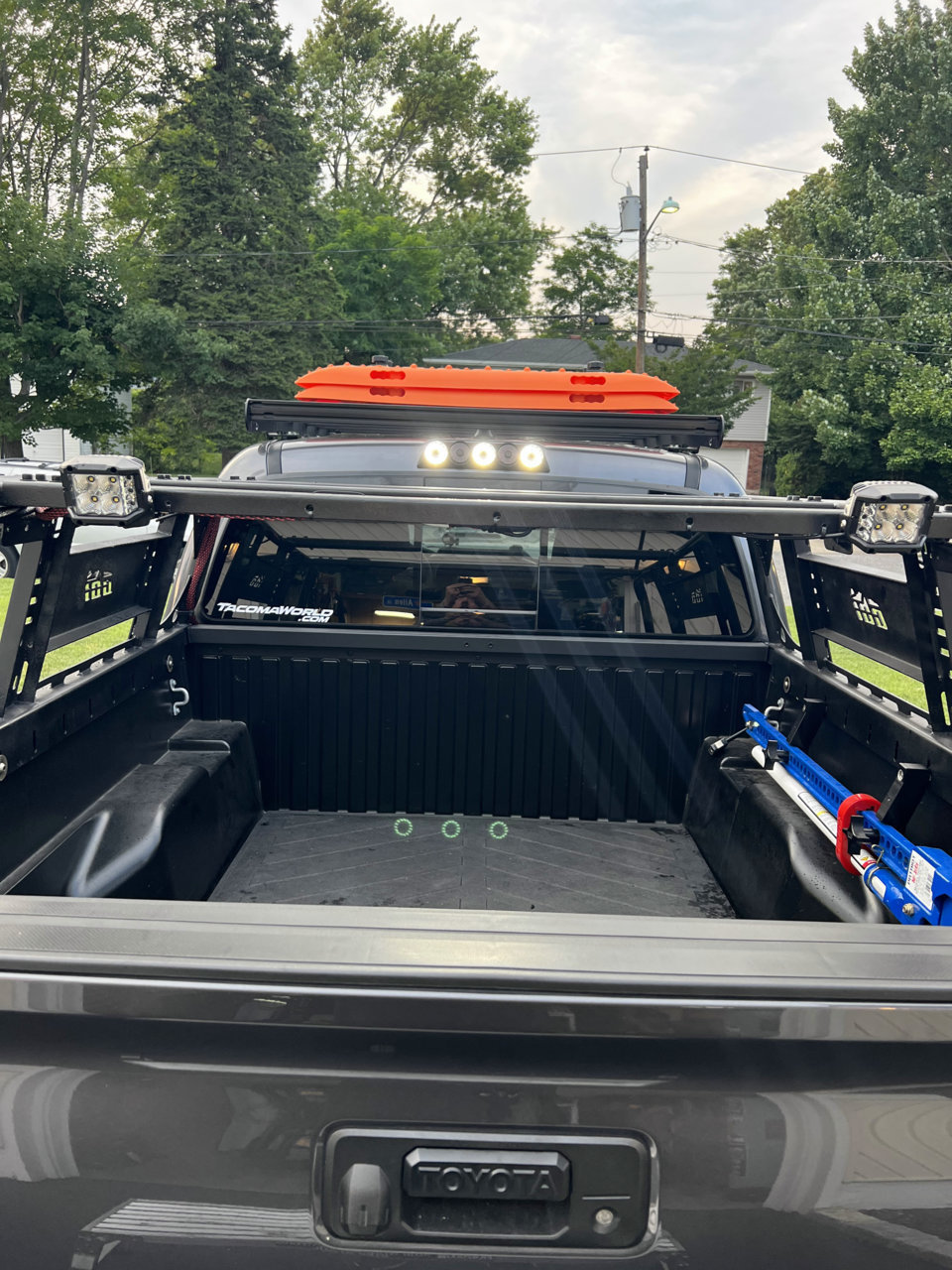

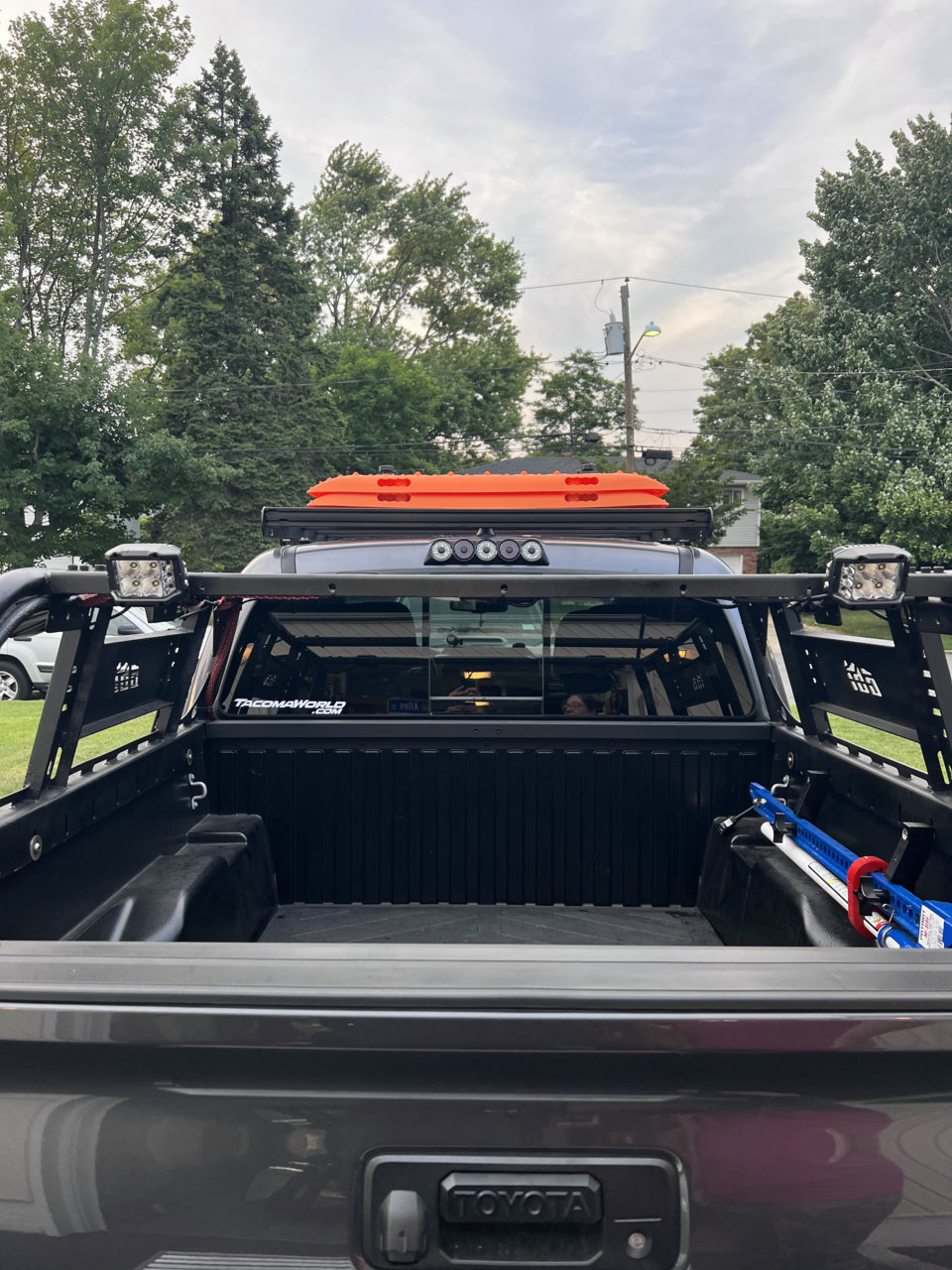

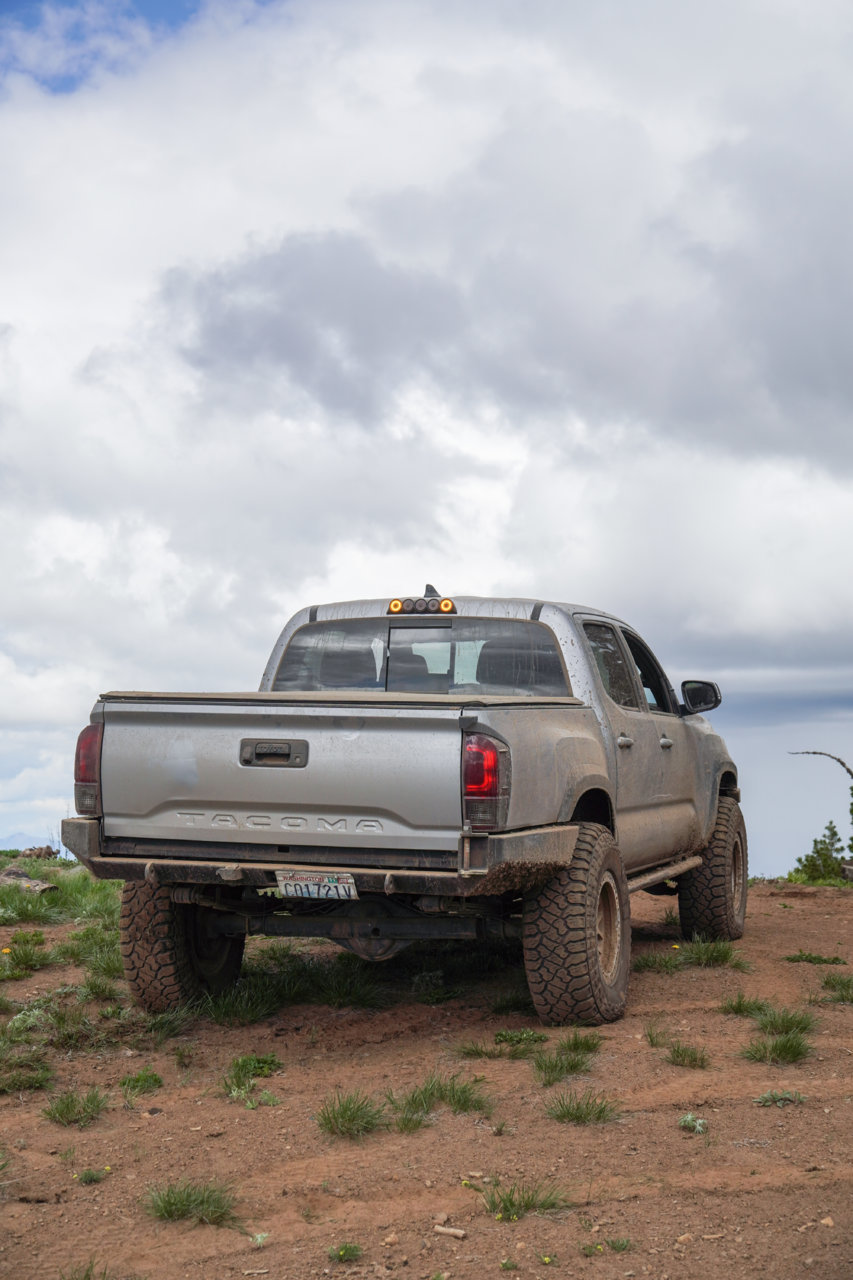

    Glamour shot of mine with the kc5 I did last week. Looks great and is very functional. 2 yellows, and 3 reds all wired to the factory plug with no issues.


    MTBTACORN, patdeezy and treyfive like this.
  14. Aug 13, 2022 at 3:57 PM
    #3614
    treyfive

    treyfive Well-Known Member

    Joined:
    Jan 24, 2020
    Member:
    #317114
    Messages:
    569
    Gender:
    Male
    First Name:
    Brandon
    New York
    Vehicle:
    2017 PEARL BLUE TACOMA TRD OFF ROAD
    Hey guys cargo and brake lights were working fine but I went to check last night and realized my KC5 cargo lights are out but the middle brake lights are working. Any ideas? I checked the cargo fuse and it looks to be fine.

  15. Aug 13, 2022 at 4:01 PM
    #3615
    solscooter

    solscooter Sh!t Outta Luck

    Joined:
    Nov 8, 2015
    Member:
    #169056
    Messages:
    1,917
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    Vehicle:
    2016 TRD OR DCSB 4x4
    How did you attach the power wire for them

  16. Aug 13, 2022 at 4:06 PM
    #3616
    treyfive

    treyfive Well-Known Member

    Joined:
    Jan 24, 2020
    Member:
    #317114
    Messages:
    569
    Gender:
    Male
    First Name:
    Brandon
    New York
    Vehicle:
    2017 PEARL BLUE TACOMA TRD OFF ROAD
    I had Kyle on here wire it for me since I don’t know anything electric.

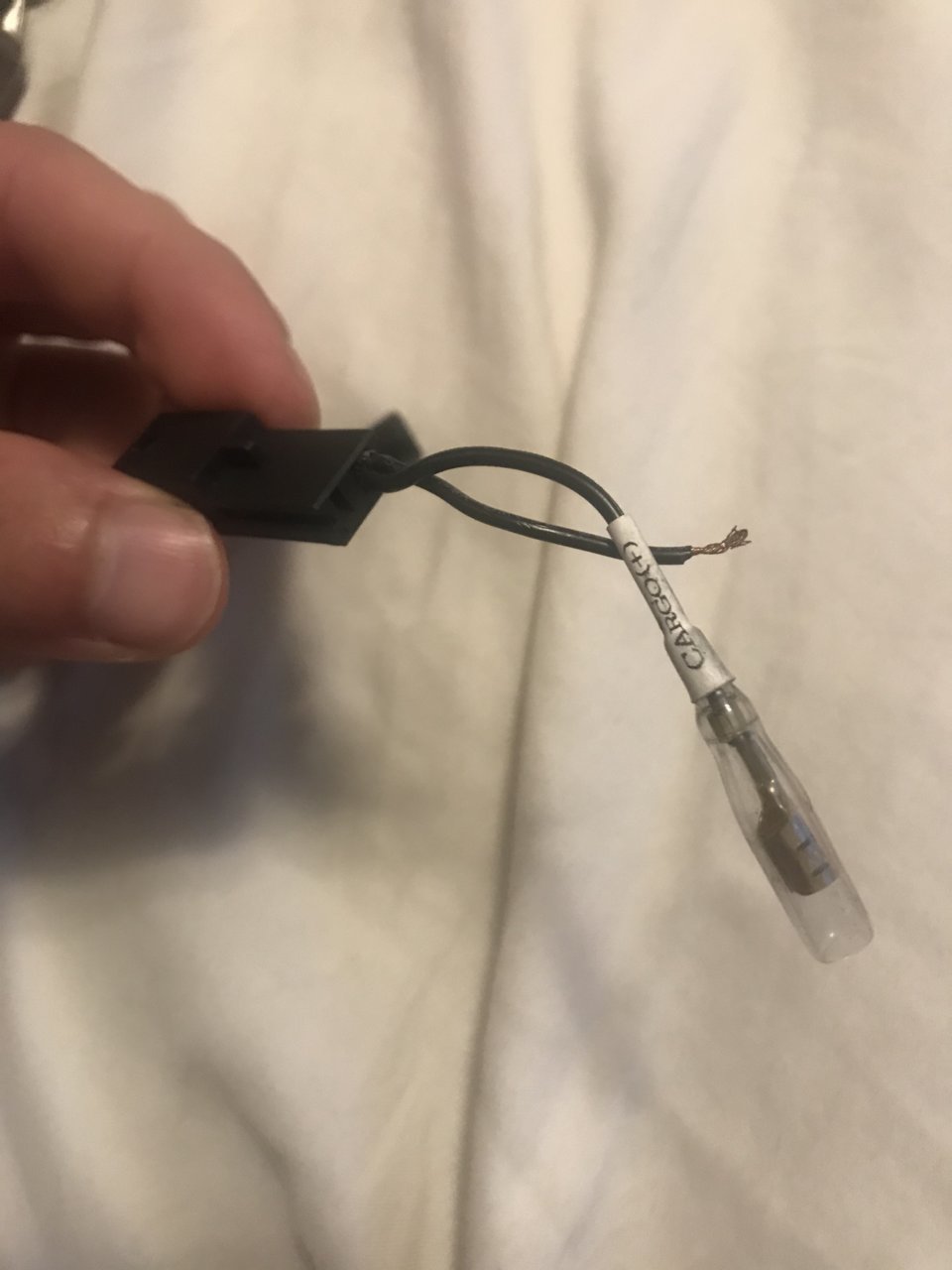

    The Meso clip had a loose pin or something that was off when I initially went to install so my father in law cut both plugs (the Meso plug and the factory 3rd brake light plug) and crimped (terminology) the 2 cables (brake) and (cargo) together and I grounded through the bolt.

  17. Aug 13, 2022 at 4:19 PM
    #3617
    solscooter

    solscooter Sh!t Outta Luck

    Joined:
    Nov 8, 2015
    Member:
    #169056
    Messages:
    1,917
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    Vehicle:
    2016 TRD OR DCSB 4x4
    So the power wire for the brake and cargo lights are attached to the same power wire from the factory harness?

    do me a favor. Turn the cargo lights on then hit the brake and see if they light up.

    there are 3 wires off the factory harness. 1 power for the brake lights. 1 power for the cargo lights. And one ground.

  18. Aug 13, 2022 at 4:27 PM
    #3618
    treyfive

    treyfive Well-Known Member

    Joined:
    Jan 24, 2020
    Member:
    #317114
    Messages:
    569
    Gender:
    Male
    First Name:
    Brandon
    New York
    Vehicle:
    2017 PEARL BLUE TACOMA TRD OFF ROAD

    Thanks for the response. Kind of like this but only 2 wires. I grounded through the bolt.


    Also took out the fuse out but it’s hard to tell if it’s blown or good?

    I will try the test out tonight just want the father in law to eye ball the fuse when he gets home first.






  19. Aug 13, 2022 at 4:49 PM
    #3619
    treyfive

    treyfive Well-Known Member

    Joined:
    Jan 24, 2020
    Member:
    #317114
    Messages:
    569
    Gender:
    Male
    First Name:
    Brandon
    New York
    Vehicle:
    2017 PEARL BLUE TACOMA TRD OFF ROAD

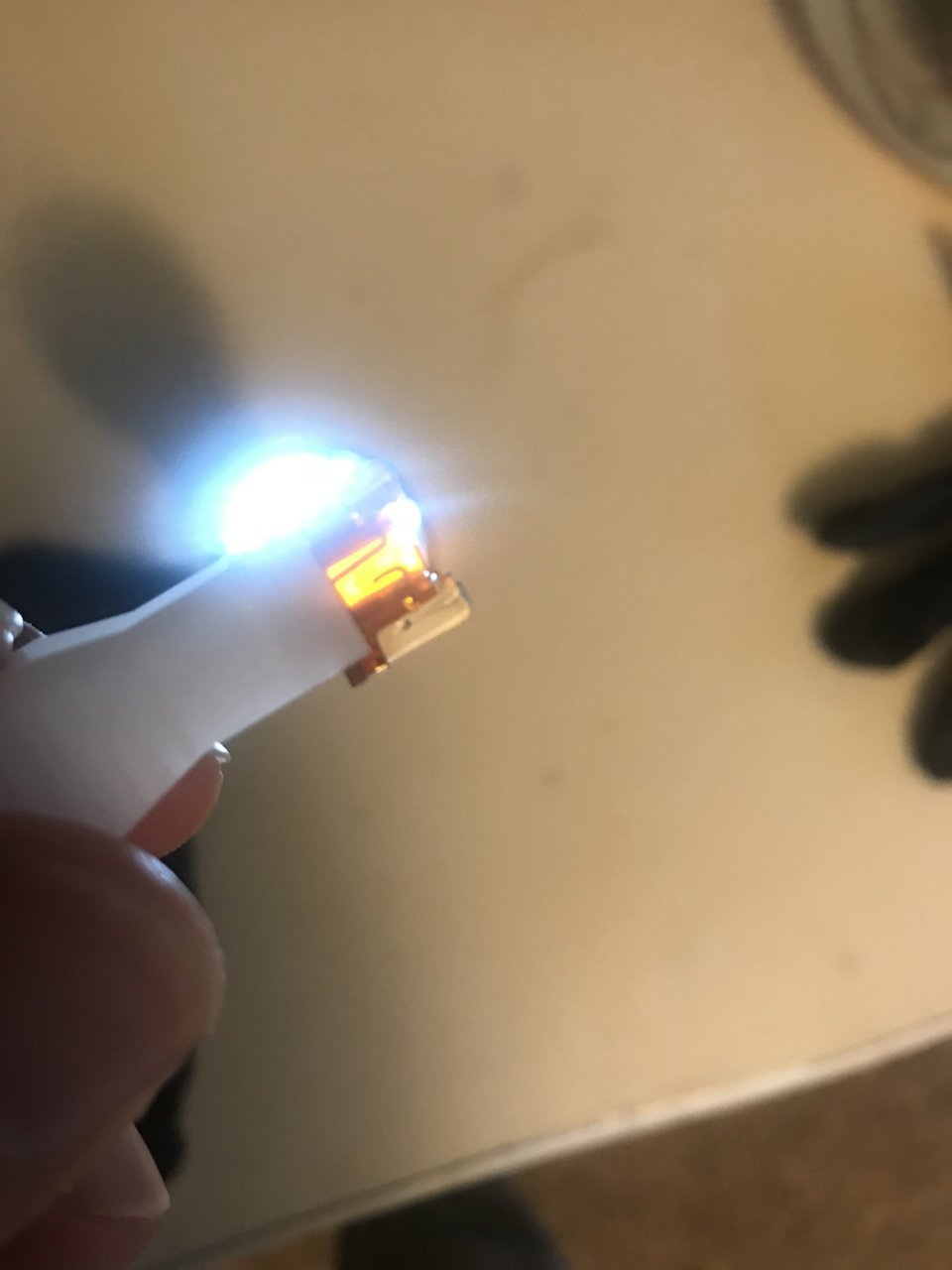

    Here’s what he took off


  20. Aug 13, 2022 at 5:12 PM
    #3620
    treyfive

    treyfive Well-Known Member

    Joined:
    Jan 24, 2020
    Member:
    #317114
    Messages:
    569
    Gender:
    Male
    First Name:
    Brandon
    New York
    Vehicle:
    2017 PEARL BLUE TACOMA TRD OFF ROAD

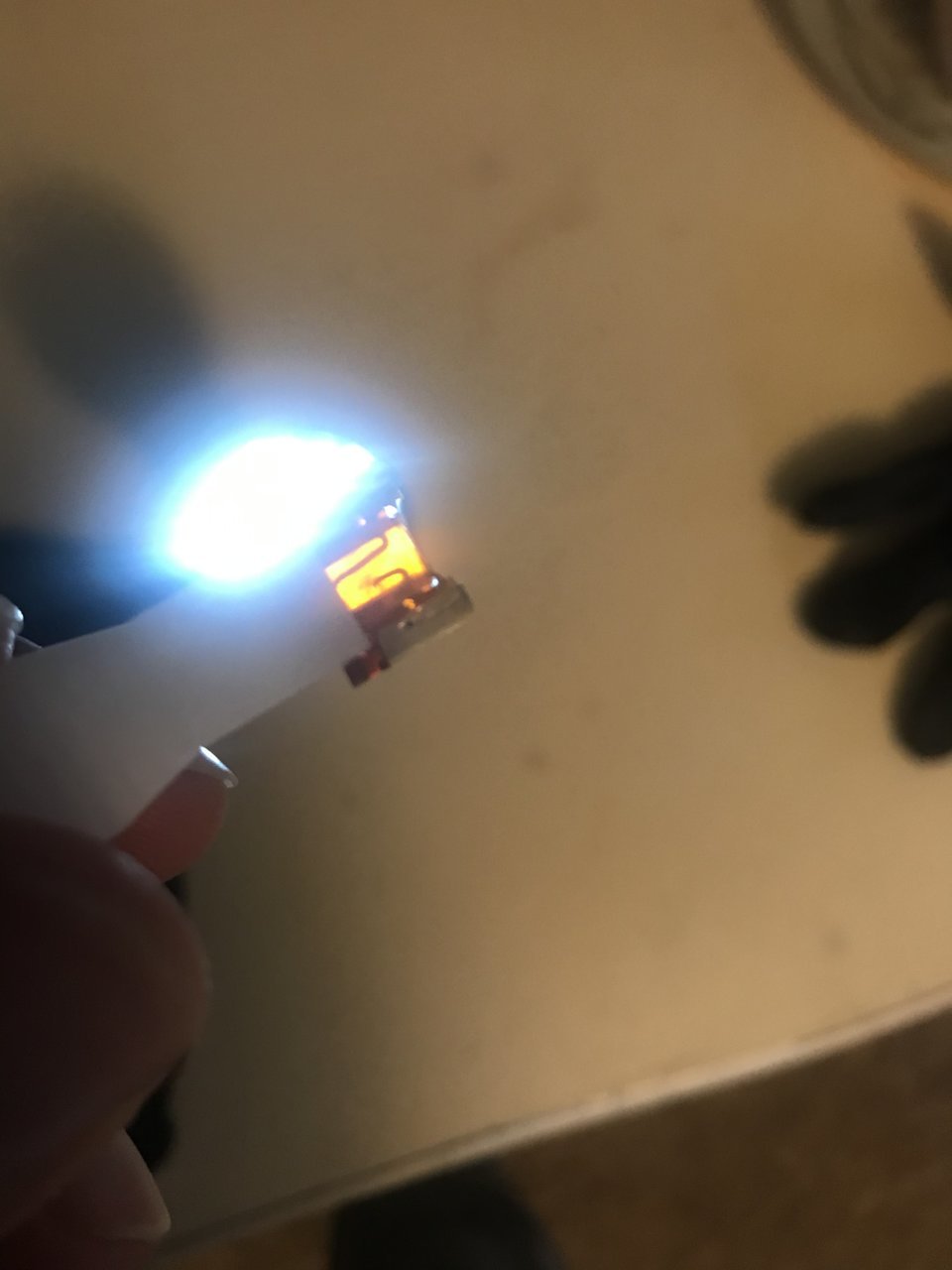

    Blown fuse. KYLE got back to me and suggested that I do the following


    solscooter likes this.
