Switch Panel GB

Yes, they are from china though. So have to wait. OTRATTW has them on his site.

http://www.otrattw.net/Terminals-and-Terminal-Housings/

You need the VCH series. They have the 8 pin holes. the terminals are there too.

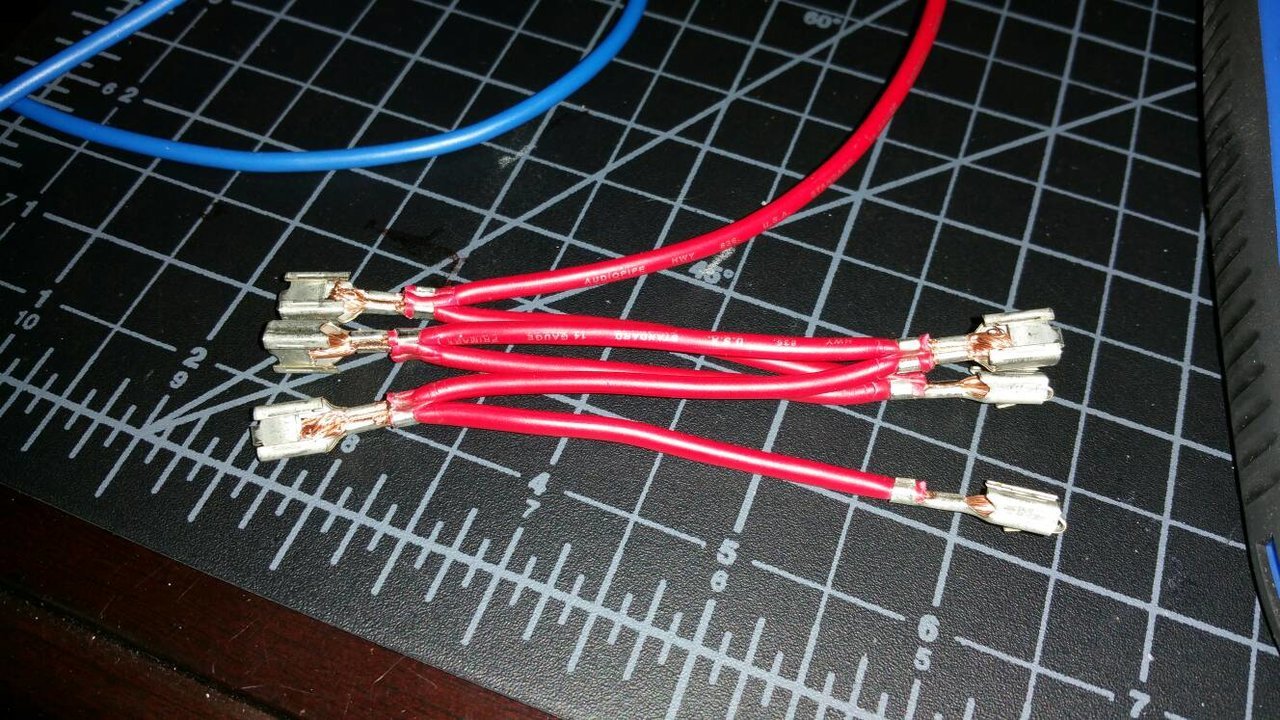

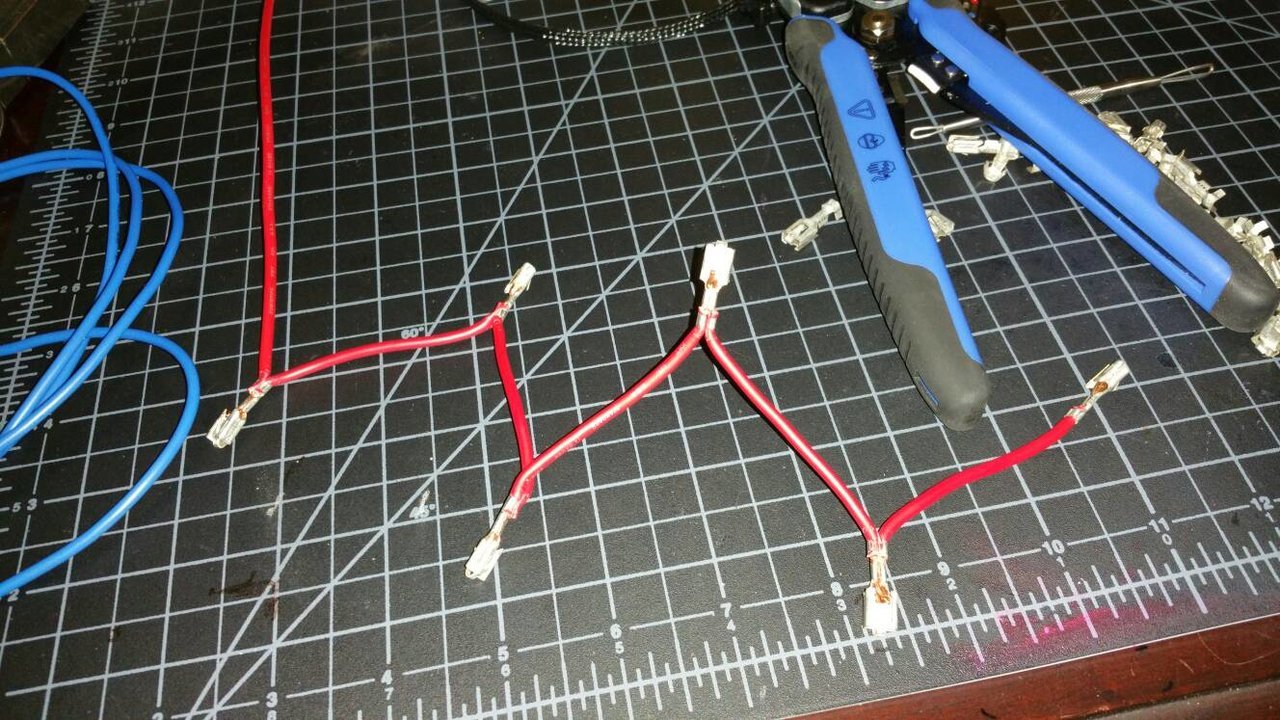

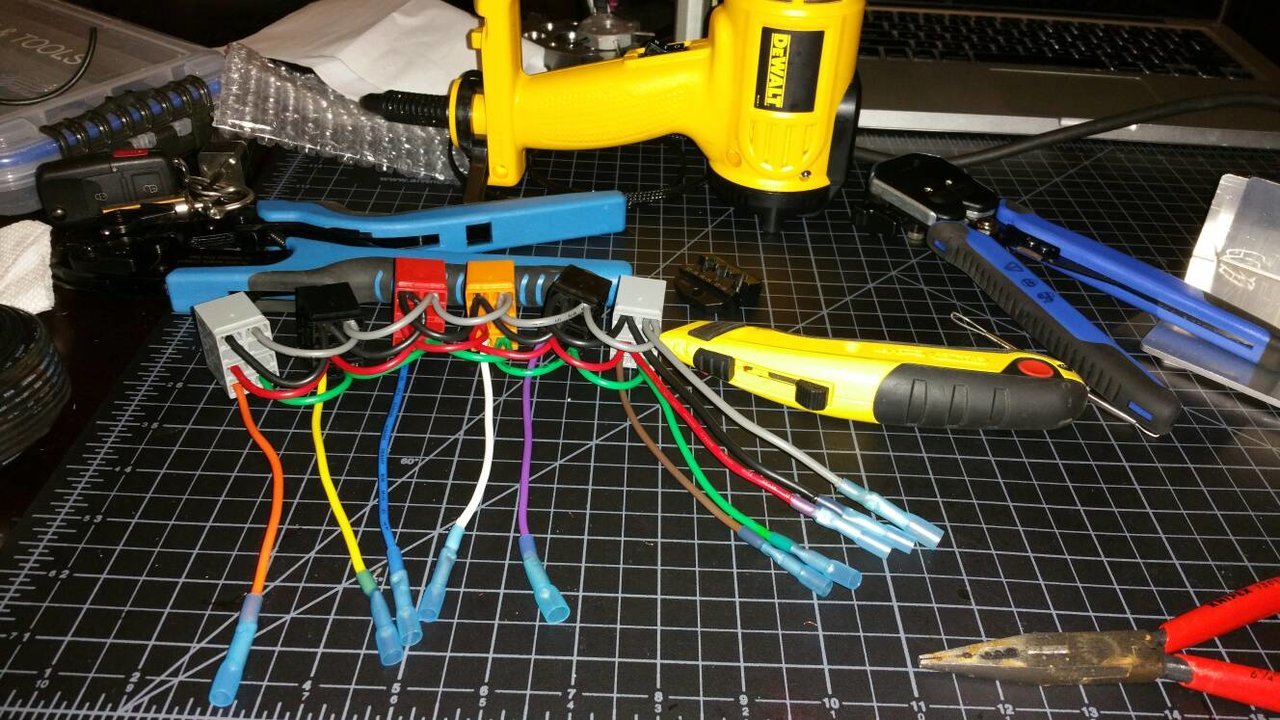

For your viewing pleasure.

Propper...

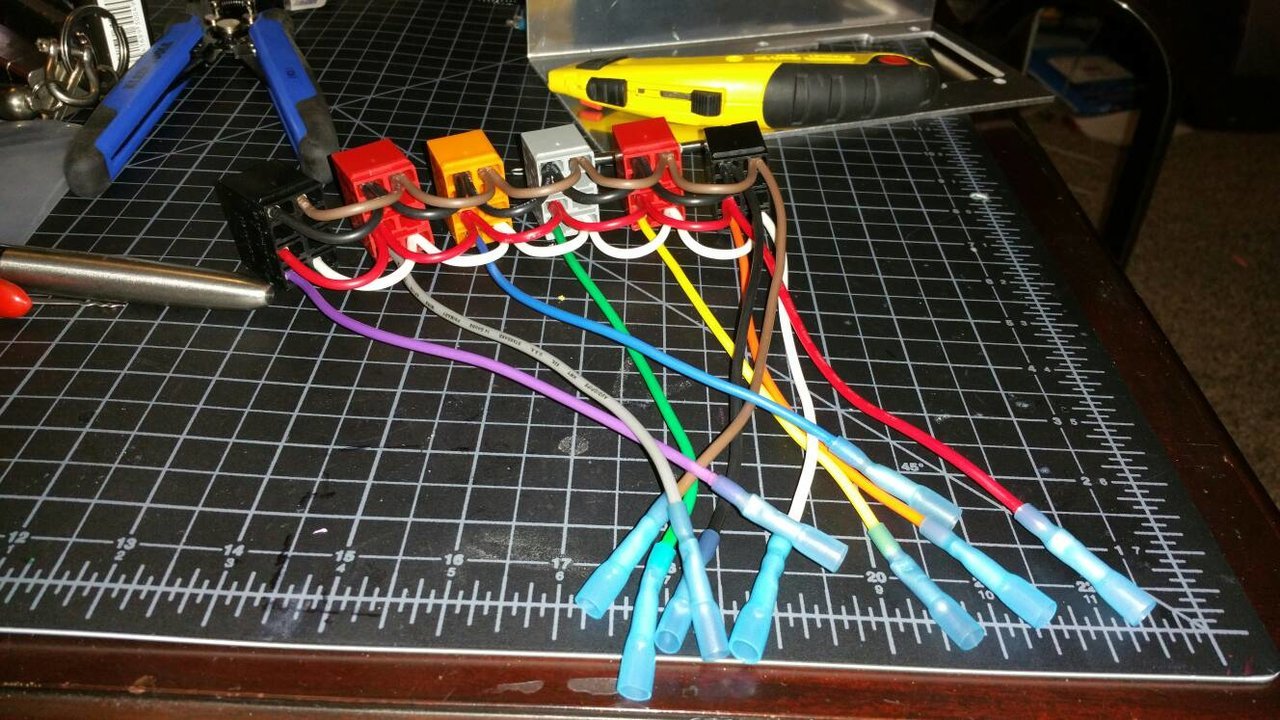

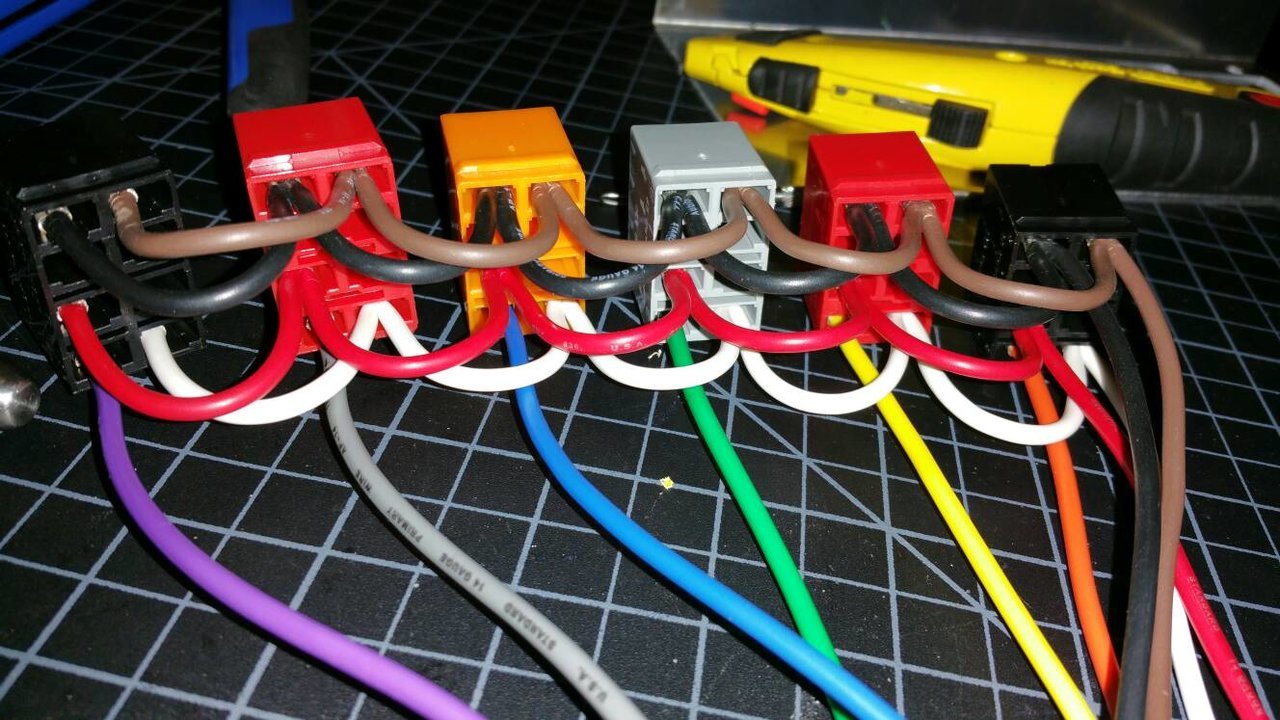

Baby got back?



Now that's a clean wiring setup! Very nice!



Thanks. Its Dane's.



Ive been watching and waiting to pick up one of your boxes for a couple months now. Seems like the long I wait the more and more features you make that I was going to do anyways!

Going to have to get a nice drawing laid out of everything for me one of these days and get in contact with ya skygear. Probably wont order till end of Feb/mid march though since I wouldn't need it till end of April



Skygear,

Just so I've got it in my head right, what are each of the piggybacks for?

Power, ground, ignition and the individual wires go to relays?



I feel left out
ROFL



Awesome. I can only go as far as money allows. I use the profit from the sales towards advancements on these.

Yes. +/-, illumination (+&-), then the relays or accessories. If you want a specific set of switches on all the time or ignition or combination. Just cut the red piggyback for the respective switches. I would start at the end if you are doing that though

Pm me with pp addy. I'll invoice and when the new stock is in from Jim, I'll ship



As usual, sorry iggy. Free bumps though



Hey man, Free bumps are always good .

So if I wanted to wire 6 switches for accessories in the switch panel I ordered from Iggy, I would do exactly how you did on those switches for ignition. So +/- and then one piggybacked to ignition fuse tap and them the respective individual wires would go to relays?

This is why I hate electrical, it's all so confusing lol.



Better yet, can I just order that exact set of switch backs, already wired, from you. LoL



EXACTLY!

Yes, You could. Everything is color coded so there is no confusion from the wire aspect. If it is one of my boxes, the wire color will match right up to the corresponding one in the harness.

Saves time and aggravation.



Damnit Man, you're just gonna take all my monies, aren't you?



no, I help people invest in the proper products for our vehicles. In doing so, it helps protect our assets, truck in this case. People just need to balance needs, wants, and aggravation level they are willing to deal with. I like to pride myself in taking the heavier load off your shoulders by building these for everyone. Some configurations can take all day to build. On the larger boxes, there are a potential of 130 terminations to do. Not to mention some of the advanced configs on the harnesses and relays.

Don't forget. I provide support after the fact too. So you can call and tell me you need help and I can walk you through it. I also do remote installs via Video Chat.



No, I hear ya. I'll gladly pay for someone else to do all the switch connections and all that. Hopefully I just install the box, run a couple wires through the firewall and then



Last one and I'll stop messing about in this thread. A suggestion though Iggy. I would get a price on 50 cut for you. Retail them since it seems there is plenty of interest.

I can even seal the backs with Hot Glue to waterproof and add rigidity to the connectors. In cab might be unnecessary, just an option though



Skittles Mod: Taste the Rainbow!...



inbound



Skygear...I want a harness!

PM inbound.
