Switch Pros 9100 install and BS thread

Discussion in '3rd Gen. Tacomas (2016+)' started by PNWTacoma, Feb 16, 2018.

  1. Feb 16, 2018 at 7:07 AM
    #1
    PNWTacoma

    PNWTacoma [OP] Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207197
    Messages:
    1,155
    First Name:
    Paul
    PDX
    Vehicle:
    2017 Toyota Tacoma TRD OR DCLB
    PNW Adventures on Kings, SCS F5 on BFG KM3 315/75/16
    Thought I'd start a Switch Pro's 9100 thread specifically for Gen 3 owners since information is scattered in various forums and not necessarily applicable for 2016+ Tacomas.

    First of all, how different is the 9100 vs the 8100?

    The 9100 systems now Include:

    -Dimming for lighting outputs
    -External trigger to activate up to 2 outputs
    -Battery Voltage display on app screen
    -RGB backlighting to match your dash colors
    -Switches 1-4 are 18 amps each
    -Switches 5-8 are 35 amps each (by combining two 17a wires to make 35a)

    What is a Switch Pros 9100? See Overview of Switch Pros 9100 by SDHQ

    Carryover Gen 3 SP 8100 user thread started by @Joethebugman
    Switch Pros user questions

    So what can you do with the trigger wires?
    Trigger wires are used for and external input to activate an output. Example: connect a trigger wire connected to the high beams. This will activate lights such as a rooftop bar and ditch lights when highbeams are on.

    Another common application is to tie into the reverse signal, which can trigger some rear facing lights and pods.

    On the 9100 system, there are two trigger wires, which can trigger up to four outputs each.

    Easy add-a-circuit to get you going
    Don't know where to tap the ignition and lighting wires? (Courtesy of user @TAF_Taco )

    Last edited: Feb 16, 2018
  2. Feb 16, 2018 at 7:08 AM
    #2
    PNWTacoma

    PNWTacoma [OP] Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207197
    Messages:
    1,155
    First Name:
    Paul
    PDX
    Vehicle:
    2017 Toyota Tacoma TRD OR DCLB
    PNW Adventures on Kings, SCS F5 on BFG KM3 315/75/16
    ARB CKMA12 wiring harness specific questions:

    So, for those hooking up an ARB Compressor, a harness is available to plug right into the ARB wiring harness. Available here - http://store.switchpros.com/quick-connect-harness-for-arb-compressors/

    As for me, I'm only using the compressor for air only and not using it for lockers since I have an eLocker in the rear.

    Last edited: Oct 19, 2018
    The_Black_Pearl and KTJO 4x4 like this.
  3. Feb 16, 2018 at 7:28 AM
    #3
    Hextall

    Hextall Well-Known Member

    Joined:
    Apr 4, 2017
    Member:
    #215330
    Messages:
    807
    NH
    Vehicle:
    17 Inferno OR DCSB
    While there are two trigger wires, the instructions call for wiring one of the two (white wire) into a circuit that comes on when the headlights come on so that the switch panel dims. Right?

    has anyway made custom labels?

    Last edited: Feb 16, 2018
  4. Feb 16, 2018 at 7:35 AM
    #4
    PNWTacoma

    PNWTacoma [OP] Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207197
    Messages:
    1,155
    First Name:
    Paul
    PDX
    Vehicle:
    2017 Toyota Tacoma TRD OR DCLB
    PNW Adventures on Kings, SCS F5 on BFG KM3 315/75/16
    Correction on the trigger wire. You're referring to the "Lights Input/T2, White Wire." This one senses headlight input and dims your backlighting.

    As for the trigger wire (pink), I haven't tapped mine yet, but intend to hookup trigger 1 to my highlights so that my lightbar comes on automatically when I switch on the high beam. I was also planning on hooking up trigger 2 to a reverse light for my rigid ignite that I plan on installing for the rear bumper. Another option is to tap into your dome light so as to switch on you rock lights when you unlock/lock or open your door. I'd love to hear other ideas since the trigger function is new for the 9100 systems.

    Not sure if custom labels are made/available yet. If anyone knows, please chime in.

    Parker315 and KTJO 4x4 like this.
  5. Feb 16, 2018 at 12:47 PM
    #5
    KTJO 4x4

    KTJO 4x4 Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    2,822
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    These are the three locations I am looking to tap into. I will most likely since there are only two trigger wires and not three, tap into my high beams and reverse lights. Then I will tap into my dome light directly with my Rock Lights. One trigger will hookup to my Squadrons on my Roof Rack and my Ditch Lights. Then the second trigger will hookup to my Flush mounted S2s in my Rear Bumper and my Chase Lights. Only problem with this feature that I can think of is if I’m backing up in say a mall parking lot, all those lights come on, could be a bit much. However, it would be extremely nice to have when you are out in the middle of nowhere.

    PNWTacoma [OP] likes this.
  6. Feb 16, 2018 at 1:20 PM
    #6
    wafersmith

    wafersmith Well-Known Member

    Joined:
    Aug 11, 2017
    Member:
    #226589
    Messages:
    46
    First Name:
    Brian
    Vehicle:
    2017 TRD OFFROAD
    Many
    Mine is on the way! Thanks for starting this thread.

    PNWTacoma [OP] likes this.
  7. Feb 17, 2018 at 1:57 PM
    #7
    mww982

    mww982 Well-Known Member

    Joined:
    Jul 24, 2017
    Member:
    #224868
    Messages:
    127
    Gender:
    Male
    First Name:
    Michael
    DFW
    Vehicle:
    2017 White TRD Offroad DCLB
    TRD Pro Grille Hondo Radio Nobs Black Bumper Caps ARE Camper Top -Full OME lift kit -Huskliner Floor Mats
    Mine was installed today and cannot get it to connect to the apple app....any ideas?

  8. Feb 17, 2018 at 3:24 PM
    #8
    PNWTacoma

    PNWTacoma [OP] Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207197
    Messages:
    1,155
    First Name:
    Paul
    PDX
    Vehicle:
    2017 Toyota Tacoma TRD OR DCLB
    PNW Adventures on Kings, SCS F5 on BFG KM3 315/75/16
    Ensure Bluetooth is on

  9. Feb 17, 2018 at 5:32 PM
    #9
    YOTA 4X4

    YOTA 4X4 Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242780
    Messages:
    1,423
    Gender:
    Male
    Vehicle:
    2017 Double Cab Off-Road
    OME HD Lift all around, SCS SR8 Rims, 255 85 R16 Cooper ST Maxx, Decked Drawers, 30" Rigid Pro Light bar above bumper on Rago Mounts, Rigid Dually Side Shooters on Rago ditch brackets, Hondo Garage Un-Holey Phone Mount X2, Hondo Radio Knobs AR Bolt Face, Garmin InReach SE GPS synch'ed to Iphone for GPS only mapping, Wet Okole Seat Covers, Husky Liner Contour floor mats, 63 QT ARB Fridge on Alu-Cab tilting slide. GoFastCamper (#41), ARB 2500 Awning with Full Room, Mobtown Off-road Sliders and Full Aluminum Skids.
    Following, 9100 is on my shortlist. Won’t be taking full advantage right away but seems like the way to start off right. Adding ditch lights/ hidden 30” SR bar, and than who knows right?

    IronPeak likes this.
  10. Feb 17, 2018 at 5:42 PM
    #10
    mww982

    mww982 Well-Known Member

    Joined:
    Jul 24, 2017
    Member:
    #224868
    Messages:
    127
    Gender:
    Male
    First Name:
    Michael
    DFW
    Vehicle:
    2017 White TRD Offroad DCLB
    TRD Pro Grille Hondo Radio Nobs Black Bumper Caps ARE Camper Top -Full OME lift kit -Huskliner Floor Mats
    Ok, got the APP figured out now. Was playing around with it and the panel lights will not go off, will they go in to sleep mode after a while or does is it supposed to stay illuminated all the time?

  11. Feb 17, 2018 at 5:58 PM
    #11
    PNWTacoma

    PNWTacoma [OP] Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207197
    Messages:
    1,155
    First Name:
    Paul
    PDX
    Vehicle:
    2017 Toyota Tacoma TRD OR DCLB
    PNW Adventures on Kings, SCS F5 on BFG KM3 315/75/16
    It will stay illuminated as long as there is power supplied to the ignition wire. Is your lights staying on after you shut off the truck?

  12. Feb 17, 2018 at 6:03 PM
    #12
    mww982

    mww982 Well-Known Member

    Joined:
    Jul 24, 2017
    Member:
    #224868
    Messages:
    127
    Gender:
    Male
    First Name:
    Michael
    DFW
    Vehicle:
    2017 White TRD Offroad DCLB
    TRD Pro Grille Hondo Radio Nobs Black Bumper Caps ARE Camper Top -Full OME lift kit -Huskliner Floor Mats
    Yes it is, however the switches will not turn on any of the accessories that are hooked up to it.

  13. Feb 17, 2018 at 10:38 PM
    #13
    PNWTacoma

    PNWTacoma [OP] Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207197
    Messages:
    1,155
    First Name:
    Paul
    PDX
    Vehicle:
    2017 Toyota Tacoma TRD OR DCLB
    PNW Adventures on Kings, SCS F5 on BFG KM3 315/75/16
    Something doesn’t sound right. Can you take a pic of where you tapped your ignition wire into? Are your power and ground connections direct to the battery?

  14. Feb 17, 2018 at 11:02 PM
    #14
    mww982

    mww982 Well-Known Member

    Joined:
    Jul 24, 2017
    Member:
    #224868
    Messages:
    127
    Gender:
    Male
    First Name:
    Michael
    DFW
    Vehicle:
    2017 White TRD Offroad DCLB
    TRD Pro Grille Hondo Radio Nobs Black Bumper Caps ARE Camper Top -Full OME lift kit -Huskliner Floor Mats
    I had my shop install it while they were doing some other stuff to the truck. When the truck is running all the accessories work fine. When the truck is off the back light is on. When I play with the headlights the backlight gets brighter when the lights are on and dimmer when they are off. With the accessory switch on it he truck is on the back light turns off when the headlights are turned off and turns on when I turn the headlights off. Sounds like they wired something backwards. Will take it back up to them on Monday.

  15. Feb 18, 2018 at 12:00 AM
    #15
    Doc V

    Doc V Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176743
    Messages:
    90
    Gender:
    Male
    Caldwell, ID
    Vehicle:
    2013 Tacoma Double Cab Short Box
    Rear seat 12V Outlets Streamlight Flashlight Install Remote Start Bed lights Amber emergency lighting Aries Grille Guard ARE topper with ski-rack USB power point
    Sounds like they wired your ignition and light wires backwards.

    PNWTacoma [OP] likes this.
  16. Feb 18, 2018 at 10:07 AM
    #16
    PNWTacoma

    PNWTacoma [OP] Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207197
    Messages:
    1,155
    First Name:
    Paul
    PDX
    Vehicle:
    2017 Toyota Tacoma TRD OR DCLB
    PNW Adventures on Kings, SCS F5 on BFG KM3 315/75/16
    Agree. If your shop doesn't correct the issue, give @switch-pros a call at 949.581.2991. Ask for Robert or Laura.

  17. Feb 18, 2018 at 10:52 AM
    #17
    mww982

    mww982 Well-Known Member

    Joined:
    Jul 24, 2017
    Member:
    #224868
    Messages:
    127
    Gender:
    Male
    First Name:
    Michael
    DFW
    Vehicle:
    2017 White TRD Offroad DCLB
    TRD Pro Grille Hondo Radio Nobs Black Bumper Caps ARE Camper Top -Full OME lift kit -Huskliner Floor Mats
    So the blue wire is plugged in to the IG1 No. 2 fuse (Top Black Circle) The white wire is currently plugged in the to dome fuse (bottom black circle). I did that so it would turn off when the truck was off. The shop had the white wire plugged in the Tail fuse (top red circle). Pictures for reference.

    IMG_0570.jpg IMG_0571.jpg

    PNWTacoma [OP] likes this.
  18. Feb 27, 2018 at 6:14 AM
    #18
    TAF_Taco

    TAF_Taco Well-Known Member

    Joined:
    Oct 6, 2017
    Member:
    #232160
    Messages:
    133
    Gender:
    Male
    First Name:
    Patrick
    Lacey, Wa.
    Vehicle:
    17 TRD Sport Access Cab
    17" Method NV w/BFG KO2 CVT Rainier RCI bed rack Empyre Off Road grille Cali Raised bumper light bar/fogs
    Here's my 9100 setup.
    You can tap into the under hood fuse box for both triggers. White wire to a low beam circuit, and blue to the ignition circuit. I wound up cutting the pink trigger wire, as I don't need it at the moment I left enough to allow me to splice it back in, when needed. 20180209_150754.jpg
    I'm using the Expedition Essentials sunglass holder mount since I don't have fancy crawl control, and the positioning is awesome.

  19. Mar 3, 2018 at 4:54 PM
    #19
    wafersmith

    wafersmith Well-Known Member

    Joined:
    Aug 11, 2017
    Member:
    #226589
    Messages:
    46
    First Name:
    Brian
    Vehicle:
    2017 TRD OFFROAD
    Many

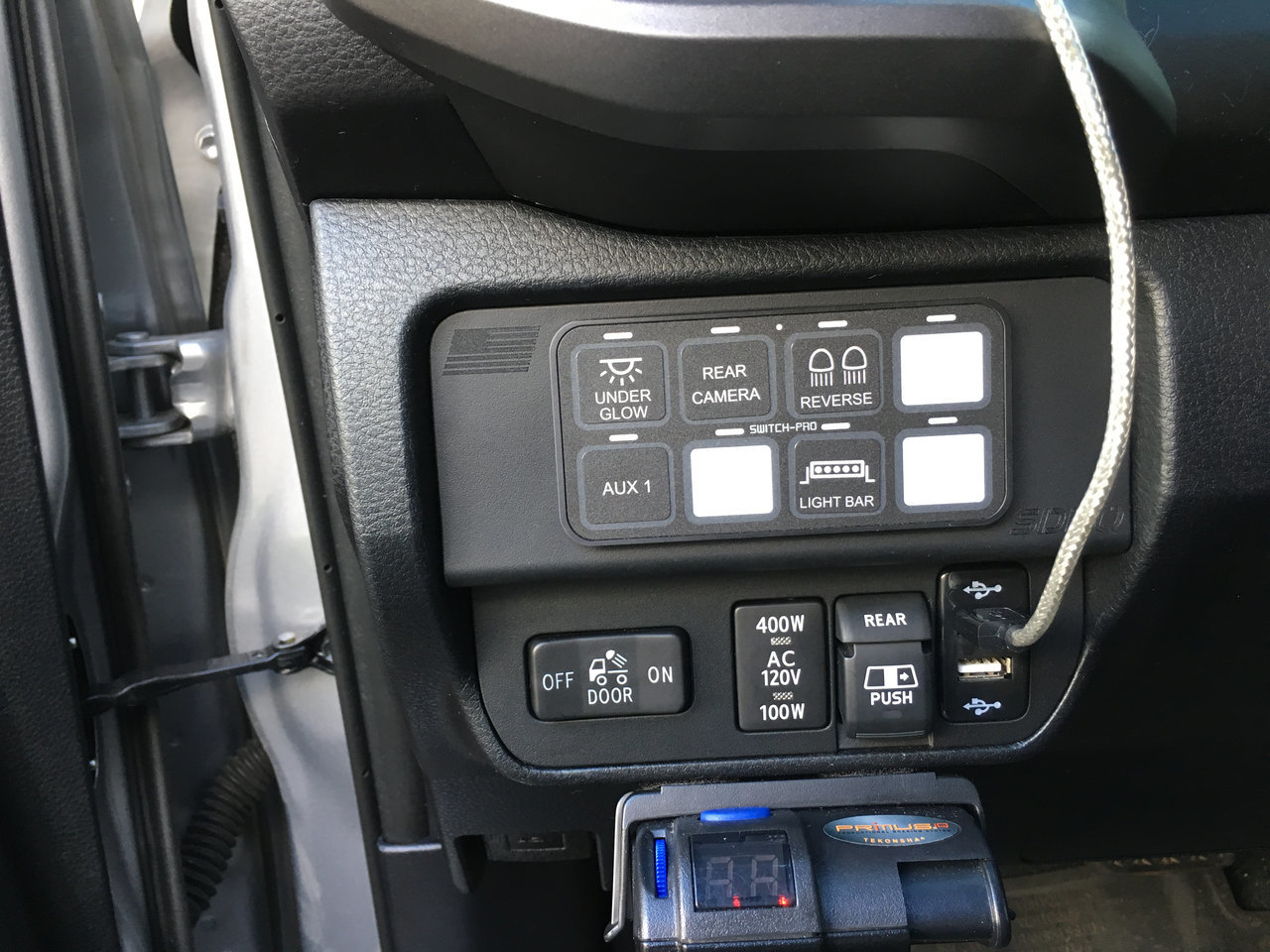

    Here is my setup. Overall, very happy with the switch-pro. Hooked up the anytime backup to it today and the cali-raised led bar in grill yesterday. Have not messed with the second trigger yet. Not sure what I will do with that option.

    Anytime backup camera mod with some extra wire protection added

  20. Mar 3, 2018 at 5:51 PM
    #20
    JSmith501

    JSmith501 Well-Known Member

    Joined:
    Feb 25, 2017
    Member:
    #211608
    Messages:
    130
    Gender:
    Male
    Orange County, CA
    Vehicle:
    2017 Off Road 4x4
    Looks good. Haven't gotten one yet, but will do so sometime this year.

    wafersmith and PNWTacoma [OP] like this.
