Switch wiring to relay harness

Discussion in '4Runners' started by 4runnerInTacoWorld, Feb 14, 2021.

  1. Feb 14, 2021 at 3:58 PM
    #1
    4runnerInTacoWorld

    #1
    4runnerInTacoWorld [OP] Member

    Joined:
    Feb 14, 2021
    Member:
    #356138
    Messages:
    7
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2011 4runner Trail

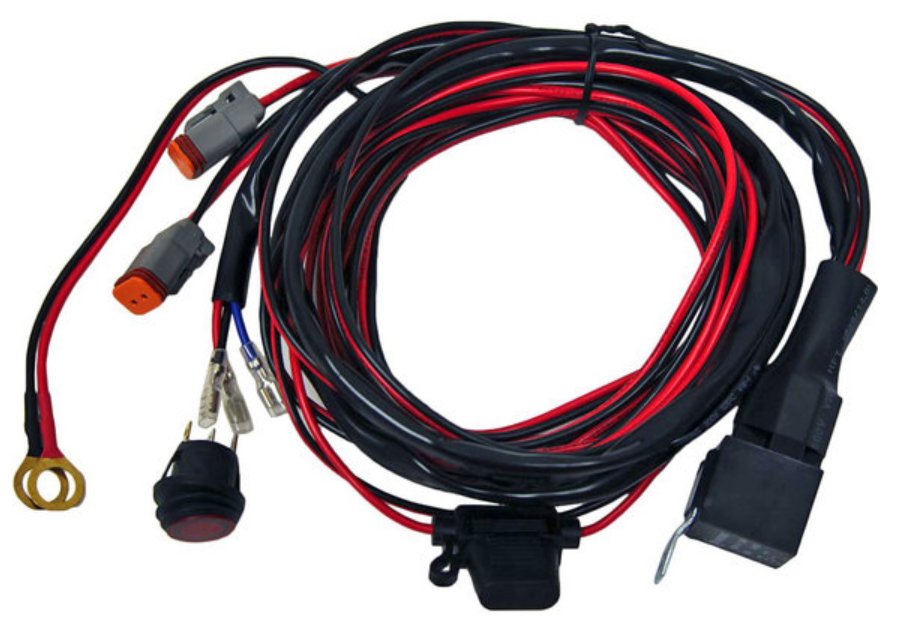

    Could use some help with a wiring problem. I purchased Rigid D-Series Pro lights using a Rigid D-Series and SR-Q Series High Power Wire Harness - 40196, and OEM switch.

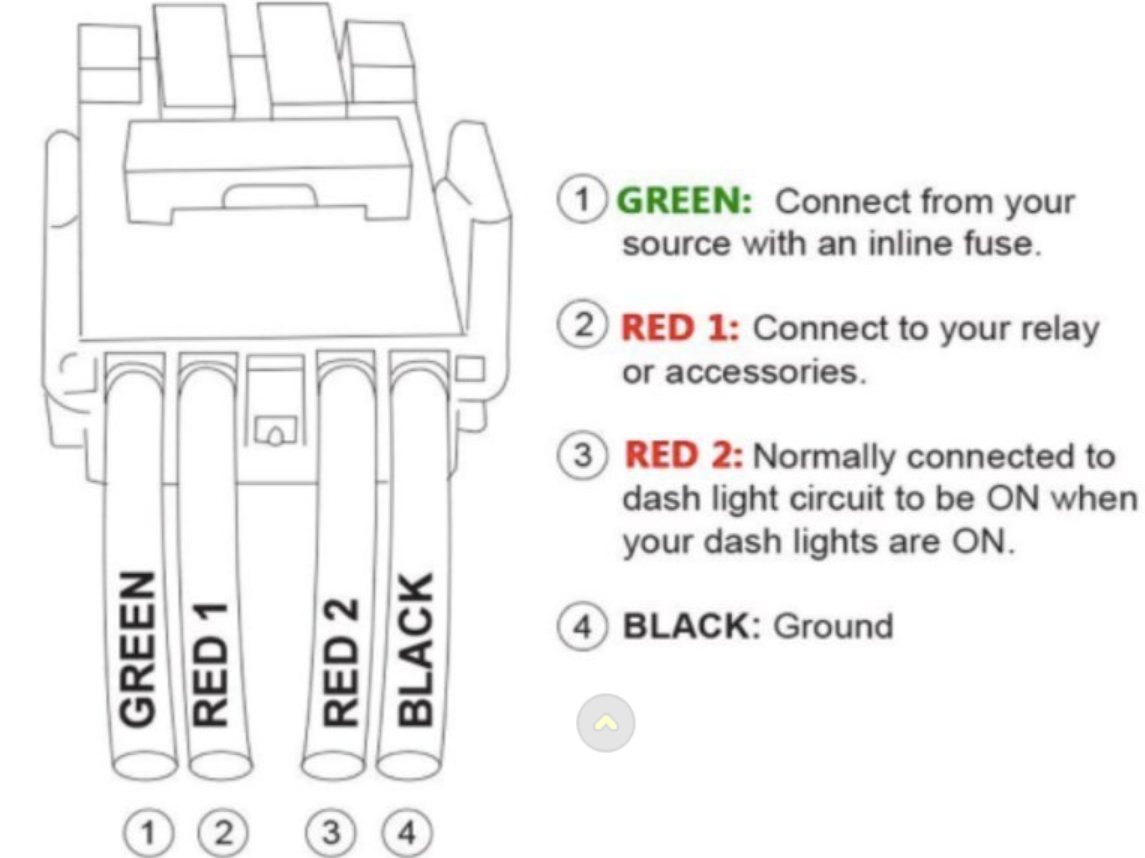

    I have had problems wiring to the switch as per the diagram, I continue to blow fuses.

    I tried switching the connections from the relay to the green wire and the power to the red 1 wire. The fuse hasn't blown but now my switch light is always on. Any advice helps.

    4runnerInTacoWorld, Feb 14, 2021
    #1
  2. Feb 14, 2021 at 4:00 PM
    #2
    VirusCage

    #2
    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,455
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,

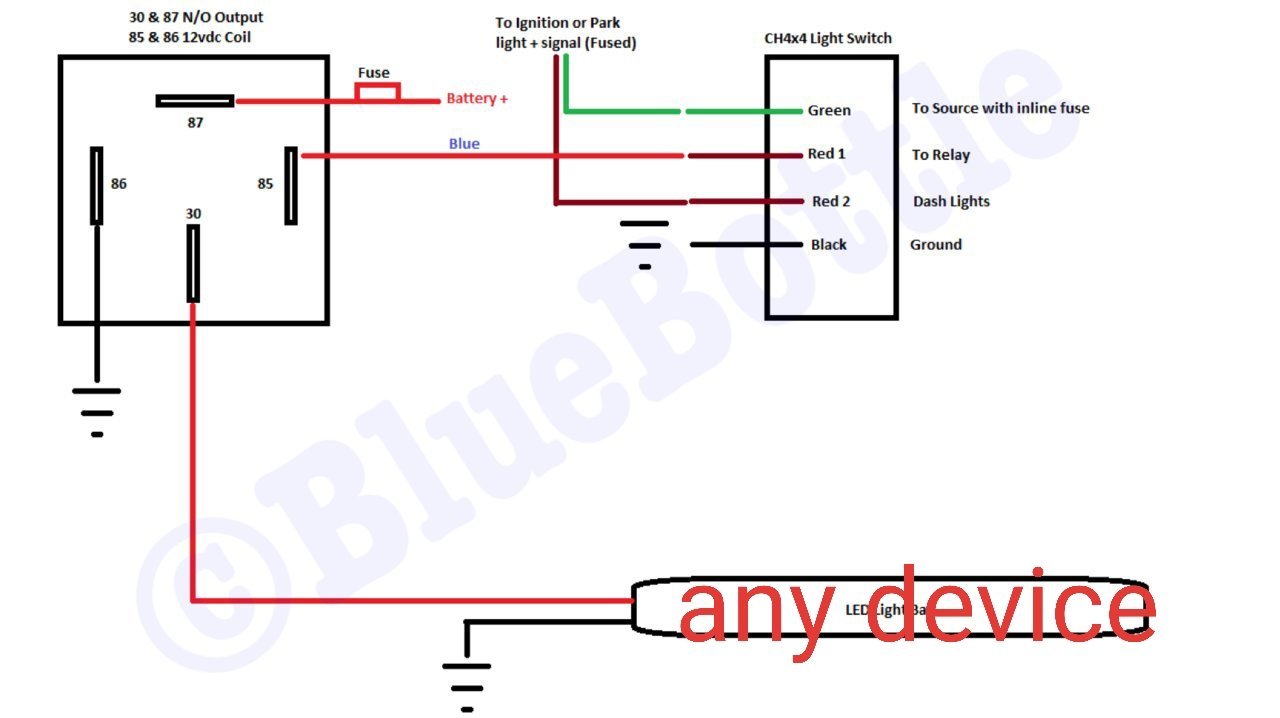

    Does this help?


    VirusCage, Feb 14, 2021
    #2
  3. Feb 14, 2021 at 4:01 PM
    #3
    VirusCage

    #3
    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,455
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    Does your current setup follow the diagram above?

    VirusCage, Feb 14, 2021
    #3
  4. Feb 14, 2021 at 4:08 PM
    #4
    4runnerInTacoWorld

    #4
    4runnerInTacoWorld [OP] Member

    Joined:
    Feb 14, 2021
    Member:
    #356138
    Messages:
    7
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2011 4runner Trail
    Ya green to the power, red 1 to the relay, and right now leaving red 2 unconnected. When I use this set up the fuse keeps blowing not sure why.

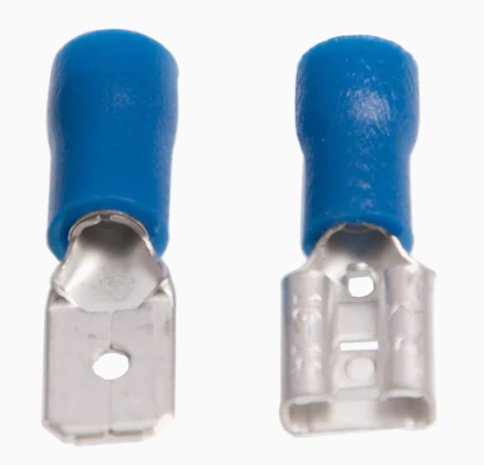

    I've checked for exposed wires on the harness and used these connectors to attach to the harness and switch

    4runnerInTacoWorld, Feb 14, 2021
    #4
  5. Feb 14, 2021 at 4:11 PM
    #5
    VirusCage

    #5
    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,455
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    1. check your harness from the lights and make sure you are hooking in to the right wires
    2. check your grounds on the lights/harness
    3. where is the fuse and how many amps is the one you are blowing?

    VirusCage, Feb 14, 2021
    #5
  6. Feb 14, 2021 at 4:12 PM
    #6
    VirusCage

    #6
    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,455
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    Also I just noticed that you say OEM switch, do you mean an OEM style CH4x4 switch or somewhere in the mix you have an actual oem switch?

    VirusCage, Feb 14, 2021
    #6
  7. Feb 14, 2021 at 4:23 PM
    #7
    4runnerInTacoWorld

    #7
    4runnerInTacoWorld [OP] Member

    Joined:
    Feb 14, 2021
    Member:
    #356138
    Messages:
    7
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2011 4runner Trail

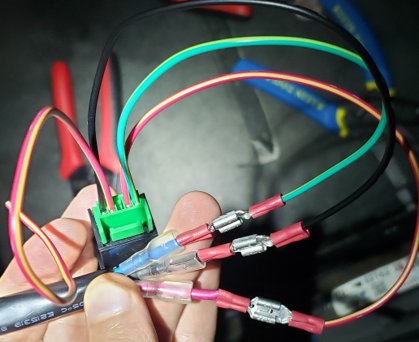

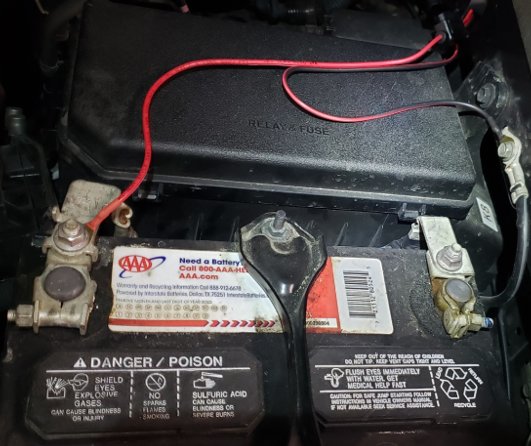

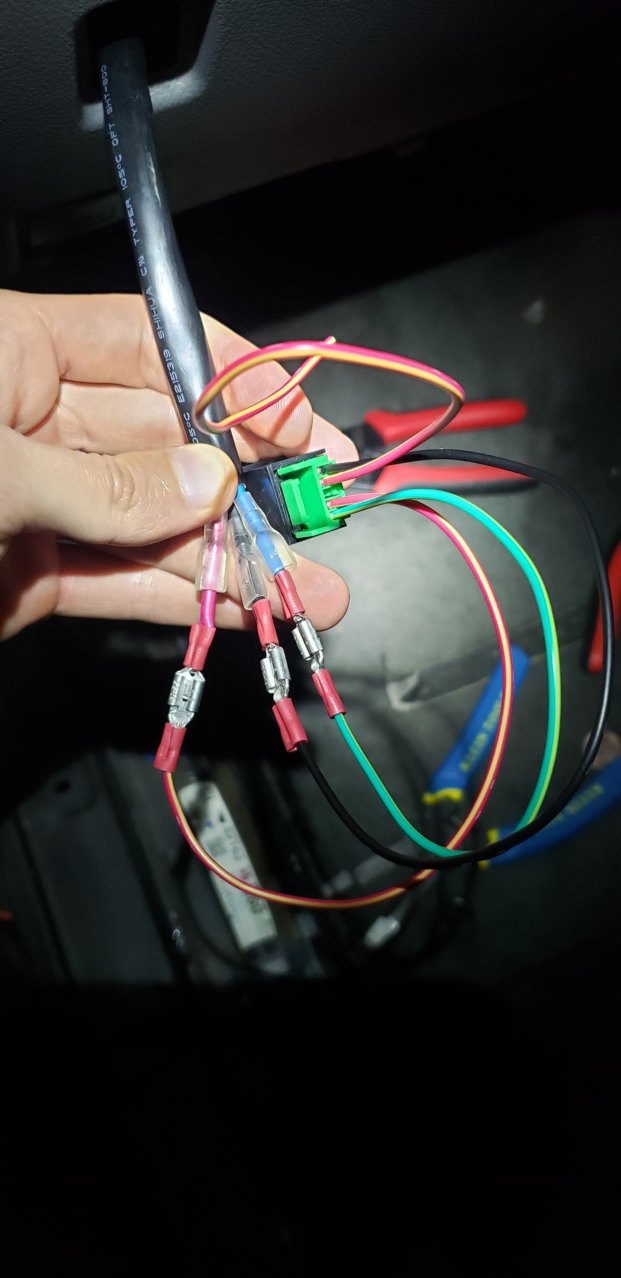

    Attached Files:

    4runnerInTacoWorld, Feb 14, 2021
    #7
  8. Feb 14, 2021 at 4:39 PM
    #8
    VirusCage

    #8
    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,455
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    Which fuse are you popping? your fuse in the provided harness?

    VirusCage, Feb 14, 2021
    #8
  9. Feb 14, 2021 at 4:41 PM
    #9
    4runnerInTacoWorld

    #9
    4runnerInTacoWorld [OP] Member

    Joined:
    Feb 14, 2021
    Member:
    #356138
    Messages:
    7
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2011 4runner Trail
    exactly

    4runnerInTacoWorld, Feb 14, 2021
    #9
  10. Feb 14, 2021 at 4:59 PM
    #10
    VirusCage

    #10
    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,455
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    What amperage is it?

    VirusCage, Feb 14, 2021
    #10
  11. Feb 14, 2021 at 5:06 PM
    #11
    4runnerInTacoWorld

    #11
    4runnerInTacoWorld [OP] Member

    Joined:
    Feb 14, 2021
    Member:
    #356138
    Messages:
    7
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2011 4runner Trail
    15A

    4runnerInTacoWorld, Feb 14, 2021
    #11
  12. Feb 14, 2021 at 5:30 PM
    #12
    VirusCage

    #12
    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,455
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    Are your blade connectors touching each other?, i know silly question. You are insulating them away from each other?
    Checking the specs the normal draw should only be less than 10 amps on them

    VirusCage, Feb 14, 2021
    #12
  13. Feb 14, 2021 at 5:46 PM
    #13
    4runnerInTacoWorld

    #13
    4runnerInTacoWorld [OP] Member

    Joined:
    Feb 14, 2021
    Member:
    #356138
    Messages:
    7
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2011 4runner Trail

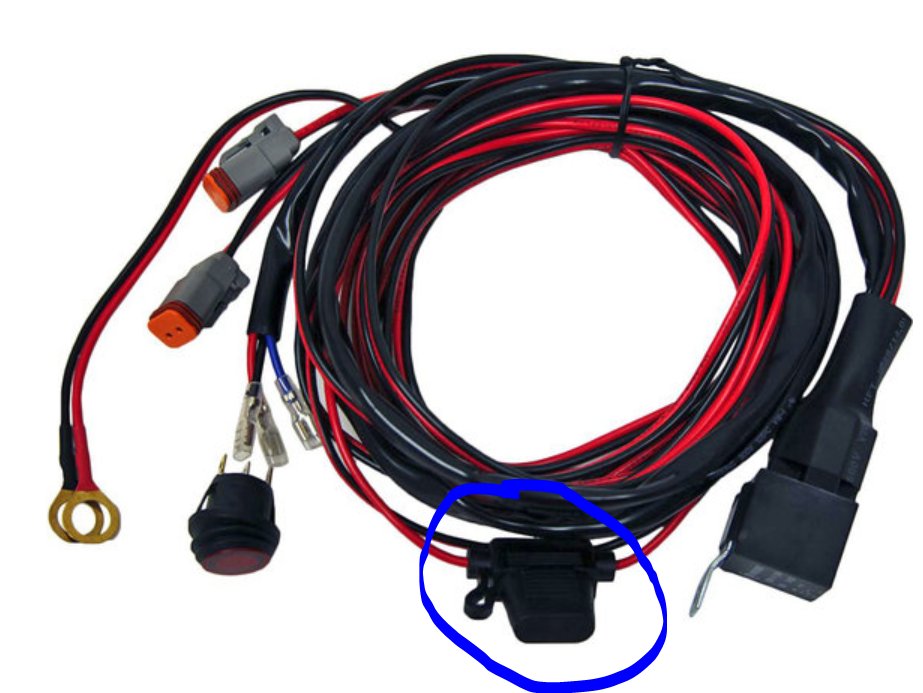

    one blade in the blue circle

    4runnerInTacoWorld, Feb 14, 2021
    #13
  14. Feb 15, 2021 at 3:36 PM
    #14
    VirusCage

    #14
    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,455
    First Name:
    Bruce
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener! Anytime 400watt, inside 110v outlet, BPF Skid plate, BPF shackle mount,
    Any luck?

    VirusCage, Feb 15, 2021
    #14
  15. Feb 17, 2021 at 9:09 PM
    #15
    4runnerInTacoWorld

    #15
    4runnerInTacoWorld [OP] Member

    Joined:
    Feb 14, 2021
    Member:
    #356138
    Messages:
    7
    Gender:
    Male
    First Name:
    Evan
    Vehicle:
    2011 4runner Trail
    Yes idk why but its working now. Thank for all the advice!

    4runnerInTacoWorld, Feb 17, 2021
    #15
  16. Jun 12, 2022 at 9:28 AM
    #16
    denuir

    #16
    denuir Member

    Joined:
    May 30, 2021
    Member:
    #367192
    Messages:
    15
    Gender:
    Male
    I have a question to add to this. I’m running the Rigid D-SS ditch lights to an OEM-like switch, but using this plug and play illumination harness.

    https://caliraisedled.com/products/plug-and-play-switch-illumination-harness

    The Rigid harness includes a relay that sends a ground wire to the switch however, the switch ground wire is already connected to the cargo light through the switch illumination harness. Is it safe to leave the ground wire coming from the relay that’s meant to ground the switch disconnected?

    denuir, Jun 12, 2022
    #16
