T7 Towing Brake T harness info

Discussion in '3rd Gen. Tacomas (2016+)' started by caribe makaira, Oct 1, 2019.

  1. Nov 6, 2020 at 9:57 AM
    #21
    RX1cobra

    RX1cobra Well-Known Member

    Joined:
    May 20, 2019
    Member:
    #293789
    Messages:
    1,064
    Gender:
    Male
    Vehicle:
    19 OR

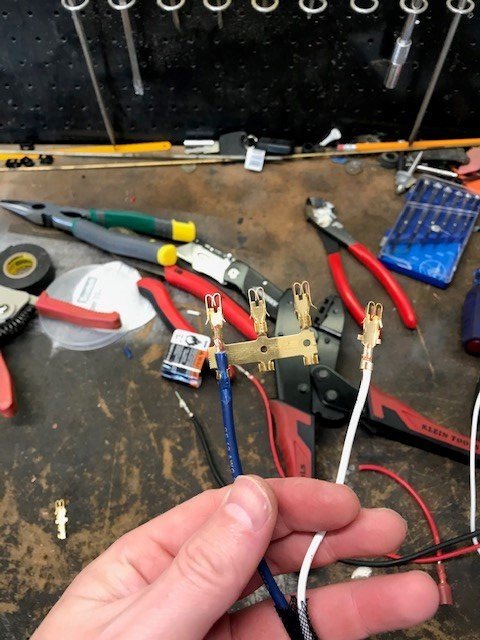

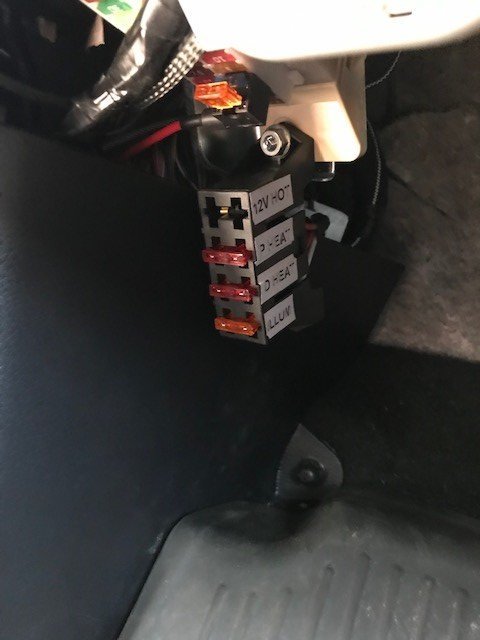

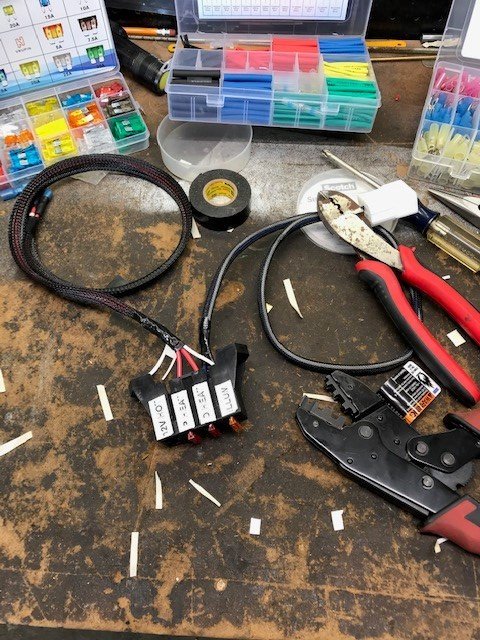

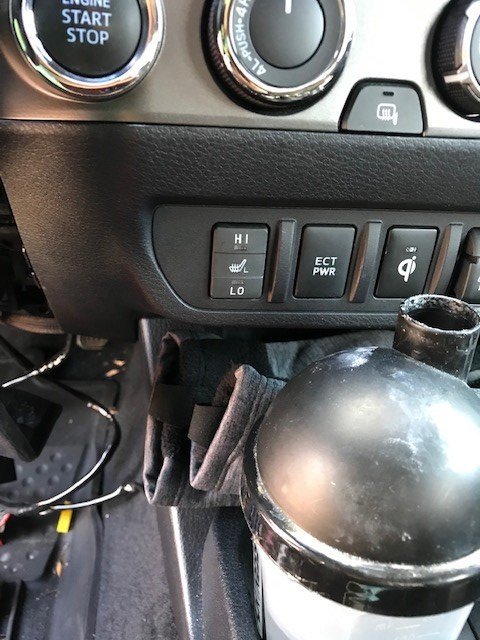

    I finished the install of the heated seats. What a pain the in the ass. Everything worked first try so that was nice. Some pics of how I wired and mounted my fuse panel.

    Edit - Yeah my water bottle is nasty. Mostly chalk from the gym.

    Seats 1.jpg Seats 2.jpg Seats 3.jpg Seats 4.jpg Seats 5.jpg

    daveeasa likes this.
  2. Nov 6, 2020 at 10:10 AM
    #22
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,894
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    [​IMG]
    Why 2 taps? Only the BLUE (#8) is bringing IN the power from the 40A fuse...Illumination?

  3. Nov 6, 2020 at 10:14 AM
    #23
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,296
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    You skipped the last few posts didn't you, @caribe makaira :) Yes, switch illumination (hopefully it's in the right slot).

  4. Nov 6, 2020 at 10:18 AM
    #24
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,296
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT

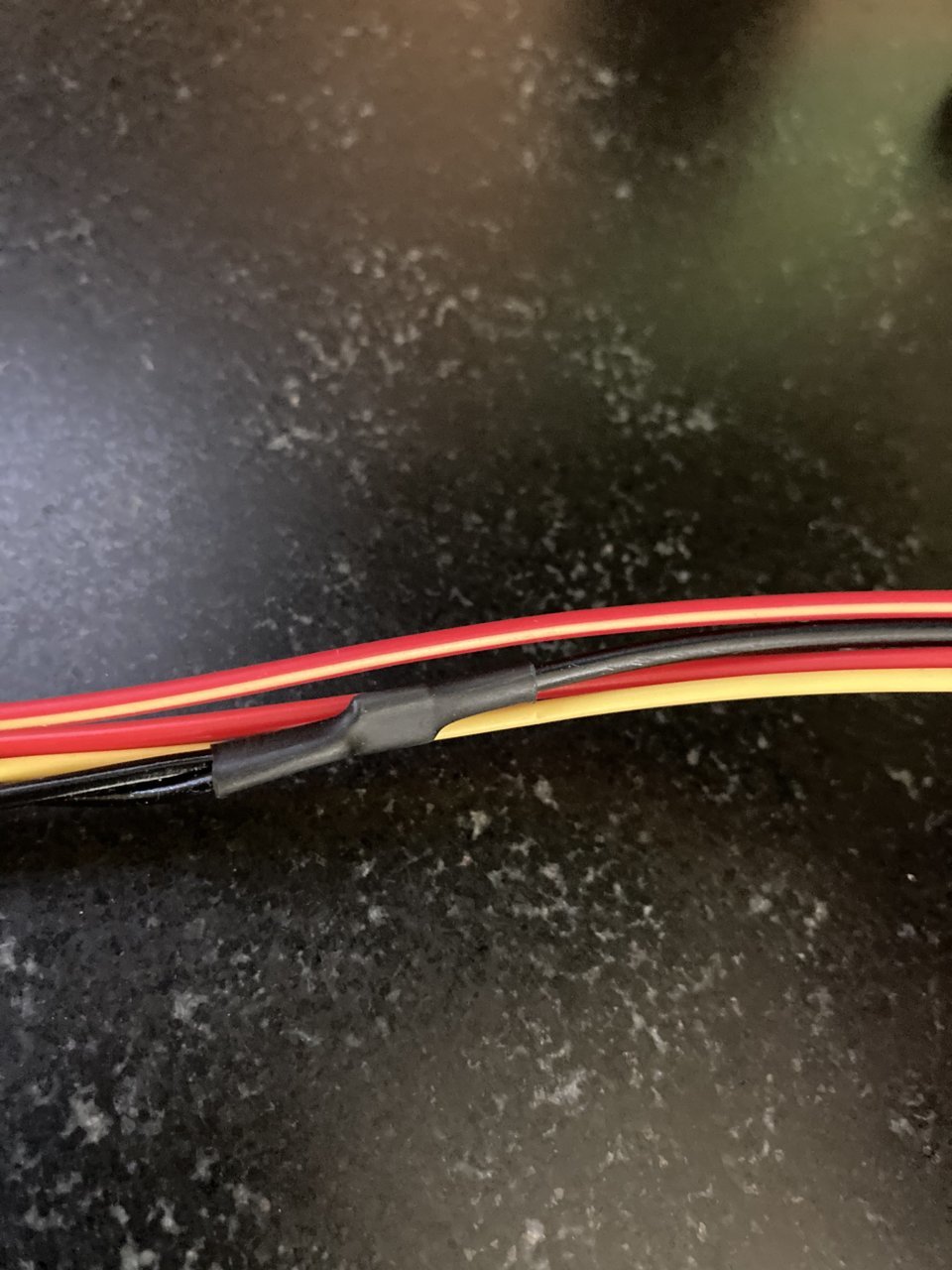

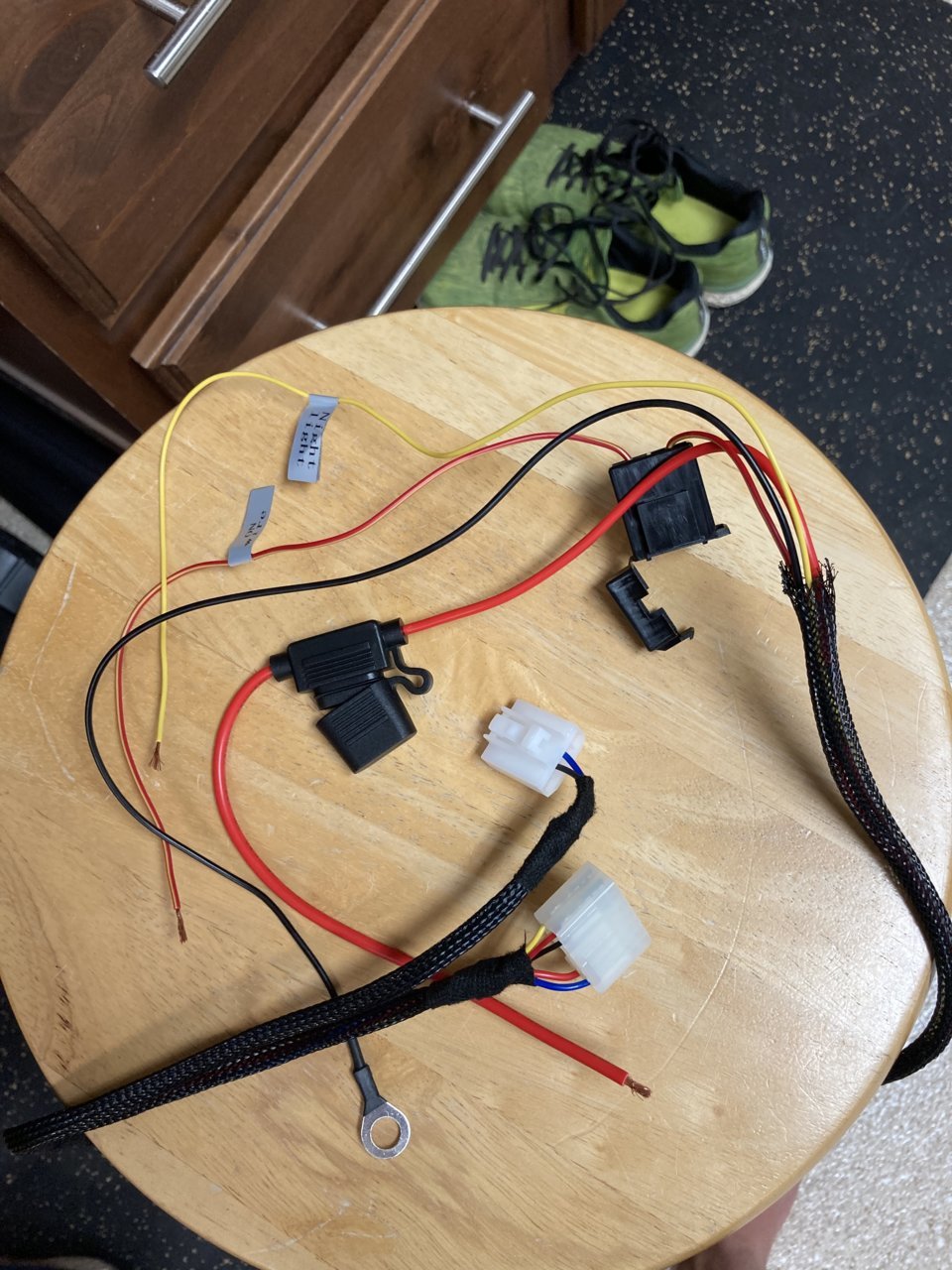

    I’m on the slowest possible plan it seems. I only get a little bit of time here and there due to childcare responsibilities. Currently waiting on a second ground bus bar for those. Then I need to tap my dsim dimmed illumination feed from the A pillar for switch illumination. Hacked up my seat heater wiring harnesses since they had grounds tied together and in-line fuses.


  5. Nov 6, 2020 at 10:21 AM
    #25
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,894
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Mmm--why? You didn't like the illumination wire from the Towing Connector?

  6. Nov 6, 2020 at 10:22 AM
    #26
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,296
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT

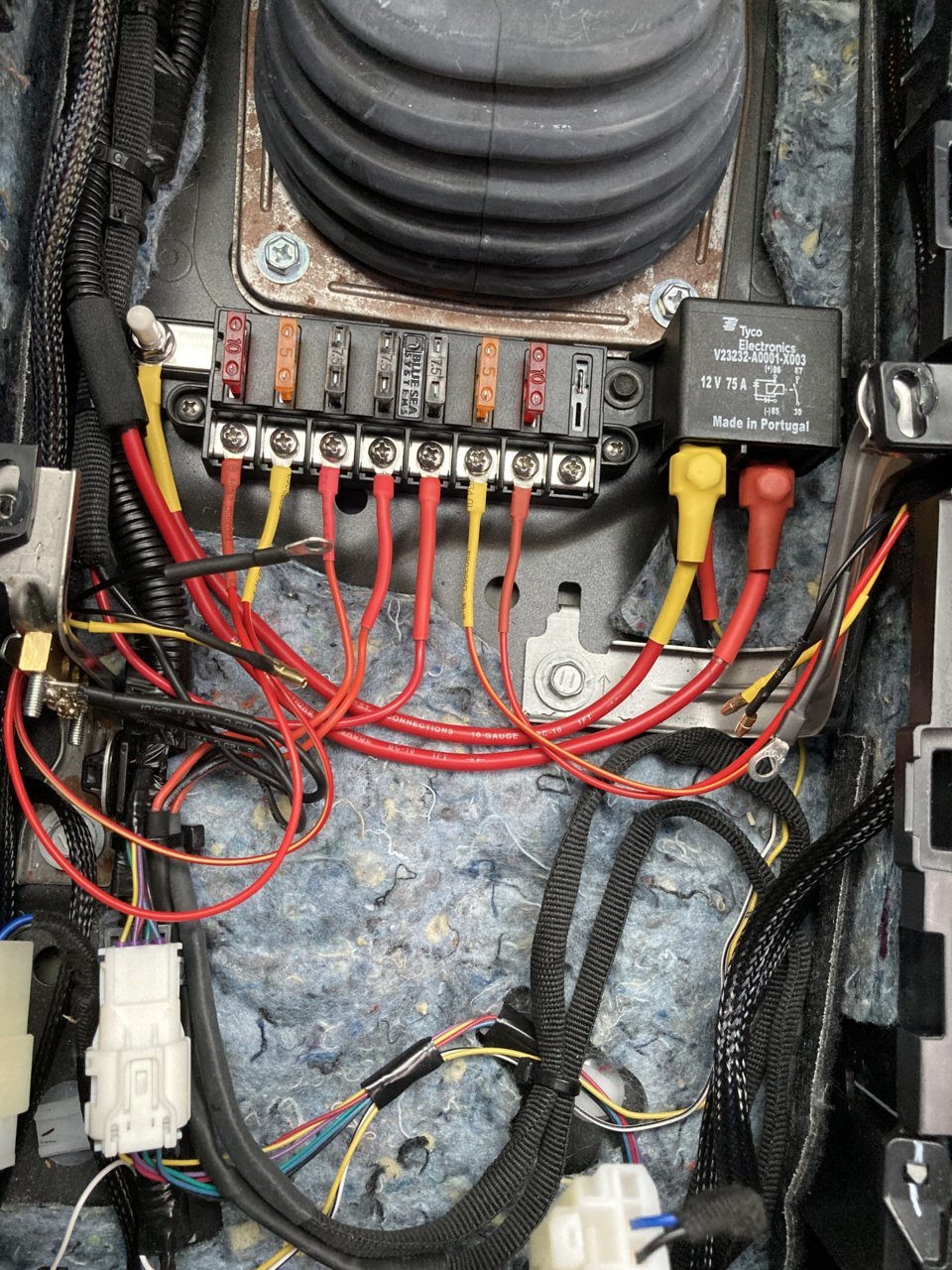

    And technically I'm probably over the 40 amp fuse on the brake controller and my 50 amp maxi fuse at 52.5 amps total combined fused rating but the 5's are for the switches (maybe I go down to 1's or 2's there) and I could drop to 5's for USB power (one blue sea round usb power plug, two toyota oem usb outlets). Maybe this is a good time to do that.

    My switches are a little different, a dial which goes down/up vs the low/high rocker but otherwise the same basic thing.

  7. Nov 6, 2020 at 10:27 AM
    #27
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,296
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    No tan (dimmed ground). If I'm taking the time to run illumination from the kick panel I'm going to do it with a dimmed ground as well.
    I assume there's no difference/benefit on the parking light feed between trailer brake controller and A pillar DSIM harness tap?

  8. Nov 6, 2020 at 10:29 AM
    #28
    caribe makaira

    caribe makaira [OP] Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,894
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Nope just that there's no beige dimming as you mentioned.
    The nearest illumination and dimming wire could be the Cargo Lamp switch...

  9. Nov 6, 2020 at 10:33 AM
    #29
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,296
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Oh yeah, any details on the heater pads themselves? At this point I'm thinking I'll wait and do them with clazzios sometime next year, but if it isn't so bad under the factory cloth I could be convinced to try that part. For now I just have the harness feed coming out under the seat.

    Nice install!

  10. Nov 9, 2020 at 11:45 AM
    #30
    RX1cobra

    RX1cobra Well-Known Member

    Joined:
    May 20, 2019
    Member:
    #293789
    Messages:
    1,064
    Gender:
    Male
    Vehicle:
    19 OR
    Taking off the covers and putting them back on is a pain in the ass. It's not hard its just time consuming. They work great under the seats but if I had to do it again I might splurge for the heated Clazzios and be done with it.

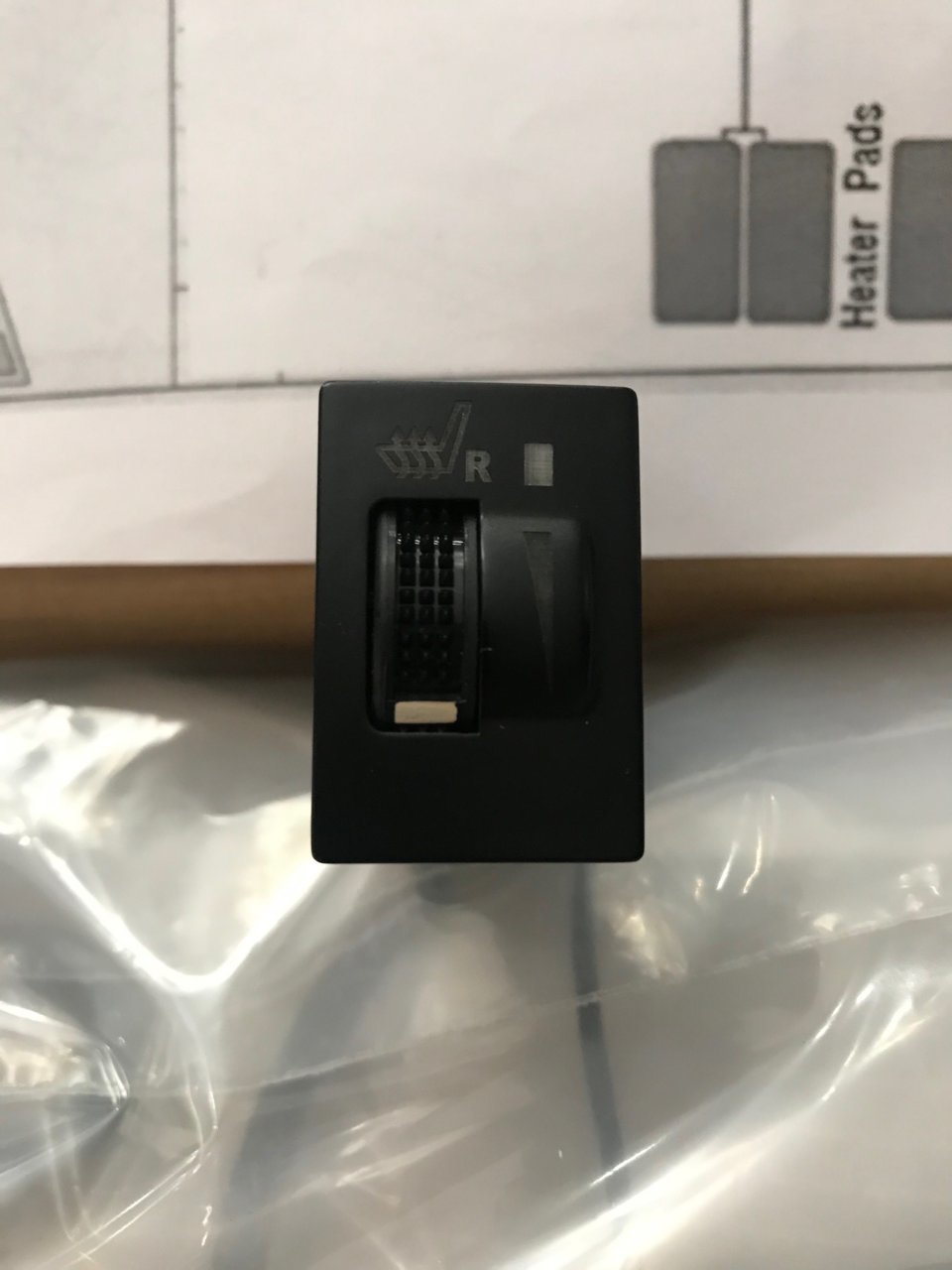

    Do you have these switches? This is what I bought originally but they light up green and don't look as factory to me. So I bought another kit with the rocker style switch since to me it looks more factory. Still have the dial set. Got them from Amazon warehouse for like 20 bucks...

    Seats 6.jpg

  11. Nov 9, 2020 at 11:49 AM
    #31
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,296
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Yeah, those are the ones I have. Darn you for making me re-think that plan :) I'd imagine the rocker style harness is different too...

    I wonder if it'd be possible to swap out the LED or put some film on it, though green to blue doesn't seem like something which would be easy with a tint.

  12. Nov 9, 2020 at 11:50 AM
    #32
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,296
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Oh, and you can get the clazios with the heater pads pre-installed? That could save some time.

    EDIT: Re-checked and their heated options seem like add on kits so don't see how they differ?

  13. Nov 9, 2020 at 12:59 PM
    #33
    RX1cobra

    RX1cobra Well-Known Member

    Joined:
    May 20, 2019
    Member:
    #293789
    Messages:
    1,064
    Gender:
    Male
    Vehicle:
    19 OR
    Funny enough I bought some blue headlight tint for exactly that reason. I was going to try to put it over the LED to turn it blue before I decided to just get the other kit. And yeah, the harness is different. It has 2 relays instead of that little controller box. And to be honest it looks much better made. Thicker wire gauge and better covered.

    You add the heat elements to the inside of the new covers that you slip on. So no reason to take the stock seat covers off with the Clazzio.
